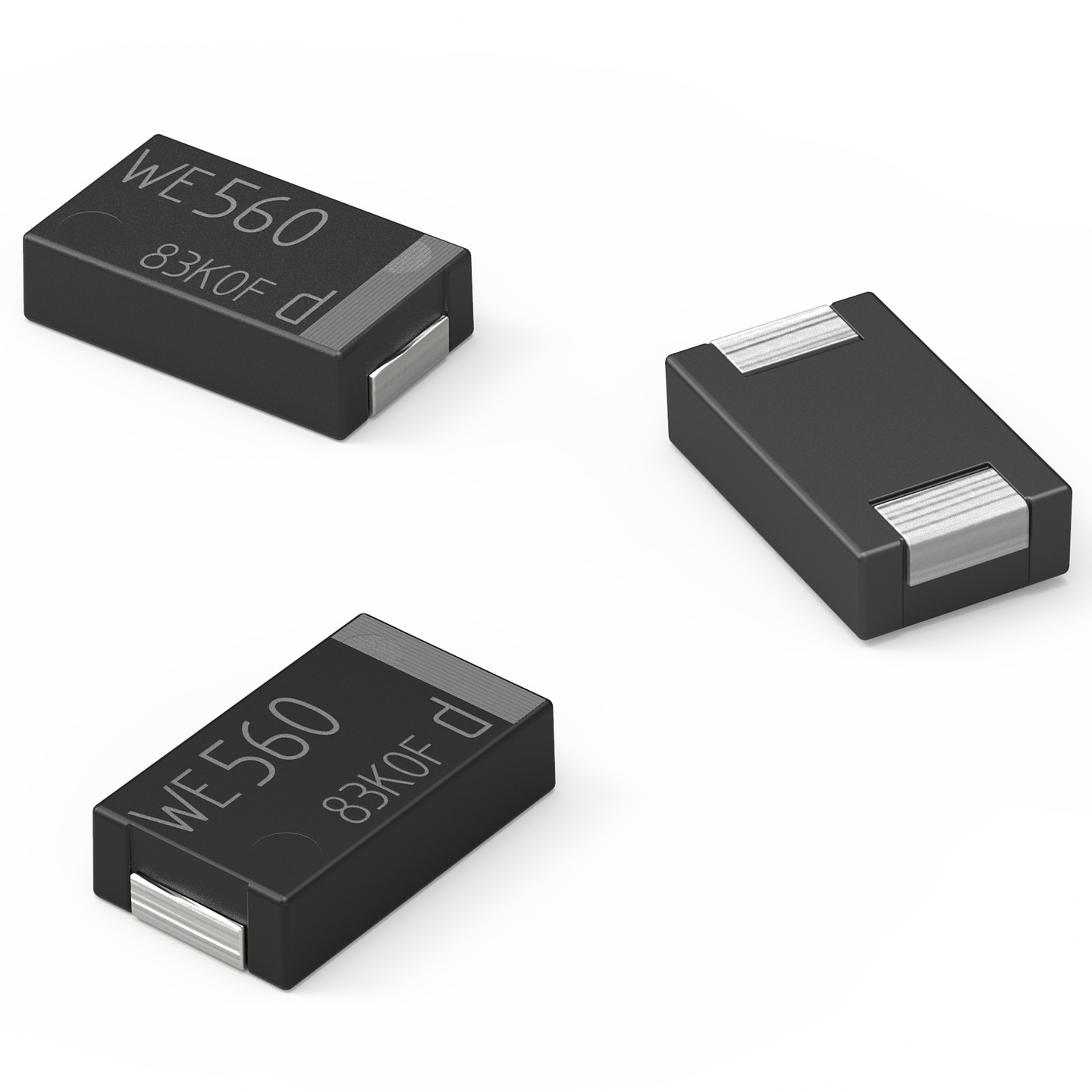

WCAP-PHLE Aluminum Polymer Capacitors

LTSpice files

LT
LTSpice_WCAP-PHLE (rev22a).zip
|
2 KB

Characteristics

Low ESR product series
High ripple current capability
Low profile
Mounting style: H-Chip SMT
Capacitance range: 100 µF ‒ 560 µF
Capacitance tolerance: ±20 %
Voltage range (UR): 2 ‒ 6.3 V(DC)
Operating temperature: -55 °C up to +105 °C
Endurance: 2000h @ +105 °C

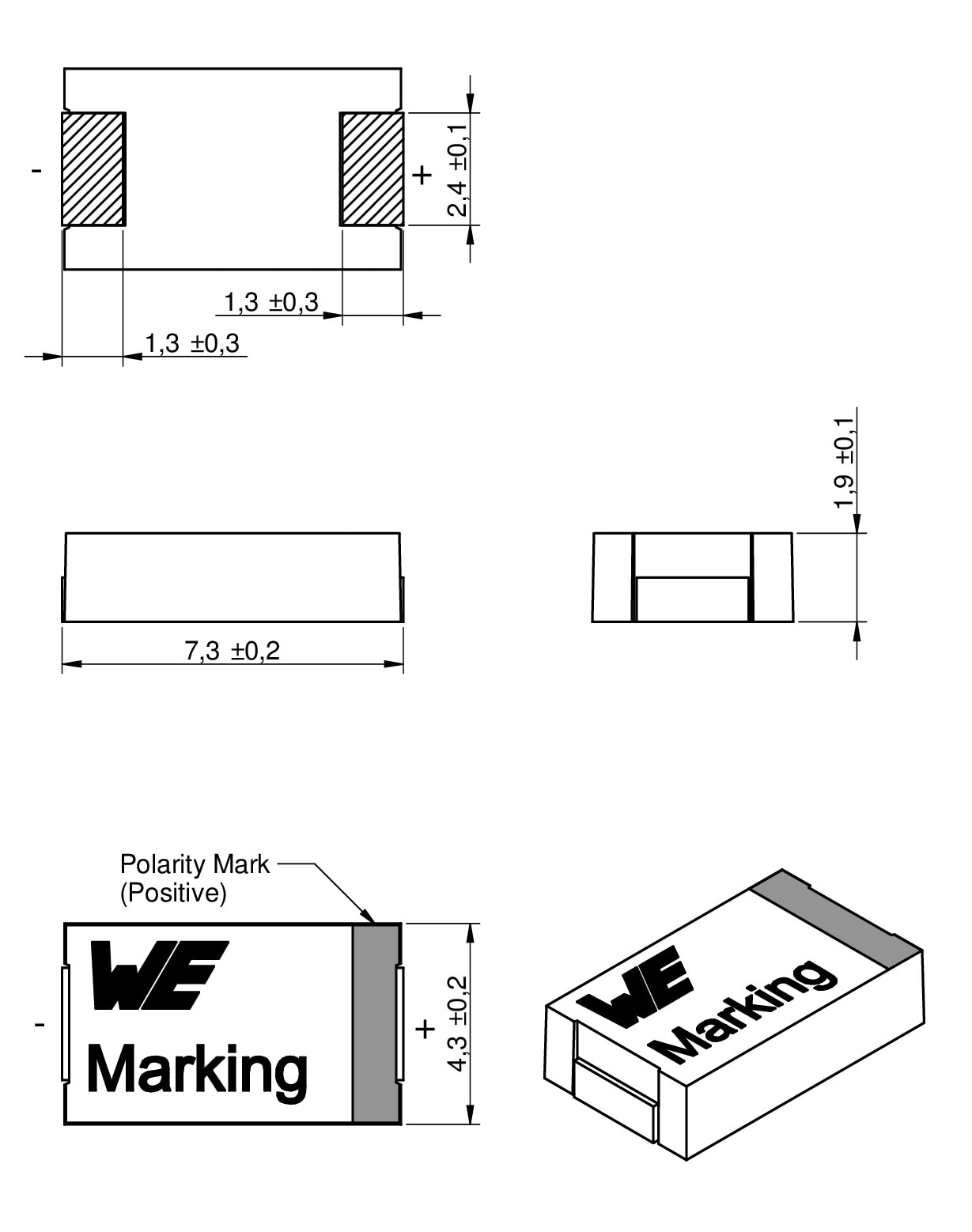

Dimensions (LxWxH) in mm: 7.3 x 4.3 x 1.9
Recommended soldering: Reflow soldering

Applications

Noise suppression
Input and output capacitor for DC/DC converter
e.g. USB charger, smart meter, power bank, server, SSD

Application Notes

Products

Order Code	Datasheet	Downloads	Status	C	V_R (V (DC))	Endurance (h)	Operating Temperature	I_RIPPLE (mA)	R_ESR (mΩ)	I_Leak (µA)	DF (%)	L (mm)	W (mm)	H (mm)	Packaging
875035019001	SPEC	8 files EDA models: Components ZIP ALT Altium_WCAP-PHLE (rev22c).IntLib \| 85.5 KB ZUK Cadstar_WCAP-PHLE (rev21a).zip \| 5 KB CDS Cadence_WCAP-PHLE (rev22a).zip \| 205.8 KB EAG Eagle_WCAP-PHLE (rev21a).lbr \| 20 KB CAD files ZIP 3D Download_3D_WACP-PHLE_xxx (rev1).pdf \| 78.9 KB IGS Download_IGS_WCAP-PHLE_xxx (rev1).igs \| 920.7 KB STP Download_STP_87503xx190xx (rev1).stp \| 296.3 KB Electric models ZIP PSP PSpice_WCAP-PHLE (rev22a).zip \| 4.3 KB Download all 8 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	100 µF	4	2000	-55 °C up to +105 °C	6300	9	40	6	7.3	4.3	1.9	13" Tape & Reel
875035019002	SPEC	8 files EDA models: Components ZIP ALT Altium_WCAP-PHLE (rev22c).IntLib \| 85.5 KB ZUK Cadstar_WCAP-PHLE (rev21a).zip \| 5 KB CDS Cadence_WCAP-PHLE (rev22a).zip \| 205.8 KB EAG Eagle_WCAP-PHLE (rev21a).lbr \| 20 KB CAD files ZIP 3D Download_3D_WACP-PHLE_xxx (rev1).pdf \| 78.9 KB IGS Download_IGS_WCAP-PHLE_xxx (rev1).igs \| 920.7 KB STP Download_STP_87503xx190xx (rev1).stp \| 296.3 KB Electric models ZIP PSP PSpice_WCAP-PHLE (rev22a).zip \| 4.3 KB Download all 8 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	180 µF	4	2000	-55 °C up to +105 °C	6300	9	72	6	7.3	4.3	1.9	13" Tape & Reel
875035119002	SPEC	8 files EDA models: Components ZIP ALT Altium_WCAP-PHLE (rev22c).IntLib \| 85.5 KB ZUK Cadstar_WCAP-PHLE (rev21a).zip \| 5 KB CDS Cadence_WCAP-PHLE (rev22a).zip \| 205.8 KB EAG Eagle_WCAP-PHLE (rev21a).lbr \| 20 KB CAD files ZIP 3D Download_3D_WACP-PHLE_xxx (rev1).pdf \| 78.9 KB IGS Download_IGS_WCAP-PHLE_xxx (rev1).igs \| 920.7 KB STP Download_STP_87503xx190xx (rev1).stp \| 296.3 KB Electric models ZIP PSP PSpice_WCAP-PHLE (rev22a).zip \| 4.3 KB Download all 8 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	180 µF	6.3	2000	-55 °C up to +105 °C	6300	9	113.4	6	7.3	4.3	1.9	13" Tape & Reel
875035019003	SPEC	8 files EDA models: Components ZIP ALT Altium_WCAP-PHLE (rev22c).IntLib \| 85.5 KB ZUK Cadstar_WCAP-PHLE (rev21a).zip \| 5 KB CDS Cadence_WCAP-PHLE (rev22a).zip \| 205.8 KB EAG Eagle_WCAP-PHLE (rev21a).lbr \| 20 KB CAD files ZIP 3D Download_3D_WACP-PHLE_xxx (rev1).pdf \| 78.9 KB IGS Download_IGS_WCAP-PHLE_xxx (rev1).igs \| 920.7 KB STP Download_STP_87503xx190xx (rev1).stp \| 296.3 KB Electric models ZIP PSP PSpice_WCAP-PHLE (rev22a).zip \| 4.3 KB Download all 8 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	220 µF	4	2000	-55 °C up to +105 °C	6300	9	88	6	7.3	4.3	1.9	13" Tape & Reel
875036219012	SPEC	8 files EDA models: Components ZIP ALT Altium_WCAP-PHLE (rev22c).IntLib \| 85.5 KB ZUK Cadstar_WCAP-PHLE (rev21a).zip \| 5 KB CDS Cadence_WCAP-PHLE (rev22a).zip \| 205.8 KB EAG Eagle_WCAP-PHLE (rev21a).lbr \| 20 KB CAD files ZIP 3D Download_3D_WACP-PHLE_xxx (rev1).pdf \| 78.9 KB IGS Download_IGS_WCAP-PHLE_xxx (rev1).igs \| 920.7 KB STP Download_STP_87503xx190xx (rev1).stp \| 296.3 KB Electric models ZIP PSP PSpice_WCAP-PHLE (rev22a).zip \| 4.3 KB Download all 8 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	330 µF	2	2000	-55 °C up to +105 °C	8500	4.5	66	6	7.3	4.3	1.9	13" Tape & Reel
875036319012	SPEC	8 files EDA models: Components ZIP ALT Altium_WCAP-PHLE (rev22c).IntLib \| 85.5 KB ZUK Cadstar_WCAP-PHLE (rev21a).zip \| 5 KB CDS Cadence_WCAP-PHLE (rev22a).zip \| 205.8 KB EAG Eagle_WCAP-PHLE (rev21a).lbr \| 20 KB CAD files ZIP 3D Download_3D_WACP-PHLE_xxx (rev1).pdf \| 78.9 KB IGS Download_IGS_WCAP-PHLE_xxx (rev1).igs \| 920.7 KB STP Download_STP_87503xx190xx (rev1).stp \| 296.3 KB Electric models ZIP PSP PSpice_WCAP-PHLE (rev22a).zip \| 4.3 KB Download all 8 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	330 µF	2.5	2000	-55 °C up to +105 °C	8500	4.5	82.5	6	7.3	4.3	1.9	13" Tape & Reel
875036219015	SPEC	8 files EDA models: Components ZIP ALT Altium_WCAP-PHLE (rev22c).IntLib \| 85.5 KB ZUK Cadstar_WCAP-PHLE (rev21a).zip \| 5 KB CDS Cadence_WCAP-PHLE (rev22a).zip \| 205.8 KB EAG Eagle_WCAP-PHLE (rev21a).lbr \| 20 KB CAD files ZIP 3D Download_3D_WACP-PHLE_xxx (rev1).pdf \| 78.9 KB IGS Download_IGS_WCAP-PHLE_xxx (rev1).igs \| 920.7 KB STP Download_STP_87503xx190xx (rev1).stp \| 296.3 KB Electric models ZIP PSP PSpice_WCAP-PHLE (rev22a).zip \| 4.3 KB Download all 8 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	390 µF	2	2000	-55 °C up to +105 °C	8500	4.5	78	6	7.3	4.3	1.9	13" Tape & Reel
875036319015	SPEC	8 files EDA models: Components ZIP ALT Altium_WCAP-PHLE (rev22c).IntLib \| 85.5 KB ZUK Cadstar_WCAP-PHLE (rev21a).zip \| 5 KB CDS Cadence_WCAP-PHLE (rev22a).zip \| 205.8 KB EAG Eagle_WCAP-PHLE (rev21a).lbr \| 20 KB CAD files ZIP 3D Download_3D_WACP-PHLE_xxx (rev1).pdf \| 78.9 KB IGS Download_IGS_WCAP-PHLE_xxx (rev1).igs \| 920.7 KB STP Download_STP_87503xx190xx (rev1).stp \| 296.3 KB Electric models ZIP PSP PSpice_WCAP-PHLE (rev22a).zip \| 4.3 KB Download all 8 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	390 µF	2.5	2000	-55 °C up to +105 °C	8500	4.5	97.5	6	7.3	4.3	1.9	13" Tape & Reel
875036219018	SPEC	8 files EDA models: Components ZIP ALT Altium_WCAP-PHLE (rev22c).IntLib \| 85.5 KB ZUK Cadstar_WCAP-PHLE (rev21a).zip \| 5 KB CDS Cadence_WCAP-PHLE (rev22a).zip \| 205.8 KB EAG Eagle_WCAP-PHLE (rev21a).lbr \| 20 KB CAD files ZIP 3D Download_3D_WACP-PHLE_xxx (rev1).pdf \| 78.9 KB IGS Download_IGS_WCAP-PHLE_xxx (rev1).igs \| 920.7 KB STP Download_STP_87503xx190xx (rev1).stp \| 296.3 KB Electric models ZIP PSP PSpice_WCAP-PHLE (rev22a).zip \| 4.3 KB Download all 8 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	470 µF	2	2000	-55 °C up to +105 °C	8500	4.5	94	6	7.3	4.3	1.9	13" Tape & Reel
875036319018	SPEC	8 files EDA models: Components ZIP ALT Altium_WCAP-PHLE (rev22c).IntLib \| 85.5 KB ZUK Cadstar_WCAP-PHLE (rev21a).zip \| 5 KB CDS Cadence_WCAP-PHLE (rev22a).zip \| 205.8 KB EAG Eagle_WCAP-PHLE (rev21a).lbr \| 20 KB CAD files ZIP 3D Download_3D_WACP-PHLE_xxx (rev1).pdf \| 78.9 KB IGS Download_IGS_WCAP-PHLE_xxx (rev1).igs \| 920.7 KB STP Download_STP_87503xx190xx (rev1).stp \| 296.3 KB Electric models ZIP PSP PSpice_WCAP-PHLE (rev22a).zip \| 4.3 KB Download all 8 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	470 µF	2.5	2000	-55 °C up to +105 °C	8500	4.5	117.5	6	7.3	4.3	1.9	13" Tape & Reel
875036219019	SPEC	8 files EDA models: Components ZIP ALT Altium_WCAP-PHLE (rev22c).IntLib \| 85.5 KB ZUK Cadstar_WCAP-PHLE (rev21a).zip \| 5 KB CDS Cadence_WCAP-PHLE (rev22a).zip \| 205.8 KB EAG Eagle_WCAP-PHLE (rev21a).lbr \| 20 KB CAD files ZIP 3D Download_3D_WACP-PHLE_xxx (rev1).pdf \| 78.9 KB IGS Download_IGS_WCAP-PHLE_xxx (rev1).igs \| 920.7 KB STP Download_STP_87503xx190xx (rev1).stp \| 296.3 KB Electric models ZIP PSP PSpice_WCAP-PHLE (rev22a).zip \| 4.3 KB Download all 8 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	560 µF	2	2000	-55 °C up to +105 °C	8500	4.5	112	6	7.3	4.3	1.9	13" Tape & Reel

	Order Code	Datasheet	Simulation
	875035019001	SPEC
	875035019002	SPEC
	875035119002	SPEC
	875035019003	SPEC
	875036219012	SPEC
	875036319012	SPEC
	875036219015	SPEC
	875036319015	SPEC
	875036219018	SPEC
	875036319018	SPEC
	875036219019	SPEC

Samples

	Order Code	Datasheet	Simulation	Downloads	Status	C	V_R (V (DC))	Endurance (h)	Operating Temperature	I_RIPPLE (mA)	R_ESR (mΩ)	I_Leak (µA)	DF (%)	L (mm)	W (mm)	H (mm)	Packaging	Samples
