Characteristics
- Core material: MnZn for low frequency applications
- Operating temperature: –25 °C to +125 °C
Applications
- Especially for applications in the low frequency range from 150 kHz and 30 MHz
- Suppression of electronic ballasts (i.e. neon tube) in the lighting industry
Products

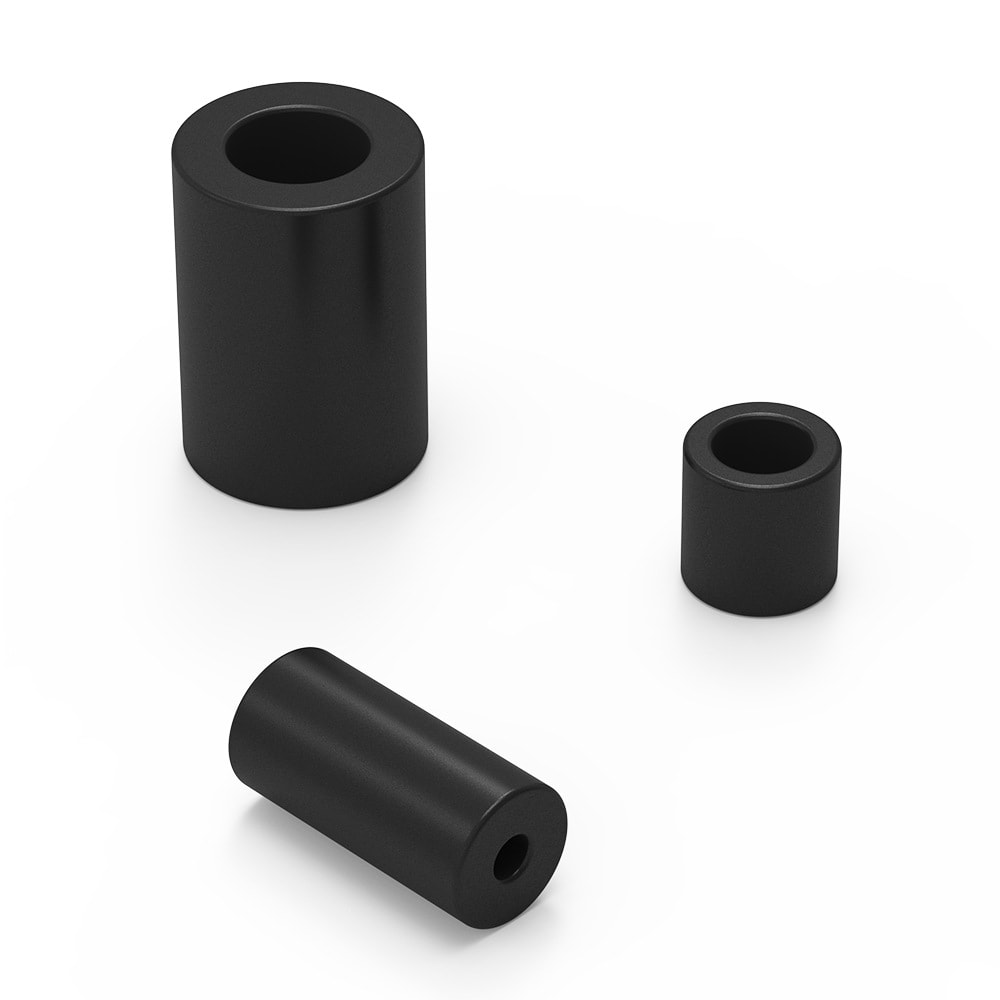

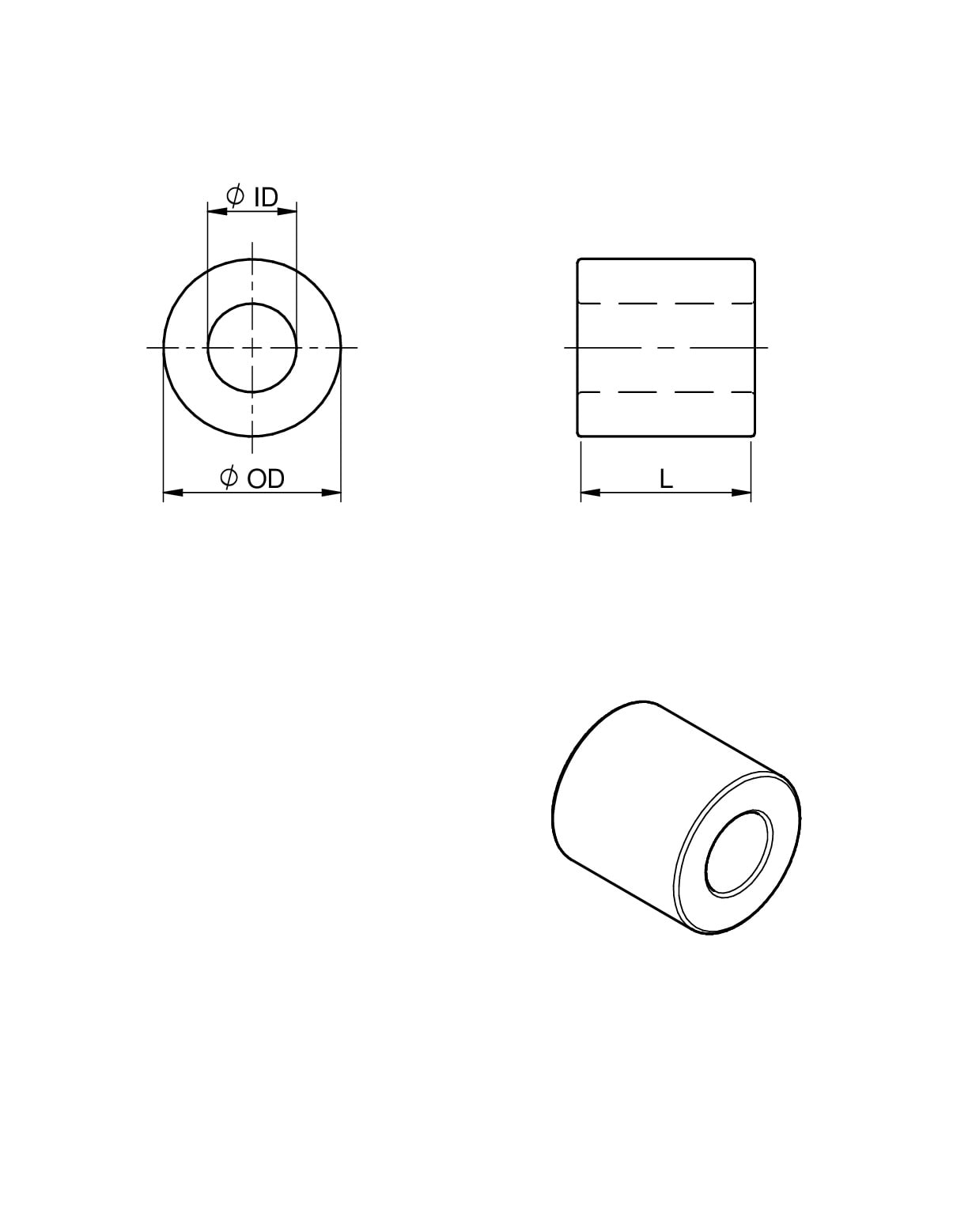

Order Code | Datasheet | Simulation | Downloads | Status | Ø Cable max. (mm) | Ø OD (mm) | Ø ID (mm) | L (mm) | Z @ 1 MHz 1 turn (Ω) | Z @ 10 MHz 1 turn (Ω) | Material | Alpha-Rack | Samples | |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
![]() | 74277233 | SPEC PCN pendingDue to a pending PCN there will be a new datasheet revision issued for this order code soon. Please find the actual as well based on valid PCN date the new revision datasheet below. If you have further questions please get in contact with our sales staff. | 3 files | Active i| Production is active. Expected lifetime: >10 years. | 4.55 | 9.5 | 4.8 | 9.5 | 30 | 40 | 8 W 5000 | 742707002 | ||
![]() | 7427727 | SPEC PCN pendingDue to a pending PCN there will be a new datasheet revision issued for this order code soon. Please find the actual as well based on valid PCN date the new revision datasheet below. If you have further questions please get in contact with our sales staff. | 3 files | Active i| Production is active. Expected lifetime: >10 years. | 6.1 | 14.2 | 6.35 | 28.5 | 130 | 100 | 8 W 5000 | 742707002 | ||
![]() | 74277253 | SPEC PCN pendingDue to a pending PCN there will be a new datasheet revision issued for this order code soon. Please find the actual as well based on valid PCN date the new revision datasheet below. If you have further questions please get in contact with our sales staff. | 3 files | Active i| Production is active. Expected lifetime: >10 years. | 7.6 | 16 | 8 | 28.5 | 100 | 80 | 8 W 5000 | 742707002 | ||
![]() | 7427729 | SPEC PCN pendingDue to a pending PCN there will be a new datasheet revision issued for this order code soon. Please find the actual as well based on valid PCN date the new revision datasheet below. If you have further questions please get in contact with our sales staff. | 3 files | Active i| Production is active. Expected lifetime: >10 years. | 9.25 | 17.5 | 9.5 | 28.5 | 100 | 60 | 8 W 5000 | 742707002 | ||
![]() | 74277255 | SPEC PCN pendingDue to a pending PCN there will be a new datasheet revision issued for this order code soon. Please find the actual as well based on valid PCN date the new revision datasheet below. If you have further questions please get in contact with our sales staff. | 3 files | Active i| Production is active. Expected lifetime: >10 years. | 9.7 | 18.6 | 10.2 | 28.5 | 90 | 60 | 8 W 5000 | – | ||
![]() | 74277290 | SPEC PCN pendingDue to a pending PCN there will be a new datasheet revision issued for this order code soon. Please find the actual as well based on valid PCN date the new revision datasheet below. If you have further questions please get in contact with our sales staff. | 3 files | Active i| Production is active. Expected lifetime: >10 years. | 12.5 | 26 | 12.8 | 28.5 | 90 | 50 | 8 W 5000 | 742707002 |
