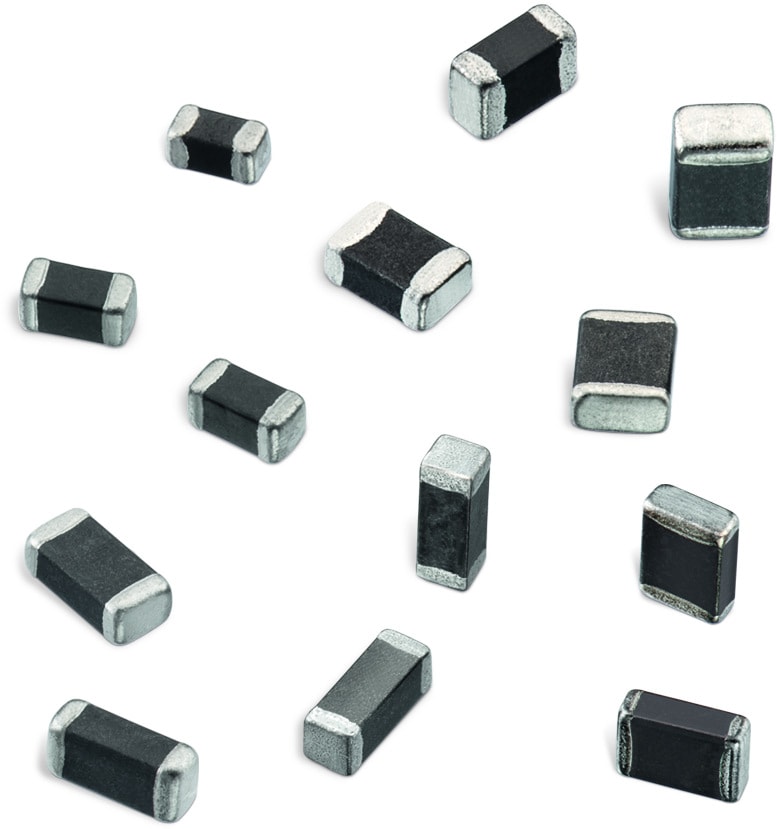

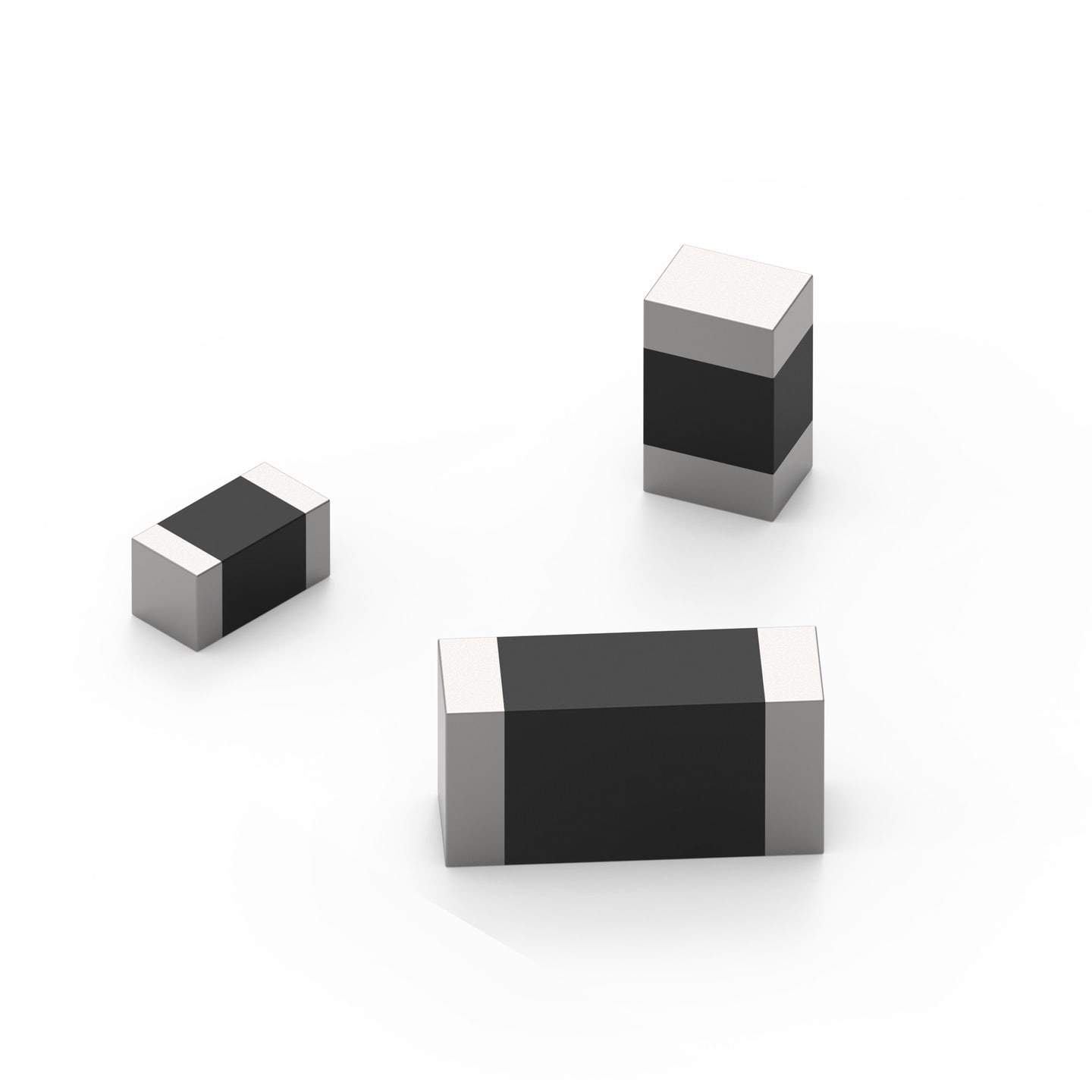

WE-CBA SMT EMI Suppression Ferrite Bead

Size	L (mm)	W (mm)	H (mm)	Fl (mm)	Mount
0201	0.6	0.3	0.3	0.15	SMT
0402	1	0.5	0.5	0.25	SMT
0603	1.6	0.8	0.8	0.3	SMT
0805	2	1.2	0.9	0.5	SMT
1206	3.2	1.6	1.1	0.5	SMT
1806	4.5	1.6	1.6	0.5	SMT
1812	4.5	3.2	1.5	0.5	SMT

Datasheet

SPEC
Seriesdatasheet_WE-CBA_V1 (rev1).pdf
|
1.9 MB

LTSpice files

LT
LTSpice_WE-CBA (rev23a).zip
|
3.5 KB

Characteristics

EMI suppression and noise reduction
High rated current up to 7.5 A
Available in 7 different sizes
Reliable Ni-Sn electrodes
Operating temperature:-55 °C up to +125 °C
AEC - Q 200

Applications

Data line filter for any application in the infotainment system
Applications for noise reduction at power-trains, body control and multimedia systems.
Battery management systems, DC/DC converters, audio, etc.
Uncoupling of distribution voltage

Application Notes

Modelithics Simulation Models

Incorporate this part into your design with Modelithics’ highly accurate measurement-based simulation models. Request a 90-day FREE trail! Modelithics libraries are available for Keysight Technologies’ Advanced Design System (ADS), NI/AWR Design Environment/Microwave Office™, Keysight Technologies’ Gensys, ASYSS® HFSS™, Sonnet® and Cadence.

Request a FREE 90-Day Trial!

Products

All

0201

0402

0603

0805

1206

1806

1812

Order Code	Datasheet	Downloads	Status	Z @ 100 MHz (Ω)	Z_max (Ω)	I_R (mA)	R_DC (Ω)	Type	Design Kit
782423100	SPEC	8 files EDA models: Components ZIP ALT Altium_WE-CBA (rev22d).IntLib \| 678.5 KB ZUK Cadstar_WE-CBA (rev19b).zip \| 9.5 KB CDS Cadence_WE-CBA (rev22b).zip \| 608.2 KB EAG Eagle_WE-CBA (rev22a).lbr \| 84.4 KB CAD files ZIP IGS WE-CBA_0402_CBA (rev1).igs \| 77 KB STP WE-CBA_0402_CBA (rev1).stp \| 63.1 KB RF & Microwave simulation models MDL Modelithics Electric models ZIP PSP PSpice_WE-CBA (rev23a).zip \| 17.2 KB Download all 8 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	10	17	1500	0.03	High Current	782792
782219100	SPEC	7 files EDA models: Components ZIP ALT Altium_WE-CBA (rev22d).IntLib \| 678.5 KB CDS Cadence_WE-CBA (rev22b).zip \| 608.2 KB EAG Eagle_WE-CBA (rev22a).lbr \| 84.4 KB CAD files ZIP 3D Download_3D_WE-CBA-0201 (rev1).pdf \| 20.3 KB IGS Download_IGS_WE-CBA-0201 (rev1).igs \| 77 KB STP Download_STP_WE-CBA-0201 (rev1).stp \| 62.9 KB Electric models ZIP PSP PSpice_WE-CBA (rev23a).zip \| 17.2 KB Download all 7 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	10	12.6	650	0.055	Wide Band	–
782853200	SPEC	8 files EDA models: Components ZIP ALT Altium_WE-CBA (rev22d).IntLib \| 678.5 KB ZUK Cadstar_WE-CBA (rev19b).zip \| 9.5 KB CDS Cadence_WE-CBA (rev22b).zip \| 608.2 KB EAG Eagle_WE-CBA (rev22a).lbr \| 84.4 KB CAD files ZIP IGS WE-CBA_0805_CBA (rev1).igs \| 76.6 KB STP WE-CBA_0805_CBA (rev1).stp \| 62.9 KB RF & Microwave simulation models MDL Modelithics Electric models ZIP PSP PSpice_WE-CBA (rev23a).zip \| 17.2 KB Download all 8 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	20	35	5000	0.008	High Current	782792
782639220	SPEC	7 files EDA models: Components ZIP ALT Altium_WE-CBA (rev22d).IntLib \| 678.5 KB ZUK Cadstar_WE-CBA (rev19b).zip \| 9.5 KB CDS Cadence_WE-CBA (rev22b).zip \| 608.2 KB EAG Eagle_WE-CBA (rev22a).lbr \| 84.4 KB CAD files ZIP IGS WE-CBA_0603_CBA (rev1).igs \| 76.4 KB STP WE-CBA_0603_CBA (rev1).stp \| 63.1 KB Electric models ZIP PSP PSpice_WE-CBA (rev23a).zip \| 17.2 KB Download all 7 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	22	41	7500	0.004	High Current	–
782853270	SPEC	8 files EDA models: Components ZIP ALT Altium_WE-CBA (rev22d).IntLib \| 678.5 KB ZUK Cadstar_WE-CBA (rev19b).zip \| 9.5 KB CDS Cadence_WE-CBA (rev22b).zip \| 608.2 KB EAG Eagle_WE-CBA (rev22a).lbr \| 84.4 KB CAD files ZIP IGS WE-CBA_0805_CBA (rev1).igs \| 76.6 KB STP WE-CBA_0805_CBA (rev1).stp \| 62.9 KB RF & Microwave simulation models MDL Modelithics Electric models ZIP PSP PSpice_WE-CBA (rev23a).zip \| 17.2 KB Download all 8 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	27	45	4000	0.015	High Current	782792
782763480	SPEC	8 files EDA models: Components ZIP ALT Altium_WE-CBA (rev22d).IntLib \| 678.5 KB ZUK Cadstar_WE-CBA (rev19b).zip \| 9.5 KB CDS Cadence_WE-CBA (rev22b).zip \| 608.2 KB EAG Eagle_WE-CBA (rev22a).lbr \| 84.4 KB CAD files ZIP IGS WE-CBA_1206_CBA (rev1).igs \| 76.6 KB STP WE-CBA_1206_CBA (rev1).stp \| 63 KB RF & Microwave simulation models MDL Modelithics Electric models ZIP PSP PSpice_WE-CBA (rev23a).zip \| 17.2 KB Download all 8 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	48	90	6000	0.005	High Current	–
782963560	SPEC	8 files EDA models: Components ZIP ALT Altium_WE-CBA (rev22d).IntLib \| 678.5 KB ZUK Cadstar_WE-CBA (rev19b).zip \| 9.5 KB CDS Cadence_WE-CBA (rev22b).zip \| 608.2 KB EAG Eagle_WE-CBA (rev22a).lbr \| 84.4 KB CAD files ZIP IGS WE-CBA_1806_CBA (rev1).igs \| 76.7 KB STP WE-CBA_1806_CBA (rev1).stp \| 63 KB RF & Microwave simulation models MDL Modelithics Electric models ZIP PSP PSpice_WE-CBA (rev23a).zip \| 17.2 KB Download all 8 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	56	90	5000	0.008	High Current	782792
782963600	SPEC	8 files EDA models: Components ZIP ALT Altium_WE-CBA (rev22d).IntLib \| 678.5 KB ZUK Cadstar_WE-CBA (rev19b).zip \| 9.5 KB CDS Cadence_WE-CBA (rev22b).zip \| 608.2 KB EAG Eagle_WE-CBA (rev22a).lbr \| 84.4 KB CAD files ZIP IGS WE-CBA_1806_CBA (rev1).igs \| 76.7 KB STP WE-CBA_1806_CBA (rev1).stp \| 63 KB RF & Microwave simulation models MDL Modelithics Electric models ZIP PSP PSpice_WE-CBA (rev23a).zip \| 17.2 KB Download all 8 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	60	120	6000	0.01	High Current	–
782963610	SPEC	8 files EDA models: Components ZIP ALT Altium_WE-CBA (rev22d).IntLib \| 678.5 KB ZUK Cadstar_WE-CBA (rev19b).zip \| 9.5 KB CDS Cadence_WE-CBA (rev22b).zip \| 608.2 KB EAG Eagle_WE-CBA (rev22a).lbr \| 84.4 KB CAD files ZIP IGS WE-CBA_1806_CBA (rev1).igs \| 76.7 KB STP WE-CBA_1806_CBA (rev1).stp \| 63 KB RF & Microwave simulation models MDL Modelithics Electric models ZIP PSP PSpice_WE-CBA (rev23a).zip \| 17.2 KB Download all 8 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	60	120	6000	0.008	High Current	–
782219600	SPEC	7 files EDA models: Components ZIP ALT Altium_WE-CBA (rev22d).IntLib \| 678.5 KB CDS Cadence_WE-CBA (rev22b).zip \| 608.2 KB EAG Eagle_WE-CBA (rev22a).lbr \| 84.4 KB CAD files ZIP 3D Download_3D_WE-CBA-0201 (rev1).pdf \| 20.3 KB IGS Download_IGS_WE-CBA-0201 (rev1).igs \| 77 KB STP Download_STP_WE-CBA-0201 (rev1).stp \| 62.9 KB Electric models ZIP PSP PSpice_WE-CBA (rev23a).zip \| 17.2 KB Download all 7 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	60	135	400	0.25	Wide Band	–
782632620	SPEC	8 files EDA models: Components ZIP ALT Altium_WE-CBA (rev22d).IntLib \| 678.5 KB ZUK Cadstar_WE-CBA (rev19b).zip \| 9.5 KB CDS Cadence_WE-CBA (rev22b).zip \| 608.2 KB EAG Eagle_WE-CBA (rev22a).lbr \| 84.4 KB CAD files ZIP IGS WE-CBA_0603_CBA (rev1).igs \| 76.4 KB STP WE-CBA_0603_CBA (rev1).stp \| 63.1 KB RF & Microwave simulation models MDL Modelithics Electric models ZIP PSP PSpice_WE-CBA (rev23a).zip \| 17.2 KB Download all 8 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	62	95	500	0.15	Wide Band	782792
782633620	SPEC	8 files EDA models: Components ZIP ALT Altium_WE-CBA (rev22d).IntLib \| 678.5 KB ZUK Cadstar_WE-CBA (rev19b).zip \| 9.5 KB CDS Cadence_WE-CBA (rev22b).zip \| 608.2 KB EAG Eagle_WE-CBA (rev22a).lbr \| 84.4 KB CAD files ZIP IGS WE-CBA_0603_CBA (rev1).igs \| 76.4 KB STP WE-CBA_0603_CBA (rev1).stp \| 63.1 KB RF & Microwave simulation models MDL Modelithics Electric models ZIP PSP PSpice_WE-CBA (rev23a).zip \| 17.2 KB Download all 8 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	62	98	2500	0.04	High Current	782792
782853680	SPEC	8 files EDA models: Components ZIP ALT Altium_WE-CBA (rev22d).IntLib \| 678.5 KB ZUK Cadstar_WE-CBA (rev19b).zip \| 9.5 KB CDS Cadence_WE-CBA (rev22b).zip \| 608.2 KB EAG Eagle_WE-CBA (rev22a).lbr \| 84.4 KB CAD files ZIP IGS WE-CBA_0805_CBA (rev1).igs \| 76.6 KB STP WE-CBA_0805_CBA (rev1).stp \| 62.9 KB RF & Microwave simulation models MDL Modelithics Electric models ZIP PSP PSpice_WE-CBA (rev23a).zip \| 17.2 KB Download all 8 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	68	110	3000	0.025	High Current	782792
782423700	SPEC	8 files EDA models: Components ZIP ALT Altium_WE-CBA (rev22d).IntLib \| 678.5 KB ZUK Cadstar_WE-CBA (rev19b).zip \| 9.5 KB CDS Cadence_WE-CBA (rev22b).zip \| 608.2 KB EAG Eagle_WE-CBA (rev22a).lbr \| 84.4 KB CAD files ZIP IGS WE-CBA_0402_CBA (rev1).igs \| 77 KB STP WE-CBA_0402_CBA (rev1).stp \| 63.1 KB RF & Microwave simulation models MDL Modelithics Electric models ZIP PSP PSpice_WE-CBA (rev23a).zip \| 17.2 KB Download all 8 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	70	140	1000	0.09	High Current	782792
782965700	SPEC	7 files EDA models: Components ZIP ALT Altium_WE-CBA (rev22d).IntLib \| 678.5 KB ZUK Cadstar_WE-CBA (rev19b).zip \| 9.5 KB CDS Cadence_WE-CBA (rev22b).zip \| 608.2 KB EAG Eagle_WE-CBA (rev22a).lbr \| 84.4 KB CAD files ZIP IGS IGS_WE-CBA_1812 (rev1).igs \| 157.1 KB STP STP_WE-CBA_1812 (rev1).stp \| 34.1 KB Electric models ZIP PSP PSpice_WE-CBA (rev23a).zip \| 17.2 KB Download all 7 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	70	120	6000	0.008	High Current	–
782763700	SPEC	8 files EDA models: Components ZIP ALT Altium_WE-CBA (rev22d).IntLib \| 678.5 KB ZUK Cadstar_WE-CBA (rev19b).zip \| 9.5 KB CDS Cadence_WE-CBA (rev22b).zip \| 608.2 KB EAG Eagle_WE-CBA (rev22a).lbr \| 84.4 KB CAD files ZIP IGS WE-CBA_1206_CBA (rev1).igs \| 76.6 KB STP WE-CBA_1206_CBA (rev1).stp \| 63 KB RF & Microwave simulation models MDL Modelithics Electric models ZIP PSP PSpice_WE-CBA (rev23a).zip \| 17.2 KB Download all 8 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	70	105	500	0.15	High Speed	–
782963800	SPEC	8 files EDA models: Components ZIP ALT Altium_WE-CBA (rev22d).IntLib \| 678.5 KB ZUK Cadstar_WE-CBA (rev19b).zip \| 9.5 KB CDS Cadence_WE-CBA (rev22b).zip \| 608.2 KB EAG Eagle_WE-CBA (rev22a).lbr \| 84.4 KB CAD files ZIP IGS WE-CBA_1806_CBA (rev1).igs \| 76.7 KB STP WE-CBA_1806_CBA (rev1).stp \| 63 KB RF & Microwave simulation models MDL Modelithics Electric models ZIP PSP PSpice_WE-CBA (rev23a).zip \| 17.2 KB Download all 8 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	80	140	3000	0.04	High Current	–
782763800	SPEC	8 files EDA models: Components ZIP ALT Altium_WE-CBA (rev22d).IntLib \| 678.5 KB ZUK Cadstar_WE-CBA (rev19b).zip \| 9.5 KB CDS Cadence_WE-CBA (rev22b).zip \| 608.2 KB EAG Eagle_WE-CBA (rev22a).lbr \| 84.4 KB CAD files ZIP IGS WE-CBA_1206_CBA (rev1).igs \| 76.6 KB STP WE-CBA_1206_CBA (rev1).stp \| 63 KB RF & Microwave simulation models MDL Modelithics Electric models ZIP PSP PSpice_WE-CBA (rev23a).zip \| 17.2 KB Download all 8 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	80	160	4000	0.02	High Current	–
782763820	SPEC	8 files EDA models: Components ZIP ALT Altium_WE-CBA (rev22d).IntLib \| 678.5 KB ZUK Cadstar_WE-CBA (rev19b).zip \| 9.5 KB CDS Cadence_WE-CBA (rev22b).zip \| 608.2 KB EAG Eagle_WE-CBA (rev22a).lbr \| 84.4 KB CAD files ZIP IGS WE-CBA_1206_CBA (rev1).igs \| 76.6 KB STP WE-CBA_1206_CBA (rev1).stp \| 63 KB RF & Microwave simulation models MDL Modelithics Electric models ZIP PSP PSpice_WE-CBA (rev23a).zip \| 17.2 KB Download all 8 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	82	130	3000	0.025	High Current	782792
782963820	SPEC	8 files EDA models: Components ZIP ALT Altium_WE-CBA (rev22d).IntLib \| 678.5 KB ZUK Cadstar_WE-CBA (rev19b).zip \| 9.5 KB CDS Cadence_WE-CBA (rev22b).zip \| 608.2 KB EAG Eagle_WE-CBA (rev22a).lbr \| 84.4 KB CAD files ZIP IGS WE-CBA_1806_CBA (rev1).igs \| 76.7 KB STP WE-CBA_1806_CBA (rev1).stp \| 63 KB RF & Microwave simulation models MDL Modelithics Electric models ZIP PSP PSpice_WE-CBA (rev23a).zip \| 17.2 KB Download all 8 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	82	110	3500	0.02	High Current	782792
782853910	SPEC	8 files EDA models: Components ZIP ALT Altium_WE-CBA (rev22d).IntLib \| 678.5 KB ZUK Cadstar_WE-CBA (rev19b).zip \| 9.5 KB CDS Cadence_WE-CBA (rev22b).zip \| 608.2 KB EAG Eagle_WE-CBA (rev22a).lbr \| 84.4 KB CAD files ZIP IGS WE-CBA_0805_CBA (rev1).igs \| 76.6 KB STP WE-CBA_0805_CBA (rev1).stp \| 62.9 KB RF & Microwave simulation models MDL Modelithics Electric models ZIP PSP PSpice_WE-CBA (rev23a).zip \| 17.2 KB Download all 8 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	91	105	2000	0.06	High Current	782792
782422101	SPEC	8 files EDA models: Components ZIP ALT Altium_WE-CBA (rev22d).IntLib \| 678.5 KB ZUK Cadstar_WE-CBA (rev19b).zip \| 9.5 KB CDS Cadence_WE-CBA (rev22b).zip \| 608.2 KB EAG Eagle_WE-CBA (rev22a).lbr \| 84.4 KB CAD files ZIP IGS WE-CBA_0402_CBA (rev1).igs \| 77 KB STP WE-CBA_0402_CBA (rev1).stp \| 63.1 KB RF & Microwave simulation models MDL Modelithics Electric models ZIP PSP PSpice_WE-CBA (rev23a).zip \| 17.2 KB Download all 8 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	100	180	500	0.3	Wide Band	782792
782631101	SPEC	8 files EDA models: Components ZIP ALT Altium_WE-CBA (rev22d).IntLib \| 678.5 KB ZUK Cadstar_WE-CBA (rev19b).zip \| 9.5 KB CDS Cadence_WE-CBA (rev22b).zip \| 608.2 KB EAG Eagle_WE-CBA (rev22a).lbr \| 84.4 KB CAD files ZIP IGS WE-CBA_0603_CBA (rev1).igs \| 76.4 KB STP WE-CBA_0603_CBA (rev1).stp \| 63.1 KB RF & Microwave simulation models MDL Modelithics Electric models ZIP PSP PSpice_WE-CBA (rev23a).zip \| 17.2 KB Download all 8 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	100	610	500	0.2	High Speed	782792
782631111	SPEC	8 files EDA models: Components ZIP ALT Altium_WE-CBA (rev22d).IntLib \| 678.5 KB ZUK Cadstar_WE-CBA (rev19b).zip \| 9.5 KB CDS Cadence_WE-CBA (rev22b).zip \| 608.2 KB EAG Eagle_WE-CBA (rev22a).lbr \| 84.4 KB CAD files ZIP IGS WE-CBA_0603_CBA (rev1).igs \| 76.4 KB STP WE-CBA_0603_CBA (rev1).stp \| 63.1 KB RF & Microwave simulation models MDL Modelithics Electric models ZIP PSP PSpice_WE-CBA (rev23a).zip \| 17.2 KB Download all 8 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	100	125	500	0.12	Wide Band	–
782429111	SPEC	7 files EDA models: Components ZIP ALT Altium_WE-CBA (rev22d).IntLib \| 678.5 KB ZUK Cadstar_WE-CBA (rev19b).zip \| 9.5 KB CDS Cadence_WE-CBA (rev22b).zip \| 608.2 KB EAG Eagle_WE-CBA (rev22a).lbr \| 84.4 KB CAD files ZIP IGS WE-CBA_0402_CBA (rev1).igs \| 77 KB STP WE-CBA_0402_CBA (rev1).stp \| 63.1 KB Electric models ZIP PSP PSpice_WE-CBA (rev23a).zip \| 17.2 KB Download all 7 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	110	195	1200	0.09	Wide Band	–
782632121	SPEC	8 files EDA models: Components ZIP ALT Altium_WE-CBA (rev22d).IntLib \| 678.5 KB ZUK Cadstar_WE-CBA (rev19b).zip \| 9.5 KB CDS Cadence_WE-CBA (rev22b).zip \| 608.2 KB EAG Eagle_WE-CBA (rev22a).lbr \| 84.4 KB CAD files ZIP IGS WE-CBA_0603_CBA (rev1).igs \| 76.4 KB STP WE-CBA_0603_CBA (rev1).stp \| 63.1 KB RF & Microwave simulation models MDL Modelithics Electric models ZIP PSP PSpice_WE-CBA (rev23a).zip \| 17.2 KB Download all 8 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	120	190	500	0.2	Wide Band	782792
782853121	SPEC	8 files EDA models: Components ZIP ALT Altium_WE-CBA (rev22d).IntLib \| 678.5 KB ZUK Cadstar_WE-CBA (rev19b).zip \| 9.5 KB CDS Cadence_WE-CBA (rev22b).zip \| 608.2 KB EAG Eagle_WE-CBA (rev22a).lbr \| 84.4 KB CAD files ZIP IGS WE-CBA_0805_CBA (rev1).igs \| 76.6 KB STP WE-CBA_0805_CBA (rev1).stp \| 62.9 KB RF & Microwave simulation models MDL Modelithics Electric models ZIP PSP PSpice_WE-CBA (rev23a).zip \| 17.2 KB Download all 8 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	120	180	2500	0.035	High Current	782792
782853131	SPEC	8 files EDA models: Components ZIP ALT Altium_WE-CBA (rev22d).IntLib \| 678.5 KB ZUK Cadstar_WE-CBA (rev19b).zip \| 9.5 KB CDS Cadence_WE-CBA (rev22b).zip \| 608.2 KB EAG Eagle_WE-CBA (rev22a).lbr \| 84.4 KB CAD files ZIP IGS WE-CBA_0805_CBA (rev1).igs \| 76.6 KB STP WE-CBA_0805_CBA (rev1).stp \| 62.9 KB RF & Microwave simulation models MDL Modelithics Electric models ZIP PSP PSpice_WE-CBA (rev23a).zip \| 17.2 KB Download all 8 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	120	180	3000	0.03	High Current	–
782631141	SPEC	8 files EDA models: Components ZIP ALT Altium_WE-CBA (rev22d).IntLib \| 678.5 KB ZUK Cadstar_WE-CBA (rev19b).zip \| 9.5 KB CDS Cadence_WE-CBA (rev22b).zip \| 608.2 KB EAG Eagle_WE-CBA (rev22a).lbr \| 84.4 KB CAD files ZIP IGS WE-CBA_0603_CBA (rev1).igs \| 76.4 KB STP WE-CBA_0603_CBA (rev1).stp \| 63.1 KB RF & Microwave simulation models MDL Modelithics Electric models ZIP PSP PSpice_WE-CBA (rev23a).zip \| 17.2 KB Download all 8 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	120	180	2000	0.05	High Current	–
782422121	SPEC	8 files EDA models: Components ZIP ALT Altium_WE-CBA (rev22d).IntLib \| 678.5 KB ZUK Cadstar_WE-CBA (rev19b).zip \| 9.5 KB CDS Cadence_WE-CBA (rev22b).zip \| 608.2 KB EAG Eagle_WE-CBA (rev22a).lbr \| 84.4 KB CAD files ZIP IGS WE-CBA_0402_CBA (rev1).igs \| 77 KB STP WE-CBA_0402_CBA (rev1).stp \| 63.1 KB RF & Microwave simulation models MDL Modelithics Electric models ZIP PSP PSpice_WE-CBA (rev23a).zip \| 17.2 KB Download all 8 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	120	200	500	0.2	Wide Band	–
782965121	SPEC	7 files EDA models: Components ZIP ALT Altium_WE-CBA (rev22d).IntLib \| 678.5 KB ZUK Cadstar_WE-CBA (rev19b).zip \| 9.5 KB CDS Cadence_WE-CBA (rev22b).zip \| 608.2 KB EAG Eagle_WE-CBA (rev22a).lbr \| 84.4 KB CAD files ZIP IGS IGS_WE-CBA_1812 (rev1).igs \| 157.1 KB STP STP_WE-CBA_1812 (rev1).stp \| 34.1 KB Electric models ZIP PSP PSpice_WE-CBA (rev23a).zip \| 17.2 KB Download all 7 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	120	190	3000	0.04	High Current	–
782631131	SPEC	8 files EDA models: Components ZIP ALT Altium_WE-CBA (rev22d).IntLib \| 678.5 KB ZUK Cadstar_WE-CBA (rev19b).zip \| 9.5 KB CDS Cadence_WE-CBA (rev22b).zip \| 608.2 KB EAG Eagle_WE-CBA (rev22a).lbr \| 84.4 KB CAD files ZIP IGS WE-CBA_0603_CBA (rev1).igs \| 76.4 KB STP WE-CBA_0603_CBA (rev1).stp \| 63.1 KB RF & Microwave simulation models MDL Modelithics Electric models ZIP PSP PSpice_WE-CBA (rev23a).zip \| 17.2 KB Download all 8 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	120	200	500	0.12	Wide Band	–
782219121	SPEC	7 files EDA models: Components ZIP ALT Altium_WE-CBA (rev22d).IntLib \| 678.5 KB CDS Cadence_WE-CBA (rev22b).zip \| 608.2 KB EAG Eagle_WE-CBA (rev22a).lbr \| 84.4 KB CAD files ZIP 3D Download_3D_WE-CBA-0201 (rev1).pdf \| 20.3 KB IGS Download_IGS_WE-CBA-0201 (rev1).igs \| 77 KB STP Download_STP_WE-CBA-0201 (rev1).stp \| 62.9 KB Electric models ZIP PSP PSpice_WE-CBA (rev23a).zip \| 17.2 KB Download all 7 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	120	259	250	0.29	Wide Band	–
782429161	SPEC	7 files EDA models: Components ZIP ALT Altium_WE-CBA (rev22d).IntLib \| 678.5 KB ZUK Cadstar_WE-CBA (rev19b).zip \| 9.5 KB CDS Cadence_WE-CBA (rev22b).zip \| 608.2 KB EAG Eagle_WE-CBA (rev22a).lbr \| 84.4 KB CAD files ZIP IGS WE-CBA_0402_CBA (rev1).igs \| 77 KB STP WE-CBA_0402_CBA (rev1).stp \| 63.1 KB Electric models ZIP PSP PSpice_WE-CBA (rev23a).zip \| 17.2 KB Download all 7 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	160	280	1000	0.15	High Current	–
782632181	SPEC	8 files EDA models: Components ZIP ALT Altium_WE-CBA (rev22d).IntLib \| 678.5 KB ZUK Cadstar_WE-CBA (rev19b).zip \| 9.5 KB CDS Cadence_WE-CBA (rev22b).zip \| 608.2 KB EAG Eagle_WE-CBA (rev22a).lbr \| 84.4 KB CAD files ZIP IGS WE-CBA_0603_CBA (rev1).igs \| 76.4 KB STP WE-CBA_0603_CBA (rev1).stp \| 63.1 KB RF & Microwave simulation models MDL Modelithics Electric models ZIP PSP PSpice_WE-CBA (rev23a).zip \| 17.2 KB Download all 8 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	180	280	500	0.2	Wide Band	782792
782422181	SPEC	8 files EDA models: Components ZIP ALT Altium_WE-CBA (rev22d).IntLib \| 678.5 KB ZUK Cadstar_WE-CBA (rev19b).zip \| 9.5 KB CDS Cadence_WE-CBA (rev22b).zip \| 608.2 KB EAG Eagle_WE-CBA (rev22a).lbr \| 84.4 KB CAD files ZIP IGS WE-CBA_0402_CBA (rev1).igs \| 77 KB STP WE-CBA_0402_CBA (rev1).stp \| 63.1 KB RF & Microwave simulation models MDL Modelithics Electric models ZIP PSP PSpice_WE-CBA (rev23a).zip \| 17.2 KB Download all 8 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	180	260	400	0.3	Wide Band	–
782422221	SPEC	8 files EDA models: Components ZIP ALT Altium_WE-CBA (rev22d).IntLib \| 678.5 KB ZUK Cadstar_WE-CBA (rev19b).zip \| 9.5 KB CDS Cadence_WE-CBA (rev22b).zip \| 608.2 KB EAG Eagle_WE-CBA (rev22a).lbr \| 84.4 KB CAD files ZIP IGS WE-CBA_0402_CBA (rev1).igs \| 77 KB STP WE-CBA_0402_CBA (rev1).stp \| 63.1 KB RF & Microwave simulation models MDL Modelithics Electric models ZIP PSP PSpice_WE-CBA (rev23a).zip \| 17.2 KB Download all 8 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	220	330	400	0.3	Wide Band	782792
782853221	SPEC	8 files EDA models: Components ZIP ALT Altium_WE-CBA (rev22d).IntLib \| 678.5 KB ZUK Cadstar_WE-CBA (rev19b).zip \| 9.5 KB CDS Cadence_WE-CBA (rev22b).zip \| 608.2 KB EAG Eagle_WE-CBA (rev22a).lbr \| 84.4 KB CAD files ZIP IGS WE-CBA_0805_CBA (rev1).igs \| 76.6 KB STP WE-CBA_0805_CBA (rev1).stp \| 62.9 KB RF & Microwave simulation models MDL Modelithics Electric models ZIP PSP PSpice_WE-CBA (rev23a).zip \| 17.2 KB Download all 8 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	220	290	2000	0.05	High Current	782792
782422231	SPEC	8 files EDA models: Components ZIP ALT Altium_WE-CBA (rev22d).IntLib \| 678.5 KB ZUK Cadstar_WE-CBA (rev19b).zip \| 9.5 KB CDS Cadence_WE-CBA (rev22b).zip \| 608.2 KB EAG Eagle_WE-CBA (rev22a).lbr \| 84.4 KB CAD files ZIP IGS WE-CBA_0402_CBA (rev1).igs \| 77 KB STP WE-CBA_0402_CBA (rev1).stp \| 63.1 KB RF & Microwave simulation models MDL Modelithics Electric models ZIP PSP PSpice_WE-CBA (rev23a).zip \| 17.2 KB Download all 8 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	220	360	300	0.35	Wide Band	–
782853231	SPEC	8 files EDA models: Components ZIP ALT Altium_WE-CBA (rev22d).IntLib \| 678.5 KB ZUK Cadstar_WE-CBA (rev19b).zip \| 9.5 KB CDS Cadence_WE-CBA (rev22b).zip \| 608.2 KB EAG Eagle_WE-CBA (rev22a).lbr \| 84.4 KB CAD files ZIP IGS WE-CBA_0805_CBA (rev1).igs \| 76.6 KB STP WE-CBA_0805_CBA (rev1).stp \| 62.9 KB RF & Microwave simulation models MDL Modelithics Electric models ZIP PSP PSpice_WE-CBA (rev23a).zip \| 17.2 KB Download all 8 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	220	330	3000	0.05	High Current	–
782422241	SPEC	8 files EDA models: Components ZIP ALT Altium_WE-CBA (rev22d).IntLib \| 678.5 KB ZUK Cadstar_WE-CBA (rev19b).zip \| 9.5 KB CDS Cadence_WE-CBA (rev22b).zip \| 608.2 KB EAG Eagle_WE-CBA (rev22a).lbr \| 84.4 KB CAD files ZIP IGS WE-CBA_0402_CBA (rev1).igs \| 77 KB STP WE-CBA_0402_CBA (rev1).stp \| 63.1 KB RF & Microwave simulation models MDL Modelithics Electric models ZIP PSP PSpice_WE-CBA (rev23a).zip \| 17.2 KB Download all 8 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	240	290	300	0.35	Wide Band	–
782219241	SPEC	7 files EDA models: Components ZIP ALT Altium_WE-CBA (rev22d).IntLib \| 678.5 KB CDS Cadence_WE-CBA (rev22b).zip \| 608.2 KB EAG Eagle_WE-CBA (rev22a).lbr \| 84.4 KB CAD files ZIP 3D Download_3D_WE-CBA-0201 (rev1).pdf \| 20.3 KB IGS Download_IGS_WE-CBA-0201 (rev1).igs \| 77 KB STP Download_STP_WE-CBA-0201 (rev1).stp \| 62.9 KB Electric models ZIP PSP PSpice_WE-CBA (rev23a).zip \| 17.2 KB Download all 7 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	240	536	300	0.57	Wide Band	–
782429261	SPEC	7 files EDA models: Components ZIP ALT Altium_WE-CBA (rev22d).IntLib \| 678.5 KB ZUK Cadstar_WE-CBA (rev19b).zip \| 9.5 KB CDS Cadence_WE-CBA (rev22b).zip \| 608.2 KB EAG Eagle_WE-CBA (rev22a).lbr \| 84.4 KB CAD files ZIP IGS WE-CBA_0402_CBA (rev1).igs \| 77 KB STP WE-CBA_0402_CBA (rev1).stp \| 63.1 KB Electric models ZIP PSP PSpice_WE-CBA (rev23a).zip \| 17.2 KB Download all 7 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	260	375	1000	0.15	High Current	–
782762301	SPEC	8 files EDA models: Components ZIP ALT Altium_WE-CBA (rev22d).IntLib \| 678.5 KB ZUK Cadstar_WE-CBA (rev19b).zip \| 9.5 KB CDS Cadence_WE-CBA (rev22b).zip \| 608.2 KB EAG Eagle_WE-CBA (rev22a).lbr \| 84.4 KB CAD files ZIP IGS WE-CBA_1206_CBA (rev1).igs \| 76.6 KB STP WE-CBA_1206_CBA (rev1).stp \| 63 KB RF & Microwave simulation models MDL Modelithics Electric models ZIP PSP PSpice_WE-CBA (rev23a).zip \| 17.2 KB Download all 8 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	300	360	500	0.1	Wide Band	782792
782422301	SPEC	8 files EDA models: Components ZIP ALT Altium_WE-CBA (rev22d).IntLib \| 678.5 KB ZUK Cadstar_WE-CBA (rev19b).zip \| 9.5 KB CDS Cadence_WE-CBA (rev22b).zip \| 608.2 KB EAG Eagle_WE-CBA (rev22a).lbr \| 84.4 KB CAD files ZIP IGS WE-CBA_0402_CBA (rev1).igs \| 77 KB STP WE-CBA_0402_CBA (rev1).stp \| 63.1 KB RF & Microwave simulation models MDL Modelithics Electric models ZIP PSP PSpice_WE-CBA (rev23a).zip \| 17.2 KB Download all 8 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	300	400	200	0.7	Wide Band	–
782853301	SPEC	8 files EDA models: Components ZIP ALT Altium_WE-CBA (rev22d).IntLib \| 678.5 KB ZUK Cadstar_WE-CBA (rev19b).zip \| 9.5 KB CDS Cadence_WE-CBA (rev22b).zip \| 608.2 KB EAG Eagle_WE-CBA (rev22a).lbr \| 84.4 KB CAD files ZIP IGS WE-CBA_0805_CBA (rev1).igs \| 76.6 KB STP WE-CBA_0805_CBA (rev1).stp \| 62.9 KB RF & Microwave simulation models MDL Modelithics Electric models ZIP PSP PSpice_WE-CBA (rev23a).zip \| 17.2 KB Download all 8 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	300	350	3000	0.05	High Current	–
782763301	SPEC	8 files EDA models: Components ZIP ALT Altium_WE-CBA (rev22d).IntLib \| 678.5 KB ZUK Cadstar_WE-CBA (rev19b).zip \| 9.5 KB CDS Cadence_WE-CBA (rev22b).zip \| 608.2 KB EAG Eagle_WE-CBA (rev22a).lbr \| 84.4 KB CAD files ZIP IGS WE-CBA_1206_CBA (rev1).igs \| 76.6 KB STP WE-CBA_1206_CBA (rev1).stp \| 63 KB RF & Microwave simulation models MDL Modelithics Electric models ZIP PSP PSpice_WE-CBA (rev23a).zip \| 17.2 KB Download all 8 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	300	330	3000	0.06	High Current	–
782219301	SPEC	7 files EDA models: Components ZIP ALT Altium_WE-CBA (rev22d).IntLib \| 678.5 KB CDS Cadence_WE-CBA (rev22b).zip \| 608.2 KB EAG Eagle_WE-CBA (rev22a).lbr \| 84.4 KB CAD files ZIP 3D Download_3D_WE-CBA-0201 (rev1).pdf \| 20.3 KB IGS Download_IGS_WE-CBA-0201 (rev1).igs \| 77 KB STP Download_STP_WE-CBA-0201 (rev1).stp \| 62.9 KB Electric models ZIP PSP PSpice_WE-CBA (rev23a).zip \| 17.2 KB Download all 7 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	300	455	400	0.61	Wide Band	–
782853321	SPEC	8 files EDA models: Components ZIP ALT Altium_WE-CBA (rev22d).IntLib \| 678.5 KB ZUK Cadstar_WE-CBA (rev19b).zip \| 9.5 KB CDS Cadence_WE-CBA (rev22b).zip \| 608.2 KB EAG Eagle_WE-CBA (rev22a).lbr \| 84.4 KB CAD files ZIP IGS WE-CBA_0805_CBA (rev1).igs \| 76.6 KB STP WE-CBA_0805_CBA (rev1).stp \| 62.9 KB RF & Microwave simulation models MDL Modelithics Electric models ZIP PSP PSpice_WE-CBA (rev23a).zip \| 17.2 KB Download all 8 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	320	370	2000	0.05	High Current	–
782422331	SPEC	8 files EDA models: Components ZIP ALT Altium_WE-CBA (rev22d).IntLib \| 678.5 KB ZUK Cadstar_WE-CBA (rev19b).zip \| 9.5 KB CDS Cadence_WE-CBA (rev22b).zip \| 608.2 KB EAG Eagle_WE-CBA (rev22a).lbr \| 84.4 KB CAD files ZIP IGS WE-CBA_0402_CBA (rev1).igs \| 77 KB STP WE-CBA_0402_CBA (rev1).stp \| 63.1 KB RF & Microwave simulation models MDL Modelithics Electric models ZIP PSP PSpice_WE-CBA (rev23a).zip \| 17.2 KB Download all 8 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	330	640	300	0.5	Wide Band	782792
782631331	SPEC	8 files EDA models: Components ZIP ALT Altium_WE-CBA (rev22d).IntLib \| 678.5 KB ZUK Cadstar_WE-CBA (rev19b).zip \| 9.5 KB CDS Cadence_WE-CBA (rev22b).zip \| 608.2 KB EAG Eagle_WE-CBA (rev22a).lbr \| 84.4 KB CAD files ZIP IGS WE-CBA_0603_CBA (rev1).igs \| 76.4 KB STP WE-CBA_0603_CBA (rev1).stp \| 63.1 KB RF & Microwave simulation models MDL Modelithics Electric models ZIP PSP PSpice_WE-CBA (rev23a).zip \| 17.2 KB Download all 8 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	330	690	400	0.25	High Speed	782792
782853331	SPEC	8 files EDA models: Components ZIP ALT Altium_WE-CBA (rev22d).IntLib \| 678.5 KB ZUK Cadstar_WE-CBA (rev19b).zip \| 9.5 KB CDS Cadence_WE-CBA (rev22b).zip \| 608.2 KB EAG Eagle_WE-CBA (rev22a).lbr \| 84.4 KB CAD files ZIP IGS WE-CBA_0805_CBA (rev1).igs \| 76.6 KB STP WE-CBA_0805_CBA (rev1).stp \| 62.9 KB RF & Microwave simulation models MDL Modelithics Electric models ZIP PSP PSpice_WE-CBA (rev23a).zip \| 17.2 KB Download all 8 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	330	375	3000	0.05	High Current	–
782853401	SPEC	8 files EDA models: Components ZIP ALT Altium_WE-CBA (rev22d).IntLib \| 678.5 KB ZUK Cadstar_WE-CBA (rev19b).zip \| 9.5 KB CDS Cadence_WE-CBA (rev22b).zip \| 608.2 KB EAG Eagle_WE-CBA (rev22a).lbr \| 84.4 KB CAD files ZIP IGS WE-CBA_0805_CBA (rev1).igs \| 76.6 KB STP WE-CBA_0805_CBA (rev1).stp \| 62.9 KB RF & Microwave simulation models MDL Modelithics Electric models ZIP PSP PSpice_WE-CBA (rev23a).zip \| 17.2 KB Download all 8 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	400	500	300	0.3	Wide Band	–
782429461	SPEC	7 files EDA models: Components ZIP ALT Altium_WE-CBA (rev22d).IntLib \| 678.5 KB ZUK Cadstar_WE-CBA (rev19b).zip \| 9.5 KB CDS Cadence_WE-CBA (rev22b).zip \| 608.2 KB EAG Eagle_WE-CBA (rev22a).lbr \| 84.4 KB CAD files ZIP IGS WE-CBA_0402_CBA (rev1).igs \| 77 KB STP WE-CBA_0402_CBA (rev1).stp \| 63.1 KB Electric models ZIP PSP PSpice_WE-CBA (rev23a).zip \| 17.2 KB Download all 7 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	460	1250	500	0.55	two	–
782763501	SPEC	8 files EDA models: Components ZIP ALT Altium_WE-CBA (rev22d).IntLib \| 678.5 KB ZUK Cadstar_WE-CBA (rev19b).zip \| 9.5 KB CDS Cadence_WE-CBA (rev22b).zip \| 608.2 KB EAG Eagle_WE-CBA (rev22a).lbr \| 84.4 KB CAD files ZIP IGS WE-CBA_1206_CBA (rev1).igs \| 76.6 KB STP WE-CBA_1206_CBA (rev1).stp \| 63 KB RF & Microwave simulation models MDL Modelithics Electric models ZIP PSP PSpice_WE-CBA (rev23a).zip \| 17.2 KB Download all 8 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	500	610	2500	0.06	High Current	–
782422511	SPEC	8 files EDA models: Components ZIP ALT Altium_WE-CBA (rev22d).IntLib \| 678.5 KB ZUK Cadstar_WE-CBA (rev19b).zip \| 9.5 KB CDS Cadence_WE-CBA (rev22b).zip \| 608.2 KB EAG Eagle_WE-CBA (rev22a).lbr \| 84.4 KB CAD files ZIP IGS WE-CBA_0402_CBA (rev1).igs \| 77 KB STP WE-CBA_0402_CBA (rev1).stp \| 63.1 KB RF & Microwave simulation models MDL Modelithics Electric models ZIP PSP PSpice_WE-CBA (rev23a).zip \| 17.2 KB Download all 8 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	510	730	200	0.8	Wide Band	782792
782632511	SPEC	8 files EDA models: Components ZIP ALT Altium_WE-CBA (rev22d).IntLib \| 678.5 KB ZUK Cadstar_WE-CBA (rev19b).zip \| 9.5 KB CDS Cadence_WE-CBA (rev22b).zip \| 608.2 KB EAG Eagle_WE-CBA (rev22a).lbr \| 84.4 KB CAD files ZIP IGS WE-CBA_0603_CBA (rev1).igs \| 76.4 KB STP WE-CBA_0603_CBA (rev1).stp \| 63.1 KB RF & Microwave simulation models MDL Modelithics Electric models ZIP PSP PSpice_WE-CBA (rev23a).zip \| 17.2 KB Download all 8 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	510	610	300	0.35	Wide Band	782792
782853561	SPEC	8 files EDA models: Components ZIP ALT Altium_WE-CBA (rev22d).IntLib \| 678.5 KB ZUK Cadstar_WE-CBA (rev19b).zip \| 9.5 KB CDS Cadence_WE-CBA (rev22b).zip \| 608.2 KB EAG Eagle_WE-CBA (rev22a).lbr \| 84.4 KB CAD files ZIP IGS WE-CBA_0805_CBA (rev1).igs \| 76.6 KB STP WE-CBA_0805_CBA (rev1).stp \| 62.9 KB RF & Microwave simulation models MDL Modelithics Electric models ZIP PSP PSpice_WE-CBA (rev23a).zip \| 17.2 KB Download all 8 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	560	600	1500	0.1	High Current	782792
782219561	SPEC	7 files EDA models: Components ZIP ALT Altium_WE-CBA (rev22d).IntLib \| 678.5 KB CDS Cadence_WE-CBA (rev22b).zip \| 608.2 KB EAG Eagle_WE-CBA (rev22a).lbr \| 84.4 KB CAD files ZIP 3D Download_3D_WE-CBA-0201 (rev1).pdf \| 20.3 KB IGS Download_IGS_WE-CBA-0201 (rev1).igs \| 77 KB STP Download_STP_WE-CBA-0201 (rev1).stp \| 62.9 KB Electric models ZIP PSP PSpice_WE-CBA (rev23a).zip \| 17.2 KB Download all 7 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	560	750	250	0.75	Wide Band	–
782422601	SPEC	8 files EDA models: Components ZIP ALT Altium_WE-CBA (rev22d).IntLib \| 678.5 KB ZUK Cadstar_WE-CBA (rev19b).zip \| 9.5 KB CDS Cadence_WE-CBA (rev22b).zip \| 608.2 KB EAG Eagle_WE-CBA (rev22a).lbr \| 84.4 KB CAD files ZIP IGS WE-CBA_0402_CBA (rev1).igs \| 77 KB STP WE-CBA_0402_CBA (rev1).stp \| 63.1 KB RF & Microwave simulation models MDL Modelithics Electric models ZIP PSP PSpice_WE-CBA (rev23a).zip \| 17.2 KB Download all 8 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	600	800	200	0.8	Wide Band	782792
782633601	SPEC	8 files EDA models: Components ZIP ALT Altium_WE-CBA (rev22d).IntLib \| 678.5 KB ZUK Cadstar_WE-CBA (rev19b).zip \| 9.5 KB CDS Cadence_WE-CBA (rev22b).zip \| 608.2 KB EAG Eagle_WE-CBA (rev22a).lbr \| 84.4 KB CAD files ZIP IGS WE-CBA_0603_CBA (rev1).igs \| 76.4 KB STP WE-CBA_0603_CBA (rev1).stp \| 63.1 KB RF & Microwave simulation models MDL Modelithics Electric models ZIP PSP PSpice_WE-CBA (rev23a).zip \| 17.2 KB Download all 8 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	600	660	1000	0.2	High Current	782792
782853601	SPEC	8 files EDA models: Components ZIP ALT Altium_WE-CBA (rev22d).IntLib \| 678.5 KB ZUK Cadstar_WE-CBA (rev19b).zip \| 9.5 KB CDS Cadence_WE-CBA (rev22b).zip \| 608.2 KB EAG Eagle_WE-CBA (rev22a).lbr \| 84.4 KB CAD files ZIP IGS WE-CBA_0805_CBA (rev1).igs \| 76.6 KB STP WE-CBA_0805_CBA (rev1).stp \| 62.9 KB RF & Microwave simulation models MDL Modelithics Electric models ZIP PSP PSpice_WE-CBA (rev23a).zip \| 17.2 KB Download all 8 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	600	700	500	0.3	Wide Band	–
782853611	SPEC	8 files EDA models: Components ZIP ALT Altium_WE-CBA (rev22d).IntLib \| 678.5 KB ZUK Cadstar_WE-CBA (rev19b).zip \| 9.5 KB CDS Cadence_WE-CBA (rev22b).zip \| 608.2 KB EAG Eagle_WE-CBA (rev22a).lbr \| 84.4 KB CAD files ZIP IGS WE-CBA_0805_CBA (rev1).igs \| 76.6 KB STP WE-CBA_0805_CBA (rev1).stp \| 62.9 KB RF & Microwave simulation models MDL Modelithics Electric models ZIP PSP PSpice_WE-CBA (rev23a).zip \| 17.2 KB Download all 8 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	600	700	2000	0.11	High Current	–
782965601	SPEC	7 files EDA models: Components ZIP ALT Altium_WE-CBA (rev22d).IntLib \| 678.5 KB ZUK Cadstar_WE-CBA (rev19b).zip \| 9.5 KB CDS Cadence_WE-CBA (rev22b).zip \| 608.2 KB EAG Eagle_WE-CBA (rev22a).lbr \| 84.4 KB CAD files ZIP IGS IGS_WE-CBA_1812 (rev1).igs \| 157.1 KB STP STP_WE-CBA_1812 (rev1).stp \| 34.1 KB Electric models ZIP PSP PSpice_WE-CBA (rev23a).zip \| 17.2 KB Download all 7 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	600	900	3000	0.04	High Current	–
782422611	SPEC	8 files EDA models: Components ZIP ALT Altium_WE-CBA (rev22d).IntLib \| 678.5 KB ZUK Cadstar_WE-CBA (rev19b).zip \| 9.5 KB CDS Cadence_WE-CBA (rev22b).zip \| 608.2 KB EAG Eagle_WE-CBA (rev22a).lbr \| 84.4 KB CAD files ZIP IGS WE-CBA_0402_CBA (rev1).igs \| 77 KB STP WE-CBA_0402_CBA (rev1).stp \| 63.1 KB RF & Microwave simulation models MDL Modelithics Electric models ZIP PSP PSpice_WE-CBA (rev23a).zip \| 17.2 KB Download all 8 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	600	900	300	0.6	Wide Band	–
782763601	SPEC	8 files EDA models: Components ZIP ALT Altium_WE-CBA (rev22d).IntLib \| 678.5 KB ZUK Cadstar_WE-CBA (rev19b).zip \| 9.5 KB CDS Cadence_WE-CBA (rev22b).zip \| 608.2 KB EAG Eagle_WE-CBA (rev22a).lbr \| 84.4 KB CAD files ZIP IGS WE-CBA_1206_CBA (rev1).igs \| 76.6 KB STP WE-CBA_1206_CBA (rev1).stp \| 63 KB RF & Microwave simulation models MDL Modelithics Electric models ZIP PSP PSpice_WE-CBA (rev23a).zip \| 17.2 KB Download all 8 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	600	650	2500	0.048	High Current	–
782429601	SPEC	7 files EDA models: Components ZIP ALT Altium_WE-CBA (rev22d).IntLib \| 678.5 KB ZUK Cadstar_WE-CBA (rev19b).zip \| 9.5 KB CDS Cadence_WE-CBA (rev22b).zip \| 608.2 KB EAG Eagle_WE-CBA (rev22a).lbr \| 84.4 KB CAD files ZIP IGS WE-CBA_0402_CBA (rev1).igs \| 77 KB STP WE-CBA_0402_CBA (rev1).stp \| 63.1 KB Electric models ZIP PSP PSpice_WE-CBA (rev23a).zip \| 17.2 KB Download all 7 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	600	720	850	0.25	Wide Band	–
782639601	SPEC	7 files EDA models: Components ZIP ALT Altium_WE-CBA (rev22d).IntLib \| 678.5 KB ZUK Cadstar_WE-CBA (rev19b).zip \| 9.5 KB CDS Cadence_WE-CBA (rev22b).zip \| 608.2 KB EAG Eagle_WE-CBA (rev22a).lbr \| 84.4 KB CAD files ZIP IGS WE-CBA_0603_CBA (rev1).igs \| 76.4 KB STP WE-CBA_0603_CBA (rev1).stp \| 63.1 KB Electric models ZIP PSP PSpice_WE-CBA (rev23a).zip \| 17.2 KB Download all 7 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	600	634	1500	0.1	High Current	–
782763621	SPEC	8 files EDA models: Components ZIP ALT Altium_WE-CBA (rev22d).IntLib \| 678.5 KB ZUK Cadstar_WE-CBA (rev19b).zip \| 9.5 KB CDS Cadence_WE-CBA (rev22b).zip \| 608.2 KB EAG Eagle_WE-CBA (rev22a).lbr \| 84.4 KB CAD files ZIP IGS WE-CBA_1206_CBA (rev1).igs \| 76.6 KB STP WE-CBA_1206_CBA (rev1).stp \| 63 KB RF & Microwave simulation models MDL Modelithics Electric models ZIP PSP PSpice_WE-CBA (rev23a).zip \| 17.2 KB Download all 8 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	620	620	1500	0.1	High Current	782792
782853701	SPEC	8 files EDA models: Components ZIP ALT Altium_WE-CBA (rev22d).IntLib \| 678.5 KB ZUK Cadstar_WE-CBA (rev19b).zip \| 9.5 KB CDS Cadence_WE-CBA (rev22b).zip \| 608.2 KB EAG Eagle_WE-CBA (rev22a).lbr \| 84.4 KB CAD files ZIP IGS WE-CBA_0805_CBA (rev1).igs \| 76.6 KB STP WE-CBA_0805_CBA (rev1).stp \| 62.9 KB RF & Microwave simulation models MDL Modelithics Electric models ZIP PSP PSpice_WE-CBA (rev23a).zip \| 17.2 KB Download all 8 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	700	730	1500	0.1	High Current	–
782965781	SPEC	7 files EDA models: Components ZIP ALT Altium_WE-CBA (rev22d).IntLib \| 678.5 KB ZUK Cadstar_WE-CBA (rev19b).zip \| 9.5 KB CDS Cadence_WE-CBA (rev22b).zip \| 608.2 KB EAG Eagle_WE-CBA (rev22a).lbr \| 84.4 KB CAD files ZIP IGS IGS_WE-CBA_1812 (rev1).igs \| 157.1 KB STP STP_WE-CBA_1812 (rev1).stp \| 34.1 KB Electric models ZIP PSP PSpice_WE-CBA (rev23a).zip \| 17.2 KB Download all 7 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	780	1300	3000	0.04	High Current	–
782963851	SPEC	8 files EDA models: Components ZIP ALT Altium_WE-CBA (rev22d).IntLib \| 678.5 KB ZUK Cadstar_WE-CBA (rev19b).zip \| 9.5 KB CDS Cadence_WE-CBA (rev22b).zip \| 608.2 KB EAG Eagle_WE-CBA (rev22a).lbr \| 84.4 KB CAD files ZIP IGS WE-CBA_1806_CBA (rev1).igs \| 76.7 KB STP WE-CBA_1806_CBA (rev1).stp \| 63 KB RF & Microwave simulation models MDL Modelithics Electric models ZIP PSP PSpice_WE-CBA (rev23a).zip \| 17.2 KB Download all 8 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	850	1250	1500	0.1	High Current	–
782422102	SPEC	8 files EDA models: Components ZIP ALT Altium_WE-CBA (rev22d).IntLib \| 678.5 KB ZUK Cadstar_WE-CBA (rev19b).zip \| 9.5 KB CDS Cadence_WE-CBA (rev22b).zip \| 608.2 KB EAG Eagle_WE-CBA (rev22a).lbr \| 84.4 KB CAD files ZIP IGS WE-CBA_0402_CBA (rev1).igs \| 77 KB STP WE-CBA_0402_CBA (rev1).stp \| 63.1 KB RF & Microwave simulation models MDL Modelithics Electric models ZIP PSP PSpice_WE-CBA (rev23a).zip \| 17.2 KB Download all 8 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	1000	1200	200	1	Wide Band	782792
782632102	SPEC	8 files EDA models: Components ZIP ALT Altium_WE-CBA (rev22d).IntLib \| 678.5 KB ZUK Cadstar_WE-CBA (rev19b).zip \| 9.5 KB CDS Cadence_WE-CBA (rev22b).zip \| 608.2 KB EAG Eagle_WE-CBA (rev22a).lbr \| 84.4 KB CAD files ZIP IGS WE-CBA_0603_CBA (rev1).igs \| 76.4 KB STP WE-CBA_0603_CBA (rev1).stp \| 63.1 KB RF & Microwave simulation models MDL Modelithics Electric models ZIP PSP PSpice_WE-CBA (rev23a).zip \| 17.2 KB Download all 8 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	1000	1100	800	0.5	Wide Band	782792
782851102	SPEC	8 files EDA models: Components ZIP ALT Altium_WE-CBA (rev22d).IntLib \| 678.5 KB ZUK Cadstar_WE-CBA (rev19b).zip \| 9.5 KB CDS Cadence_WE-CBA (rev22b).zip \| 608.2 KB EAG Eagle_WE-CBA (rev22a).lbr \| 84.4 KB CAD files ZIP IGS WE-CBA_0805_CBA (rev1).igs \| 76.6 KB STP WE-CBA_0805_CBA (rev1).stp \| 62.9 KB RF & Microwave simulation models MDL Modelithics Electric models ZIP PSP PSpice_WE-CBA (rev23a).zip \| 17.2 KB Download all 8 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	1000	1100	300	0.35	High Speed	782792
782763102	SPEC	8 files EDA models: Components ZIP ALT Altium_WE-CBA (rev22d).IntLib \| 678.5 KB ZUK Cadstar_WE-CBA (rev19b).zip \| 9.5 KB CDS Cadence_WE-CBA (rev22b).zip \| 608.2 KB EAG Eagle_WE-CBA (rev22a).lbr \| 84.4 KB CAD files ZIP IGS WE-CBA_1206_CBA (rev1).igs \| 76.6 KB STP WE-CBA_1206_CBA (rev1).stp \| 63 KB RF & Microwave simulation models MDL Modelithics Electric models ZIP PSP PSpice_WE-CBA (rev23a).zip \| 17.2 KB Download all 8 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	1000	1200	1000	0.3	High Current	782792
782963201	SPEC	8 files EDA models: Components ZIP ALT Altium_WE-CBA (rev22d).IntLib \| 678.5 KB ZUK Cadstar_WE-CBA (rev19b).zip \| 9.5 KB CDS Cadence_WE-CBA (rev22b).zip \| 608.2 KB EAG Eagle_WE-CBA (rev22a).lbr \| 84.4 KB CAD files ZIP IGS WE-CBA_1806_CBA (rev1).igs \| 76.7 KB STP WE-CBA_1806_CBA (rev1).stp \| 63 KB RF & Microwave simulation models MDL Modelithics Electric models ZIP PSP PSpice_WE-CBA (rev23a).zip \| 17.2 KB Download all 8 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	1000	1020	1500	0.09	High Current	–
782853102	SPEC	8 files EDA models: Components ZIP ALT Altium_WE-CBA (rev22d).IntLib \| 678.5 KB ZUK Cadstar_WE-CBA (rev19b).zip \| 9.5 KB CDS Cadence_WE-CBA (rev22b).zip \| 608.2 KB EAG Eagle_WE-CBA (rev22a).lbr \| 84.4 KB CAD files ZIP IGS WE-CBA_0805_CBA (rev1).igs \| 76.6 KB STP WE-CBA_0805_CBA (rev1).stp \| 62.9 KB RF & Microwave simulation models MDL Modelithics Electric models ZIP PSP PSpice_WE-CBA (rev23a).zip \| 17.2 KB Download all 8 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	1000	1000	1000	0.3	High Current	–
782429102	SPEC	7 files EDA models: Components ZIP ALT Altium_WE-CBA (rev22d).IntLib \| 678.5 KB ZUK Cadstar_WE-CBA (rev19b).zip \| 9.5 KB CDS Cadence_WE-CBA (rev22b).zip \| 608.2 KB EAG Eagle_WE-CBA (rev22a).lbr \| 84.4 KB CAD files ZIP IGS WE-CBA_0402_CBA (rev1).igs \| 77 KB STP WE-CBA_0402_CBA (rev1).stp \| 63.1 KB Electric models ZIP PSP PSpice_WE-CBA (rev23a).zip \| 17.2 KB Download all 7 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	1000	1157	480	0.48	Wide Band	–
782853112	SPEC	8 files EDA models: Components ZIP ALT Altium_WE-CBA (rev22d).IntLib \| 678.5 KB ZUK Cadstar_WE-CBA (rev19b).zip \| 9.5 KB CDS Cadence_WE-CBA (rev22b).zip \| 608.2 KB EAG Eagle_WE-CBA (rev22a).lbr \| 84.4 KB CAD files ZIP IGS WE-CBA_0805_CBA (rev1).igs \| 76.6 KB STP WE-CBA_0805_CBA (rev1).stp \| 62.9 KB RF & Microwave simulation models MDL Modelithics Electric models ZIP PSP PSpice_WE-CBA (rev23a).zip \| 17.2 KB Download all 8 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	1100	1400	800	0.3	High Current	782792
782853152	SPEC	8 files EDA models: Components ZIP ALT Altium_WE-CBA (rev22d).IntLib \| 678.5 KB ZUK Cadstar_WE-CBA (rev19b).zip \| 9.5 KB CDS Cadence_WE-CBA (rev22b).zip \| 608.2 KB EAG Eagle_WE-CBA (rev22a).lbr \| 84.4 KB CAD files ZIP IGS WE-CBA_0805_CBA (rev1).igs \| 76.6 KB STP WE-CBA_0805_CBA (rev1).stp \| 62.9 KB RF & Microwave simulation models MDL Modelithics Electric models ZIP PSP PSpice_WE-CBA (rev23a).zip \| 17.2 KB Download all 8 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	1500	1800	700	0.35	High Current	782792
782853162	SPEC	8 files EDA models: Components ZIP ALT Altium_WE-CBA (rev22d).IntLib \| 678.5 KB ZUK Cadstar_WE-CBA (rev19b).zip \| 9.5 KB CDS Cadence_WE-CBA (rev22b).zip \| 608.2 KB EAG Eagle_WE-CBA (rev22a).lbr \| 84.4 KB CAD files ZIP IGS WE-CBA_0805_CBA (rev1).igs \| 76.6 KB STP WE-CBA_0805_CBA (rev1).stp \| 62.9 KB RF & Microwave simulation models MDL Modelithics Electric models ZIP PSP PSpice_WE-CBA (rev23a).zip \| 17.2 KB Download all 8 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	1500	1800	1000	0.3	High Current	–
782429152	SPEC	7 files EDA models: Components ZIP ALT Altium_WE-CBA (rev22d).IntLib \| 678.5 KB ZUK Cadstar_WE-CBA (rev19b).zip \| 9.5 KB CDS Cadence_WE-CBA (rev22b).zip \| 608.2 KB EAG Eagle_WE-CBA (rev22a).lbr \| 84.4 KB CAD files ZIP IGS WE-CBA_0402_CBA (rev1).igs \| 77 KB STP WE-CBA_0402_CBA (rev1).stp \| 63.1 KB Electric models ZIP PSP PSpice_WE-CBA (rev23a).zip \| 17.2 KB Download all 7 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	1500	1533	500	0.5	Wide Band	–
782631182	SPEC	8 files EDA models: Components ZIP ALT Altium_WE-CBA (rev22d).IntLib \| 678.5 KB ZUK Cadstar_WE-CBA (rev19b).zip \| 9.5 KB CDS Cadence_WE-CBA (rev22b).zip \| 608.2 KB EAG Eagle_WE-CBA (rev22a).lbr \| 84.4 KB CAD files ZIP IGS WE-CBA_0603_CBA (rev1).igs \| 76.4 KB STP WE-CBA_0603_CBA (rev1).stp \| 63.1 KB RF & Microwave simulation models MDL Modelithics Electric models ZIP PSP PSpice_WE-CBA (rev23a).zip \| 17.2 KB Download all 8 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	1800	2300	100	0.75	High Speed	782792
782429182	SPEC	7 files EDA models: Components ZIP ALT Altium_WE-CBA (rev22d).IntLib \| 678.5 KB ZUK Cadstar_WE-CBA (rev19b).zip \| 9.5 KB CDS Cadence_WE-CBA (rev22b).zip \| 608.2 KB EAG Eagle_WE-CBA (rev22a).lbr \| 84.4 KB CAD files ZIP IGS WE-CBA_0402_CBA (rev1).igs \| 77 KB STP WE-CBA_0402_CBA (rev1).stp \| 63.1 KB Electric models ZIP PSP PSpice_WE-CBA (rev23a).zip \| 17.2 KB Download all 7 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	1800	2700	210	2.1	High Frequency	–
782851212	SPEC	8 files EDA models: Components ZIP ALT Altium_WE-CBA (rev22d).IntLib \| 678.5 KB ZUK Cadstar_WE-CBA (rev19b).zip \| 9.5 KB CDS Cadence_WE-CBA (rev22b).zip \| 608.2 KB EAG Eagle_WE-CBA (rev22a).lbr \| 84.4 KB CAD files ZIP IGS WE-CBA_0805_CBA (rev1).igs \| 76.6 KB STP WE-CBA_0805_CBA (rev1).stp \| 62.9 KB RF & Microwave simulation models MDL Modelithics Electric models ZIP PSP PSpice_WE-CBA (rev23a).zip \| 17.2 KB Download all 8 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	2000	2000	400	0.42	High Speed	–
782851202	SPEC	8 files EDA models: Components ZIP ALT Altium_WE-CBA (rev22d).IntLib \| 678.5 KB ZUK Cadstar_WE-CBA (rev19b).zip \| 9.5 KB CDS Cadence_WE-CBA (rev22b).zip \| 608.2 KB EAG Eagle_WE-CBA (rev22a).lbr \| 84.4 KB CAD files ZIP IGS WE-CBA_0805_CBA (rev1).igs \| 76.6 KB STP WE-CBA_0805_CBA (rev1).stp \| 62.9 KB RF & Microwave simulation models MDL Modelithics Electric models ZIP PSP PSpice_WE-CBA (rev23a).zip \| 17.2 KB Download all 8 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	2200	2200	200	0.45	High Speed	782792
782631222	SPEC	8 files EDA models: Components ZIP ALT Altium_WE-CBA (rev22d).IntLib \| 678.5 KB ZUK Cadstar_WE-CBA (rev19b).zip \| 9.5 KB CDS Cadence_WE-CBA (rev22b).zip \| 608.2 KB EAG Eagle_WE-CBA (rev22a).lbr \| 84.4 KB CAD files ZIP IGS WE-CBA_0603_CBA (rev1).igs \| 76.4 KB STP WE-CBA_0603_CBA (rev1).stp \| 63.1 KB RF & Microwave simulation models MDL Modelithics Electric models ZIP PSP PSpice_WE-CBA (rev23a).zip \| 17.2 KB Download all 8 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	2200	2250	150	0.8	High Speed	–

Order Code	Datasheet	Simulation
782423100	SPEC
782219100	SPEC
782853200	SPEC
782639220	SPEC
782853270	SPEC
782763480	SPEC
782963560	SPEC
782963600	SPEC
782963610	SPEC
782219600	SPEC
782632620	SPEC
782633620	SPEC
782853680	SPEC
782423700	SPEC
782965700	SPEC
782763700	SPEC
782963800	SPEC
782763800	SPEC
782763820	SPEC
782963820	SPEC
782853910	SPEC
782422101	SPEC
782631101	SPEC
782631111	SPEC
782429111	SPEC
782632121	SPEC
782853121	SPEC
782853131	SPEC
782631141	SPEC
782422121	SPEC
782965121	SPEC
782631131	SPEC
782219121	SPEC
782429161	SPEC
782632181	SPEC
782422181	SPEC
782422221	SPEC
782853221	SPEC
782422231	SPEC
782853231	SPEC
782422241	SPEC
782219241	SPEC
782429261	SPEC
782762301	SPEC
782422301	SPEC
782853301	SPEC
782763301	SPEC
782219301	SPEC
782853321	SPEC
782422331	SPEC
782631331	SPEC
782853331	SPEC
782853401	SPEC
782429461	SPEC
782763501	SPEC
782422511	SPEC
782632511	SPEC
782853561	SPEC
782219561	SPEC
782422601	SPEC
782633601	SPEC
782853601	SPEC
782853611	SPEC
782965601	SPEC
782422611	SPEC
782763601	SPEC
782429601	SPEC
782639601	SPEC
782763621	SPEC
782853701	SPEC
782965781	SPEC
782963851	SPEC
782422102	SPEC
782632102	SPEC
782851102	SPEC
782763102	SPEC
782963201	SPEC
782853102	SPEC
782429102	SPEC
782853112	SPEC
782853152	SPEC
782853162	SPEC
782429152	SPEC
782631182	SPEC
782429182	SPEC
782851212	SPEC
782851202	SPEC
782631222	SPEC

Samples

Order Code	Datasheet	Simulation	Downloads	Status	Z @ 100 MHz (Ω)	Z_max (Ω)	I_R (mA)	R_DC (Ω)	Type	Design Kit	Samples

Characterization

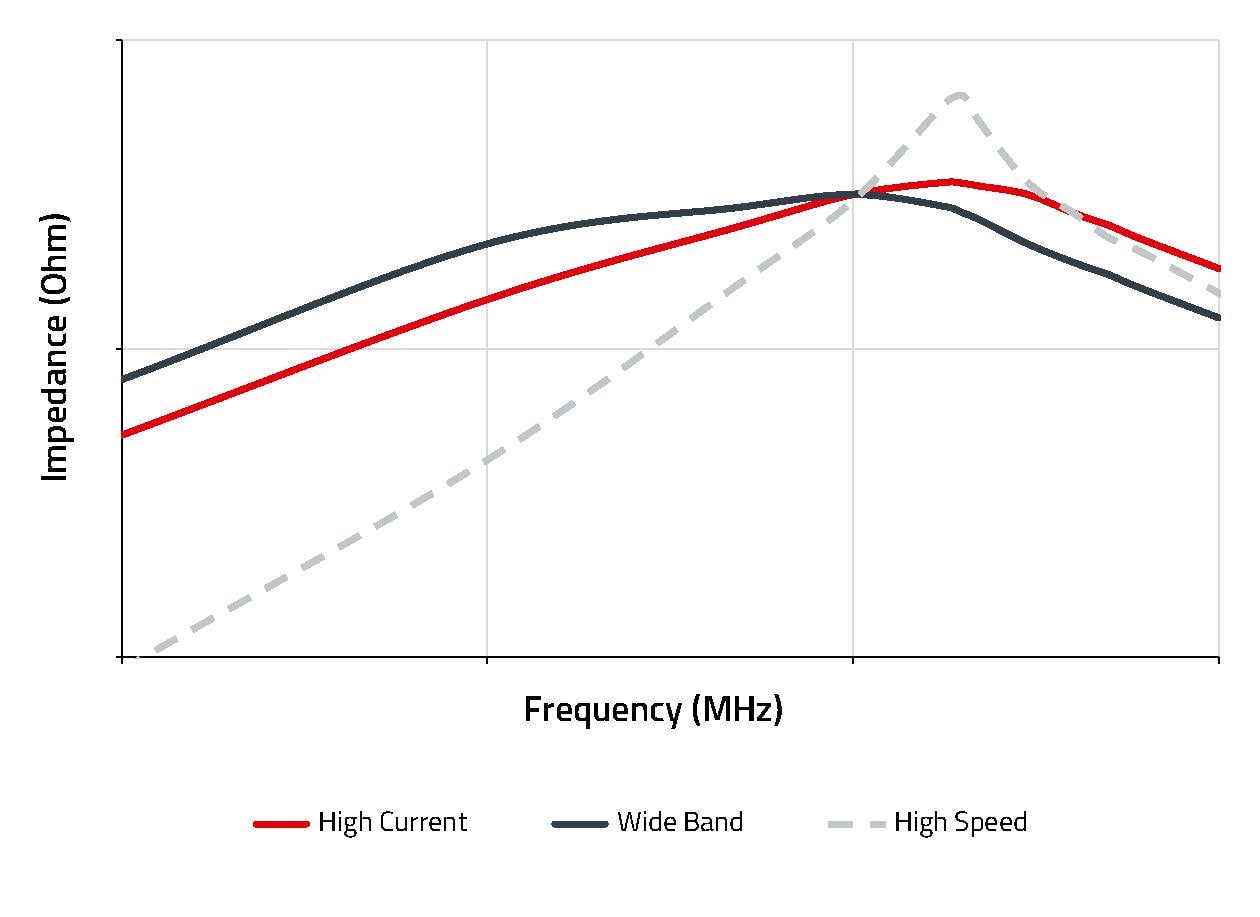

High current ferrites are designed for high rated current, which refers to
40 K self-heating.
Applications: power supply, DC/DC converter, power-trains, Battery management

High speed ferrites have lower impedance in lower frequency ranges. Therefore has low attenuation on signals and focuses on a specific noise frequency.
Applications: USB, infotainment systems, LVDS

Wide band ferrites show already high impedance in low frequency range. Therefore they are wide band through the whole spectrum.
Applications: control signals, DC/DC converter, infotainment systems, body control

Component selection with

REDEXPERT

The fastest way to the most suitable component for your application

REDEXPERT is Würth Elektronik's online platform for easy component selection and performance simulation based on measured values and component models for the most accurate information.

Registered users benefit from the following additional advantages:

Compare up to 16 products
Add up to 5 chart markers
Compare impedances and attenuations in the article table and filter for the highest values
Full access to all charts and download in .png, .pdf or .svg format

Learn more

The perfect match for your application

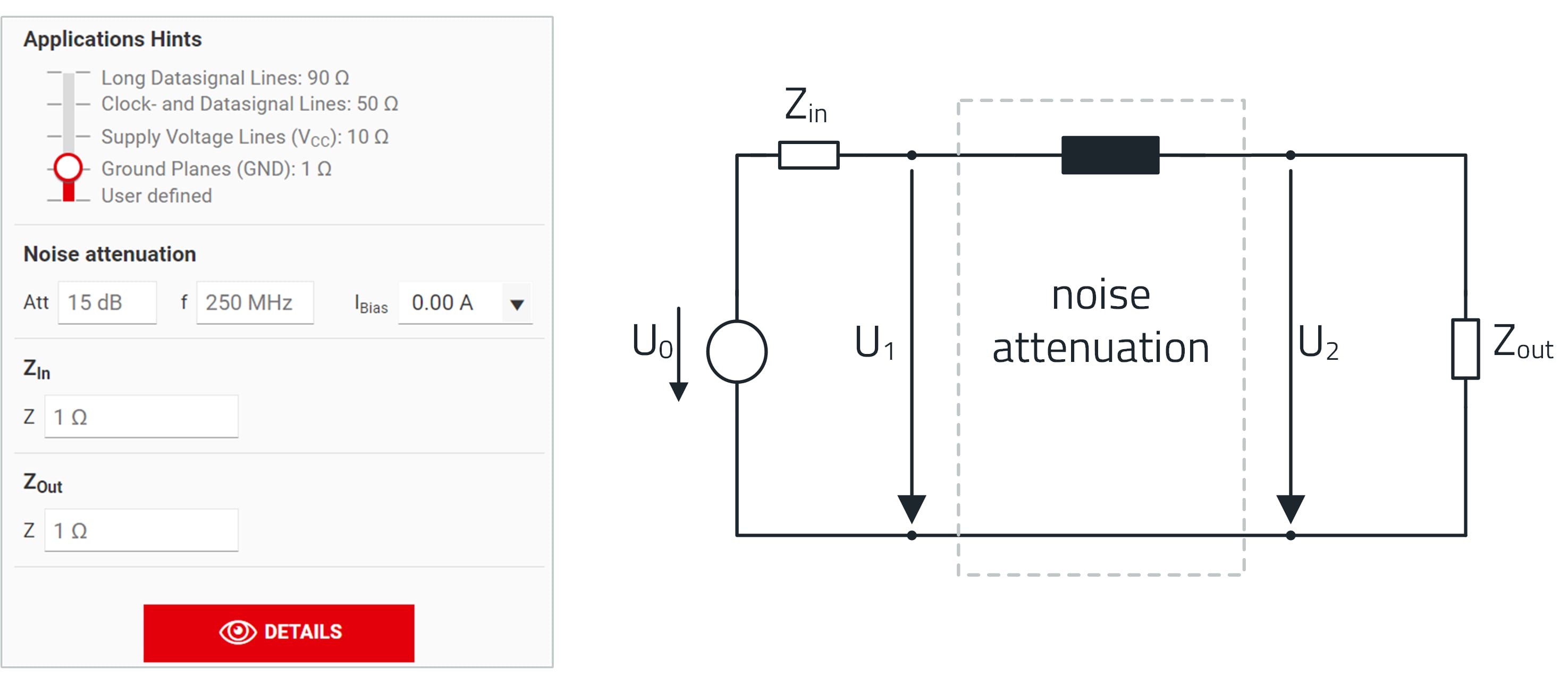

Enter your desired attenuation, frequency and system impedances and REDEXPERT suggests suitable ferrites. Depending on the specified system, the impedance over frequency is displayed.
