Characteristics
- Customizable Product Series:

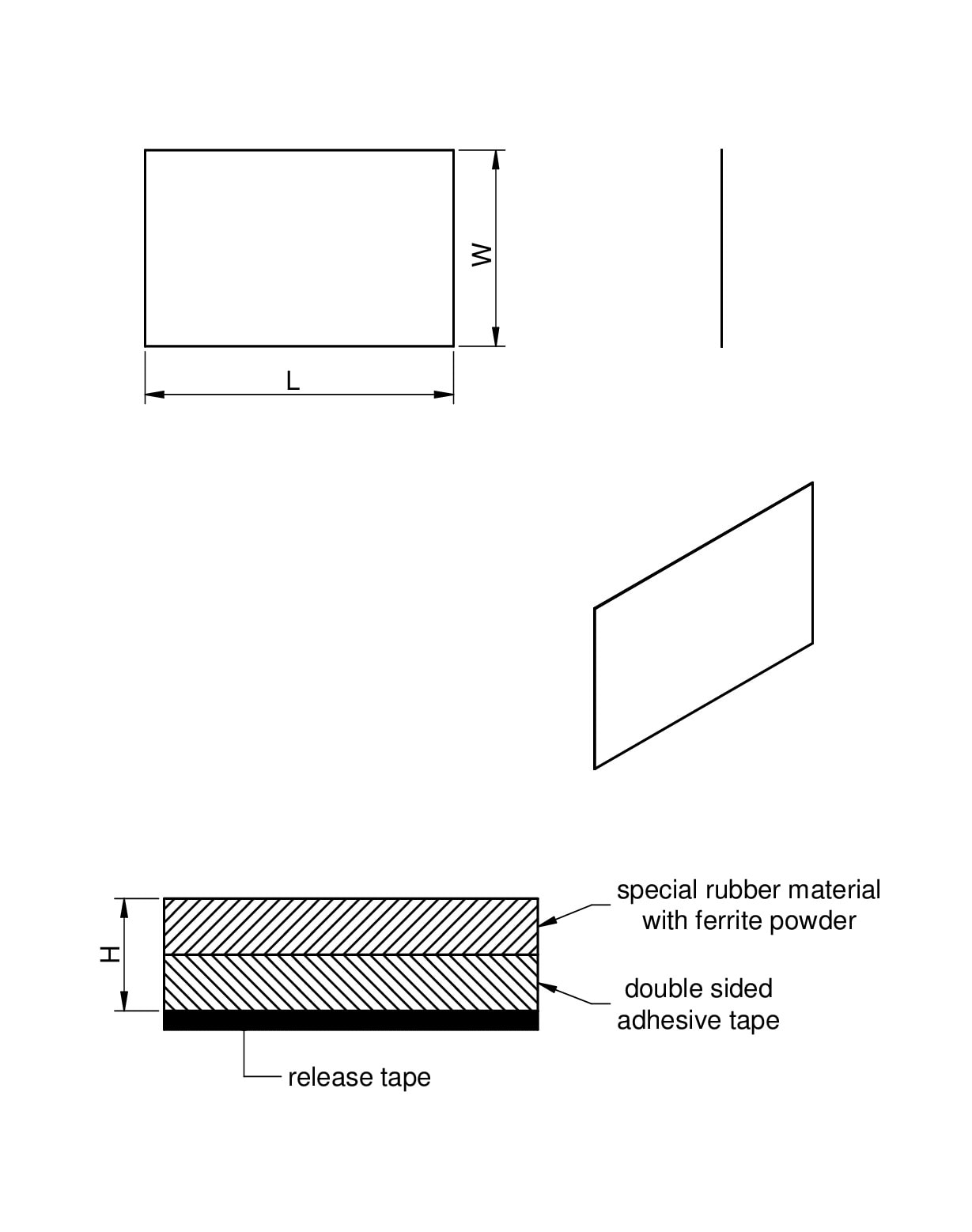

Dimensions
Shape
Adhensive - Operating temperature: –25 ºC to +90 ºC
- Tensile strength: 6 MPa
- High fire resistance
- Do you wish an individual offer for WE-FAS? Request for customized components WE-FAS
Applications
- RFID Applications
Application Notes
Products
| Order Code | Datasheet | Simulation | Downloads | Status | µʹ @ 13.56 MHz | µʹʹ @ 13.56 MHz | L (mm) | W (mm) | H (mm) | RS (Ω/cm²) | Design Kit | Samples |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 31401 | SPEC | 1 files | Active i| Production is active. Expected lifetime: >10 years. | 25 | 1 | 297 | 210 | 0.1 | 1 | – | ||
| 31402 | SPEC | 1 files | Active i| Production is active. Expected lifetime: >10 years. | 25 | 1 | 297 | 210 | 0.2 | 1 | – | ||
| 31403 | SPEC | 1 files | Active i| Production is active. Expected lifetime: >10 years. | 25 | 1 | 297 | 210 | 0.3 | 1 | – | ||
| 33401 | SPEC | 3 files | Active i| Production is active. Expected lifetime: >10 years. | 55 | 1 | 297 | 210 | 0.1 | 1 | 304999 | ||
| 33402 | SPEC | 3 files | Active i| Production is active. Expected lifetime: >10 years. | 55 | 1 | 297 | 210 | 0.2 | 1 | 304999 | ||
| 33403 | SPEC | 3 files | Active i| Production is active. Expected lifetime: >10 years. | 55 | 1 | 297 | 210 | 0.3 | 1 | 304999 |
| Samples |
|---|
| Order Code | Datasheet | Simulation | Downloads | Status | µʹ @ 13.56 MHz | µʹʹ @ 13.56 MHz | L (mm) | W (mm) | H (mm) | RS (Ω/cm²) | Design Kit | Samples |
|---|
