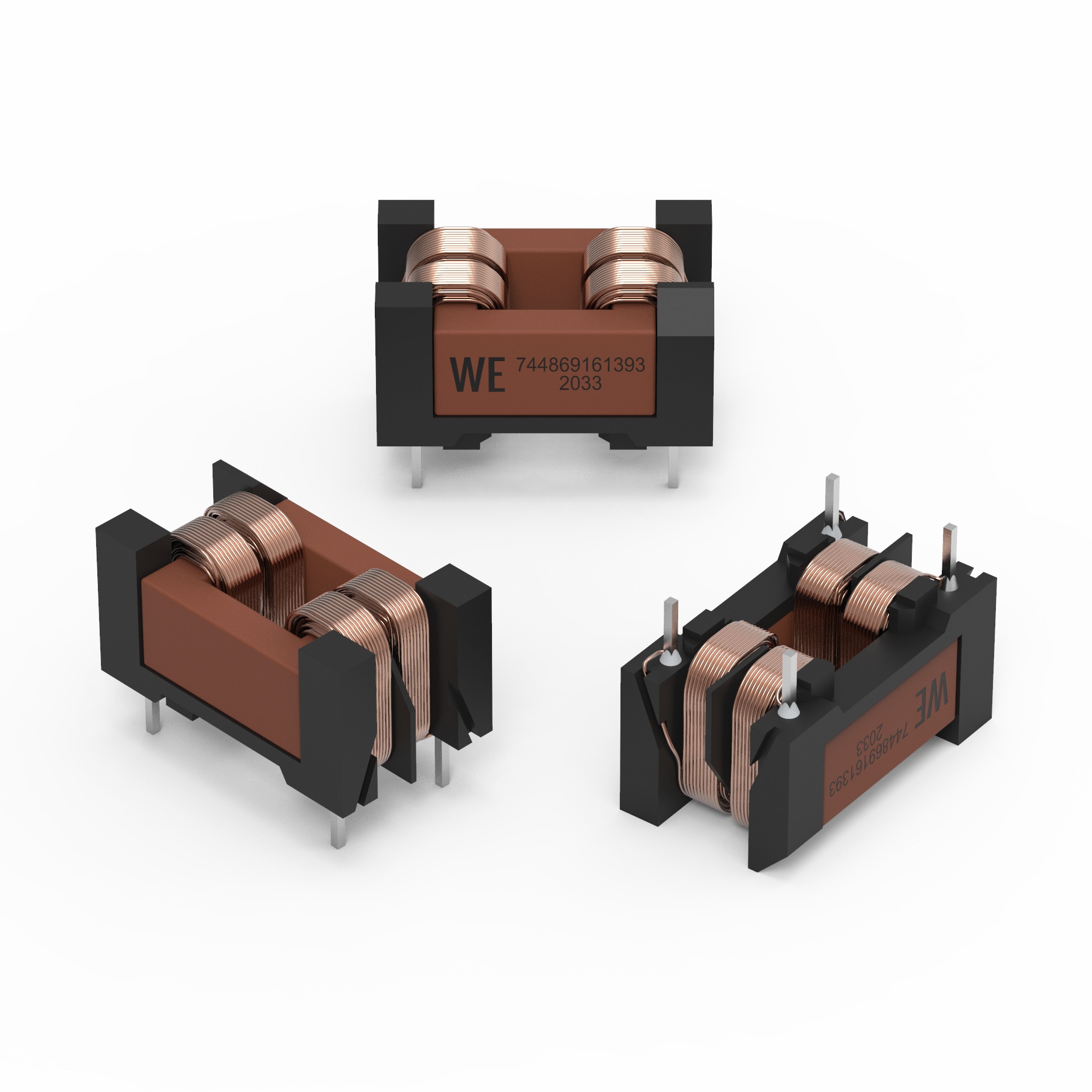

WE-FCLP Common Mode Power Line Choke

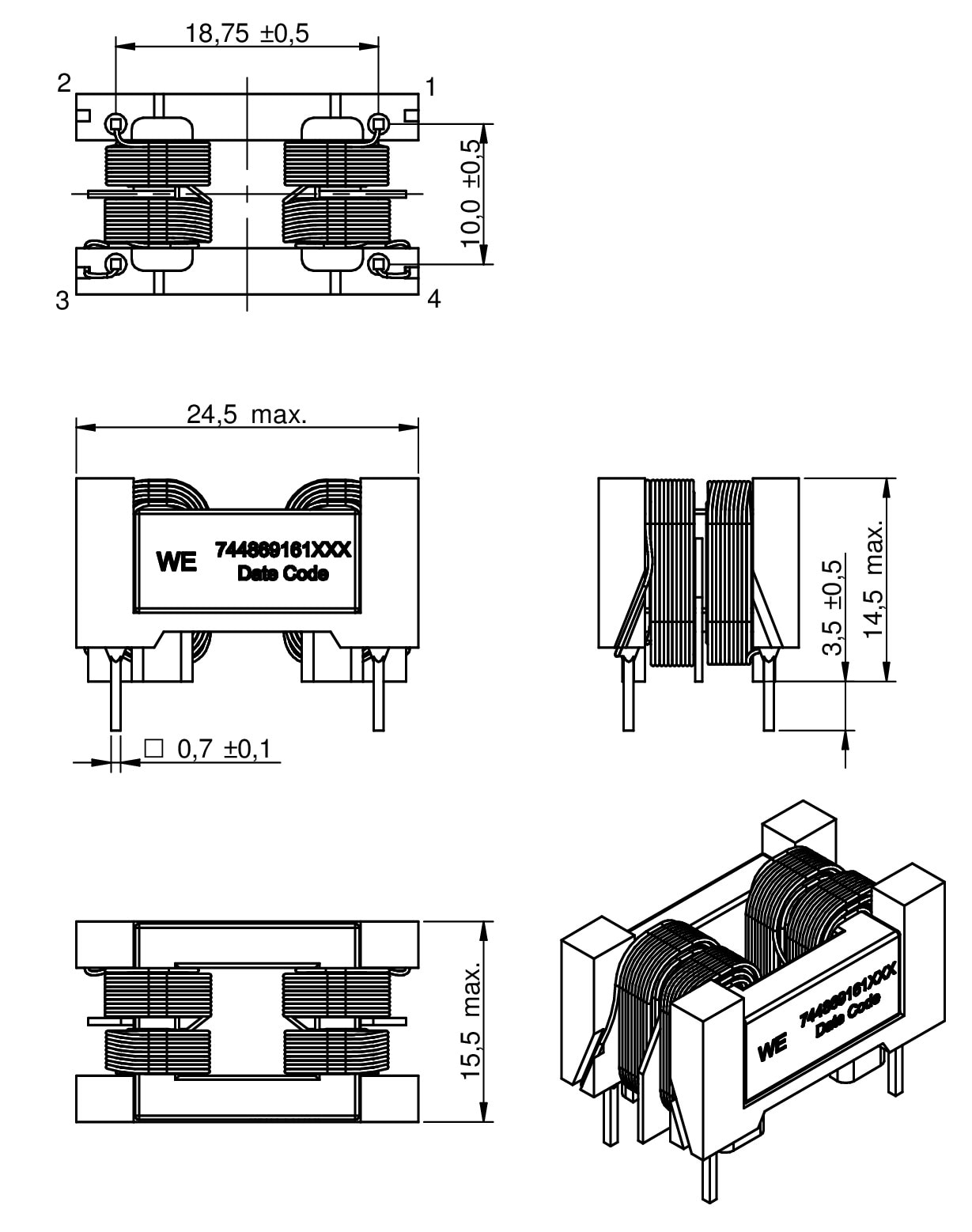

Size	Dimensions	3D	L (mm)	W (mm)	H (mm)	Material	Mount
FT16H			24.5	15.5	14.5	MnZn	THT

LTSpice files

LT
LTSpice_WE-FCLP (rev22a).zip
|
2.8 KB

Characteristics

Suppression of common mode noise up to 85 dB
High leakage inductance for differential filtering
Low profile with high inductance

Applications

Mains operated LED drivers
Electronic ballasts
Switched-mode power supplies
Mains filter

Products

FT16H

Order Code	Datasheet	Simulation	Downloads	Status	L (mH)	I_R (A)	I_{R 2} (A)	L_S (µH)	R_{DC max.} (mΩ)	V_R (V (AC))	V_T (kV)	Material	L (mm)	W (mm)	H (mm)	Mount	Samples
744869161063	SPEC		8 files EDA models: Components ZIP ALT Altium_WE-FCLP (rev22a).IntLib \| 701.5 KB ZUK Cadstar_WE-FCLP (rev21a).zip \| 5 KB CDS Cadence_WE-FCLP (rev24a).zip \| 3.3 MB EAG Eagle_WE-FCLP (rev24a).lbr \| 18.5 KB CAD files ZIP IGS Download_IGS_WE-FCLP_744869161xxx (rev1).igs \| 20.8 MB STP Downloads_STP_WE-FCLP_744869161xxx (rev1).stp \| 4 MB Electric models ZIP S S-Parameter_744869161063 (rev21a).s4p \| 286.1 KB PSP PSpice_WE-FCLP (rev22a).zip \| 4.9 KB Download all 8 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	6	2	2.4	120	220	250	1.5	MnZn	24.5	15.5	14.5	THT
744869161103	SPEC		8 files EDA models: Components ZIP ALT Altium_WE-FCLP (rev22a).IntLib \| 701.5 KB ZUK Cadstar_WE-FCLP (rev21a).zip \| 5 KB CDS Cadence_WE-FCLP (rev24a).zip \| 3.3 MB EAG Eagle_WE-FCLP (rev24a).lbr \| 18.5 KB CAD files ZIP IGS Download_IGS_WE-FCLP_744869161xxx (rev1).igs \| 20.8 MB STP Downloads_STP_WE-FCLP_744869161xxx (rev1).stp \| 4 MB Electric models ZIP S S-Parameter_744869161103 (rev21a).s4p \| 286.4 KB PSP PSpice_WE-FCLP (rev22a).zip \| 4.9 KB Download all 8 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	10	1.4	1.7	200	330	250	1.5	MnZn	24.5	15.5	14.5	THT
744869161153	SPEC		8 files EDA models: Components ZIP ALT Altium_WE-FCLP (rev22a).IntLib \| 701.5 KB ZUK Cadstar_WE-FCLP (rev21a).zip \| 5 KB CDS Cadence_WE-FCLP (rev24a).zip \| 3.3 MB EAG Eagle_WE-FCLP (rev24a).lbr \| 18.5 KB CAD files ZIP IGS Download_IGS_WE-FCLP_744869161xxx (rev1).igs \| 20.8 MB STP Downloads_STP_WE-FCLP_744869161xxx (rev1).stp \| 4 MB Electric models ZIP S S-Parameter_744869161153 (rev21a).s4p \| 286.7 KB PSP PSpice_WE-FCLP (rev22a).zip \| 4.9 KB Download all 8 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	15	1.1	1.3	290	550	250	1.5	MnZn	24.5	15.5	14.5	THT
744869161273	SPEC		8 files EDA models: Components ZIP ALT Altium_WE-FCLP (rev22a).IntLib \| 701.5 KB ZUK Cadstar_WE-FCLP (rev21a).zip \| 5 KB CDS Cadence_WE-FCLP (rev24a).zip \| 3.3 MB EAG Eagle_WE-FCLP (rev24a).lbr \| 18.5 KB CAD files ZIP IGS Download_IGS_WE-FCLP_744869161xxx (rev1).igs \| 20.8 MB STP Downloads_STP_WE-FCLP_744869161xxx (rev1).stp \| 4 MB Electric models ZIP S S-Parameter_744869161273 (rev21a).s4p \| 287.2 KB PSP PSpice_WE-FCLP (rev22a).zip \| 4.9 KB Download all 8 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	27	0.8	1	520	1000	250	1.5	MnZn	24.5	15.5	14.5	THT
744869161393	SPEC		8 files EDA models: Components ZIP ALT Altium_WE-FCLP (rev22a).IntLib \| 701.5 KB ZUK Cadstar_WE-FCLP (rev21a).zip \| 5 KB CDS Cadence_WE-FCLP (rev24a).zip \| 3.3 MB EAG Eagle_WE-FCLP (rev24a).lbr \| 18.5 KB CAD files ZIP IGS Download_IGS_WE-FCLP_744869161xxx (rev1).igs \| 20.8 MB STP Downloads_STP_WE-FCLP_744869161xxx (rev1).stp \| 4 MB Electric models ZIP S S-Parameter_744869161393 (rev21a).s4p \| 287.1 KB PSP PSpice_WE-FCLP (rev22a).zip \| 4.9 KB Download all 8 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	39	0.7	0.85	760	1430	250	1.5	MnZn	24.5	15.5	14.5	THT
744869161473	SPEC		8 files EDA models: Components ZIP ALT Altium_WE-FCLP (rev22a).IntLib \| 701.5 KB ZUK Cadstar_WE-FCLP (rev21a).zip \| 5 KB CDS Cadence_WE-FCLP (rev24a).zip \| 3.3 MB EAG Eagle_WE-FCLP (rev24a).lbr \| 18.5 KB CAD files ZIP IGS Download_IGS_WE-FCLP_744869161xxx (rev1).igs \| 20.8 MB STP Downloads_STP_WE-FCLP_744869161xxx (rev1).stp \| 4 MB Electric models ZIP S S-Parameter_744869161473 (rev21a).s4p \| 287.2 KB PSP PSpice_WE-FCLP (rev22a).zip \| 4.9 KB Download all 8 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	47	0.65	0.8	920	1630	250	1.5	MnZn	24.5	15.5	14.5	THT
744869161683	SPEC		8 files EDA models: Components ZIP ALT Altium_WE-FCLP (rev22a).IntLib \| 701.5 KB ZUK Cadstar_WE-FCLP (rev21a).zip \| 5 KB CDS Cadence_WE-FCLP (rev24a).zip \| 3.3 MB EAG Eagle_WE-FCLP (rev24a).lbr \| 18.5 KB CAD files ZIP IGS Download_IGS_WE-FCLP_744869161xxx (rev1).igs \| 20.8 MB STP Downloads_STP_WE-FCLP_744869161xxx (rev1).stp \| 4 MB Electric models ZIP S S-Parameter_744869161683 (rev21a).s4p \| 287.3 KB PSP PSpice_WE-FCLP (rev22a).zip \| 4.9 KB Download all 8 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	68	0.55	0.65	1340	2560	250	1.5	MnZn	24.5	15.5	14.5	THT
744869161104	SPEC		8 files EDA models: Components ZIP ALT Altium_WE-FCLP (rev22a).IntLib \| 701.5 KB ZUK Cadstar_WE-FCLP (rev21a).zip \| 5 KB CDS Cadence_WE-FCLP (rev24a).zip \| 3.3 MB EAG Eagle_WE-FCLP (rev24a).lbr \| 18.5 KB CAD files ZIP IGS Download_IGS_WE-FCLP_744869161xxx (rev1).igs \| 20.8 MB STP Downloads_STP_WE-FCLP_744869161xxx (rev1).stp \| 4 MB Electric models ZIP S S-Parameter_744869161104 (rev21a).s4p \| 287.5 KB PSP PSpice_WE-FCLP (rev22a).zip \| 4.9 KB Download all 8 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	100	0.4	0.5	1930	3470	250	1.5	MnZn	24.5	15.5	14.5	THT
