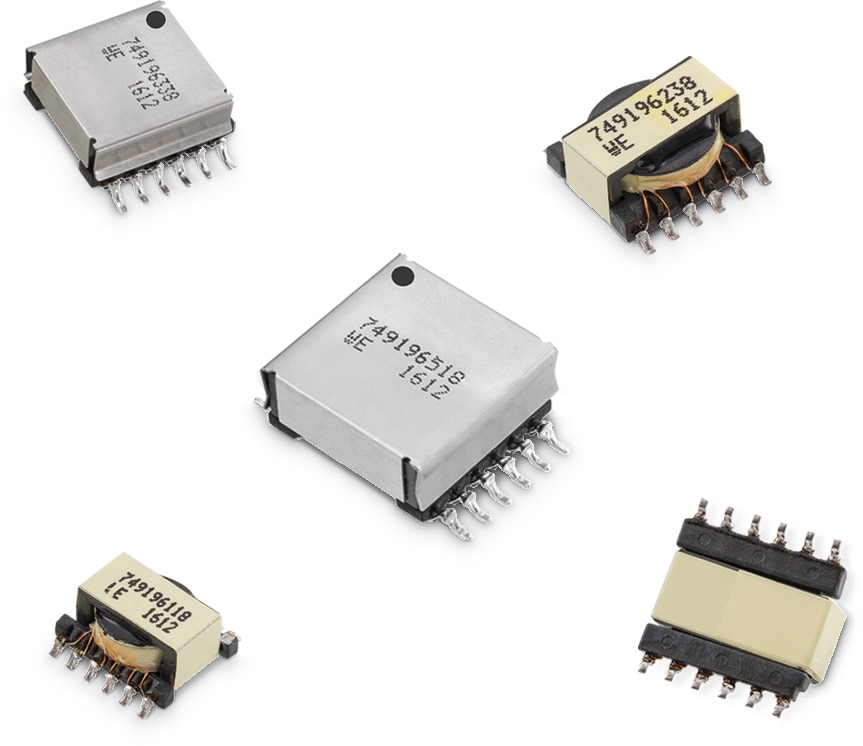

WE-FLEX HV Flexible Transformer for DC/DC Converter

Size	L (mm)	W (mm)	H (mm)

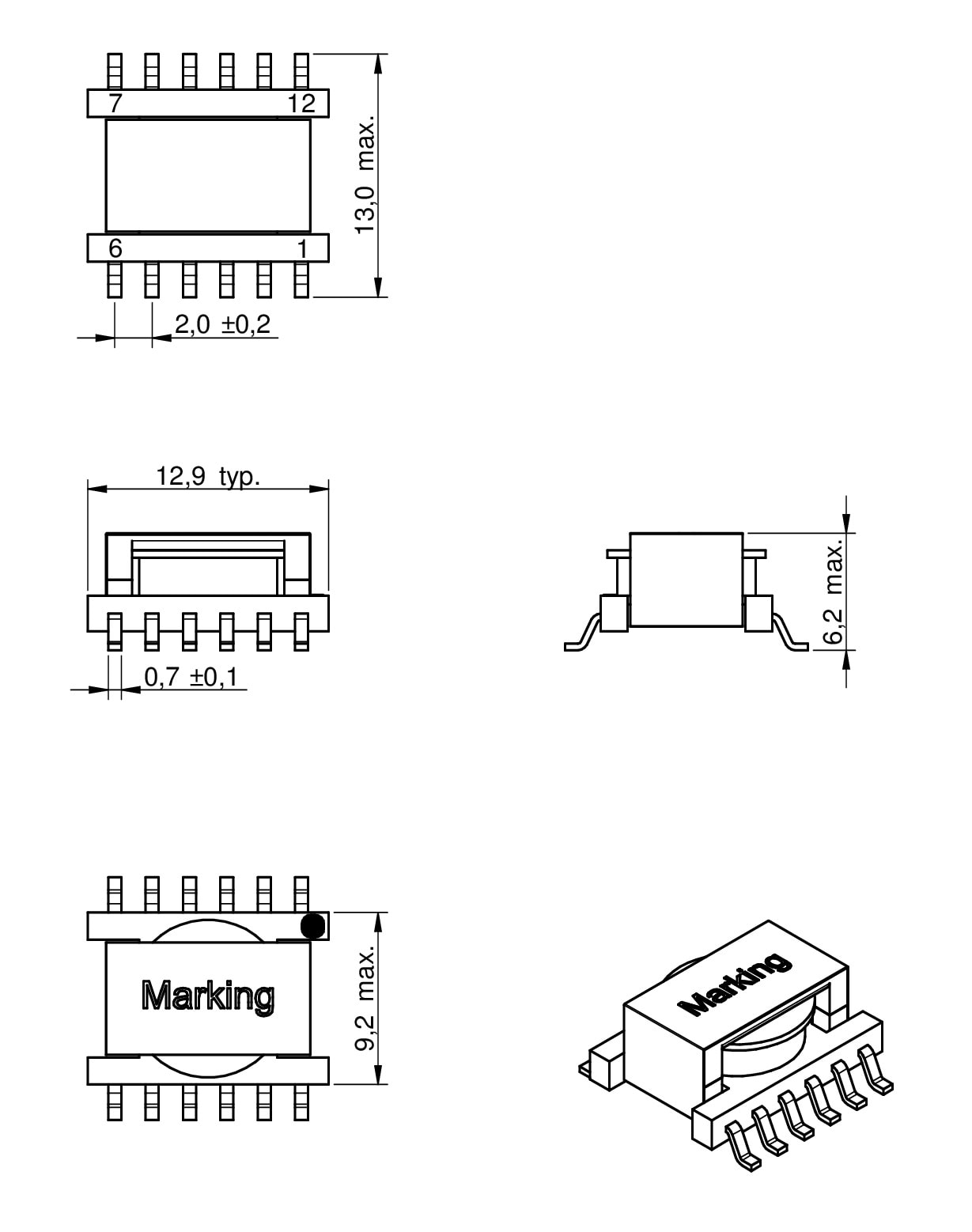

ER11.5	12.9	13	6.2

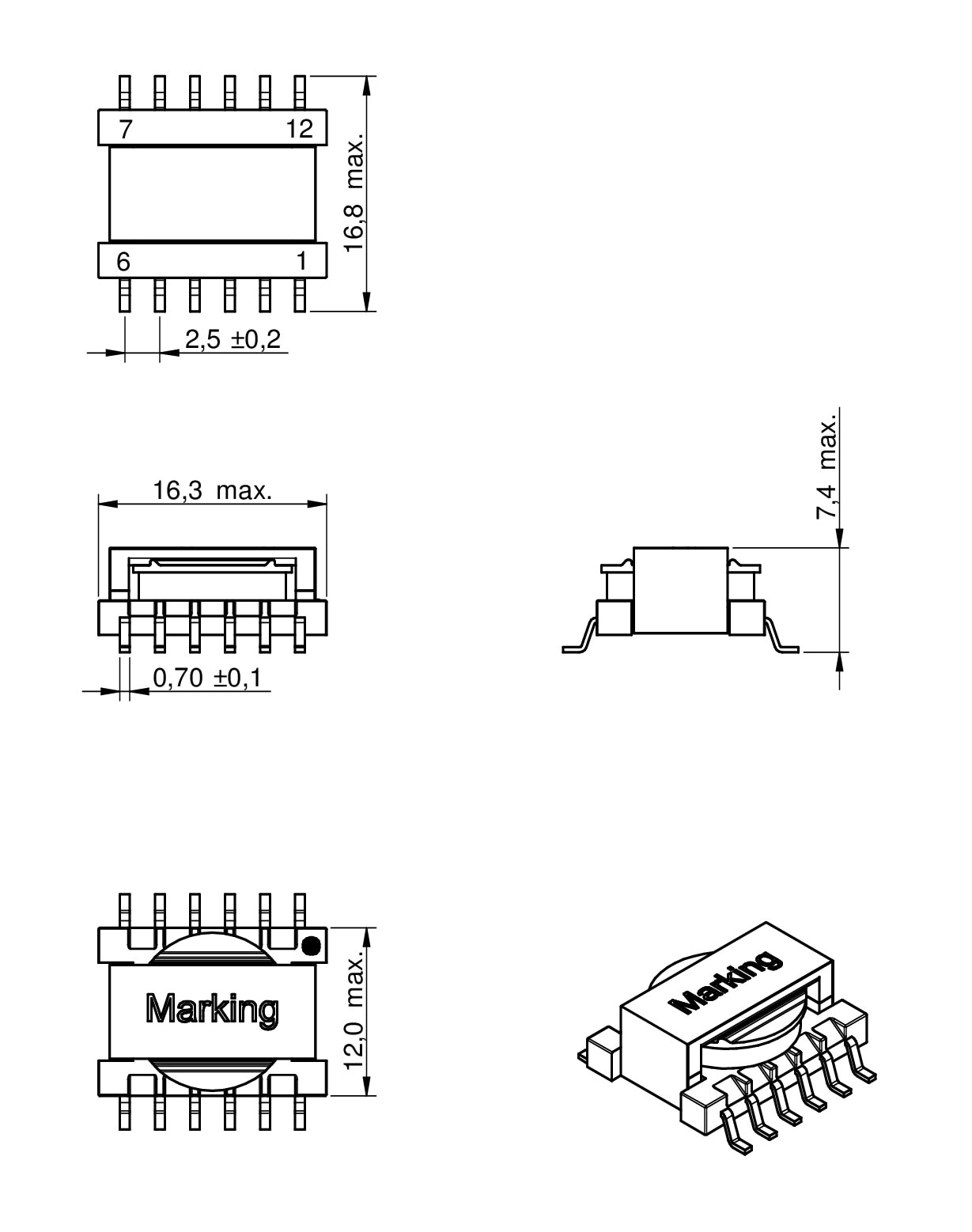

ER14.5/6	16.3	16.8	7.4

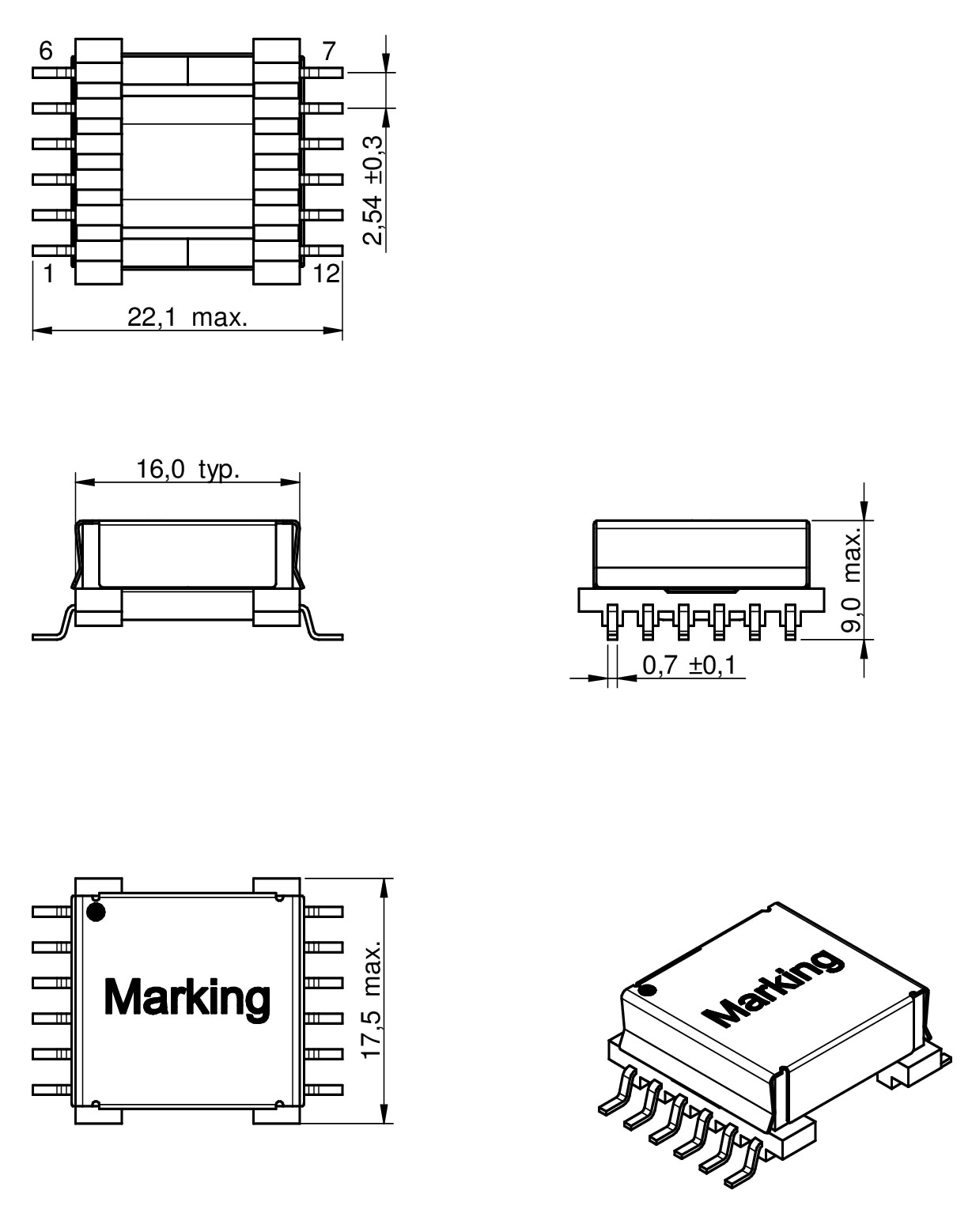

EFD15	22.1	17.5	9

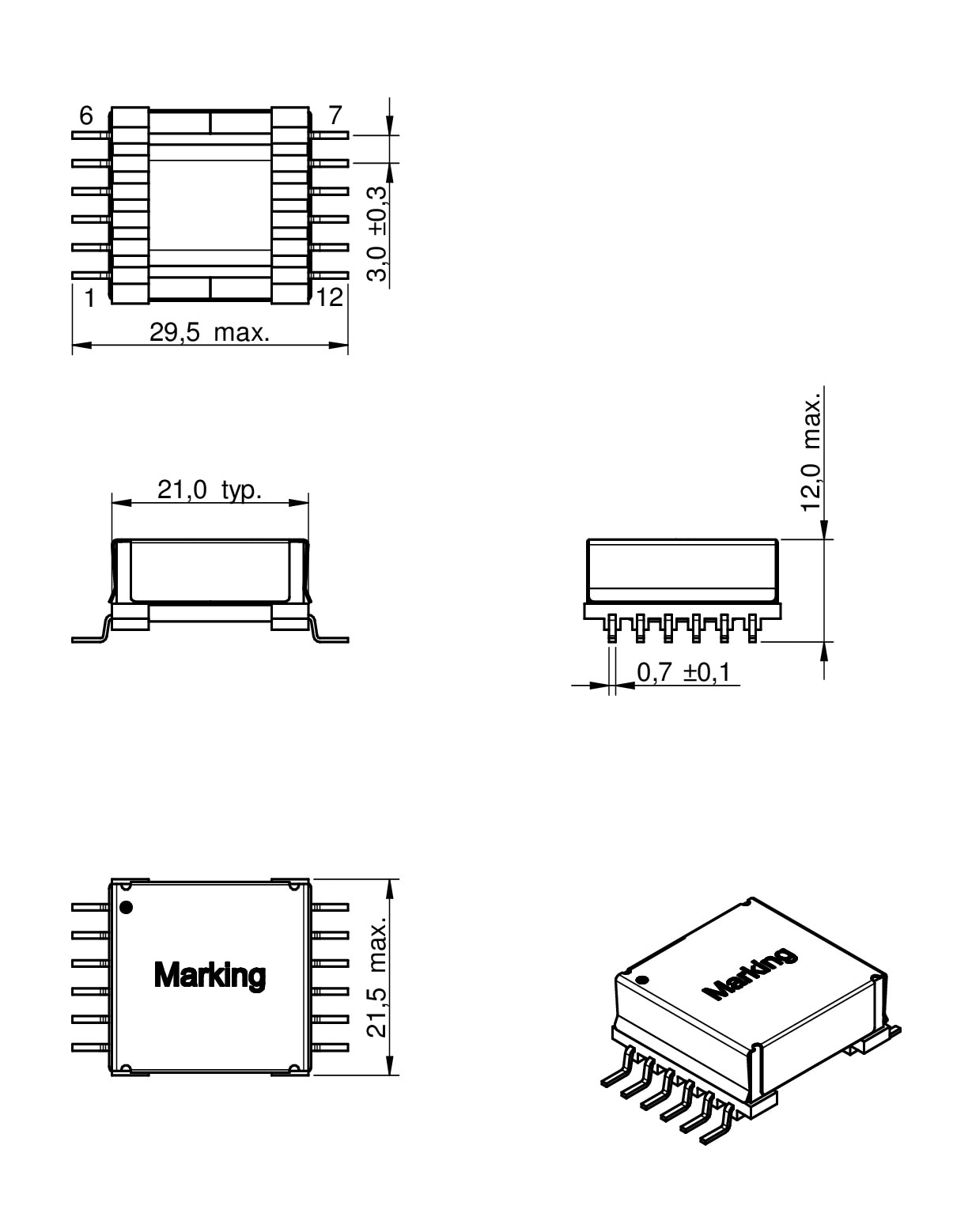

EFD20	29.5	21.5	12

LTSpice files

LT
LTSpice_WE-FLEX HV (rev23a).zip
|
337.4 KB

Characteristics

Transformer with 6 identical windings
4 sizes with 5 different lengths of air gap each
Isolation voltage up to 1.5 kVAC
Low leakage inductance
Operating temperature: –40 ºC to +125 ºC
By using different circuits more than 375 transformer solutions and about 125 choke solutions possible. Consequently, quick prototyping possibilities

Applications

Flyback converters
Forward converters
Push-pull converters
Step-up/step-down converters
SEPIC

Products
