LTSpice files

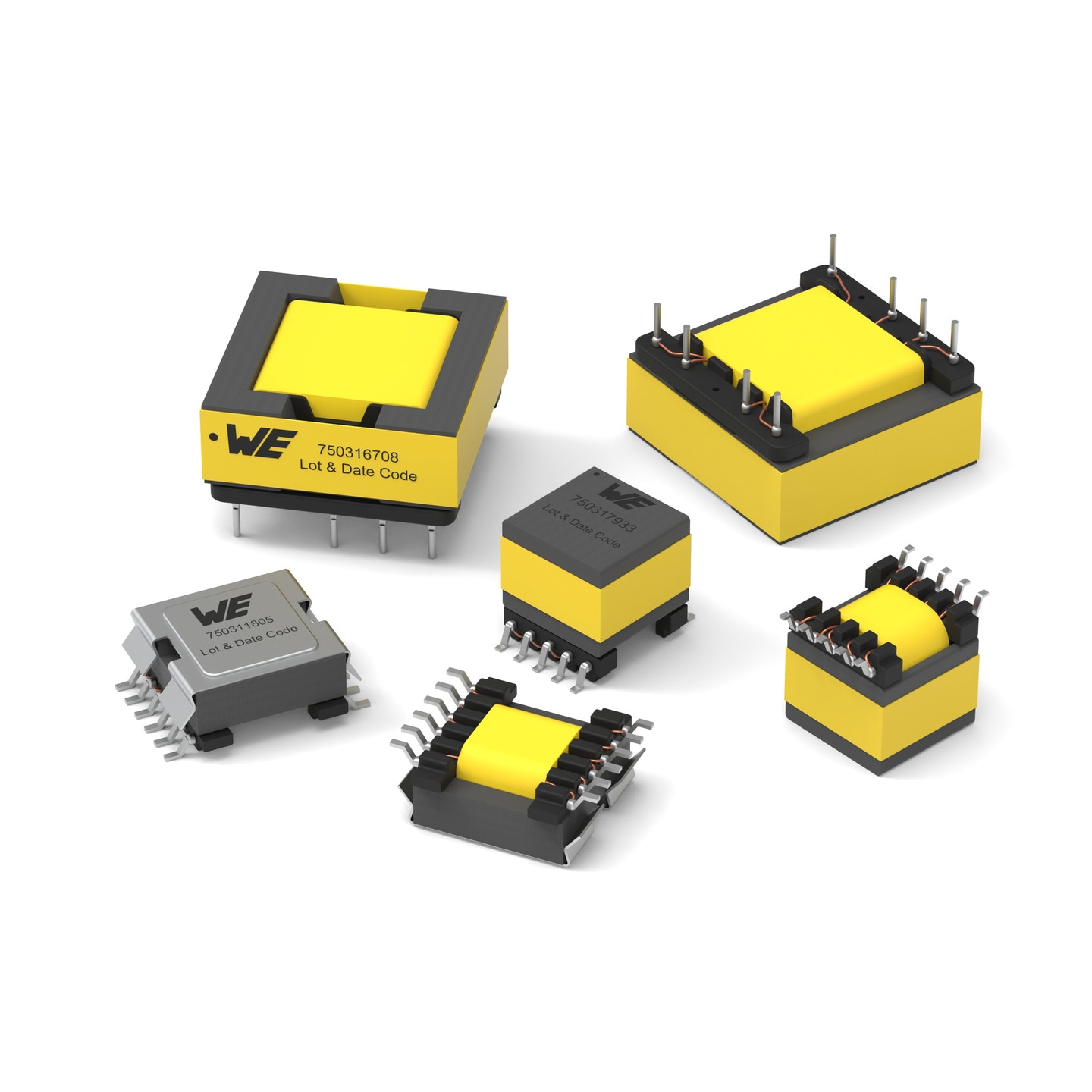

Characteristics
- Low leakage inductance
- Multiple package sizes
- Wide range input voltages
- Different output voltages available
- Isolation voltage: up to 3000VAC
- Lead free and RoHS compliant
- Operating temp: -40°C to 125°C
Applications
- Industrial and medical power supplies
- Auxiliary power supplies
- Home automation
- Isolated DC/DC power supplies
Products
| Order Code | Datasheet | Simulation | Downloads | Status | VIN | VOut1 (V) | IOut1 (mA) | VOut2 (V) | IOut2 (mA) | VOut3 (V) | IOut3 (mA) | Vaux (V) | L (µH) | n | ISAT (A) | LS (nH) | VT (V (AC)) | Size | Samples | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 | 750314189 | SPEC | 9 files | Active i| Production is active. Expected lifetime: >10 years. | 3 - 6 V (DC) | 5 | 200 | – | – | – | – | – | 2.5 | 1.2:1:1 | – | 650 | 2500 | EP7 | ||
 | 750313527 | SPEC | 10 files | Active i| Production is active. Expected lifetime: >10 years. | 4.5 - 16 V (DC) | 3.3 | 60 | 5 | 60 | 18 | 60 | – | 10 | 1.9:1:1.5:3.8 | 5.8 | 400 | 2500 | EFD15 | ||
 | 750342354 | SPEC PCN pendingDue to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. | 9 files | Active i| Production is active. Expected lifetime: >10 years. | 8 - 30 V (DC) | 6 | 2000 | – | – | – | – | – | 12 | 1.2:1 | 4.5 | 235 | 1500 | EP13 | ||
 | 750317595 | SPEC | 8 files | Active i| Production is active. Expected lifetime: >10 years. | 8 - 65 V (DC) | 15 | 200 | 8 | 200 | – | – | – | 30 | 1.82:1.82:1 | 2.4 | 500 | 1500 | EP7 | ||
 | 760372002 | SPEC | 10 files | Active i| Production is active. Expected lifetime: >10 years. | 9 - 36 V (DC) | 5 | 2500 | 5 | 2500 | 5 | 100 | – | 25 | 2:1:1:1 | 7.5 | 1000 | 1500 | EFD25 | ||
 | 750342984 | SPEC | 9 files | Active i| Production is active. Expected lifetime: >10 years. | 9 - 16 V (DC) | 15 | 100 | -15 | 100 | – | – | 15 | 30 | 1.5:1:1:1 | 1 | 300 | 1500 | EP7 | ||
 | 750312791 | SPEC PCN pendingDue to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. | 8 files | Active i| Production is active. Expected lifetime: >10 years. | 9 - 57 V (DC) | 56 | 350 | – | – | – | – | 12 | 10 | 1:5:1.13 | 8.75 | 100 | 1500 | EFD20 | ||
| 750313102 | SPEC | 10 files | Active i| Production is active. Expected lifetime: >10 years. | 10 - 32 V (DC) | 48 | 500 | – | – | – | – | – | 12 | 1:1:1:1 | 11.5 | 540 | 1500 | EFD20 | ||
 | 750316708 | SPEC | 9 files | Active i| Production is active. Expected lifetime: >10 years. | 12 - 60 V (DC) | 12 | 3000 | – | – | – | – | 12 | 42 | 3:1:1 | 7 | 750 | 1000 | EFD25 | ||
| 750317605 | SPEC | 9 files | Active i| Production is active. Expected lifetime: >10 years. | 12 - 70 V (DC) | 5 | 1000 | – | – | – | – | – | 30 | 3:1 | 2.6 | 900 | 625 | EP7 | ||
 | 750318701 | SPEC | 8 files | Active i| Production is active. Expected lifetime: >10 years. | 12 - 42 V (DC) | 12 | 1000 | – | – | – | – | – | 8.6 | 1:1 | 6.25 | 500 | 1500 | EP7 | ||
 | 750342985 | SPEC | 10 files | Active i| Production is active. Expected lifetime: >10 years. | 15 - 36 V (DC) | 24 | 500 | 6 | 100 | 6 | 100 | 24 | 30 | 7.3:4:1:1:4 | 2.6 | 600 | 1500 | EP13 | ||
 | 750318704 | SPEC PCN pendingDue to a pending PCN there will be a new datasheet revision issued for this order code soon. Please find the actual as well based on valid PCN date the new revision datasheet below. If you have further questions please get in contact with our sales staff. | 8 files | Active i| Production is active. Expected lifetime: >10 years. | 15 - 42 V (DC) | 15 | 400 | 8 | 400 | – | – | – | 7 | 1.25:1.88:1 | 5.7 | 150 | 500 | EP7 | ||
| 750319029 | SPEC | 8 files | Active i| Production is active. Expected lifetime: >10 years. | 15 - 42 V (DC) | 12 | 1000 | – | – | – | – | – | 7 | 1:1 | 6.4 | 250 | 1500 | EP7 | ||
 | 750317594 | SPEC PCN pendingDue to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. | 8 files | Active i| Production is active. Expected lifetime: >10 years. | 18 - 30 V (DC) | 24 | 350 | – | – | – | – | 12 | 20 | 2:2:1 | 6 | 1000 | 1875 | EP13 | ||
 | 750317933 | SPEC | 10 files | Active i| Production is active. Expected lifetime: >10 years. | 18 - 36 V (DC) | 5 | 4000 | – | – | – | – | 10 | 21 | 2:1:2 | 6.2 | 300 | 1500 | EPQ13 | ||
 | 750344600 | SPEC | 9 files | Active i| Production is active. Expected lifetime: >10 years. | 20 - 28 V (DC) | 19 | 250 | 6 | 250 | – | – | – | 35 | 3:3:1 | 1.5 | 1000 | 1500 | EP7 | ||
 | 750315252 | SPEC | 10 files | Active i| Production is active. Expected lifetime: >10 years. | 24 - 48 V (DC) | 24 | 1000 | – | – | – | – | – | 60 | 1:1.33 | 3.8 | 1500 | 3000 | EFD20 | ||
 | 750343772 | SPEC | 9 files | Active i| Production is active. Expected lifetime: >10 years. | 24 V (DC) | 100 | 125 | -100 | 125 | – | – | – | 13 | 1:5.5:5.5 | – | 300 | 1500 | EE13/7/6 | ||
| 750315623 | SPEC | 10 files | Active i| Production is active. Expected lifetime: >10 years. | 25 - 520 V (DC) | 24 | 1250 | – | – | – | – | 24 | 100 | 2:1:1 | 4.8 | 1400 | 1772 | EFD25 | ||
| 750311805 | SPEC | 9 files | Active i| Production is active. Expected lifetime: >10 years. | 36 - 57 V (DC) | 12 | 830 | 6 | – | – | – | 10 | 166.5 | 4:2:1:2 | 1.4 | 2050 | 1500 | EFD15 | ||
| 750318525 | SPEC | 8 files | Active i| Production is active. Expected lifetime: >10 years. | 36 - 57 V (DC) | 5 | 2400 | – | – | – | – | 10.5 | 150 | 6:1:1:2.25 | 1.5 | 1000 | 1500 | EPQ13 | ||
| 750319214 | SPEC | 8 files | Active i| Production is active. Expected lifetime: >10 years. | 36 - 57 V (DC) | 24 | 1000 | – | – | – | – | 10.5 | 65 | 6:1:5:2.3 | 2.6 | 600 | 1500 | EPQ13 | ||
| 750344050 | SPEC | 8 files | Active i| Production is active. Expected lifetime: >10 years. | 40 - 180 V (DC) | 24 | 2000 | – | – | – | – | 13 | 65 | 1.85:1:0.54 | 7.95 | 1000 | 2000 | EFD25 | ||
| 750315778 | SPEC | 10 files | Active i| Production is active. Expected lifetime: >10 years. | 42.5 - 57 V (DC) | 12 | 4300 | – | – | – | – | 12 | 62 | 3.2:1:1 | 5.2 | 836 | 1500 | EFD25 |
| Order Code | Datasheet | Simulation | |
|---|---|---|---|
| 750314189 | SPEC | |
| 750313527 | SPEC | |
| 750342354 | SPEC PCN pendingDue to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. | |
| 750317595 | SPEC | |
| 760372002 | SPEC | |
| 750342984 | SPEC | |
| 750312791 | SPEC PCN pendingDue to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. | |
| 750313102 | SPEC | |
| 750316708 | SPEC | |
| 750317605 | SPEC | |
| 750318701 | SPEC | |
| 750342985 | SPEC | |
| 750318704 | SPEC PCN pendingDue to a pending PCN there will be a new datasheet revision issued for this order code soon. Please find the actual as well based on valid PCN date the new revision datasheet below. If you have further questions please get in contact with our sales staff. | |
| 750319029 | SPEC | |
| 750317594 | SPEC PCN pendingDue to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. | |
| 750317933 | SPEC | |
| 750344600 | SPEC | |
| 750315252 | SPEC | |
| 750343772 | SPEC | |
| 750315623 | SPEC | |
| 750311805 | SPEC | |
| 750318525 | SPEC | |
| 750319214 | SPEC | |
| 750344050 | SPEC | |
| 750315778 | SPEC |
