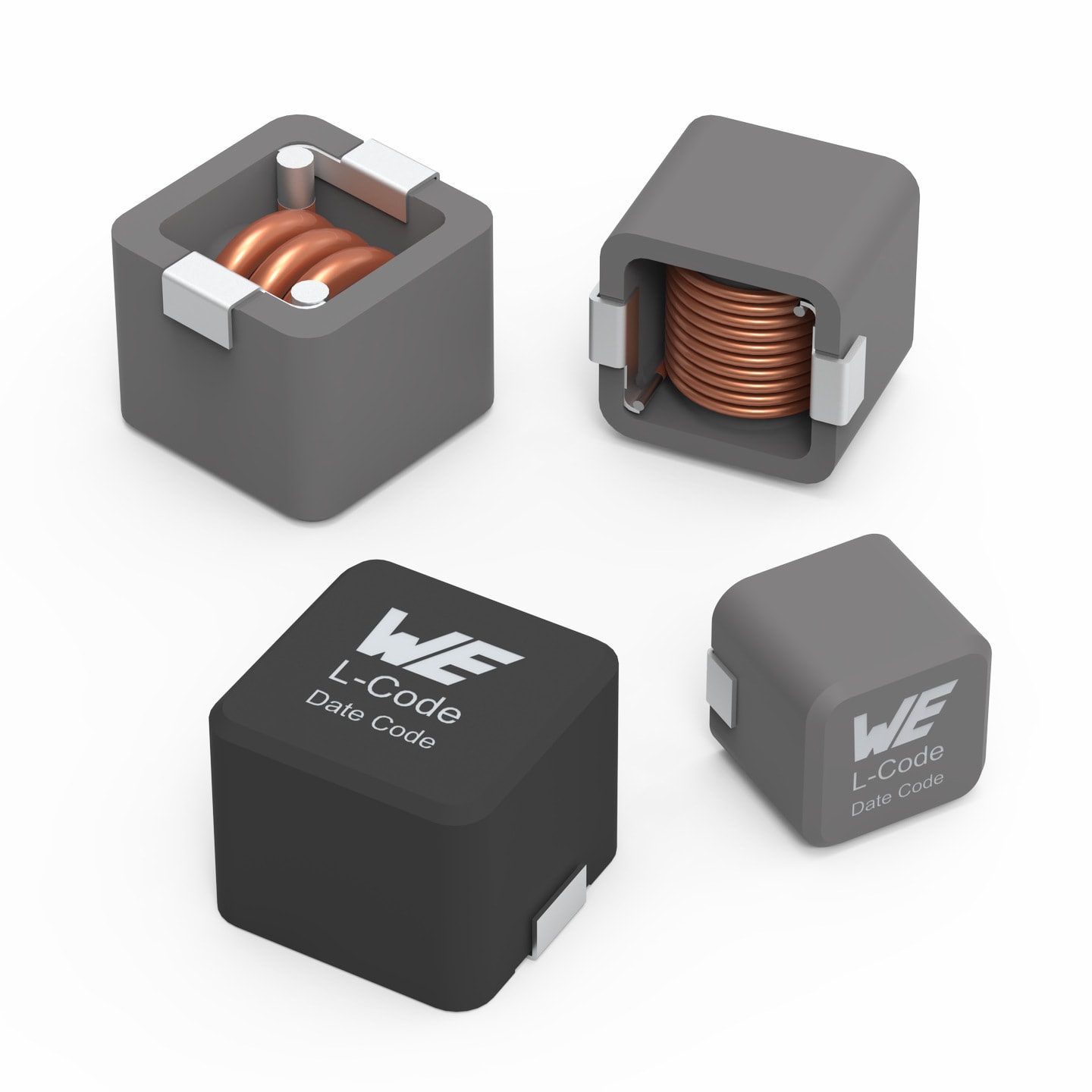

WE-HCC SMT High Current Cube Inductor

Size	L (mm)	W (mm)	H (mm)	Material	Mount
8070	8.4	7.9	7.2	Ferrite	SMT
1090	10.9	10	9.3	Ferrite	SMT
1210 ferrite	12.1	11.4	9.5	Ferrite	SMT
1210 iron powder	12.1	11.4	9.5	Iron Powder	SMT

LTSpice files

LT
LTSpice_WE-HCC (rev22a).zip
|
2.9 KB

Characteristics

Magnetically shielded
Operating temperature: –40 °C to +125 °C
Recommended solder profile: Reflow
Current capability up to 27 A
Excellent saturation characteristics

Applications

Filter choke for DC/DC converter
Single and polyphase buck converter
Filter choke for motor electronics
Input filter inductor for DC/DC converter

Application Notes
