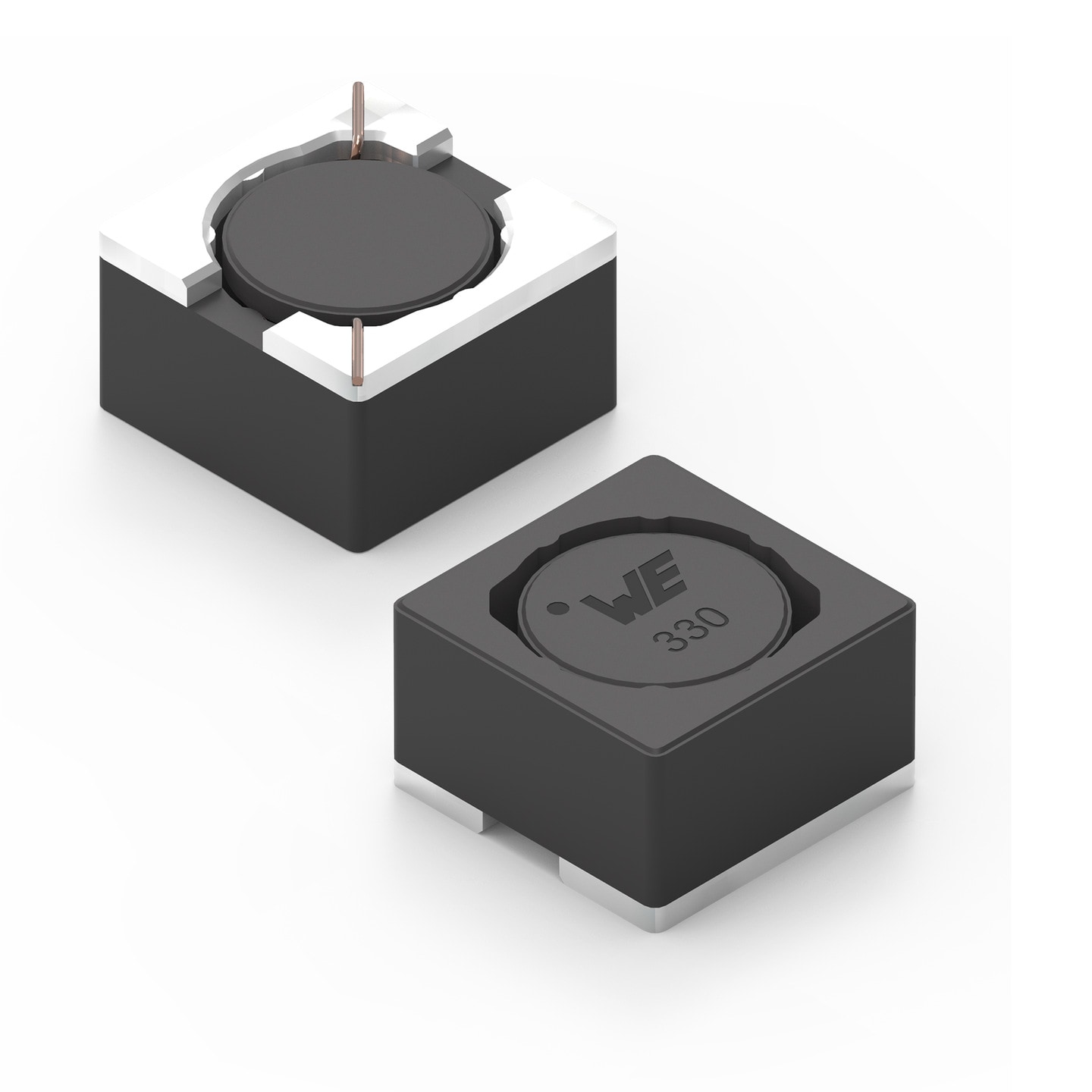

WE-HEPA High Efficiency Power Choke

Size	Dimensions	L (mm)	W (mm)	H (mm)
5030		4.8	4.8	2.8
6030		5.9	5.9	2.85

Datasheet

SPEC
Seriesdatasheet_WE-HEPA_V1 (rev1).pdf
|
2.3 MB

LTSpice files

LT
LTSpice_WE-HEPA (rev23a).zip
|
2.1 KB

Characteristics

Magnetically shielded
Operating temperature: - 40°C up to +150°C
AECQ-200 Grade 1

Applications

Filter applications
Led headlights (DC/DC-Converter, Control system)
Electric Vehicle (Battery Management System, Inverter, DC/DC)
Car navigation systems

Products

All

5030

6030

Order Code	Datasheet	Downloads	Status	L (µH)	Tol. L	I_R (A)	I_SAT,10% (A)	R_{DC max.} (mΩ)	f_res (MHz)	Design Kit	Samples
78408053003	SPEC	8 files EDA models: Components ZIP ALT Altium_WE-HEPA (rev24a).IntLib \| 802 KB CDS Cadence_WE-HEPA (rev24a).zip \| 2.3 MB EAG Eagle_WE-HEPA (rev24a).lbr \| 25.6 KB CAD files ZIP 3D 3D_IndHEPA_5030_78408053xxx (rev1).pdf \| 1.1 MB IGS IGS_IndHEPA_5030_78408053xxx (rev1).igs \| 1.8 MB STP STP_IndHEPA_5030_78408053xxx (rev1).stp \| 805.9 KB Electric models ZIP PSP PSpice_WE-HEPA (rev23a).zip \| 5.3 KB SCS Spectre_WE-HEPA (rev24a).mod \| 4.9 KB Download all 8 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	3.3	±25%	2	2.3	75	100	78408001
78408053004	SPEC	8 files EDA models: Components ZIP ALT Altium_WE-HEPA (rev24a).IntLib \| 802 KB CDS Cadence_WE-HEPA (rev24a).zip \| 2.3 MB EAG Eagle_WE-HEPA (rev24a).lbr \| 25.6 KB CAD files ZIP 3D 3D_IndHEPA_5030_78408053xxx (rev1).pdf \| 1.1 MB IGS IGS_IndHEPA_5030_78408053xxx (rev1).igs \| 1.8 MB STP STP_IndHEPA_5030_78408053xxx (rev1).stp \| 805.9 KB Electric models ZIP PSP PSpice_WE-HEPA (rev23a).zip \| 5.3 KB SCS Spectre_WE-HEPA (rev24a).mod \| 4.9 KB Download all 8 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	4.7	±20%	1.4	2.1	100	85	78408001
78408063004	SPEC	8 files EDA models: Components ZIP ALT Altium_WE-HEPA (rev24a).IntLib \| 802 KB CDS Cadence_WE-HEPA (rev24a).zip \| 2.3 MB EAG Eagle_WE-HEPA (rev24a).lbr \| 25.6 KB CAD files ZIP 3D 3D_IndHEPA_6030_78408063xxx (rev1).pdf \| 1.7 MB IGS IGS_IndHEPA_6030_78408063xxx (rev1).igs \| 1.8 MB STP STP_IndHEPA_6030_78408063xxx (rev1).stp \| 827.7 KB Electric models ZIP PSP PSpice_WE-HEPA (rev23a).zip \| 5.3 KB SCS Spectre_WE-HEPA (rev24a).mod \| 4.9 KB Download all 8 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	4.7	±20%	2	2.5	90	75	78408001
78408053006	SPEC	8 files EDA models: Components ZIP ALT Altium_WE-HEPA (rev24a).IntLib \| 802 KB CDS Cadence_WE-HEPA (rev24a).zip \| 2.3 MB EAG Eagle_WE-HEPA (rev24a).lbr \| 25.6 KB CAD files ZIP 3D 3D_IndHEPA_5030_78408053xxx (rev1).pdf \| 1.1 MB IGS IGS_IndHEPA_5030_78408053xxx (rev1).igs \| 1.8 MB STP STP_IndHEPA_5030_78408053xxx (rev1).stp \| 805.9 KB Electric models ZIP PSP PSpice_WE-HEPA (rev23a).zip \| 5.3 KB SCS Spectre_WE-HEPA (rev24a).mod \| 4.9 KB Download all 8 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	6.8	±20%	1.3	2	125	60	78408001
78408063006	SPEC	8 files EDA models: Components ZIP ALT Altium_WE-HEPA (rev24a).IntLib \| 802 KB CDS Cadence_WE-HEPA (rev24a).zip \| 2.3 MB EAG Eagle_WE-HEPA (rev24a).lbr \| 25.6 KB CAD files ZIP 3D 3D_IndHEPA_6030_78408063xxx (rev1).pdf \| 1.7 MB IGS IGS_IndHEPA_6030_78408063xxx (rev1).igs \| 1.8 MB STP STP_IndHEPA_6030_78408063xxx (rev1).stp \| 827.7 KB Electric models ZIP PSP PSpice_WE-HEPA (rev23a).zip \| 5.3 KB SCS Spectre_WE-HEPA (rev24a).mod \| 4.9 KB Download all 8 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	6.8	±20%	1.8	2.2	100	40	78408001
78408053100	SPEC	8 files EDA models: Components ZIP ALT Altium_WE-HEPA (rev24a).IntLib \| 802 KB CDS Cadence_WE-HEPA (rev24a).zip \| 2.3 MB EAG Eagle_WE-HEPA (rev24a).lbr \| 25.6 KB CAD files ZIP 3D 3D_IndHEPA_5030_78408053xxx (rev1).pdf \| 1.1 MB IGS IGS_IndHEPA_5030_78408053xxx (rev1).igs \| 1.8 MB STP STP_IndHEPA_5030_78408053xxx (rev1).stp \| 805.9 KB Electric models ZIP PSP PSpice_WE-HEPA (rev23a).zip \| 5.3 KB SCS Spectre_WE-HEPA (rev24a).mod \| 4.9 KB Download all 8 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	10	±20%	1.2	1.3	140	37	78408001
78408063100	SPEC	8 files EDA models: Components ZIP ALT Altium_WE-HEPA (rev24a).IntLib \| 802 KB CDS Cadence_WE-HEPA (rev24a).zip \| 2.3 MB EAG Eagle_WE-HEPA (rev24a).lbr \| 25.6 KB CAD files ZIP 3D 3D_IndHEPA_6030_78408063xxx (rev1).pdf \| 1.7 MB IGS IGS_IndHEPA_6030_78408063xxx (rev1).igs \| 1.8 MB STP STP_IndHEPA_6030_78408063xxx (rev1).stp \| 827.7 KB Electric models ZIP PSP PSpice_WE-HEPA (rev23a).zip \| 5.3 KB SCS Spectre_WE-HEPA (rev24a).mod \| 4.9 KB Download all 8 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	10	±20%	1.35	1.6	140	27	78408001
78408053150	SPEC	8 files EDA models: Components ZIP ALT Altium_WE-HEPA (rev24a).IntLib \| 802 KB CDS Cadence_WE-HEPA (rev24a).zip \| 2.3 MB EAG Eagle_WE-HEPA (rev24a).lbr \| 25.6 KB CAD files ZIP 3D 3D_IndHEPA_5030_78408053xxx (rev1).pdf \| 1.1 MB IGS IGS_IndHEPA_5030_78408053xxx (rev1).igs \| 1.8 MB STP STP_IndHEPA_5030_78408053xxx (rev1).stp \| 805.9 KB Electric models ZIP PSP PSpice_WE-HEPA (rev23a).zip \| 5.3 KB SCS Spectre_WE-HEPA (rev24a).mod \| 4.9 KB Download all 8 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	15	±20%	1.1	1.2	200	22	78408001
78408063150	SPEC	8 files EDA models: Components ZIP ALT Altium_WE-HEPA (rev24a).IntLib \| 802 KB CDS Cadence_WE-HEPA (rev24a).zip \| 2.3 MB EAG Eagle_WE-HEPA (rev24a).lbr \| 25.6 KB CAD files ZIP 3D 3D_IndHEPA_6030_78408063xxx (rev1).pdf \| 1.7 MB IGS IGS_IndHEPA_6030_78408063xxx (rev1).igs \| 1.8 MB STP STP_IndHEPA_6030_78408063xxx (rev1).stp \| 827.7 KB Electric models ZIP PSP PSpice_WE-HEPA (rev23a).zip \| 5.3 KB SCS Spectre_WE-HEPA (rev24a).mod \| 4.9 KB Download all 8 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	15	±20%	1.2	1.4	180	20	78408001
78408053220	SPEC	8 files EDA models: Components ZIP ALT Altium_WE-HEPA (rev24a).IntLib \| 802 KB CDS Cadence_WE-HEPA (rev24a).zip \| 2.3 MB EAG Eagle_WE-HEPA (rev24a).lbr \| 25.6 KB CAD files ZIP 3D 3D_IndHEPA_5030_78408053xxx (rev1).pdf \| 1.1 MB IGS IGS_IndHEPA_5030_78408053xxx (rev1).igs \| 1.8 MB STP STP_IndHEPA_5030_78408053xxx (rev1).stp \| 805.9 KB Electric models ZIP PSP PSpice_WE-HEPA (rev23a).zip \| 5.3 KB SCS Spectre_WE-HEPA (rev24a).mod \| 4.9 KB Download all 8 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	22	±20%	0.9	0.8	270	20	78408001
78408063220	SPEC	8 files EDA models: Components ZIP ALT Altium_WE-HEPA (rev24a).IntLib \| 802 KB CDS Cadence_WE-HEPA (rev24a).zip \| 2.3 MB EAG Eagle_WE-HEPA (rev24a).lbr \| 25.6 KB CAD files ZIP 3D 3D_IndHEPA_6030_78408063xxx (rev1).pdf \| 1.7 MB IGS IGS_IndHEPA_6030_78408063xxx (rev1).igs \| 1.8 MB STP STP_IndHEPA_6030_78408063xxx (rev1).stp \| 827.7 KB Electric models ZIP PSP PSpice_WE-HEPA (rev23a).zip \| 5.3 KB SCS Spectre_WE-HEPA (rev24a).mod \| 4.9 KB Download all 8 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	22	±20%	1	1.1	220	18	78408001
78408053330	SPEC	8 files EDA models: Components ZIP ALT Altium_WE-HEPA (rev24a).IntLib \| 802 KB CDS Cadence_WE-HEPA (rev24a).zip \| 2.3 MB EAG Eagle_WE-HEPA (rev24a).lbr \| 25.6 KB CAD files ZIP 3D 3D_IndHEPA_5030_78408053xxx (rev1).pdf \| 1.1 MB IGS IGS_IndHEPA_5030_78408053xxx (rev1).igs \| 1.8 MB STP STP_IndHEPA_5030_78408053xxx (rev1).stp \| 805.9 KB Electric models ZIP PSP PSpice_WE-HEPA (rev23a).zip \| 5.3 KB SCS Spectre_WE-HEPA (rev24a).mod \| 4.9 KB Download all 8 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	33	±20%	0.8	0.7	415	15	–
78408063330	SPEC	8 files EDA models: Components ZIP ALT Altium_WE-HEPA (rev24a).IntLib \| 802 KB CDS Cadence_WE-HEPA (rev24a).zip \| 2.3 MB EAG Eagle_WE-HEPA (rev24a).lbr \| 25.6 KB CAD files ZIP 3D 3D_IndHEPA_6030_78408063xxx (rev1).pdf \| 1.7 MB IGS IGS_IndHEPA_6030_78408063xxx (rev1).igs \| 1.8 MB STP STP_IndHEPA_6030_78408063xxx (rev1).stp \| 827.7 KB Electric models ZIP PSP PSpice_WE-HEPA (rev23a).zip \| 5.3 KB SCS Spectre_WE-HEPA (rev24a).mod \| 4.9 KB Download all 8 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	33	±20%	0.9	0.9	285	15	78408001
78408063470	SPEC	8 files EDA models: Components ZIP ALT Altium_WE-HEPA (rev24a).IntLib \| 802 KB CDS Cadence_WE-HEPA (rev24a).zip \| 2.3 MB EAG Eagle_WE-HEPA (rev24a).lbr \| 25.6 KB CAD files ZIP 3D 3D_IndHEPA_6030_78408063xxx (rev1).pdf \| 1.7 MB IGS IGS_IndHEPA_6030_78408063xxx (rev1).igs \| 1.8 MB STP STP_IndHEPA_6030_78408063xxx (rev1).stp \| 827.7 KB Electric models ZIP PSP PSpice_WE-HEPA (rev23a).zip \| 5.3 KB SCS Spectre_WE-HEPA (rev24a).mod \| 4.9 KB Download all 8 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	47	±20%	0.8	0.8	385	11	78408001
78408063680	SPEC	8 files EDA models: Components ZIP ALT Altium_WE-HEPA (rev24a).IntLib \| 802 KB CDS Cadence_WE-HEPA (rev24a).zip \| 2.3 MB EAG Eagle_WE-HEPA (rev24a).lbr \| 25.6 KB CAD files ZIP 3D 3D_IndHEPA_6030_78408063xxx (rev1).pdf \| 1.7 MB IGS IGS_IndHEPA_6030_78408063xxx (rev1).igs \| 1.8 MB STP STP_IndHEPA_6030_78408063xxx (rev1).stp \| 827.7 KB Electric models ZIP PSP PSpice_WE-HEPA (rev23a).zip \| 5.3 KB SCS Spectre_WE-HEPA (rev24a).mod \| 4.9 KB Download all 8 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	68	±20%	0.6	0.7	535	9	78408001
78408063101	SPEC	8 files EDA models: Components ZIP ALT Altium_WE-HEPA (rev24a).IntLib \| 802 KB CDS Cadence_WE-HEPA (rev24a).zip \| 2.3 MB EAG Eagle_WE-HEPA (rev24a).lbr \| 25.6 KB CAD files ZIP 3D 3D_IndHEPA_6030_78408063xxx (rev1).pdf \| 1.7 MB IGS IGS_IndHEPA_6030_78408063xxx (rev1).igs \| 1.8 MB STP STP_IndHEPA_6030_78408063xxx (rev1).stp \| 827.7 KB Electric models ZIP PSP PSpice_WE-HEPA (rev23a).zip \| 5.3 KB SCS Spectre_WE-HEPA (rev24a).mod \| 4.9 KB Download all 8 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	100	±20%	0.5	0.5	850	8	78408001
