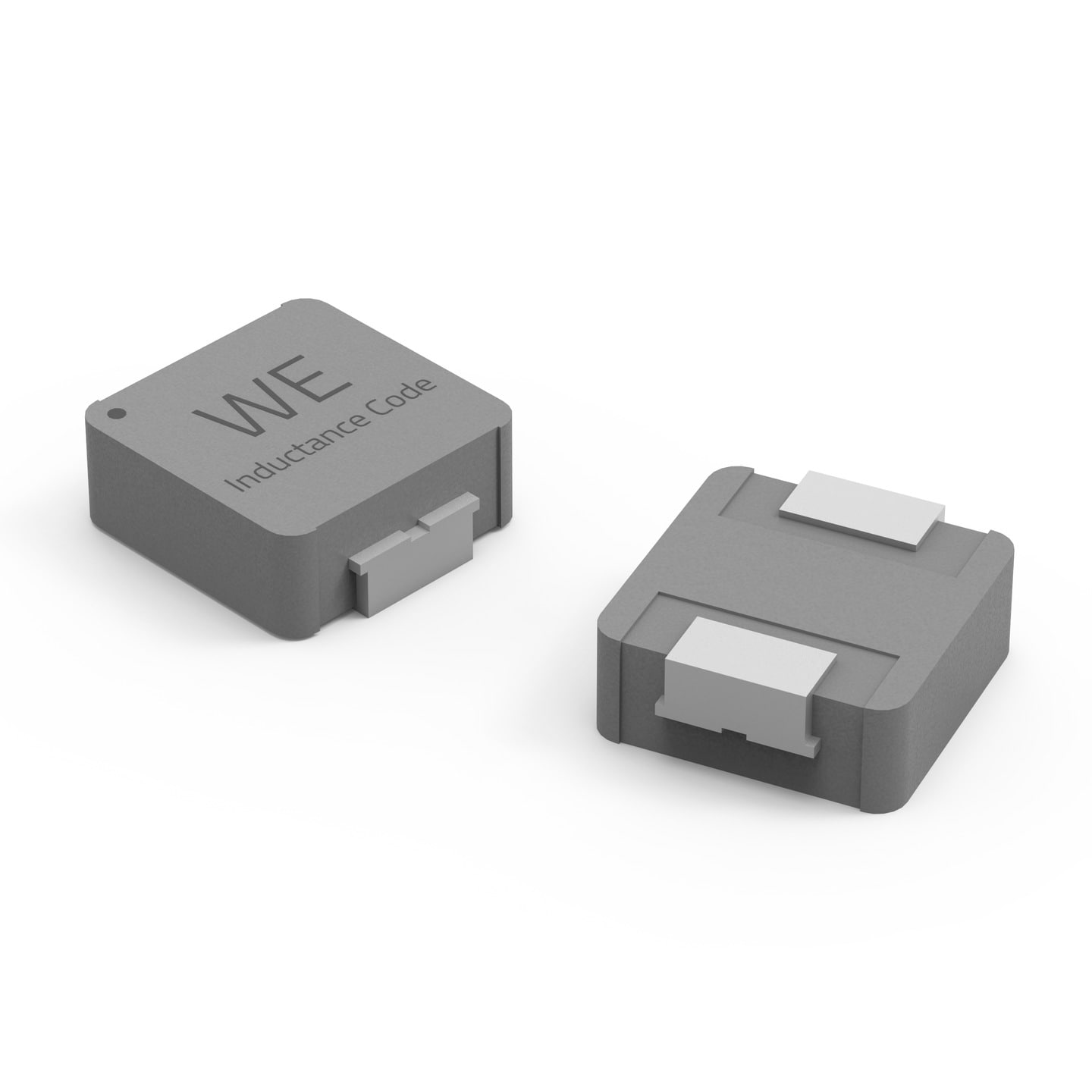

WE-LHCA Low Profile High Current Inductor| Automotive | Würth Elektronik Product Catalog

	Size	L (mm)	W (mm)	H (mm)

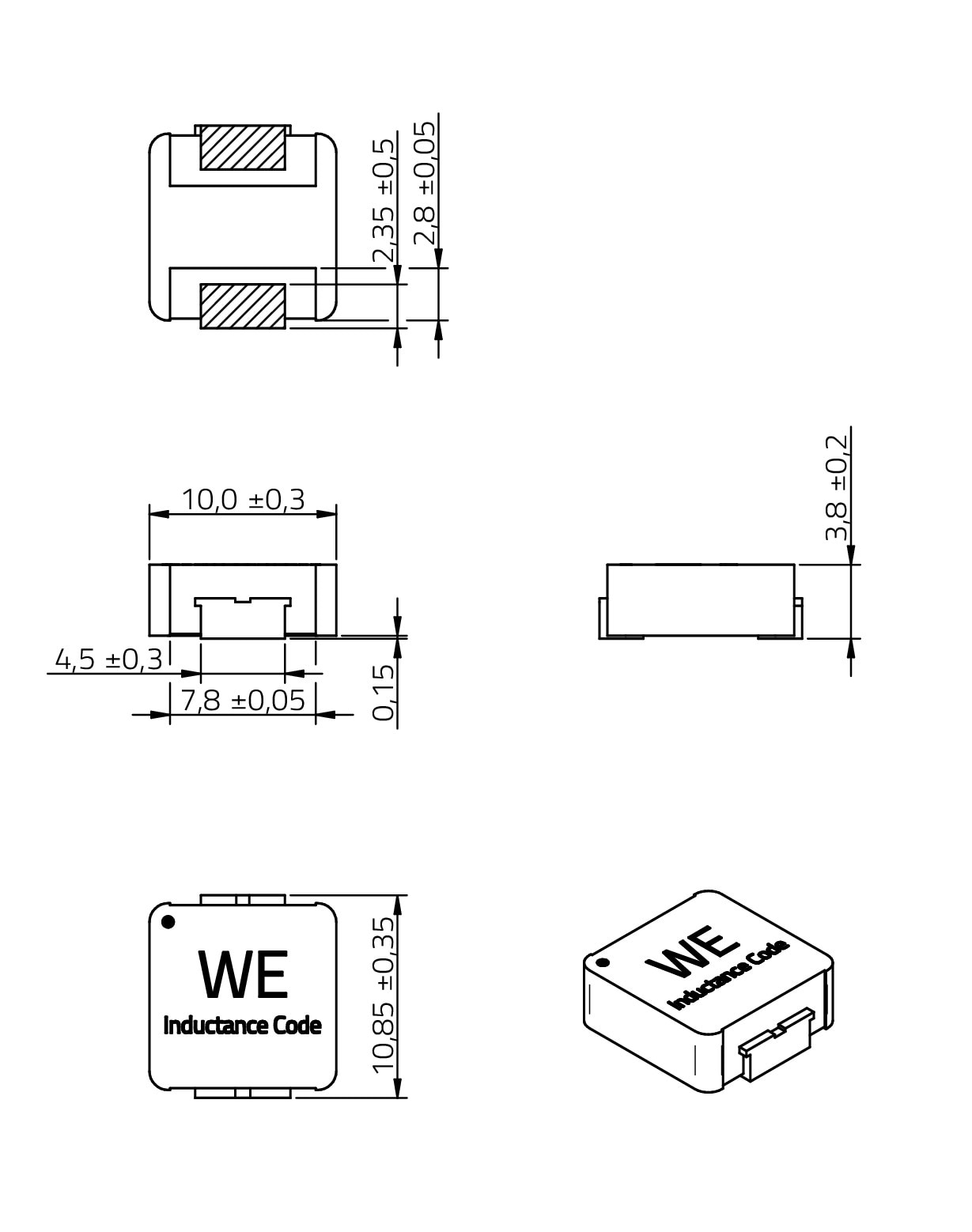

NEW	1040	10.85	10	3.8

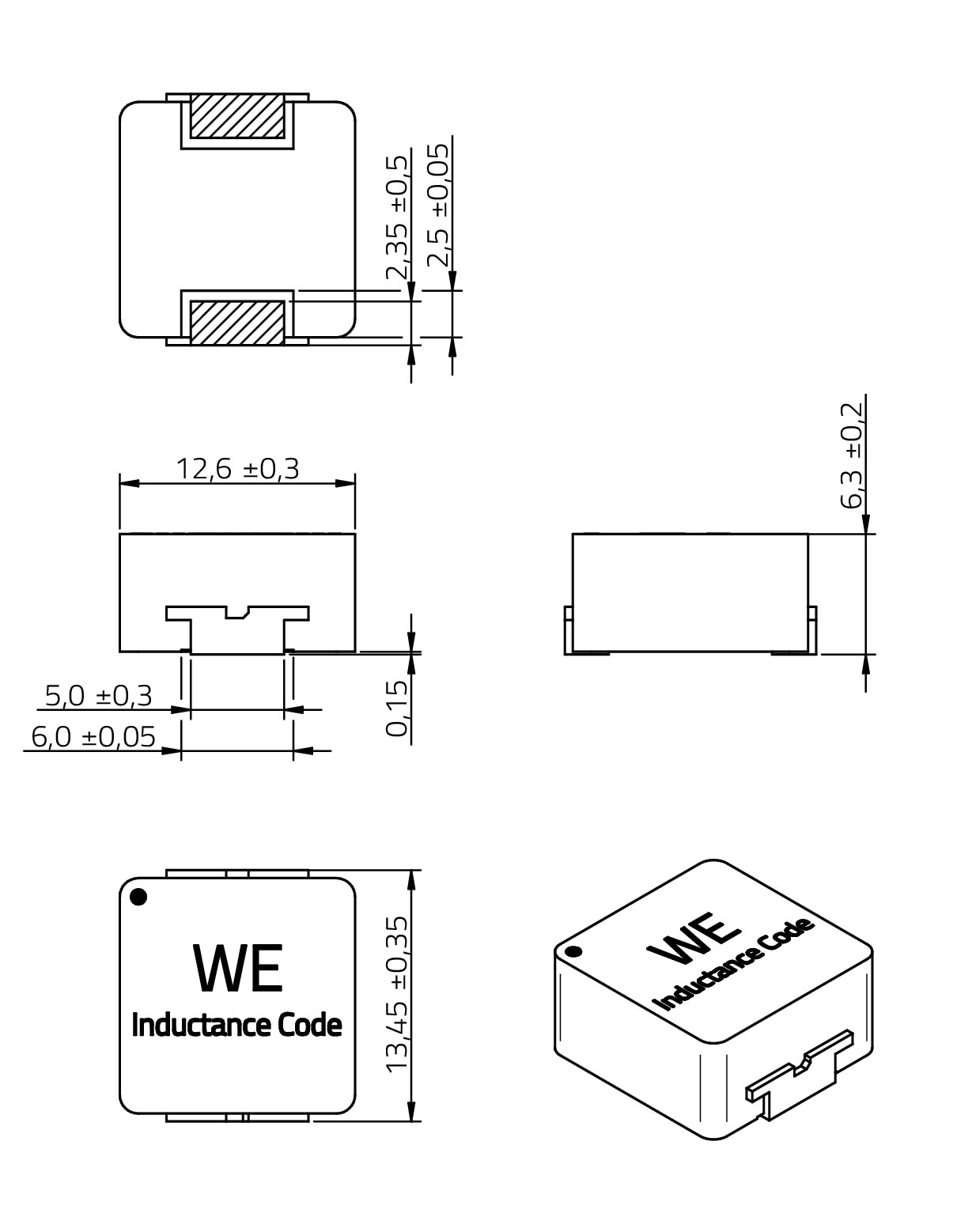

NEW	1365	13.45	12.6	6.3

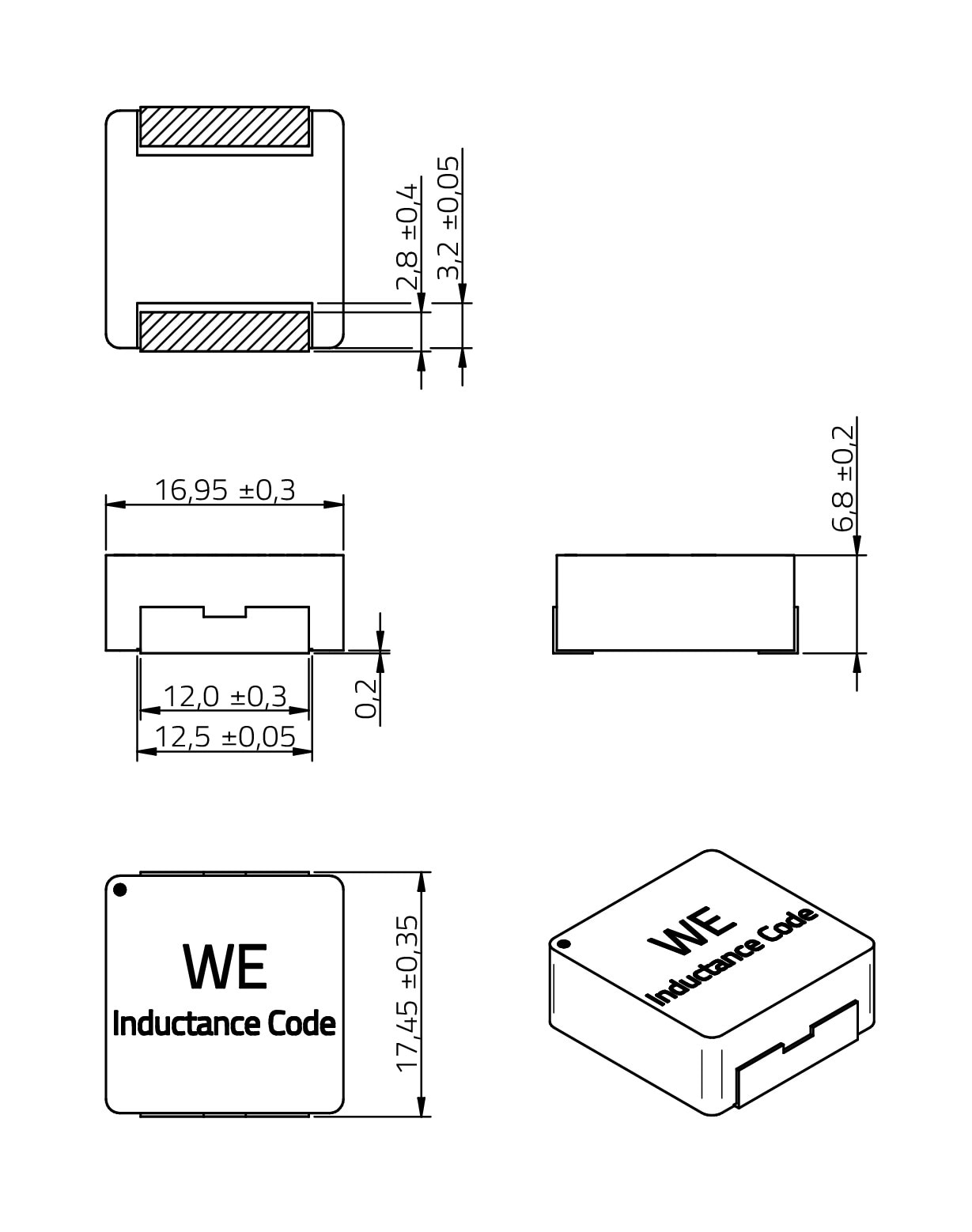

NEW	1770	17.45	16.95	6.8

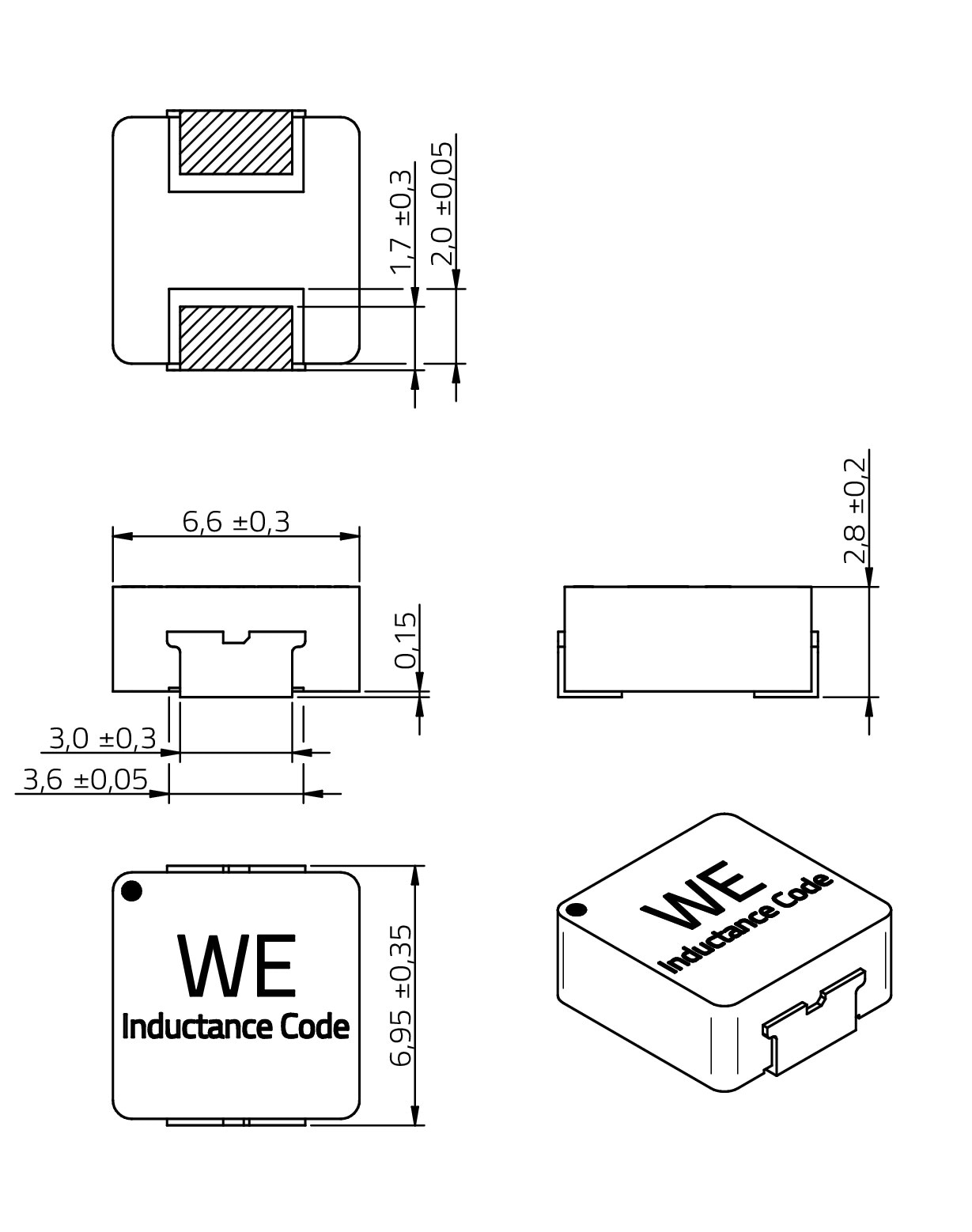

NEW	7030	6.95	6.6	2.8

Datasheet

SPEC
Seriesdatasheet_WE-LHCA_V1 (rev1).pdf
|
3.2 MB

Characteristics

Shielded construction
Low profile
Distributed air gap in iron alloy powder
Wide Operating temperature range from -55°C up to +155°C
Designed to avoid thermal aging degradation

Applications

DC/DC for high current power supplies
Start-Stop Systems
Infotainment systems
Power distribution modules
HVAC systems
On-Board charger

Application Notes

ANP128 Introduction to thermal aging in molded power inductors
PDF

Products

All

1040

1365

1770

7030

Order Code	Datasheet	Downloads	Status	L (µH)	I_SAT (A)	R_{DC typ.} (mΩ)	I_RP,40K (A)
7843734600047	SPEC PCN pending Due to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. SPEC Datasheet PCN PCN document	9 files EDA models: Components ZIP ALT Altium_WE-LHCA (rev24a).IntLib \| 358.5 KB CDS Cadence_WE-LHCA (rev24a).zip \| 1.4 MB EAG Eagle_WL-LHCA (rev24a).lbr \| 45.5 KB CAD files ZIP 3D 3D_IndLHCA_7030 (rev1).pdf \| 133.3 KB IGS IGS_IndLHCA_7030 (rev1).igs \| 1011.7 KB STP STP_IndLHCA_7030 (rev1).stp \| 410.8 KB Electric models ZIP LT LTspice_WE-LHCA (rev24a).zip \| 2.9 KB PSP Pspice_WE-LHCA (rev24a).zip \| 10.9 KB SCS Spectre_WE-LHCA (rev24a).mod \| 12.5 KB Download all 9 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	0.47	26	3.8	13.8
7843734600056	SPEC PCN pending Due to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. SPEC Datasheet PCN PCN document	9 files EDA models: Components ZIP ALT Altium_WE-LHCA (rev24a).IntLib \| 358.5 KB CDS Cadence_WE-LHCA (rev24a).zip \| 1.4 MB EAG Eagle_WL-LHCA (rev24a).lbr \| 45.5 KB CAD files ZIP 3D 3D_IndLHCA_7030 (rev1).pdf \| 133.3 KB IGS IGS_IndLHCA_7030 (rev1).igs \| 1011.7 KB STP STP_IndLHCA_7030 (rev1).stp \| 410.8 KB Electric models ZIP LT LTspice_WE-LHCA (rev24a).zip \| 2.9 KB PSP Pspice_WE-LHCA (rev24a).zip \| 10.9 KB SCS Spectre_WE-LHCA (rev24a).mod \| 12.5 KB Download all 9 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	0.56	21.9	4.2	13.4
7843734600068	SPEC PCN pending Due to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. SPEC Datasheet PCN PCN document	9 files EDA models: Components ZIP ALT Altium_WE-LHCA (rev24a).IntLib \| 358.5 KB CDS Cadence_WE-LHCA (rev24a).zip \| 1.4 MB EAG Eagle_WL-LHCA (rev24a).lbr \| 45.5 KB CAD files ZIP 3D 3D_IndLHCA_7030 (rev1).pdf \| 133.3 KB IGS IGS_IndLHCA_7030 (rev1).igs \| 1011.7 KB STP STP_IndLHCA_7030 (rev1).stp \| 410.8 KB Electric models ZIP LT LTspice_WE-LHCA (rev24a).zip \| 2.9 KB PSP Pspice_WE-LHCA (rev24a).zip \| 10.9 KB SCS Spectre_WE-LHCA (rev24a).mod \| 12.5 KB Download all 9 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	0.68	17.7	4.7	12.4
784373460010	SPEC PCN pending Due to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. SPEC Datasheet PCN PCN document	9 files EDA models: Components ZIP ALT Altium_WE-LHCA (rev24a).IntLib \| 358.5 KB CDS Cadence_WE-LHCA (rev24a).zip \| 1.4 MB EAG Eagle_WL-LHCA (rev24a).lbr \| 45.5 KB CAD files ZIP 3D 3D_IndLHCA_7030 (rev1).pdf \| 133.3 KB IGS IGS_IndLHCA_7030 (rev1).igs \| 1011.7 KB STP STP_IndLHCA_7030 (rev1).stp \| 410.8 KB Electric models ZIP LT LTspice_WE-LHCA (rev24a).zip \| 2.9 KB PSP Pspice_WE-LHCA (rev24a).zip \| 10.9 KB SCS Spectre_WE-LHCA (rev24a).mod \| 12.5 KB Download all 9 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	1	19.2	6.3	11.6
784373865010	SPEC PCN pending Due to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. SPEC Datasheet PCN PCN document	9 files EDA models: Components ZIP ALT Altium_WE-LHCA (rev24a).IntLib \| 358.5 KB CDS Cadence_WE-LHCA (rev24a).zip \| 1.4 MB EAG Eagle_WL-LHCA (rev24a).lbr \| 45.5 KB CAD files ZIP 3D 3D_IndLHCA_1365 (rev1).pdf \| 127.1 KB IGS IGS_IndLHCA_1365 (rev1).igs \| 1.5 MB STP STP_IndLHCA_1365 (rev1).stp \| 467.8 KB Electric models ZIP LT LTspice_WE-LHCA (rev24a).zip \| 2.9 KB PSP Pspice_WE-LHCA (rev24a).zip \| 10.9 KB SCS Spectre_WE-LHCA (rev24a).mod \| 12.5 KB Download all 9 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	1	44.8	1.7	30.5
784373680015	SPEC PCN pending Due to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. SPEC Datasheet PCN PCN document	9 files EDA models: Components ZIP ALT Altium_WE-LHCA (rev24a).IntLib \| 358.5 KB CDS Cadence_WE-LHCA (rev24a).zip \| 1.4 MB EAG Eagle_WL-LHCA (rev24a).lbr \| 45.5 KB CAD files ZIP 3D 3D_IndLHCA_1040 (rev1).pdf \| 130 KB IGS IGS_IndLHCA_1040 (rev1).igs \| 1012.1 KB STP STP_IndLHCA_1040 (rev1).stp \| 294.5 KB Electric models ZIP LT LTspice_WE-LHCA (rev24a).zip \| 2.9 KB PSP Pspice_WE-LHCA (rev24a).zip \| 10.9 KB SCS Spectre_WE-LHCA (rev24a).mod \| 12.5 KB Download all 9 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	1.5	26	4.2	19.2
784373460015	SPEC PCN pending Due to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. SPEC Datasheet PCN PCN document	9 files EDA models: Components ZIP ALT Altium_WE-LHCA (rev24a).IntLib \| 358.5 KB CDS Cadence_WE-LHCA (rev24a).zip \| 1.4 MB EAG Eagle_WL-LHCA (rev24a).lbr \| 45.5 KB CAD files ZIP 3D 3D_IndLHCA_7030 (rev1).pdf \| 133.3 KB IGS IGS_IndLHCA_7030 (rev1).igs \| 1011.7 KB STP STP_IndLHCA_7030 (rev1).stp \| 410.8 KB Electric models ZIP LT LTspice_WE-LHCA (rev24a).zip \| 2.9 KB PSP Pspice_WE-LHCA (rev24a).zip \| 10.9 KB SCS Spectre_WE-LHCA (rev24a).mod \| 12.5 KB Download all 9 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	1.5	16	10.3	9
784373865015	SPEC PCN pending Due to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. SPEC Datasheet PCN PCN document	9 files EDA models: Components ZIP ALT Altium_WE-LHCA (rev24a).IntLib \| 358.5 KB CDS Cadence_WE-LHCA (rev24a).zip \| 1.4 MB EAG Eagle_WL-LHCA (rev24a).lbr \| 45.5 KB CAD files ZIP 3D 3D_IndLHCA_1365 (rev1).pdf \| 127.1 KB IGS IGS_IndLHCA_1365 (rev1).igs \| 1.5 MB STP STP_IndLHCA_1365 (rev1).stp \| 467.8 KB Electric models ZIP LT LTspice_WE-LHCA (rev24a).zip \| 2.9 KB PSP Pspice_WE-LHCA (rev24a).zip \| 10.9 KB SCS Spectre_WE-LHCA (rev24a).mod \| 12.5 KB Download all 9 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	1.5	32.1	2.2	26
784373680022	SPEC PCN pending Due to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. SPEC Datasheet PCN PCN document	9 files EDA models: Components ZIP ALT Altium_WE-LHCA (rev24a).IntLib \| 358.5 KB CDS Cadence_WE-LHCA (rev24a).zip \| 1.4 MB EAG Eagle_WL-LHCA (rev24a).lbr \| 45.5 KB CAD files ZIP 3D 3D_IndLHCA_1040 (rev1).pdf \| 130 KB IGS IGS_IndLHCA_1040 (rev1).igs \| 1012.1 KB STP STP_IndLHCA_1040 (rev1).stp \| 294.5 KB Electric models ZIP LT LTspice_WE-LHCA (rev24a).zip \| 2.9 KB PSP Pspice_WE-LHCA (rev24a).zip \| 10.9 KB SCS Spectre_WE-LHCA (rev24a).mod \| 12.5 KB Download all 9 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	2.2	25.7	7.8	13.6
784373460022	SPEC PCN pending Due to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. SPEC Datasheet PCN PCN document	9 files EDA models: Components ZIP ALT Altium_WE-LHCA (rev24a).IntLib \| 358.5 KB CDS Cadence_WE-LHCA (rev24a).zip \| 1.4 MB EAG Eagle_WL-LHCA (rev24a).lbr \| 45.5 KB CAD files ZIP 3D 3D_IndLHCA_7030 (rev1).pdf \| 133.3 KB IGS IGS_IndLHCA_7030 (rev1).igs \| 1011.7 KB STP STP_IndLHCA_7030 (rev1).stp \| 410.8 KB Electric models ZIP LT LTspice_WE-LHCA (rev24a).zip \| 2.9 KB PSP Pspice_WE-LHCA (rev24a).zip \| 10.9 KB SCS Spectre_WE-LHCA (rev24a).mod \| 12.5 KB Download all 9 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	2.2	12	15	7.5
784373865022	SPEC PCN pending Due to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. SPEC Datasheet PCN PCN document	9 files EDA models: Components ZIP ALT Altium_WE-LHCA (rev24a).IntLib \| 358.5 KB CDS Cadence_WE-LHCA (rev24a).zip \| 1.4 MB EAG Eagle_WL-LHCA (rev24a).lbr \| 45.5 KB CAD files ZIP 3D 3D_IndLHCA_1365 (rev1).pdf \| 127.1 KB IGS IGS_IndLHCA_1365 (rev1).igs \| 1.5 MB STP STP_IndLHCA_1365 (rev1).stp \| 467.8 KB Electric models ZIP LT LTspice_WE-LHCA (rev24a).zip \| 2.9 KB PSP Pspice_WE-LHCA (rev24a).zip \| 10.9 KB SCS Spectre_WE-LHCA (rev24a).mod \| 12.5 KB Download all 9 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	2.2	33.35	4	22
784373460033	SPEC PCN pending Due to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. SPEC Datasheet PCN PCN document	9 files EDA models: Components ZIP ALT Altium_WE-LHCA (rev24a).IntLib \| 358.5 KB CDS Cadence_WE-LHCA (rev24a).zip \| 1.4 MB EAG Eagle_WL-LHCA (rev24a).lbr \| 45.5 KB CAD files ZIP 3D 3D_IndLHCA_7030 (rev1).pdf \| 133.3 KB IGS IGS_IndLHCA_7030 (rev1).igs \| 1011.7 KB STP STP_IndLHCA_7030 (rev1).stp \| 410.8 KB Electric models ZIP LT LTspice_WE-LHCA (rev24a).zip \| 2.9 KB PSP Pspice_WE-LHCA (rev24a).zip \| 10.9 KB SCS Spectre_WE-LHCA (rev24a).mod \| 12.5 KB Download all 9 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	3.3	11.4	21	6.3
784373680033	SPEC PCN pending Due to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. SPEC Datasheet PCN PCN document	9 files EDA models: Components ZIP ALT Altium_WE-LHCA (rev24a).IntLib \| 358.5 KB CDS Cadence_WE-LHCA (rev24a).zip \| 1.4 MB EAG Eagle_WL-LHCA (rev24a).lbr \| 45.5 KB CAD files ZIP 3D 3D_IndLHCA_1040 (rev1).pdf \| 130 KB IGS IGS_IndLHCA_1040 (rev1).igs \| 1012.1 KB STP STP_IndLHCA_1040 (rev1).stp \| 294.5 KB Electric models ZIP LT LTspice_WE-LHCA (rev24a).zip \| 2.9 KB PSP Pspice_WE-LHCA (rev24a).zip \| 10.9 KB SCS Spectre_WE-LHCA (rev24a).mod \| 12.5 KB Download all 9 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	3.3	22.1	9.9	11.8
784373865033	SPEC PCN pending Due to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. SPEC Datasheet PCN PCN document	9 files EDA models: Components ZIP ALT Altium_WE-LHCA (rev24a).IntLib \| 358.5 KB CDS Cadence_WE-LHCA (rev24a).zip \| 1.4 MB EAG Eagle_WL-LHCA (rev24a).lbr \| 45.5 KB CAD files ZIP 3D 3D_IndLHCA_1365 (rev1).pdf \| 127.1 KB IGS IGS_IndLHCA_1365 (rev1).igs \| 1.5 MB STP STP_IndLHCA_1365 (rev1).stp \| 467.8 KB Electric models ZIP LT LTspice_WE-LHCA (rev24a).zip \| 2.9 KB PSP Pspice_WE-LHCA (rev24a).zip \| 10.9 KB SCS Spectre_WE-LHCA (rev24a).mod \| 12.5 KB Download all 9 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	3.3	27.1	5	19
784373460047	SPEC PCN pending Due to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. SPEC Datasheet PCN PCN document	9 files EDA models: Components ZIP ALT Altium_WE-LHCA (rev24a).IntLib \| 358.5 KB CDS Cadence_WE-LHCA (rev24a).zip \| 1.4 MB EAG Eagle_WL-LHCA (rev24a).lbr \| 45.5 KB CAD files ZIP 3D 3D_IndLHCA_7030 (rev1).pdf \| 133.3 KB IGS IGS_IndLHCA_7030 (rev1).igs \| 1011.7 KB STP STP_IndLHCA_7030 (rev1).stp \| 410.8 KB Electric models ZIP LT LTspice_WE-LHCA (rev24a).zip \| 2.9 KB PSP Pspice_WE-LHCA (rev24a).zip \| 10.9 KB SCS Spectre_WE-LHCA (rev24a).mod \| 12.5 KB Download all 9 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	4.7	9.3	27	5.6
784373170047	SPEC PCN pending Due to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. SPEC Datasheet PCN PCN document	9 files EDA models: Components ZIP ALT Altium_WE-LHCA (rev24a).IntLib \| 358.5 KB CDS Cadence_WE-LHCA (rev24a).zip \| 1.4 MB EAG Eagle_WL-LHCA (rev24a).lbr \| 45.5 KB CAD files ZIP 3D 3D_IndLHCA_1770 (rev1).pdf \| 124.9 KB IGS IGS_IndLHCA_1770 (rev1).igs \| 1 MB STP STP_IndLHCA_1770 (rev1).stp \| 300 KB Electric models ZIP LT LTspice_WE-LHCA (rev24a).zip \| 2.9 KB PSP Pspice_WE-LHCA (rev24a).zip \| 10.9 KB SCS Spectre_WE-LHCA (rev24a).mod \| 12.5 KB Download all 9 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	4.7	39.5	4.4	24.5
784373680047	SPEC PCN pending Due to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. SPEC Datasheet PCN PCN document	9 files EDA models: Components ZIP ALT Altium_WE-LHCA (rev24a).IntLib \| 358.5 KB CDS Cadence_WE-LHCA (rev24a).zip \| 1.4 MB EAG Eagle_WL-LHCA (rev24a).lbr \| 45.5 KB CAD files ZIP 3D 3D_IndLHCA_1040 (rev1).pdf \| 130 KB IGS IGS_IndLHCA_1040 (rev1).igs \| 1012.1 KB STP STP_IndLHCA_1040 (rev1).stp \| 294.5 KB Electric models ZIP LT LTspice_WE-LHCA (rev24a).zip \| 2.9 KB PSP Pspice_WE-LHCA (rev24a).zip \| 10.9 KB SCS Spectre_WE-LHCA (rev24a).mod \| 12.5 KB Download all 9 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	4.7	16	13.5	10.9
784373865047	SPEC PCN pending Due to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. SPEC Datasheet PCN PCN document	9 files EDA models: Components ZIP ALT Altium_WE-LHCA (rev24a).IntLib \| 358.5 KB CDS Cadence_WE-LHCA (rev24a).zip \| 1.4 MB EAG Eagle_WL-LHCA (rev24a).lbr \| 45.5 KB CAD files ZIP 3D 3D_IndLHCA_1365 (rev1).pdf \| 127.1 KB IGS IGS_IndLHCA_1365 (rev1).igs \| 1.5 MB STP STP_IndLHCA_1365 (rev1).stp \| 467.8 KB Electric models ZIP LT LTspice_WE-LHCA (rev24a).zip \| 2.9 KB PSP Pspice_WE-LHCA (rev24a).zip \| 10.9 KB SCS Spectre_WE-LHCA (rev24a).mod \| 12.5 KB Download all 9 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	4.7	21.35	7.9	15.5
784373170056	SPEC PCN pending Due to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. SPEC Datasheet PCN PCN document	9 files EDA models: Components ZIP ALT Altium_WE-LHCA (rev24a).IntLib \| 358.5 KB CDS Cadence_WE-LHCA (rev24a).zip \| 1.4 MB EAG Eagle_WL-LHCA (rev24a).lbr \| 45.5 KB CAD files ZIP 3D 3D_IndLHCA_1770 (rev1).pdf \| 124.9 KB IGS IGS_IndLHCA_1770 (rev1).igs \| 1 MB STP STP_IndLHCA_1770 (rev1).stp \| 300 KB Electric models ZIP LT LTspice_WE-LHCA (rev24a).zip \| 2.9 KB PSP Pspice_WE-LHCA (rev24a).zip \| 10.9 KB SCS Spectre_WE-LHCA (rev24a).mod \| 12.5 KB Download all 9 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	5.6	40.85	5.8	21.5
784373460056	SPEC PCN pending Due to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. SPEC Datasheet PCN PCN document	9 files EDA models: Components ZIP ALT Altium_WE-LHCA (rev24a).IntLib \| 358.5 KB CDS Cadence_WE-LHCA (rev24a).zip \| 1.4 MB EAG Eagle_WL-LHCA (rev24a).lbr \| 45.5 KB CAD files ZIP 3D 3D_IndLHCA_7030 (rev1).pdf \| 133.3 KB IGS IGS_IndLHCA_7030 (rev1).igs \| 1011.7 KB STP STP_IndLHCA_7030 (rev1).stp \| 410.8 KB Electric models ZIP LT LTspice_WE-LHCA (rev24a).zip \| 2.9 KB PSP Pspice_WE-LHCA (rev24a).zip \| 10.9 KB SCS Spectre_WE-LHCA (rev24a).mod \| 12.5 KB Download all 9 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	5.6	8	35	4.9
784373865056	SPEC PCN pending Due to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. SPEC Datasheet PCN PCN document	9 files EDA models: Components ZIP ALT Altium_WE-LHCA (rev24a).IntLib \| 358.5 KB CDS Cadence_WE-LHCA (rev24a).zip \| 1.4 MB EAG Eagle_WL-LHCA (rev24a).lbr \| 45.5 KB CAD files ZIP 3D 3D_IndLHCA_1365 (rev1).pdf \| 127.1 KB IGS IGS_IndLHCA_1365 (rev1).igs \| 1.5 MB STP STP_IndLHCA_1365 (rev1).stp \| 467.8 KB Electric models ZIP LT LTspice_WE-LHCA (rev24a).zip \| 2.9 KB PSP Pspice_WE-LHCA (rev24a).zip \| 10.9 KB SCS Spectre_WE-LHCA (rev24a).mod \| 12.5 KB Download all 9 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	5.6	23.1	9.3	13
784373460068	SPEC PCN pending Due to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. SPEC Datasheet PCN PCN document	9 files EDA models: Components ZIP ALT Altium_WE-LHCA (rev24a).IntLib \| 358.5 KB CDS Cadence_WE-LHCA (rev24a).zip \| 1.4 MB EAG Eagle_WL-LHCA (rev24a).lbr \| 45.5 KB CAD files ZIP 3D 3D_IndLHCA_7030 (rev1).pdf \| 133.3 KB IGS IGS_IndLHCA_7030 (rev1).igs \| 1011.7 KB STP STP_IndLHCA_7030 (rev1).stp \| 410.8 KB Electric models ZIP LT LTspice_WE-LHCA (rev24a).zip \| 2.9 KB PSP Pspice_WE-LHCA (rev24a).zip \| 10.9 KB SCS Spectre_WE-LHCA (rev24a).mod \| 12.5 KB Download all 9 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	6.8	7.7	41	4.5
784373170068	SPEC PCN pending Due to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. SPEC Datasheet PCN PCN document	9 files EDA models: Components ZIP ALT Altium_WE-LHCA (rev24a).IntLib \| 358.5 KB CDS Cadence_WE-LHCA (rev24a).zip \| 1.4 MB EAG Eagle_WL-LHCA (rev24a).lbr \| 45.5 KB CAD files ZIP 3D 3D_IndLHCA_1770 (rev1).pdf \| 124.9 KB IGS IGS_IndLHCA_1770 (rev1).igs \| 1 MB STP STP_IndLHCA_1770 (rev1).stp \| 300 KB Electric models ZIP LT LTspice_WE-LHCA (rev24a).zip \| 2.9 KB PSP Pspice_WE-LHCA (rev24a).zip \| 10.9 KB SCS Spectre_WE-LHCA (rev24a).mod \| 12.5 KB Download all 9 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	6.8	33	7	19.7
784373680068	SPEC PCN pending Due to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. SPEC Datasheet PCN PCN document	9 files EDA models: Components ZIP ALT Altium_WE-LHCA (rev24a).IntLib \| 358.5 KB CDS Cadence_WE-LHCA (rev24a).zip \| 1.4 MB EAG Eagle_WL-LHCA (rev24a).lbr \| 45.5 KB CAD files ZIP 3D 3D_IndLHCA_1040 (rev1).pdf \| 130 KB IGS IGS_IndLHCA_1040 (rev1).igs \| 1012.1 KB STP STP_IndLHCA_1040 (rev1).stp \| 294.5 KB Electric models ZIP LT LTspice_WE-LHCA (rev24a).zip \| 2.9 KB PSP Pspice_WE-LHCA (rev24a).zip \| 10.9 KB SCS Spectre_WE-LHCA (rev24a).mod \| 12.5 KB Download all 9 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	6.8	13.2	19	9.5
784373865068	SPEC PCN pending Due to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. SPEC Datasheet PCN PCN document	9 files EDA models: Components ZIP ALT Altium_WE-LHCA (rev24a).IntLib \| 358.5 KB CDS Cadence_WE-LHCA (rev24a).zip \| 1.4 MB EAG Eagle_WL-LHCA (rev24a).lbr \| 45.5 KB CAD files ZIP 3D 3D_IndLHCA_1365 (rev1).pdf \| 127.1 KB IGS IGS_IndLHCA_1365 (rev1).igs \| 1.5 MB STP STP_IndLHCA_1365 (rev1).stp \| 467.8 KB Electric models ZIP LT LTspice_WE-LHCA (rev24a).zip \| 2.9 KB PSP Pspice_WE-LHCA (rev24a).zip \| 10.9 KB SCS Spectre_WE-LHCA (rev24a).mod \| 12.5 KB Download all 9 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	6.8	23.3	10	12
784373460082	SPEC PCN pending Due to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. SPEC Datasheet PCN PCN document	9 files EDA models: Components ZIP ALT Altium_WE-LHCA (rev24a).IntLib \| 358.5 KB CDS Cadence_WE-LHCA (rev24a).zip \| 1.4 MB EAG Eagle_WL-LHCA (rev24a).lbr \| 45.5 KB CAD files ZIP 3D 3D_IndLHCA_7030 (rev1).pdf \| 133.3 KB IGS IGS_IndLHCA_7030 (rev1).igs \| 1011.7 KB STP STP_IndLHCA_7030 (rev1).stp \| 410.8 KB Electric models ZIP LT LTspice_WE-LHCA (rev24a).zip \| 2.9 KB PSP Pspice_WE-LHCA (rev24a).zip \| 10.9 KB SCS Spectre_WE-LHCA (rev24a).mod \| 12.5 KB Download all 9 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	8.2	5.5	50	4.1
784373170082	SPEC PCN pending Due to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. SPEC Datasheet PCN PCN document	9 files EDA models: Components ZIP ALT Altium_WE-LHCA (rev24a).IntLib \| 358.5 KB CDS Cadence_WE-LHCA (rev24a).zip \| 1.4 MB EAG Eagle_WL-LHCA (rev24a).lbr \| 45.5 KB CAD files ZIP 3D 3D_IndLHCA_1770 (rev1).pdf \| 124.9 KB IGS IGS_IndLHCA_1770 (rev1).igs \| 1 MB STP STP_IndLHCA_1770 (rev1).stp \| 300 KB Electric models ZIP LT LTspice_WE-LHCA (rev24a).zip \| 2.9 KB PSP Pspice_WE-LHCA (rev24a).zip \| 10.9 KB SCS Spectre_WE-LHCA (rev24a).mod \| 12.5 KB Download all 9 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	8.2	32.1	8.2	18.4
784373680082	SPEC PCN pending Due to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. SPEC Datasheet PCN PCN document	9 files EDA models: Components ZIP ALT Altium_WE-LHCA (rev24a).IntLib \| 358.5 KB CDS Cadence_WE-LHCA (rev24a).zip \| 1.4 MB EAG Eagle_WL-LHCA (rev24a).lbr \| 45.5 KB CAD files ZIP 3D 3D_IndLHCA_1040 (rev1).pdf \| 130 KB IGS IGS_IndLHCA_1040 (rev1).igs \| 1012.1 KB STP STP_IndLHCA_1040 (rev1).stp \| 294.5 KB Electric models ZIP LT LTspice_WE-LHCA (rev24a).zip \| 2.9 KB PSP Pspice_WE-LHCA (rev24a).zip \| 10.9 KB SCS Spectre_WE-LHCA (rev24a).mod \| 12.5 KB Download all 9 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	8.2	13.1	25	8.7
784373865082	SPEC PCN pending Due to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. SPEC Datasheet PCN PCN document	9 files EDA models: Components ZIP ALT Altium_WE-LHCA (rev24a).IntLib \| 358.5 KB CDS Cadence_WE-LHCA (rev24a).zip \| 1.4 MB EAG Eagle_WL-LHCA (rev24a).lbr \| 45.5 KB CAD files ZIP 3D 3D_IndLHCA_1365 (rev1).pdf \| 127.1 KB IGS IGS_IndLHCA_1365 (rev1).igs \| 1.5 MB STP STP_IndLHCA_1365 (rev1).stp \| 467.8 KB Electric models ZIP LT LTspice_WE-LHCA (rev24a).zip \| 2.9 KB PSP Pspice_WE-LHCA (rev24a).zip \| 10.9 KB SCS Spectre_WE-LHCA (rev24a).mod \| 12.5 KB Download all 9 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	8.2	20.2	12	11.6
784373460100	SPEC PCN pending Due to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. SPEC Datasheet PCN PCN document	9 files EDA models: Components ZIP ALT Altium_WE-LHCA (rev24a).IntLib \| 358.5 KB CDS Cadence_WE-LHCA (rev24a).zip \| 1.4 MB EAG Eagle_WL-LHCA (rev24a).lbr \| 45.5 KB CAD files ZIP 3D 3D_IndLHCA_7030 (rev1).pdf \| 133.3 KB IGS IGS_IndLHCA_7030 (rev1).igs \| 1011.7 KB STP STP_IndLHCA_7030 (rev1).stp \| 410.8 KB Electric models ZIP LT LTspice_WE-LHCA (rev24a).zip \| 2.9 KB PSP Pspice_WE-LHCA (rev24a).zip \| 10.9 KB SCS Spectre_WE-LHCA (rev24a).mod \| 12.5 KB Download all 9 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	10	6	61	3.7
784373170100	SPEC PCN pending Due to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. SPEC Datasheet PCN PCN document	9 files EDA models: Components ZIP ALT Altium_WE-LHCA (rev24a).IntLib \| 358.5 KB CDS Cadence_WE-LHCA (rev24a).zip \| 1.4 MB EAG Eagle_WL-LHCA (rev24a).lbr \| 45.5 KB CAD files ZIP 3D 3D_IndLHCA_1770 (rev1).pdf \| 124.9 KB IGS IGS_IndLHCA_1770 (rev1).igs \| 1 MB STP STP_IndLHCA_1770 (rev1).stp \| 300 KB Electric models ZIP LT LTspice_WE-LHCA (rev24a).zip \| 2.9 KB PSP Pspice_WE-LHCA (rev24a).zip \| 10.9 KB SCS Spectre_WE-LHCA (rev24a).mod \| 12.5 KB Download all 9 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	10	26	10	16
784373680100	SPEC PCN pending Due to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. SPEC Datasheet PCN PCN document	9 files EDA models: Components ZIP ALT Altium_WE-LHCA (rev24a).IntLib \| 358.5 KB CDS Cadence_WE-LHCA (rev24a).zip \| 1.4 MB EAG Eagle_WL-LHCA (rev24a).lbr \| 45.5 KB CAD files ZIP 3D 3D_IndLHCA_1040 (rev1).pdf \| 130 KB IGS IGS_IndLHCA_1040 (rev1).igs \| 1012.1 KB STP STP_IndLHCA_1040 (rev1).stp \| 294.5 KB Electric models ZIP LT LTspice_WE-LHCA (rev24a).zip \| 2.9 KB PSP Pspice_WE-LHCA (rev24a).zip \| 10.9 KB SCS Spectre_WE-LHCA (rev24a).mod \| 12.5 KB Download all 9 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	10	12.2	28	7.8
784373865100	SPEC PCN pending Due to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. SPEC Datasheet PCN PCN document	9 files EDA models: Components ZIP ALT Altium_WE-LHCA (rev24a).IntLib \| 358.5 KB CDS Cadence_WE-LHCA (rev24a).zip \| 1.4 MB EAG Eagle_WL-LHCA (rev24a).lbr \| 45.5 KB CAD files ZIP 3D 3D_IndLHCA_1365 (rev1).pdf \| 127.1 KB IGS IGS_IndLHCA_1365 (rev1).igs \| 1.5 MB STP STP_IndLHCA_1365 (rev1).stp \| 467.8 KB Electric models ZIP LT LTspice_WE-LHCA (rev24a).zip \| 2.9 KB PSP Pspice_WE-LHCA (rev24a).zip \| 10.9 KB SCS Spectre_WE-LHCA (rev24a).mod \| 12.5 KB Download all 9 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	10	15.9	15	10.4
784373460150	SPEC PCN pending Due to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. SPEC Datasheet PCN PCN document	9 files EDA models: Components ZIP ALT Altium_WE-LHCA (rev24a).IntLib \| 358.5 KB CDS Cadence_WE-LHCA (rev24a).zip \| 1.4 MB EAG Eagle_WL-LHCA (rev24a).lbr \| 45.5 KB CAD files ZIP 3D 3D_IndLHCA_7030 (rev1).pdf \| 133.3 KB IGS IGS_IndLHCA_7030 (rev1).igs \| 1011.7 KB STP STP_IndLHCA_7030 (rev1).stp \| 410.8 KB Electric models ZIP LT LTspice_WE-LHCA (rev24a).zip \| 2.9 KB PSP Pspice_WE-LHCA (rev24a).zip \| 10.9 KB SCS Spectre_WE-LHCA (rev24a).mod \| 12.5 KB Download all 9 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	15	4.8	96	3
784373170150	SPEC PCN pending Due to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. SPEC Datasheet PCN PCN document	9 files EDA models: Components ZIP ALT Altium_WE-LHCA (rev24a).IntLib \| 358.5 KB CDS Cadence_WE-LHCA (rev24a).zip \| 1.4 MB EAG Eagle_WL-LHCA (rev24a).lbr \| 45.5 KB CAD files ZIP 3D 3D_IndLHCA_1770 (rev1).pdf \| 124.9 KB IGS IGS_IndLHCA_1770 (rev1).igs \| 1 MB STP STP_IndLHCA_1770 (rev1).stp \| 300 KB Electric models ZIP LT LTspice_WE-LHCA (rev24a).zip \| 2.9 KB PSP Pspice_WE-LHCA (rev24a).zip \| 10.9 KB SCS Spectre_WE-LHCA (rev24a).mod \| 12.5 KB Download all 9 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	15	21.7	17	12.4
784373680150	SPEC PCN pending Due to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. SPEC Datasheet PCN PCN document	9 files EDA models: Components ZIP ALT Altium_WE-LHCA (rev24a).IntLib \| 358.5 KB CDS Cadence_WE-LHCA (rev24a).zip \| 1.4 MB EAG Eagle_WL-LHCA (rev24a).lbr \| 45.5 KB CAD files ZIP 3D 3D_IndLHCA_1040 (rev1).pdf \| 130 KB IGS IGS_IndLHCA_1040 (rev1).igs \| 1012.1 KB STP STP_IndLHCA_1040 (rev1).stp \| 294.5 KB Electric models ZIP LT LTspice_WE-LHCA (rev24a).zip \| 2.9 KB PSP Pspice_WE-LHCA (rev24a).zip \| 10.9 KB SCS Spectre_WE-LHCA (rev24a).mod \| 12.5 KB Download all 9 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	15	9.9	42	6.8
784373865150	SPEC PCN pending Due to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. SPEC Datasheet PCN PCN document	9 files EDA models: Components ZIP ALT Altium_WE-LHCA (rev24a).IntLib \| 358.5 KB CDS Cadence_WE-LHCA (rev24a).zip \| 1.4 MB EAG Eagle_WL-LHCA (rev24a).lbr \| 45.5 KB CAD files ZIP 3D 3D_IndLHCA_1365 (rev1).pdf \| 127.1 KB IGS IGS_IndLHCA_1365 (rev1).igs \| 1.5 MB STP STP_IndLHCA_1365 (rev1).stp \| 467.8 KB Electric models ZIP LT LTspice_WE-LHCA (rev24a).zip \| 2.9 KB PSP Pspice_WE-LHCA (rev24a).zip \| 10.9 KB SCS Spectre_WE-LHCA (rev24a).mod \| 12.5 KB Download all 9 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	15	11.45	24.5	8.8
784373460220	SPEC PCN pending Due to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. SPEC Datasheet PCN PCN document	9 files EDA models: Components ZIP ALT Altium_WE-LHCA (rev24a).IntLib \| 358.5 KB CDS Cadence_WE-LHCA (rev24a).zip \| 1.4 MB EAG Eagle_WL-LHCA (rev24a).lbr \| 45.5 KB CAD files ZIP 3D 3D_IndLHCA_7030 (rev1).pdf \| 133.3 KB IGS IGS_IndLHCA_7030 (rev1).igs \| 1011.7 KB STP STP_IndLHCA_7030 (rev1).stp \| 410.8 KB Electric models ZIP LT LTspice_WE-LHCA (rev24a).zip \| 2.9 KB PSP Pspice_WE-LHCA (rev24a).zip \| 10.9 KB SCS Spectre_WE-LHCA (rev24a).mod \| 12.5 KB Download all 9 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	22	4.5	163	2.5
784373170220	SPEC PCN pending Due to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. SPEC Datasheet PCN PCN document	9 files EDA models: Components ZIP ALT Altium_WE-LHCA (rev24a).IntLib \| 358.5 KB CDS Cadence_WE-LHCA (rev24a).zip \| 1.4 MB EAG Eagle_WL-LHCA (rev24a).lbr \| 45.5 KB CAD files ZIP 3D 3D_IndLHCA_1770 (rev1).pdf \| 124.9 KB IGS IGS_IndLHCA_1770 (rev1).igs \| 1 MB STP STP_IndLHCA_1770 (rev1).stp \| 300 KB Electric models ZIP LT LTspice_WE-LHCA (rev24a).zip \| 2.9 KB PSP Pspice_WE-LHCA (rev24a).zip \| 10.9 KB SCS Spectre_WE-LHCA (rev24a).mod \| 12.5 KB Download all 9 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	22	17.15	22	10.9
784373680220	SPEC PCN pending Due to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. SPEC Datasheet PCN PCN document	9 files EDA models: Components ZIP ALT Altium_WE-LHCA (rev24a).IntLib \| 358.5 KB CDS Cadence_WE-LHCA (rev24a).zip \| 1.4 MB EAG Eagle_WL-LHCA (rev24a).lbr \| 45.5 KB CAD files ZIP 3D 3D_IndLHCA_1040 (rev1).pdf \| 130 KB IGS IGS_IndLHCA_1040 (rev1).igs \| 1012.1 KB STP STP_IndLHCA_1040 (rev1).stp \| 294.5 KB Electric models ZIP LT LTspice_WE-LHCA (rev24a).zip \| 2.9 KB PSP Pspice_WE-LHCA (rev24a).zip \| 10.9 KB SCS Spectre_WE-LHCA (rev24a).mod \| 12.5 KB Download all 9 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	22	7.5	59	5.2
784373865220	SPEC PCN pending Due to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. SPEC Datasheet PCN PCN document	9 files EDA models: Components ZIP ALT Altium_WE-LHCA (rev24a).IntLib \| 358.5 KB CDS Cadence_WE-LHCA (rev24a).zip \| 1.4 MB EAG Eagle_WL-LHCA (rev24a).lbr \| 45.5 KB CAD files ZIP 3D 3D_IndLHCA_1365 (rev1).pdf \| 127.1 KB IGS IGS_IndLHCA_1365 (rev1).igs \| 1.5 MB STP STP_IndLHCA_1365 (rev1).stp \| 467.8 KB Electric models ZIP LT LTspice_WE-LHCA (rev24a).zip \| 2.9 KB PSP Pspice_WE-LHCA (rev24a).zip \| 10.9 KB SCS Spectre_WE-LHCA (rev24a).mod \| 12.5 KB Download all 9 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	22	10.75	35	7.1
784373170330	SPEC PCN pending Due to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. SPEC Datasheet PCN PCN document	9 files EDA models: Components ZIP ALT Altium_WE-LHCA (rev24a).IntLib \| 358.5 KB CDS Cadence_WE-LHCA (rev24a).zip \| 1.4 MB EAG Eagle_WL-LHCA (rev24a).lbr \| 45.5 KB CAD files ZIP 3D 3D_IndLHCA_1770 (rev1).pdf \| 124.9 KB IGS IGS_IndLHCA_1770 (rev1).igs \| 1 MB STP STP_IndLHCA_1770 (rev1).stp \| 300 KB Electric models ZIP LT LTspice_WE-LHCA (rev24a).zip \| 2.9 KB PSP Pspice_WE-LHCA (rev24a).zip \| 10.9 KB SCS Spectre_WE-LHCA (rev24a).mod \| 12.5 KB Download all 9 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	33	15.6	30	9.1
784373680330	SPEC PCN pending Due to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. SPEC Datasheet PCN PCN document	9 files EDA models: Components ZIP ALT Altium_WE-LHCA (rev24a).IntLib \| 358.5 KB CDS Cadence_WE-LHCA (rev24a).zip \| 1.4 MB EAG Eagle_WL-LHCA (rev24a).lbr \| 45.5 KB CAD files ZIP 3D 3D_IndLHCA_1040 (rev1).pdf \| 130 KB IGS IGS_IndLHCA_1040 (rev1).igs \| 1012.1 KB STP STP_IndLHCA_1040 (rev1).stp \| 294.5 KB Electric models ZIP LT LTspice_WE-LHCA (rev24a).zip \| 2.9 KB PSP Pspice_WE-LHCA (rev24a).zip \| 10.9 KB SCS Spectre_WE-LHCA (rev24a).mod \| 12.5 KB Download all 9 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	33	6.5	87	4.1
784373865330	SPEC PCN pending Due to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. SPEC Datasheet PCN PCN document	9 files EDA models: Components ZIP ALT Altium_WE-LHCA (rev24a).IntLib \| 358.5 KB CDS Cadence_WE-LHCA (rev24a).zip \| 1.4 MB EAG Eagle_WL-LHCA (rev24a).lbr \| 45.5 KB CAD files ZIP 3D 3D_IndLHCA_1365 (rev1).pdf \| 127.1 KB IGS IGS_IndLHCA_1365 (rev1).igs \| 1.5 MB STP STP_IndLHCA_1365 (rev1).stp \| 467.8 KB Electric models ZIP LT LTspice_WE-LHCA (rev24a).zip \| 2.9 KB PSP Pspice_WE-LHCA (rev24a).zip \| 10.9 KB SCS Spectre_WE-LHCA (rev24a).mod \| 12.5 KB Download all 9 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	33	8.45	60	5.7
784373170470	SPEC PCN pending Due to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. SPEC Datasheet PCN PCN document	9 files EDA models: Components ZIP ALT Altium_WE-LHCA (rev24a).IntLib \| 358.5 KB CDS Cadence_WE-LHCA (rev24a).zip \| 1.4 MB EAG Eagle_WL-LHCA (rev24a).lbr \| 45.5 KB CAD files ZIP 3D 3D_IndLHCA_1770 (rev1).pdf \| 124.9 KB IGS IGS_IndLHCA_1770 (rev1).igs \| 1 MB STP STP_IndLHCA_1770 (rev1).stp \| 300 KB Electric models ZIP LT LTspice_WE-LHCA (rev24a).zip \| 2.9 KB PSP Pspice_WE-LHCA (rev24a).zip \| 10.9 KB SCS Spectre_WE-LHCA (rev24a).mod \| 12.5 KB Download all 9 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	47	13.05	48	7.5
784373680470	SPEC PCN pending Due to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. SPEC Datasheet PCN PCN document	9 files EDA models: Components ZIP ALT Altium_WE-LHCA (rev24a).IntLib \| 358.5 KB CDS Cadence_WE-LHCA (rev24a).zip \| 1.4 MB EAG Eagle_WL-LHCA (rev24a).lbr \| 45.5 KB CAD files ZIP 3D 3D_IndLHCA_1040 (rev1).pdf \| 130 KB IGS IGS_IndLHCA_1040 (rev1).igs \| 1012.1 KB STP STP_IndLHCA_1040 (rev1).stp \| 294.5 KB Electric models ZIP LT LTspice_WE-LHCA (rev24a).zip \| 2.9 KB PSP Pspice_WE-LHCA (rev24a).zip \| 10.9 KB SCS Spectre_WE-LHCA (rev24a).mod \| 12.5 KB Download all 9 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	47	5.85	140	3.4
784373865470	SPEC PCN pending Due to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. SPEC Datasheet PCN PCN document	9 files EDA models: Components ZIP ALT Altium_WE-LHCA (rev24a).IntLib \| 358.5 KB CDS Cadence_WE-LHCA (rev24a).zip \| 1.4 MB EAG Eagle_WL-LHCA (rev24a).lbr \| 45.5 KB CAD files ZIP 3D 3D_IndLHCA_1365 (rev1).pdf \| 127.1 KB IGS IGS_IndLHCA_1365 (rev1).igs \| 1.5 MB STP STP_IndLHCA_1365 (rev1).stp \| 467.8 KB Electric models ZIP LT LTspice_WE-LHCA (rev24a).zip \| 2.9 KB PSP Pspice_WE-LHCA (rev24a).zip \| 10.9 KB SCS Spectre_WE-LHCA (rev24a).mod \| 12.5 KB Download all 9 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	47	6.5	72	5.1
784373170560	SPEC PCN pending Due to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. SPEC Datasheet PCN PCN document	9 files EDA models: Components ZIP ALT Altium_WE-LHCA (rev24a).IntLib \| 358.5 KB CDS Cadence_WE-LHCA (rev24a).zip \| 1.4 MB EAG Eagle_WL-LHCA (rev24a).lbr \| 45.5 KB CAD files ZIP 3D 3D_IndLHCA_1770 (rev1).pdf \| 124.9 KB IGS IGS_IndLHCA_1770 (rev1).igs \| 1 MB STP STP_IndLHCA_1770 (rev1).stp \| 300 KB Electric models ZIP LT LTspice_WE-LHCA (rev24a).zip \| 2.9 KB PSP Pspice_WE-LHCA (rev24a).zip \| 10.9 KB SCS Spectre_WE-LHCA (rev24a).mod \| 12.5 KB Download all 9 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	56	10.3	52	7.1
784373680560	SPEC PCN pending Due to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. SPEC Datasheet PCN PCN document	9 files EDA models: Components ZIP ALT Altium_WE-LHCA (rev24a).IntLib \| 358.5 KB CDS Cadence_WE-LHCA (rev24a).zip \| 1.4 MB EAG Eagle_WL-LHCA (rev24a).lbr \| 45.5 KB CAD files ZIP 3D 3D_IndLHCA_1040 (rev1).pdf \| 130 KB IGS IGS_IndLHCA_1040 (rev1).igs \| 1012.1 KB STP STP_IndLHCA_1040 (rev1).stp \| 294.5 KB Electric models ZIP LT LTspice_WE-LHCA (rev24a).zip \| 2.9 KB PSP Pspice_WE-LHCA (rev24a).zip \| 10.9 KB SCS Spectre_WE-LHCA (rev24a).mod \| 12.5 KB Download all 9 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	56	5.5	170	2.9
784373680680	SPEC PCN pending Due to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. SPEC Datasheet PCN PCN document	9 files EDA models: Components ZIP ALT Altium_WE-LHCA (rev24a).IntLib \| 358.5 KB CDS Cadence_WE-LHCA (rev24a).zip \| 1.4 MB EAG Eagle_WL-LHCA (rev24a).lbr \| 45.5 KB CAD files ZIP 3D 3D_IndLHCA_1040 (rev1).pdf \| 130 KB IGS IGS_IndLHCA_1040 (rev1).igs \| 1012.1 KB STP STP_IndLHCA_1040 (rev1).stp \| 294.5 KB Electric models ZIP LT LTspice_WE-LHCA (rev24a).zip \| 2.9 KB PSP Pspice_WE-LHCA (rev24a).zip \| 10.9 KB SCS Spectre_WE-LHCA (rev24a).mod \| 12.5 KB Download all 9 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	68	4.85	215	2.6
784373170680	SPEC PCN pending Due to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. SPEC Datasheet PCN PCN document	9 files EDA models: Components ZIP ALT Altium_WE-LHCA (rev24a).IntLib \| 358.5 KB CDS Cadence_WE-LHCA (rev24a).zip \| 1.4 MB EAG Eagle_WL-LHCA (rev24a).lbr \| 45.5 KB CAD files ZIP 3D 3D_IndLHCA_1770 (rev1).pdf \| 124.9 KB IGS IGS_IndLHCA_1770 (rev1).igs \| 1 MB STP STP_IndLHCA_1770 (rev1).stp \| 300 KB Electric models ZIP LT LTspice_WE-LHCA (rev24a).zip \| 2.9 KB PSP Pspice_WE-LHCA (rev24a).zip \| 10.9 KB SCS Spectre_WE-LHCA (rev24a).mod \| 12.5 KB Download all 9 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	68	8.2	75	5.9
784373170820	SPEC PCN pending Due to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. SPEC Datasheet PCN PCN document	9 files EDA models: Components ZIP ALT Altium_WE-LHCA (rev24a).IntLib \| 358.5 KB CDS Cadence_WE-LHCA (rev24a).zip \| 1.4 MB EAG Eagle_WL-LHCA (rev24a).lbr \| 45.5 KB CAD files ZIP 3D 3D_IndLHCA_1770 (rev1).pdf \| 124.9 KB IGS IGS_IndLHCA_1770 (rev1).igs \| 1 MB STP STP_IndLHCA_1770 (rev1).stp \| 300 KB Electric models ZIP LT LTspice_WE-LHCA (rev24a).zip \| 2.9 KB PSP Pspice_WE-LHCA (rev24a).zip \| 10.9 KB SCS Spectre_WE-LHCA (rev24a).mod \| 12.5 KB Download all 9 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	82	9.6	90	4.9

Order Code	Datasheet
7843734600047	SPEC PCN pending Due to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. SPEC Datasheet PCN PCN document
7843734600056	SPEC PCN pending Due to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. SPEC Datasheet PCN PCN document
7843734600068	SPEC PCN pending Due to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. SPEC Datasheet PCN PCN document
784373460010	SPEC PCN pending Due to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. SPEC Datasheet PCN PCN document
784373865010	SPEC PCN pending Due to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. SPEC Datasheet PCN PCN document
784373680015	SPEC PCN pending Due to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. SPEC Datasheet PCN PCN document
784373460015	SPEC PCN pending Due to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. SPEC Datasheet PCN PCN document
784373865015	SPEC PCN pending Due to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. SPEC Datasheet PCN PCN document
784373680022	SPEC PCN pending Due to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. SPEC Datasheet PCN PCN document
784373460022	SPEC PCN pending Due to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. SPEC Datasheet PCN PCN document
784373865022	SPEC PCN pending Due to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. SPEC Datasheet PCN PCN document
784373460033	SPEC PCN pending Due to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. SPEC Datasheet PCN PCN document
784373680033	SPEC PCN pending Due to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. SPEC Datasheet PCN PCN document
784373865033	SPEC PCN pending Due to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. SPEC Datasheet PCN PCN document
784373460047	SPEC PCN pending Due to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. SPEC Datasheet PCN PCN document
784373170047	SPEC PCN pending Due to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. SPEC Datasheet PCN PCN document
784373680047	SPEC PCN pending Due to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. SPEC Datasheet PCN PCN document
784373865047	SPEC PCN pending Due to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. SPEC Datasheet PCN PCN document
784373170056	SPEC PCN pending Due to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. SPEC Datasheet PCN PCN document
784373460056	SPEC PCN pending Due to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. SPEC Datasheet PCN PCN document
784373865056	SPEC PCN pending Due to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. SPEC Datasheet PCN PCN document
784373460068	SPEC PCN pending Due to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. SPEC Datasheet PCN PCN document
784373170068	SPEC PCN pending Due to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. SPEC Datasheet PCN PCN document
784373680068	SPEC PCN pending Due to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. SPEC Datasheet PCN PCN document
784373865068	SPEC PCN pending Due to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. SPEC Datasheet PCN PCN document
784373460082	SPEC PCN pending Due to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. SPEC Datasheet PCN PCN document
784373170082	SPEC PCN pending Due to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. SPEC Datasheet PCN PCN document
784373680082	SPEC PCN pending Due to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. SPEC Datasheet PCN PCN document
784373865082	SPEC PCN pending Due to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. SPEC Datasheet PCN PCN document
784373460100	SPEC PCN pending Due to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. SPEC Datasheet PCN PCN document
784373170100	SPEC PCN pending Due to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. SPEC Datasheet PCN PCN document
784373680100	SPEC PCN pending Due to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. SPEC Datasheet PCN PCN document
784373865100	SPEC PCN pending Due to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. SPEC Datasheet PCN PCN document
784373460150	SPEC PCN pending Due to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. SPEC Datasheet PCN PCN document
784373170150	SPEC PCN pending Due to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. SPEC Datasheet PCN PCN document
784373680150	SPEC PCN pending Due to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. SPEC Datasheet PCN PCN document
784373865150	SPEC PCN pending Due to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. SPEC Datasheet PCN PCN document
784373460220	SPEC PCN pending Due to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. SPEC Datasheet PCN PCN document
784373170220	SPEC PCN pending Due to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. SPEC Datasheet PCN PCN document
784373680220	SPEC PCN pending Due to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. SPEC Datasheet PCN PCN document
784373865220	SPEC PCN pending Due to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. SPEC Datasheet PCN PCN document
784373170330	SPEC PCN pending Due to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. SPEC Datasheet PCN PCN document
784373680330	SPEC PCN pending Due to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. SPEC Datasheet PCN PCN document
784373865330	SPEC PCN pending Due to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. SPEC Datasheet PCN PCN document
784373170470	SPEC PCN pending Due to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. SPEC Datasheet PCN PCN document
784373680470	SPEC PCN pending Due to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. SPEC Datasheet PCN PCN document
784373865470	SPEC PCN pending Due to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. SPEC Datasheet PCN PCN document
784373170560	SPEC PCN pending Due to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. SPEC Datasheet PCN PCN document
784373680560	SPEC PCN pending Due to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. SPEC Datasheet PCN PCN document
784373680680	SPEC PCN pending Due to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. SPEC Datasheet PCN PCN document
784373170680	SPEC PCN pending Due to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. SPEC Datasheet PCN PCN document
784373170820	SPEC PCN pending Due to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. SPEC Datasheet PCN PCN document

Samples

Order Code	Datasheet	Downloads	Status	L (µH)	I_SAT (A)	R_{DC typ.} (mΩ)	I_RP,40K (A)	Samples

WE-LHCA

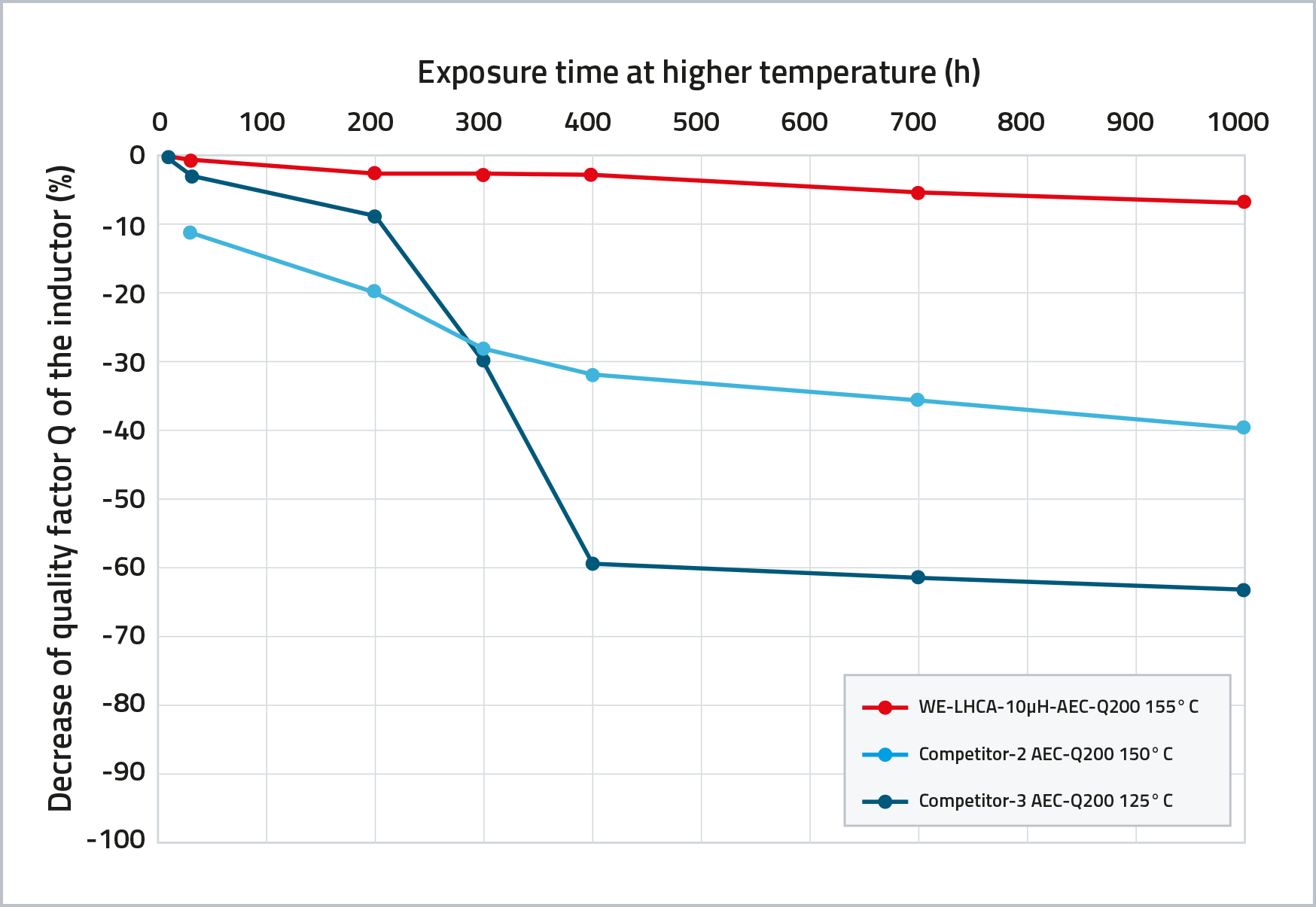

DESIGNED TO AVOID THERMAL AGING DEGRADATION

WE-LHCA

DESIGNED TO AVOID THERMAL AGING DEGRADATION

Thermal aging is crucial for power electronic system reliability. Degradation effects on magnetic properties, material integrity, and efficiency when continuously exposed to high temperatures are critical to ensure long-term system reliability.

Recognizing the crucial role of temperature stability in power electronics, Würth Elektronik eiSos has developed the WE-LHCA series which is free of thermal aging. This innovative solution ensures enhanced reliability and efficiency in demanding applications, aligning with the evolving needs of the industry for resilient and high performance passive components.

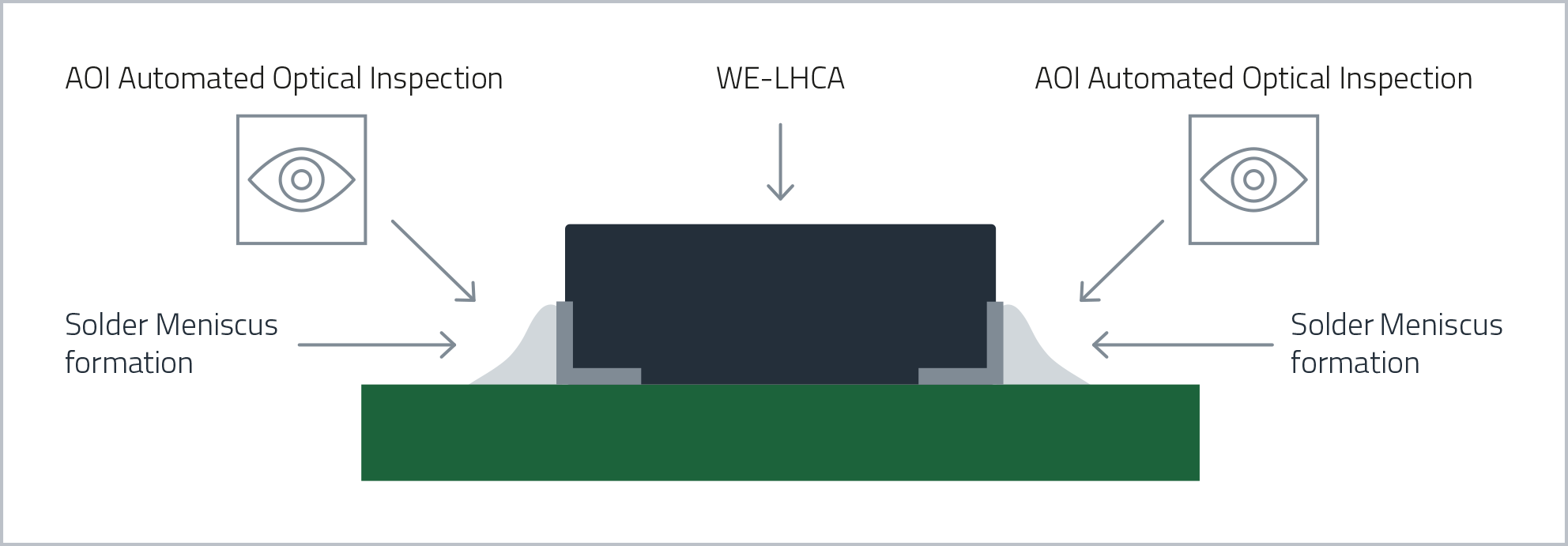

High quality solder connection
