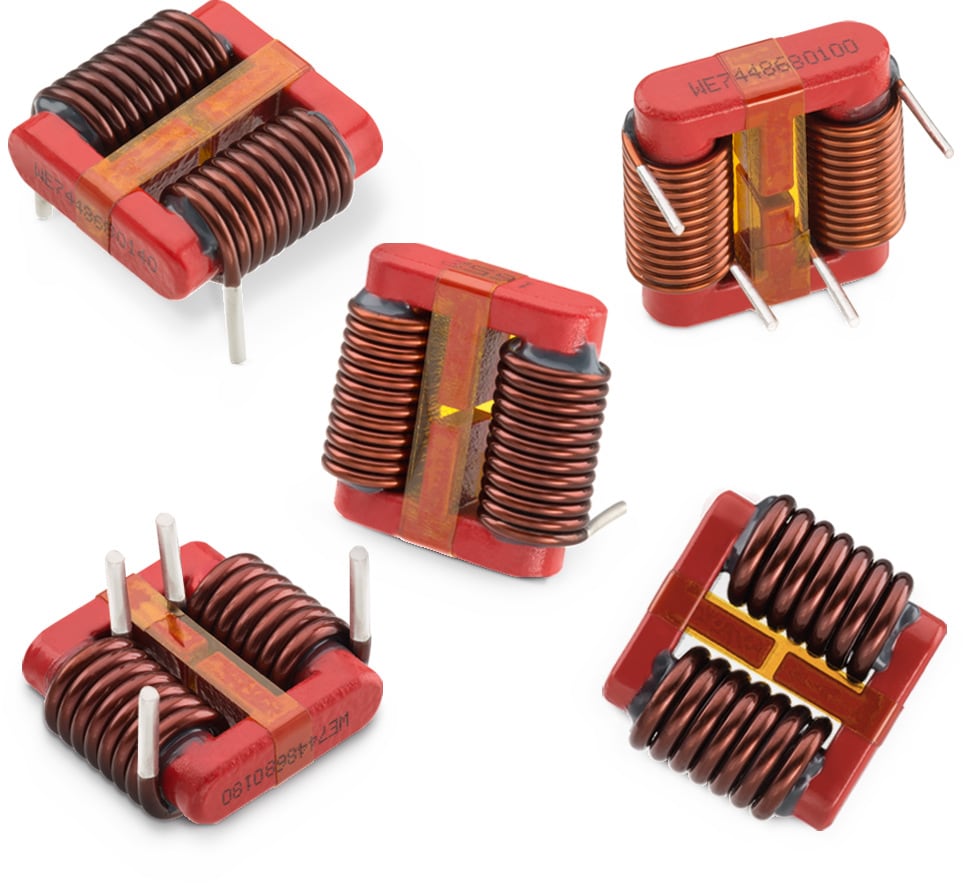

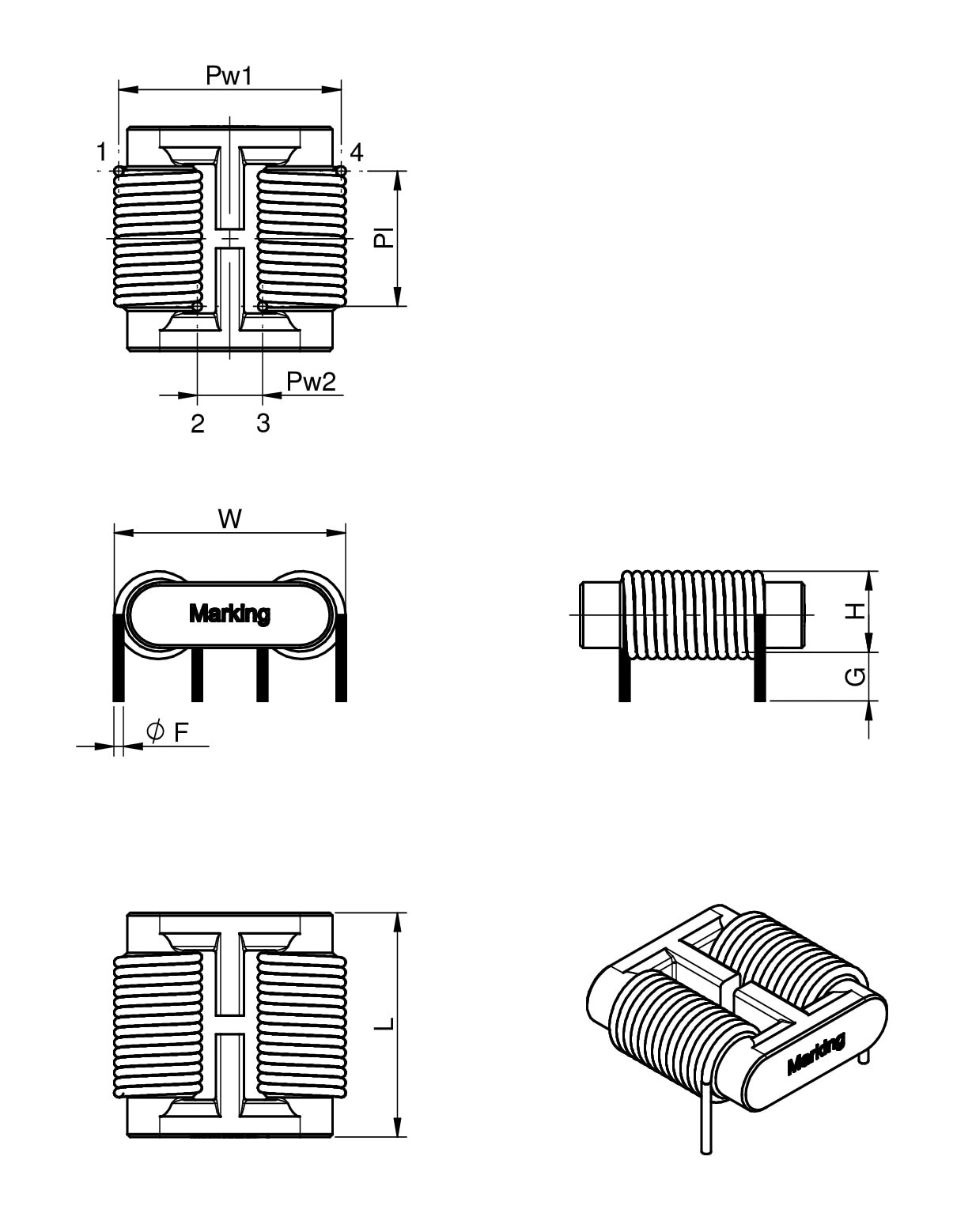

WE-LPCC Common Mode Power Line Choke

LTSpice files

LT
LTSpice_WE-LPCC (rev22b).zip
|
3 KB

Characteristics

Stable stray inductance for differential mode filtering
High current carrying capacity
Low profile
Flammability corresponding to UL 94 V-0
Climatic category 40/115/21

Applications

AC/DC converter
High frequency DC/DC converter
Mains operated LED drivers
Switched mode power supplies

Products

Order Code	Datasheet	Simulation	Downloads	Status	I_R (A)	L (µH)	R_{DC max.} (mΩ)	V_R (V (AC))	V_T (V (AC))	Material	L (mm)	W (mm)	H (mm)	Mount	Samples
7448680100	SPEC		8 files EDA models: Components ZIP ALT Altium_WE-LPCC (rev22a).IntLib \| 536.5 KB ZUK Cadstar_WE-LPCC (rev19a).zip \| 7.5 KB CDS Cadence_WE-LPCC (rev24a).zip \| 10 MB EAG Eagle_WE-LPCC (rev19a).lbr \| 23.3 KB CAD files ZIP IGS Download_IGS_WE-LPCC-7448680100 (rev1).igs \| 2.9 MB STP Download_STP_WE-LPCC-7448680100 (rev1).stp \| 633.8 KB Electric models ZIP S S-Parameter_7448680100 (rev20c).s4p \| 312 KB PSP PSpice_WE-LPCC (rev24a).zip \| 4.8 KB Download all 8 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	9.5	450	9.6	250	1500	MnZn	25	27.5	9.7	THT
7448680120	SPEC		8 files EDA models: Components ZIP ALT Altium_WE-LPCC (rev22a).IntLib \| 536.5 KB ZUK Cadstar_WE-LPCC (rev19a).zip \| 7.5 KB CDS Cadence_WE-LPCC (rev24a).zip \| 10 MB EAG Eagle_WE-LPCC (rev19a).lbr \| 23.3 KB CAD files ZIP IGS Download_IGS_WE-LPCC-7448680120 (rev1).igs \| 1.4 MB STP Download_STP_WE-LPCC-7448680120 (rev1).stp \| 491.3 KB Electric models ZIP S S-Parameter_7448680120 (rev20c).s4p \| 303 KB PSP PSpice_WE-LPCC (rev24a).zip \| 4.8 KB Download all 8 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	12	330	6	250	1500	MnZn	25	27.5	10	THT
7448680140	SPEC		8 files EDA models: Components ZIP ALT Altium_WE-LPCC (rev22a).IntLib \| 536.5 KB ZUK Cadstar_WE-LPCC (rev19a).zip \| 7.5 KB CDS Cadence_WE-LPCC (rev24a).zip \| 10 MB EAG Eagle_WE-LPCC (rev19a).lbr \| 23.3 KB CAD files ZIP IGS Download_IGS_WE-LPCC-7448680140 (rev1).igs \| 1.3 MB STP Download_STP_WE-LPCC-7448680140 (rev1).stp \| 823.3 KB Electric models ZIP S S-Parameter_7448680140 (rev20c).s4p \| 311.1 KB PSP PSpice_WE-LPCC (rev24a).zip \| 4.8 KB Download all 8 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	16	230	3.6	250	1500	MnZn	25	27.5	10.4	THT
7448680180	SPEC		8 files EDA models: Components ZIP ALT Altium_WE-LPCC (rev22a).IntLib \| 536.5 KB ZUK Cadstar_WE-LPCC (rev19a).zip \| 7.5 KB CDS Cadence_WE-LPCC (rev24a).zip \| 10 MB EAG Eagle_WE-LPCC (rev19a).lbr \| 23.3 KB CAD files ZIP IGS Download_IGS_WE-LPCC-7448680180 (rev1).igs \| 1.3 MB STP Download_STP_WE-LPCC-7448680180 (rev1).stp \| 438 KB Electric models ZIP S S-Parameter_7448680180 (rev20c).s4p \| 311.9 KB PSP PSpice_WE-LPCC (rev24a).zip \| 4.8 KB Download all 8 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	20	150	1.9	250	1500	MnZn	25	27.5	11.3	THT
7448680200	SPEC		8 files EDA models: Components ZIP ALT Altium_WE-LPCC (rev22a).IntLib \| 536.5 KB ZUK Cadstar_WE-LPCC (rev19a).zip \| 7.5 KB CDS Cadence_WE-LPCC (rev24a).zip \| 10 MB EAG Eagle_WE-LPCC (rev19a).lbr \| 23.3 KB CAD files ZIP IGS Download_IGS_WE-LPCC-7448680200 (rev1).igs \| 1.2 MB STP Download_STP_WE-LPCC-7448680200 (rev1).stp \| 757.7 KB Electric models ZIP S S-Parameter_7448680200 (rev20c).s4p \| 304.5 KB PSP PSpice_WE-LPCC (rev24a).zip \| 4.8 KB Download all 8 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	23.5	120	1.4	250	1500	MnZn	25	27.5	11.7	THT

Order Code	Datasheet	Simulation
7448680100	SPEC
7448680120	SPEC
7448680140	SPEC
7448680180	SPEC
7448680200	SPEC

Samples

Order Code	Datasheet	Simulation	Downloads	Status	I_R (A)	L (µH)	R_{DC max.} (mΩ)	V_R (V (AC))	V_T (V (AC))	Material	L (mm)	W (mm)	H (mm)	Mount	Samples
