WE-LT Conductive Shielding Gasket

	Size	Material
	Square	Polyether Urethane Foam
	D-Profile	Polyether Urethane Foam
	C-Profile	Polyether Urethane Foam
EXT.	P-Profile	Polyether Urethane Foam
	KnifeEdge-Profile	Polyether Urethane Foam
	L-Profile	Polyether Urethane Foam
	M-Profile	Polyether Urethane Foam

Characteristics

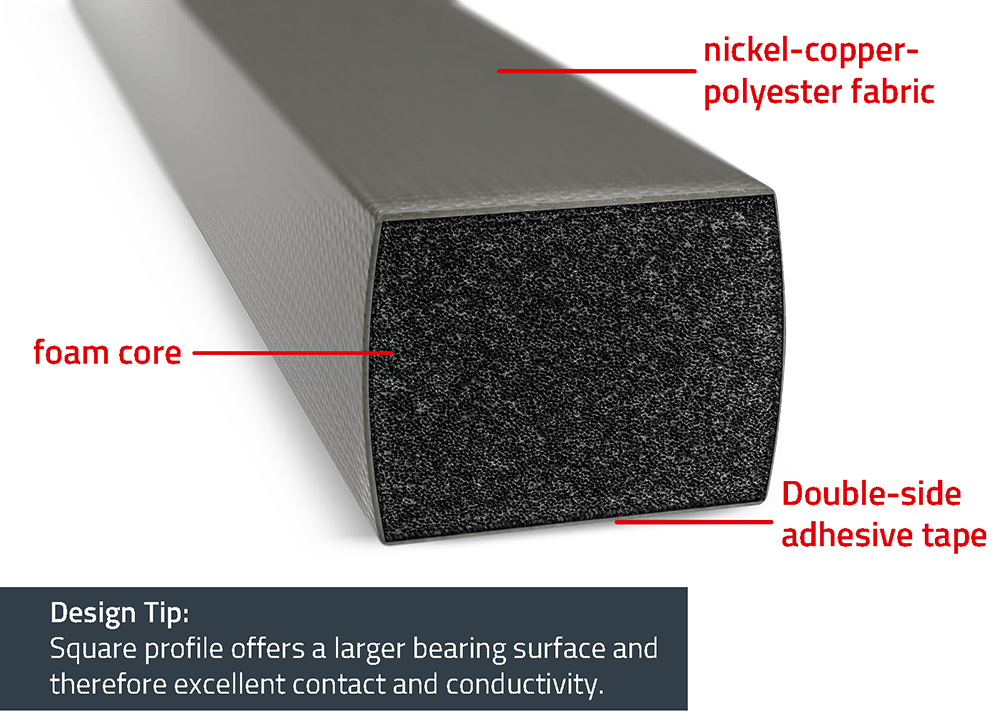

Centered, double-sided adhesive tape with removable tape for easy mounting
Shielding of over 80 dB @ 100 MHz can be reached
Typical surface resistance far below 8 mΩ
Flammability class: UL-94 V0
IP54 protection against dust and splashed water
Various profiles ex stock or customizable products available. Request now! Request for customized components WE-LT

Applications

Displays
Metal housings
Switching cabinets
Depending on the application an IP54 protection
class could be reached, that means by the use of the
shielding gasket a protection against dust (index 5)
and protection against splashed water (index 4)
could be offered

Cut it, fold it, test it. ShielDIY!

Create your own customized Shielding Cabinet for testing. Cut it, fold it and test it, DIY!

Learn more now!

Products

All

Square

D-Profile

C-Profile

P-Profile

KnifeEdge-Profile

L-Profile

M-Profile

Order Code	Datasheet	Downloads	Status	L (mm)	W (mm)	H (mm)	Shielding Effectiveness @ 100 MHz (dB)	Shielding Effectiveness @ 1 GHz (dB)	R_S (Ω)	Material	Alpha-Rack
3020202	SPEC	2 files CAD files ZIP IGS 3020202 (rev1).igs \| 225 KB STP 3020202 (rev1).stp \| 76.3 KB Download all 2 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	1000	2	2	80	86	0.08	Polyether Urethane Foam	–
3020301	SPEC	2 files CAD files ZIP IGS 3020301 (rev1).igs \| 220.3 KB STP 3020301 (rev1).stp \| 74.6 KB Download all 2 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	1000	3	1	80	86	0.08	Polyether Urethane Foam	–
3020302	SPEC	2 files CAD files ZIP IGS 3020302 (rev1).igs \| 220.9 KB STP 3020302 (rev1).stp \| 74.5 KB Download all 2 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	1000	3	2	80	86	0.08	Polyether Urethane Foam	–
3020303	SPEC	2 files CAD files ZIP IGS 3020303 (rev1).igs \| 221.1 KB STP 3020303 (rev1).stp \| 74.4 KB Download all 2 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	1000	3	3	80	86	0.08	Polyether Urethane Foam	–
3020401	SPEC	2 files CAD files ZIP IGS 3020401 (rev1).igs \| 219.7 KB STP 3020401 (rev1).stp \| 74.6 KB Download all 2 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	1000	4	1	80	86	0.08	Polyether Urethane Foam	–
3020402	SPEC	2 files CAD files ZIP IGS 3020402 (rev1).igs \| 219.9 KB STP 3020402 (rev1).stp \| 74.5 KB Download all 2 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	1000	4	2	80	86	0.08	Polyether Urethane Foam	–
3020403	SPEC	2 files CAD files ZIP IGS 3020403 (rev1).igs \| 220.2 KB STP 3020403 (rev1).stp \| 74.4 KB Download all 2 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	1000	4	3	80	86	0.08	Polyether Urethane Foam	–
30205005	SPEC	2 files CAD files ZIP IGS 30205005 (rev1).igs \| 220.2 KB STP 30205005 (rev1).stp \| 74.7 KB Download all 2 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	1000	5	0.5	80	86	0.08	Polyether Urethane Foam	–
3020501	SPEC	2 files CAD files ZIP IGS 3020501 (rev1).igs \| 220.1 KB STP 3020501 (rev1).stp \| 74.6 KB Download all 2 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	1000	5	1	80	86	0.08	Polyether Urethane Foam	–
30205015	SPEC	2 files CAD files ZIP IGS 30205015 (rev1).igs \| 220.5 KB STP 30205015 (rev1).stp \| 74.6 KB Download all 2 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	1000	5	1.5	80	86	0.08	Polyether Urethane Foam	–
3020502	SPEC	2 files CAD files ZIP IGS 3020502 (rev1).igs \| 220.2 KB STP 3020502 (rev1).stp \| 74.6 KB Download all 2 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	1000	5	2	80	86	0.08	Polyether Urethane Foam	–
3020503	SPEC	2 files CAD files ZIP IGS 3020503 (rev1).igs \| 220.6 KB STP 3020503 (rev1).stp \| 74.4 KB Download all 2 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	1000	5	3	80	86	0.08	Polyether Urethane Foam	–
3020504	SPEC	2 files CAD files ZIP IGS 3020504 (rev1).igs \| 219.9 KB STP 3020504 (rev1).stp \| 74.4 KB Download all 2 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	1000	5	4	80	86	0.08	Polyether Urethane Foam	–
3020505	SPEC	2 files CAD files ZIP IGS 3020505 (rev1).igs \| 220.2 KB STP 3020505 (rev1).stp \| 74.4 KB Download all 2 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	1000	5	5	80	86	0.08	Polyether Urethane Foam	–
3020601	SPEC	2 files CAD files ZIP IGS 3020601 (rev1).igs \| 220.2 KB STP 3020601 (rev1).stp \| 74.6 KB Download all 2 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	1000	6	1	80	86	0.08	Polyether Urethane Foam	–
3020602	SPEC	2 files CAD files ZIP IGS 3020602 (rev1).igs \| 220.7 KB STP 3020602 (rev1).stp \| 74.5 KB Download all 2 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	1000	6	2	80	86	0.08	Polyether Urethane Foam	–
30206025	SPEC	2 files CAD files ZIP IGS 30206025 (rev1).igs \| 220.9 KB STP 30206025 (rev1).stp \| 74.4 KB Download all 2 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	1000	6	2.5	80	86	0.08	Polyether Urethane Foam	–
3020603	SPEC	2 files CAD files ZIP IGS 3020603 (rev1).igs \| 221.3 KB STP 3020603 (rev1).stp \| 74.4 KB Download all 2 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	1000	6	3	80	86	0.08	Polyether Urethane Foam	–
3020604	SPEC	2 files CAD files ZIP IGS 3020604 (rev1).igs \| 220.9 KB STP 3020604 (rev1).stp \| 74.4 KB Download all 2 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	1000	6	4	80	86	0.08	Polyether Urethane Foam	–
3020605	SPEC	2 files CAD files ZIP IGS 3020605 (rev1).igs \| 221 KB STP 3020605 (rev1).stp \| 74.4 KB Download all 2 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	1000	6	5	80	86	0.08	Polyether Urethane Foam	–
3020606	SPEC	2 files CAD files ZIP IGS 3020606 (rev1).igs \| 221.5 KB STP 3020606 (rev1).stp \| 74.4 KB Download all 2 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	1000	6	6	80	86	0.08	Polyether Urethane Foam	–
3020607	SPEC	2 files CAD files ZIP IGS 3020607 (rev1).igs \| 221.6 KB STP 3020607 (rev1).stp \| 74.4 KB Download all 2 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	1000	6	7	80	86	0.08	Polyether Urethane Foam	–
3020608	SPEC	2 files CAD files ZIP IGS 3020608 (rev1).igs \| 221 KB STP 3020608 (rev1).stp \| 74.4 KB Download all 2 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	1000	6	8	80	86	0.08	Polyether Urethane Foam	–
302064032	SPEC	2 files CAD files ZIP IGS 302064032 (rev1).igs \| 220.3 KB STP 302064032 (rev1).stp \| 74.4 KB Download all 2 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	1000	6.4	3.2	80	86	0.08	Polyether Urethane Foam	–
302064064	SPEC	2 files CAD files ZIP IGS 302064064 (rev1).igs \| 220.2 KB STP 302064064 (rev1).stp \| 74.4 KB Download all 2 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	1000	6.4	6.4	80	86	0.08	Polyether Urethane Foam	–
3020701	SPEC	2 files CAD files ZIP IGS 3020701 (rev1).igs \| 220.3 KB STP 3020701 (rev1).stp \| 74.6 KB Download all 2 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	1000	7	1	80	86	0.08	Polyether Urethane Foam	–
3020702	SPEC	2 files CAD files ZIP IGS 3020702 (rev1).igs \| 220.9 KB STP 3020702 (rev1).stp \| 74.6 KB Download all 2 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	1000	7	2	80	86	0.08	Polyether Urethane Foam	–
30207032	SPEC	2 files CAD files ZIP IGS 30207032 (rev1).igs \| 221.5 KB STP 30207032 (rev1).stp \| 74.4 KB Download all 2 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	1000	7	3.2	80	86	0.08	Polyether Urethane Foam	–
3020705	SPEC	2 files CAD files ZIP IGS 3020705 (rev1).igs \| 221.2 KB STP 3020705 (rev1).stp \| 74.4 KB Download all 2 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	1000	7	5	80	86	0.08	Polyether Urethane Foam	–
3020706	SPEC	2 files CAD files ZIP IGS 3020706 (rev1).igs \| 221.6 KB STP 3020706 (rev1).stp \| 74.4 KB Download all 2 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	1000	7	6	80	86	0.08	Polyether Urethane Foam	–
3020707	SPEC	2 files CAD files ZIP IGS 3020707 (rev1).igs \| 221.8 KB STP 3020707 (rev1).stp \| 74.4 KB Download all 2 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	1000	7	7	80	86	0.08	Polyether Urethane Foam	–
3020802	SPEC	2 files CAD files ZIP IGS 3020802 (rev1).igs \| 219.7 KB STP 3020802 (rev1).stp \| 74.6 KB Download all 2 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	1000	8	2	80	86	0.08	Polyether Urethane Foam	–
3020803	SPEC	2 files CAD files ZIP IGS 3020803 (rev1).igs \| 220.1 KB STP 3020803 (rev1).stp \| 74.4 KB Download all 2 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	1000	8	3	80	86	0.08	Polyether Urethane Foam	–
3020804	SPEC	2 files CAD files ZIP IGS 3020804 (rev1).igs \| 219.3 KB STP 3020804 (rev1).stp \| 74.4 KB Download all 2 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	1000	8	4	80	86	0.08	Polyether Urethane Foam	–
3020805	SPEC	2 files CAD files ZIP IGS 3020805 (rev1).igs \| 219.7 KB STP 3020805 (rev1).stp \| 74.4 KB Download all 2 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	1000	8	5	80	86	0.08	Polyether Urethane Foam	–
3020808	SPEC	2 files CAD files ZIP IGS 3020808 (rev1).igs \| 219.5 KB STP 3020808 (rev1).stp \| 74.4 KB Download all 2 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	1000	8	8	80	86	0.08	Polyether Urethane Foam	–
3020812	SPEC	2 files CAD files ZIP IGS 3020812 (rev1).igs \| 220.4 KB STP 3020812 (rev1).stp \| 74.4 KB Download all 2 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	1000	8	12	80	86	0.08	Polyether Urethane Foam	–
3020903	SPEC	2 files CAD files ZIP IGS 3020903 (rev1).igs \| 221.6 KB STP 3020903 (rev1).stp \| 74.4 KB Download all 2 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	1000	9	3	80	86	0.08	Polyether Urethane Foam	–
3020905	SPEC	2 files CAD files ZIP IGS 3020905 (rev1).igs \| 221.2 KB STP 3020905 (rev1).stp \| 74.4 KB Download all 2 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	1000	9	5	80	86	0.08	Polyether Urethane Foam	–
3020906	SPEC	2 files CAD files ZIP IGS 3020906 (rev1).igs \| 221.6 KB STP 3020906 (rev1).stp \| 74.4 KB Download all 2 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	1000	9	6	80	86	0.08	Polyether Urethane Foam	–
3020907	SPEC	2 files CAD files ZIP IGS 3020907 (rev1).igs \| 221.8 KB STP 3020907 (rev1).stp \| 74.4 KB Download all 2 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	1000	9	7	80	86	0.08	Polyether Urethane Foam	–
3020909	SPEC	2 files CAD files ZIP IGS 3020909 (rev1).igs \| 221.8 KB STP 3020909 (rev1).stp \| 74.4 KB Download all 2 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	1000	9	9	80	86	0.08	Polyether Urethane Foam	–
302095032	SPEC	2 files CAD files ZIP IGS 302095032 (rev1).igs \| 221.5 KB STP 302095032 (rev1).stp \| 74.4 KB Download all 2 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	1000	9.5	3.2	80	86	0.08	Polyether Urethane Foam	–
3029564	SPEC	2 files CAD files ZIP IGS 3029564 (rev1).igs \| 221.3 KB STP 3029564 (rev1).stp \| 74.4 KB Download all 2 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	1000	9.5	6.4	80	86	0.08	Polyether Urethane Foam	–
302095095	SPEC	2 files CAD files ZIP IGS 302095095 (rev1).igs \| 221.8 KB STP 302095095 (rev1).stp \| 74.4 KB Download all 2 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	1000	9.5	9.5	80	86	0.08	Polyether Urethane Foam	–
30210005	SPEC	2 files CAD files ZIP IGS 30210005 (rev1).igs \| 220.1 KB STP 30210005 (rev1).stp \| 74.6 KB Download all 2 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	1000	10	0.5	80	86	0.08	Polyether Urethane Foam	–
3021001	SPEC	2 files CAD files ZIP IGS 3021001 (rev1).igs \| 220.1 KB STP 3021001 (rev1).stp \| 74.6 KB Download all 2 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	1000	10	1	80	86	0.08	Polyether Urethane Foam	–
3021002	SPEC	2 files CAD files ZIP IGS 3021002 (rev1).igs \| 220.2 KB STP 3021002 (rev1).stp \| 74.5 KB Download all 2 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	1000	10	2	80	86	0.08	Polyether Urethane Foam	–
3021003	SPEC	2 files CAD files ZIP IGS 3021003 (rev1).igs \| 220.6 KB STP 3021003 (rev1).stp \| 74.4 KB Download all 2 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	1000	10	3	80	86	0.08	Polyether Urethane Foam	–
3021004	SPEC	2 files CAD files ZIP IGS 3021004 (rev1).igs \| 219.9 KB STP 3021004 (rev1).stp \| 74.4 KB Download all 2 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	1000	10	4	80	86	0.08	Polyether Urethane Foam	–
3021005	SPEC	2 files CAD files ZIP IGS 3021005 (rev1).igs \| 220.2 KB STP 3021005 (rev1).stp \| 74.4 KB Download all 2 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	1000	10	5	80	86	0.08	Polyether Urethane Foam	–
3021007	SPEC	2 files CAD files ZIP IGS 3021007 (rev1).igs \| 220.9 KB STP 3021007 (rev1).stp \| 74.4 KB Download all 2 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	1000	10	7	80	86	0.08	Polyether Urethane Foam	742707004
3021008	SPEC	2 files CAD files ZIP IGS 3021008 (rev1).igs \| 220 KB STP 3021008 (rev1).stp \| 74.4 KB Download all 2 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	1000	10	8	80	86	0.08	Polyether Urethane Foam	–
3021010	SPEC	2 files CAD files ZIP IGS 3021010 (rev1).igs \| 220.2 KB STP 3021010 (rev1).stp \| 74.4 KB Download all 2 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	1000	10	10	80	86	0.08	Polyether Urethane Foam	–
3021012	SPEC	2 files CAD files ZIP IGS 3021012 (rev1).igs \| 220.9 KB STP 3021012 (rev1).stp \| 74.4 KB Download all 2 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	1000	10	12	80	86	0.08	Polyether Urethane Foam	–
3021013	SPEC	2 files CAD files ZIP IGS 3021013 (rev1).igs \| 220.7 KB STP 3021013 (rev1).stp \| 74.4 KB Download all 2 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	1000	10	13	80	86	0.08	Polyether Urethane Foam	–
3021015	SPEC	2 files CAD files ZIP IGS 3021015 (rev1).igs \| 220.9 KB STP 3021015 (rev1).stp \| 74.4 KB Download all 2 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	1000	10	15	80	86	0.08	Polyether Urethane Foam	–
3021025	SPEC	2 files CAD files ZIP IGS 3021025 (rev1).igs \| 219.7 KB STP 3021025 (rev1).stp \| 74.4 KB Download all 2 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	1000	10	25	80	86	0.08	Polyether Urethane Foam	–
3021030	SPEC	2 files CAD files ZIP IGS 3021030 (rev1).igs \| 220.9 KB STP 3021030 (rev1).stp \| 74.4 KB Download all 2 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	1000	10	30	80	86	0.08	Polyether Urethane Foam	–
302105115	SPEC	2 files CAD files ZIP IGS 302105115 (rev1).igs \| 221.3 KB STP 302105115 (rev1).stp \| 74.4 KB Download all 2 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	1000	10.5	11.5	80	86	0.08	Polyether Urethane Foam	–
302115105	SPEC	2 files CAD files ZIP IGS 302115105 (rev1).igs \| 221.5 KB STP 302115105 (rev1).stp \| 74.4 KB Download all 2 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	1000	11.5	10.5	80	86	0.08	Polyether Urethane Foam	–
30213064	SPEC	2 files CAD files ZIP IGS 30213064 (rev1).igs \| 221.3 KB STP 30213064 (rev1).stp \| 74.4 KB Download all 2 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	1000	12	6.4	80	86	0.08	Polyether Urethane Foam	–
30213095	SPEC	2 files CAD files ZIP IGS 30213095 (rev1).igs \| 221.8 KB STP 30213095 (rev1).stp \| 74.4 KB Download all 2 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	1000	12	9.5	80	86	0.08	Polyether Urethane Foam	–
3021210	SPEC	2 files CAD files ZIP IGS 3021210 (rev1).igs \| 221.2 KB STP 3021210 (rev1).stp \| 74.4 KB Download all 2 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	1000	12	10	80	86	0.08	Polyether Urethane Foam	–
3021313	SPEC	2 files CAD files ZIP IGS 3021313 (rev1).igs \| 219.7 KB STP 3021313 (rev1).stp \| 74.4 KB Download all 2 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	1000	13	13	80	86	0.08	Polyether Urethane Foam	–
3021213	SPEC	2 files CAD files ZIP IGS 3021213 (rev1).igs \| 221.6 KB STP 3021213 (rev1).stp \| 74.4 KB Download all 2 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	1000	12	13	80	86	0.08	Polyether Urethane Foam	–
3021301	SPEC	2 files CAD files ZIP IGS 3021301 (rev1).igs \| 221.4 KB STP 3021301 (rev1).stp \| 74.6 KB Download all 2 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	1000	13	1	80	86	0.08	Polyether Urethane Foam	–
3021302	SPEC	2 files CAD files ZIP IGS 3021302 (rev1).igs \| 220.9 KB STP 3021302 (rev1).stp \| 74.6 KB Download all 2 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	1000	13	2	80	86	0.08	Polyether Urethane Foam	–
3021303	SPEC	2 files CAD files ZIP IGS 3021303 (rev1).igs \| 221.5 KB STP 3021303 (rev1).stp \| 74.4 KB Download all 2 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	1000	13	3	80	86	0.08	Polyether Urethane Foam	–
3021305	SPEC	2 files CAD files ZIP IGS 3021305 (rev1).igs \| 221.2 KB STP 3021305 (rev1).stp \| 74.4 KB Download all 2 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	1000	13	5	80	86	0.08	Polyether Urethane Foam	–
3021307	SPEC	2 files CAD files ZIP IGS 3021307 (rev1).igs \| 221.7 KB STP 3021307 (rev1).stp \| 74.4 KB Download all 2 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	1000	13	7	80	86	0.08	Polyether Urethane Foam	–
3021310	SPEC	2 files CAD files ZIP IGS 3021310 (rev1).igs \| 221.2 KB STP 3021310 (rev1).stp \| 74.4 KB Download all 2 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	1000	13	10	80	86	0.08	Polyether Urethane Foam	–
3021414	SPEC	2 files CAD files ZIP IGS 3021414 (rev1).igs \| 221.6 KB STP 3021414 (rev1).stp \| 74.4 KB Download all 2 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	1000	14	14	80	86	0.08	Polyether Urethane Foam	–
3021504	SPEC	2 files CAD files ZIP IGS 3021504 (rev1).igs \| 221.1 KB STP 3021504 (rev1).stp \| 74.5 KB Download all 2 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	1000	15	4	80	86	0.08	Polyether Urethane Foam	–
3021508	SPEC	2 files CAD files ZIP IGS 3021508 (rev1).igs \| 221.2 KB STP 3021508 (rev1).stp \| 74.4 KB Download all 2 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	1000	15	8	80	86	0.08	Polyether Urethane Foam	–
3021510	SPEC	2 files CAD files ZIP IGS 3021510 (rev1).igs \| 221.2 KB STP 3021510 (rev1).stp \| 74.4 KB Download all 2 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	1000	15	10	80	86	0.08	Polyether Urethane Foam	–
3021707	SPEC	2 files CAD files ZIP IGS 3021707 (rev1).igs \| 221.8 KB STP 3021707 (rev1).stp \| 74.4 KB Download all 2 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	1000	17	7	80	86	0.08	Polyether Urethane Foam	–
3021717	SPEC	2 files CAD files ZIP IGS 3021717 (rev1).igs \| 221.8 KB STP 3021717 (rev1).stp \| 74.4 KB Download all 2 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	1000	17	17	80	86	0.08	Polyether Urethane Foam	–
3022010	SPEC	2 files CAD files ZIP IGS 3022010 (rev1).igs \| 220.2 KB STP 3022010 (rev1).stp \| 74.4 KB Download all 2 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	1000	20	10	80	86	0.08	Polyether Urethane Foam	–
3022104	SPEC	2 files CAD files ZIP IGS 3022104 (rev1).igs \| 220.6 KB STP 3022104 (rev1).stp \| 74.4 KB Download all 2 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	1000	21	4	80	86	0.08	Polyether Urethane Foam	–
3022202	SPEC	2 files CAD files ZIP IGS 3022202 (rev1).igs \| 220.5 KB STP 3022202 (rev1).stp \| 74.6 KB Download all 2 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	1000	22	2	80	86	0.08	Polyether Urethane Foam	–
3022303	SPEC	2 files CAD files ZIP IGS 3022303 (rev1).igs \| 221.1 KB STP 3022303 (rev1).stp \| 74.4 KB Download all 2 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	1000	23	3	80	86	0.08	Polyether Urethane Foam	–
30225015	SPEC	2 files CAD files ZIP IGS 30225015 (rev1).igs \| 220.5 KB STP 30225015 (rev1).stp \| 74.5 KB Download all 2 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	1000	25	1.5	80	86	0.08	Polyether Urethane Foam	–
3022510	SPEC	2 files CAD files ZIP IGS 3022510 (rev1).igs \| 220.2 KB STP 3022510 (rev1).stp \| 74.4 KB Download all 2 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	1000	25	10	80	86	0.08	Polyether Urethane Foam	–
3023002	SPEC	2 files CAD files ZIP IGS 3023002 (rev1).igs \| 220.9 KB STP 3023002 (rev1).stp \| 74.5 KB Download all 2 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	1000	30	2	80	86	0.08	Polyether Urethane Foam	–
3023502	SPEC	2 files CAD files ZIP IGS 3023502 (rev1).igs \| 221.9 KB STP 3023502 (rev1).stp \| 74.6 KB Download all 2 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	1000	35	2	80	86	0.08	Polyether Urethane Foam	–
3024502	SPEC	2 files CAD files ZIP IGS 3024502 (rev1).igs \| 220.9 KB STP 3024502 (rev1).stp \| 74.6 KB Download all 2 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	1000	45	2	80	86	0.08	Polyether Urethane Foam	–
3025602	SPEC	2 files CAD files ZIP IGS 3025602 (rev1).igs \| 220.9 KB STP 3025602 (rev1).stp \| 74.6 KB Download all 2 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	1000	56	2	80	86	0.08	Polyether Urethane Foam	–
30302015	SPEC	2 files CAD files ZIP IGS 30302015 (rev1).igs \| 114.1 KB STP 30302015 (rev1).stp \| 30.7 KB Download all 2 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	1000	2	1.5	80	75	0.08	Polyether Urethane Foam	–
3030202	SPEC	2 files CAD files ZIP IGS 3030202 (rev1).igs \| 122.1 KB STP 3030202 (rev1).stp \| 30.6 KB Download all 2 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	1000	2	2	80	75	0.08	Polyether Urethane Foam	–
30323231	SPEC	2 files CAD files ZIP IGS 30323231 (rev1).igs \| 122.2 KB STP 30323231 (rev1).stp \| 30.6 KB Download all 2 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	1000	2.3	2.3	80	75	0.08	Polyether Urethane Foam	–
3030303	SPEC	2 files CAD files ZIP IGS 3030303 (rev1).igs \| 122.2 KB STP 3030303 (rev1).stp \| 30.6 KB Download all 2 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	1000	3	3	80	75	0.08	Polyether Urethane Foam	–
303035015	SPEC	2 files CAD files ZIP IGS 303035015 (rev1).igs \| 114.1 KB STP 303035015 (rev1).stp \| 30.6 KB Download all 2 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	1000	3.5	1.5	80	75	0.08	Polyether Urethane Foam	–
303038023	SPEC	2 files CAD files ZIP IGS 303038023 (rev1).igs \| 114 KB STP 303038023 (rev1).stp \| 30.6 KB Download all 2 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	1000	3.8	2.3	80	75	0.08	Polyether Urethane Foam	–
3030403	SPEC	2 files CAD files ZIP IGS 3030403 (rev1).igs \| 121.7 KB STP 3030403 (rev1).stp \| 30.6 KB Download all 2 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	1000	3.8	3	80	75	0.08	Polyether Urethane Foam	–
30304031	SPEC	2 files CAD files ZIP IGS 30304031 (rev1).igs \| 122 KB STP 30304031 (rev1).stp \| 30.6 KB Download all 2 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	1000	4	3	80	75	0.08	Polyether Urethane Foam	–
303045018	SPEC	2 files CAD files ZIP IGS 303045018 (rev1).igs \| 114.2 KB STP 303045018 (rev1).stp \| 30.6 KB Download all 2 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	1000	4.5	1.8	80	75	0.08	Polyether Urethane Foam	–
3030602	SPEC	2 files CAD files ZIP IGS 3030602 (rev1).igs \| 114 KB STP 3030602 (rev1).stp \| 30.6 KB Download all 2 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	1000	6	2	80	75	0.08	Polyether Urethane Foam	–
3030604	SPEC	2 files CAD files ZIP IGS 3030604 (rev1).igs \| 121.7 KB STP 3030604 (rev1).stp \| 30.6 KB Download all 2 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	1000	6	4	80	75	0.08	Polyether Urethane Foam	–
3030605	SPEC	2 files CAD files ZIP IGS 3030605 (rev1).igs \| 121.7 KB STP 3030605 (rev1).stp \| 30.6 KB Download all 2 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	1000	6	5	80	75	0.08	Polyether Urethane Foam	–
303064032	SPEC	2 files CAD files ZIP IGS 303064032 (rev1).igs \| 113 KB STP 303064032 (rev1).stp \| 30.6 KB Download all 2 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	1000	6.4	3.2	80	75	0.08	Polyether Urethane Foam	–
30364361	SPEC	2 files CAD files ZIP IGS 30364361 (rev1).igs \| 116.6 KB STP 30364361 (rev1).stp \| 30.6 KB Download all 2 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	1000	6.4	3.6	80	75	0.08	Polyether Urethane Foam	–
30307025	SPEC	2 files CAD files ZIP IGS 30307025 (rev1).igs \| 113.9 KB STP 30307025 (rev1).stp \| 30.6 KB Download all 2 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	1000	7	2.5	80	75	0.08	Polyether Urethane Foam	–
303076016	SPEC	2 files CAD files ZIP IGS 303076016 (rev1).igs \| 114 KB STP 303076016 (rev1).stp \| 30.6 KB Download all 2 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	1000	7.6	1.6	80	75	0.08	Polyether Urethane Foam	–
303076048	SPEC	2 files CAD files ZIP IGS 303076048 (rev1).igs \| 122.1 KB STP 303076048 (rev1).stp \| 30.6 KB Download all 2 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	1000	7.6	4.8	80	75	0.08	Polyether Urethane Foam	–
3030804	SPEC	2 files CAD files ZIP IGS 3030804 (rev1).igs \| 113 KB STP 3030804 (rev1).stp \| 30.6 KB Download all 2 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	1000	8	4	80	75	0.08	Polyether Urethane Foam	–
30308055	SPEC	2 files CAD files ZIP IGS 30308055 (rev1).igs \| 122.1 KB STP 30308055 (rev1).stp \| 30.6 KB Download all 2 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	1000	8	5.5	80	75	0.08	Polyether Urethane Foam	–
3030806	SPEC	2 files CAD files ZIP IGS 3030806 (rev1).igs \| 122.1 KB STP 3030806 (rev1).stp \| 30.6 KB Download all 2 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	1000	8	6	80	75	0.08	Polyether Urethane Foam	742707004
303085035	SPEC	2 files CAD files ZIP IGS 303085035 (rev1).igs \| 114.2 KB STP 303085035 (rev1).stp \| 30.6 KB Download all 2 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	1000	8.5	3.5	80	75	0.08	Polyether Urethane Foam	–
3030903	SPEC	2 files CAD files ZIP IGS 3030903 (rev1).igs \| 114.2 KB STP 3030903 (rev1).stp \| 30.6 KB Download all 2 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	1000	9	3	80	75	0.08	Polyether Urethane Foam	–
30395641	SPEC	2 files CAD files ZIP IGS 30395641 (rev1).igs \| 121.9 KB STP 30395641 (rev1).stp \| 30.6 KB Download all 2 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	1000	9.5	6.4	80	75	0.08	Polyether Urethane Foam	–
3031004	SPEC	2 files CAD files ZIP IGS 3031004 (rev1).igs \| 114.1 KB STP 3031004 (rev1).stp \| 30.6 KB Download all 2 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	1000	10	4	80	75	0.08	Polyether Urethane Foam	–
3031007	SPEC	2 files CAD files ZIP IGS 3031007 (rev1).igs \| 122.2 KB STP 3031007 (rev1).stp \| 30.6 KB Download all 2 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	1000	10	7	80	75	0.08	Polyether Urethane Foam	–
3031008	SPEC	2 files CAD files ZIP IGS 3031008 (rev1).igs \| 122.1 KB STP 3031008 (rev1).stp \| 30.6 KB Download all 2 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	1000	10	8	80	75	0.08	Polyether Urethane Foam	–
3031010	SPEC	2 files CAD files ZIP IGS 3031010 (rev1).igs \| 122.1 KB STP 3031010 (rev1).stp \| 30.6 KB Download all 2 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	1000	10	10	80	75	0.08	Polyether Urethane Foam	–
3031018	SPEC	2 files CAD files ZIP IGS 3031018 (rev1).igs \| 138.2 KB STP 3031018 (rev1).stp \| 30.6 KB Download all 2 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	1000	10	18	80	75	0.08	Polyether Urethane Foam	–
3031210	SPEC	2 files CAD files ZIP IGS 3031210 (rev1).igs \| 122.2 KB STP 3031210 (rev1).stp \| 30.6 KB Download all 2 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	1000	12	10	80	75	0.08	Polyether Urethane Foam	–
3031313	SPEC	2 files CAD files ZIP IGS 3031313 (rev1).igs \| 119.7 KB STP 3031313 (rev1).stp \| 30.6 KB Download all 2 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	1000	12.7	12.7	80	75	0.08	Polyether Urethane Foam	–
30906035	SPEC	2 files CAD files ZIP IGS 30906035 (rev1).igs \| 260.5 KB STP 30906035 (rev1).stp \| 80.1 KB Download all 2 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	1000	6	3.5	80	86	0.08	Polyether Urethane Foam	–
3090606	SPEC	2 files CAD files ZIP IGS 3090606 (rev1).igs \| 260.3 KB STP 3090606 (rev1).stp \| 80.3 KB Download all 2 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	1000	6	6	80	86	0.08	Polyether Urethane Foam	–
3091010	SPEC	2 files CAD files ZIP IGS 3091010 (rev1).igs \| 260.8 KB STP 3091010 (rev1).stp \| 80.3 KB Download all 2 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	1000	10	10	80	86	0.08	Polyether Urethane Foam	–
3091009	SPEC	2 files CAD files ZIP IGS 3091009 (rev1).igs \| 261 KB STP 3091009 (rev1).stp \| 80.2 KB Download all 2 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	1000	10.7	9.8	80	86	0.08	Polyether Urethane Foam	–
3091111	SPEC	2 files CAD files ZIP IGS 3091111 (rev1).igs \| 261.5 KB STP 3091111 (rev1).stp \| 80.2 KB Download all 2 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	1000	11	11	80	86	0.08	Polyether Urethane Foam	–
3091418	SPEC	2 files CAD files ZIP IGS 3091418 (rev1).igs \| 261.3 KB STP 3091418 (rev1).stp \| 80.3 KB Download all 2 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	1000	14.7	17.9	80	86	0.08	Polyether Urethane Foam	–
3080803	SPEC	2 files CAD files ZIP IGS 3080803 (rev1).igs \| 169.3 KB STP 3080803 (rev1).stp \| 51.1 KB Download all 2 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	1000	8	3	80	75	0.08	Polyether Urethane Foam	–
3081710	SPEC	2 files CAD files ZIP IGS 3081710 (rev1).igs \| 178 KB STP 3081710 (rev1).stp \| 51.2 KB Download all 2 files as zip archive ZIP	New i\| Product is new in our portfolio and production is active. Expected lifetime: >10 years.	1000	17	10	80	75	0.08	Polyether Urethane Foam	–
3081804	SPEC	2 files CAD files ZIP IGS 3081804 (rev1).igs \| 169.5 KB STP 3081804 (rev1).stp \| 51.3 KB Download all 2 files as zip archive ZIP	New i\| Product is new in our portfolio and production is active. Expected lifetime: >10 years.	1000	18	4	80	75	0.08	Polyether Urethane Foam	–
30818045	SPEC	2 files CAD files ZIP IGS 30818045 (rev1).igs \| 169.7 KB STP 30818045 (rev1).stp \| 51.3 KB Download all 2 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	1000	18	4.5	80	75	0.08	Polyether Urethane Foam	–
30829048	SPEC	2 files CAD files ZIP IGS 30829048 (rev1).igs \| 170.1 KB STP 30829048 (rev1).stp \| 51.3 KB Download all 2 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	1000	29	4.8	80	75	0.08	Polyether Urethane Foam	–
38008027	SPEC	2 files CAD files ZIP IGS 38008027 (rev1).igs \| 187.9 KB STP 38008027 (rev1).stp \| 65.2 KB Download all 2 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	1000	8	2.7	80	75	0.08	Polyether Urethane Foam	–
38111023	SPEC	2 files CAD files ZIP IGS 38111023 (rev1).igs \| 210.9 KB STP 38111023 (rev1).stp \| 65.1 KB Download all 2 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	1000	11.3	2.3	80	75	0.08	Polyether Urethane Foam	–
38111027	SPEC	2 files CAD files ZIP IGS 38111027 (rev1).igs \| 210.7 KB STP 38111027 (rev1).stp \| 65.1 KB Download all 2 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	1000	11.3	2.7	80	75	0.08	Polyether Urethane Foam	742707004
38205603	SPEC	2 files CAD files ZIP IGS 38205603 (rev1).igs \| 147.9 KB STP 38205603 (rev1).stp \| 57.4 KB Download all 2 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	1000	5.6	3	80	75	0.08	Polyether Urethane Foam	–
38313095	SPEC	2 files CAD files ZIP IGS 38313095 (rev1).igs \| 230 KB STP 38313095 (rev1).stp \| 58.7 KB Download all 2 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	1000	12.7	9.5	80	75	0.08	Polyether Urethane Foam	–

	Order Code	Datasheet
	3020202	SPEC
	3020301	SPEC
	3020302	SPEC
	3020303	SPEC
	3020401	SPEC
	3020402	SPEC
	3020403	SPEC
	30205005	SPEC
	3020501	SPEC
	30205015	SPEC
	3020502	SPEC
	3020503	SPEC
	3020504	SPEC
	3020505	SPEC
	3020601	SPEC
	3020602	SPEC
	30206025	SPEC
	3020603	SPEC
	3020604	SPEC
	3020605	SPEC
	3020606	SPEC
	3020607	SPEC
	3020608	SPEC
	302064032	SPEC
	302064064	SPEC
	3020701	SPEC
	3020702	SPEC
	30207032	SPEC
	3020705	SPEC
	3020706	SPEC
	3020707	SPEC
	3020802	SPEC
	3020803	SPEC
	3020804	SPEC
	3020805	SPEC
	3020808	SPEC
	3020812	SPEC
	3020903	SPEC
	3020905	SPEC
	3020906	SPEC
	3020907	SPEC
	3020909	SPEC
	302095032	SPEC
	3029564	SPEC
	302095095	SPEC
	30210005	SPEC
	3021001	SPEC
	3021002	SPEC
	3021003	SPEC
	3021004	SPEC
	3021005	SPEC
	3021007	SPEC
	3021008	SPEC
	3021010	SPEC
	3021012	SPEC
	3021013	SPEC
	3021015	SPEC
	3021025	SPEC
	3021030	SPEC
	302105115	SPEC
	302115105	SPEC
	30213064	SPEC
	30213095	SPEC
	3021210	SPEC
	3021313	SPEC
	3021213	SPEC
	3021301	SPEC
	3021302	SPEC
	3021303	SPEC
	3021305	SPEC
	3021307	SPEC
	3021310	SPEC
	3021414	SPEC
	3021504	SPEC
	3021508	SPEC
	3021510	SPEC
	3021707	SPEC
	3021717	SPEC
	3022010	SPEC
	3022104	SPEC
	3022202	SPEC
	3022303	SPEC
	30225015	SPEC
	3022510	SPEC
	3023002	SPEC
	3023502	SPEC
	3024502	SPEC
	3025602	SPEC
	30302015	SPEC
	3030202	SPEC
	30323231	SPEC
	3030303	SPEC
	303035015	SPEC
	303038023	SPEC
	3030403	SPEC
	30304031	SPEC
	303045018	SPEC
	3030602	SPEC
	3030604	SPEC
	3030605	SPEC
	303064032	SPEC
	30364361	SPEC
	30307025	SPEC
	303076016	SPEC
	303076048	SPEC
	3030804	SPEC
	30308055	SPEC
	3030806	SPEC
	303085035	SPEC
	3030903	SPEC
	30395641	SPEC
	3031004	SPEC
	3031007	SPEC
	3031008	SPEC
	3031010	SPEC
	3031018	SPEC
	3031210	SPEC
	3031313	SPEC
	30906035	SPEC
	3090606	SPEC
	3091010	SPEC
	3091009	SPEC
	3091111	SPEC
	3091418	SPEC
	3080803	SPEC
	3081710	SPEC
	3081804	SPEC
	30818045	SPEC
	30829048	SPEC
	38008027	SPEC
	38111023	SPEC
	38111027	SPEC
	38205603	SPEC
	38313095	SPEC

Samples

	Order Code	Datasheet	Downloads	Status	L (mm)	W (mm)	H (mm)	Shielding Effectiveness @ 100 MHz (dB)	Shielding Effectiveness @ 1 GHz (dB)	R_S (Ω)	Material	Alpha-Rack	Samples

A lightweight with excellent shielding properties and surface conductivity due to the nickel-copper-polyester fabric. The foam core is fire retardant and for easy assembly the gasket comes with a self-adhesive film.

The WE-LT series was developed to solve diverse EMI/RFI situations and to meet shielding requirements.

Cost-effective and time-saving

Save costs and time with one of our various profiles ex stock. Special lengths, die-cut patterns as well as other materials (e.g. aluminum) and conductive tape are available on request.

Suitability of the material matching

The material pairing of certain materials starts a galvanic process that leads to the corrosion of the surfaces and reduces the conductivity. Especially in environments where increased corrosion is to be expected, the shielding material should be selected to match the housing material.

Compression

A steady compression of 30 % is recommended to keep the transitional resistance low and stable over a long time and to balance tolerances. The compression force depends on the profile of the gasket.

Assortments

Articles from this product series can be found in the following assortments:

Alpha-Rack EMC: Ferrites / Varistors / Shielding

Videos

Würth Elektronik Webinar: A Practical Guide to EMI Shielding of Electronic Devices

WE-LT Conductive Shielding Gasket EXTENDED

Characteristics

Applications

Cut it, fold it, test it. ShielDIY!

Products
