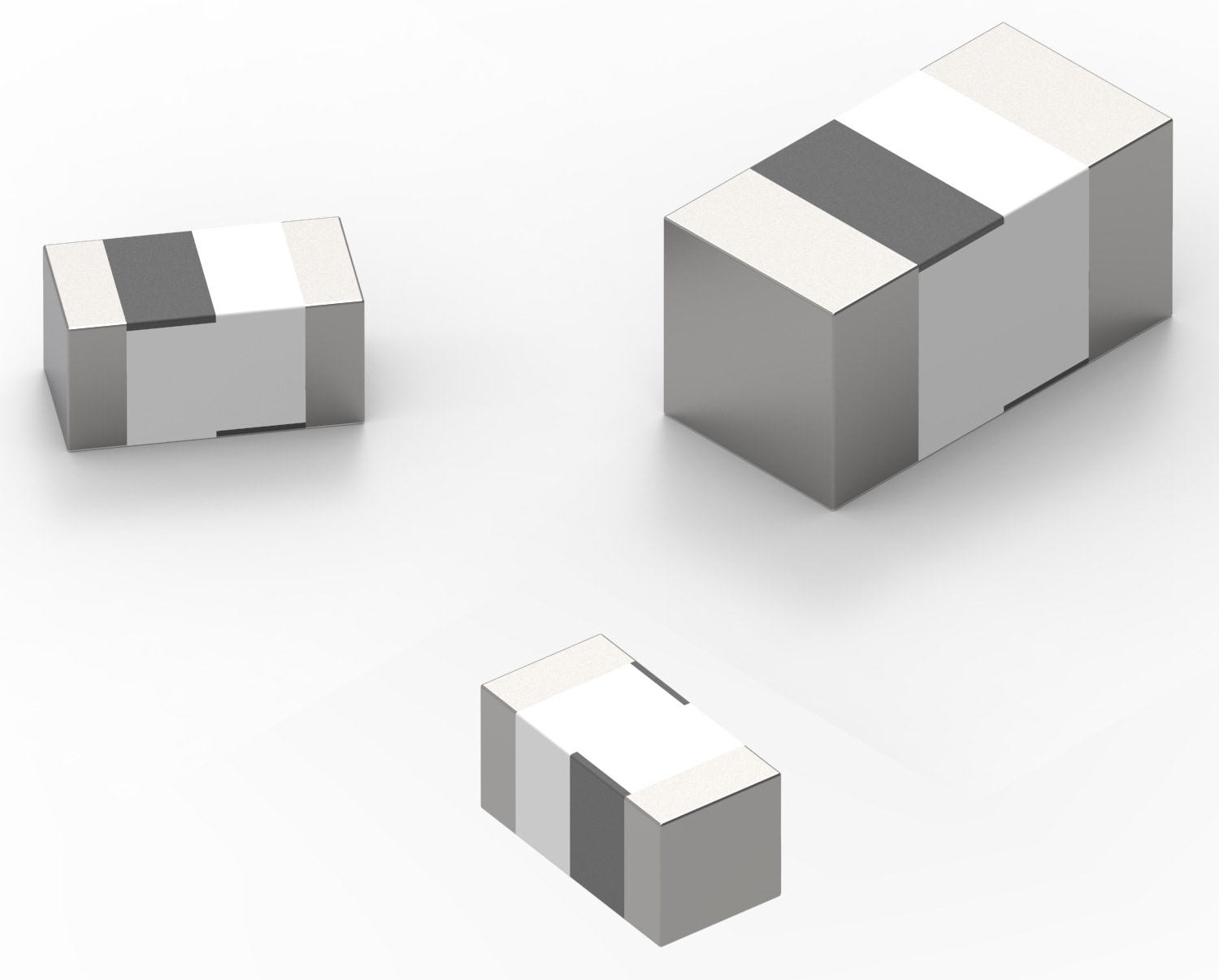

WE-MCI Multilayer Ceramic SMT Inductor| Automotive | Würth Elektronik Product Catalog

Size	Dimensions	L (mm)	W (mm)	H (mm)
0402		1	0.5	0.5
0603		1.6	0.8	0.8

Datasheet

SPEC
Seriesdatasheet_WE-MCI_V1 (rev1).pdf
|
2.1 MB

LTSpice files

LT
LTSpice_WE-MCI (rev22a).zip
|
5.3 KB

Characteristics

Multilayer inductor with ceramic body
Operating temperature range: -55 ºC up to +125 ºC
Double side polarity marking
Inductive tolerances of 5%; 0,3 nH
AEC-Q200
Automotive approved

Applications

Infotainment
Key-less entry
Filter circuits
High frequency circuits
Bluetooth

Products

All

0402

0603
