WE-PD SMT Power Inductor

Shielded

WE-PD SMT Power Inductor
Size Dimen­sionsL
(mm)
W
(mm)
H
(mm)
Mount
6033 R 5.9 6.2 3.3 SMT
6050 R 5.9 6.2 5 SMT
7332 7.3 7.3 3.2 SMT
7332 P 7.3 7.4 3.2 SMT
7332 R 7.3 7.3 3.2 SMT
7345 7.3 7.3 4.5 SMT
7345 R 7.3 7.3 4.5 SMT
7345 P 7.3 7.3 4.5 SMT
1030 P 10 10 3 SMT
1050 P 10 10 5 SMT
1245 12 12 4.5 SMT
1260 12 12 6 SMT
1260 P 12 12 6 SMT
1280 12 12 8 SMT
1280 P 12 12 8 SMT
1210 12 12 10 SMT
1510 15 15 10 SMT

Characteristics

  • AEC-Q 200 qualified
  • Ultra low RDC and RAC

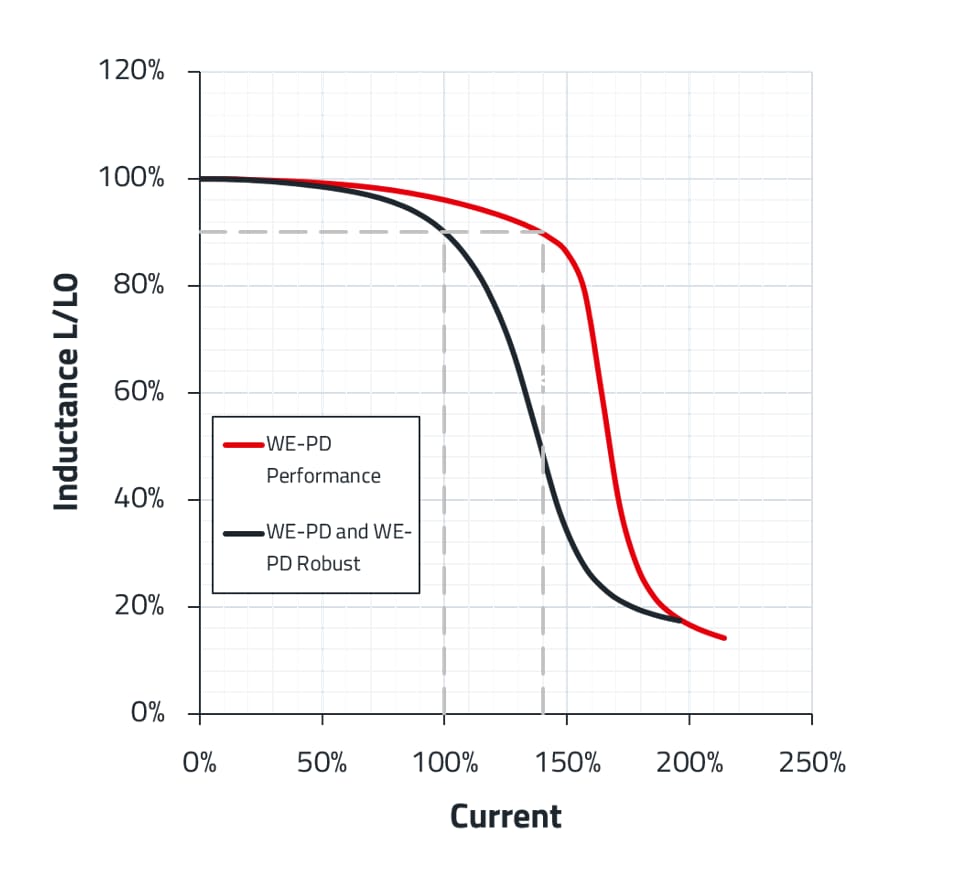

  • Highest possible saturation current based on ferrite
  • Suitable for switching frequency up to 10 MHz
  • Temperature dependent parameter available on REDEXPERT
  • Operating temperature: -40 °C to +125 °C / +150 °C

Types

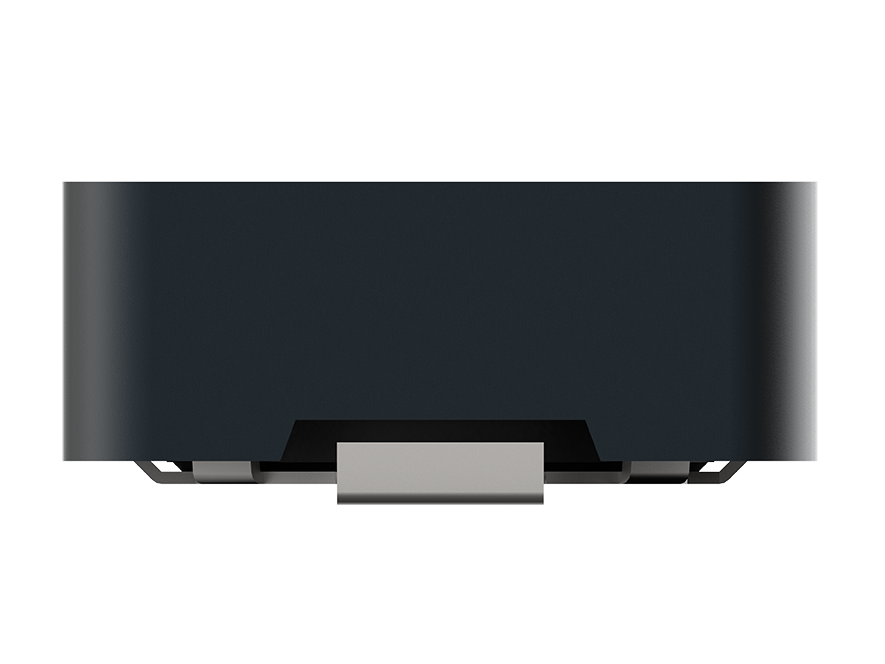

  • WE-PD: Always offers low loss material, tight tolerances, and high saturation behavior compared to other manufacturers in the market

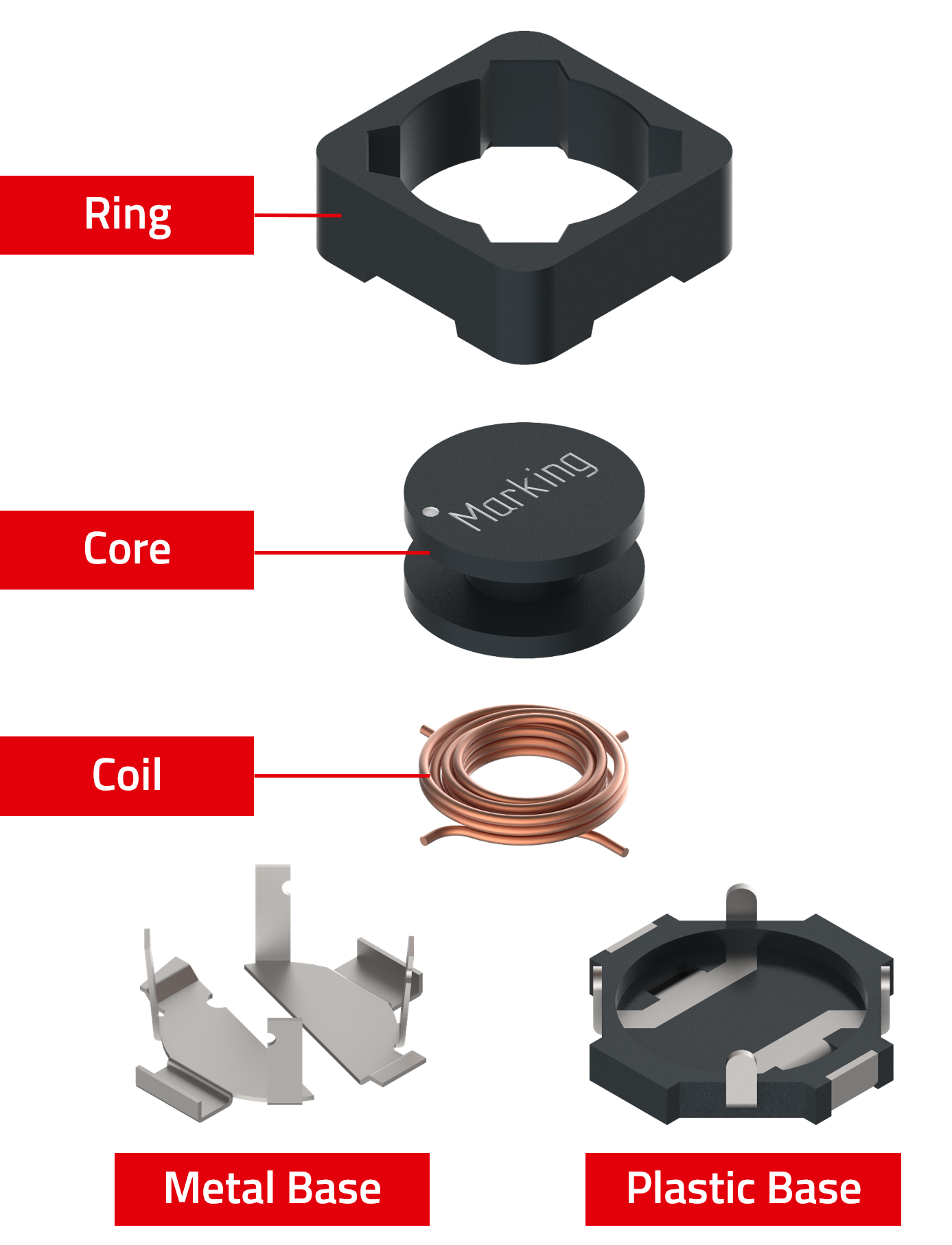

  • WE-PD Robust: Plastic base improves the mechanical stability and efficiency

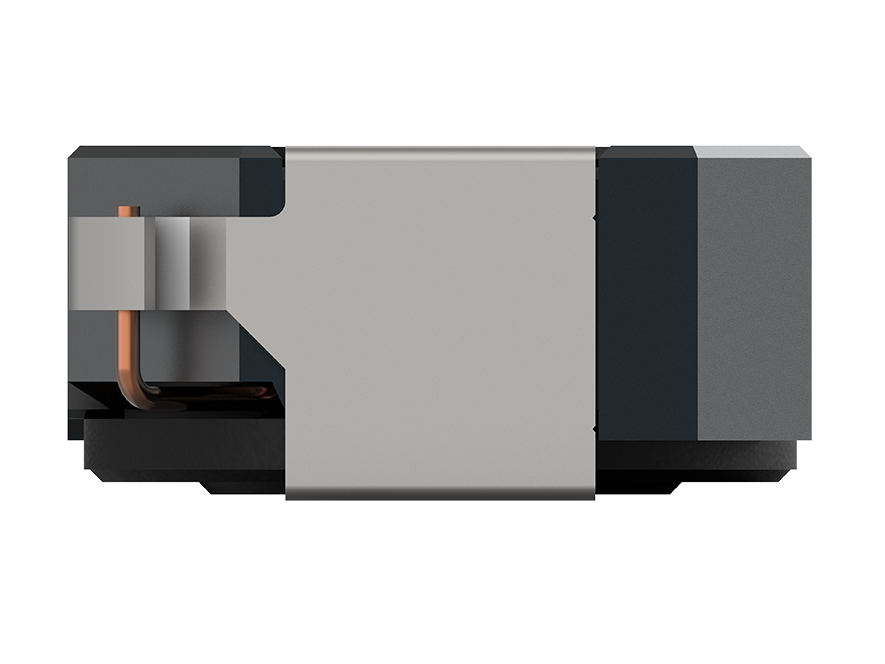

  • WE-PD Performance: MnZn core improves saturation and RDC for highest efficiency

Applications

  • Switch mode power supplies from 0.1 W up to 300 W
  • Integrated DC/DC converter
  • Ideal for switch mode power supplies with extreme high efficiency (>95%)

Products

All
6033 R
6050 R
7332
7332 P
7332 R
7345
7345 R
7345 P
1030 P
1050 P
1245
1260
1260 P
1280
1280 P
1210
1510
Order Code Data­sheet Simu­lation DownloadsL
(µH)
IRP,40K
(A)
ISAT
(A)
RDC max.
(mΩ)
fres
(MHz)
SizeVersionDesign Kit Samples
74477009SPEC
8 files 0.47 27 3 120 1280 Standard
744778005SPEC
9 files 0.54 9.3 9 8.5 155 7332 Standard
7447715906SPEC
8 files 0.6 16 19 5.5 160 1245 Standard
74477008SPEC
8 files 0.75 19.5 5 110 1280 Standard
744778001SPEC
9 files 1 8.3 6.4 12 115 7332 Standard744778
744777001SPEC
8 files 1 8.6 10.2 10 100 7345 Standard744777
7447715910SPEC
8 files 1 14.5 13.9 7 98 1245 Standard
7447709001SPEC
8 files 1 18.7 25 6 120 1210 Standard744770
7447785001SPEC
8 files 1 3.75 4.5 39 192 6033 Robust
7447786001SPEC
8 files 1 4.1 5.5 34 180 6050 Robust
7447789001SPEC
8 files 1 7.9 12 115 7332 Robust744778
7447779001SPEC
8 files 1 8 15 100 7345 Robust744777
7447773010SPEC
10 files 1 10 12 98 7345 Performance744777
744771010SPEC
5 files 1 20 15.6 5 88 1260
74477001SPEC
8 files 1.2 16.2 7 45 1280 Standard744770
7447713015SPEC
8 files 1.5 9.5 16 75 1030 Performance744770
7447713
7447714015SPEC
8 files 1.5 12.5 6.6 69 1050 Performance7447713
744771001SPEC
8 files 1.5 17.5 13.5 6 60 1260 Standard744770
744770015SPEC
8 files 1.5 19 5 42 1280 Standard
74477790015SPEC
8 files 1.5 6.4 18 75 7345 Robust
7447783015SPEC
8 files 1.5 7.8 15 73 7332 Performance744778
7447706015SPEC
7 files 1.5 20 7 50.5 1260 Performance7447706
7447707015SPEC
8 files 1.5 16.5 24 5.5 49.2 1280 Performance7447706
7447715001SPEC
8 files 1.8 12.5 10.2 9.5 76 1245 Standard
744778002SPEC
9 files 2.2 6.6 4.8 20 67 7332 Standard744778
744777002SPEC
8 files 2.2 6.9 6.5 20 60 7345 Standard744777
7447713022SPEC
8 files 2.2 8.5 20 71 1030 Performance7447713
7447714022SPEC
8 files 2.2 9.5 8 53 1050 Performance7447713
744771002SPEC
8 files 2.2 15.5 11 7 50 1260 Standard744770
7447709002SPEC
8 files 2.2 16.3 6 65 1210 Standard744770
7447785002SPEC
8 files 2.2 3.15 3.3 54 88 6033 Robust
7447786002SPEC
8 files 2.2 3.4 4 49 115 6050 Robust
7447789002SPEC
8 files 2.2 5.6 23 67 7332 Robust744778
7447779002SPEC
8 files 2.2 6.2 20 60 7345 Robust744777
7447783022SPEC
8 files 2.2 6.5 19 62 7332 Performance744778
7447773022SPEC
10 files 2.2 8 17.5 61 7345 Performance744777
7447706022SPEC
7 files 2.2 16.5 8.5 40.2 1260 Performance7447706
7447707022SPEC
8 files 2.2 14.8 20.5 6.8 41.7 1280 Performance7447706
74477002SPEC
8 files 2.4 13.5 9 41 1280 Standard744770
7447715002SPEC
8 files 2.5 11.5 8.5 11 50 1245 Standard
744778003SPEC
9 files 3.3 4.9 4.1 32 61 7332 Standard
744777003SPEC
8 files 3.3 4.85 4.6 30 55 7345 Standard
7447713033SPEC
8 files 3.3 7.2 24 50 1030 Performance7447713
7447714033SPEC
8 files 3.3 9 10.5 42 1050 Performance7447713
7447715003SPEC
8 files 3.3 10 7.1 13 40 1245 Standard
7447785003SPEC
8 files 3.3 3.15 3 67 60 6033 Robust
7447789003SPEC
8 files 3.3 4.9 30 61 7332 Robust
7447779003SPEC
8 files 3.3 4.75 30 55 7345 Robust
7447783033SPEC
8 files 3.3 5.3 24 51 7332 Performance
7447773033SPEC
10 files 3.3 6.6 21 51 7345 Performance
7447706033SPEC
7 files 3.3 13.5 10 32.2 1260 Performance7447706
7447707033SPEC
8 files 3.3 12.8 17.5 9 32.3 1280 Performance7447706
744771003SPEC
8 files 3.5 14.5 9.5 8 40 1260 Standard
74477003SPEC
8 files 3.5 12 11 37.5 1280 Standard
7447709003SPEC
8 files 3.5 14.7 9 45 1210 Standard
744778004SPEC
9 files 4.7 3.65 4.2 60 45 7332 Standard744778
744777004SPEC
8 files 4.7 4.9 4 40 37 7345 Standard744777
7447713047SPEC
8 files 4.7 6 31 42 1030 Performance7447713
7447714047SPEC
8 files 4.7 8 12.4 34 1050 Performance7447713
7447715004SPEC
8 files 4.7 9.1 6.3 16 37 1245 Standard
744771004SPEC
8 files 4.7 11.8 8.25 11 35 1260 Standard744770
74477004SPEC
8 files 4.7 11 12 31.2 1280 Standard744770
7447709004SPEC
8 files 4.7 13.1 11 38 1210 Standard744770
7447785004SPEC
8 files 4.7 2.65 2.5 78 53 6033 Robust
7447786004SPEC
8 files 4.7 2.8 2.8 65 60 6050 Robust
7447789004SPEC
8 files 4.7 4.2 35 45 7332 Robust744778
7447779004SPEC
8 files 4.7 4.6 32 37 7345 Robust744777
7447783047SPEC
8 files 4.7 4.6 35 38 7332 Performance744778
7447773047SPEC
10 files 4.7 5.5 26 35.5 7345 Performance744777
7447706047SPEC
7 files 4.7 11.5 12 27.4 1260 Performance7447706
7447707047SPEC
8 files 4.7 12 15.5 10 28.8 1280 Performance7447706
7447714056SPEC
8 files 5.6 7.2 14.4 28 1050 Performance7447713
74477005SPEC
8 files 5.6 10 13.5 24 1280 Standard
74477006SPEC
8 files 6.1 9.5 14 25 1280 Standard
7447773062SPEC
10 files 6.2 4.8 30 31 7345 Performance
7447706062SPEC
7 files 6.2 10 15 22.5 1260 Performance7447706
7447714068SPEC
8 files 6.8 5.8 22 23.5 1050 Performance7447713
7447715006SPEC
8 files 6.8 7.5 4.7 25 27 1245 Standard
744771006SPEC
8 files 6.8 9 6.5 18 27 1260 Standard
7447709006SPEC
8 files 6.8 11.7 14 23 1210 Standard
7447785006SPEC
8 files 6.8 2.3 2 100 45 6033 Robust
7447786006SPEC
8 files 6.8 2.7 2.3 75 43 6050 Robust
7447789006SPEC
8 files 6.8 3.75 44 38 7332 Robust
7447779006SPEC
8 files 6.8 4.25 35 32 7345 Robust
7447783068SPEC
8 files 6.8 3.8 41 35 7332 Performance
7447707068SPEC
8 files 6.8 10 13 14 19.1 1280 Performance7447706
74477007SPEC
8 files 7.6 9.3 15 21.3 1280 Standard
7447713082SPEC
8 files 8.2 4.7 49 30 1030 Performance7447713
744771008SPEC
8 files 8.2 8.5 6.2 20 25 1260 Standard
7447786008SPEC
8 files 8.2 2.6 2.1 80 40 6050 Robust
7447779008SPEC
8 files 8.2 3.45 53 28 7345 Robust
74477810SPEC
9 files 10 2.85 2.2 72 32 7332 Standard744778
74477710SPEC
8 files 10 3.55 2.6 49 26 7345 Standard744777
7447713100SPEC
8 files 10 4.1 62 25 1030 Performance7447713
7447714100SPEC
8 files 10 5 27 20.5 1050 Performance7447713
7447715100SPEC
8 files 10 6.6 4.2 30 22 1245 Standard
74477110SPEC
8 files 10 7.7 5.5 24 21.5 1260 Standard744770
74477010SPEC
8 files 10 8.2 20 18 1280 Standard744770
7447709100SPEC
8 files 10 9.5 21 21 1210 Standard744770
744778510SPEC
8 files 10 2 1.6 125 37 6033 Robust
744778610SPEC
8 files 10 2.45 1.8 88 35 6050 Robust
744778910SPEC
8 files 10 2.9 72 32 7332 Robust744778
744777910SPEC
8 files 10 3.5 49 26 7345 Robust744777
7447783100SPEC
8 files 10 3.1 68 30 7332 Performance744778
7447773100SPEC
10 files 10 3.8 45 23 7345 Performance744777
7447706100SPEC
7 files 10 7.8 20 17.6 1260 Performance7447706
7447707100SPEC
8 files 10 8 11 21 15.1 1280 Performance7447706
744778112SPEC
9 files 12 2.65 2.15 98 27 7332 Standard
744777112SPEC
8 files 12 3.2 2.4 58 23 7345 Standard
7447715120SPEC
8 files 12 6 3.6 38 19 1245 Standard
744771112SPEC
8 files 12 7.4 4.9 26 19.7 1260 Standard
744770112SPEC
8 files 12 7.8 21 16 1280 Standard
7447789112SPEC
8 files 12 2.65 98 27 7332 Robust
7447779112SPEC
8 files 12 3.35 58 23 7345 Robust
744778115SPEC
9 files 15 2.25 1.75 130 26 7332 Standard744778
744777115SPEC
8 files 15 2.6 2.2 81 19.5 7345 Standard744777
7447713150SPEC
8 files 15 3.4 89 19.5 1030 Performance7447713
7447714150SPEC
8 files 15 4.1 43 16.8 1050 Performance7447713
744771115SPEC
8 files 15 7 4.5 28 16.6 1260 Standard744770
744770115SPEC
8 files 15 7.4 23 14.5 1280 Standard744770
7447709150SPEC
8 files 15 7.4 26 17 1210 Standard744770
7447785115SPEC
8 files 15 1.55 1.4 200 28 6033 Robust
7447789115SPEC
8 files 15 2.25 130 26 7332 Robust744778
7447779115SPEC
8 files 15 2.8 2.2 81 19.5 7345 Robust744777
7447783150SPEC
8 files 15 2.5 85 23 7332 Performance744778
7447704150SPEC
8 files 15 8.8 26 20.5 1510 Standard
7447773150SPEC
10 files 15 3.1 69.5 20.7 7345 Performance744777
7447706150SPEC
7 files 15 6.4 28 13.9 1260 Performance7447706
7447707150SPEC
8 files 15 7 9 26.5 13.2 1280 Performance7447706
744778118SPEC
9 files 18 2.1 1.7 140 24 7332 Standard
744777118SPEC
8 files 18 2.6 2.05 91 19 7345 Standard
7447715180SPEC
8 files 18 5.4 3.2 51 17 1245 Standard
744771118SPEC
8 files 18 6.7 4.2 30 15 1260 Standard
744770118SPEC
8 files 18 6.3 32 13.2 1280 Standard
7447789118SPEC
8 files 18 2.1 140 24 7332 Robust
7447779118SPEC
8 files 18 2.6 91 19 7345 Robust
744778122SPEC
9 files 22 2.05 1.4 190 20 7332 Standard744778
744777122SPEC
8 files 22 2.45 1.7 110 17 7345 Standard744777
7447713220SPEC
8 files 22 2.7 133 17.5 1030 Performance7447713
7447714220SPEC
8 files 22 3.6 50 14.5 1050 Performance7447713
7447715220SPEC
8 files 22 4.85 3.1 65 15.5 1245 Standard
744771122SPEC
8 files 22 6 3.7 36 13.5 1260 Standard744770
744770122SPEC
8 files 22 5.8 35 12 1280 Standard744770
7447709220SPEC
8 files 22 7 28 10 1210 Standard744770
7447785122SPEC
8 files 22 1.35 1.1 250 23 6033 Robust
7447786122SPEC
8 files 22 2.1 1.3 115 15 6050 Robust
7447789122SPEC
8 files 22 2.1 190 20 7332 Robust744778
7447779122SPEC
8 files 22 2.45 110 17 7345 Robust744777
7447783220SPEC
8 files 22 2.15 115 18 7332 Performance744778
7447704220SPEC
8 files 22 7.2 33 11.5 1510 Standard
7447773220SPEC
10 files 22 2.5 87 16.1 7345 Performance744777
7447706220SPEC
7 files 22 5.2 41 11 1260 Performance7447706
7447707220SPEC
8 files 22 6 7.4 36 10.2 1280 Performance7447706
744778127SPEC
9 files 27 1.95 1.3 240 18 7332 Standard
744777127SPEC
8 files 27 2.15 1.55 150 15 7345 Standard
744771127SPEC
8 files 27 5.3 3.5 45 12 1260 Standard
744770127SPEC
8 files 27 5.6 38 10 1280 Standard
7447709270SPEC
8 files 27 6.1 40 8 1210 Standard
7447785127SPEC
8 files 27 1.15 1 360 18 6033 Robust
7447789127SPEC
8 files 27 2 210 18 7332 Robust
7447779127SPEC
8 files 27 2.1 150 15 7345 Robust
7447714270SPEC
8 files 27 3.4 74 14 1050 Performance
744778133SPEC
9 files 33 1.85 1.15 240 16 7332 Standard
744777133SPEC
8 files 33 1.9 1.4 170 13 7345 Standard
7447713330SPEC
8 files 33 2.2 204 13 1030 Performance7447713
7447714330SPEC
8 files 33 2.9 79 11.1 1050 Performance7447713
7447715330SPEC
8 files 33 3.65 2.5 85 13 1245 Standard
744771133SPEC
8 files 33 4.6 3 57 11 1260 Standard
744770133SPEC
8 files 33 4.7 53 8.5 1280 Standard
7447709330SPEC
8 files 33 5.5 45 8.5 1210 Standard
7447785133SPEC
8 files 33 1.05 0.9 400 17 6033 Robust
7447789133SPEC
8 files 33 1.85 240 16 7332 Robust
7447779133SPEC
8 files 33 1.95 170 13 7345 Robust
7447783330SPEC
8 files 33 1.75 165 14 7332 Performance
7447773330SPEC
10 files 33 2.1 147 13.5 7345 Performance
7447706330SPEC
7 files 33 4.2 60 9.2 1260 Performance7447706
7447707330SPEC
8 files 33 4.8 6.1 53 8.3 1280 Performance7447706
744778139SPEC
9 files 39 1.5 1.1 320 14 7332 Standard
744777139SPEC
8 files 39 1.9 1.23 230 12 7345 Standard
744771139SPEC
8 files 39 4.3 2.7 68 10 1260 Standard
744770139SPEC
8 files 39 4.5 56 8.2 1280 Standard
7447709390SPEC
8 files 39 5 56 6 1210 Standard
7447789139SPEC
8 files 39 1.6 320 14 7332 Robust
7447779139SPEC
8 files 39 1.9 230 12 7345 Robust
744778147SPEC
9 files 47 1.25 1 360 13.5 7332 Standard744778
744777147SPEC
8 files 47 1.8 1.1 260 10.5 7345 Standard744777
7447713470SPEC
8 files 47 1.9 248 11.4 1030 Performance7447713
7447714470SPEC
8 files 47 2.5 99 8.8 1050 Performance7447713
7447715470SPEC
8 files 47 3.05 2.1 125 9.7 1245 Standard
744770147SPEC
8 files 47 4.25 64 7.9 1280 Standard744770
7447709470SPEC
8 files 47 4.9 60 6.5 1210 Standard744770
7447785147SPEC
8 files 47 0.88 0.74 600 16.5 6033 Robust
7447786147SPEC
8 files 47 1.25 0.8 295 10 6050 Robust
7447789147SPEC
8 files 47 1.25 360 13.5 7332 Robust744778
7447779147SPEC
8 files 47 1.65 260 10.5 7345 Robust744777
744771147SPEC
8 files 47 4.1 2.6 77 9.2 1260 Standard744770
7447783470SPEC
8 files 47 1.45 210 11.6 7332 Performance744778
7447773470SPEC
10 files 47 1.7 182 10.3 7345 Performance744777
7447706470SPEC
7 files 47 3.6 72 7.5 1260 Performance7447706
7447707470SPEC
8 files 47 4.35 5.1 63 7.2 1280 Performance7447706
744778156SPEC
9 files 56 1.2 0.88 470 12.5 7332 Standard
744777156SPEC
8 files 56 1.55 1.05 350 10 7345 Standard
7447714560SPEC
8 files 56 2.3 121 8.6 1050 Performance7447713
744771156SPEC
8 files 56 3.75 2.3 92 8 1260 Standard
744770156SPEC
8 files 56 4 71 7.1 1280 Standard
7447789156SPEC
8 files 56 1.2 470 12.5 7332 Robust
7447779156SPEC
8 files 56 1.5 350 10 7345 Robust
744778168SPEC
9 files 68 1.05 0.84 520 11.5 7332 Standard
744777168SPEC
8 files 68 1.45 0.95 380 9 7345 Standard
7447713680SPEC
8 files 68 1.6 330 9.4 1030 Performance7447713
7447714680SPEC
8 files 68 2.2 132 8 1050 Performance7447713
744771168SPEC
8 files 68 3.55 2.2 105 7.6 1260 Standard
744770168SPEC
8 files 68 3.5 90 6.4 1280 Standard
7447709680SPEC
8 files 68 3.9 89 5.5 1210 Standard
7447789168SPEC
8 files 68 1.05 520 11.5 7332 Robust
7447779168SPEC
8 files 68 1.45 380 9 7345 Robust
7447783680SPEC
8 files 68 1.25 300 9.3 7332 Performance
7447773680SPEC
10 files 68 1.45 230 8.4 7345 Performance
7447706680SPEC
7 files 68 3 97 6.5 1260 Performance7447706
7447707680SPEC
8 files 68 3.6 4.2 90 5.5 1280 Performance7447706
744778182SPEC
9 files 82 1 0.78 690 9.8 7332 Standard
744777182SPEC
8 files 82 1.4 0.9 430 8 7345 Standard
7447713820SPEC
8 files 82 1.5 419 8.8 1030 Performance7447713
7447714820SPEC
8 files 82 1.85 176 6.6 1050 Performance7447713
744771182SPEC
8 files 82 3.05 1.9 135 7.2 1260 Standard
744770182SPEC
8 files 82 3.3 105 3.5 1280 Standard
7447709820SPEC
8 files 82 3.35 105 4.5 1210 Standard
7447789182SPEC
8 files 82 1 690 9.8 7332 Robust
7447779182SPEC
8 files 82 1.4 430 8 7345 Robust
74477820SPEC
9 files 100 0.91 0.76 790 9 7332 Standard744778
74477720SPEC
8 files 100 1.3 0.75 610 7.5 7345 Standard744777
7447713101SPEC
8 files 100 1.4 478 7.7 1030 Performance7447713
7447714101SPEC
8 files 100 1.8 198 5.9 1050 Performance7447713
7447715101SPEC
8 files 100 1.95 1.4 270 6.9 1245 Standard
74477120SPEC
8 files 100 2.8 1.7 160 6.6 1260 Standard744770
74477020SPEC
8 files 100 2.85 140 5.2 1280 Standard744770
7447709101SPEC
8 files 100 3.2 110 4.3 1210 Standard744770
744778520SPEC
8 files 100 0.63 0.5 1060 11 6033 Robust
744778920SPEC
8 files 100 0.91 790 9 7332 Robust744778
744777920SPEC
8 files 100 1.3 380 7.5 7345 Robust744777
7447783101SPEC
8 files 100 1 450 7.8 7332 Performance744778
7447773101SPEC
10 files 100 1.2 335 6.7 7345 Performance744777
7447706101SPEC
7 files 100 2.5 140 5.2 1260 Performance7447706
7447707101SPEC
8 files 100 3.1 3.5 120 4.3 1280 Performance7447706
744778212SPEC
9 files 120 0.87 0.68 890 8.5 7332 Standard
744777212SPEC
8 files 120 1.1 0.7 660 6.7 7345 Standard
7447713121SPEC
8 files 120 1.25 598 7 1030 Performance
744771212SPEC
8 files 120 2.6 1.6 180 5.2 1260 Standard
7447789212SPEC
8 files 120 0.93 890 8.5 7332 Robust
7447779212SPEC
8 files 120 1.1 660 6.7 7345 Robust
744778215SPEC
9 files 150 0.82 0.53 1270 7.2 7332 Standard
744777215SPEC
8 files 150 0.86 0.63 880 6 7345 Standard
7447713151SPEC
8 files 150 1.1 684 6.1 1030 Performance
7447714151SPEC
8 files 150 1.4 300 4.9 1050 Performance7447713
744771215SPEC
8 files 150 2.3 1.45 220 4.4 1260 Standard
744770215SPEC
8 files 150 2.55 175 3 1280 Standard
7447709151SPEC
9 files 150 2.6 200 3.5 1210 Standard
7447789215SPEC
8 files 150 0.81 1270 7.2 7332 Robust
7447779215SPEC
8 files 150 0.96 880 6 7345 Robust
7447783151SPEC
8 files 150 0.84 750 6.25 7332 Performance
7447773151SPEC
10 files 150 0.95 515 5.2 7345 Performance
7447706151SPEC
7 files 150 2 200 4.2 1260 Performance7447706
7447707151SPEC
8 files 150 2.45 2.8 190 3.5 1280 Performance7447706
744778218SPEC
9 files 180 0.71 0.5 1450 7 7332 Standard
744777218SPEC
8 files 180 0.85 0.56 980 5.3 7345 Standard
744771218SPEC
8 files 180 2.05 1.25 280 4.1 1260 Standard
744770218SPEC
8 files 180 2.25 220 4.2 1280 Standard
7447789218SPEC
8 files 180 0.7 1450 7 7332 Robust
7447779218SPEC
8 files 180 0.9 980 5.3 7345 Robust
744778222SPEC
9 files 220 0.62 0.42 1650 6 7332 Standard744778
744777222SPEC
8 files 220 0.72 0.54 1170 5 7345 Standard744777
7447714221SPEC
8 files 220 1.2 439 4.3 1050 Performance7447713
7447715221SPEC
8 files 220 1.4 1 480 4.7 1245 Standard
744771220SPEC
8 files 220 1.85 1.2 340 3.8 1260 Standard744770
744770222SPEC
8 files 220 2 275 3.8 1280 Standard744770
7447709221SPEC
8 files 220 2.25 300 2.7 1210 Standard744770
7447789222SPEC
8 files 220 0.59 1650 6 7332 Robust744778
7447779222SPEC
8 files 220 0.72 1170 5 7345 Robust744777
7447783221SPEC
8 files 220 0.69 1040 5 7332 Performance744778
7447773221SPEC
10 files 220 0.81 770 4.3 7345 Performance744777
7447706221SPEC
7 files 220 1.7 310 3.3 1260 Performance7447706
7447707221SPEC
8 files 220 2 2.35 265 2.9 1280 Performance7447706
744778270SPEC
9 files 270 0.57 0.39 2310 5.2 7332 Standard
744777270SPEC
8 files 270 0.7 1640 4.3 7345 Standard
744771270SPEC
8 files 270 1.7 1 400 3.4 1260 Standard
7447709271SPEC
8 files 270 2 330 2.5 1210 Standard
7447789270SPEC
8 files 270 0.56 2310 5.2 7332 Robust
7447779270SPEC
8 files 270 0.66 1640 4.3 7345 Robust
744778233SPEC
9 files 330 0.45 2620 4.8 7332 Standard
744777233SPEC
8 files 330 0.64 0.45 1860 4 7345 Standard
7447713331SPEC
8 files 330 0.73 1500 4.3 1030 Performance7447713
7447714331SPEC
8 files 330 1 750 3.15 1050 Performance7447713
744771233SPEC
8 files 330 1.5 0.97 490 3 1260 Standard
744770233SPEC
8 files 330 1.65 410 3 1280 Standard
7447709331SPEC
8 files 330 1.6 430 2 1210 Standard
7447789233SPEC
8 files 330 0.45 2620 4.8 7332 Robust
7447779233SPEC
8 files 330 0.64 1860 4 7345 Robust
7447783331SPEC
8 files 330 0.56 1430 4 7332 Performance
7447773331SPEC
10 files 330 0.66 1085 3.6 7345 Performance
7447706331SPEC
7 files 330 1.4 450 2.6 1260 Performance7447706
7447707331SPEC
8 files 330 1.6 1.9 410 2.1 1280 Performance7447706
744778239SPEC
9 files 390 0.43 0.34 2940 4.4 7332 Standard
744777239SPEC
8 files 390 0.61 0.42 2850 3.8 7345 Standard
744771239SPEC
8 files 390 1.3 0.85 640 2.8 1260 Standard
7447789239SPEC
8 files 390 0.43 2940 4.4 7332 Robust
7447779239SPEC
8 files 390 0.58 2850 3.8 7345 Robust
74477824SPEC
9 files 470 0.42 0.31 4180 4 7332 Standard744778
74477724SPEC
8 files 470 0.54 0.34 3010 3.2 7345 Standard744777
7447713471SPEC
8 files 470 0.65 2200 3.4 1030 Performance
7447714471SPEC
8 files 470 0.82 1100 2.5 1050 Performance7447713
74477124SPEC
8 files 470 1.25 0.8 710 2.6 1260 Standard744770
744770247SPEC
8 files 470 1.45 540 2.6 1280 Standard744770
7447709471SPEC
8 files 470 1.45 560 1.8 1210 Standard744770
744778924SPEC
8 files 470 0.42 4180 4 7332 Robust744778
744777924SPEC
8 files 470 0.54 3010 3.2 7345 Robust744777
7447783471SPEC
8 files 470 0.47 2040 3.3 7332 Performance744778
7447773471SPEC
10 files 470 0.55 1700 2.8 7345 Performance744777
7447704471SPEC
8 files 470 1.7 500 1.7 1510 Standard
7447706471SPEC
7 files 470 1.15 610 2.3 1260 Performance7447706
7447707471SPEC
8 files 470 1.4 1.6 540 1.9 1280 Performance7447706
74477825SPEC
9 files 560 0.39 0.3 4670 3.7 7332 Standard
74477725SPEC
8 files 560 0.52 0.31 3620 3 7345 Standard
74477125SPEC
8 files 560 1.12 0.7 890 2.5 1260 Standard
744770256SPEC
8 files 560 1.25 680 2.5 1280 Standard
744778925SPEC
8 files 560 0.39 4670 3.7 7332 Robust
744777925SPEC
8 files 560 0.52 3620 3 7345 Robust
74477826SPEC
9 files 680 0.31 0.22 5730 3.4 7332 Standard
74477726SPEC
8 files 680 0.42 0.28 4630 2.7 7345 Standard
7447714681SPEC
8 files 680 0.71 1220 2.05 1050 Performance7447713
744770268SPEC
8 files 680 1.1 930 2.2 1280 Standard
7447709681SPEC
8 files 680 1.2 825 1.5 1210 Standard
744778926SPEC
8 files 680 0.32 5730 3.4 7332 Robust
744777926SPEC
8 files 680 0.42 4630 2.7 7345 Robust
74477126SPEC
8 files 680 1.05 0.68 1020 2.3 1260 Standard
7447783681SPEC
8 files 680 0.39 2900 2.75 7332 Performance
7447773681SPEC
10 files 680 0.46 2300 2.3 7345 Performance
7447706681SPEC
7 files 680 0.95 860 1.8 1260 Performance
7447707681SPEC
8 files 680 1.15 1.3 770 1.5 1280 Performance
74477828SPEC
9 files 820 0.3 0.2 6500 2.8 7332 Standard
74477728SPEC
8 files 820 0.39 0.26 5200 2.5 7345 Standard
74477128SPEC
8 files 820 0.97 0.6 1200 2.1 1260 Standard
744770282SPEC
8 files 820 1.05 1050 2 1280 Standard
7447709821SPEC
8 files 820 1.05 1000 1.2 1210 Standard
744778928SPEC
8 files 820 0.3 6540 2.8 7332 Robust
744777928SPEC
8 files 820 0.39 5200 2.5 7345 Robust
74477830SPEC
9 files 1000 0.28 0.18 9440 2.6 7332 Standard744778
74477730SPEC
8 files 1000 0.37 0.25 6000 2.2 7345 Standard744777
7447713102SPEC
8 files 1000 0.45 4600 2.3 1030 Performance
7447714102SPEC
8 files 1000 0.55 2050 1.7 1050 Performance7447713
74477130SPEC
8 files 1000 0.83 0.55 1600 1.9 1260 Standard
74477030SPEC
8 files 1000 0.98 1180 1.8 1280 Standard744770
7447709102SPEC
8 files 1000 1 1200 1 1210 Standard744770
744778930SPEC
8 files 1000 0.28 9440 2.6 7332 Robust744778
744777930SPEC
8 files 1000 0.37 6000 2.2 7345 Robust744777
7447783102SPEC
8 files 1000 0.32 4600 2.2 7332 Performance744778
7447773102SPEC
10 files 1000 0.38 3300 1.9 7345 Performance744777
7447706102SPEC
7 files 1000 0.8 1250 1.45 1260 Performance7447706
7447707102SPEC
8 files 1000 0.97 1090 1.2 1280 Performance7447706
7447709152SPEC
8 files 1500 0.71 2300 0.9 1210 Standard
7447709222SPEC
8 files 2200 0.53 3750 0.66 1210 Standard
Order Code Data­sheet Simu­lation
74477009SPEC
744778005SPEC
7447715906SPEC
74477008SPEC
744778001SPEC
744777001SPEC
7447715910SPEC
7447709001SPEC
7447785001SPEC
7447786001SPEC
7447789001SPEC
7447779001SPEC
7447773010SPEC
744771010SPEC
74477001SPEC
7447713015SPEC
7447714015SPEC
744771001SPEC
744770015SPEC
74477790015SPEC
7447783015SPEC
7447706015SPEC
7447707015SPEC
7447715001SPEC
744778002SPEC
744777002SPEC
7447713022SPEC
7447714022SPEC
744771002SPEC
7447709002SPEC
7447785002SPEC
7447786002SPEC
7447789002SPEC
7447779002SPEC
7447783022SPEC
7447773022SPEC
7447706022SPEC
7447707022SPEC
74477002SPEC
7447715002SPEC
744778003SPEC
744777003SPEC
7447713033SPEC
7447714033SPEC
7447715003SPEC
7447785003SPEC
7447789003SPEC
7447779003SPEC
7447783033SPEC
7447773033SPEC
7447706033SPEC
7447707033SPEC
744771003SPEC
74477003SPEC
7447709003SPEC
744778004SPEC
744777004SPEC
7447713047SPEC
7447714047SPEC
7447715004SPEC
744771004SPEC
74477004SPEC
7447709004SPEC
7447785004SPEC
7447786004SPEC
7447789004SPEC
7447779004SPEC
7447783047SPEC
7447773047SPEC
7447706047SPEC
7447707047SPEC
7447714056SPEC
74477005SPEC
74477006SPEC
7447773062SPEC
7447706062SPEC
7447714068SPEC
7447715006SPEC
744771006SPEC
7447709006SPEC
7447785006SPEC
7447786006SPEC
7447789006SPEC
7447779006SPEC
7447783068SPEC
7447707068SPEC
74477007SPEC
7447713082SPEC
744771008SPEC
7447786008SPEC
7447779008SPEC
74477810SPEC
74477710SPEC
7447713100SPEC
7447714100SPEC
7447715100SPEC
74477110SPEC
74477010SPEC
7447709100SPEC
744778510SPEC
744778610SPEC
744778910SPEC
744777910SPEC
7447783100SPEC
7447773100SPEC
7447706100SPEC
7447707100SPEC
744778112SPEC
744777112SPEC
7447715120SPEC
744771112SPEC
744770112SPEC
7447789112SPEC
7447779112SPEC
744778115SPEC
744777115SPEC
7447713150SPEC
7447714150SPEC
744771115SPEC
744770115SPEC
7447709150SPEC
7447785115SPEC
7447789115SPEC
7447779115SPEC
7447783150SPEC
7447704150SPEC
7447773150SPEC
7447706150SPEC
7447707150SPEC
744778118SPEC
744777118SPEC
7447715180SPEC
744771118SPEC
744770118SPEC
7447789118SPEC
7447779118SPEC
744778122SPEC
744777122SPEC
7447713220SPEC
7447714220SPEC
7447715220SPEC
744771122SPEC
744770122SPEC
7447709220SPEC
7447785122SPEC
7447786122SPEC
7447789122SPEC
7447779122SPEC
7447783220SPEC
7447704220SPEC
7447773220SPEC
7447706220SPEC
7447707220SPEC
744778127SPEC
744777127SPEC
744771127SPEC
744770127SPEC
7447709270SPEC
7447785127SPEC
7447789127SPEC
7447779127SPEC
7447714270SPEC
744778133SPEC
744777133SPEC
7447713330SPEC
7447714330SPEC
7447715330SPEC
744771133SPEC
744770133SPEC
7447709330SPEC
7447785133SPEC
7447789133SPEC
7447779133SPEC
7447783330SPEC
7447773330SPEC
7447706330SPEC
7447707330SPEC
744778139SPEC
744777139SPEC
744771139SPEC
744770139SPEC
7447709390SPEC
7447789139SPEC
7447779139SPEC
744778147SPEC
744777147SPEC
7447713470SPEC
7447714470SPEC
7447715470SPEC
744770147SPEC
7447709470SPEC
7447785147SPEC
7447786147SPEC
7447789147SPEC
7447779147SPEC
744771147SPEC
7447783470SPEC
7447773470SPEC
7447706470SPEC
7447707470SPEC
744778156SPEC
744777156SPEC
7447714560SPEC
744771156SPEC
744770156SPEC
7447789156SPEC
7447779156SPEC
744778168SPEC
744777168SPEC
7447713680SPEC
7447714680SPEC
744771168SPEC
744770168SPEC
7447709680SPEC
7447789168SPEC
7447779168SPEC
7447783680SPEC
7447773680SPEC
7447706680SPEC
7447707680SPEC
744778182SPEC
744777182SPEC
7447713820SPEC
7447714820SPEC
744771182SPEC
744770182SPEC
7447709820SPEC
7447789182SPEC
7447779182SPEC
74477820SPEC
74477720SPEC
7447713101SPEC
7447714101SPEC
7447715101SPEC
74477120SPEC
74477020SPEC
7447709101SPEC
744778520SPEC
744778920SPEC
744777920SPEC
7447783101SPEC
7447773101SPEC
7447706101SPEC
7447707101SPEC
744778212SPEC
744777212SPEC
7447713121SPEC
744771212SPEC
7447789212SPEC
7447779212SPEC
744778215SPEC
744777215SPEC
7447713151SPEC
7447714151SPEC
744771215SPEC
744770215SPEC
7447709151SPEC
7447789215SPEC
7447779215SPEC
7447783151SPEC
7447773151SPEC
7447706151SPEC
7447707151SPEC
744778218SPEC
744777218SPEC
744771218SPEC
744770218SPEC
7447789218SPEC
7447779218SPEC
744778222SPEC
744777222SPEC
7447714221SPEC
7447715221SPEC
744771220SPEC
744770222SPEC
7447709221SPEC
7447789222SPEC
7447779222SPEC
7447783221SPEC
7447773221SPEC
7447706221SPEC
7447707221SPEC
744778270SPEC
744777270SPEC
744771270SPEC
7447709271SPEC
7447789270SPEC
7447779270SPEC
744778233SPEC
744777233SPEC
7447713331SPEC
7447714331SPEC
744771233SPEC
744770233SPEC
7447709331SPEC
7447789233SPEC
7447779233SPEC
7447783331SPEC
7447773331SPEC
7447706331SPEC
7447707331SPEC
744778239SPEC
744777239SPEC
744771239SPEC
7447789239SPEC
7447779239SPEC
74477824SPEC
74477724SPEC
7447713471SPEC
7447714471SPEC
74477124SPEC
744770247SPEC
7447709471SPEC
744778924SPEC
744777924SPEC
7447783471SPEC
7447773471SPEC
7447704471SPEC
7447706471SPEC
7447707471SPEC
74477825SPEC
74477725SPEC
74477125SPEC
744770256SPEC
744778925SPEC
744777925SPEC
74477826SPEC
74477726SPEC
7447714681SPEC
744770268SPEC
7447709681SPEC
744778926SPEC
744777926SPEC
74477126SPEC
7447783681SPEC
7447773681SPEC
7447706681SPEC
7447707681SPEC
74477828SPEC
74477728SPEC
74477128SPEC
744770282SPEC
7447709821SPEC
744778928SPEC
744777928SPEC
74477830SPEC
74477730SPEC
7447713102SPEC
7447714102SPEC
74477130SPEC
74477030SPEC
7447709102SPEC
744778930SPEC
744777930SPEC
7447783102SPEC
7447773102SPEC
7447706102SPEC
7447707102SPEC
7447709152SPEC
7447709222SPEC
Samples
Order Code Data­sheet Simu­lation DownloadsL
(µH)
IRP,40K
(A)
ISAT
(A)
RDC max.
(mΩ)
fres
(MHz)
SizeVersionDesign Kit Samples

Simple but efficient

The WE-PD is a high performance inductor known for its reliability and consistency under various operating conditions. Four carefully selected components make sure that the power inductor meets the requirements to deliver high performance.

The base is available in two different variants and connects the component to the PCB to achieve mechanical stability. The windings are made of copper with very low RDC and RAC to ensure consistency and efficiency. The core is the heart of the WE-PD and is made of NiZn for a high dielectric strength or MnZn material, enabling the inductor to provide high saturation currents and low core losses while an advanced shielding technology with an outside air gap not only reduces unwanted noise and electromagnetic interference but also avoids eddy current losses in the windings.

All the components and materials work together to ensure resistance against thermal aging for high reliability and long term usability.

Variants

WE-PD

Small air gap between the pin. Inductor is elevated by the base.
Small air gap between the pin. Inductor is elevated by the base.

WE-PD Robust

Molding ensures very good contact area between part and PCB.
Molding ensures very good contact area between part and PCB.

WE-PD Performance

MnZn core for 40 % higher saturation current.
MnZn core for 40 % higher saturation current.

WE-PD Performance

  • up to 25% lower RDC than NiZn
  • up to 40% higher Saturation Current than WE-PD and WE-PD Robust
  • same land pattern geometry like all WE-PD 12xx sizes

REDEXPERT loss simulation

Find the best inductor!

REDEXPERT has the world’s most accurate AC loss model, which even includes the DC-bias current. With dedicated DC-DC topologies or the generic loss simulator, you can accurately determine the AC and DC losses for your converter. The model includes the core material, shape and winding structure of the inductor. REDEXPERT recommends suitable inductors and allows you to add more filters to find the best inductor for your application.

Comments

  • The ambient temperature when operating the WE-PD series of storage chokes at full current rating load should generally range from –40 °C to +85 °C.
  • The self-heating of the component must be taken into account at higher ambient temperatures in order that the permissible solder joint temperature is not exceeded or the wire insulation damaged.
  • The wire used can withstand a temperature of up to +150 °C.
  • The ferrite core itself may be used over a far greater temperature range (approx. –50 °C to +250 °C (curie temperature))
  • However, in this case, the tolerance limits of the inductor may be exceeded due to the temperature dependence of permeability.

Videos

Würth Elektronik Webinar: How do I select the right inductor for a DC/DC converter design?

Videos

How to choose the right coil type (inductor)?!

Videos

Würth Elektronik Webinar: Magnetics design & selection – intermediate level

Videos

Webinar: Definition of component heating of power inductors in switching regulators
