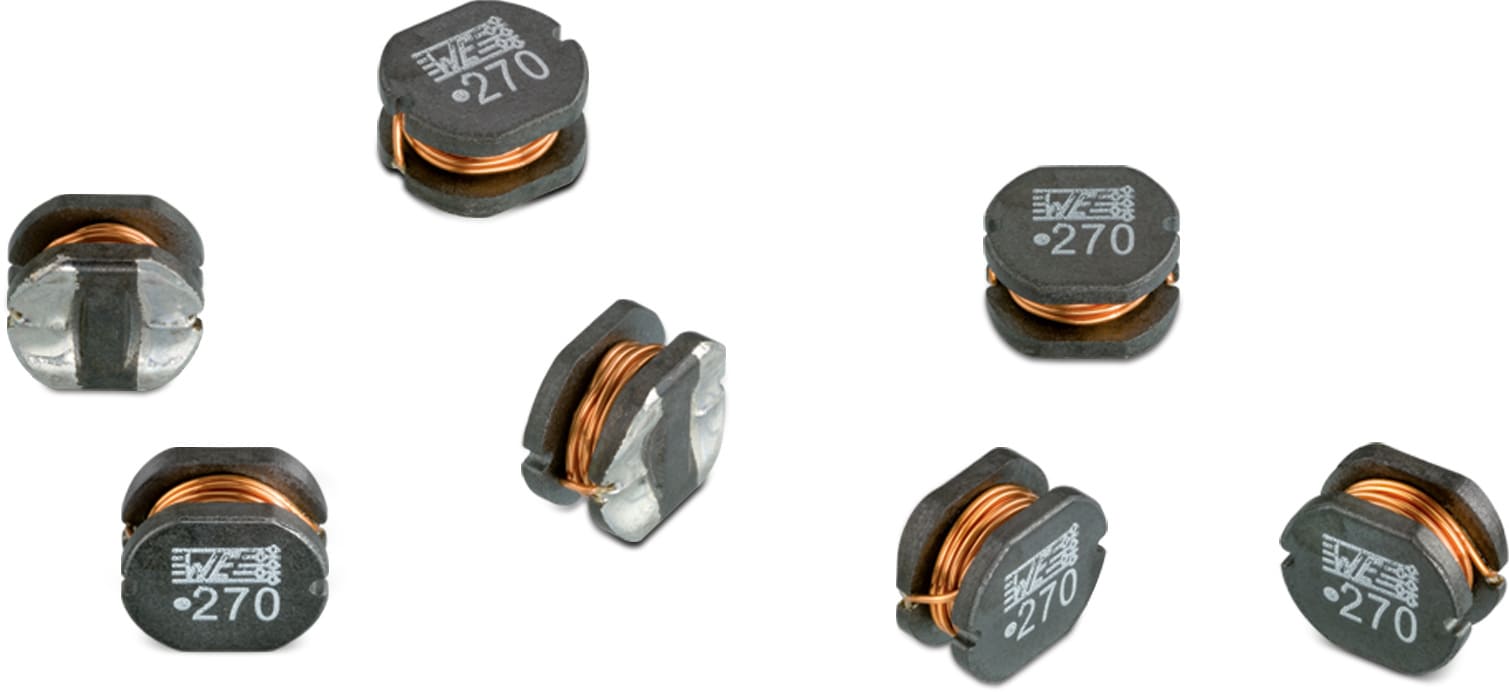

WE-PD2 SMT Power Inductor

Size	L (mm)	W (mm)	H (mm)	Material	Mount

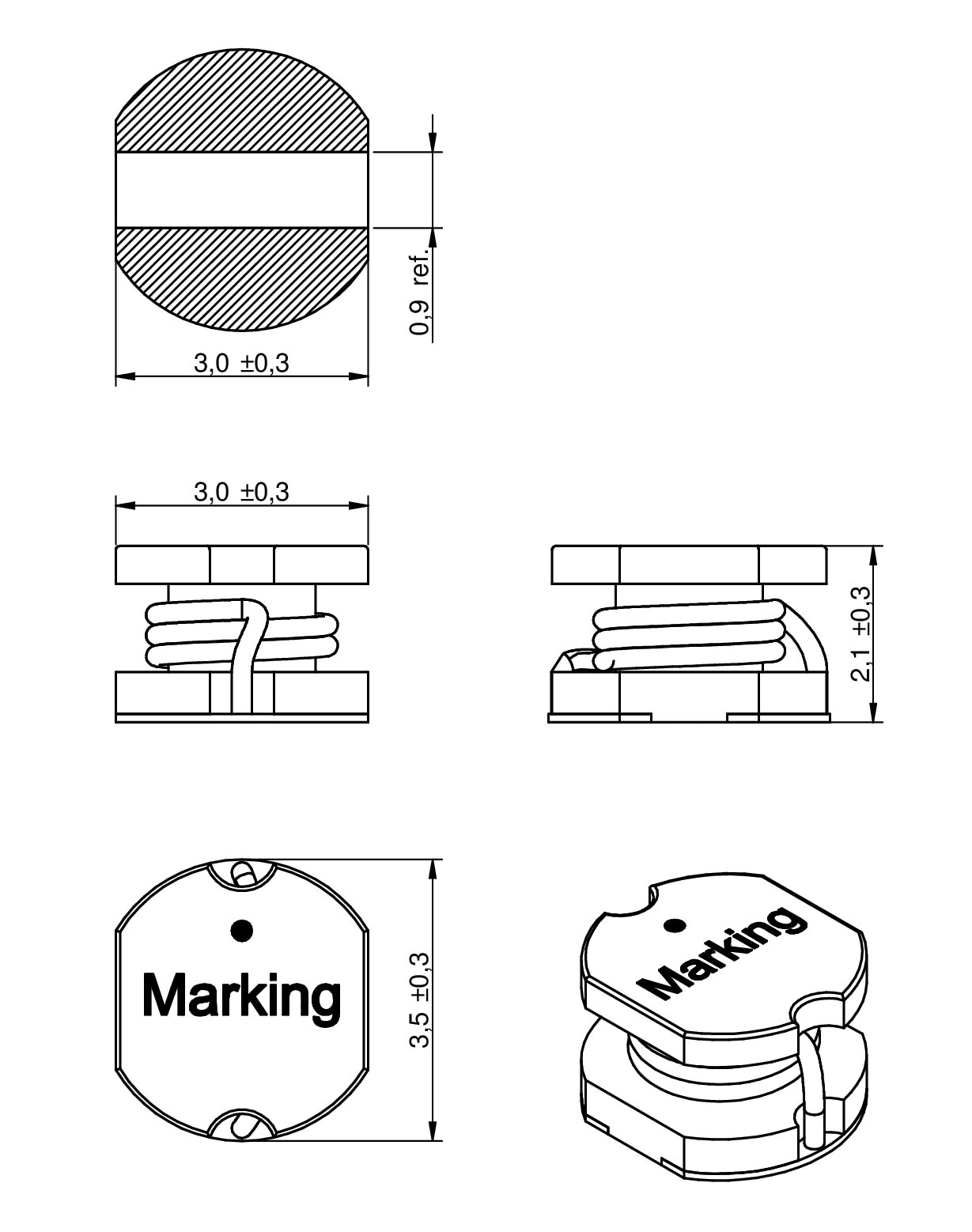

3521	3	3.5	2.1	-	SMT

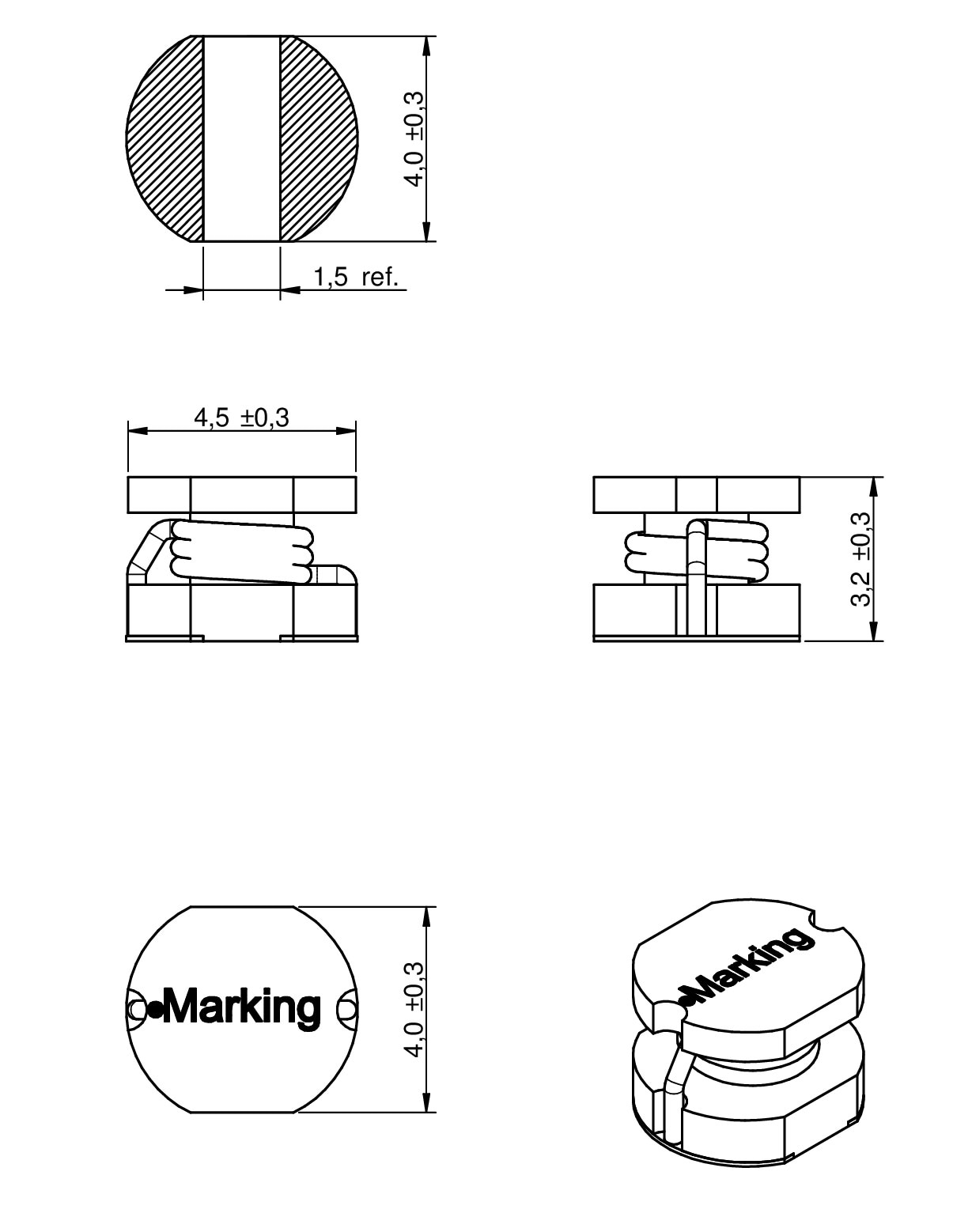

4532	4	4.5	3.2	NiZn	SMT

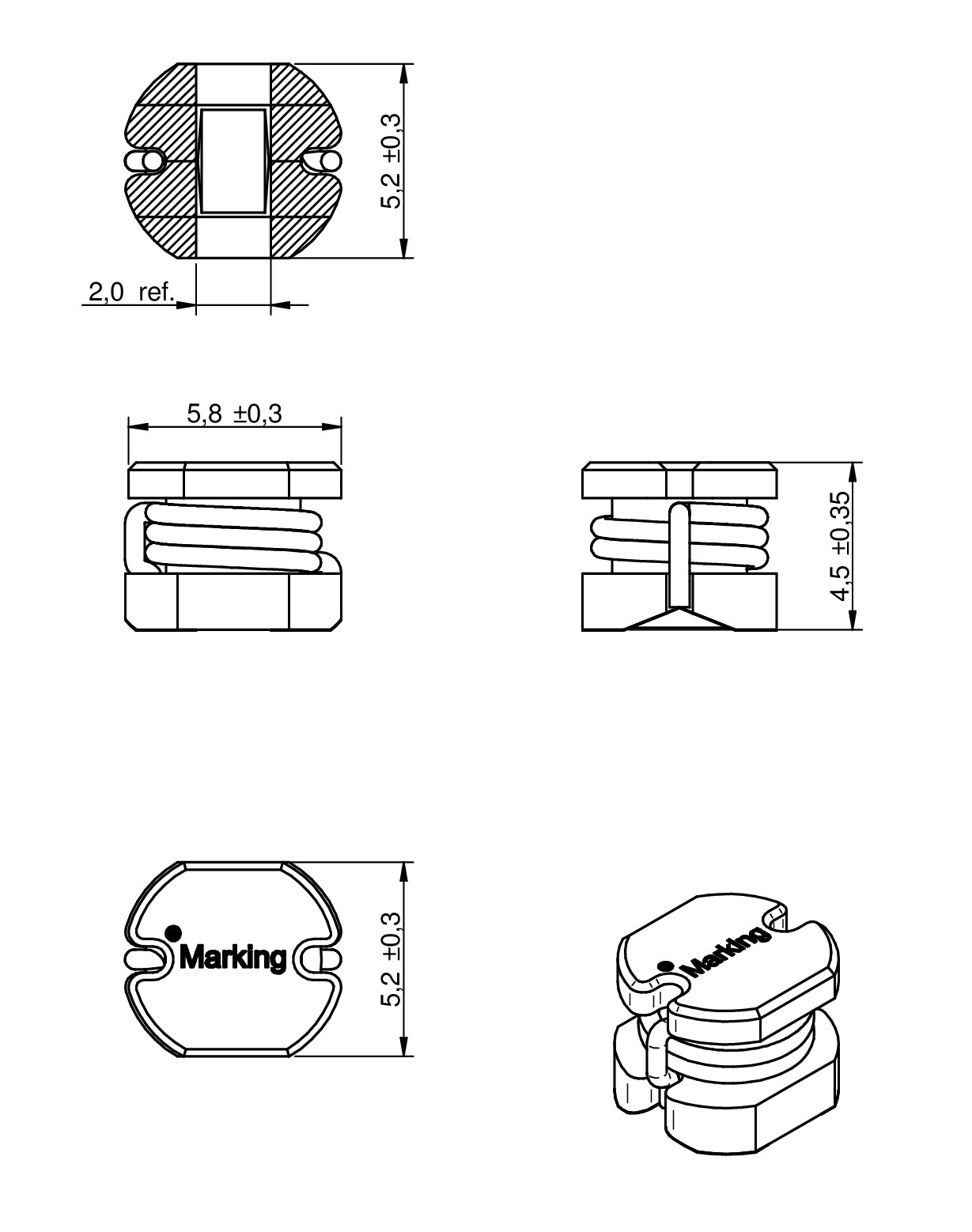

5848	5.2	5.8	4.5	NiZn	SMT

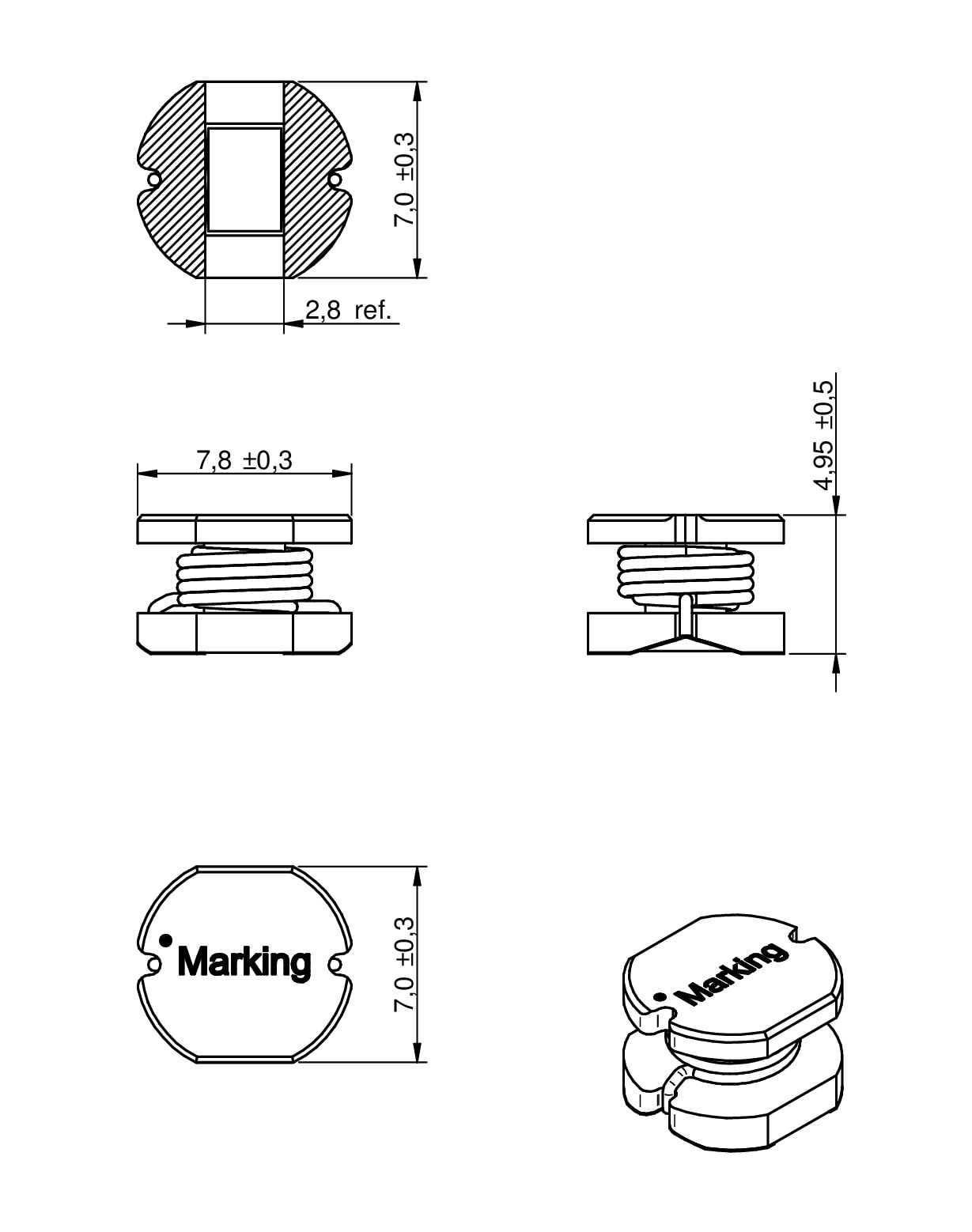

7850	7	7.8	5	-	SMT
1054	9	10	5.4	NiZn	SMT

LTSpice files

LT
LTSpice_WE-PD2 (rev22a).zip
|
3.9 KB

Characteristics

Open size
Saturation currents up to 14 A
Low tolerances at high inductance values
Operating temperature: –40 °C to +125 °C
Recommended solder profile: Reflow

Applications

Switching regulators with low operating voltages (graphic cards, embedded PC-Cards, mainboards)
Integrated DC/DC converter
Optimal attenuation in MHz frequency range
