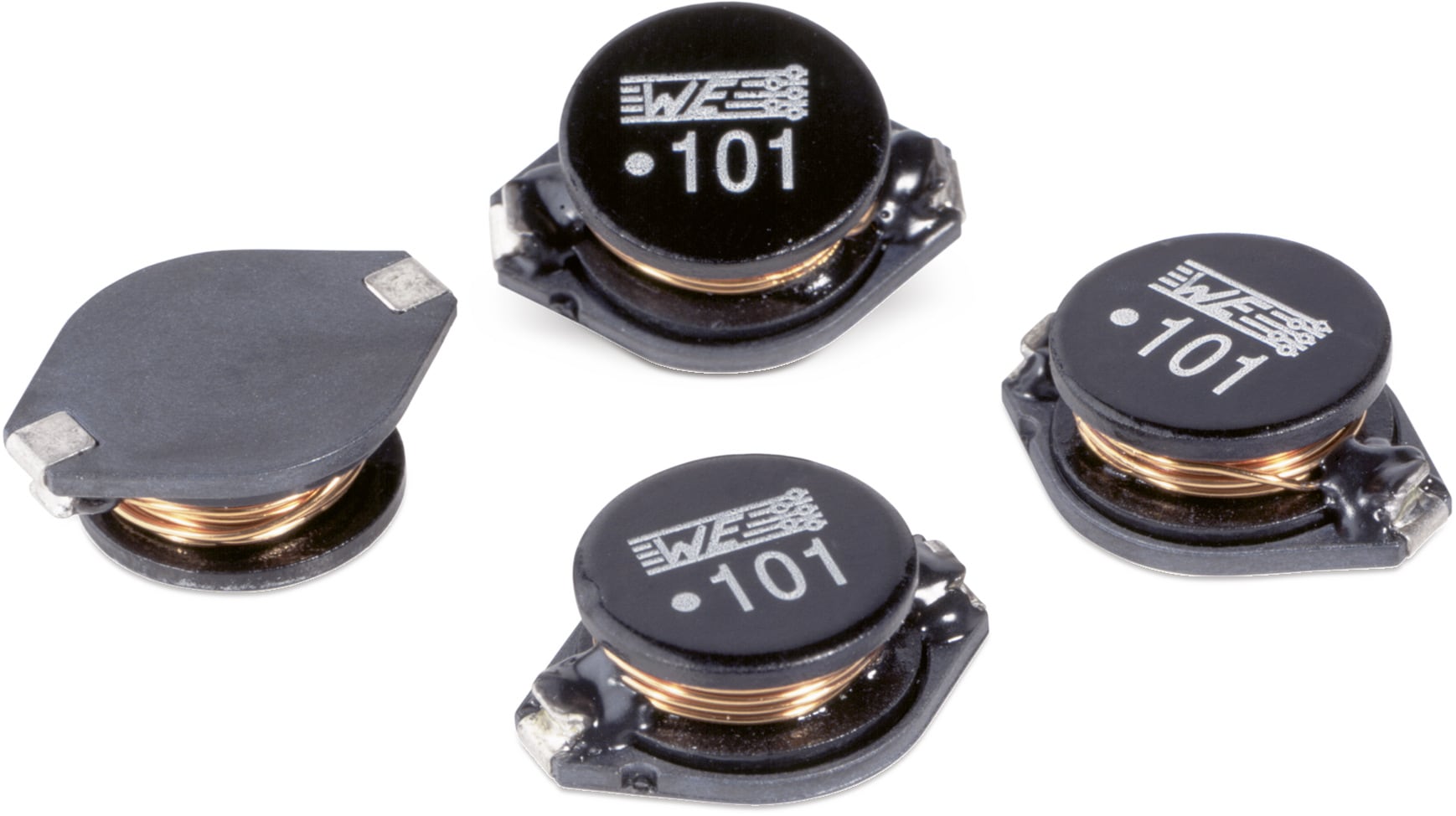

WE-PD4 SMT Power Inductor

Size	L (mm)	W (mm)	H (mm)	Mount
Type S	6.6	4.45	2.92	SMT
Type L	12.7	10	5	SMT
Type X	18.54	15.24	7.11	SMT
Type XL	22	15	7	SMT

LTSpice files

LT
LTSpice_WE-PD4 (rev24a).zip
|
3.2 KB

Characteristics

Current loading up to 38 A
Compact size
Low-loss ferrite core
Application frequency range up to 10 MHz
Operating temperature: –40°C to +125°C
Recommended solder profile: Reflow
Now with impedance graph in datasheets

Applications

Noise suppression, EMI Filter
Perfectly suitable for switching regulators e.g. National Semiconductor, Linear Technology, Maxim, Semtech, Texas Instruments, Fairchild Semiconductor, Cologne Chip, ON Semiconductor, STMicroelectronics, MPS, Exar, Analogic Tech and Diodes
