WE-RFI Ferrite SMT Inductor | Passive Components | Würth Elektronik Product Catalog

	Size	L (mm)	W (mm)	H (mm)	Mount
NEW	0402	1	0.55	0.55	SMT
NEW	0603	1.65	1.1	0.9	SMT
	0805	2	1.25	1.2	SMT
	1008	2.5	2	1.6	SMT

LTSpice files

LT
LTSpice_WE-RFI (rev24a).zip
|
8.1 KB

Characteristics

High inductances
Recommended soldering: Reflow
Custom designs on request
AEC-Q200 Grade 3 (−40°C to +85°C)
Operating temperature: –40 °C to +85 °C

Applications

Especially developed for RF-applications
RFID
Low frequency radio applications (keyless)

Application Notes

Products

All

0402

0603

0805

1008

Order Code	Datasheet	Downloads	Status	L (nH)	Tol. L	Test Condition L	Q_min. (%)	Q	R_{DC max.} (mΩ)	I_R (mA)	f_res (MHz)	Design Kit
7447650120	SPEC	9 files EDA models: Components ZIP ALT Altium_WE-RFI (rev24a).IntLib \| 799.5 KB CDS Cadence_WE-RFI (rev24a).zip \| 2.8 MB EAG Eagle_WE-RFI (rev24a).lbr \| 57.8 KB CAD files ZIP 3D 3D_WE-RFI-0402 (rev1).pdf \| 967.8 KB IGS IGS_WE-RFI-0402 (rev1).igs \| 2.4 MB STP STP_WE-RFI-0402 (rev1).stp \| 607.2 KB Electric models ZIP ADS ADS_WE-RFI (rev24a).zip \| 5.2 MB S S-Parameter_7447650120 (rev24a).s2p \| 44.2 KB PSP PSpice_WE-RFI (rev24a).zip \| 19.8 KB Download all 9 files as zip archive ZIP	New i\| Product is new in our portfolio and production is active. Expected lifetime: >10 years.	20	±5%	7.9 MHz	11	11	25	1080	7720	–
7447650130	SPEC	9 files EDA models: Components ZIP ALT Altium_WE-RFI (rev24a).IntLib \| 799.5 KB CDS Cadence_WE-RFI (rev24a).zip \| 2.8 MB EAG Eagle_WE-RFI (rev24a).lbr \| 57.8 KB CAD files ZIP 3D 3D_WE-RFI-0402 (rev1).pdf \| 967.8 KB IGS IGS_WE-RFI-0402 (rev1).igs \| 2.4 MB STP STP_WE-RFI-0402 (rev1).stp \| 607.2 KB Electric models ZIP ADS ADS_WE-RFI (rev24a).zip \| 5.2 MB S S-Parameter_7447650130 (rev24a).s2p \| 44.2 KB PSP PSpice_WE-RFI (rev24a).zip \| 19.8 KB Download all 9 files as zip archive ZIP	New i\| Product is new in our portfolio and production is active. Expected lifetime: >10 years.	30	±5%	7.9 MHz	11	11	35	900	3800	–
7447650133	SPEC	9 files EDA models: Components ZIP ALT Altium_WE-RFI (rev24a).IntLib \| 799.5 KB CDS Cadence_WE-RFI (rev24a).zip \| 2.8 MB EAG Eagle_WE-RFI (rev24a).lbr \| 57.8 KB CAD files ZIP 3D 3D_WE-RFI-0402 (rev1).pdf \| 967.8 KB IGS IGS_WE-RFI-0402 (rev1).igs \| 2.4 MB STP STP_WE-RFI-0402 (rev1).stp \| 607.2 KB Electric models ZIP ADS ADS_WE-RFI (rev24a).zip \| 5.2 MB S S-Parameter_7447650133 (rev24a).s2p \| 44.2 KB PSP PSpice_WE-RFI (rev24a).zip \| 19.8 KB Download all 9 files as zip archive ZIP	New i\| Product is new in our portfolio and production is active. Expected lifetime: >10 years.	33	±5%	7.9 MHz	11	11	35	900	3875	–
7447650136	SPEC	9 files EDA models: Components ZIP ALT Altium_WE-RFI (rev24a).IntLib \| 799.5 KB CDS Cadence_WE-RFI (rev24a).zip \| 2.8 MB EAG Eagle_WE-RFI (rev24a).lbr \| 57.8 KB CAD files ZIP 3D 3D_WE-RFI-0402 (rev1).pdf \| 967.8 KB IGS IGS_WE-RFI-0402 (rev1).igs \| 2.4 MB STP STP_WE-RFI-0402 (rev1).stp \| 607.2 KB Electric models ZIP ADS ADS_WE-RFI (rev24a).zip \| 5.2 MB S S-Parameter_7447650136 (rev24a).s2p \| 44.2 KB PSP PSpice_WE-RFI (rev24a).zip \| 19.8 KB Download all 9 files as zip archive ZIP	New i\| Product is new in our portfolio and production is active. Expected lifetime: >10 years.	36	±5%	7.9 MHz	11	11	40	850	3875	–
7447610139	SPEC	9 files EDA models: Components ZIP ALT Altium_WE-RFI (rev24a).IntLib \| 799.5 KB CDS Cadence_WE-RFI (rev24a).zip \| 2.8 MB EAG Eagle_WE-RFI (rev24a).lbr \| 57.8 KB CAD files ZIP 3D 3D_WE-RFI-0603 (rev1).pdf \| 809.3 KB IGS IGS_WE-RFI-0603 (rev1).igs \| 2.4 MB STP STP_WE-RFI-0603 (rev1).stp \| 604.8 KB Electric models ZIP ADS ADS_WE-RFI (rev24a).zip \| 5.2 MB S S-Parameter_7447610139 (rev24a).s2p \| 44.4 KB PSP PSpice_WE-RFI (rev24a).zip \| 19.8 KB Download all 9 files as zip archive ZIP	New i\| Product is new in our portfolio and production is active. Expected lifetime: >10 years.	39	±5%	7.9 MHz	12	12	42	1170	2320	–
7447610168	SPEC	9 files EDA models: Components ZIP ALT Altium_WE-RFI (rev24a).IntLib \| 799.5 KB CDS Cadence_WE-RFI (rev24a).zip \| 2.8 MB EAG Eagle_WE-RFI (rev24a).lbr \| 57.8 KB CAD files ZIP 3D 3D_WE-RFI-0603 (rev1).pdf \| 809.3 KB IGS IGS_WE-RFI-0603 (rev1).igs \| 2.4 MB STP STP_WE-RFI-0603 (rev1).stp \| 604.8 KB Electric models ZIP ADS ADS_WE-RFI (rev24a).zip \| 5.2 MB S S-Parameter_7447610168 (rev24a).s2p \| 44.3 KB PSP PSpice_WE-RFI (rev24a).zip \| 19.8 KB Download all 9 files as zip archive ZIP	New i\| Product is new in our portfolio and production is active. Expected lifetime: >10 years.	68	±5%	7.9 MHz	13	13	50	1050	1925	–
7447650177	SPEC	9 files EDA models: Components ZIP ALT Altium_WE-RFI (rev24a).IntLib \| 799.5 KB CDS Cadence_WE-RFI (rev24a).zip \| 2.8 MB EAG Eagle_WE-RFI (rev24a).lbr \| 57.8 KB CAD files ZIP 3D 3D_WE-RFI-0402 (rev1).pdf \| 967.8 KB IGS IGS_WE-RFI-0402 (rev1).igs \| 2.4 MB STP STP_WE-RFI-0402 (rev1).stp \| 607.2 KB Electric models ZIP ADS ADS_WE-RFI (rev24a).zip \| 5.2 MB S S-Parameter_7447650177 (rev24a).s2p \| 44.2 KB PSP PSpice_WE-RFI (rev24a).zip \| 19.8 KB Download all 9 files as zip archive ZIP	New i\| Product is new in our portfolio and production is active. Expected lifetime: >10 years.	77	±5%	7.9 MHz	11	11	90	640	2980	–
7447650210	SPEC	9 files EDA models: Components ZIP ALT Altium_WE-RFI (rev24a).IntLib \| 799.5 KB CDS Cadence_WE-RFI (rev24a).zip \| 2.8 MB EAG Eagle_WE-RFI (rev24a).lbr \| 57.8 KB CAD files ZIP 3D 3D_WE-RFI-0402 (rev1).pdf \| 967.8 KB IGS IGS_WE-RFI-0402 (rev1).igs \| 2.4 MB STP STP_WE-RFI-0402 (rev1).stp \| 607.2 KB Electric models ZIP ADS ADS_WE-RFI (rev24a).zip \| 5.2 MB S S-Parameter_7447650210 (rev24a).s2p \| 44.2 KB PSP PSpice_WE-RFI (rev24a).zip \| 19.8 KB Download all 9 files as zip archive ZIP	New i\| Product is new in our portfolio and production is active. Expected lifetime: >10 years.	100	±5%	7.9 MHz	12	12	130	550	2955	–
7447610211	SPEC	9 files EDA models: Components ZIP ALT Altium_WE-RFI (rev24a).IntLib \| 799.5 KB CDS Cadence_WE-RFI (rev24a).zip \| 2.8 MB EAG Eagle_WE-RFI (rev24a).lbr \| 57.8 KB CAD files ZIP 3D 3D_WE-RFI-0603 (rev1).pdf \| 809.3 KB IGS IGS_WE-RFI-0603 (rev1).igs \| 2.4 MB STP STP_WE-RFI-0603 (rev1).stp \| 604.8 KB Electric models ZIP ADS ADS_WE-RFI (rev24a).zip \| 5.2 MB S S-Parameter_7447610211 (rev24a).s2p \| 44.1 KB PSP PSpice_WE-RFI (rev24a).zip \| 19.8 KB Download all 9 files as zip archive ZIP	New i\| Product is new in our portfolio and production is active. Expected lifetime: >10 years.	110	±5%	7.9 MHz	13	13	78	750	1925	–
7447650212	SPEC	9 files EDA models: Components ZIP ALT Altium_WE-RFI (rev24a).IntLib \| 799.5 KB CDS Cadence_WE-RFI (rev24a).zip \| 2.8 MB EAG Eagle_WE-RFI (rev24a).lbr \| 57.8 KB CAD files ZIP 3D 3D_WE-RFI-0402 (rev1).pdf \| 967.8 KB IGS IGS_WE-RFI-0402 (rev1).igs \| 2.4 MB STP STP_WE-RFI-0402 (rev1).stp \| 607.2 KB Electric models ZIP ADS ADS_WE-RFI (rev24a).zip \| 5.2 MB S S-Parameter_7447650212 (rev24a).s2p \| 44.2 KB PSP PSpice_WE-RFI (rev24a).zip \| 19.8 KB Download all 9 files as zip archive ZIP	New i\| Product is new in our portfolio and production is active. Expected lifetime: >10 years.	120	±5%	7.9 MHz	12	12	110	575	2955	–
7447610215	SPEC	9 files EDA models: Components ZIP ALT Altium_WE-RFI (rev24a).IntLib \| 799.5 KB CDS Cadence_WE-RFI (rev24a).zip \| 2.8 MB EAG Eagle_WE-RFI (rev24a).lbr \| 57.8 KB CAD files ZIP 3D 3D_WE-RFI-0603 (rev1).pdf \| 809.3 KB IGS IGS_WE-RFI-0603 (rev1).igs \| 2.4 MB STP STP_WE-RFI-0603 (rev1).stp \| 604.8 KB Electric models ZIP ADS ADS_WE-RFI (rev24a).zip \| 5.2 MB S S-Parameter_7447610215 (rev24a).s2p \| 44.1 KB PSP PSpice_WE-RFI (rev24a).zip \| 19.8 KB Download all 9 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	150	±5%	7.9 MHz	13	13	90	720	1885	–
7447650215	SPEC	9 files EDA models: Components ZIP ALT Altium_WE-RFI (rev24a).IntLib \| 799.5 KB CDS Cadence_WE-RFI (rev24a).zip \| 2.8 MB EAG Eagle_WE-RFI (rev24a).lbr \| 57.8 KB CAD files ZIP 3D 3D_WE-RFI-0402 (rev1).pdf \| 967.8 KB IGS IGS_WE-RFI-0402 (rev1).igs \| 2.4 MB STP STP_WE-RFI-0402 (rev1).stp \| 607.2 KB Electric models ZIP ADS ADS_WE-RFI (rev24a).zip \| 5.2 MB S S-Parameter_7447650215 (rev24a).s2p \| 44.2 KB PSP PSpice_WE-RFI (rev24a).zip \| 19.8 KB Download all 9 files as zip archive ZIP	New i\| Product is new in our portfolio and production is active. Expected lifetime: >10 years.	150	±5%	7.9 MHz	12	12	130	545	2590	–
7447650218	SPEC	9 files EDA models: Components ZIP ALT Altium_WE-RFI (rev24a).IntLib \| 799.5 KB CDS Cadence_WE-RFI (rev24a).zip \| 2.8 MB EAG Eagle_WE-RFI (rev24a).lbr \| 57.8 KB CAD files ZIP 3D 3D_WE-RFI-0402 (rev1).pdf \| 967.8 KB IGS IGS_WE-RFI-0402 (rev1).igs \| 2.4 MB STP STP_WE-RFI-0402 (rev1).stp \| 607.2 KB Electric models ZIP ADS ADS_WE-RFI (rev24a).zip \| 5.2 MB S S-Parameter_7447650218 (rev24a).s2p \| 44.2 KB PSP PSpice_WE-RFI (rev24a).zip \| 19.8 KB Download all 9 files as zip archive ZIP	New i\| Product is new in our portfolio and production is active. Expected lifetime: >10 years.	180	±5%	7.9 MHz	12	12	160	470	2955	–
7447610220	SPEC	9 files EDA models: Components ZIP ALT Altium_WE-RFI (rev24a).IntLib \| 799.5 KB CDS Cadence_WE-RFI (rev24a).zip \| 2.8 MB EAG Eagle_WE-RFI (rev24a).lbr \| 57.8 KB CAD files ZIP 3D 3D_WE-RFI-0603 (rev1).pdf \| 809.3 KB IGS IGS_WE-RFI-0603 (rev1).igs \| 2.4 MB STP STP_WE-RFI-0603 (rev1).stp \| 604.8 KB Electric models ZIP ADS ADS_WE-RFI (rev24a).zip \| 5.2 MB S S-Parameter_7447610220 (rev24a).s2p \| 44.1 KB PSP PSpice_WE-RFI (rev24a).zip \| 19.8 KB Download all 9 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	200	±5%	7.9 MHz	13	13	105	700	1730	–
7447650222	SPEC	9 files EDA models: Components ZIP ALT Altium_WE-RFI (rev24a).IntLib \| 799.5 KB CDS Cadence_WE-RFI (rev24a).zip \| 2.8 MB EAG Eagle_WE-RFI (rev24a).lbr \| 57.8 KB CAD files ZIP 3D 3D_WE-RFI-0402 (rev1).pdf \| 967.8 KB IGS IGS_WE-RFI-0402 (rev1).igs \| 2.4 MB STP STP_WE-RFI-0402 (rev1).stp \| 607.2 KB Electric models ZIP ADS ADS_WE-RFI (rev24a).zip \| 5.2 MB S S-Parameter_7447650222 (rev24a).s2p \| 44.2 KB PSP PSpice_WE-RFI (rev24a).zip \| 19.8 KB Download all 9 files as zip archive ZIP	New i\| Product is new in our portfolio and production is active. Expected lifetime: >10 years.	220	±5%	7.9 MHz	12	12	220	390	2170	–
7447610224	SPEC	9 files EDA models: Components ZIP ALT Altium_WE-RFI (rev24a).IntLib \| 799.5 KB CDS Cadence_WE-RFI (rev24a).zip \| 2.8 MB EAG Eagle_WE-RFI (rev24a).lbr \| 57.8 KB CAD files ZIP 3D 3D_WE-RFI-0603 (rev1).pdf \| 809.3 KB IGS IGS_WE-RFI-0603 (rev1).igs \| 2.4 MB STP STP_WE-RFI-0603 (rev1).stp \| 604.8 KB Electric models ZIP ADS ADS_WE-RFI (rev24a).zip \| 5.2 MB S S-Parameter_7447610224 (rev24a).s2p \| 44.1 KB PSP PSpice_WE-RFI (rev24a).zip \| 19.8 KB Download all 9 files as zip archive ZIP	New i\| Product is new in our portfolio and production is active. Expected lifetime: >10 years.	240	±5%	7.9 MHz	13	13	180	490	1345	–
7447610227	SPEC	9 files EDA models: Components ZIP ALT Altium_WE-RFI (rev24a).IntLib \| 799.5 KB CDS Cadence_WE-RFI (rev24a).zip \| 2.8 MB EAG Eagle_WE-RFI (rev24a).lbr \| 57.8 KB CAD files ZIP 3D 3D_WE-RFI-0603 (rev1).pdf \| 809.3 KB IGS IGS_WE-RFI-0603 (rev1).igs \| 2.4 MB STP STP_WE-RFI-0603 (rev1).stp \| 604.8 KB Electric models ZIP ADS ADS_WE-RFI (rev24a).zip \| 5.2 MB S S-Parameter_7447610227 (rev24a).s2p \| 44.1 KB PSP PSpice_WE-RFI (rev24a).zip \| 19.8 KB Download all 9 files as zip archive ZIP	New i\| Product is new in our portfolio and production is active. Expected lifetime: >10 years.	270	±5%	7.9 MHz	13	13	165	480	1540	–
7447650227	SPEC	9 files EDA models: Components ZIP ALT Altium_WE-RFI (rev24a).IntLib \| 799.5 KB CDS Cadence_WE-RFI (rev24a).zip \| 2.8 MB EAG Eagle_WE-RFI (rev24a).lbr \| 57.8 KB CAD files ZIP 3D 3D_WE-RFI-0402 (rev1).pdf \| 967.8 KB IGS IGS_WE-RFI-0402 (rev1).igs \| 2.4 MB STP STP_WE-RFI-0402 (rev1).stp \| 607.2 KB Electric models ZIP ADS ADS_WE-RFI (rev24a).zip \| 5.2 MB S S-Parameter_7447650227 (rev24a).s2p \| 44.2 KB PSP PSpice_WE-RFI (rev24a).zip \| 19.8 KB Download all 9 files as zip archive ZIP	New i\| Product is new in our portfolio and production is active. Expected lifetime: >10 years.	270	±5%	7.9 MHz	12	12	260	370	2015	–
7447610236	SPEC	9 files EDA models: Components ZIP ALT Altium_WE-RFI (rev24a).IntLib \| 799.5 KB CDS Cadence_WE-RFI (rev24a).zip \| 2.8 MB EAG Eagle_WE-RFI (rev24a).lbr \| 57.8 KB CAD files ZIP 3D 3D_WE-RFI-0603 (rev1).pdf \| 809.3 KB IGS IGS_WE-RFI-0603 (rev1).igs \| 2.4 MB STP STP_WE-RFI-0603 (rev1).stp \| 604.8 KB Electric models ZIP ADS ADS_WE-RFI (rev24a).zip \| 5.2 MB S S-Parameter_7447610236 (rev24a).s2p \| 44.1 KB PSP PSpice_WE-RFI (rev24a).zip \| 19.8 KB Download all 9 files as zip archive ZIP	New i\| Product is new in our portfolio and production is active. Expected lifetime: >10 years.	360	±5%	7.9 MHz	13	13	185	470	1040	–
7447650236	SPEC	9 files EDA models: Components ZIP ALT Altium_WE-RFI (rev24a).IntLib \| 799.5 KB CDS Cadence_WE-RFI (rev24a).zip \| 2.8 MB EAG Eagle_WE-RFI (rev24a).lbr \| 57.8 KB CAD files ZIP 3D 3D_WE-RFI-0402 (rev1).pdf \| 967.8 KB IGS IGS_WE-RFI-0402 (rev1).igs \| 2.4 MB STP STP_WE-RFI-0402 (rev1).stp \| 607.2 KB Electric models ZIP ADS ADS_WE-RFI (rev24a).zip \| 5.2 MB S S-Parameter_7447650236 (rev24a).s2p \| 44.2 KB PSP PSpice_WE-RFI (rev24a).zip \| 19.8 KB Download all 9 files as zip archive ZIP	New i\| Product is new in our portfolio and production is active. Expected lifetime: >10 years.	360	±5%	7.9 MHz	12	12	375	320	1565	–
7447610242	SPEC	9 files EDA models: Components ZIP ALT Altium_WE-RFI (rev24a).IntLib \| 799.5 KB CDS Cadence_WE-RFI (rev24a).zip \| 2.8 MB EAG Eagle_WE-RFI (rev24a).lbr \| 57.8 KB CAD files ZIP 3D 3D_WE-RFI-0603 (rev1).pdf \| 809.3 KB IGS IGS_WE-RFI-0603 (rev1).igs \| 2.4 MB STP STP_WE-RFI-0603 (rev1).stp \| 604.8 KB Electric models ZIP ADS ADS_WE-RFI (rev24a).zip \| 5.2 MB S S-Parameter_7447610242 (rev24a).s2p \| 44.1 KB PSP PSpice_WE-RFI (rev24a).zip \| 19.8 KB Download all 9 files as zip archive ZIP	New i\| Product is new in our portfolio and production is active. Expected lifetime: >10 years.	420	±5%	7.9 MHz	13	13	255	425	1110	–
7447650242	SPEC	9 files EDA models: Components ZIP ALT Altium_WE-RFI (rev24a).IntLib \| 799.5 KB CDS Cadence_WE-RFI (rev24a).zip \| 2.8 MB EAG Eagle_WE-RFI (rev24a).lbr \| 57.8 KB CAD files ZIP 3D 3D_WE-RFI-0402 (rev1).pdf \| 967.8 KB IGS IGS_WE-RFI-0402 (rev1).igs \| 2.4 MB STP STP_WE-RFI-0402 (rev1).stp \| 607.2 KB Electric models ZIP ADS ADS_WE-RFI (rev24a).zip \| 5.2 MB S S-Parameter_7447650242 (rev24a).s2p \| 44.2 KB PSP PSpice_WE-RFI (rev24a).zip \| 19.8 KB Download all 9 files as zip archive ZIP	New i\| Product is new in our portfolio and production is active. Expected lifetime: >10 years.	420	±5%	7.9 MHz	12	12	460	270	1810	–
744760247A	SPEC	10 files EDA models: Components ZIP ALT Altium_WE-RFI (rev24a).IntLib \| 799.5 KB ANS ANSYS_744760247A (rev23a).a3dcomp \| 722.6 KB ZUK Cadstar_WE-RFI (rev19a).zip \| 6.1 KB CDS Cadence_WE-RFI (rev24a).zip \| 2.8 MB EAG Eagle_WE-RFI (rev24a).lbr \| 57.8 KB CAD files ZIP IGS WE-RFI_0805A_RFI (rev1).igs \| 3.7 MB STP WE-RFI_0805A_RFI (rev1).stp \| 750.3 KB Electric models ZIP ADS ADS_WE-RFI (rev24a).zip \| 5.2 MB S S-Parameter_744760247A (rev23a).s2p \| 84.1 KB PSP PSpice_WE-RFI (rev24a).zip \| 19.8 KB Download all 10 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	470	±5%	25.2 MHz	45	–	500	500	375	744762ARFI
7447650247	SPEC	9 files EDA models: Components ZIP ALT Altium_WE-RFI (rev24a).IntLib \| 799.5 KB CDS Cadence_WE-RFI (rev24a).zip \| 2.8 MB EAG Eagle_WE-RFI (rev24a).lbr \| 57.8 KB CAD files ZIP 3D 3D_WE-RFI-0402 (rev1).pdf \| 967.8 KB IGS IGS_WE-RFI-0402 (rev1).igs \| 2.4 MB STP STP_WE-RFI-0402 (rev1).stp \| 607.2 KB Electric models ZIP ADS ADS_WE-RFI (rev24a).zip \| 5.2 MB S S-Parameter_7447650247 (rev24a).s2p \| 44.2 KB PSP PSpice_WE-RFI (rev24a).zip \| 19.8 KB Download all 9 files as zip archive ZIP	New i\| Product is new in our portfolio and production is active. Expected lifetime: >10 years.	470	±5%	7.9 MHz	12	12	510	260	1600	–
7447650253	SPEC	9 files EDA models: Components ZIP ALT Altium_WE-RFI (rev24a).IntLib \| 799.5 KB CDS Cadence_WE-RFI (rev24a).zip \| 2.8 MB EAG Eagle_WE-RFI (rev24a).lbr \| 57.8 KB CAD files ZIP 3D 3D_WE-RFI-0402 (rev1).pdf \| 967.8 KB IGS IGS_WE-RFI-0402 (rev1).igs \| 2.4 MB STP STP_WE-RFI-0402 (rev1).stp \| 607.2 KB Electric models ZIP ADS ADS_WE-RFI (rev24a).zip \| 5.2 MB S S-Parameter_7447650253 (rev24a).s2p \| 44.2 KB PSP PSpice_WE-RFI (rev24a).zip \| 19.8 KB Download all 9 files as zip archive ZIP	New i\| Product is new in our portfolio and production is active. Expected lifetime: >10 years.	530	±5%	7.9 MHz	12	12	615	230	1600	–
744760256A	SPEC	10 files EDA models: Components ZIP ALT Altium_WE-RFI (rev24a).IntLib \| 799.5 KB ANS ANSYS_744760256A (rev23a).a3dcomp \| 722.7 KB ZUK Cadstar_WE-RFI (rev19a).zip \| 6.1 KB CDS Cadence_WE-RFI (rev24a).zip \| 2.8 MB EAG Eagle_WE-RFI (rev24a).lbr \| 57.8 KB CAD files ZIP IGS WE-RFI_0805A_RFI (rev1).igs \| 3.7 MB STP WE-RFI_0805A_RFI (rev1).stp \| 750.3 KB Electric models ZIP ADS ADS_WE-RFI (rev24a).zip \| 5.2 MB S S-Parameter_744760256A (rev23a).s2p \| 83.9 KB PSP PSpice_WE-RFI (rev24a).zip \| 19.8 KB Download all 10 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	560	±5%	25.2 MHz	45	–	550	450	340	744762ARFI
7447610256	SPEC	9 files EDA models: Components ZIP ALT Altium_WE-RFI (rev24a).IntLib \| 799.5 KB CDS Cadence_WE-RFI (rev24a).zip \| 2.8 MB EAG Eagle_WE-RFI (rev24a).lbr \| 57.8 KB CAD files ZIP 3D 3D_WE-RFI-0603 (rev1).pdf \| 809.3 KB IGS IGS_WE-RFI-0603 (rev1).igs \| 2.4 MB STP STP_WE-RFI-0603 (rev1).stp \| 604.8 KB Electric models ZIP ADS ADS_WE-RFI (rev24a).zip \| 5.2 MB S S-Parameter_7447610256 (rev24a).s2p \| 44.1 KB PSP PSpice_WE-RFI (rev24a).zip \| 19.8 KB Download all 9 files as zip archive ZIP	New i\| Product is new in our portfolio and production is active. Expected lifetime: >10 years.	560	±5%	7.9 MHz	13	13	270	390	915	–
7447650259	SPEC	9 files EDA models: Components ZIP ALT Altium_WE-RFI (rev24a).IntLib \| 799.5 KB CDS Cadence_WE-RFI (rev24a).zip \| 2.8 MB EAG Eagle_WE-RFI (rev24a).lbr \| 57.8 KB CAD files ZIP 3D 3D_WE-RFI-0402 (rev1).pdf \| 967.8 KB IGS IGS_WE-RFI-0402 (rev1).igs \| 2.4 MB STP STP_WE-RFI-0402 (rev1).stp \| 607.2 KB Electric models ZIP ADS ADS_WE-RFI (rev24a).zip \| 5.2 MB S S-Parameter_7447650259 (rev24a).s2p \| 44.2 KB PSP PSpice_WE-RFI (rev24a).zip \| 19.8 KB Download all 9 files as zip archive ZIP	New i\| Product is new in our portfolio and production is active. Expected lifetime: >10 years.	590	±5%	7.9 MHz	12	12	670	220	1370	–
7447610260	SPEC	9 files EDA models: Components ZIP ALT Altium_WE-RFI (rev24a).IntLib \| 799.5 KB CDS Cadence_WE-RFI (rev24a).zip \| 2.8 MB EAG Eagle_WE-RFI (rev24a).lbr \| 57.8 KB CAD files ZIP 3D 3D_WE-RFI-0603 (rev1).pdf \| 809.3 KB IGS IGS_WE-RFI-0603 (rev1).igs \| 2.4 MB STP STP_WE-RFI-0603 (rev1).stp \| 604.8 KB Electric models ZIP ADS ADS_WE-RFI (rev24a).zip \| 5.2 MB S S-Parameter_7447610260 (rev24a).s2p \| 44.1 KB PSP PSpice_WE-RFI (rev24a).zip \| 19.8 KB Download all 9 files as zip archive ZIP	New i\| Product is new in our portfolio and production is active. Expected lifetime: >10 years.	600	±5%	7.9 MHz	13	13	380	330	1000	–
744760268A	SPEC	10 files EDA models: Components ZIP ALT Altium_WE-RFI (rev24a).IntLib \| 799.5 KB ANS ANSYS_744760268A (rev23a).a3dcomp \| 723.2 KB ZUK Cadstar_WE-RFI (rev19a).zip \| 6.1 KB CDS Cadence_WE-RFI (rev24a).zip \| 2.8 MB EAG Eagle_WE-RFI (rev24a).lbr \| 57.8 KB CAD files ZIP IGS WE-RFI_0805A_RFI (rev1).igs \| 3.7 MB STP WE-RFI_0805A_RFI (rev1).stp \| 750.3 KB Electric models ZIP ADS ADS_WE-RFI (rev24a).zip \| 5.2 MB S S-Parameter_744760268A (rev23a).s2p \| 83.9 KB PSP PSpice_WE-RFI (rev24a).zip \| 19.8 KB Download all 10 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	680	±5%	25.2 MHz	35	–	850	400	188	744762ARFI
7447650270	SPEC	9 files EDA models: Components ZIP ALT Altium_WE-RFI (rev24a).IntLib \| 799.5 KB CDS Cadence_WE-RFI (rev24a).zip \| 2.8 MB EAG Eagle_WE-RFI (rev24a).lbr \| 57.8 KB CAD files ZIP 3D 3D_WE-RFI-0402 (rev1).pdf \| 967.8 KB IGS IGS_WE-RFI-0402 (rev1).igs \| 2.4 MB STP STP_WE-RFI-0402 (rev1).stp \| 607.2 KB Electric models ZIP ADS ADS_WE-RFI (rev24a).zip \| 5.2 MB S S-Parameter_7447650270 (rev24a).s2p \| 44.2 KB PSP PSpice_WE-RFI (rev24a).zip \| 19.8 KB Download all 9 files as zip archive ZIP	New i\| Product is new in our portfolio and production is active. Expected lifetime: >10 years.	700	±5%	7.9 MHz	11	11	1125	160	1565	–
7447650277	SPEC	9 files EDA models: Components ZIP ALT Altium_WE-RFI (rev24a).IntLib \| 799.5 KB CDS Cadence_WE-RFI (rev24a).zip \| 2.8 MB EAG Eagle_WE-RFI (rev24a).lbr \| 57.8 KB CAD files ZIP 3D 3D_WE-RFI-0402 (rev1).pdf \| 967.8 KB IGS IGS_WE-RFI-0402 (rev1).igs \| 2.4 MB STP STP_WE-RFI-0402 (rev1).stp \| 607.2 KB Electric models ZIP ADS ADS_WE-RFI (rev24a).zip \| 5.2 MB S S-Parameter_7447650277 (rev24a).s2p \| 44.2 KB PSP PSpice_WE-RFI (rev24a).zip \| 19.8 KB Download all 9 files as zip archive ZIP	New i\| Product is new in our portfolio and production is active. Expected lifetime: >10 years.	770	±5%	7.9 MHz	12	12	1250	155	1240	–
744760282A	SPEC	10 files EDA models: Components ZIP ALT Altium_WE-RFI (rev24a).IntLib \| 799.5 KB ANS ANSYS_744760282A (rev23a).a3dcomp \| 723 KB ZUK Cadstar_WE-RFI (rev19a).zip \| 6.1 KB CDS Cadence_WE-RFI (rev24a).zip \| 2.8 MB EAG Eagle_WE-RFI (rev24a).lbr \| 57.8 KB CAD files ZIP IGS WE-RFI_0805A_RFI (rev1).igs \| 3.7 MB STP WE-RFI_0805A_RFI (rev1).stp \| 750.3 KB Electric models ZIP ADS ADS_WE-RFI (rev24a).zip \| 5.2 MB S S-Parameter_744760282A (rev23a).s2p \| 83.8 KB PSP PSpice_WE-RFI (rev24a).zip \| 19.8 KB Download all 10 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	820	±5%	25.2 MHz	35	–	1050	300	215	744762ARFI
7447610282	SPEC	9 files EDA models: Components ZIP ALT Altium_WE-RFI (rev24a).IntLib \| 799.5 KB CDS Cadence_WE-RFI (rev24a).zip \| 2.8 MB EAG Eagle_WE-RFI (rev24a).lbr \| 57.8 KB CAD files ZIP 3D 3D_WE-RFI-0603 (rev1).pdf \| 809.3 KB IGS IGS_WE-RFI-0603 (rev1).igs \| 2.4 MB STP STP_WE-RFI-0603 (rev1).stp \| 604.8 KB Electric models ZIP ADS ADS_WE-RFI (rev24a).zip \| 5.2 MB S S-Parameter_7447610282 (rev24a).s2p \| 44.1 KB PSP PSpice_WE-RFI (rev24a).zip \| 19.8 KB Download all 9 files as zip archive ZIP	New i\| Product is new in our portfolio and production is active. Expected lifetime: >10 years.	820	±5%	7.9 MHz	13	13	450	300	830	–
744760310A	SPEC	10 files EDA models: Components ZIP ALT Altium_WE-RFI (rev24a).IntLib \| 799.5 KB ANS ANSYS_744760310A (rev23a).a3dcomp \| 723.2 KB ZUK Cadstar_WE-RFI (rev19a).zip \| 6.1 KB CDS Cadence_WE-RFI (rev24a).zip \| 2.8 MB EAG Eagle_WE-RFI (rev24a).lbr \| 57.8 KB CAD files ZIP IGS WE-RFI_0805A_RFI (rev1).igs \| 3.7 MB STP WE-RFI_0805A_RFI (rev1).stp \| 750.3 KB Electric models ZIP ADS ADS_WE-RFI (rev24a).zip \| 5.2 MB S S-Parameter_744760310A (rev23a).s2p \| 83.9 KB PSP PSpice_WE-RFI (rev24a).zip \| 19.8 KB Download all 10 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	1000	±5%	25.2 MHz	35	–	1050	180	200	744762ARFI
7447610310	SPEC	9 files EDA models: Components ZIP ALT Altium_WE-RFI (rev24a).IntLib \| 799.5 KB CDS Cadence_WE-RFI (rev24a).zip \| 2.8 MB EAG Eagle_WE-RFI (rev24a).lbr \| 57.8 KB CAD files ZIP 3D 3D_WE-RFI-0603 (rev1).pdf \| 809.3 KB IGS IGS_WE-RFI-0603 (rev1).igs \| 2.4 MB STP STP_WE-RFI-0603 (rev1).stp \| 604.8 KB Electric models ZIP ADS ADS_WE-RFI (rev24a).zip \| 5.2 MB S S-Parameter_7447610310 (rev24a).s2p \| 44.1 KB PSP PSpice_WE-RFI (rev24a).zip \| 19.8 KB Download all 9 files as zip archive ZIP	New i\| Product is new in our portfolio and production is active. Expected lifetime: >10 years.	1000	±5%	7.9 MHz	13	13	700	230	680	–
744760312A	SPEC	10 files EDA models: Components ZIP ALT Altium_WE-RFI (rev24a).IntLib \| 799.5 KB ANS ANSYS_744760312A (rev23a).a3dcomp \| 723.2 KB ZUK Cadstar_WE-RFI (rev19a).zip \| 6.1 KB CDS Cadence_WE-RFI (rev24a).zip \| 2.8 MB EAG Eagle_WE-RFI (rev24a).lbr \| 57.8 KB CAD files ZIP IGS WE-RFI_0805A_RFI (rev1).igs \| 3.7 MB STP WE-RFI_0805A_RFI (rev1).stp \| 750.3 KB Electric models ZIP ADS ADS_WE-RFI (rev24a).zip \| 5.2 MB S S-Parameter_744760312A (rev23a).s2p \| 83.9 KB PSP PSpice_WE-RFI (rev24a).zip \| 19.8 KB Download all 10 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	1200	±5%	7.96 MHz	15	–	1200	150	200	744762ARFI
744762312A	SPEC	10 files EDA models: Components ZIP ALT Altium_WE-RFI (rev24a).IntLib \| 799.5 KB ANS ANSYS_744762312A (rev23a).a3dcomp \| 722 KB ZUK Cadstar_WE-RFI (rev19a).zip \| 6.1 KB CDS Cadence_WE-RFI (rev24a).zip \| 2.8 MB EAG Eagle_WE-RFI (rev24a).lbr \| 57.8 KB CAD files ZIP IGS WE-RFI_1008A_RFI (rev1).igs \| 4.6 MB STP WE-RFI_1008A_RFI (rev1).stp \| 943.7 KB Electric models ZIP ADS ADS_WE-RFI (rev24a).zip \| 5.2 MB S S-Parameter_744762312A (rev23a).s2p \| 83.9 KB PSP PSpice_WE-RFI (rev24a).zip \| 19.8 KB Download all 10 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	1200	±5%	7.96 MHz	20	–	1300	230	280	744762ARFI
744760315A	SPEC	10 files EDA models: Components ZIP ALT Altium_WE-RFI (rev24a).IntLib \| 799.5 KB ANS ANSYS_744760315A (rev23a).a3dcomp \| 723.1 KB ZUK Cadstar_WE-RFI (rev19a).zip \| 6.1 KB CDS Cadence_WE-RFI (rev24a).zip \| 2.8 MB EAG Eagle_WE-RFI (rev24a).lbr \| 57.8 KB CAD files ZIP IGS WE-RFI_0805A_RFI (rev1).igs \| 3.7 MB STP WE-RFI_0805A_RFI (rev1).stp \| 750.3 KB Electric models ZIP ADS ADS_WE-RFI (rev24a).zip \| 5.2 MB S S-Parameter_744760315A (rev23a).s2p \| 84 KB PSP PSpice_WE-RFI (rev24a).zip \| 19.8 KB Download all 10 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	1500	±5%	7.96 MHz	15	–	1450	130	200	744762ARFI
744762315A	SPEC	10 files EDA models: Components ZIP ALT Altium_WE-RFI (rev24a).IntLib \| 799.5 KB ANS ANSYS_744762315A (rev23a).a3dcomp \| 722.1 KB ZUK Cadstar_WE-RFI (rev19a).zip \| 6.1 KB CDS Cadence_WE-RFI (rev24a).zip \| 2.8 MB EAG Eagle_WE-RFI (rev24a).lbr \| 57.8 KB CAD files ZIP IGS WE-RFI_1008A_RFI (rev1).igs \| 4.6 MB STP WE-RFI_1008A_RFI (rev1).stp \| 943.7 KB Electric models ZIP ADS ADS_WE-RFI (rev24a).zip \| 5.2 MB S S-Parameter_744762315A (rev23a).s2p \| 84 KB PSP PSpice_WE-RFI (rev24a).zip \| 19.8 KB Download all 10 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	1500	±5%	7.96 MHz	20	–	1650	220	250	744762ARFI
7447610315	SPEC	9 files EDA models: Components ZIP ALT Altium_WE-RFI (rev24a).IntLib \| 799.5 KB CDS Cadence_WE-RFI (rev24a).zip \| 2.8 MB EAG Eagle_WE-RFI (rev24a).lbr \| 57.8 KB CAD files ZIP 3D 3D_WE-RFI-0603 (rev1).pdf \| 809.3 KB IGS IGS_WE-RFI-0603 (rev1).igs \| 2.4 MB STP STP_WE-RFI-0603 (rev1).stp \| 604.8 KB Electric models ZIP ADS ADS_WE-RFI (rev24a).zip \| 5.2 MB S S-Parameter_7447610315 (rev24a).s2p \| 44.1 KB PSP PSpice_WE-RFI (rev24a).zip \| 19.8 KB Download all 9 files as zip archive ZIP	New i\| Product is new in our portfolio and production is active. Expected lifetime: >10 years.	1500	±5%	7.9 MHz	13	13	1070	200	605	–
744760318A	SPEC	10 files EDA models: Components ZIP ALT Altium_WE-RFI (rev24a).IntLib \| 799.5 KB ANS ANSYS_744760318A (rev23a).a3dcomp \| 723.2 KB ZUK Cadstar_WE-RFI (rev19a).zip \| 6.1 KB CDS Cadence_WE-RFI (rev24a).zip \| 2.8 MB EAG Eagle_WE-RFI (rev24a).lbr \| 57.8 KB CAD files ZIP IGS WE-RFI_0805A_RFI (rev1).igs \| 3.7 MB STP WE-RFI_0805A_RFI (rev1).stp \| 750.3 KB Electric models ZIP ADS ADS_WE-RFI (rev24a).zip \| 5.2 MB S S-Parameter_744760318A (rev23a).s2p \| 84.1 KB PSP PSpice_WE-RFI (rev24a).zip \| 19.8 KB Download all 10 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	1800	±5%	7.96 MHz	15	–	2000	120	120	744762ARFI
744762318A	SPEC	10 files EDA models: Components ZIP ALT Altium_WE-RFI (rev24a).IntLib \| 799.5 KB ANS ANSYS_744762318A (rev23a).a3dcomp \| 722 KB ZUK Cadstar_WE-RFI (rev19a).zip \| 6.1 KB CDS Cadence_WE-RFI (rev24a).zip \| 2.8 MB EAG Eagle_WE-RFI (rev24a).lbr \| 57.8 KB CAD files ZIP IGS WE-RFI_1008A_RFI (rev1).igs \| 4.6 MB STP WE-RFI_1008A_RFI (rev1).stp \| 943.7 KB Electric models ZIP ADS ADS_WE-RFI (rev24a).zip \| 5.2 MB S S-Parameter_744762318A (rev23a).s2p \| 84 KB PSP PSpice_WE-RFI (rev24a).zip \| 19.8 KB Download all 10 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	1800	±5%	7.96 MHz	20	–	2200	210	200	744762ARFI
744760322A	SPEC	10 files EDA models: Components ZIP ALT Altium_WE-RFI (rev24a).IntLib \| 799.5 KB ANS ANSYS_744760322A (rev23a).a3dcomp \| 718.9 KB ZUK Cadstar_WE-RFI (rev19a).zip \| 6.1 KB CDS Cadence_WE-RFI (rev24a).zip \| 2.8 MB EAG Eagle_WE-RFI (rev24a).lbr \| 57.8 KB CAD files ZIP IGS WE-RFI_0805A_RFI (rev1).igs \| 3.7 MB STP WE-RFI_0805A_RFI (rev1).stp \| 750.3 KB Electric models ZIP ADS ADS_WE-RFI (rev24a).zip \| 5.2 MB S S-Parameter_744760322A (rev23a).s2p \| 88.2 KB PSP PSpice_WE-RFI (rev24a).zip \| 19.8 KB Download all 10 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	2200	±5%	7.96 MHz	15	–	1750	110	110	744762ARFI
744762322A	SPEC	10 files EDA models: Components ZIP ALT Altium_WE-RFI (rev24a).IntLib \| 799.5 KB ANS ANSYS_744762322A (rev23a).a3dcomp \| 722.1 KB ZUK Cadstar_WE-RFI (rev19a).zip \| 6.1 KB CDS Cadence_WE-RFI (rev24a).zip \| 2.8 MB EAG Eagle_WE-RFI (rev24a).lbr \| 57.8 KB CAD files ZIP IGS WE-RFI_1008A_RFI (rev1).igs \| 4.6 MB STP WE-RFI_1008A_RFI (rev1).stp \| 943.7 KB Electric models ZIP ADS ADS_WE-RFI (rev24a).zip \| 5.2 MB S S-Parameter_744762322A (rev23a).s2p \| 84.1 KB PSP PSpice_WE-RFI (rev24a).zip \| 19.8 KB Download all 10 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	2200	±5%	7.96 MHz	20	–	2350	200	160	744762ARFI
7447610322	SPEC	9 files EDA models: Components ZIP ALT Altium_WE-RFI (rev24a).IntLib \| 799.5 KB CDS Cadence_WE-RFI (rev24a).zip \| 2.8 MB EAG Eagle_WE-RFI (rev24a).lbr \| 57.8 KB CAD files ZIP 3D 3D_WE-RFI-0603 (rev1).pdf \| 809.3 KB IGS IGS_WE-RFI-0603 (rev1).igs \| 2.4 MB STP STP_WE-RFI-0603 (rev1).stp \| 604.8 KB Electric models ZIP ADS ADS_WE-RFI (rev24a).zip \| 5.2 MB S S-Parameter_7447610322 (rev24a).s2p \| 44.1 KB PSP PSpice_WE-RFI (rev24a).zip \| 19.8 KB Download all 9 files as zip archive ZIP	New i\| Product is new in our portfolio and production is active. Expected lifetime: >10 years.	2200	±5%	7.9 MHz	13	13	400	350	110	–
744760327A	SPEC	10 files EDA models: Components ZIP ALT Altium_WE-RFI (rev24a).IntLib \| 799.5 KB ANS ANSYS_744760327A (rev23a).a3dcomp \| 719.2 KB ZUK Cadstar_WE-RFI (rev19a).zip \| 6.1 KB CDS Cadence_WE-RFI (rev24a).zip \| 2.8 MB EAG Eagle_WE-RFI (rev24a).lbr \| 57.8 KB CAD files ZIP IGS WE-RFI_0805A_RFI (rev1).igs \| 3.7 MB STP WE-RFI_0805A_RFI (rev1).stp \| 750.3 KB Electric models ZIP ADS ADS_WE-RFI (rev24a).zip \| 5.2 MB S S-Parameter_744760327A (rev23a).s2p \| 83.9 KB PSP PSpice_WE-RFI (rev24a).zip \| 19.8 KB Download all 10 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	2700	±5%	7.96 MHz	15	–	1750	100	100	744762ARFI
744762327A	SPEC	10 files EDA models: Components ZIP ALT Altium_WE-RFI (rev24a).IntLib \| 799.5 KB ANS ANSYS_744762327A (rev23a).a3dcomp \| 716 KB ZUK Cadstar_WE-RFI (rev19a).zip \| 6.1 KB CDS Cadence_WE-RFI (rev24a).zip \| 2.8 MB EAG Eagle_WE-RFI (rev24a).lbr \| 57.8 KB CAD files ZIP IGS WE-RFI_1008A_RFI (rev1).igs \| 4.6 MB STP WE-RFI_1008A_RFI (rev1).stp \| 943.7 KB Electric models ZIP ADS ADS_WE-RFI (rev24a).zip \| 5.2 MB S S-Parameter_744762327A (rev23a).s2p \| 84 KB PSP PSpice_WE-RFI (rev24a).zip \| 19.8 KB Download all 10 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	2700	±5%	7.96 MHz	20	–	2600	195	130	744762ARFI
744760333A	SPEC	10 files EDA models: Components ZIP ALT Altium_WE-RFI (rev24a).IntLib \| 799.5 KB ANS ANSYS_744760333A (rev23a).a3dcomp \| 719.1 KB ZUK Cadstar_WE-RFI (rev19a).zip \| 6.1 KB CDS Cadence_WE-RFI (rev24a).zip \| 2.8 MB EAG Eagle_WE-RFI (rev24a).lbr \| 57.8 KB CAD files ZIP IGS WE-RFI_0805A_RFI (rev1).igs \| 3.7 MB STP WE-RFI_0805A_RFI (rev1).stp \| 750.3 KB Electric models ZIP ADS ADS_WE-RFI (rev24a).zip \| 5.2 MB S S-Parameter_744760333A (rev23a).s2p \| 84 KB PSP PSpice_WE-RFI (rev24a).zip \| 19.8 KB Download all 10 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	3300	±5%	7.96 MHz	15	–	2000	210	70	744762ARFI
744762333A	SPEC	10 files EDA models: Components ZIP ALT Altium_WE-RFI (rev24a).IntLib \| 799.5 KB ANS ANSYS_744762333A (rev23a).a3dcomp \| 1.4 MB ZUK Cadstar_WE-RFI (rev19a).zip \| 6.1 KB CDS Cadence_WE-RFI (rev24a).zip \| 2.8 MB EAG Eagle_WE-RFI (rev24a).lbr \| 57.8 KB CAD files ZIP IGS WE-RFI_1008A_RFI (rev1).igs \| 4.6 MB STP WE-RFI_1008A_RFI (rev1).stp \| 943.7 KB Electric models ZIP ADS ADS_WE-RFI (rev24a).zip \| 5.2 MB S S-Parameter_744762333A (rev23a).s2p \| 83.9 KB PSP PSpice_WE-RFI (rev24a).zip \| 19.8 KB Download all 10 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	3300	±5%	7.96 MHz	20	–	2850	185	80	744762ARFI
7447610333	SPEC	9 files EDA models: Components ZIP ALT Altium_WE-RFI (rev24a).IntLib \| 799.5 KB CDS Cadence_WE-RFI (rev24a).zip \| 2.8 MB EAG Eagle_WE-RFI (rev24a).lbr \| 57.8 KB CAD files ZIP 3D 3D_WE-RFI-0603 (rev1).pdf \| 809.3 KB IGS IGS_WE-RFI-0603 (rev1).igs \| 2.4 MB STP STP_WE-RFI-0603 (rev1).stp \| 604.8 KB Electric models ZIP ADS ADS_WE-RFI (rev24a).zip \| 5.2 MB S S-Parameter_7447610333 (rev24a).s2p \| 44.1 KB PSP PSpice_WE-RFI (rev24a).zip \| 19.8 KB Download all 9 files as zip archive ZIP	New i\| Product is new in our portfolio and production is active. Expected lifetime: >10 years.	3300	±5%	7.9 MHz	14	14	950	220	110	–
744760339A	SPEC	10 files EDA models: Components ZIP ALT Altium_WE-RFI (rev24a).IntLib \| 799.5 KB ANS ANSYS_744760339A (rev23a).a3dcomp \| 1.4 MB ZUK Cadstar_WE-RFI (rev19a).zip \| 6.1 KB CDS Cadence_WE-RFI (rev24a).zip \| 2.8 MB EAG Eagle_WE-RFI (rev24a).lbr \| 57.8 KB CAD files ZIP IGS WE-RFI_0805A_RFI (rev1).igs \| 3.7 MB STP WE-RFI_0805A_RFI (rev1).stp \| 750.3 KB Electric models ZIP ADS ADS_WE-RFI (rev24a).zip \| 5.2 MB S S-Parameter_744760339A (rev23a).s2p \| 88.5 KB PSP PSpice_WE-RFI (rev24a).zip \| 19.8 KB Download all 10 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	3900	±5%	7.96 MHz	15	–	2150	200	60	744762ARFI
744762339A	SPEC	10 files EDA models: Components ZIP ALT Altium_WE-RFI (rev24a).IntLib \| 799.5 KB ANS ANSYS_744762339A (rev23a).a3dcomp \| 1.4 MB ZUK Cadstar_WE-RFI (rev19a).zip \| 6.1 KB CDS Cadence_WE-RFI (rev24a).zip \| 2.8 MB EAG Eagle_WE-RFI (rev24a).lbr \| 57.8 KB CAD files ZIP IGS WE-RFI_1008A_RFI (rev1).igs \| 4.6 MB STP WE-RFI_1008A_RFI (rev1).stp \| 943.7 KB Electric models ZIP ADS ADS_WE-RFI (rev24a).zip \| 5.2 MB S S-Parameter_744762339A (rev23a).s2p \| 83.9 KB PSP PSpice_WE-RFI (rev24a).zip \| 19.8 KB Download all 10 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	3900	±5%	7.96 MHz	20	–	4000	180	50	744762ARFI
744760347A	SPEC	10 files EDA models: Components ZIP ALT Altium_WE-RFI (rev24a).IntLib \| 799.5 KB ANS ANSYS_744760347A (rev23a).a3dcomp \| 1.4 MB ZUK Cadstar_WE-RFI (rev19a).zip \| 6.1 KB CDS Cadence_WE-RFI (rev24a).zip \| 2.8 MB EAG Eagle_WE-RFI (rev24a).lbr \| 57.8 KB CAD files ZIP IGS WE-RFI_0805A_RFI (rev1).igs \| 3.7 MB STP WE-RFI_0805A_RFI (rev1).stp \| 750.3 KB Electric models ZIP ADS ADS_WE-RFI (rev24a).zip \| 5.2 MB S S-Parameter_744760347A (rev23a).s2p \| 84 KB PSP PSpice_WE-RFI (rev24a).zip \| 19.8 KB Download all 10 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	4700	±5%	7.96 MHz	15	–	1900	180	50	–
744762347A	SPEC	10 files EDA models: Components ZIP ALT Altium_WE-RFI (rev24a).IntLib \| 799.5 KB ANS ANSYS_744762347A (rev23a).a3dcomp \| 1.4 MB ZUK Cadstar_WE-RFI (rev19a).zip \| 6.1 KB CDS Cadence_WE-RFI (rev24a).zip \| 2.8 MB EAG Eagle_WE-RFI (rev24a).lbr \| 57.8 KB CAD files ZIP IGS WE-RFI_1008A_RFI (rev1).igs \| 4.6 MB STP WE-RFI_1008A_RFI (rev1).stp \| 943.7 KB Electric models ZIP ADS ADS_WE-RFI (rev24a).zip \| 5.2 MB S S-Parameter_744762347A (rev23a).s2p \| 84.1 KB PSP PSpice_WE-RFI (rev24a).zip \| 19.8 KB Download all 10 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	4700	±5%	7.96 MHz	20	–	4300	175	45	744762ARFI
7447610347	SPEC	9 files EDA models: Components ZIP ALT Altium_WE-RFI (rev24a).IntLib \| 799.5 KB CDS Cadence_WE-RFI (rev24a).zip \| 2.8 MB EAG Eagle_WE-RFI (rev24a).lbr \| 57.8 KB CAD files ZIP 3D 3D_WE-RFI-0603 (rev1).pdf \| 809.3 KB IGS IGS_WE-RFI-0603 (rev1).igs \| 2.4 MB STP STP_WE-RFI-0603 (rev1).stp \| 604.8 KB Electric models ZIP ADS ADS_WE-RFI (rev24a).zip \| 5.2 MB S S-Parameter_7447610347 (rev24a).s2p \| 44.1 KB PSP PSpice_WE-RFI (rev24a).zip \| 19.8 KB Download all 9 files as zip archive ZIP	New i\| Product is new in our portfolio and production is active. Expected lifetime: >10 years.	4700	±5%	7.9 MHz	14	14	1125	200	67	–
744760356A	SPEC	10 files EDA models: Components ZIP ALT Altium_WE-RFI (rev24a).IntLib \| 799.5 KB ANS ANSYS_744760356A (rev23a).a3dcomp \| 1.4 MB ZUK Cadstar_WE-RFI (rev19a).zip \| 6.1 KB CDS Cadence_WE-RFI (rev24a).zip \| 2.8 MB EAG Eagle_WE-RFI (rev24a).lbr \| 57.8 KB CAD files ZIP IGS WE-RFI_0805A_RFI (rev1).igs \| 3.7 MB STP WE-RFI_0805A_RFI (rev1).stp \| 750.3 KB Electric models ZIP ADS ADS_WE-RFI (rev24a).zip \| 5.2 MB S S-Parameter_744760356A (rev23a).s2p \| 84 KB PSP PSpice_WE-RFI (rev24a).zip \| 19.8 KB Download all 10 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	5600	±5%	7.96 MHz	15	–	2200	160	45	744762ARFI
744762356A	SPEC	10 files EDA models: Components ZIP ALT Altium_WE-RFI (rev24a).IntLib \| 799.5 KB ANS ANSYS_744762356A (rev23a).a3dcomp \| 1.3 MB ZUK Cadstar_WE-RFI (rev19a).zip \| 6.1 KB CDS Cadence_WE-RFI (rev24a).zip \| 2.8 MB EAG Eagle_WE-RFI (rev24a).lbr \| 57.8 KB CAD files ZIP IGS WE-RFI_1008A_RFI (rev1).igs \| 4.6 MB STP WE-RFI_1008A_RFI (rev1).stp \| 943.7 KB Electric models ZIP ADS ADS_WE-RFI (rev24a).zip \| 5.2 MB S S-Parameter_744762356A (rev23a).s2p \| 84.1 KB PSP PSpice_WE-RFI (rev24a).zip \| 19.8 KB Download all 10 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	5600	±5%	7.96 MHz	20	–	2600	170	42	–
7447610356	SPEC	9 files EDA models: Components ZIP ALT Altium_WE-RFI (rev24a).IntLib \| 799.5 KB CDS Cadence_WE-RFI (rev24a).zip \| 2.8 MB EAG Eagle_WE-RFI (rev24a).lbr \| 57.8 KB CAD files ZIP 3D 3D_WE-RFI-0603 (rev1).pdf \| 809.3 KB IGS IGS_WE-RFI-0603 (rev1).igs \| 2.4 MB STP STP_WE-RFI-0603 (rev1).stp \| 604.8 KB Electric models ZIP ADS ADS_WE-RFI (rev24a).zip \| 5.2 MB S S-Parameter_7447610356 (rev24a).s2p \| 44.1 KB PSP PSpice_WE-RFI (rev24a).zip \| 19.8 KB Download all 9 files as zip archive ZIP	New i\| Product is new in our portfolio and production is active. Expected lifetime: >10 years.	5600	±5%	7.9 MHz	14	14	1055	195	62	–
744762368A	SPEC	10 files EDA models: Components ZIP ALT Altium_WE-RFI (rev24a).IntLib \| 799.5 KB ANS ANSYS_744762368A (rev23a).a3dcomp \| 1.3 MB ZUK Cadstar_WE-RFI (rev19a).zip \| 6.1 KB CDS Cadence_WE-RFI (rev24a).zip \| 2.8 MB EAG Eagle_WE-RFI (rev24a).lbr \| 57.8 KB CAD files ZIP IGS WE-RFI_1008A_RFI (rev1).igs \| 4.6 MB STP WE-RFI_1008A_RFI (rev1).stp \| 943.7 KB Electric models ZIP ADS ADS_WE-RFI (rev24a).zip \| 5.2 MB S S-Parameter_744762368A (rev23a).s2p \| 88.6 KB PSP PSpice_WE-RFI (rev24a).zip \| 19.8 KB Download all 10 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	6800	±5%	7.96 MHz	20	–	2800	165	39	–
7447610368	SPEC	9 files EDA models: Components ZIP ALT Altium_WE-RFI (rev24a).IntLib \| 799.5 KB CDS Cadence_WE-RFI (rev24a).zip \| 2.8 MB EAG Eagle_WE-RFI (rev24a).lbr \| 57.8 KB CAD files ZIP 3D 3D_WE-RFI-0603 (rev1).pdf \| 809.3 KB IGS IGS_WE-RFI-0603 (rev1).igs \| 2.4 MB STP STP_WE-RFI-0603 (rev1).stp \| 604.8 KB Electric models ZIP ADS ADS_WE-RFI (rev24a).zip \| 5.2 MB S S-Parameter_7447610368 (rev24a).s2p \| 44.1 KB PSP PSpice_WE-RFI (rev24a).zip \| 19.8 KB Download all 9 files as zip archive ZIP	New i\| Product is new in our portfolio and production is active. Expected lifetime: >10 years.	6800	±5%	7.9 MHz	14	14	1380	170	52	–
744760382A	SPEC	10 files EDA models: Components ZIP ALT Altium_WE-RFI (rev24a).IntLib \| 799.5 KB ANS ANSYS_744760382A (rev23a).a3dcomp \| 1.4 MB ZUK Cadstar_WE-RFI (rev19a).zip \| 6.1 KB CDS Cadence_WE-RFI (rev24a).zip \| 2.8 MB EAG Eagle_WE-RFI (rev24a).lbr \| 57.8 KB CAD files ZIP IGS WE-RFI_0805A_RFI (rev1).igs \| 3.7 MB STP WE-RFI_0805A_RFI (rev1).stp \| 750.3 KB Electric models ZIP ADS ADS_WE-RFI (rev24a).zip \| 5.2 MB S S-Parameter_744760382A (rev23a).s2p \| 84.2 KB PSP PSpice_WE-RFI (rev24a).zip \| 19.8 KB Download all 10 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	8200	±5%	7.96 MHz	15	–	2400	120	40	744762ARFI
744762382A	SPEC	10 files EDA models: Components ZIP ALT Altium_WE-RFI (rev24a).IntLib \| 799.5 KB ANS ANSYS_744762382A (rev23a).a3dcomp \| 1.4 MB ZUK Cadstar_WE-RFI (rev19a).zip \| 6.1 KB CDS Cadence_WE-RFI (rev24a).zip \| 2.8 MB EAG Eagle_WE-RFI (rev24a).lbr \| 57.8 KB CAD files ZIP IGS WE-RFI_1008A_RFI (rev1).igs \| 4.6 MB STP WE-RFI_1008A_RFI (rev1).stp \| 943.7 KB Electric models ZIP ADS ADS_WE-RFI (rev24a).zip \| 5.2 MB S S-Parameter_744762382A (rev23a).s2p \| 84.1 KB PSP PSpice_WE-RFI (rev24a).zip \| 19.8 KB Download all 10 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	8200	±5%	7.96 MHz	20	–	3050	160	36	–
7447610382	SPEC	9 files EDA models: Components ZIP ALT Altium_WE-RFI (rev24a).IntLib \| 799.5 KB CDS Cadence_WE-RFI (rev24a).zip \| 2.8 MB EAG Eagle_WE-RFI (rev24a).lbr \| 57.8 KB CAD files ZIP 3D 3D_WE-RFI-0603 (rev1).pdf \| 809.3 KB IGS IGS_WE-RFI-0603 (rev1).igs \| 2.4 MB STP STP_WE-RFI-0603 (rev1).stp \| 604.8 KB Electric models ZIP ADS ADS_WE-RFI (rev24a).zip \| 5.2 MB S S-Parameter_7447610382 (rev24a).s2p \| 44.1 KB PSP PSpice_WE-RFI (rev24a).zip \| 19.8 KB Download all 9 files as zip archive ZIP	New i\| Product is new in our portfolio and production is active. Expected lifetime: >10 years.	8200	±5%	7.9 MHz	14	14	1550	150	46	–
744760410A	SPEC	10 files EDA models: Components ZIP ALT Altium_WE-RFI (rev24a).IntLib \| 799.5 KB ANS ANSYS_744760410A (rev23a).a3dcomp \| 1.4 MB ZUK Cadstar_WE-RFI (rev19a).zip \| 6.1 KB CDS Cadence_WE-RFI (rev24a).zip \| 2.8 MB EAG Eagle_WE-RFI (rev24a).lbr \| 57.8 KB CAD files ZIP IGS WE-RFI_0805A_RFI (rev1).igs \| 3.7 MB STP WE-RFI_0805A_RFI (rev1).stp \| 750.3 KB Electric models ZIP ADS ADS_WE-RFI (rev24a).zip \| 5.2 MB S S-Parameter_744760410A (rev23a).s2p \| 84.4 KB PSP PSpice_WE-RFI (rev24a).zip \| 19.8 KB Download all 10 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	10000	±5%	2.52 MHz	15	–	3600	80	40	744762ARFI
744762410A	SPEC	10 files EDA models: Components ZIP ALT Altium_WE-RFI (rev24a).IntLib \| 799.5 KB ANS ANSYS_744762410A (rev23a).a3dcomp \| 1.4 MB ZUK Cadstar_WE-RFI (rev19a).zip \| 6.1 KB CDS Cadence_WE-RFI (rev24a).zip \| 2.8 MB EAG Eagle_WE-RFI (rev24a).lbr \| 57.8 KB CAD files ZIP IGS WE-RFI_1008A_RFI (rev1).igs \| 4.6 MB STP WE-RFI_1008A_RFI (rev1).stp \| 943.7 KB Electric models ZIP ADS ADS_WE-RFI (rev24a).zip \| 5.2 MB S S-Parameter_744762410A (rev23a).s2p \| 84 KB PSP PSpice_WE-RFI (rev24a).zip \| 19.8 KB Download all 10 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	10000	±5%	2.52 MHz	15	–	3500	150	33	–
7447610410	SPEC	9 files EDA models: Components ZIP ALT Altium_WE-RFI (rev24a).IntLib \| 799.5 KB CDS Cadence_WE-RFI (rev24a).zip \| 2.8 MB EAG Eagle_WE-RFI (rev24a).lbr \| 57.8 KB CAD files ZIP 3D 3D_WE-RFI-0603 (rev1).pdf \| 809.3 KB IGS IGS_WE-RFI-0603 (rev1).igs \| 2.4 MB STP STP_WE-RFI-0603 (rev1).stp \| 604.8 KB Electric models ZIP ADS ADS_WE-RFI (rev24a).zip \| 5.2 MB S S-Parameter_7447610410 (rev24a).s2p \| 44.1 KB PSP PSpice_WE-RFI (rev24a).zip \| 19.8 KB Download all 9 files as zip archive ZIP	New i\| Product is new in our portfolio and production is active. Expected lifetime: >10 years.	10000	±5%	2.5 MHz	14	14	1700	160	40	–
744762415A	SPEC	10 files EDA models: Components ZIP ALT Altium_WE-RFI (rev24a).IntLib \| 799.5 KB ANS ANSYS_744762415A (rev23a).a3dcomp \| 1.4 MB ZUK Cadstar_WE-RFI (rev19a).zip \| 6.1 KB CDS Cadence_WE-RFI (rev24a).zip \| 2.8 MB EAG Eagle_WE-RFI (rev24a).lbr \| 57.8 KB CAD files ZIP IGS WE-RFI_1008A_RFI (rev1).igs \| 4.6 MB STP WE-RFI_1008A_RFI (rev1).stp \| 943.7 KB Electric models ZIP ADS ADS_WE-RFI (rev24a).zip \| 5.2 MB S S-Parameter_744762415A (rev23a).s2p \| 84.3 KB PSP PSpice_WE-RFI (rev24a).zip \| 19.8 KB Download all 10 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	15000	±5%	2.52 MHz	15	–	4000	130	26	744762ARFI
7447610415	SPEC	9 files EDA models: Components ZIP ALT Altium_WE-RFI (rev24a).IntLib \| 799.5 KB CDS Cadence_WE-RFI (rev24a).zip \| 2.8 MB EAG Eagle_WE-RFI (rev24a).lbr \| 57.8 KB CAD files ZIP 3D 3D_WE-RFI-0603 (rev1).pdf \| 809.3 KB IGS IGS_WE-RFI-0603 (rev1).igs \| 2.4 MB STP STP_WE-RFI-0603 (rev1).stp \| 604.8 KB Electric models ZIP ADS ADS_WE-RFI (rev24a).zip \| 5.2 MB S S-Parameter_7447610415 (rev24a).s2p \| 44.1 KB PSP PSpice_WE-RFI (rev24a).zip \| 19.8 KB Download all 9 files as zip archive ZIP	New i\| Product is new in our portfolio and production is active. Expected lifetime: >10 years.	15000	±5%	2.5 MHz	13	13	3900	90	30	–
744762418A	SPEC	10 files EDA models: Components ZIP ALT Altium_WE-RFI (rev24a).IntLib \| 799.5 KB ANS ANSYS_744762418A (rev23a).a3dcomp \| 1.4 MB ZUK Cadstar_WE-RFI (rev19a).zip \| 6.1 KB CDS Cadence_WE-RFI (rev24a).zip \| 2.8 MB EAG Eagle_WE-RFI (rev24a).lbr \| 57.8 KB CAD files ZIP IGS WE-RFI_1008A_RFI (rev1).igs \| 4.6 MB STP WE-RFI_1008A_RFI (rev1).stp \| 943.7 KB Electric models ZIP ADS ADS_WE-RFI (rev24a).zip \| 5.2 MB S S-Parameter_744762418A (rev23a).s2p \| 83.9 KB PSP PSpice_WE-RFI (rev24a).zip \| 19.8 KB Download all 10 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	18000	±5%	2.52 MHz	15	–	4500	120	24	744762ARFI
744762422A	SPEC	10 files EDA models: Components ZIP ALT Altium_WE-RFI (rev24a).IntLib \| 799.5 KB ANS ANSYS_744762422A (rev23a).a3dcomp \| 1.4 MB ZUK Cadstar_WE-RFI (rev19a).zip \| 6.1 KB CDS Cadence_WE-RFI (rev24a).zip \| 2.8 MB EAG Eagle_WE-RFI (rev24a).lbr \| 57.8 KB CAD files ZIP IGS WE-RFI_1008A_RFI (rev1).igs \| 4.6 MB STP WE-RFI_1008A_RFI (rev1).stp \| 943.7 KB Electric models ZIP ADS ADS_WE-RFI (rev24a).zip \| 5.2 MB S S-Parameter_744762422A (rev23a).s2p \| 84.5 KB PSP PSpice_WE-RFI (rev24a).zip \| 19.8 KB Download all 10 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	22000	±5%	2.52 MHz	15	–	5000	110	22	744762ARFI
744762427A	SPEC	10 files EDA models: Components ZIP ALT Altium_WE-RFI (rev24a).IntLib \| 799.5 KB ANS ANSYS_744762427A (rev23a).a3dcomp \| 1.4 MB ZUK Cadstar_WE-RFI (rev19a).zip \| 6.1 KB CDS Cadence_WE-RFI (rev24a).zip \| 2.8 MB EAG Eagle_WE-RFI (rev24a).lbr \| 57.8 KB CAD files ZIP IGS WE-RFI_1008A_RFI (rev1).igs \| 4.6 MB STP WE-RFI_1008A_RFI (rev1).stp \| 943.7 KB Electric models ZIP ADS ADS_WE-RFI (rev24a).zip \| 5.2 MB S S-Parameter_744762427A (rev23a).s2p \| 84.6 KB PSP PSpice_WE-RFI (rev24a).zip \| 19.8 KB Download all 10 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	27000	±5%	2.52 MHz	15	–	6000	95	21	744762ARFI
744762433A	SPEC	10 files EDA models: Components ZIP ALT Altium_WE-RFI (rev24a).IntLib \| 799.5 KB ANS ANSYS_744762433A (rev23a).a3dcomp \| 1.4 MB ZUK Cadstar_WE-RFI (rev19a).zip \| 6.1 KB CDS Cadence_WE-RFI (rev24a).zip \| 2.8 MB EAG Eagle_WE-RFI (rev24a).lbr \| 57.8 KB CAD files ZIP IGS WE-RFI_1008A_RFI (rev1).igs \| 4.6 MB STP WE-RFI_1008A_RFI (rev1).stp \| 943.7 KB Electric models ZIP ADS ADS_WE-RFI (rev24a).zip \| 5.2 MB S S-Parameter_744762433A (rev23a).s2p \| 84.5 KB PSP PSpice_WE-RFI (rev24a).zip \| 19.8 KB Download all 10 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	33000	±5%	2.52 MHz	15	–	6500	85	20	744762ARFI
744762439A	SPEC	10 files EDA models: Components ZIP ALT Altium_WE-RFI (rev24a).IntLib \| 799.5 KB ANS ANSYS_744762439A (rev23a).a3dcomp \| 1.4 MB ZUK Cadstar_WE-RFI (rev19a).zip \| 6.1 KB CDS Cadence_WE-RFI (rev24a).zip \| 2.8 MB EAG Eagle_WE-RFI (rev24a).lbr \| 57.8 KB CAD files ZIP IGS WE-RFI_1008A_RFI (rev1).igs \| 4.6 MB STP WE-RFI_1008A_RFI (rev1).stp \| 943.7 KB Electric models ZIP ADS ADS_WE-RFI (rev24a).zip \| 5.2 MB S S-Parameter_744762439A (rev23a).s2p \| 84.8 KB PSP PSpice_WE-RFI (rev24a).zip \| 19.8 KB Download all 10 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	39000	±5%	2.52 MHz	15	–	8500	60	18	744762ARFI
744762447A	SPEC	10 files EDA models: Components ZIP ALT Altium_WE-RFI (rev24a).IntLib \| 799.5 KB ANS ANSYS_744762447A (rev23a).a3dcomp \| 1.4 MB ZUK Cadstar_WE-RFI (rev19a).zip \| 6.1 KB CDS Cadence_WE-RFI (rev24a).zip \| 2.8 MB EAG Eagle_WE-RFI (rev24a).lbr \| 57.8 KB CAD files ZIP IGS WE-RFI_1008A_RFI (rev1).igs \| 4.6 MB STP WE-RFI_1008A_RFI (rev1).stp \| 943.7 KB Electric models ZIP ADS ADS_WE-RFI (rev24a).zip \| 5.2 MB S S-Parameter_744762447A (rev23a).s2p \| 84.9 KB PSP PSpice_WE-RFI (rev24a).zip \| 19.8 KB Download all 10 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	47000	±5%	2.52 MHz	15	–	14000	45	17	744762ARFI

	Order Code	Datasheet	Simulation
	7447650120	SPEC
	7447650130	SPEC
	7447650133	SPEC
	7447650136	SPEC
	7447610139	SPEC
	7447610168	SPEC
	7447650177	SPEC
	7447650210	SPEC
	7447610211	SPEC
	7447650212	SPEC
	7447610215	SPEC
	7447650215	SPEC
	7447650218	SPEC
	7447610220	SPEC
	7447650222	SPEC
	7447610224	SPEC
	7447610227	SPEC
	7447650227	SPEC
	7447610236	SPEC
	7447650236	SPEC
	7447610242	SPEC
	7447650242	SPEC
	744760247A	SPEC
	7447650247	SPEC
	7447650253	SPEC
	744760256A	SPEC
	7447610256	SPEC
	7447650259	SPEC
	7447610260	SPEC
	744760268A	SPEC
	7447650270	SPEC
	7447650277	SPEC
	744760282A	SPEC
	7447610282	SPEC
	744760310A	SPEC
	7447610310	SPEC
	744760312A	SPEC
	744762312A	SPEC
	744760315A	SPEC
	744762315A	SPEC
	7447610315	SPEC
	744760318A	SPEC
	744762318A	SPEC
	744760322A	SPEC
	744762322A	SPEC
	7447610322	SPEC
	744760327A	SPEC
	744762327A	SPEC
	744760333A	SPEC
	744762333A	SPEC
	7447610333	SPEC
	744760339A	SPEC
	744762339A	SPEC
	744760347A	SPEC
	744762347A	SPEC
	7447610347	SPEC
	744760356A	SPEC
	744762356A	SPEC
	7447610356	SPEC
	744762368A	SPEC
	7447610368	SPEC
	744760382A	SPEC
	744762382A	SPEC
	7447610382	SPEC
	744760410A	SPEC
	744762410A	SPEC
	7447610410	SPEC
	744762415A	SPEC
	7447610415	SPEC
	744762418A	SPEC
	744762422A	SPEC
	744762427A	SPEC
	744762433A	SPEC
	744762439A	SPEC
	744762447A	SPEC

Samples

	Order Code	Datasheet	Simulation	Downloads	Status	L (nH)	Tol. L	Test Condition L	Q_min. (%)	Q	R_{DC max.} (mΩ)	I_R (mA)	f_res (MHz)	Design Kit	Samples

Würth Elektronik offers several product series with different construction technology

RF Inductors selection guide

WE-KI Wire Wound Ceramic Inductor

Inductance values from 1nH up to 1800nH
High Q factor
Up to 12.5GHz self resonant frequency
Up to ± 2% inductance tolerance
High thermal stability
Design Kits available for the different sizes

WE-KI High Current Wire Wound Ceramic Inductor

Inductance values from 1nH up to 390nH
Excellent Q factor
High current up to 2.3 A
± 2% Inductance Tolerance
High thermal stability
Design Kit available

WE-MK Multilayer Ceramic Inductor

Inductance values from 1nH up to 470nH
Extremly small size (up to 0201)
Up to ±2% (or ±0.1nH) inductance tolerance
Robust structure
Polarity marking available
Design Kits available for the different sizes
High thermal stability

WE-CAIR Air Core Inductor

Inductance values from 1.65nH up to 538nH
Extremly high Q factor (Q>100)
Very high current up to 4 A
High self resonant frequency
Design Kit available
High thermal stability

WE-TCI Thin Film Inductor

Inductance values from 1nH up to 27nH
High self resonant frequency
Tight tolerance of 2 % (1% on request) or ± 0.1
Very small size (up to 0201)

WE-RFI Wire Wound ferrite inductor

High inductance values available from 20 nH up to 47 µH
Operating temperature:–40 °C to +85 °C
Size: 0402 to 1008
Design Kit available

What is the Quality Factor Q?

The quality factor Q is an essential characteristic parameter and one of the first creterias that every RF engineer should take into account. The Q factor is given either as minimum or as typical value at a defined frequency point. In the case of Würth Elektronik, the Q factor is given as the minimum value in order to guarantee customers a reliable minimum level.

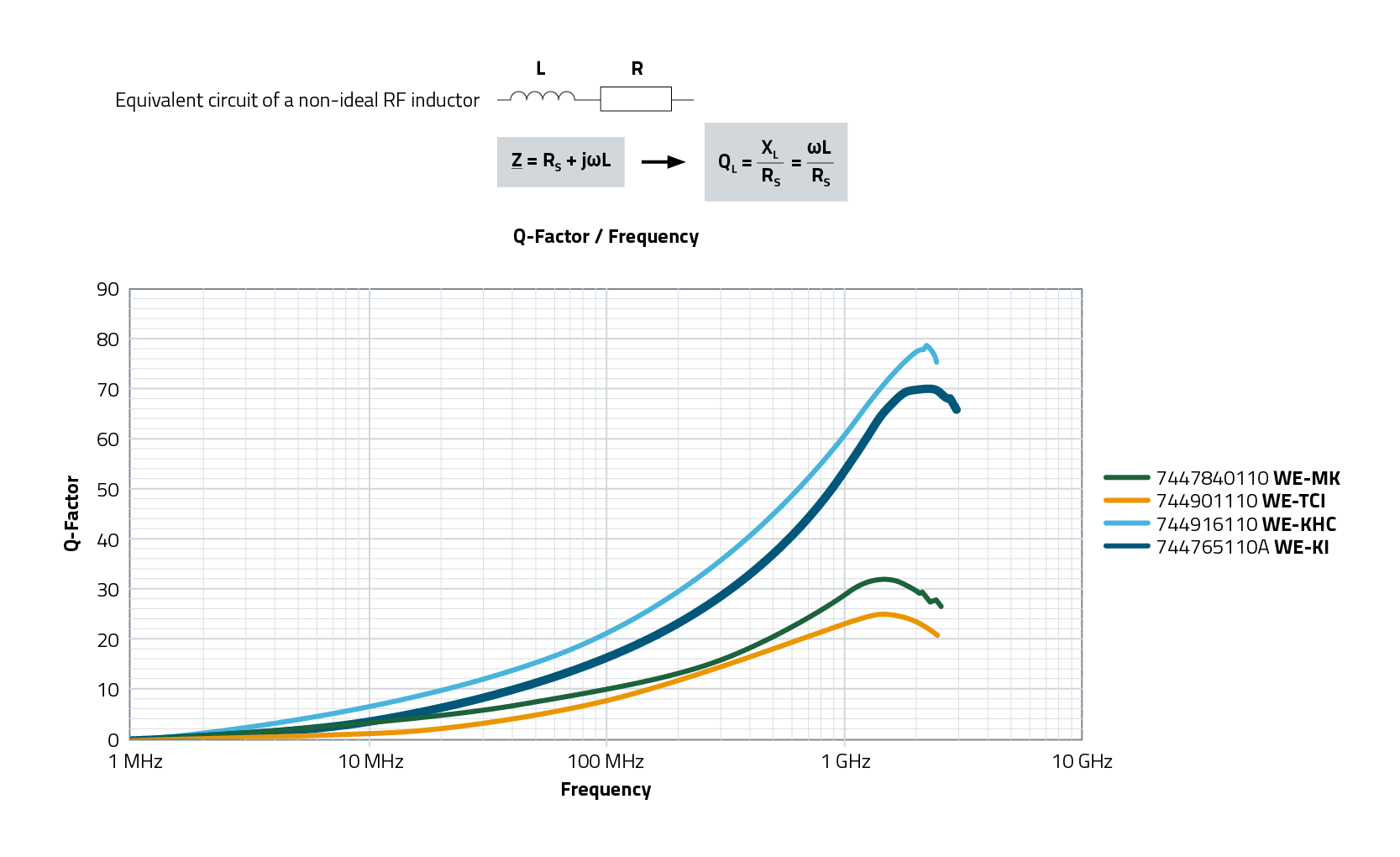

Basically, the Q factor is the ratio between the inductive reactance X_L and the losses R_S and is an indicator of how ideal an inductor is. For inductors with air or ceramic cores, the resistance R_S is mainly due to the resistivity of the conductor in the inductor device. A higher Q factor means less losses in the component.

Self Resonant Frequency

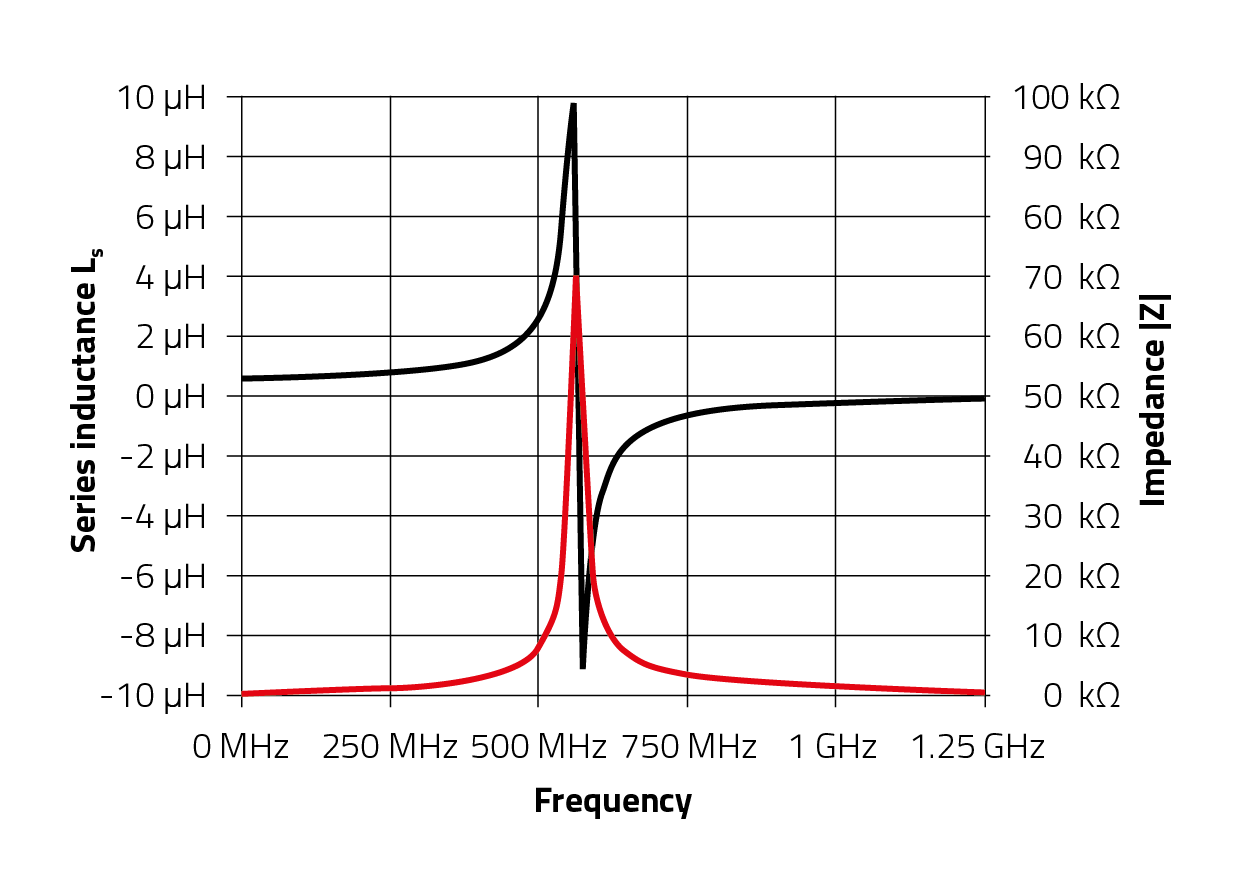

Because the winding structure of any coil of wire will exhibit some capacitance, the inductor will serve as a parallel resonant tank circuit with an associated self-resonance frequency (SRF). As with conventional inductors, SRF indicates up to which frequency the inductor behaves as an inductor.

Exactly at the SRF the inductor with its parasitic capacitance behaves as a resonance circuit with an almost infinite high impedance, only circuit losses limit the high value of the impedance. Beyond the SRF the “inductor” behaves like a capacitor

Increasing the inductance and/or the parasitic capacitance lowers the SRF, and vice versa. This is the reason why the higher the inductance value, the lower the SRF.

In case of choke applications in which inductors are used, the best signal blocking occurs shortly below the SRF, where the impedance is very high and thus the attenuation reaches its maximum. For filter or impedance-matching applications, it is more important to have constant inductance in the relevant frequency range, which means the SRF of the inductor should be well above the operating frequency of the circuit.

Rated Current in high frequency application

The rated current is specified as the maximum DC current (A or mA) that causes a defined temperature rise (i.e. ΔT = 40 K). The temperature rise plus the ambient temperature must not exceed the maximum operating temperature. For high current applications, please select the specific air core inductors: WE-KI HC, WE-ACHC and WE-CAIR.

RF inductors and Antenna Matching

How Antenna Matching works

With the help of the Smith chart, the complex antenna feed point impedance, consisting of resistive and reactive values, can be represented graphically. In a matched antenna, the impedance at the operating frequency is close to the middle of the Smith chart and therefore close to the impedance of 50 Ω. This can be achieved by using RF inductors and RF capacitors. A pi matching network is particularly useful for this purpose, since it can be used flexibly for antenna matching from almost any other impedance. In practice, antenna matching works through iterative steps.

In addition to the WE-MCA Antennas, we offer our customers a development-accompanying antenna service. We support from the antenna selection over the antenna placement up to the antenna matching.

Website: www.we-online.com/antenna-matching

E-Mail: antenna.matching@we-online.com

We are also offering an Antenna Matching Design Kit that contains all the components needed for your antenna matching. This Design Kit with order code 748001, contains chip antennas WE-MCA, multilayer ceramic inductors WE-MK size 0402, high frequency chip capacitors WCAP-CSRF in size 0402 and RF coaxial cables WR-CXARY working up to 18 GHz

Assortments

Articles from this product series can be found in the following assortments:

Design Kit WE-RFI SMT Wire Wound Ferrite Inductor 0805/1008 - ±5% Tol.
