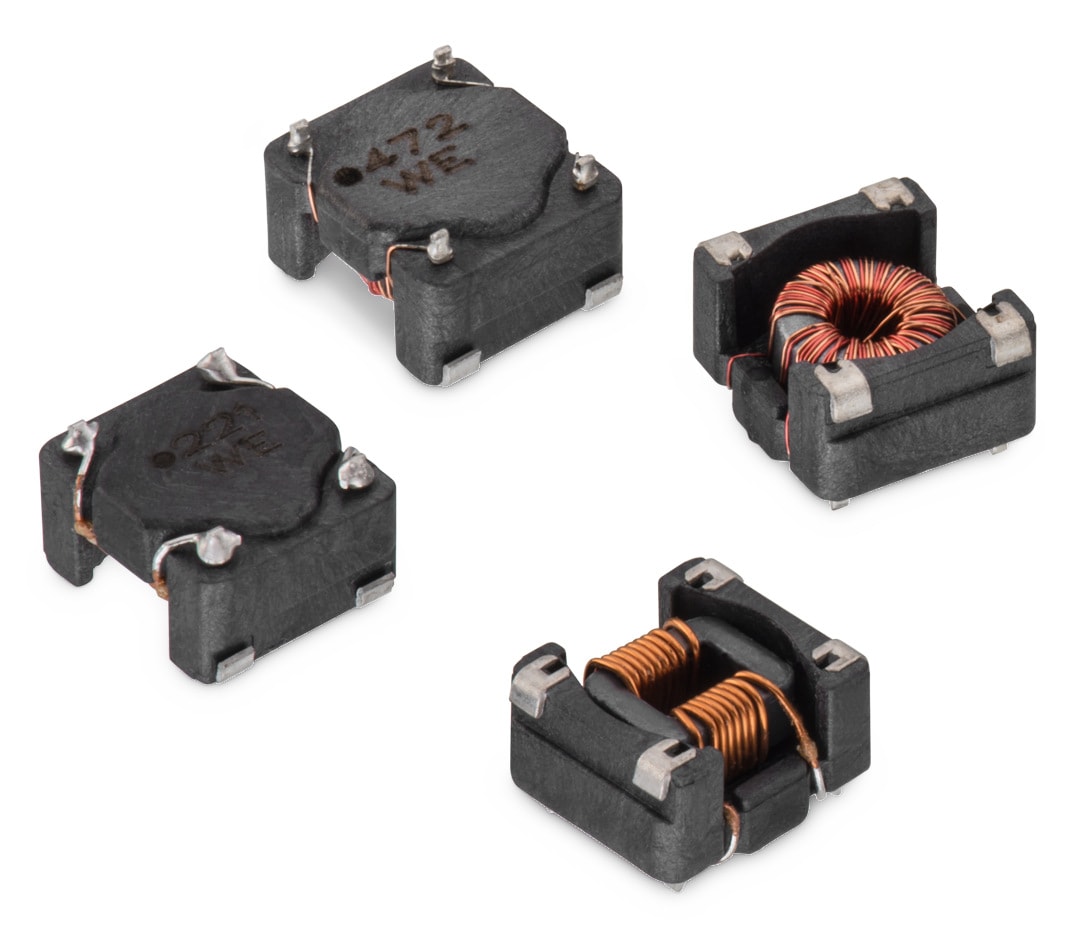

WE-SL5 SMT Common Mode Line Filter

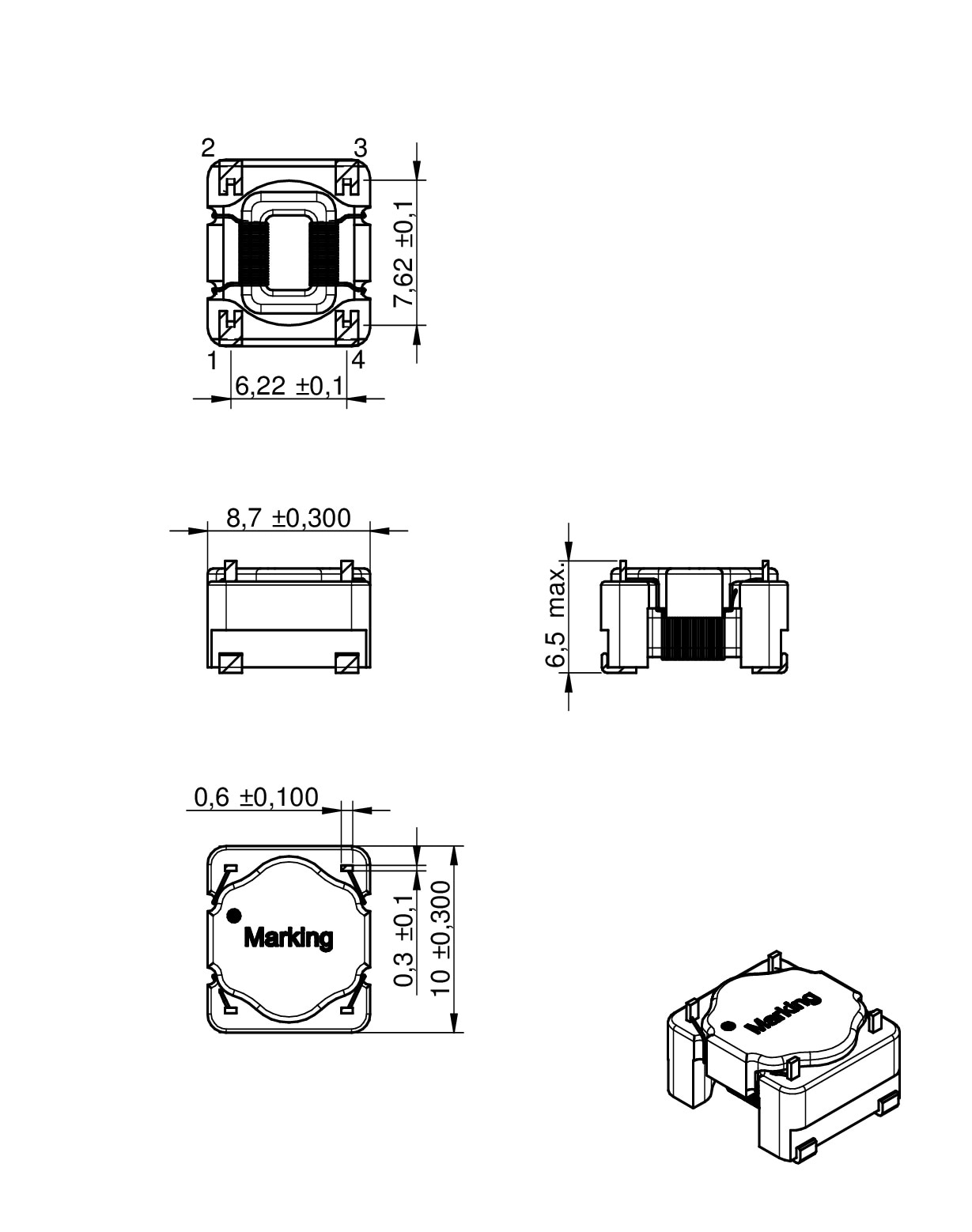

Size	Dimensions	L (mm)	W (mm)	H (mm)	Mount
WE-SL5		10	8.7	6.5	SMT

LTSpice files

LT
LTSpice_WE-SL5 (rev22a).zip
|
3.6 KB

Characteristics

High impedance up to 13000 Ω
High current up to 2500 mA
Rated voltage: 80 VDC (42 VAC)
Flammability corresponding to UL 94 V-0
Climatic category 40/125/21

Applications

Current compensated choke for data and signal lines
Power supply system
Signal and sensor lines
Suppression of common mode noise
