WE-STAR-FIX

WE-STAR-FIX

Characteristics

  • With reliable flexible cable fixing, developed in-house
  • Pre-fixing cable system facilitates the cable assembling process
  • Cable clamping protection
  • Internal security locking system with key technology WE-STAR-KEY (safety key) prevents unauthorized removing from the cable
  • One key in each sample shipment
  • Classification of the plastic housing: UL94 V0
  • Operating temperature: –25 °C to +105 °C
  • Core material: NiZn

Applications

  • Perfect for applications with varying cable diameter
  • Reusable because of the key technology therefore perfect for test and measuring purposes and cables with difficult access
  • Reusable thanks to STAR-KEY technology, ideal for testing and measuring purposes in EMC laboratories

Alternative Product Series Recommended

This product series will be available for existing designs. Please use the offered alternative for new designs, which show a better performance. If you have any questions, please do not hesitate to contact us personally or via our contact form.

Products

Order Code Data­sheet Replacement Order Code Downloads StatusØ Cable
(mm)
Z @ 25 MHz
1 turn
(Ω)
Z @ 100 MHz
1 turn
(Ω)
Z @ 25 MHz
2 turns
(Ω)
Z @ 100 MHz
2 turns
(Ω)

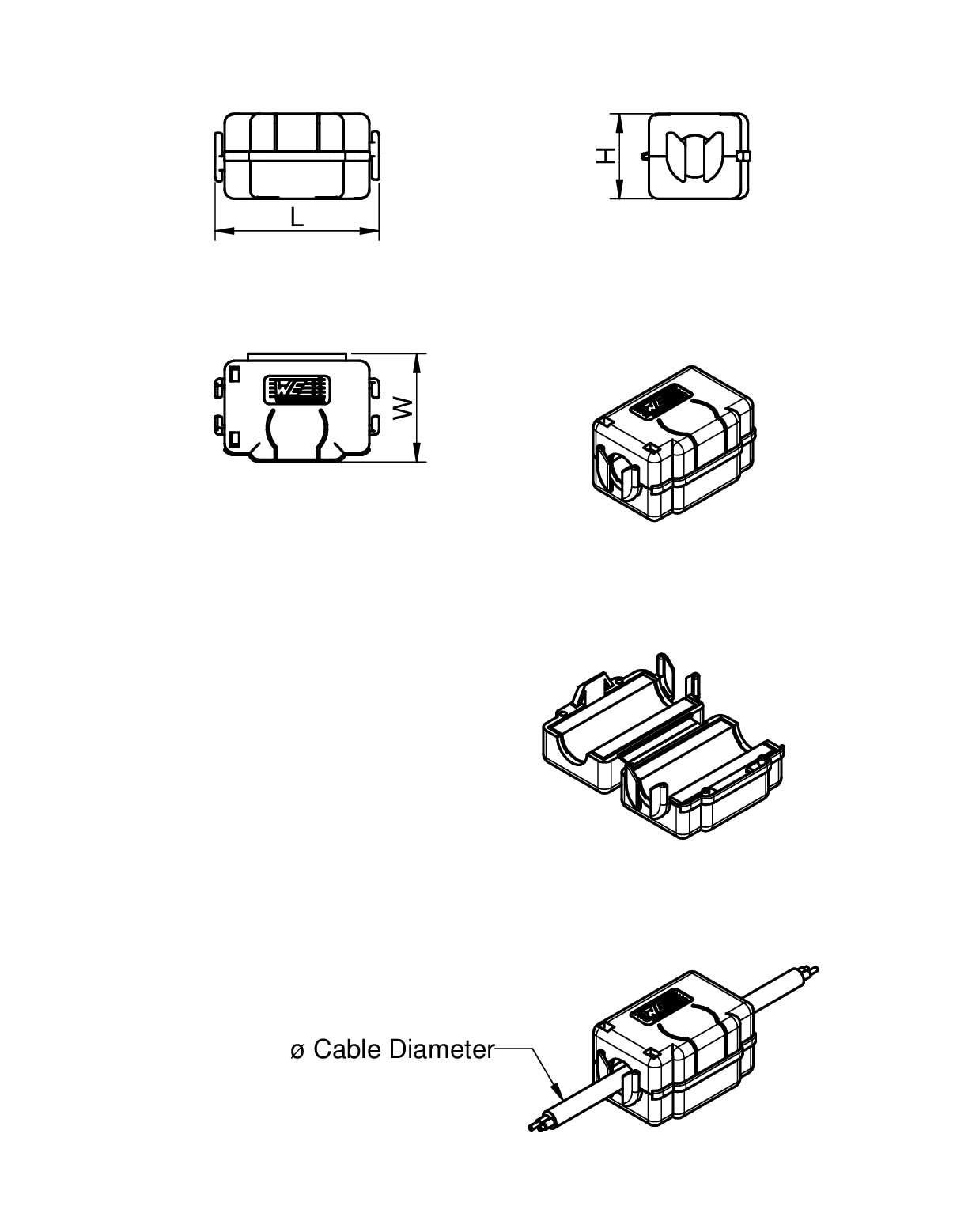

MaterialL
(mm)
W
(mm)
H
(mm)
ColorSafety KeySTAR-CLIP Fixation Samples
74271733iSPEC
74271131
74271132
Active i| Production is active. Expected lifetime: >10 years. 4.5 - 8 145 246 607 755 4 W 620 35.1 21.7 18.2 Grey74271
7427711
74271733SiSPEC
74271131S
74271132S
Active i| Production is active. Expected lifetime: >10 years. 4.5 - 8 145 246 607 755 4 W 620 35.1 21.7 18.2 Black74271
7427711
74271722iSPEC
74271221
74271222
NRND i| Production is active. Product is not recommended for new design. Please check NRND notification. Expected lifetime: 2-5 years. 8.5 - 12.5 151 270 641 783 4 W 620 35.1 31 28 Grey74271
74271722SiSPEC
74271221S
74271222S
NRND i| Production is active. Product is not recommended for new design. Please check NRND notification. Expected lifetime: 2-5 years. 8.5 - 12.5 151 270 641 783 4 W 620 35.1 31 28 Black74271
Order Code Data­sheet Replacement Order Code
74271733iSPEC
74271131
74271132
74271733SiSPEC
74271131S
74271132S
74271722iSPEC
74271221
74271222
74271722SiSPEC
74271221S
74271222S
