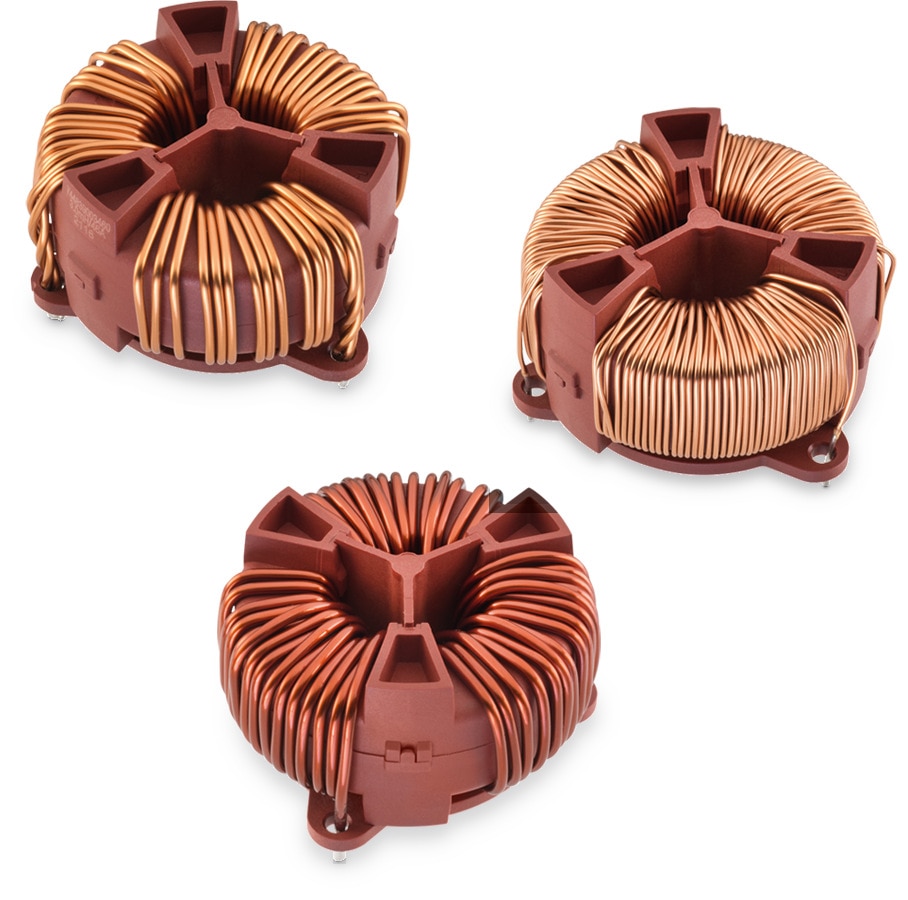

WE-TPB HV Three-Phase Common Mode Power Line Choke

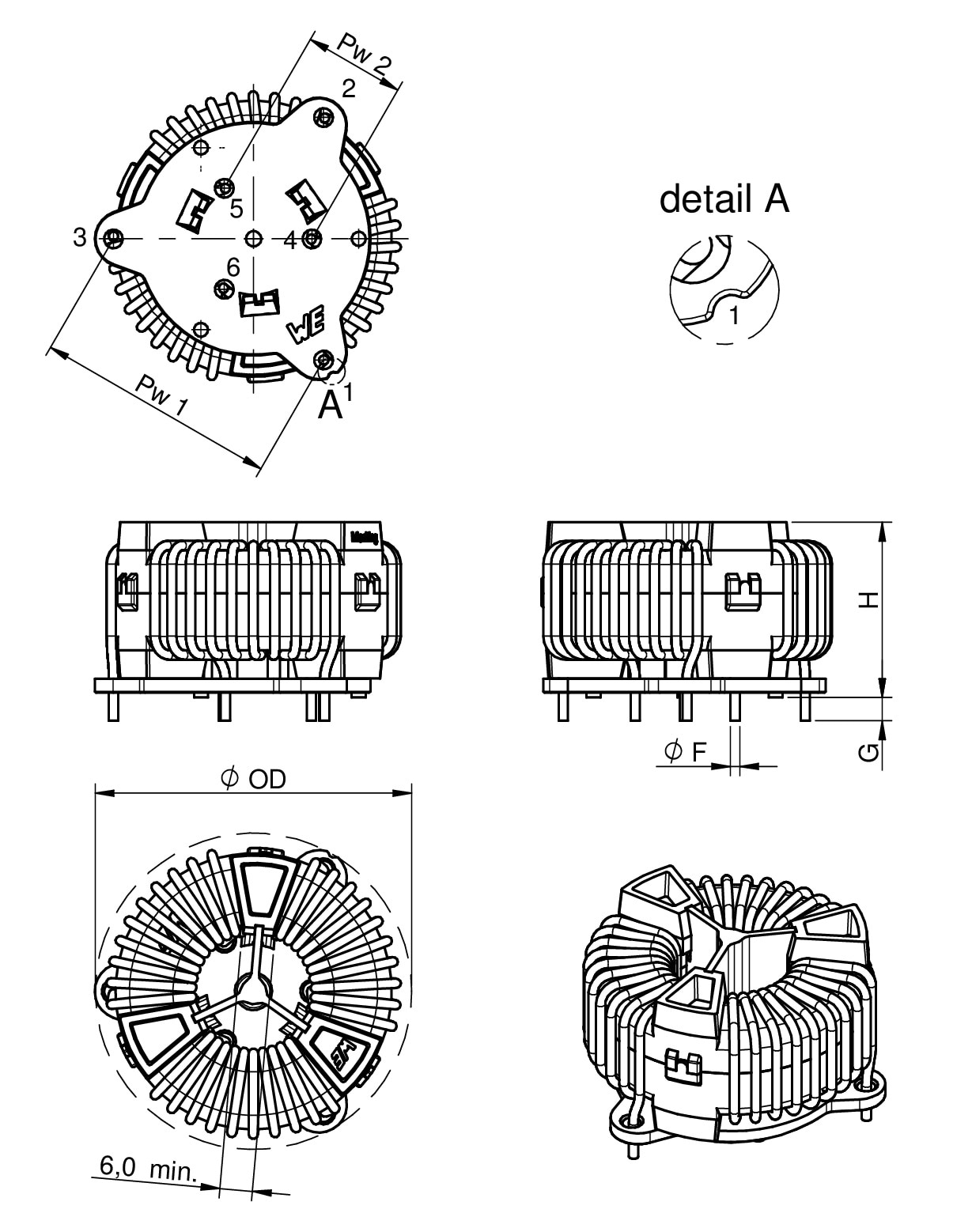

Size	Dimensions	Ø OD (mm)	H (mm)	Mount
Type 4XL		70	39	THT

LTSpice files

LT
LTSpice_WE-TPBHV (rev22a).zip
|
310.2 KB

Characteristics

Application up to 760 VAC
High permeability MnZn Ferrite or nanocrystalline core material
Improved insulation through plastic case and winding spacer
Patented design
Specification according to EN 60938-2
Air and creepage distances ≥ 7 mm
Rated current up to 46 A
Attenuation up to 60 dB
Suppression frequency range: 1 kHz to 20 MHz depending from used core material
Operating temperature: -40 °C to +125 °C
Flammability corresponding to UL 94 V-0
Climatic category: 40/125/21

Applications

Power electronics
Power line input filter
Radio interference suppression in motors
Suppression for common mode noise
Frequency converter
Power supplies
Charging stations

Products

Type 4XL

Order Code	Datasheet	Downloads	Status	I_R (A)	L (mH)	R_{DC max.} (mΩ)	V_R (V (AC))	V_T (V (AC))	Material	Ø OD (mm)	Mount
744835021220	SPEC	9 files EDA models: Components ZIP ALT Altium_WE-TPB HV (rev22a).IntLib \| 11.7 MB ZUK Cadstar_WE-TPBHV (rev19a).zip \| 11.8 KB CDS Cadence_WE-TPB_HV (rev18a).zip \| 26.1 MB EAG Eagle_WE-TPB HV (rev19a).lbr \| 59 KB CAD files ZIP IGS Download_IGS_WE-TPBHV-744835021220 (rev1).igs \| 9.1 MB STP Download_STP_WE-TPBHV-744835021220 (rev1).stp \| 3.2 MB Electric models ZIP ADS ADS_WE-TPBHV (rev24a).zip \| 11 MB S S-PARAMETER_WE-TPBHV (rev20a).zip \| 4.1 MB PSP PSpice_WE-TPBHV (rev22a).zip \| 314.4 KB Download all 9 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	22	2.1	9	760	3000	Ferrite MnZn	70	THT
744835034160	SPEC	9 files EDA models: Components ZIP ALT Altium_WE-TPB HV (rev22a).IntLib \| 11.7 MB ZUK Cadstar_WE-TPBHV (rev19a).zip \| 11.8 KB CDS Cadence_WE-TPB_HV (rev18a).zip \| 26.1 MB EAG Eagle_WE-TPB HV (rev19a).lbr \| 59 KB CAD files ZIP IGS Download_IGS_WE-TPBHV-744835034160 (rev1).igs \| 9.2 MB STP Download_STP_WE-TPBHV-744835034160 (rev1).stp \| 3.2 MB Electric models ZIP ADS ADS_WE-TPBHV (rev24a).zip \| 11 MB S S-PARAMETER_WE-TPBHV (rev20a).zip \| 4.1 MB PSP PSpice_WE-TPBHV (rev22a).zip \| 314.4 KB Download all 9 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	16	3.4	14	760	3000	Ferrite MnZn	70	THT
744835050135	SPEC	9 files EDA models: Components ZIP ALT Altium_WE-TPB HV (rev22a).IntLib \| 11.7 MB ZUK Cadstar_WE-TPBHV (rev19a).zip \| 11.8 KB CDS Cadence_WE-TPB_HV (rev18a).zip \| 26.1 MB EAG Eagle_WE-TPB HV (rev19a).lbr \| 59 KB CAD files ZIP IGS Download_IGS_WE-TPBHV-744835050135 (rev1).igs \| 9.5 MB STP Download_STP_WE-TPBHV-744835050135 (rev1).stp \| 3.4 MB Electric models ZIP ADS ADS_WE-TPBHV (rev24a).zip \| 11 MB S S-PARAMETER_WE-TPBHV (rev20a).zip \| 4.1 MB PSP PSpice_WE-TPBHV (rev22a).zip \| 314.4 KB Download all 9 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	13.5	5	23	760	3000	Ferrite MnZn	70	THT
744835090095	SPEC	9 files EDA models: Components ZIP ALT Altium_WE-TPB HV (rev22a).IntLib \| 11.7 MB ZUK Cadstar_WE-TPBHV (rev19a).zip \| 11.8 KB CDS Cadence_WE-TPB_HV (rev18a).zip \| 26.1 MB EAG Eagle_WE-TPB HV (rev19a).lbr \| 59 KB CAD files ZIP IGS Download_IGS_WE-TPBHV-744835090095 (rev1).igs \| 9.9 MB STP Download_STP_WE-TPBHV-744835090095 (rev1).stp \| 3.6 MB Electric models ZIP ADS ADS_WE-TPBHV (rev24a).zip \| 11 MB S S-PARAMETER_WE-TPBHV (rev20a).zip \| 4.1 MB PSP PSpice_WE-TPBHV (rev22a).zip \| 314.4 KB Download all 9 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	9.5	9	47	760	3000	Ferrite MnZn	70	THT
744835150072	SPEC	9 files EDA models: Components ZIP ALT Altium_WE-TPB HV (rev22a).IntLib \| 11.7 MB ZUK Cadstar_WE-TPBHV (rev19a).zip \| 11.8 KB CDS Cadence_WE-TPB_HV (rev18a).zip \| 26.1 MB EAG Eagle_WE-TPB HV (rev19a).lbr \| 59 KB CAD files ZIP IGS Download_IGS_WE-TPBHV-744835150072 (rev1).igs \| 10.3 MB STP Download_STP_WE-TPBHV-744835150072 (rev1).stp \| 3.7 MB Electric models ZIP ADS ADS_WE-TPBHV (rev24a).zip \| 11 MB S S-PARAMETER_WE-TPBHV (rev20a).zip \| 4.1 MB PSP PSpice_WE-TPBHV (rev22a).zip \| 314.4 KB Download all 9 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	7.2	15	85	760	3000	Ferrite MnZn	70	THT
744837002460	SPEC	9 files EDA models: Components ZIP ALT Altium_WE-TPB HV (rev22a).IntLib \| 11.7 MB ZUK Cadstar_WE-TPBHV (rev19a).zip \| 11.8 KB CDS Cadence_WE-TPB_HV (rev18a).zip \| 26.1 MB EAG Eagle_WE-TPB HV (rev19a).lbr \| 59 KB CAD files ZIP IGS Download_IGS_WE-TPBHV-744837002460 (rev1).igs \| 9.5 MB STP Download_STP_WE-TPBHV-744837002460 (rev1).stp \| 3.3 MB Electric models ZIP ADS ADS_WE-TPBHV (rev24a).zip \| 11 MB S S-PARAMETER_WE-TPBHV (rev20a).zip \| 4.1 MB PSP PSpice_WE-TPBHV (rev22a).zip \| 314.4 KB Download all 9 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	46	0.2	1.6	760	3000	Nanocrystalline	70	THT
744837006400	SPEC	9 files EDA models: Components ZIP ALT Altium_WE-TPB HV (rev22a).IntLib \| 11.7 MB ZUK Cadstar_WE-TPBHV (rev19a).zip \| 11.8 KB CDS Cadence_WE-TPB_HV (rev18a).zip \| 26.1 MB EAG Eagle_WE-TPB HV (rev19a).lbr \| 59 KB CAD files ZIP IGS Download_IGS_WE-TPBHV-744837006400 (rev1).igs \| 9.7 MB STP Download_STP_WE-TPBHV-744837006400 (rev1).stp \| 3.4 MB Electric models ZIP ADS ADS_WE-TPBHV (rev24a).zip \| 11 MB S S-PARAMETER_WE-TPBHV (rev20a).zip \| 4.1 MB PSP PSpice_WE-TPBHV (rev22a).zip \| 314.4 KB Download all 9 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	40	0.6	3.2	760	3000	Nanocrystalline	70	THT
744837010290	SPEC	9 files EDA models: Components ZIP ALT Altium_WE-TPB HV (rev22a).IntLib \| 11.7 MB ZUK Cadstar_WE-TPBHV (rev19a).zip \| 11.8 KB CDS Cadence_WE-TPB_HV (rev18a).zip \| 26.1 MB EAG Eagle_WE-TPB HV (rev19a).lbr \| 59 KB CAD files ZIP IGS Download_IGS_WE-TPBHV-744837010290 (rev1).igs \| 10 MB STP Download_STP_WE-TPBHV-744837010290 (rev1).stp \| 3.6 MB Electric models ZIP ADS ADS_WE-TPBHV (rev24a).zip \| 11 MB S S-PARAMETER_WE-TPBHV (rev20a).zip \| 4.1 MB PSP PSpice_WE-TPBHV (rev22a).zip \| 314.4 KB Download all 9 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	29	1	5	760	3000	Nanocrystalline	70	THT
744837018220	SPEC	9 files EDA models: Components ZIP ALT Altium_WE-TPB HV (rev22a).IntLib \| 11.7 MB ZUK Cadstar_WE-TPBHV (rev19a).zip \| 11.8 KB CDS Cadence_WE-TPB_HV (rev18a).zip \| 26.1 MB EAG Eagle_WE-TPB HV (rev19a).lbr \| 59 KB CAD files ZIP IGS Download_IGS_WE-TPBHV-744837018220 (rev1).igs \| 9.1 MB STP Download_STP_WE-TPBHV-744837018220 (rev1).stp \| 3.2 MB Electric models ZIP ADS ADS_WE-TPBHV (rev24a).zip \| 11 MB S S-PARAMETER_WE-TPBHV (rev20a).zip \| 4.1 MB PSP PSpice_WE-TPBHV (rev22a).zip \| 314.4 KB Download all 9 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	22	1.8	9	760	3000	Nanocrystalline	70	THT
744838040400	SPEC	9 files EDA models: Components ZIP ALT Altium_WE-TPB HV (rev22a).IntLib \| 11.7 MB ZUK Cadstar_WE-TPBHV (rev19a).zip \| 11.8 KB CDS Cadence_WE-TPB_HV (rev18a).zip \| 26.1 MB EAG Eagle_WE-TPB HV (rev19a).lbr \| 59 KB CAD files ZIP IGS Download_IGS_WE-TPBHV-744838040400 (rev1).igs \| 9.7 MB STP Download_STP_WE-TPBHV-744838040400 (rev1).stp \| 3.4 MB Electric models ZIP ADS ADS_WE-TPBHV (rev24a).zip \| 11 MB S S-PARAMETER_WE-TPBHV (rev20a).zip \| 4.1 MB PSP PSpice_WE-TPBHV (rev22a).zip \| 314.4 KB Download all 9 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	40	4	3.2	760	3000	Nanocrystalline	70	THT
744838180160	SPEC	9 files EDA models: Components ZIP ALT Altium_WE-TPB HV (rev22a).IntLib \| 11.7 MB ZUK Cadstar_WE-TPBHV (rev19a).zip \| 11.8 KB CDS Cadence_WE-TPB_HV (rev18a).zip \| 26.1 MB EAG Eagle_WE-TPB HV (rev19a).lbr \| 59 KB CAD files ZIP IGS Download_IGS_WE-TPBHV-744838180160 (rev1).igs \| 9.2 MB STP Download_STP_WE-TPBHV-744838180160 (rev1).stp \| 3.2 MB Electric models ZIP ADS ADS_WE-TPBHV (rev24a).zip \| 11 MB S S-PARAMETER_WE-TPBHV (rev20a).zip \| 4.1 MB PSP PSpice_WE-TPBHV (rev22a).zip \| 314.4 KB Download all 9 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	16	18	14	760	3000	Nanocrystalline	70	THT
744838480095	SPEC	9 files EDA models: Components ZIP ALT Altium_WE-TPB HV (rev22a).IntLib \| 11.7 MB ZUK Cadstar_WE-TPBHV (rev19a).zip \| 11.8 KB CDS Cadence_WE-TPB_HV (rev18a).zip \| 26.1 MB EAG Eagle_WE-TPB HV (rev19a).lbr \| 59 KB CAD files ZIP IGS Download_IGS_WE-TPBHV-744838480095 (rev1).igs \| 9.9 MB STP Download_STP_WE-TPBHV-744838480095 (rev1).stp \| 3.6 MB Electric models ZIP ADS ADS_WE-TPBHV (rev24a).zip \| 11 MB S S-PARAMETER_WE-TPBHV (rev20a).zip \| 4.1 MB PSP PSpice_WE-TPBHV (rev22a).zip \| 314.4 KB Download all 9 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	9.5	48	47	760	3000	Nanocrystalline	70	THT
744839003460	SPEC	9 files EDA models: Components ZIP ALT Altium_WE-TPB HV (rev22a).IntLib \| 11.7 MB ZUK Cadstar_WE-TPBHV (rev19a).zip \| 11.8 KB CDS Cadence_WE-TPB_HV (rev18a).zip \| 26.1 MB EAG Eagle_WE-TPB HV (rev19a).lbr \| 59 KB CAD files ZIP IGS Download_IGS_WE-TPBHV-744839003460 (rev1).igs \| 9.5 MB STP Download_STP_WE-TPBHV-744839003460 (rev1).stp \| 3.3 MB Electric models ZIP ADS ADS_WE-TPBHV (rev24a).zip \| 11 MB S S-PARAMETER_WE-TPBHV (rev20a).zip \| 4.1 MB PSP PSpice_WE-TPBHV (rev22a).zip \| 314.4 KB Download all 9 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	46	3	1.6	760	3000	Nanocrystalline	70	THT
744839010400	SPEC	9 files EDA models: Components ZIP ALT Altium_WE-TPB HV (rev22a).IntLib \| 11.7 MB ZUK Cadstar_WE-TPBHV (rev19a).zip \| 11.8 KB CDS Cadence_WE-TPB_HV (rev18a).zip \| 26.1 MB EAG Eagle_WE-TPB HV (rev19a).lbr \| 59 KB CAD files ZIP IGS Download_IGS_WE-TPBHV-744839010400 (rev1).igs \| 9.7 MB STP Download_STP_WE-TPBHV-744839010400 (rev1).stp \| 3.4 MB Electric models ZIP ADS ADS_WE-TPBHV (rev24a).zip \| 11 MB S S-PARAMETER_WE-TPBHV (rev20a).zip \| 4.1 MB PSP PSpice_WE-TPBHV (rev22a).zip \| 314.4 KB Download all 9 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	40	10.5	3.2	760	3000	Nanocrystalline	70	THT
744839029220	SPEC	9 files EDA models: Components ZIP ALT Altium_WE-TPB HV (rev22a).IntLib \| 11.7 MB ZUK Cadstar_WE-TPBHV (rev19a).zip \| 11.8 KB CDS Cadence_WE-TPB_HV (rev18a).zip \| 26.1 MB EAG Eagle_WE-TPB HV (rev19a).lbr \| 59 KB CAD files ZIP IGS Download_IGS_WE-TPBHV-744839029220 (rev1).igs \| 9.1 MB STP Download_STP_WE-TPBHV-744839029220 (rev1).stp \| 3.2 MB Electric models ZIP ADS ADS_WE-TPBHV (rev24a).zip \| 11 MB S S-PARAMETER_WE-TPBHV (rev20a).zip \| 4.1 MB PSP PSpice_WE-TPBHV (rev22a).zip \| 314.4 KB Download all 9 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	22	29	9	760	3000	Nanocrystalline	70	THT
744839047160	SPEC	9 files EDA models: Components ZIP ALT Altium_WE-TPB HV (rev22a).IntLib \| 11.7 MB ZUK Cadstar_WE-TPBHV (rev19a).zip \| 11.8 KB CDS Cadence_WE-TPB_HV (rev18a).zip \| 26.1 MB EAG Eagle_WE-TPB HV (rev19a).lbr \| 59 KB CAD files ZIP IGS Download_IGS_WE-TPBHV-744839047160 (rev1).igs \| 9.2 MB STP Download_STP_WE-TPBHV-744839047160 (rev1).stp \| 3.2 MB Electric models ZIP ADS ADS_WE-TPBHV (rev24a).zip \| 11 MB S S-PARAMETER_WE-TPBHV (rev20a).zip \| 4.1 MB PSP PSpice_WE-TPBHV (rev22a).zip \| 314.4 KB Download all 9 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	16	47	14	760	3000	Nanocrystalline	70	THT
744839125095	SPEC	9 files EDA models: Components ZIP ALT Altium_WE-TPB HV (rev22a).IntLib \| 11.7 MB ZUK Cadstar_WE-TPBHV (rev19a).zip \| 11.8 KB CDS Cadence_WE-TPB_HV (rev18a).zip \| 26.1 MB EAG Eagle_WE-TPB HV (rev19a).lbr \| 59 KB CAD files ZIP IGS Download_IGS_WE-TPBHV-744839125095 (rev1).igs \| 9.9 MB STP Download_STP_WE-TPBHV-744839125095 (rev1).stp \| 3.6 MB Electric models ZIP ADS ADS_WE-TPBHV (rev24a).zip \| 11 MB S S-PARAMETER_WE-TPBHV (rev20a).zip \| 4.1 MB PSP PSpice_WE-TPBHV (rev22a).zip \| 314.4 KB Download all 9 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	9.5	125	47	760	3000	Nanocrystalline	70	THT
744839208072	SPEC	9 files EDA models: Components ZIP ALT Altium_WE-TPB HV (rev22a).IntLib \| 11.7 MB ZUK Cadstar_WE-TPBHV (rev19a).zip \| 11.8 KB CDS Cadence_WE-TPB_HV (rev18a).zip \| 26.1 MB EAG Eagle_WE-TPB HV (rev19a).lbr \| 59 KB CAD files ZIP IGS Download_IGS_WE-TPBHV-744839208072 (rev1).igs \| 10.3 MB STP Download_STP_WE-TPBHV-744839208072 (rev1).stp \| 3.7 MB Electric models ZIP ADS ADS_WE-TPBHV (rev24a).zip \| 11 MB S S-PARAMETER_WE-TPBHV (rev20a).zip \| 4.1 MB PSP PSpice_WE-TPBHV (rev22a).zip \| 314.4 KB Download all 9 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	7.2	208	85	760	3000	Nanocrystalline	70	THT

Order Code	Datasheet	Simulation
744835021220	SPEC
744835034160	SPEC
744835050135	SPEC
744835090095	SPEC
744835150072	SPEC
744837002460	SPEC
744837006400	SPEC
744837010290	SPEC
744837018220	SPEC
744838040400	SPEC
744838180160	SPEC
744838480095	SPEC
744839003460	SPEC
744839010400	SPEC
744839029220	SPEC
744839047160	SPEC
744839125095	SPEC
744839208072	SPEC
