WE-TS Shielding Textiles

Characteristics

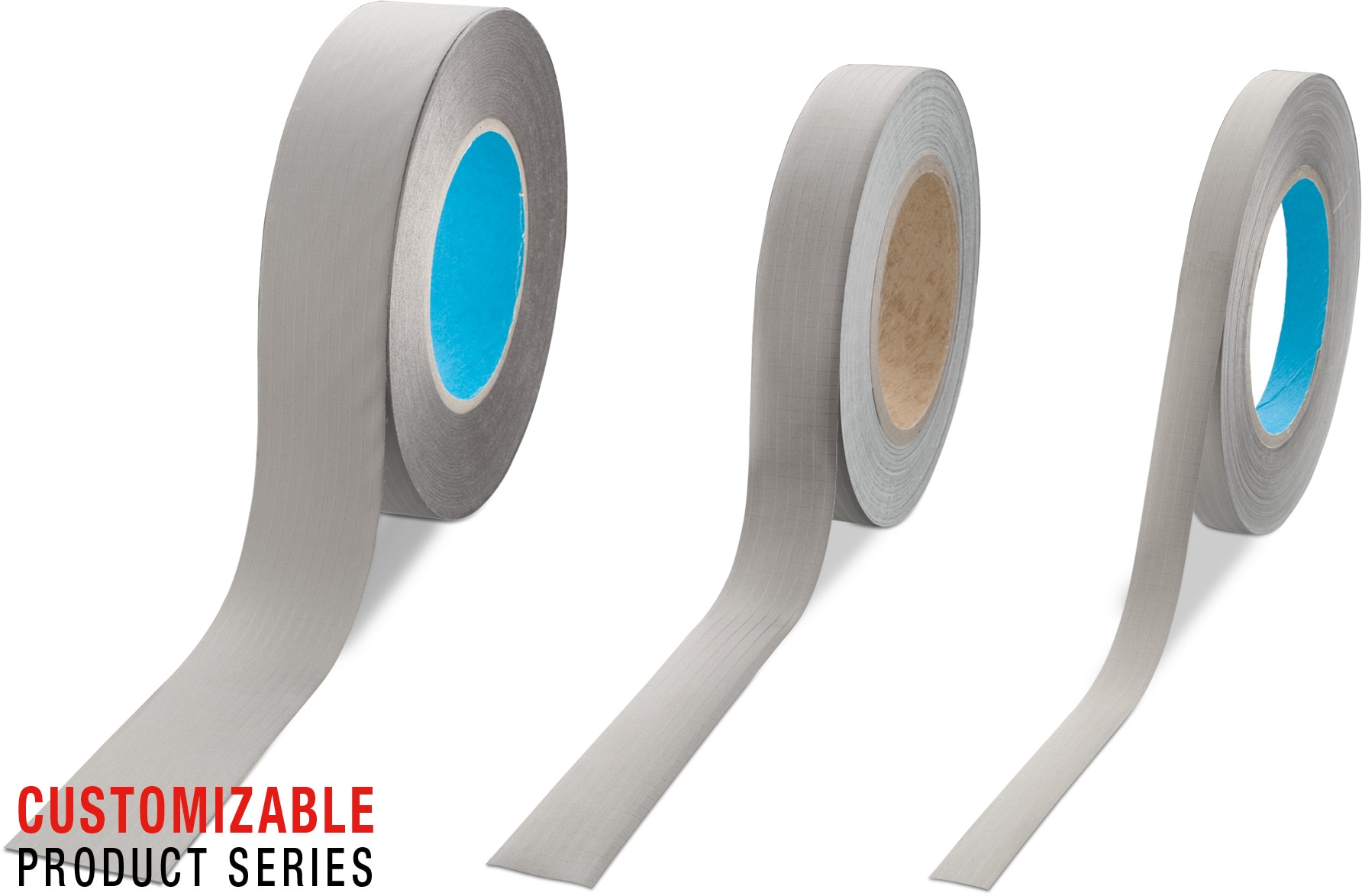

Customizable Product Series:

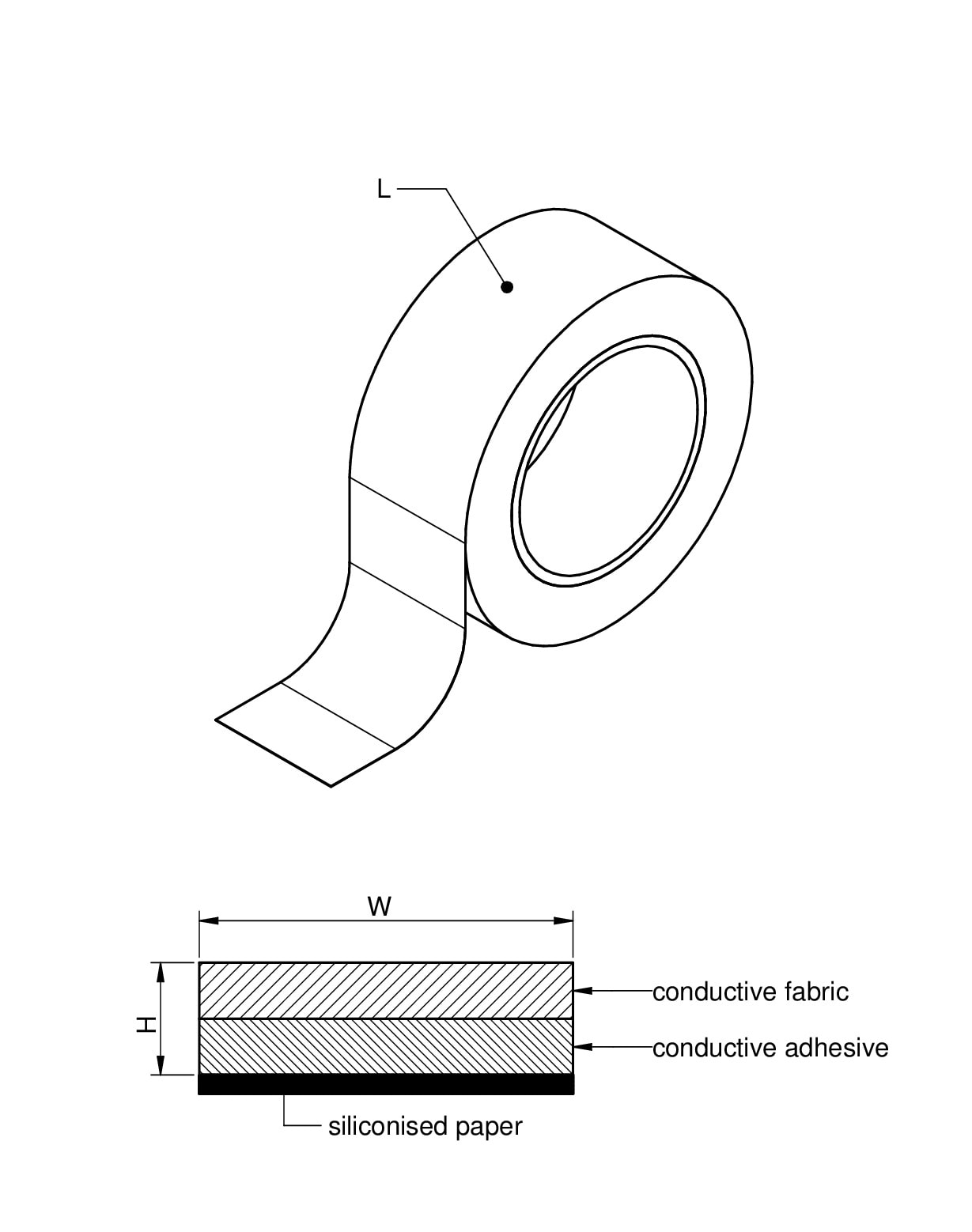

Dimensions
Shape
Ni/Cu textiles with conductive adhesive
High shielding effectiveness due to a high conductivity
Surface resistance: 0.11 Ω/cm² typ.
Volume resistance: 0.03 Ω/cm³ typ.
Operating temperature: -20 ºC to +80 ºC
The shielding gasket is not solderable

Applications

Shielding
Displays
Electronic contacting and grounding

Cut it, fold it, test it. ShielDIY!

Create your own customized Shielding Cabinet for testing. Cut it, fold it and test it, DIY!

Learn more now!

Products

Order Code	Datasheet	Downloads	Status	W (mm)	H (mm)	R_S (Ω/cm²)	Material	Samples
33005	SPEC	2 files CAD files ZIP IGS 33005 (rev1).igs \| 184.2 KB STP 33005 (rev1).stp \| 33.1 KB Download all 2 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	5	0.1	0.04	Polyester fabric NiCu plated
33008	SPEC	2 files CAD files ZIP IGS 33008 (rev1).igs \| 184.2 KB STP 33008 (rev1).stp \| 33.1 KB Download all 2 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	8.8	0.1	0.04	Polyester fabric NiCu plated
33010	SPEC	2 files CAD files ZIP IGS 33010 (rev1).igs \| 182.5 KB STP 33010 (rev1).stp \| 33.1 KB Download all 2 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	10	0.1	0.04	Polyester fabric NiCu plated
33013	SPEC	2 files CAD files ZIP IGS 33013 (rev1).igs \| 174.3 KB STP 33013 (rev1).stp \| 33.1 KB Download all 2 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	12.7	0.1	0.04	Polyester fabric NiCu plated
33020	SPEC	2 files CAD files ZIP IGS 33020 (rev1).igs \| 182.5 KB STP 33020 (rev1).stp \| 33.1 KB Download all 2 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	20	0.1	0.04	Polyester fabric NiCu plated
33025	SPEC	2 files CAD files ZIP IGS 33025 (rev1).igs \| 182.5 KB STP 33025 (rev1).stp \| 33.1 KB Download all 2 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	25	0.1	0.04	Polyester fabric NiCu plated
33030	SPEC	2 files CAD files ZIP IGS 33030 (rev1).igs \| 182.5 KB STP 33030 (rev1).stp \| 33.1 KB Download all 2 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	30	0.1	0.04	Polyester fabric NiCu plated
33040	SPEC	2 files CAD files ZIP IGS 33040 (rev1).igs \| 182.5 KB STP 33040 (rev1).stp \| 33.1 KB Download all 2 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	40	0.1	0.04	Polyester fabric NiCu plated
33050	SPEC	2 files CAD files ZIP IGS 33050 (rev1).igs \| 182.5 KB STP 33050 (rev1).stp \| 33.1 KB Download all 2 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	50	0.1	0.04	Polyester fabric NiCu plated

Order Code	Datasheet
33005	SPEC
33008	SPEC
33010	SPEC
33013	SPEC
33020	SPEC
33025	SPEC
33030	SPEC
33040	SPEC
33050	SPEC
