WL-SFTW SMT Full-color TOP LED Waterclear

	Size	Dimensions	L (mm)	W (mm)	H (mm)	Mount
NEW	2121		-	-	-	SMT
	3528		3.5	2.8	1.9	SMT

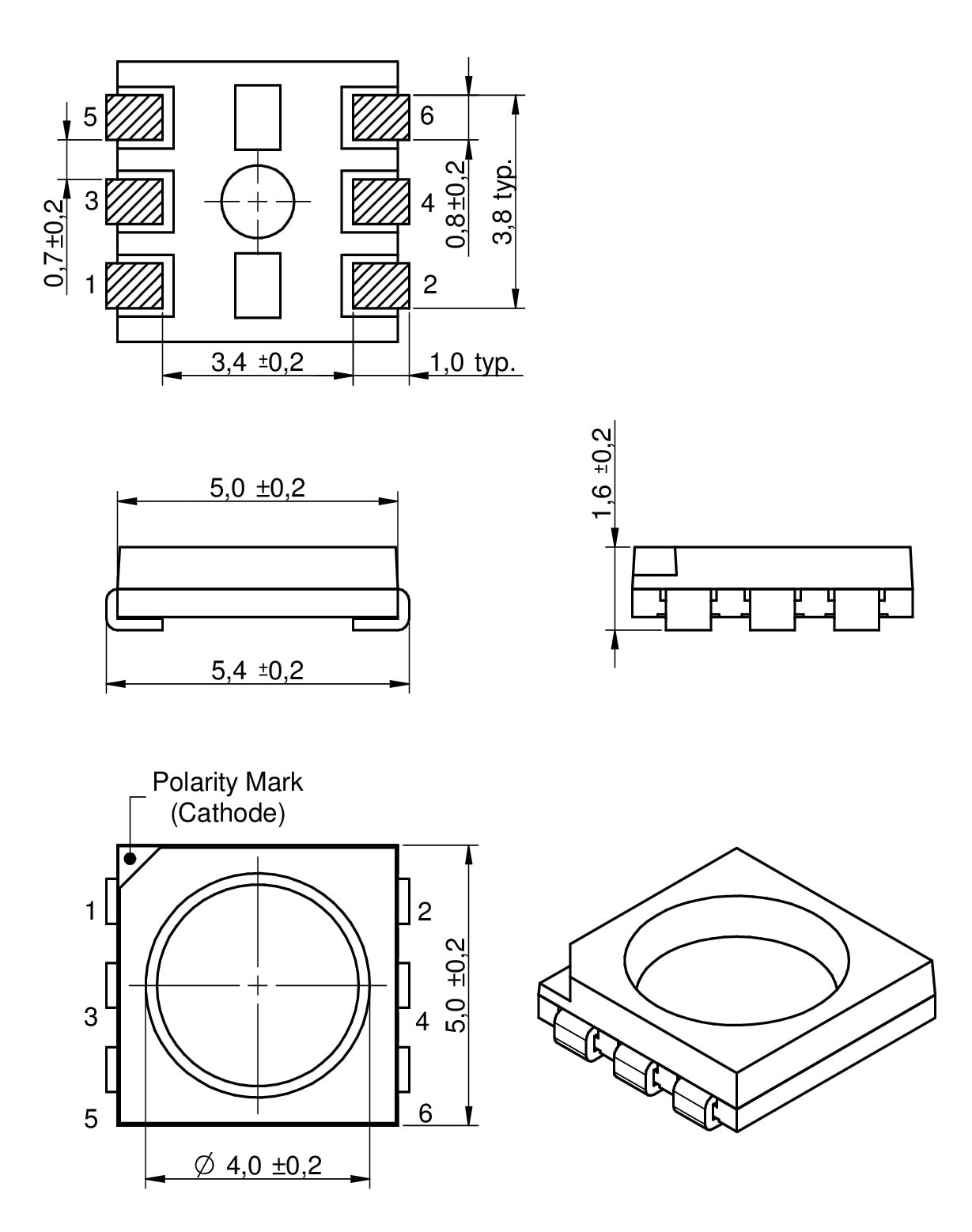

	5050		5.4	5	1.5	SMT

LTSpice files

LT
LTSpice_WL-SFTW (rev25a).zip
|
6 KB

Characteristics

Low energy consumption
High reliability
Low current requirement
Fast switching
No UV/IR radiation
High brightness
RGB individual control
Compact package outline
LED with Black surface

Applications

Flash light
Switch indicators
Equipment indicators
Accent and decorative lighting
Electronic signage
Video displays
Backlight for LCDs, PDAs and TVs
Oven, microwave
Street lighting
Ideal for lateral coupling in light guides

Products

All

2121

3528

5050

	Order Code	Datasheet	Downloads	Status	Emitting Color	λ_{Peak B typ.} (nm)	λ_{Peak G typ.} (nm)	λ_{Peak R typ.} (nm)	λ_{Dom B typ.} (nm)	λ_{Dom G typ.} (nm)	λ_{Dom R typ.} (nm)	I_{V B typ.} (mcd)	I_{V G typ.} (mcd)	I_{V R typ.} (mcd)	V_{F B typ.} (V)	V_{F G typ.} (V)	V_{F R typ.} (V)	Chip Technology	2θ_{50% typ.} (°)	Demoboard	Design Kit	Samples
	150141M173100	SPEC	25 files EDA models: Components ZIP ALT Altium_WL-SFTW (rev25a).IntLib \| 249 KB CDS Cadence_WL-SFTW (rev25a).zip \| 1.3 MB EAG Eagle_WL-SFTW (rev25a).lbr \| 62.7 KB CAD files ZIP IGS Download_IGS_WL-SFTW-3528 (rev1).igs \| 391.2 KB STP Download_STEP_150141M173100 (rev1).stp \| 221.7 KB Electric models ZIP PSP PSpice_WL-SFTW (rev25a).zip \| 4.9 KB RAY files RIR Photopia_rir_150141M173100_5M (rev1p0).zip \| 361.2 MB SRC Lucaray-maker_src_150141M173100_5M (rev1p0).zip \| 361.2 MB ASA ASAP-and-APEX_dis_150141M173100_5M (rev1p0).zip \| 361.2 MB COD CodeV_ray_150141M173100_5M (rev1p0).zip \| 342.8 MB FRE Fred_dat_150141M173100_5M (rev1p0).zip \| 361.2 MB FRE Fred_txt_150141M173100_5M (rev1p0).zip \| 565 MB LIG LightTools_ray_150141M173100_5M (rev1p0).zip \| 356.7 MB LIG LightTools_txt_150141M173100_5M (rev1p0).zip \| 564.8 MB LUC LucidShape_ray_150141M173100_5M (rev1p0).zip \| 361.2 MB LUC LucidShape_txt_150141M173100_5M (rev1p0).zip \| 565 MB OPT optalix_DIS_150141M173100_5M (rev1p0).zip \| 361.2 MB OPT OpTaliX_txt_150141M173100_5M (rev1p0).zip \| 565 MB OPT OptiCAD_dat_150141M173100_5M (rev1p0).zip \| 361.2 MB OPT OptiCAD_txt_150141M173100_5M (rev1p0).zip \| 565 MB SIM Simulux_ray_150141M173100_5M (rev1p0).zip \| 361.2 MB SPE Speos_ray_150141M173100_5M (rev1p0).zip \| 373.4 MB TRA TracePro_txt_150141M173100_5M (rev1p0).zip \| 564.8 MB ZEM Zemax_dat_150141M173100_5M (rev1p0).zip \| 565 MB ZEM ZemaxBin_dat_150141M173100_5M (rev1p0).zip \| 361.2 MB	Active i\| Production is active. Expected lifetime: >10 years.	Red & Green & Blue	465	515	635	470	520	625	230	950	270	3.2	3.2	2	AlInGaP + InGaN	120	9999003	150151
	150505M173300	SPEC	26 files EDA models: Components ZIP ALT Altium_WL-SFTW (rev25a).IntLib \| 249 KB CDS Cadence_WL-SFTW (rev25a).zip \| 1.3 MB EAG Eagle_WL-SFTW (rev25a).lbr \| 62.7 KB CAD files ZIP 3D 150505M1xxx_3D (rev1).pdf \| 130 KB IGS Download_IGS-WL-SFTW-150505M173300 (rev1).igs \| 1.4 MB STP Download_STEP_150505M173300 (rev1).stp \| 360.7 KB Electric models ZIP PSP PSpice_WL-SFTW (rev25a).zip \| 4.9 KB RAY files RIR Photopia_rir_150505M173300_5M (rev1p0).zip \| 364.5 MB SRC Lucaray-maker_src_150505M173300_5M (rev1p0).zip \| 364.5 MB ASA ASAP-and-APEX_dis_150505M173300_5M (rev1p0).zip \| 364.5 MB COD CodeV_ray_150505M173300_5M (rev1p0).zip \| 364.5 MB FRE Fred_dat_150505M173300_5M (rev1p0).zip \| 364.5 MB FRE Fred_txt_150505M173300_5M (rev1p0).zip \| 566.1 MB LIG LightTools_ray_150505M173300_5M (rev1p0).zip \| 364.5 MB LIG LightTools_txt_150505M173300_5M (rev1p0).zip \| 566.1 MB LUC LucidShape_ray_150505M173300_5M (rev1p0).zip \| 364.5 MB LUC LucidShape_txt_150505M173300_5M (rev1p0).zip \| 565.8 MB OPT optalix_DIS_150505M173300_5M (rev1p0).zip \| 364.5 MB OPT OpTaliX_txt_150505M173300_5M (rev1p0).zip \| 565.5 MB OPT OptiCAD_dat_150505M173300_5M (rev1p0).zip \| 364.5 MB OPT OptiCAD_txt_150505M173300_5M (rev1p0).zip \| 565.5 MB SIM Simulux_ray_150505M173300_5M (rev1p0).zip \| 364.5 MB SPE Speos_ray_150505M173300_5M (rev1p0).zip \| 377.1 MB TRA TracePro_txt_150505M173300_5M (rev1p0).zip \| 566.4 MB ZEM Zemax_dat_150505M173300_5M (rev1p0).zip \| 565.5 MB ZEM ZemaxBin_dat_150505M173300_5M (rev1p0).zip \| 364.5 MB	Active i\| Production is active. Expected lifetime: >10 years.	Red & Green & Blue	465	515	635	470	520	625	350	1300	800	3.2	3.2	2	AlInGaP + InGaN	120	9999003	150151
	150352M173300	SPEC	25 files EDA models: Components ZIP ALT Altium_WL-SFTW (rev25a).IntLib \| 249 KB CDS Cadence_WL-SFTW (rev25a).zip \| 1.3 MB EAG Eagle_WL-SFTW (rev25a).lbr \| 62.7 KB CAD files ZIP IGS Download_IGS_WL-SFTW-150352M1xxx (rev1).igs \| 1 MB STP Download_Step_150352M173300 (rev1).stp \| 411.2 KB Electric models ZIP PSP PSpice_WL-SFTW (rev25a).zip \| 4.9 KB RAY files RIR Photopia_rir_150352M173300_5M (rev1p0).zip \| 360.8 MB SRC Lucaray-maker_src_150352M173300_5M (rev1p0).zip \| 360.8 MB ASA ASAP-and-APEX_dis_150352M173300_5M (rev1p0).zip \| 360.8 MB COD CodeV_ray_150352M173300_5M (rev1p0).zip \| 360.8 MB FRE Fred_dat_150352M173300_5M (rev1p0).zip \| 360.8 MB FRE Fred_txt_150352M173300_5M (rev1p0).zip \| 564.2 MB LIG LightTools_ray_150352M173300_5M (rev1p0).zip \| 360.8 MB LIG LightTools_txt_150352M173300_5M (rev1p0).zip \| 564.2 MB LUC LucidShape_ray_150352M173300_5M (rev1p0).zip \| 360.8 MB LUC LucidShape_txt_150352M173300_5M (rev1p0).zip \| 564.2 MB OPT optalix_DIS_150352M173300_5M (rev1p0).zip \| 360.8 MB OPT OpTaliX_txt_150352M173300_5M (rev1p0).zip \| 564.2 MB OPT OptiCAD_dat_150352M173300_5M (rev1p0).zip \| 360.8 MB OPT OptiCAD_txt_150352M173300_5M (rev1p0).zip \| 564.2 MB SIM Simulux_ray_150352M173300_5M (rev1p0).zip \| 360.8 MB SPE Speos_ray_150352M173300_5M (rev1p0).zip \| 373.5 MB TRA TracePro_txt_150352M173300_5M (rev1p0).zip \| 564.5 MB ZEM Zemax_dat_150352M173300_5M (rev1p0).zip \| 564.2 MB ZEM ZemaxBin_dat_150352M173300_5M (rev1p0).zip \| 360.8 MB	Active i\| Production is active. Expected lifetime: >10 years.	Red & Green & Blue	465	515	635	470	520	625	400	1700	750	3.2	3.2	2	AlInGaP + InGaN	120	–	150151
	150352M173303	SPEC	4 files EDA models: Components ZIP ALT Altium_WL-SFTW (rev25a).IntLib \| 249 KB CDS Cadence_WL-SFTW (rev25a).zip \| 1.3 MB EAG Eagle_WL-SFTW (rev25a).lbr \| 62.7 KB Electric models ZIP PSP PSpice_WL-SFTW (rev25a).zip \| 4.9 KB Download all 4 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	Red & Green & Blue	465	515	635	470	520	625	600	1900	500	3.2	3.2	2	AlInGaP + InGaN	120	–	–
	150141M173103	SPEC	4 files EDA models: Components ZIP ALT Altium_WL-SFTW (rev25a).IntLib \| 249 KB CDS Cadence_WL-SFTW (rev25a).zip \| 1.3 MB EAG Eagle_WL-SFTW (rev25a).lbr \| 62.7 KB Electric models ZIP PSP PSpice_WL-SFTW (rev25a).zip \| 4.9 KB Download all 4 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	Red & Green & Blue	470	525	625	470	525	625	550	2000	900	3.2	3.2	2.2	AlInGaP + InGaN	120	–	–
	150212M173123	SPEC	4 files EDA models: Components ZIP ALT Altium_WL-SFTW (rev25a).IntLib \| 249 KB CDS Cadence_WL-SFTW (rev25a).zip \| 1.3 MB EAG Eagle_WL-SFTW (rev25a).lbr \| 62.7 KB Electric models ZIP PSP PSpice_WL-SFTW (rev25a).zip \| 4.9 KB Download all 4 files as zip archive ZIP	New i\| Product is new in our portfolio and production is active. Expected lifetime: >10 years.	Red & Green & Blue	465	515	630	470	530	620	220	1100	340	2.8	2.8	2	AlInGaP + InGaN	120	–	–

	Order Code	Datasheet
	150141M173100	SPEC
	150505M173300	SPEC
	150352M173300	SPEC
	150352M173303	SPEC
	150141M173103	SPEC
	150212M173123	SPEC

Samples

	Order Code	Datasheet	Downloads	Status	Emitting Color	λ_{Peak B typ.} (nm)	λ_{Peak G typ.} (nm)	λ_{Peak R typ.} (nm)	λ_{Dom B typ.} (nm)	λ_{Dom G typ.} (nm)	λ_{Dom R typ.} (nm)	I_{V B typ.} (mcd)	I_{V G typ.} (mcd)	I_{V R typ.} (mcd)	V_{F B typ.} (V)	V_{F G typ.} (V)	V_{F R typ.} (V)	Chip Technology	2θ_{50% typ.} (°)	Demoboard	Design Kit	Samples

Assortments

Articles from this product series can be found in the following assortments:

Design Kit PLCC, THT and Ceramic LEDs

Demoboard Visible LEDs

Learn more

LED Application Guide - Learn more about handling, storage and much more
