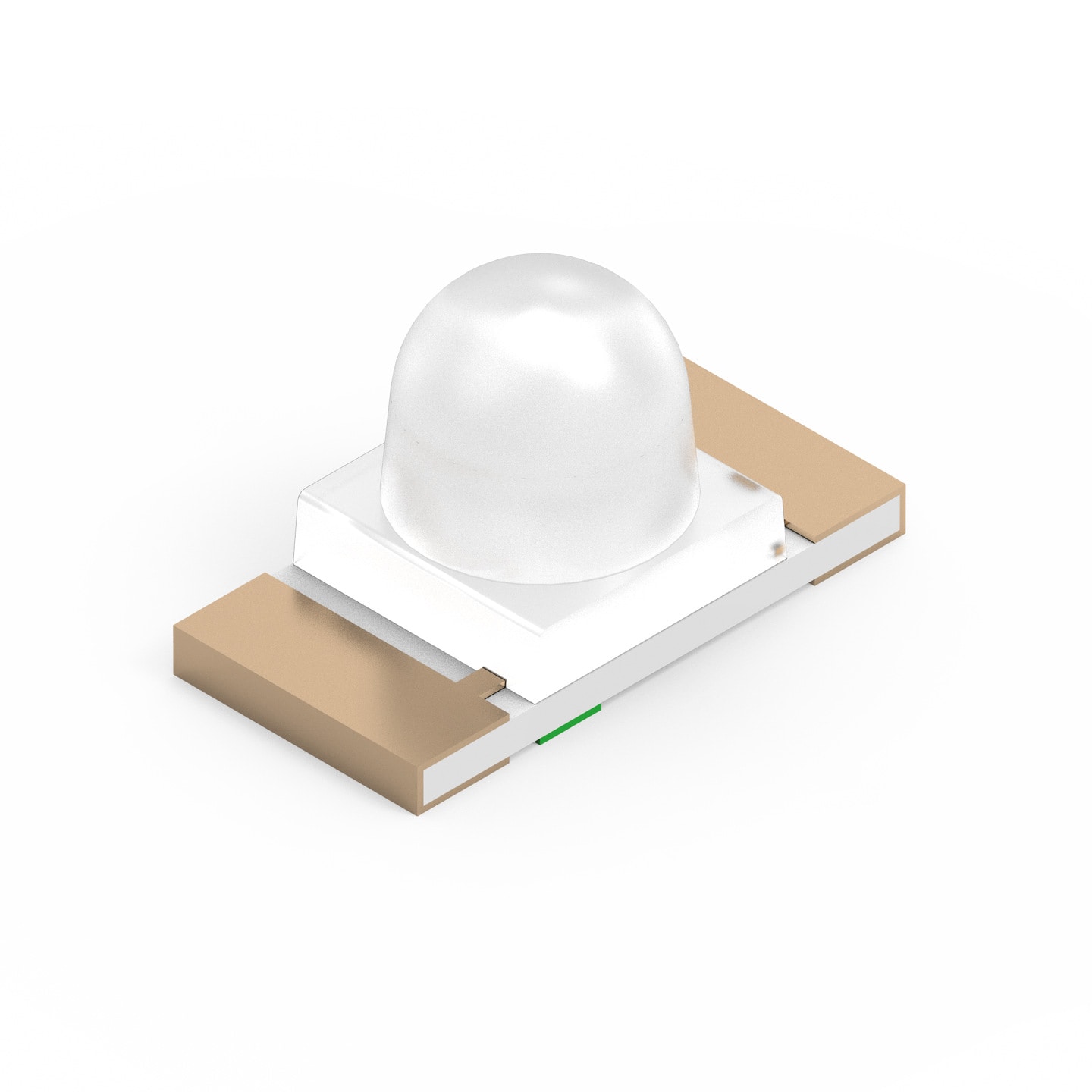

WL-SIRW SMT Infrared Reverse Mount Waterclear Dome

Size	Dimensions	Mount
1206		SMT

LTSpice files

LT
LTSpice_WL-SIRW (rev22a).zip
|
1.8 KB

Characteristics

Low energy consumption
High reliability
Low current requirement
Fast switching
IR Emitter
standard size 1206
Compact package outline
Narrow viewing angle - 30°

Applications

Infrared sensor
Distance measure
Remote control
Smoke detector
Optoelectronic switch

Products

1206

	Order Code	Datasheet	Simulation	Downloads	Status	λ_{Peak typ.} (nm)	λ_{Centroid max.}	I_{e typ.} (mW/sr)	V_{F typ.} (V)	2θ_{50% typ.} (°)	Chip Technology	Design Kit	Samples
	15412085A3060	SPEC PCN pending Due to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. SPEC Datasheet PCN PCN document		26 files EDA models: Components ZIP ALT Altium_WL-SIRW (rev22c).IntLib \| 43.5 KB CDS Cadence_WL-SIRW (rev21a).zip \| 458.2 KB EAG Eagle_WL-SIRW (rev21a).lbr \| 22.2 KB CAD files ZIP IGS Download_IGS_WL-SIRW-15412085A3060 (rev1).igs \| 329.5 KB STP Download_STP_WL-SIRW-15412085A3060 (rev1).stp \| 79.4 KB Electric models ZIP PSP PSpice_WL-SIRW (rev22a).zip \| 3.2 KB RAY files ASA ASAP-and-APEX_dis_15412085A3060_5M (rev1p0).zip \| 121 MB COD CodeV_ray_15412085A3060_5M (rev1p0).zip \| 121 MB FRE Fred_dat_15412085A3060_5M (rev1p0).zip \| 121 MB FRE Fred_txt_15412085A3060_5M (rev1p0).zip \| 188.4 MB LIG LightTools_ray_15412085A3060_5M (rev1p0).zip \| 121 MB LIG LightTools_txt_15412085A3060_5M (rev1p0).zip \| 188.4 MB LUC LucidShape_ray_15412085A3060_5M (rev1p0).zip \| 121 MB LUC LucidShape_txt_15412085A3060_5M (rev1p0).zip \| 188.4 MB OPT OpTaliX_txt_15412085A3060_5M (rev1p0).zip \| 188.4 MB OPT OptiCAD_dat_15412085A3060_5M (rev1p0).zip \| 121 MB OPT OptiCAD_txt_15412085A3060_5M (rev1p0).zip \| 188.4 MB OPT optalix_DIS_15412085A3060_5M (rev1p0).zip \| 121 MB RIR Photopia_rir_15412085A3060_5M (rev1p0).zip \| 121 MB SIM Simulux_ray_15412085A3060_5M (rev1p0).zip \| 121 MB SPE Speos_ray_15412085A3060_5M (rev1p0).zip \| 124.7 MB SRC Lucaray-maker_src_15412085A3060_5M (rev1p0).zip \| 121 MB TRA TracePro_txt_15412085A3060_5M (rev1p0).zip \| 188.4 MB ZEM ZemaxBin_dat_15412085A3060_5M (rev1p0).zip \| 121 MB ZEM Zemax_dat_15412085A3060_5M (rev1p0).zip \| 188.4 MB Certificates ZIP CER IR_LED_certificates_WL-SIRW-1206 (rev1).pdf \| 748.9 KB	Active i\| Production is active. Expected lifetime: >10 years.	850	845.0	20	1.4	30	AlGaAs	154150
	15412085A3060P	SPEC PCN pending Due to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. SPEC Datasheet PCN PCN document	–	5 files EDA models: Components ZIP ALT Altium_WL-SIRW (rev22c).IntLib \| 43.5 KB CDS Cadence_WL-SIRW (rev21a).zip \| 458.2 KB EAG Eagle_WL-SIRW (rev21a).lbr \| 22.2 KB Electric models ZIP PSP PSpice_WL-SIRW (rev22a).zip \| 3.2 KB Certificates ZIP CER IR_LED_certificate_WL-SIRW-1206 (rev1).pdf \| 1.2 MB Download all 5 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	850	845.0	20	1.4	30	AlGaAs	–
	15412094A3060	SPEC PCN pending Due to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. SPEC Datasheet PCN PCN document		26 files EDA models: Components ZIP ALT Altium_WL-SIRW (rev22c).IntLib \| 43.5 KB CDS Cadence_WL-SIRW (rev21a).zip \| 458.2 KB EAG Eagle_WL-SIRW (rev21a).lbr \| 22.2 KB CAD files ZIP IGS Download_IGS_WL-SIRW-15412094A3060 (rev1).igs \| 329.5 KB STP Download_STP_WL-SIRW-15412094A3060 (rev1).stp \| 79.4 KB Electric models ZIP PSP PSpice_WL-SIRW (rev22a).zip \| 3.2 KB RAY files ASA ASAP-and-APEX_dis_15412094A3060_5M (rev1p0).zip \| 120.6 MB COD CodeV_ray_15412094A3060_5M (rev1p0).zip \| 120.6 MB FRE Fred_dat_15412094A3060_5M (rev1p0).zip \| 120.6 MB FRE Fred_txt_15412094A3060_5M (rev1p0).zip \| 187.9 MB LIG LightTools_ray_15412094A3060_5M (rev1p0).zip \| 120.6 MB LIG LightTools_txt_15412094A3060_5M (rev1p0).zip \| 187.9 MB LUC LucidShape_ray_15412094A3060_5M (rev1p0).zip \| 120.6 MB LUC LucidShape_txt_15412094A3060_5M (rev1p0).zip \| 187.9 MB OPT OpTaliX_txt_15412094A3060_5M (rev1p0).zip \| 187.9 MB OPT OptiCAD_dat_15412094A3060_5M (rev1p0).zip \| 120.6 MB OPT OptiCAD_txt_15412094A3060_5M (rev1p0).zip \| 187.9 MB OPT optalix_DIS_15412094A3060_5M (rev1p0).zip \| 120.6 MB RIR Photopia_rir_15412094A3060_5M (rev1p0).zip \| 120.6 MB SIM Simulux_ray_15412094A3060_5M (rev1p0).zip \| 120.6 MB SPE Speos_ray_15412094A3060_5M (rev1p0).zip \| 125 MB SRC Lucaray-maker_src_15412094A3060_5M (rev1p0).zip \| 120.6 MB TRA TracePro_txt_15412094A3060_5M (rev1p0).zip \| 187.8 MB ZEM ZemaxBin_dat_15412094A3060_5M (rev1p0).zip \| 120.6 MB ZEM Zemax_dat_15412094A3060_5M (rev1p0).zip \| 187.9 MB Certificates ZIP CER IR_LED_certificate_WL-SIRW-1206 (rev1).pdf \| 756.6 KB	Active i\| Production is active. Expected lifetime: >10 years.	940	940.0	5	1.2	30	AlGaAs	154150
	15412094A3060P	SPEC PCN pending Due to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. SPEC Datasheet PCN PCN document	–	5 files EDA models: Components ZIP ALT Altium_WL-SIRW (rev22c).IntLib \| 43.5 KB CDS Cadence_WL-SIRW (rev21a).zip \| 458.2 KB EAG Eagle_WL-SIRW (rev21a).lbr \| 22.2 KB Electric models ZIP PSP PSpice_WL-SIRW (rev22a).zip \| 3.2 KB Certificates ZIP CER IR_LED_certificate_WL-SIRW-1206 (rev1).pdf \| 1.2 MB Download all 5 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	940	940.0	5	1.2	30	AlGaAs	–

	Order Code	Datasheet	Simulation
	15412085A3060	SPEC PCN pending Due to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. SPEC Datasheet PCN PCN document
	15412085A3060P	SPEC PCN pending Due to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. SPEC Datasheet PCN PCN document	–
	15412094A3060	SPEC PCN pending Due to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. SPEC Datasheet PCN PCN document
	15412094A3060P	SPEC PCN pending Due to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. SPEC Datasheet PCN PCN document	–

Samples

	Order Code	Datasheet	Simulation	Downloads	Status	λ_{Peak typ.} (nm)	λ_{Centroid max.}	I_{e typ.} (mW/sr)	V_{F typ.} (V)	2θ_{50% typ.} (°)	Chip Technology	Design Kit	Samples
