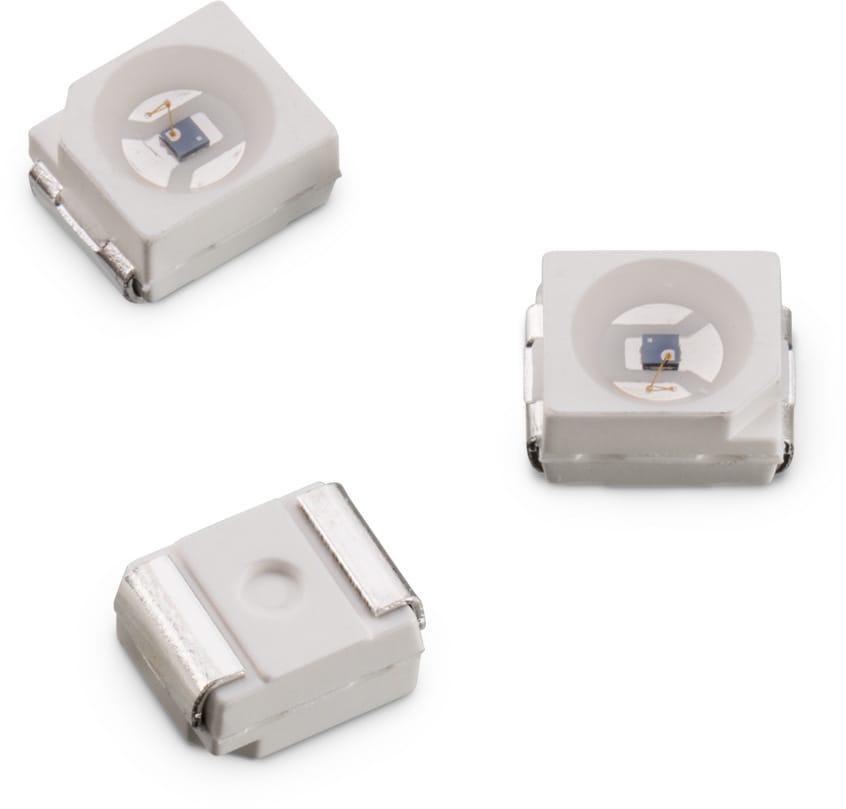

WL-STTW SMT Phototransistor Top Waterclear

Size	Dimensions	L (mm)	W (mm)	H (mm)	Mount
3528		3.5	2.8	1.9	SMT

LTSpice files

LT
LTspice_WL-STTW (rev24a).zip
|
1.8 KB

Characteristics

High sensitivity
Fast response time
Perfect match with IR and visible emitter
compatible with automatic placement machines
High reliability
Standard PLCC 2 package

Applications

Light sensors
Position sensors
Counters
Miniature switch
Encoder
Photo interrupter

Products

3528

Order Code	Datasheet	Simulation	Downloads	Status	λ_{Peak typ.} (nm)	λ_min. (nm)	λ_max. (nm)	I_{CE.P min.} (mA)	I_{CE.P typ.} (mA)	I_{CEO.Dark max.} (nA)	Chip Technology	2θ_{50% typ.} (°)	Samples
1541411NBA210	SPEC		6 files EDA models: Components ZIP ALT Altium_WL-STTW (rev22b).IntLib \| 56.5 KB CDS Cadence_WL-STTW (rev19a).zip \| 179.6 KB EAG Eagle_WL-STTW (rev20b).lbr \| 14.5 KB CAD files ZIP IGS Download_IGS_1541411NBA210 (rev1).igs \| 690.8 KB STP Download_STP_1541411NBA210 (rev1).stp \| 191.7 KB Electric models ZIP PSP PSpice_WL-STTW (rev24a).zip \| 3.1 KB Download all 6 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	940	400	1100	0.6	3.1	100	Si	120

Order Code	Datasheet	Simulation
1541411NBA210	SPEC

Samples

Order Code	Datasheet	Simulation	Downloads	Status	λ_{Peak typ.} (nm)	λ_min. (nm)	λ_max. (nm)	I_{CE.P min.} (mA)	I_{CE.P typ.} (mA)	I_{CEO.Dark max.} (nA)	Chip Technology	2θ_{50% typ.} (°)	Samples
