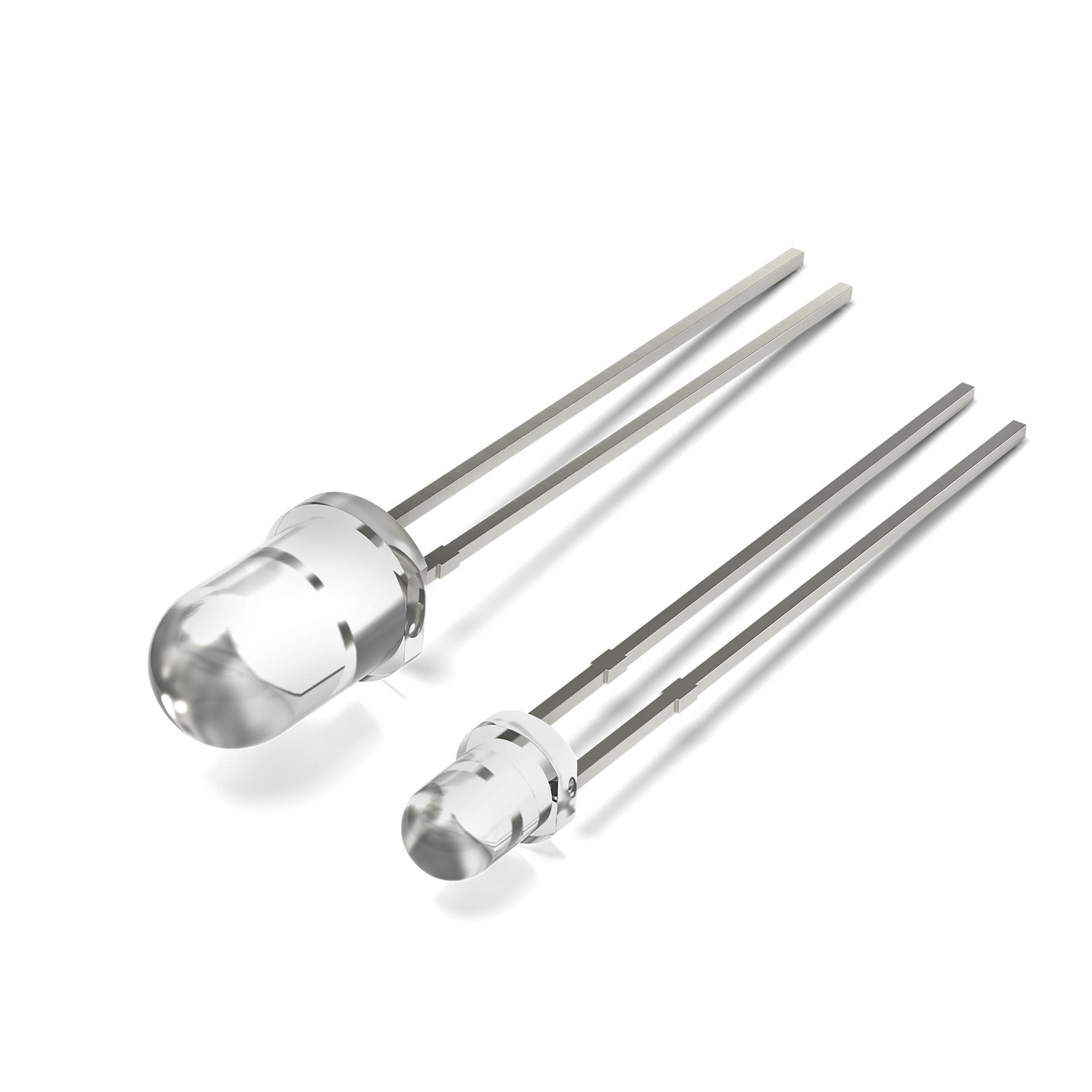

WL-TTRW Phototransistor Round Waterclear

Size	Dimensions	L (mm)	W (mm)	H (mm)
THT 3 mm - without stopper		3	3.8	8.7
THT 5 mm - without stopper		5	5.8	8.7

Characteristics

Standard THT Package
Small viewing angle
High photo sensivity
Without daylight filter
Perfect match with IR LEDs

Applications

Smoke detectors
Counter and encoder
Heart rate monitoring
Cleaning robot
Touch screens

Products

All

THT 3 mm - without stopper

THT 5 mm - without stopper

Order Code	Datasheet	Simulation	Downloads	Status	λ_{Peak typ.} (nm)	λ_min. (nm)	λ_max. (nm)	Test Condition I_CE.P	I_{CE.P typ.} (mA)	I_{CE.P min.} (mA)	Test Condition I_CEO.Dark	I_{CEO.Dark max.} (nA)	Chip Technology	2θ_{50% typ.} (°)	Samples
1540032NA3090	SPEC		5 files EDA models: Components ZIP ALT Altium_WL-TTRW (rev22b).IntLib \| 46 KB CDS Cadence_WL-TTRW (rev20a).zip \| 120.6 KB EAG Eagle_WL-TTRW (rev20b).lbr \| 18.5 KB CAD files ZIP IGS Downloads_IGS_1540032NA3090 (rev1).igs \| 233.4 KB STP Downloads_STEP_1540032NA3090 (rev1).stp \| 49.3 KB Download all 5 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	850	400	1100	V_CE = 5 V Ee = 1 mW/cm² λ = 850 nm	15	5	V_CE = 20 V Ee = 0 mW/cm²	300	Si	30
1540052NA3090	SPEC		5 files EDA models: Components ZIP ALT Altium_WL-TTRW (rev22b).IntLib \| 46 KB CDS Cadence_WL-TTRW (rev20a).zip \| 120.6 KB EAG Eagle_WL-TTRW (rev20b).lbr \| 18.5 KB CAD files ZIP IGS Download_IGS_1540052NA3090 (rev1).igs \| 231 KB STP Download_STEP_1540052NA3090 (rev1).stp \| 49.4 KB Download all 5 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	850	400	1100	V_CE = 5 V Ee = 1 mW/cm² λ = 850 nm	15	6	V_CE = 20 V Ee = 0 mW/cm²	300	Si	30

Order Code	Datasheet	Simulation
1540032NA3090	SPEC
1540052NA3090	SPEC

Samples

Order Code	Datasheet	Simulation	Downloads	Status	λ_{Peak typ.} (nm)	λ_min. (nm)	λ_max. (nm)	Test Condition I_CE.P	I_{CE.P typ.} (mA)	I_{CE.P min.} (mA)	Test Condition I_CEO.Dark	I_{CEO.Dark max.} (nA)	Chip Technology	2θ_{50% typ.} (°)	Samples
