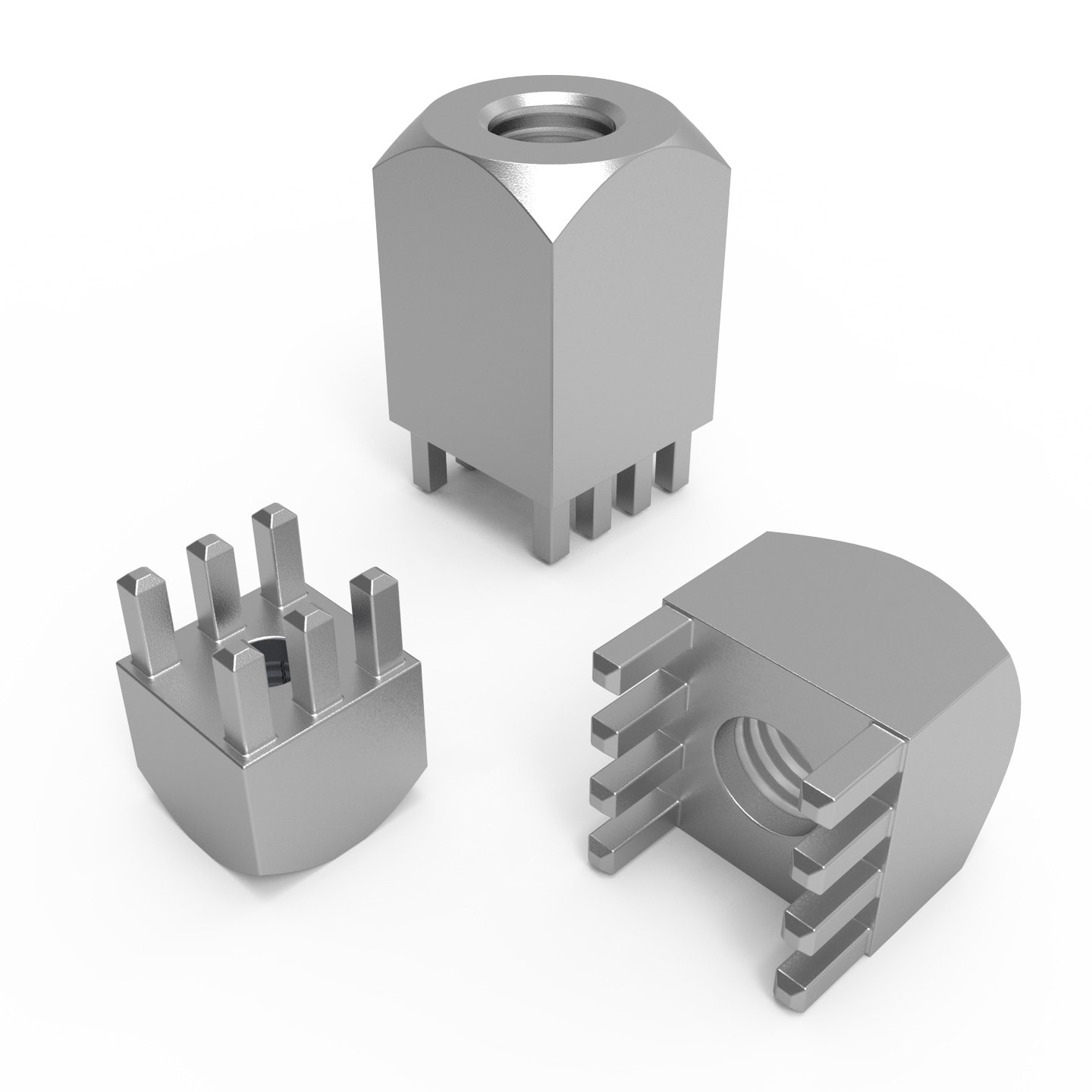

WP-BUTR REDCUBE PRESS-FIT with internal thread, two-rows

WP-BUTR REDCUBE PRESS-FIT with internal thread, two-rows

Applications

  • High current Wire-To-Board connections up to 500 A
  • Mounting of copper bars on PCBs
  • Installation of laminated fuses
  • Suitable for rough environmental conditions
General Information
Operating Temperature-55 °C up to +150 °C
MaterialBrass
SurfaceTin
ExecutionPress-Fit
Packaging Properties
PackagingBulk

Application Notes

Products

Order Code Data­sheet Downloads StatusW
(mm)
H
(mm)
IR
(A)
TiTl
(mm)
Pins (Value)
(pcs)
Design Kit Samples
7461057SPEC
4 files Active i| Production is active. Expected lifetime: >10 years. 7 6 100 M3 5 6746701
7460307SPEC
4 files Active i| Production is active. Expected lifetime: >10 years. 9 7 160 M4 6 8746701
7460305SPEC
4 files Active i| Production is active. Expected lifetime: >10 years. 9 7 160 M5 6 8746701
7461084SPEC
4 files Active i| Production is active. Expected lifetime: >10 years. 10 13.5 160 M6 9 8746701
7460553SPEC

PCN pending

Due to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff.

4 files Active i| Production is active. Expected lifetime: >10 years. 13 13.5 240 M8 10 10746701
7461058SPEC
4 files Active i| Production is active. Expected lifetime: >10 years. 16 17.5 320 M10 11 12
Order Code Data­sheet
7461057SPEC
7460307SPEC
7460305SPEC
7461084SPEC
7460553SPEC

PCN pending

Due to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff.

7461058SPEC
Samples
Order Code Data­sheet Downloads StatusW
(mm)
H
(mm)
IR
(A)
TiTl
(mm)
Pins (Value)
(pcs)
Design Kit Samples

REDCUBE Terminals - Innovative High Power Contacts

REDCUBE Terminals - 4power!

REDCUBE terminals are the most reliable high-power contacts on the PCB level. Low contact resistance guarantees minimum self-heating. Four different designs cover all leading processing technologies and offer a wide range of applications.

Characteristic:

  • Flexibility in processing and connection technologies
  • Highest current ratings up to 500 A
  • Board-to-Board and Wire-to-Board solutions
  • Extremely low self-heating
  • Robust mechanical connection

Applications, Performance & Press-Fit Process

Applications

The current rating of REDCUBE PRESS-FIT is impressive. With the same ampacity, REDCUBE PRESS-FIT has the lowest heat development compared to other parts that supply power for PCBs.

  • High current Wire-to-Board & Board-to-Board
  • Mounting of copper bars
  • Angled assembling of cable, PCB and housing
  • Mounting of IGBT modules

Remarkable Performance

With the lowest Failure-In-Time value, REDCUBE PRESS-FIT is the most reliable technology on PCB. The FIT value is up to 30 times better than that of a SMD solder joint. REDCUBE PRESS-FIT is suitable for two-side mounting and allows very compact design of modules.

  • Simple & quick processing
  • No cold solder joints
  • High process safety
  • Low self heating
  • Two-sided mounting of PCBs

PRESS-FIT Process

Pressing the pins into the PCB, a high friction between pin and plated through-hole generates a homogeneous cold-welding between materials. No other technology transfers power up to 500 A at this low heat development.

  • Homogeneous material transition between pin and through-hole plating
  • Contact resistance less than 200 μΩ
  • Gastight electrical and mechanical connection
  • Extremely strong mechanical connection
