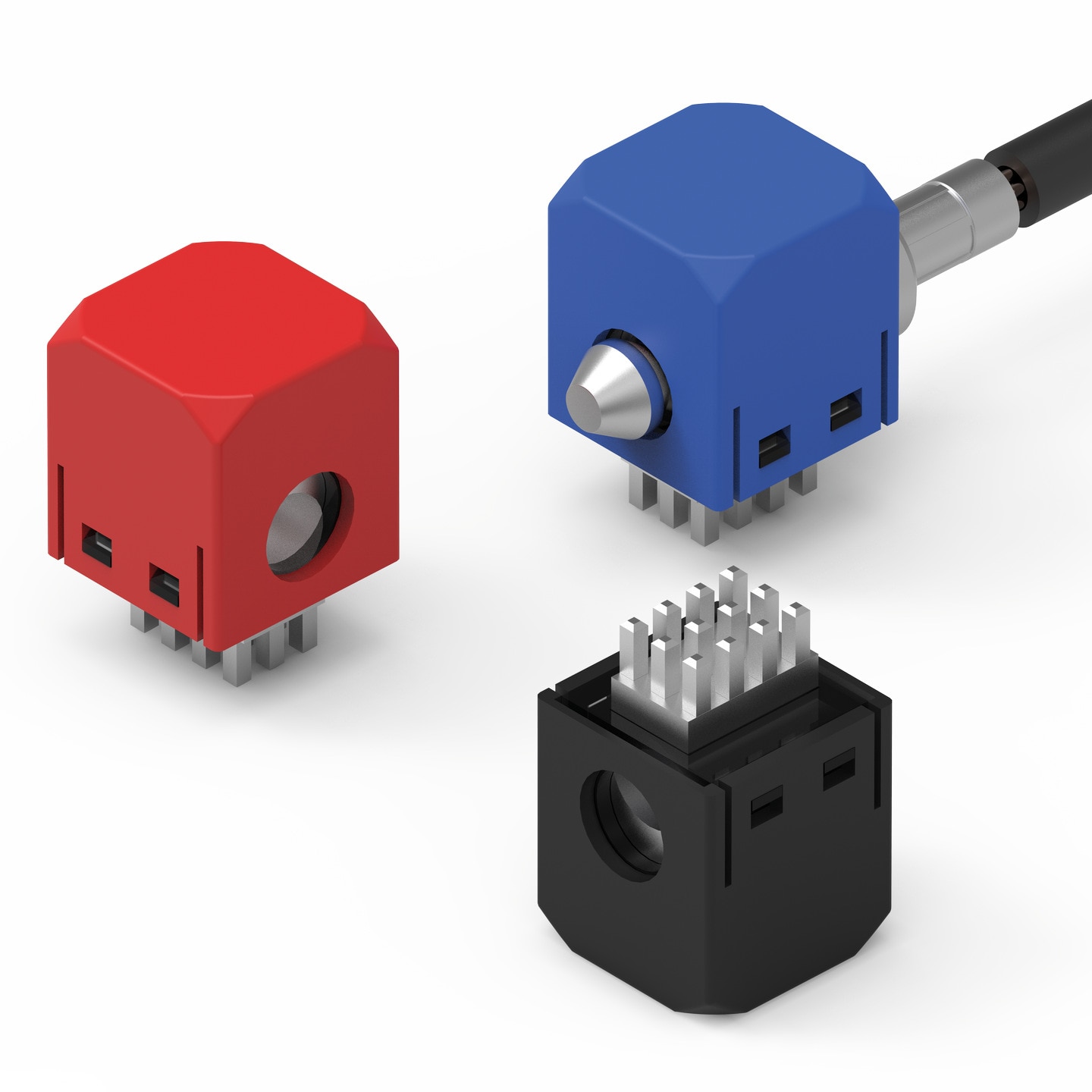

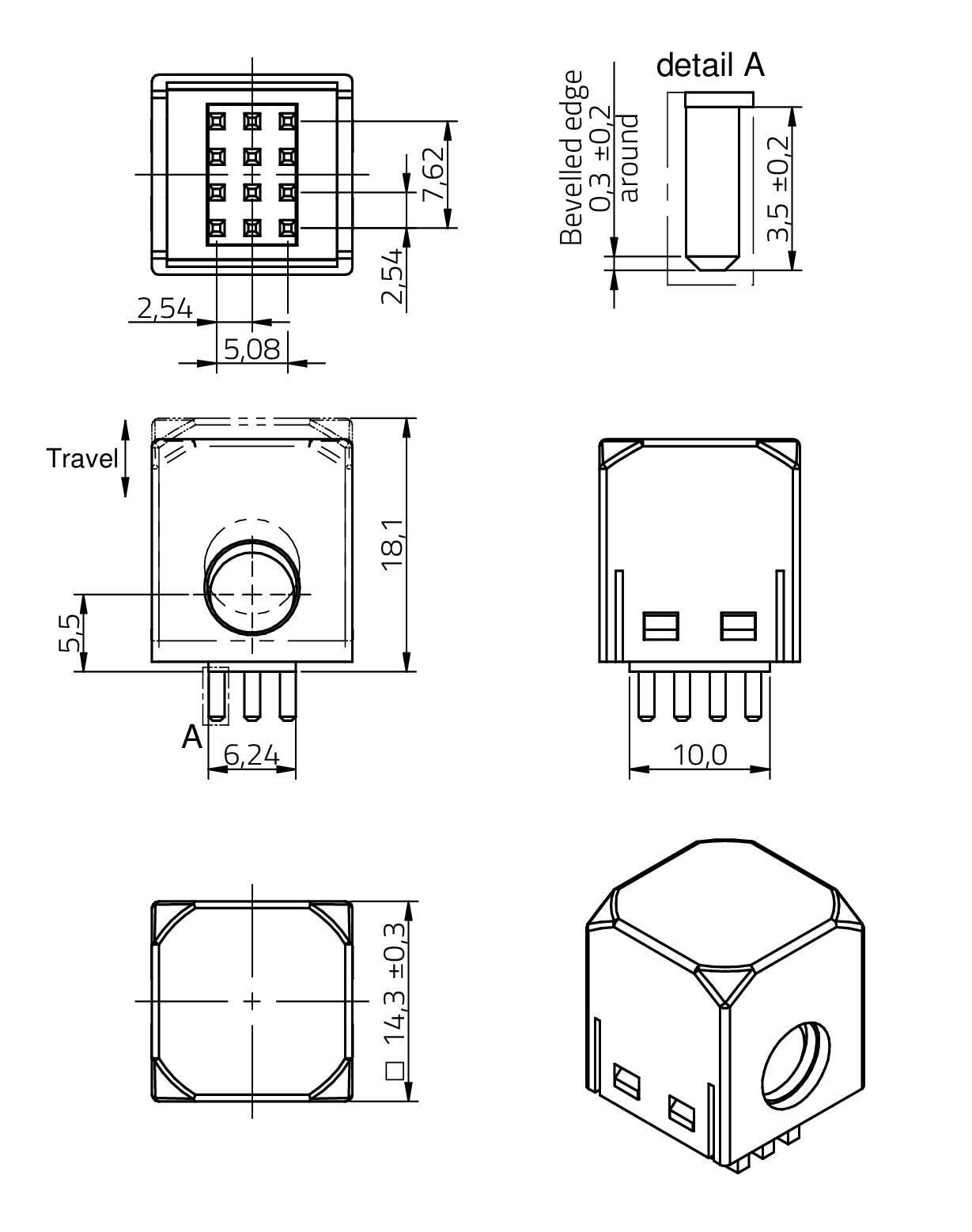

WP-PLUG REDCUBE Direct Plug Terminal

WP-PLUG REDCUBE Direct Plug Terminal

Applications

  • Reversible high current Wire-to-Board connections
  • Tool-free and screwless connections
  • Mounting in very tight spaces
  • Mounting areas with difficult access
  • Battery charger
General Information
Operating Temperature-45 °C up to +125 °C
ColorBlack; Blue; Red
Insulator MaterialPBT
Contact MaterialBrass
Contact PlatingTin
Plastic Housing Flammability RatingUL94 V-0
ExecutionPress-Fit
Contact Resistance1 mΩ
Electrical Properties
IR120 A
Packaging Properties
PackagingBulk

Application Notes

Products

Order Code Data­sheet Downloads StatusColorIR
(A)		Pins (Value)
(pcs)		Design Kit Samples
7464100SPEC
6 files

EDA models: Components
ZIP

CAD files
ZIP

Download all 6 files as zip archive
ZIP

 Active i| Production is active. Expected lifetime: >10 years. Black 120 12 –
7464200SPEC
6 files

EDA models: Components
ZIP

CAD files
ZIP

Download all 6 files as zip archive
ZIP

 Active i| Production is active. Expected lifetime: >10 years. Blue 120 12 –
7464000SPEC
6 files

EDA models: Components
ZIP

CAD files
ZIP

Download all 6 files as zip archive
ZIP

 Active i| Production is active. Expected lifetime: >10 years. Red 120 12746701
Order Code Data­sheet
7464100SPEC
7464200SPEC
7464000SPEC
Samples
Order Code Data­sheet Downloads StatusColorIR
(A)		Pins (Value)
(pcs)		Design Kit Samples

REDCUBE Terminals - Innovative High Power Contacts

REDCUBE Terminals - 4power!

REDCUBE terminals are the most reliable high-power contacts on the PCB level. Low contact resistance guarantees minimum self-heating. Four different designs cover all leading processing technologies and offer a wide range of applications.

Characteristic:

  • Flexibility in processing and connection technologies
  • Highest current ratings up to 500 A
  • Board-to-Board and Wire-to-Board solutions
  • Extremely low self-heating
  • Robust mechanical connection

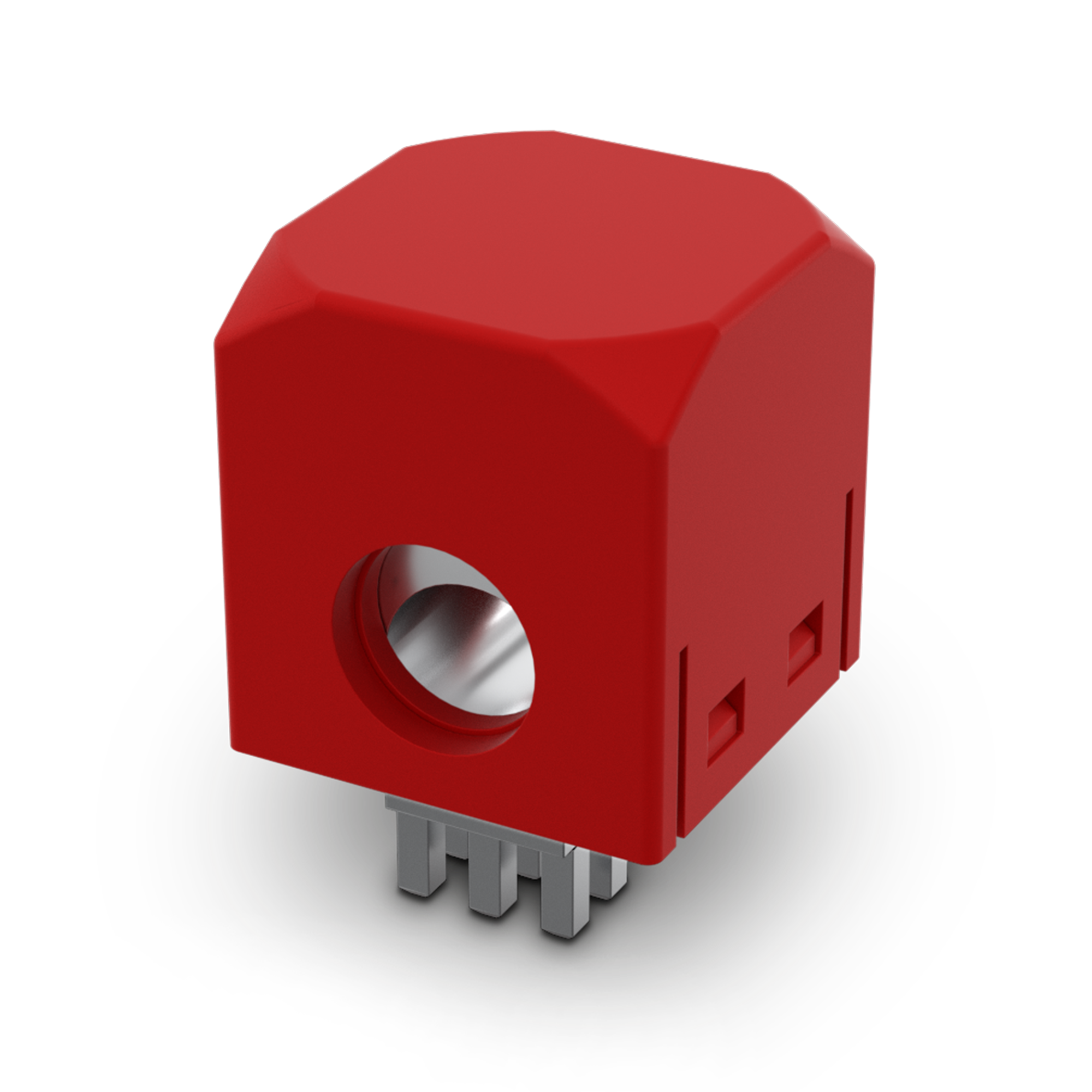

REDCUBE PLUG

Ampacity up to 120 A
Ampacity up to 120 A
Plugging instead of Screwing
Plugging instead of Screwing
Heat Resistance up to +125 °C
Heat Resistance up to +125 °C

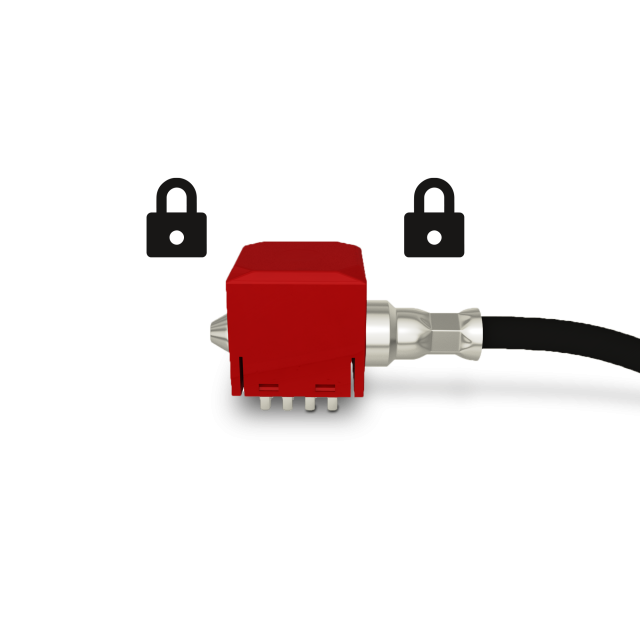

Automated Locking Function
Automated Locking Function
Cross Sections: 4, 6, 10 & 16 mm²
Cross Sections: 4, 6, 10 & 16 mm²
Crimp Connection
Crimp Connection

Applications, Features & Processing

Applications

The new quick and easy pluggable solution REDCUBE PLUG offers all press-fit advantages; it is a multiple times pluggable solution for high-current applications.

  • High current and reversible Wire-to-Board connections
  • Battery charger
  • Multiple times pluggable solutions
  • Mounting in very tight spaces
  • Mounting areas with difficult access

Outstanding Features

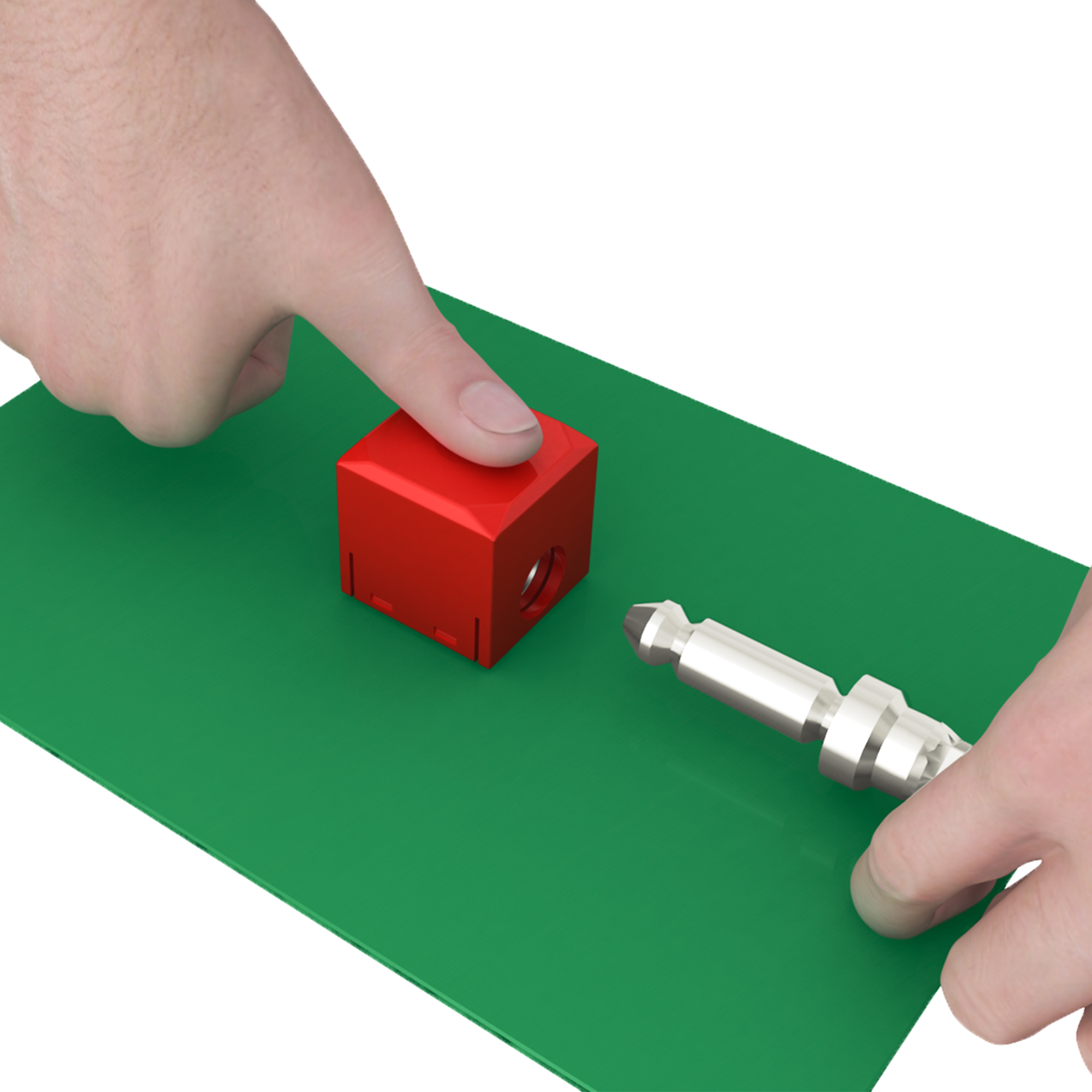

REDCUBE PLUG consists of a REDCUBE Terminal, surrounded by a glass fiber-reinforced plastic housing. Pushing on the top of the housing allows mating the corresponding cable connector. After actuating, the spring returns to its initial position and locks the cable connector automatically into the housing.

  • Quick and easy assembling
  • Tool-free and screwless mounting
  • Multiple times pluggable
  • Press-Fit advantages

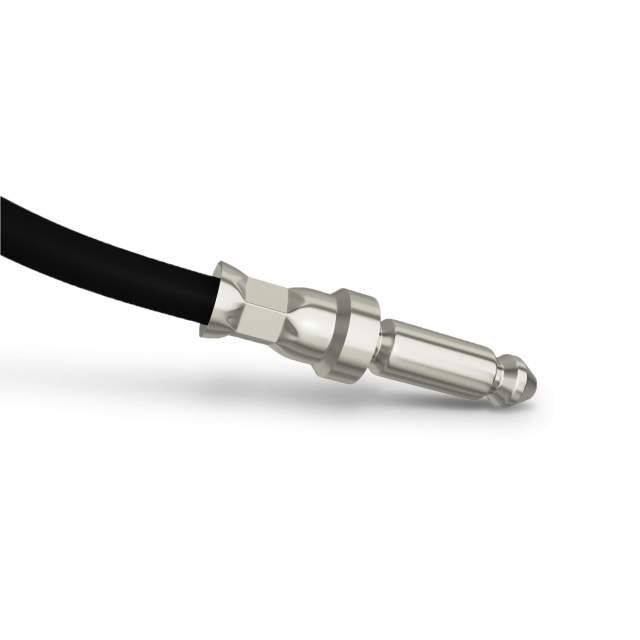

Simple Processing

REDCUBE PLUG uses standard tools for the press-fit process. A general hexagonal crimper is used to install the contact on the wire. A special post treatment technology and specific plating of the cable connector guarantee optimal crimpingresults.

  • Standard hexagonal crimping tools
  • Gastight and strong crimp connection
  • Special plating for optimal crimping results

Use with

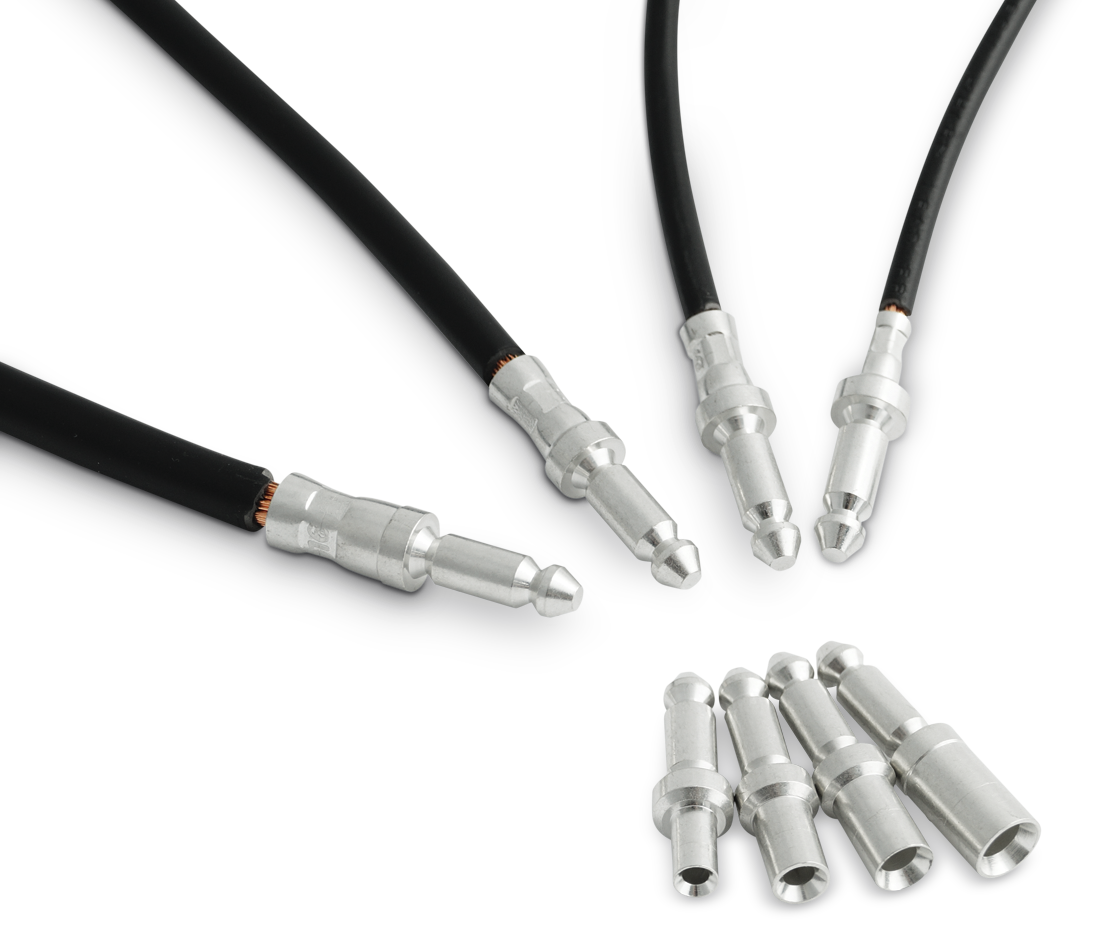

WP-PLUG REDCUBE Cable Connector for Direct PLUG Terminal

Assortments

Articles from this product series can be found in the following assortments:

Design Kit REDCUBE
