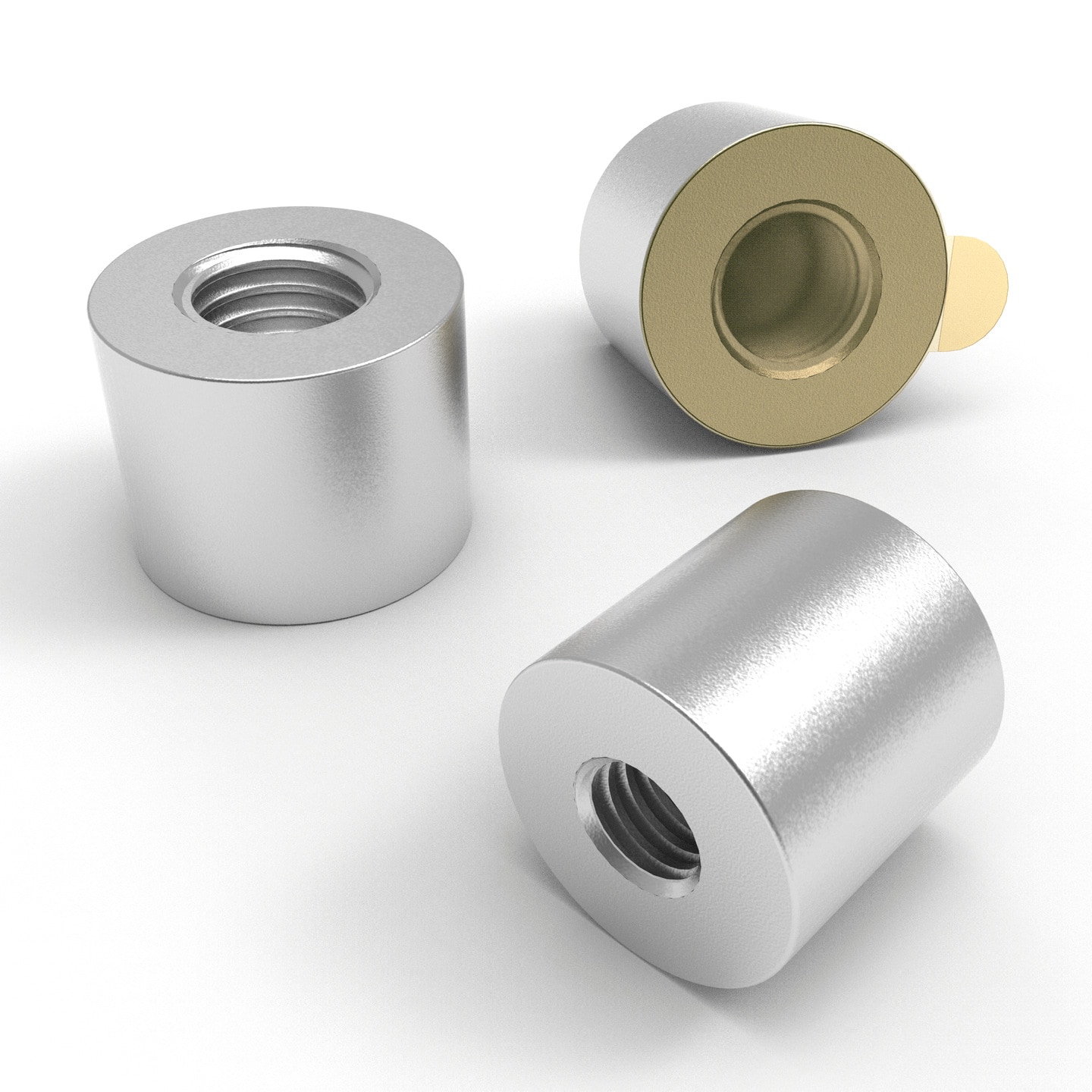

WP-SMBU REDCUBE SMT with internal blind-hole thread

Applications

Solderable high current Wire-to-Board & Board-to-Board connections with a focus on automated assembly
Angled assembling of cable, PCB or housing
One layer applications

General Information
Material	Brass
Surface	Tin
Operating Temperature	-55 °C up to +150 °C

Electrical Properties
I_R	50 A; 70 A

Packaging Properties
Packaging	Bulk; Tape and Reel

Application Notes

REDCUBE SMD Terminals Design Guide
PDF

Products

Order Code	Datasheet	Downloads	Status	H (mm)	Ø OD (mm)	I_R (A)	T_i	T_l (mm)
7466203	SPEC	5 files EDA models: Components ZIP ALT Altium_WP-SMBU (rev22a).IntLib \| 372 KB CDS Cadence_WP-SMBU (rev19a).zip \| 3.2 MB EAG Eagle_WP-SMBU (rev20b).lbr \| 263.3 KB CAD files ZIP IGS 9774180960R (rev1).igs \| 312.1 KB STP 7466203 (rev1).stp \| 104.2 KB Download all 5 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	7	7	50	M3	4
7466204	SPEC	5 files EDA models: Components ZIP ALT Altium_WP-SMBU (rev22a).IntLib \| 372 KB CDS Cadence_WP-SMBU (rev19a).zip \| 3.2 MB EAG Eagle_WP-SMBU (rev20b).lbr \| 263.3 KB CAD files ZIP IGS 9774180960R (rev1).igs \| 312.1 KB STP 7466204 (rev1).stp \| 83.7 KB Download all 5 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	7	7	50	M4	4
7466203R	SPEC	5 files EDA models: Components ZIP ALT Altium_WP-SMBU (rev22a).IntLib \| 372 KB CDS Cadence_WP-SMBU (rev19a).zip \| 3.2 MB EAG Eagle_WP-SMBU (rev20b).lbr \| 263.3 KB CAD files ZIP IGS Downloads_IGS_7466203R (rev1).igs \| 246.8 KB STP Download_STP_7466203R (rev1).stp \| 104.2 KB Download all 5 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	7	7	50	M3	4
7466204R	SPEC	5 files EDA models: Components ZIP ALT Altium_WP-SMBU (rev22a).IntLib \| 372 KB CDS Cadence_WP-SMBU (rev19a).zip \| 3.2 MB EAG Eagle_WP-SMBU (rev20b).lbr \| 263.3 KB CAD files ZIP IGS Download_IGS_7466204R (rev1).igs \| 221.8 KB STP Download_STP_7466204R (rev1).stp \| 83.7 KB Download all 5 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	7	7	50	M4	4
7466205	SPEC	6 files EDA models: Components ZIP ALT Altium_WP-SMBU (rev22a).IntLib \| 372 KB CDS Cadence_WP-SMBU (rev19a).zip \| 3.2 MB EAG Eagle_WP-SMBU (rev20b).lbr \| 263.3 KB CAD files ZIP 3D 3D_7466205 (rev1).pdf \| 289.6 KB IGS Downloads_IGS_7466205 (rev1).igs \| 309.8 KB STP Downloads_STP_7466205 (rev1).stp \| 176.5 KB Download all 6 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	7	9	70	M5	4
7466205R	SPEC	6 files EDA models: Components ZIP ALT Altium_WP-SMBU (rev22a).IntLib \| 372 KB CDS Cadence_WP-SMBU (rev19a).zip \| 3.2 MB EAG Eagle_WP-SMBU (rev20b).lbr \| 263.3 KB CAD files ZIP 3D 3D_7466205 (rev1).pdf \| 289.6 KB IGS Downloads_IGS_7466205 (rev1).igs \| 309.8 KB STP Downloads_STP_7466205 (rev1).stp \| 176.5 KB Download all 6 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	7	9	70	M5	4

	Order Code	Datasheet
	7466203	SPEC
	7466204	SPEC
	7466203R	SPEC
	7466204R	SPEC
	7466205	SPEC
	7466205R	SPEC

Samples

	Order Code	Datasheet	Downloads	Status	H (mm)	Ø OD (mm)	I_R (A)	T_i	T_l (mm)	Samples

REDCUBE Terminals - Innovative High Power Contacts

REDCUBE Terminals - 4power!

REDCUBE terminals are the most reliable high-power contacts on the PCB level. Low contact resistance guarantees minimum self-heating. Four different designs cover all leading processing technologies and offer a wide range of applications.

Characteristic:

Flexibility in processing and connection technologies
Highest current ratings up to 500 A
Board-to-Board and Wire-to-Board solutions
Extremely low self-heating
Robust mechanical connection

REDCUBE SMT & THR

Applications, Characteristics & Design

Applications

REDCUBE SMD and THR are the result of the growing demand in electronic market: high current technology in combination with fully automated, timesaving processing.

High current Wire-to-Board & Board-to-Board connections
Angled assembling of cable, PCB or housing

Impressive Characteristics

A large connecting area of REDCUBE SMD achieves a low contact resistance and best holding forces. The small size of REDCUBE SMD allows a high packing density without critical heat development on the PCB.

Simple and fast automated assembly
High packing density
Efficient and timesaving soldering process
Angled assembling of cable, PCB or housing
Tape & Reel

Special Design

REDCUBE THR have a special design for best soldering results. Milling from solid material the torques are significant better compared to stamped contacts. REDCUBE THR have the highest ampacity of fully automatically processed high-current components.
