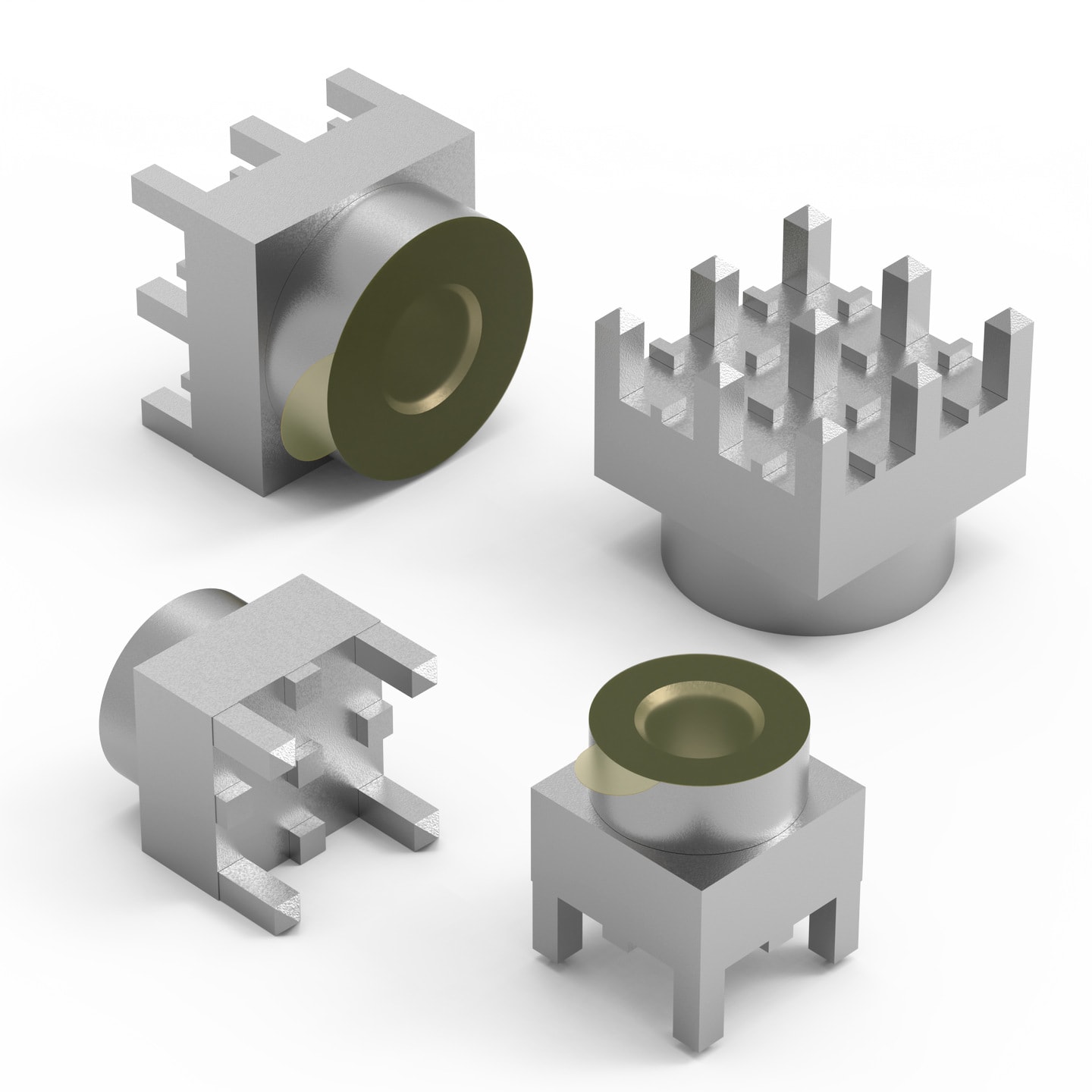

WP-THRBU REDCUBE THR with internal blind-hole thread

Applications

Solderable high current Wire-to-Board connections with a focus on automated assembly
Beneficial power supply in multi layer applications
Robust mechanical high current connections

General Information
Operating Temperature	-55 °C up to +150 °C
Material	Brass
Surface	Tin

Packaging Properties
Packaging	Bulk; Tape and Reel

Application Notes

REDCUBE SMD Terminals Design Guide
PDF

Products

Order Code	Datasheet	Downloads	Status	W (mm)	H (mm)	T_i	T_l (mm)	Pins (Value) (pcs)	Design Kit
74650173	SPEC	6 files EDA models: Components ZIP ALT Altium_WP-THRBU (rev22a).IntLib \| 261.5 KB CDS Cadence_WP-THRBU (rev19a).zip \| 1.5 MB EAG Eagle_WP-THRBU (rev19a).lbr \| 47.6 KB CAD files ZIP 3D 74650173_3D (rev1).pdf \| 235.4 KB IGS 74650173 (rev1).igs \| 644.7 KB STP 74650173 (rev1).stp \| 234.3 KB Download all 6 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	7	6	M3	3.5	4	–
74650173R	SPEC	6 files EDA models: Components ZIP ALT Altium_WP-THRBU (rev22a).IntLib \| 261.5 KB CDS Cadence_WP-THRBU (rev19a).zip \| 1.5 MB EAG Eagle_WP-THRBU (rev19a).lbr \| 47.6 KB CAD files ZIP 3D 74650173_3D (rev1).pdf \| 235.4 KB IGS 74650173 (rev1).igs \| 644.7 KB STP 74650173 (rev1).stp \| 234.3 KB Download all 6 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	7	6	M3	3.5	4	–
74650174	SPEC	6 files EDA models: Components ZIP ALT Altium_WP-THRBU (rev22a).IntLib \| 261.5 KB CDS Cadence_WP-THRBU (rev19a).zip \| 1.5 MB EAG Eagle_WP-THRBU (rev19a).lbr \| 47.6 KB CAD files ZIP 3D 74650174_3D (rev1).pdf \| 235.4 KB IGS 74650174 (rev1).igs \| 644.7 KB STP 74650174 (rev1).stp \| 234.3 KB Download all 6 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	7	6.5	M4	4	4	–
74650174R	SPEC	6 files EDA models: Components ZIP ALT Altium_WP-THRBU (rev22a).IntLib \| 261.5 KB CDS Cadence_WP-THRBU (rev19a).zip \| 1.5 MB EAG Eagle_WP-THRBU (rev19a).lbr \| 47.6 KB CAD files ZIP 3D 74650174_3D (rev1).pdf \| 235.4 KB IGS 74650174 (rev1).igs \| 644.7 KB STP 74650174 (rev1).stp \| 234.3 KB Download all 6 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	7	6.5	M4	4	4	–
74650194	SPEC	6 files EDA models: Components ZIP ALT Altium_WP-THRBU (rev22a).IntLib \| 261.5 KB CDS Cadence_WP-THRBU (rev19a).zip \| 1.5 MB EAG Eagle_WP-THRBU (rev19a).lbr \| 47.6 KB CAD files ZIP 3D 74650194_3D (rev1).pdf \| 284.5 KB IGS 74650194 (rev1).igs \| 1023.3 KB STP 74650194 (rev1).stp \| 322.4 KB Download all 6 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	10	7	M4	4	9	–
74650194R	SPEC	6 files EDA models: Components ZIP ALT Altium_WP-THRBU (rev22a).IntLib \| 261.5 KB CDS Cadence_WP-THRBU (rev19a).zip \| 1.5 MB EAG Eagle_WP-THRBU (rev19a).lbr \| 47.6 KB CAD files ZIP 3D 74650194_3D (rev1).pdf \| 284.5 KB IGS 74650194 (rev1).igs \| 1023.3 KB STP 74650194 (rev1).stp \| 322.4 KB Download all 6 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	10	7	M4	4	9	–
74650195	SPEC	6 files EDA models: Components ZIP ALT Altium_WP-THRBU (rev22a).IntLib \| 261.5 KB CDS Cadence_WP-THRBU (rev19a).zip \| 1.5 MB EAG Eagle_WP-THRBU (rev19a).lbr \| 47.6 KB CAD files ZIP 3D 74650195_3D (rev1).pdf \| 320.5 KB IGS 74650195 (rev1).igs \| 1.1 MB STP 74650195 (rev1).stp \| 347.5 KB Download all 6 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	10	7	M5	4	9	746701
74650195R	SPEC	6 files EDA models: Components ZIP ALT Altium_WP-THRBU (rev22a).IntLib \| 261.5 KB CDS Cadence_WP-THRBU (rev19a).zip \| 1.5 MB EAG Eagle_WP-THRBU (rev19a).lbr \| 47.6 KB CAD files ZIP 3D 74650195_3D (rev1).pdf \| 320.5 KB IGS 74650195 (rev1).igs \| 1.1 MB STP 74650195 (rev1).stp \| 347.5 KB Download all 6 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	10	7	M5	4	9	–

	Order Code	Datasheet
	74650173	SPEC
	74650173R	SPEC
	74650174	SPEC
	74650174R	SPEC
	74650194	SPEC
	74650194R	SPEC
	74650195	SPEC
	74650195R	SPEC

Samples

	Order Code	Datasheet	Downloads	Status	W (mm)	H (mm)	T_i	T_l (mm)	Pins (Value) (pcs)	Design Kit	Samples

REDCUBE Terminals - Innovative High Power Contacts

REDCUBE Terminals - 4power!

REDCUBE terminals are the most reliable high-power contacts on the PCB level. Low contact resistance guarantees minimum self-heating. Four different designs cover all leading processing technologies and offer a wide range of applications.

Characteristic:

Flexibility in processing and connection technologies
Highest current ratings up to 500 A
Board-to-Board and Wire-to-Board solutions
Extremely low self-heating
Robust mechanical connection

REDCUBE SMT & THR

Applications, Characteristics & Design

Applications

REDCUBE SMD and THR are the result of the growing demand in electronic market: high current technology in combination with fully automated, timesaving processing.

High current Wire-to-Board & Board-to-Board connections
Angled assembling of cable, PCB or housing

Impressive Characteristics

A large connecting area of REDCUBE SMD achieves a low contact resistance and best holding forces. The small size of REDCUBE SMD allows a high packing density without critical heat development on the PCB.

Simple and fast automated assembly
High packing density
Efficient and timesaving soldering process
Angled assembling of cable, PCB or housing
Tape & Reel

Special Design

REDCUBE THR have a special design for best soldering results. Milling from solid material the torques are significant better compared to stamped contacts. REDCUBE THR have the highest ampacity of fully automatically processed high-current components.
