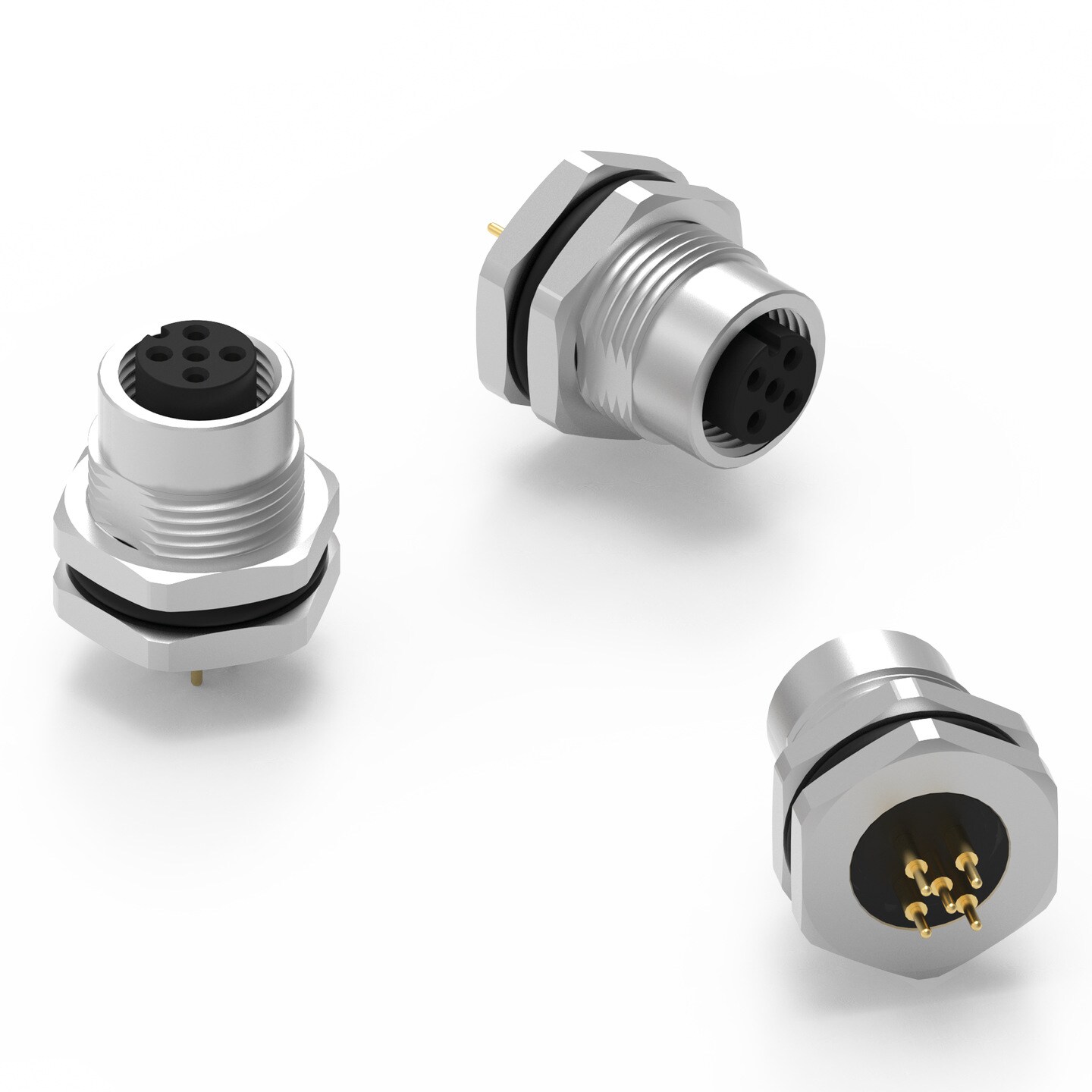

WR-CIRCM12 Screw Mating Panel Connector Female Metal PG9

Packaging Properties
Packaging	Tray

Material Properties
Insulator Material	PA66
Insulator Flammability Rating	UL94 V-0
Insulator Color	Black
Contact Material	Copper Alloy
Contact Plating	Gold

Order Code	Datasheet	Downloads	Status	Polarity	Gender	I_R (A)	Working Voltage (V)	Withstanding Voltage (V (AC))	Packaging
643260100604	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-CIRC (rev23b).IntLib \| 11 MB CDS Cadence_WR-CIRC (rev23a).zip \| 72.5 MB EAG Eagle_WR-CIRC (rev23a).lbr \| 266.2 KB CAD files ZIP 3D 3D_643260100604 (rev1).pdf \| 1.4 MB IGS IGS_643260100604 (rev1).igs \| 3.7 MB STP STP_643260100604 (rev1).stp \| 2.7 MB Download all 6 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	4	Female	5	250	1400	Tray
643260100605	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-CIRC (rev23b).IntLib \| 11 MB CDS Cadence_WR-CIRC (rev23a).zip \| 72.5 MB EAG Eagle_WR-CIRC (rev23a).lbr \| 266.2 KB CAD files ZIP 3D 3D_643260100605 (rev1).pdf \| 1.4 MB IGS IGS_643260100605 (rev1).igs \| 3.6 MB STP STP_643260100605 (rev1).stp \| 2.7 MB Download all 6 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	5	Female	5	60	1000	Tray
643260100608	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-CIRC (rev23b).IntLib \| 11 MB CDS Cadence_WR-CIRC (rev23a).zip \| 72.5 MB EAG Eagle_WR-CIRC (rev23a).lbr \| 266.2 KB CAD files ZIP 3D 3D_643260100608 (rev1).pdf \| 1.4 MB IGS IGS_643260100608 (rev1).igs \| 3.8 MB STP STP_643260100608 (rev1).stp \| 2.7 MB Download all 6 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	8	Female	2	30	650	Tray
