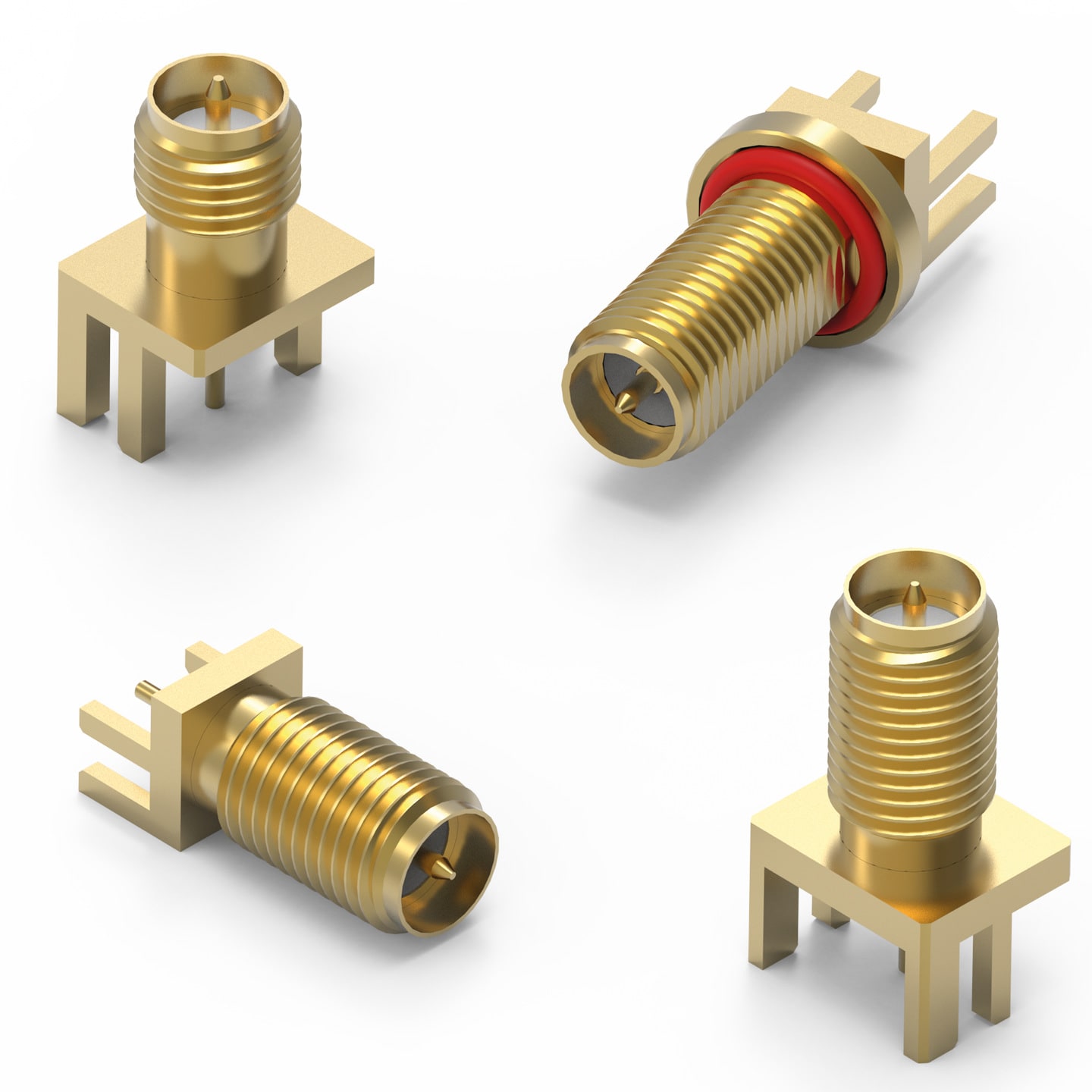

WR-RPSMA PCB End Launch Connectors

Size	Dimensions	Mount
Straight Jack		End Launch

Characteristics

Interface: MIL-STD-348
Mating Cycle: 500 Cycles
Impedance: 50Ω
Insulation Resistance: 5000M Ω (min.)
Withstanding Voltage: 1000Vrms (min.)
Ingress Protection: None ⅼ IP67
Mating: Screw (Recommended by torque wrench tool)

Applications

Network and communications
RF Test and measurement equipment
Industrial applications
Electronic device
Outdoor or humidity environment

Application Notes

ANE012 Coaxial PCB Connector - PCB-Transmission Line Design Guide
PDF

Products

Straight Jack

Order Code	Datasheet	Downloads	Status	Ingress Protection Code	t _min (mm)	t _max (mm)	PCB Thickness (mm)	f	Center Contact	Operating Temperature	Design Kit
63012252111511	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-RPSMA (rev22a).IntLib \| 701 KB CDS Cadence_WR-RPSMA (rev21a).zip \| 7.1 MB EAG Eagle_WR-RPSMA (rev21a).lbr \| 56.5 KB CAD files ZIP 3D 3D_63012252111511 (rev1).pdf \| 973.4 KB IGS IGES_63012252111511 (rev1).iges \| 2.9 MB STP STP_63012252111511 (rev1).stp \| 1.1 MB Download all 6 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	IP67	–	4.7	1.6	DC~6 GHz	–	-65 °C up to +165 °C	603301
63012202124505	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-RPSMA (rev22a).IntLib \| 701 KB CDS Cadence_WR-RPSMA (rev21a).zip \| 7.1 MB EAG Eagle_WR-RPSMA (rev21a).lbr \| 56.5 KB CAD files ZIP 3D 3D_63012202124505 (rev1).pdf \| 289.7 KB IGS Download_IGES_63012202124505 (rev1).iges \| 618.7 KB STP Download_STP_63012202124505 (rev1).stp \| 142.9 KB Download all 6 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	None	–	–	1.6	DC~18 GHz	Ø 0.76	-65 °C up to +165 °C	603301
63012242124506	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-RPSMA (rev22a).IntLib \| 701 KB CDS Cadence_WR-RPSMA (rev21a).zip \| 7.1 MB EAG Eagle_WR-RPSMA (rev21a).lbr \| 56.5 KB CAD files ZIP 3D 3D_63012242124506 (rev1).pdf \| 648.2 KB IGS Download_IGES_63012242124506 (rev1).iges \| 1.5 MB STP Download_STP_63012242124506 (rev1).stp \| 415.1 KB Download all 6 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	None	2	2.4	1.6	DC~18 GHz	Ø 0.76	-65 °C up to +165 °C	603301
63012242121508	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-RPSMA (rev22a).IntLib \| 701 KB CDS Cadence_WR-RPSMA (rev21a).zip \| 7.1 MB EAG Eagle_WR-RPSMA (rev21a).lbr \| 56.5 KB CAD files ZIP 3D 3D_63012242121508 (rev1).pdf \| 667 KB IGS IGES_63012242121508 (rev1).iges \| 1.6 MB STP STEP_63012242121508 (rev1).stp \| 853.8 KB Download all 6 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	None	2	2.4	1.6	DC~6 GHz	Ø 0.76	-65 °C up to +165 °C	603301

	Order Code	Datasheet
	63012252111511	SPEC
	63012202124505	SPEC
	63012242124506	SPEC
	63012242121508	SPEC

Samples

	Order Code	Datasheet	Downloads	Status	Ingress Protection Code	t _min (mm)	t _max (mm)	PCB Thickness (mm)	f	Center Contact	Operating Temperature	Design Kit	Samples

Avoid mismatching with our RPSMA connectors

Reverse Polarity SMA connectors are in inverse design to standard SMA connectors for polarization according to FCC regulations for Antenna requirements.They appear with identical visual shape and mechanical attributes along with the same characteristics as standard SMA. Nevertheless, RP jack can only be mated with RP plug. The purpose is to prevent any inadvertent mating with standard.

Learn more PDF
