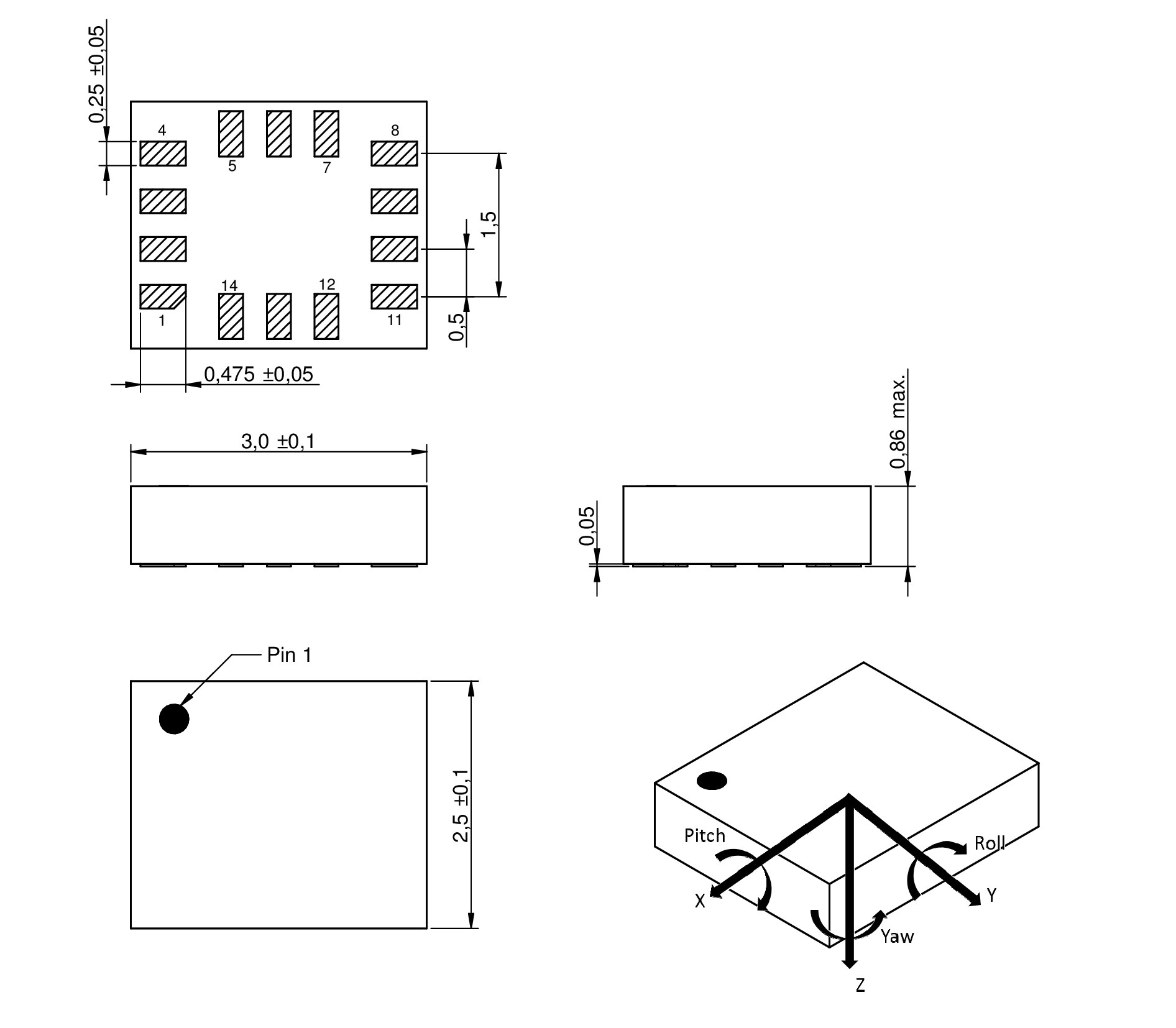

WSEN-ISDS 6 Axis IMU (Inertial Measurement Unit)
3-Axis Acceleration Sensor and 3-axis Gyroscope Sensor

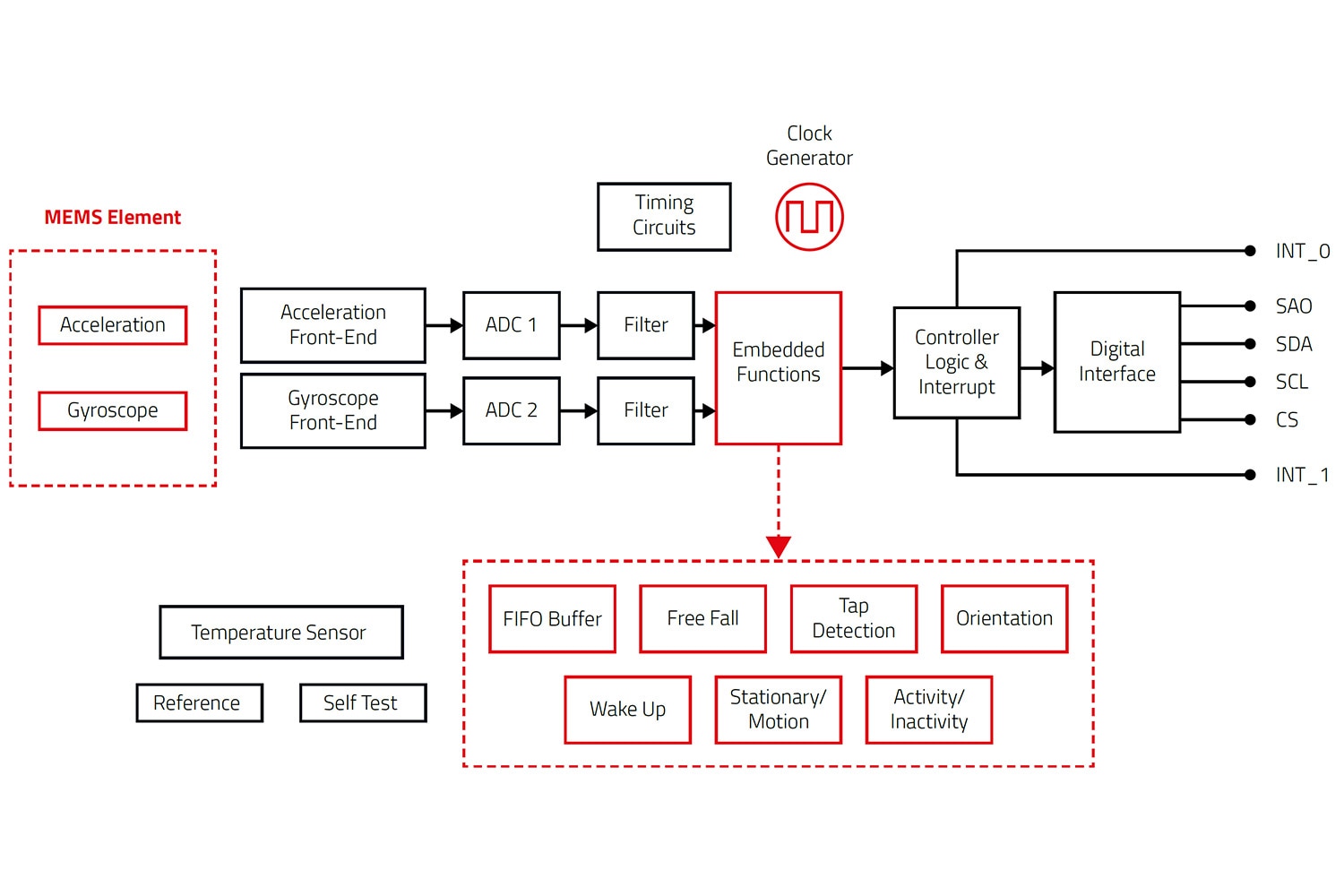

Characteristics
- MEMS based capacitive sensing principle

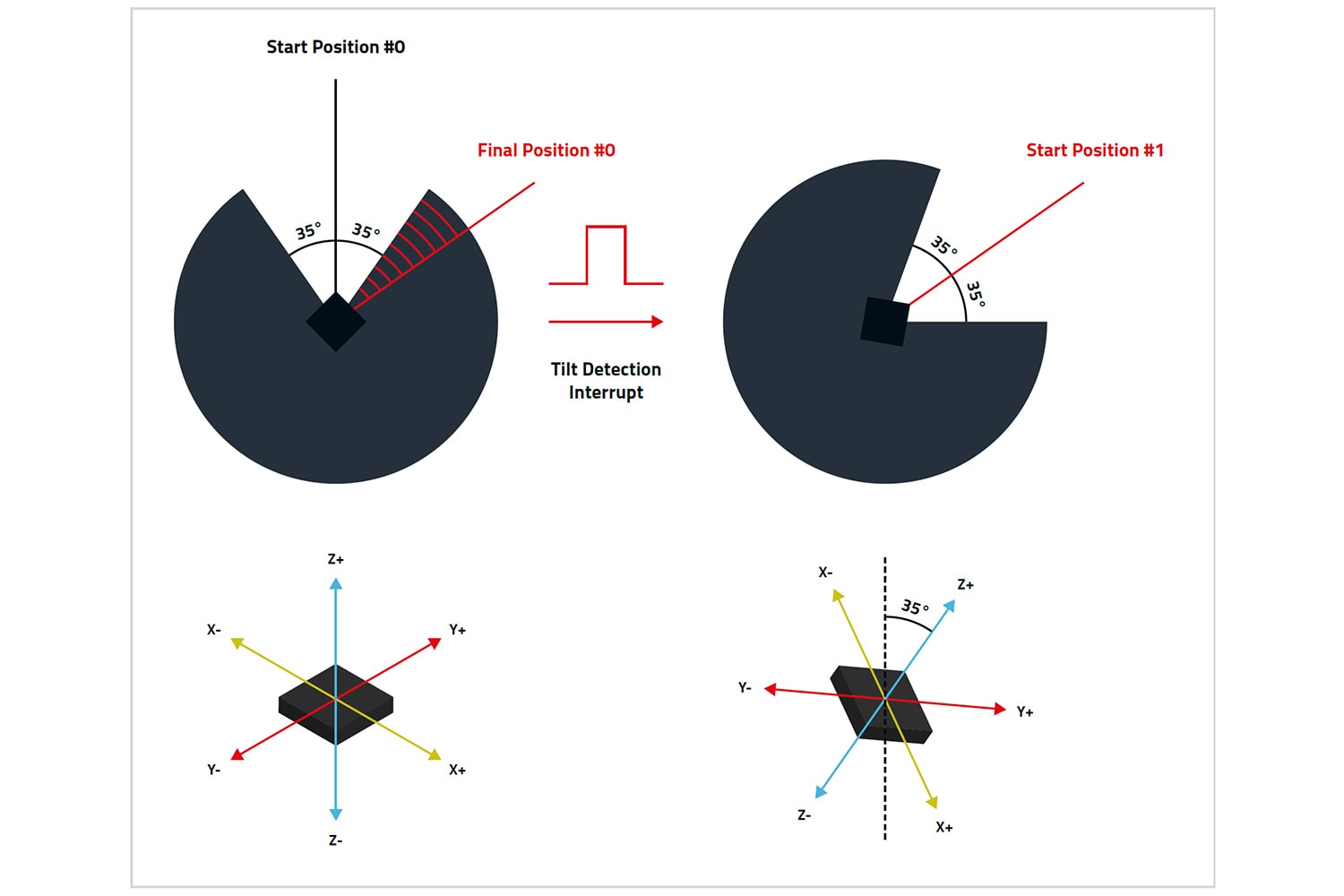

- Application specific functionality: Free-fall, wake-up, tap, activity, motion, tilt and orientation detection
- Fully calibrated 16 bit output
- Acceleration full scale: ±2 g, ±4 g, ±8 g, ±16 g
- Gyroscope full scale: ±125 dps, ±250 dps, ±500 dps, ±1000 dps, ±2000 dps
- Output data rate: 6.6 kHz
- Embedded temperature sensor
- Temperature range: -40 °C up to +85 °C
- I²C and SPI digital communication interface
- Sensor Software Development Kit
- Sensor SDK User Manual
- Sensor Arduino Libraries via GitHub
Applications
- Localization and navigation
- Industrial tools and equipment
- Stabilization of antenna and platform
- Industrial IoT and connected devices
- Robotics, drones and automation
Products
| Order Code | Datasheet | Manual | Downloads | Description | aRANGE | RESa (bits) | gRANGE | RESg (bits) | ODR (Hz) | ODR (Hz) | TRANGE (°C) | TRANGE (°C) | Packaging | Offer |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 2536030320001 | SPEC PCN pendingDue to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. | 5 files | WSEN-ISDS | ±2/ ±4/ ±8/ ±16 g | 16 | ±125/±250/±500/±1000/±2000 dps | 16 | 1.6 | 6664 | -40 | 85 | 7'' Reel | ||
| 25360303200011 | SPEC PCN pendingDue to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. | 5 files | WSEN-ISDS | ±2/ ±4/ ±8/ ±16 g | 16 | ±125/±250/±500/±1000/±2000 dps | 16 | 1.6 | 6664 | -40 | 85 | 13'' Reel |
| Order Code | Datasheet |
|---|---|
| 2536030320001 | SPEC PCN pendingDue to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. |
| 25360303200011 | SPEC PCN pendingDue to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. |
| Offer |
|---|
| Order Code | Datasheet | Manual | Downloads | Description | aRANGE | RESa (bits) | gRANGE | RESg (bits) | ODR (Hz) | ODR (Hz) | TRANGE (°C) | TRANGE (°C) | Packaging | Offer |
|---|
Software Downloads
The Würth Elektronik range of sensors provide advanced sensing capabilities to any embedded application. The built-in digital interface enables easy integration with any of the most commonly used host MCUs through industry standard serial communication interfaces like I²C. This also allows complete configuration and control of the sensor via software running on the host MCU.
The Sensors Software Development Kit (SDK) is a set of software tools that enable quick software integration of Würth Elektronik eiSos sensors to application software on the host MCU. It consists of a set of platform-independent drivers for the sensors and sample applications developed on the Raspberry Pi platform written in C.
Download now
