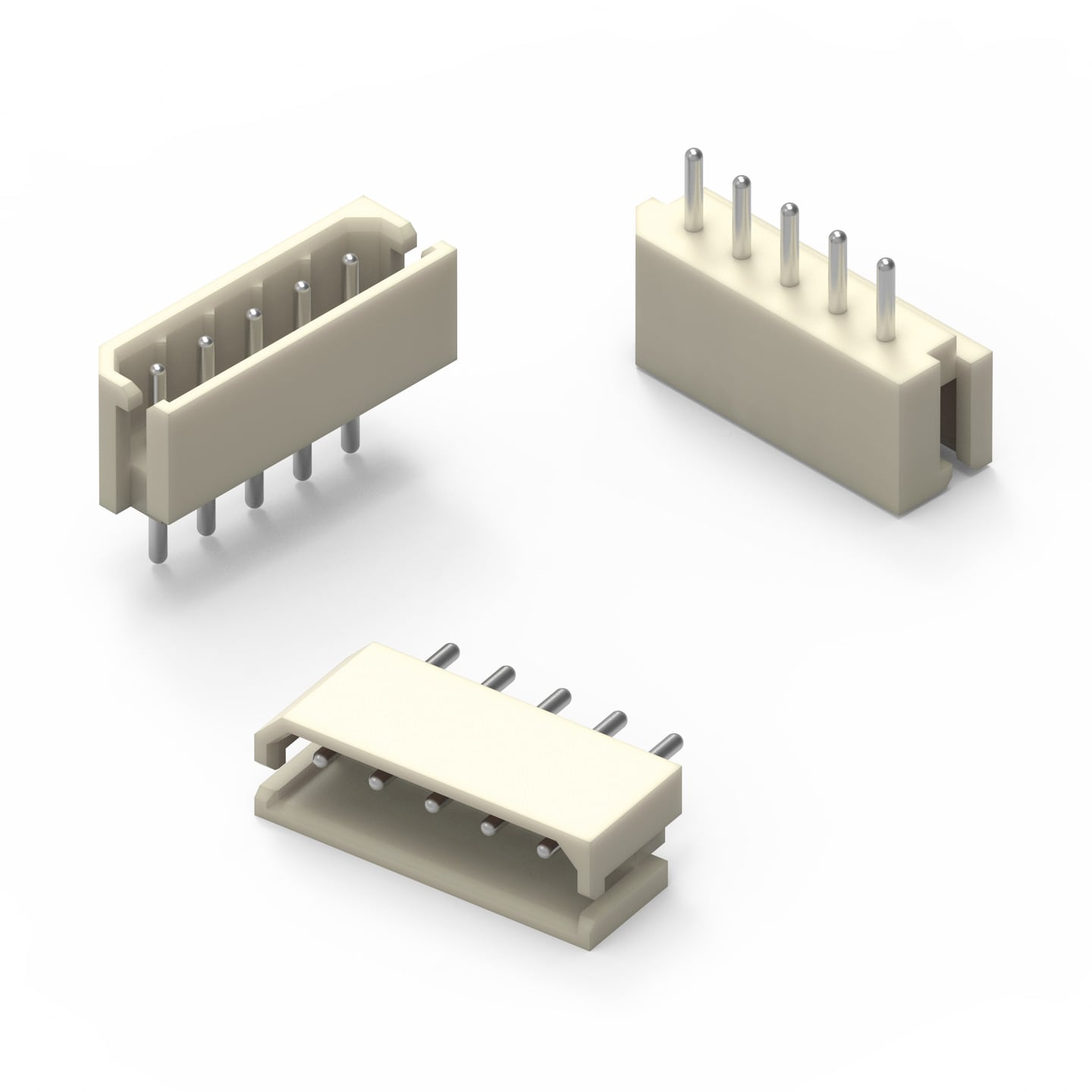

WR-WTB 2.50 mm Male Shrouded Header

Material Properties
Insulator Material	co
Insulator Flammability Rating	UL94 V-0
Color	Beige
Contact Material	Copper Alloy
Contact Plating	Tin
Contact Type	Stamped

General Information
Operating Temperature	-40 °C up to +105 °C
Compliance	RoHS
I_R	3 A
Working Voltage	250 V (AC)
Withstanding Voltage	1000 V (AC)
Contact Resistance	20 mΩ
R_ISO	1000 MΩ
Pitch	2.5 mm
Gender	Male
Type	Vertical

Certification
UL Approval	E323964

Packaging Properties
Packaging	Bag

Products

	Order Code	Datasheet	Downloads	Status	Pins (Value) (pcs)	Pitch (mm)	Gender	Type	Mount	I_R (A)	Working Voltage (V (AC))	PCB/Cable/Panel	Contact Resistance (mΩ)	Tol. R	L (mm)	Packaging	Design Kit	Samples
	64600211622	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-WTB (rev23a).IntLib \| 11.7 MB CDS Cadence_WR-WTB (rev23b).zip \| 53.1 MB EAG Eagle_WR-WTB (rev23a).lbr \| 2.3 MB CAD files ZIP 3D 3D_64600211622 (rev1).pdf \| 46.3 KB IGS 64600211622 (rev1).igs \| 304.9 KB STP 64600211622 (rev1).stp \| 125.6 KB Download all 6 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	2	2.5	Male	Vertical	THT	3	250	PCB	20	max.	7.5	Bag	645001
	64600311622	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-WTB (rev23a).IntLib \| 11.7 MB CDS Cadence_WR-WTB (rev23b).zip \| 53.1 MB EAG Eagle_WR-WTB (rev23a).lbr \| 2.3 MB CAD files ZIP 3D 3D_64600311622 (rev1).pdf \| 49.3 KB IGS 64600311622 (rev1).igs \| 341.7 KB STP 64600311622 (rev1).stp \| 137.1 KB Download all 6 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	3	2.5	Male	Vertical	THT	3	250	PCB	20	max.	10	Bag	645001
	64600411622	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-WTB (rev23a).IntLib \| 11.7 MB CDS Cadence_WR-WTB (rev23b).zip \| 53.1 MB EAG Eagle_WR-WTB (rev23a).lbr \| 2.3 MB CAD files ZIP 3D 3D_64600411622 (rev1).pdf \| 53 KB IGS 64600411622 (rev1).igs \| 378.3 KB STP 64600411622 (rev1).stp \| 148.8 KB Download all 6 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	4	2.5	Male	Vertical	THT	3	250	PCB	20	max.	12.5	Bag	645001
	64600511622	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-WTB (rev23a).IntLib \| 11.7 MB CDS Cadence_WR-WTB (rev23b).zip \| 53.1 MB EAG Eagle_WR-WTB (rev23a).lbr \| 2.3 MB CAD files ZIP 3D 3D_64600511622 (rev1).pdf \| 57.4 KB IGS 64600511622 (rev1).igs \| 415 KB STP 64600511622 (rev1).stp \| 160.3 KB Download all 6 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	5	2.5	Male	Vertical	THT	3	250	PCB	20	max.	15	Bag	645001
	64600711622	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-WTB (rev23a).IntLib \| 11.7 MB CDS Cadence_WR-WTB (rev23b).zip \| 53.1 MB EAG Eagle_WR-WTB (rev23a).lbr \| 2.3 MB CAD files ZIP 3D 3D_64600711622 (rev1).pdf \| 67.5 KB IGS 64600711622 (rev1).igs \| 489 KB STP 64600711622 (rev1).stp \| 183.6 KB Download all 6 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	7	2.5	Male	Vertical	THT	3	250	PCB	20	max.	20	Bag	645001
	64601011622	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-WTB (rev23a).IntLib \| 11.7 MB CDS Cadence_WR-WTB (rev23b).zip \| 53.1 MB EAG Eagle_WR-WTB (rev23a).lbr \| 2.3 MB CAD files ZIP 3D 3D_64601011622 (rev1).pdf \| 79.4 KB IGS 64601011622 (rev1).igs \| 599.5 KB STP 64601011622 (rev1).stp \| 218.5 KB Download all 6 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	10	2.5	Male	Vertical	THT	3	250	PCB	20	max.	27.5	Bag	612690 645001

	Order Code	Datasheet
	64600211622	SPEC
	64600311622	SPEC
	64600411622	SPEC
	64600511622	SPEC
	64600711622	SPEC
	64601011622	SPEC

Samples

	Order Code	Datasheet	Downloads	Status	Pins (Value) (pcs)	Pitch (mm)	Gender	Type	Mount	I_R (A)	Working Voltage (V (AC))	PCB/Cable/Panel	Contact Resistance (mΩ)	Tol. R	L (mm)	Packaging	Design Kit	Samples

Mates with

WR-WTB 2.50 mm Female Terminal Housing

WR-WTB 2.50 mm Female Crimp Contact

Assortments

Articles from this product series can be found in the following assortments:

Design Kit Connector Solutions

Design Kit WR-WTB Wire-to-Board Connectors
