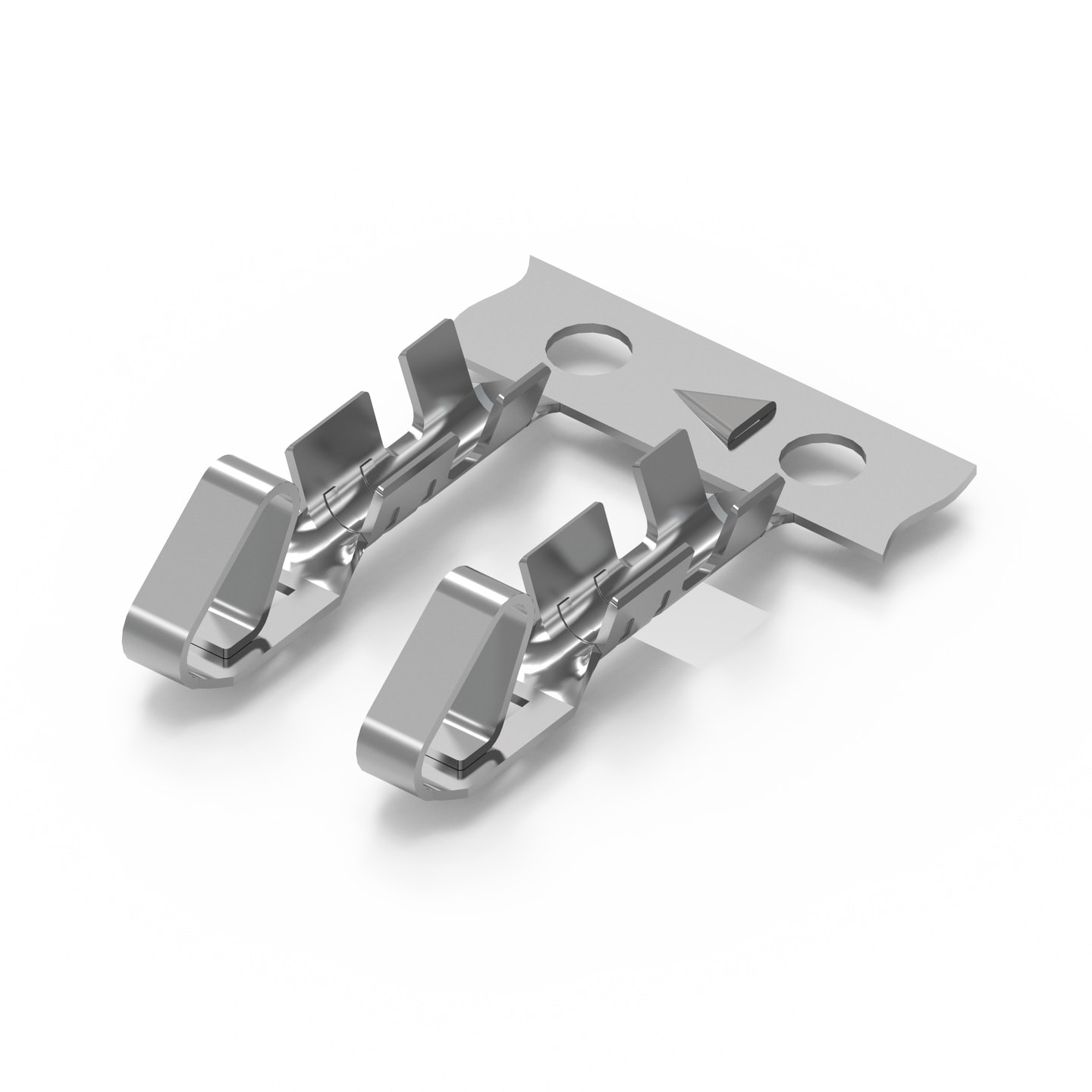

WR-WTB 2.54 mm Female Crimp Contact

Material Properties
Contact Material	Copper Alloy
Contact Plating	Tin
Contact Type	Stamped

General Information
Operating Temperature	-40 °C up to +105 °C
Compliance	RoHS
I_R	3 A
Working Voltage	250 V (AC)
Contact Resistance	20 mΩ
Pitch	2.54 mm
Gender	Female
Type	Crimp Terminal

Wire Properties
Stranded Wire Section (AWG)	28 to 22 (AWG)
Stranded Wire Section (Metric)	0.081 to 0.326 (mm²)

Packaging Properties
Packaging	Bag; Big Reel; Small Reel

Products

	Order Code	Datasheet	Downloads	Status	Gender	Stranded Wire Section (AWG)	Stranded Wire Section (Metric)	Packaging	Qty. (pcs)	Design Kit	Samples
	61900113722	SPEC	3 files CAD files ZIP 3D 61900113722_1 (rev1).pdf \| 158.5 KB IGS 61900113722 (rev1).igs \| 1.2 MB STP 61900113722 (rev1).stp \| 456.9 KB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	Female	28 to 22 (AWG)	0.081 to 0.326 (mm²)	Big Reel	10000	–
	61910113722	SPEC	3 files CAD files ZIP 3D 3D_61910113722 (rev1).pdf \| 142.4 KB IGS Download_IGES_61910113722 (rev1).iges \| 1.2 MB STP Download_STP_61910113722 (rev1).stp \| 457 KB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	Female	28 to 22 (AWG)	0.081 to 0.326 (mm²)	Small Reel	1000	–
	61900113722DEC	SPEC	3 files CAD files ZIP 3D 3D_61900113722DEC (rev1).pdf \| 97.9 KB IGS Download_IGES_61900113722DEC (rev1).iges \| 984.8 KB STP Download_STP_61900113722DEC (rev1).stp \| 360.7 KB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	Female	28 to 22 (AWG)	0.081 to 0.326 (mm²)	Bag	100	612690 645001

	Order Code	Datasheet
	61900113722	SPEC
	61910113722	SPEC
	61900113722DEC	SPEC

Samples

	Order Code	Datasheet	Downloads	Status	Gender	Stranded Wire Section (AWG)	Stranded Wire Section (Metric)	Packaging	Qty. (pcs)	Design Kit	Samples

Tools

WR-WTB Automatic Crimping Tool: 600619401

Mates with

WR-WTB Manual Crimping Tool

Suitable for

WR-WTB 2.54 mm Female Terminal Housing

Assortments

Articles from this product series can be found in the following assortments:

Design Kit Connector Solutions

Design Kit WR-WTB Wire-to-Board Connectors
