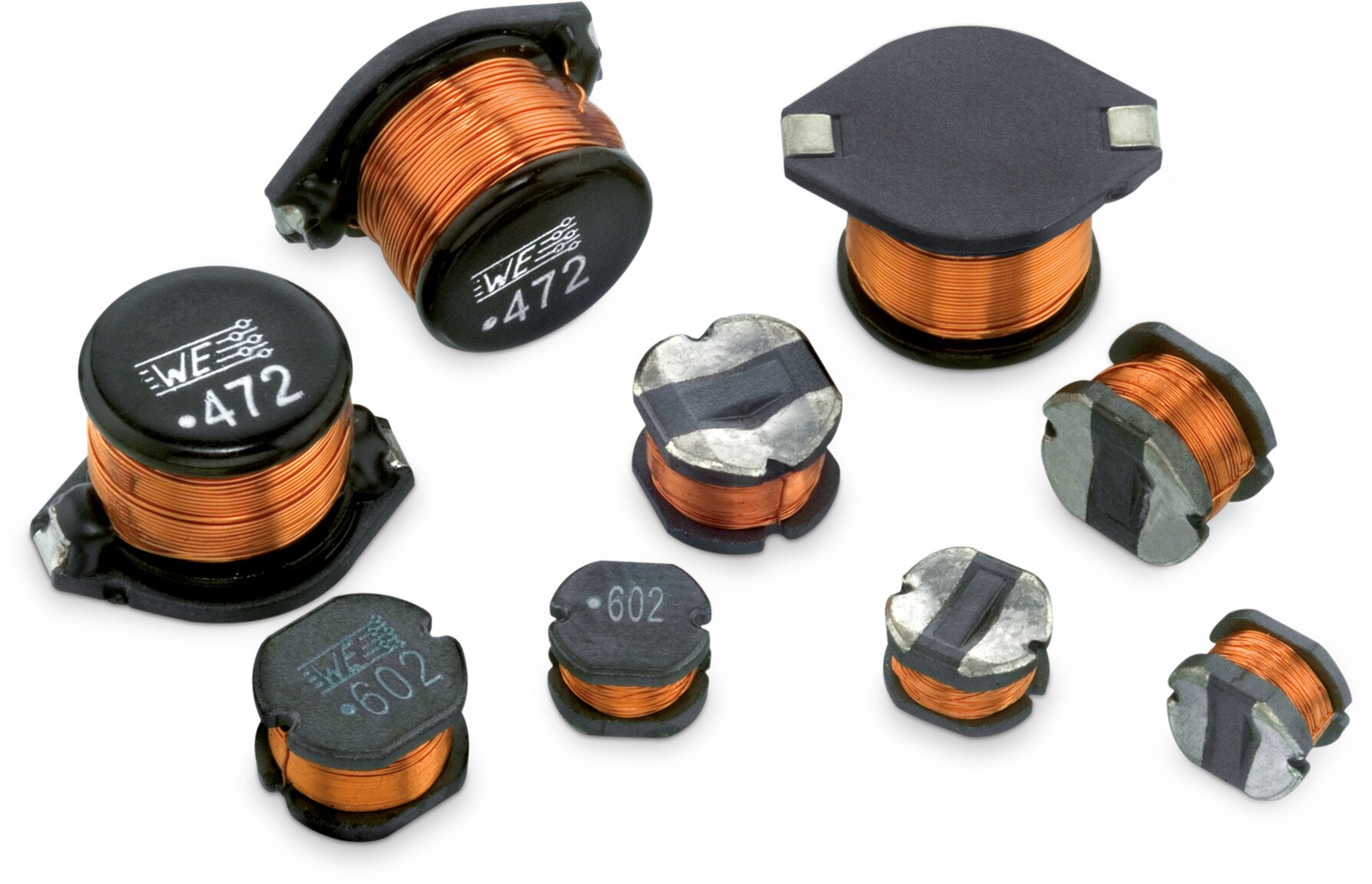

WE-ASI SMT Wire Wound Inductor

Size	Dimensions	L (mm)	W (mm)	H (mm)	Mount

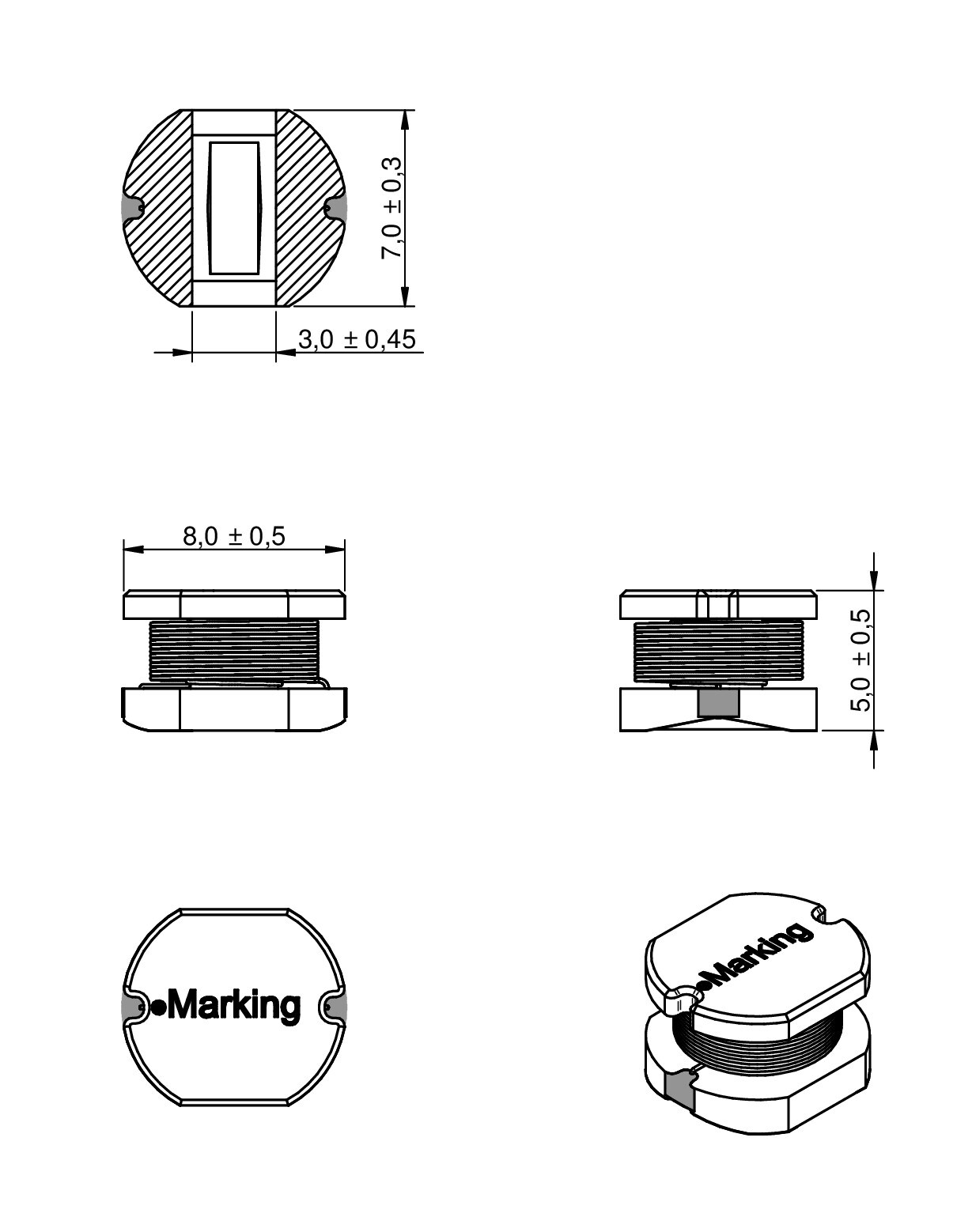

Sensor		8	7	5	SMT

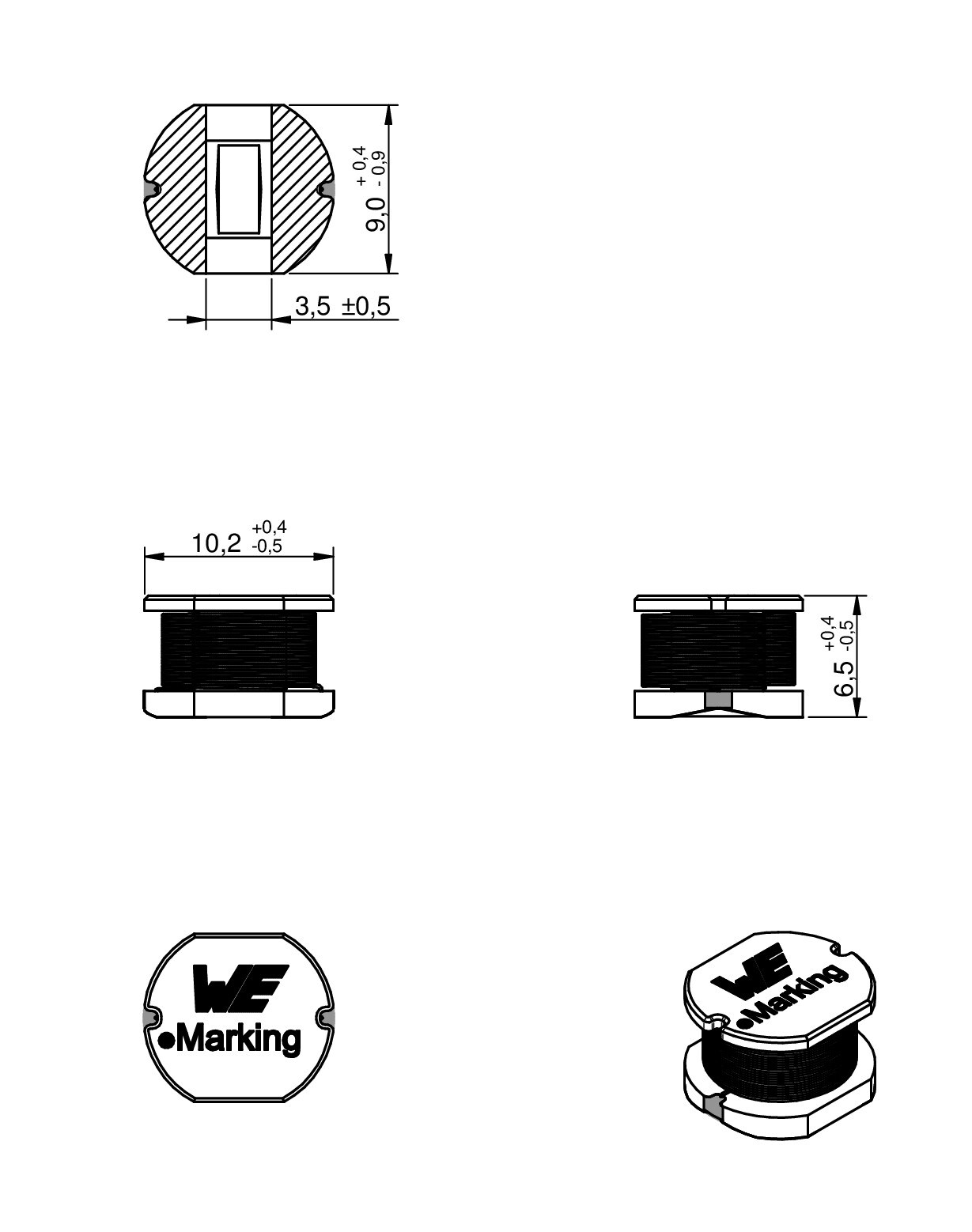

Actuator - Type M		10.2	9	6.5	SMT

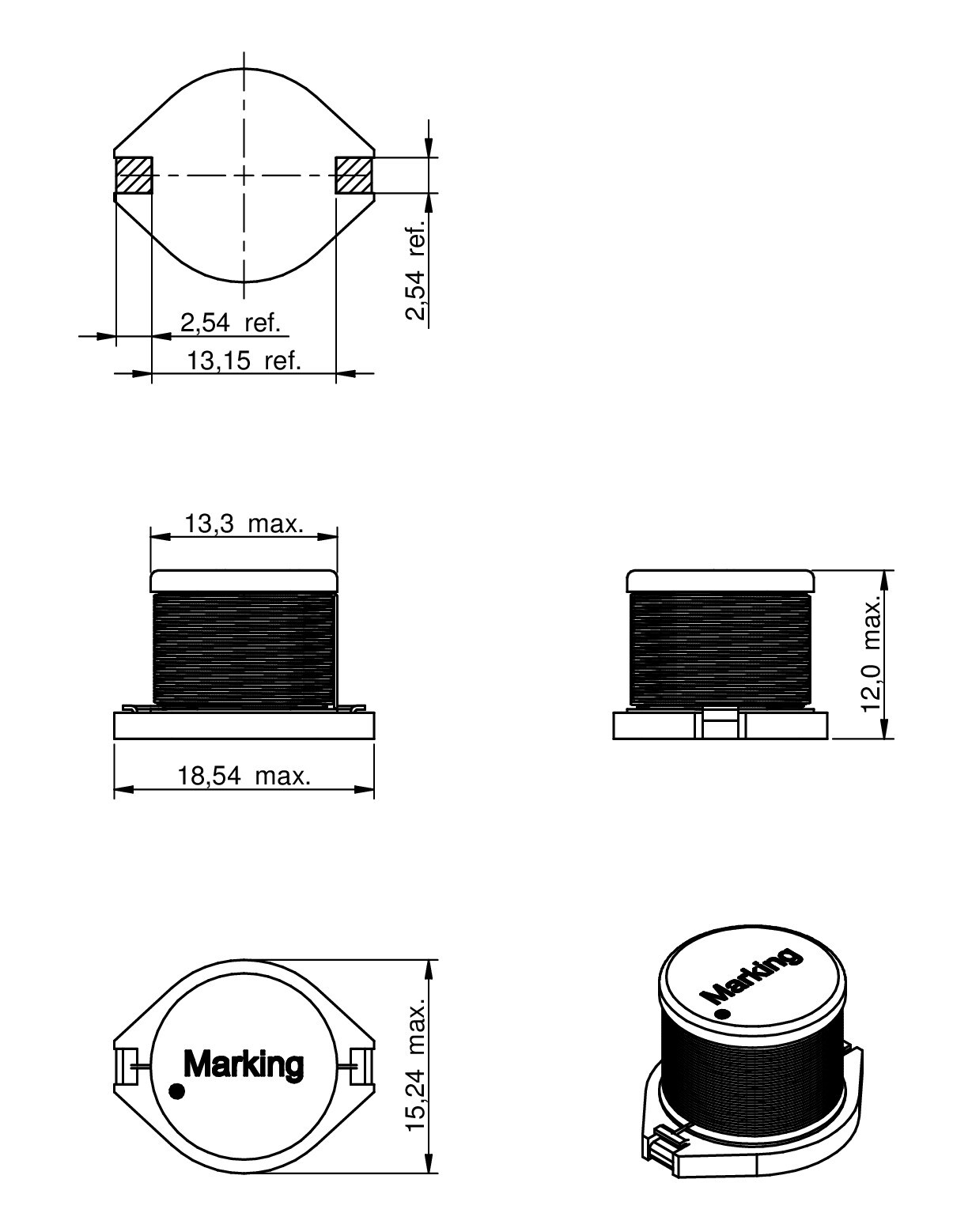

Actuator - Type L		18.54	15.24	12	SMT

LTSpice files

LT
LTSpice_WE-ASI (rev24a).zip
|
2 KB

Characteristics

Specially designed for sensors and actuators
Highest possible current in the smallest case size
High self resonant frequency
Operating temperature: –40 ºC to +125 ºC
Recommended solder profile: Reflow

Applications

ASI-applications
Filter applications in kHz frequency range

Products

All

Sensor

Actuator - Type M

Actuator - Type L

Order Code	Datasheet	Downloads	Status	L (mH)	I_R (A)	I_SAT (A)	R_{DC max.} (Ω)	C	f_res (kHz)	Samples
744775330	SPEC PCN pending Due to a pending PCN there will be a new datasheet revision issued for this order code soon. Please find the actual as well based on valid PCN date the new revision datasheet below. If you have further questions please get in contact with our sales staff. SPEC Datasheet valid to 07/01/2025 SPEC Datasheet valid from 08/01/2025 PCN PCN document	7 files EDA models: Components ZIP ALT Altium_WE-ASI (rev22c).IntLib \| 414 KB ZUK Cadstar_WE-ASI (rev19a).zip \| 5.9 KB CDS Cadence_WE-ASI (rev18a).zip \| 2.7 MB EAG Eagle_WE-ASI (rev20a).lbr \| 25.1 KB CAD files ZIP IGS WE-ASI_Sensor (rev1).igs \| 2.4 MB STP WE-ASI_Sensor (rev1).stp \| 901.2 KB Electric models ZIP PSP PSpice_WE-ASI (rev24a).zip \| 4.7 KB Download all 7 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	3	0.24	0.12	10	10 pF	900
744776333	SPEC PCN pending Due to a pending PCN there will be a new datasheet revision issued for this order code soon. Please find the actual as well based on valid PCN date the new revision datasheet below. If you have further questions please get in contact with our sales staff. SPEC Datasheet valid to 07/01/2025 SPEC Datasheet valid from 08/01/2025 PCN PCN document	7 files EDA models: Components ZIP ALT Altium_WE-ASI (rev22c).IntLib \| 414 KB ZUK Cadstar_WE-ASI (rev19a).zip \| 5.9 KB CDS Cadence_WE-ASI (rev18a).zip \| 2.7 MB EAG Eagle_WE-ASI (rev20a).lbr \| 25.1 KB CAD files ZIP IGS WE-ASI_TypM_ASI (rev1).igs \| 2.5 MB STP WE-ASI_TypM_ASI (rev1).stp \| 1 MB Electric models ZIP PSP PSpice_WE-ASI (rev24a).zip \| 4.7 KB Download all 7 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	3	0.35	0.4	7	10 pF	900
74458303	SPEC	7 files EDA models: Components ZIP ALT Altium_WE-ASI (rev22c).IntLib \| 414 KB ZUK Cadstar_WE-ASI (rev19a).zip \| 5.9 KB CDS Cadence_WE-ASI (rev18a).zip \| 2.7 MB EAG Eagle_WE-ASI (rev20a).lbr \| 25.1 KB CAD files ZIP IGS WE-ASI_TypL_ASI (rev1).igs \| 2.7 MB STP WE-ASI_TypL_ASI (rev1).stp \| 1.5 MB Electric models ZIP PSP PSpice_WE-ASI (rev24a).zip \| 4.7 KB Download all 7 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	3	0.5	1	3.5	21 pF	630
744775347	SPEC PCN pending Due to a pending PCN there will be a new datasheet revision issued for this order code soon. Please find the actual as well based on valid PCN date the new revision datasheet below. If you have further questions please get in contact with our sales staff. SPEC Datasheet valid to 07/01/2025 SPEC Datasheet valid from 08/01/2025 PCN PCN document	7 files EDA models: Components ZIP ALT Altium_WE-ASI (rev22c).IntLib \| 414 KB ZUK Cadstar_WE-ASI (rev19a).zip \| 5.9 KB CDS Cadence_WE-ASI (rev18a).zip \| 2.7 MB EAG Eagle_WE-ASI (rev20a).lbr \| 25.1 KB CAD files ZIP IGS WE-ASI_Sensor (rev1).igs \| 2.4 MB STP WE-ASI_Sensor (rev1).stp \| 901.2 KB Electric models ZIP PSP PSpice_WE-ASI (rev24a).zip \| 4.7 KB Download all 7 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	4.7	0.2	0.1	13.8	11 pF	700
744776347	SPEC PCN pending Due to a pending PCN there will be a new datasheet revision issued for this order code soon. Please find the actual as well based on valid PCN date the new revision datasheet below. If you have further questions please get in contact with our sales staff. SPEC Datasheet valid to 07/01/2025 SPEC Datasheet valid from 08/01/2025 PCN PCN document	7 files EDA models: Components ZIP ALT Altium_WE-ASI (rev22c).IntLib \| 414 KB ZUK Cadstar_WE-ASI (rev19a).zip \| 5.9 KB CDS Cadence_WE-ASI (rev18a).zip \| 2.7 MB EAG Eagle_WE-ASI (rev20a).lbr \| 25.1 KB CAD files ZIP IGS WE-ASI_TypM_ASI (rev1).igs \| 2.5 MB STP WE-ASI_TypM_ASI (rev1).stp \| 1 MB Electric models ZIP PSP PSpice_WE-ASI (rev24a).zip \| 4.7 KB Download all 7 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	4.7	0.25	0.3	12	13 pF	650
74458304	SPEC	7 files EDA models: Components ZIP ALT Altium_WE-ASI (rev22c).IntLib \| 414 KB ZUK Cadstar_WE-ASI (rev19a).zip \| 5.9 KB CDS Cadence_WE-ASI (rev18a).zip \| 2.7 MB EAG Eagle_WE-ASI (rev20a).lbr \| 25.1 KB CAD files ZIP IGS WE-ASI_TypL_ASI (rev1).igs \| 2.7 MB STP WE-ASI_TypL_ASI (rev1).stp \| 1.5 MB Electric models ZIP PSP PSpice_WE-ASI (rev24a).zip \| 4.7 KB Download all 7 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	4.7	0.4	0.9	4.8	22 pF	500
744775360	SPEC PCN pending Due to a pending PCN there will be a new datasheet revision issued for this order code soon. Please find the actual as well based on valid PCN date the new revision datasheet below. If you have further questions please get in contact with our sales staff. SPEC Datasheet valid to 07/01/2025 SPEC Datasheet valid from 08/01/2025 PCN PCN document	7 files EDA models: Components ZIP ALT Altium_WE-ASI (rev22c).IntLib \| 414 KB ZUK Cadstar_WE-ASI (rev19a).zip \| 5.9 KB CDS Cadence_WE-ASI (rev18a).zip \| 2.7 MB EAG Eagle_WE-ASI (rev20a).lbr \| 25.1 KB CAD files ZIP IGS WE-ASI_Sensor (rev1).igs \| 2.4 MB STP WE-ASI_Sensor (rev1).stp \| 901.2 KB Electric models ZIP PSP PSpice_WE-ASI (rev24a).zip \| 4.7 KB Download all 7 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	6	0.18	0.09	18	12 pF	600
744776360	SPEC PCN pending Due to a pending PCN there will be a new datasheet revision issued for this order code soon. Please find the actual as well based on valid PCN date the new revision datasheet below. If you have further questions please get in contact with our sales staff. SPEC Datasheet valid to 07/01/2025 SPEC Datasheet valid from 08/01/2025 PCN PCN document	7 files EDA models: Components ZIP ALT Altium_WE-ASI (rev22c).IntLib \| 414 KB ZUK Cadstar_WE-ASI (rev19a).zip \| 5.9 KB CDS Cadence_WE-ASI (rev18a).zip \| 2.7 MB EAG Eagle_WE-ASI (rev20a).lbr \| 25.1 KB CAD files ZIP IGS WE-ASI_TypM_ASI (rev1).igs \| 2.5 MB STP WE-ASI_TypM_ASI (rev1).stp \| 1 MB Electric models ZIP PSP PSpice_WE-ASI (rev24a).zip \| 4.7 KB Download all 7 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	6	0.23	0.27	16.7	13 pF	570
74458306	SPEC	7 files EDA models: Components ZIP ALT Altium_WE-ASI (rev22c).IntLib \| 414 KB ZUK Cadstar_WE-ASI (rev19a).zip \| 5.9 KB CDS Cadence_WE-ASI (rev18a).zip \| 2.7 MB EAG Eagle_WE-ASI (rev20a).lbr \| 25.1 KB CAD files ZIP IGS WE-ASI_TypL_ASI (rev1).igs \| 2.7 MB STP WE-ASI_TypL_ASI (rev1).stp \| 1.5 MB Electric models ZIP PSP PSpice_WE-ASI (rev24a).zip \| 4.7 KB Download all 7 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	6	0.4	0.7	6	20 pF	470
744775380	SPEC PCN pending Due to a pending PCN there will be a new datasheet revision issued for this order code soon. Please find the actual as well based on valid PCN date the new revision datasheet below. If you have further questions please get in contact with our sales staff. SPEC Datasheet valid to 07/01/2025 SPEC Datasheet valid from 08/01/2025 PCN PCN document	7 files EDA models: Components ZIP ALT Altium_WE-ASI (rev22c).IntLib \| 414 KB ZUK Cadstar_WE-ASI (rev19a).zip \| 5.9 KB CDS Cadence_WE-ASI (rev18a).zip \| 2.7 MB EAG Eagle_WE-ASI (rev20a).lbr \| 25.1 KB CAD files ZIP IGS WE-ASI_Sensor (rev1).igs \| 2.4 MB STP WE-ASI_Sensor (rev1).stp \| 901.2 KB Electric models ZIP PSP PSpice_WE-ASI (rev24a).zip \| 4.7 KB Download all 7 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	8	0.14	0.09	25	11 pF	700
744776381	SPEC PCN pending Due to a pending PCN there will be a new datasheet revision issued for this order code soon. Please find the actual as well based on valid PCN date the new revision datasheet below. If you have further questions please get in contact with our sales staff. SPEC Datasheet valid to 07/01/2025 SPEC Datasheet valid from 08/01/2025 PCN PCN document	7 files EDA models: Components ZIP ALT Altium_WE-ASI (rev22c).IntLib \| 414 KB ZUK Cadstar_WE-ASI (rev19a).zip \| 5.9 KB CDS Cadence_WE-ASI (rev18a).zip \| 2.7 MB EAG Eagle_WE-ASI (rev20a).lbr \| 25.1 KB CAD files ZIP IGS WE-ASI_TypM_ASI (rev1).igs \| 2.5 MB STP WE-ASI_TypM_ASI (rev1).stp \| 1 MB Electric models ZIP PSP PSpice_WE-ASI (rev24a).zip \| 4.7 KB Download all 7 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	8	0.2	0.2	16	13 pF	500
74458308	SPEC	7 files EDA models: Components ZIP ALT Altium_WE-ASI (rev22c).IntLib \| 414 KB ZUK Cadstar_WE-ASI (rev19a).zip \| 5.9 KB CDS Cadence_WE-ASI (rev18a).zip \| 2.7 MB EAG Eagle_WE-ASI (rev20a).lbr \| 25.1 KB CAD files ZIP IGS WE-ASI_TypL_ASI (rev1).igs \| 2.7 MB STP WE-ASI_TypL_ASI (rev1).stp \| 1.5 MB Electric models ZIP PSP PSpice_WE-ASI (rev24a).zip \| 4.7 KB Download all 7 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	8	0.35	0.6	8	19 pF	410
744775318	SPEC PCN pending Due to a pending PCN there will be a new datasheet revision issued for this order code soon. Please find the actual as well based on valid PCN date the new revision datasheet below. If you have further questions please get in contact with our sales staff. SPEC Datasheet valid to 07/01/2025 SPEC Datasheet valid from 08/01/2025 PCN PCN document	7 files EDA models: Components ZIP ALT Altium_WE-ASI (rev22c).IntLib \| 414 KB ZUK Cadstar_WE-ASI (rev19a).zip \| 5.9 KB CDS Cadence_WE-ASI (rev18a).zip \| 2.7 MB EAG Eagle_WE-ASI (rev20a).lbr \| 25.1 KB CAD files ZIP IGS WE-ASI_Sensor (rev1).igs \| 2.4 MB STP WE-ASI_Sensor (rev1).stp \| 901.2 KB Electric models ZIP PSP PSpice_WE-ASI (rev24a).zip \| 4.7 KB Download all 7 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	18	0.08	0.05	72	9 pF	400
