WE-ASI SMT Wire Wound Inductor

Size	Dimensions	L (mm)	W (mm)	H (mm)	Mount

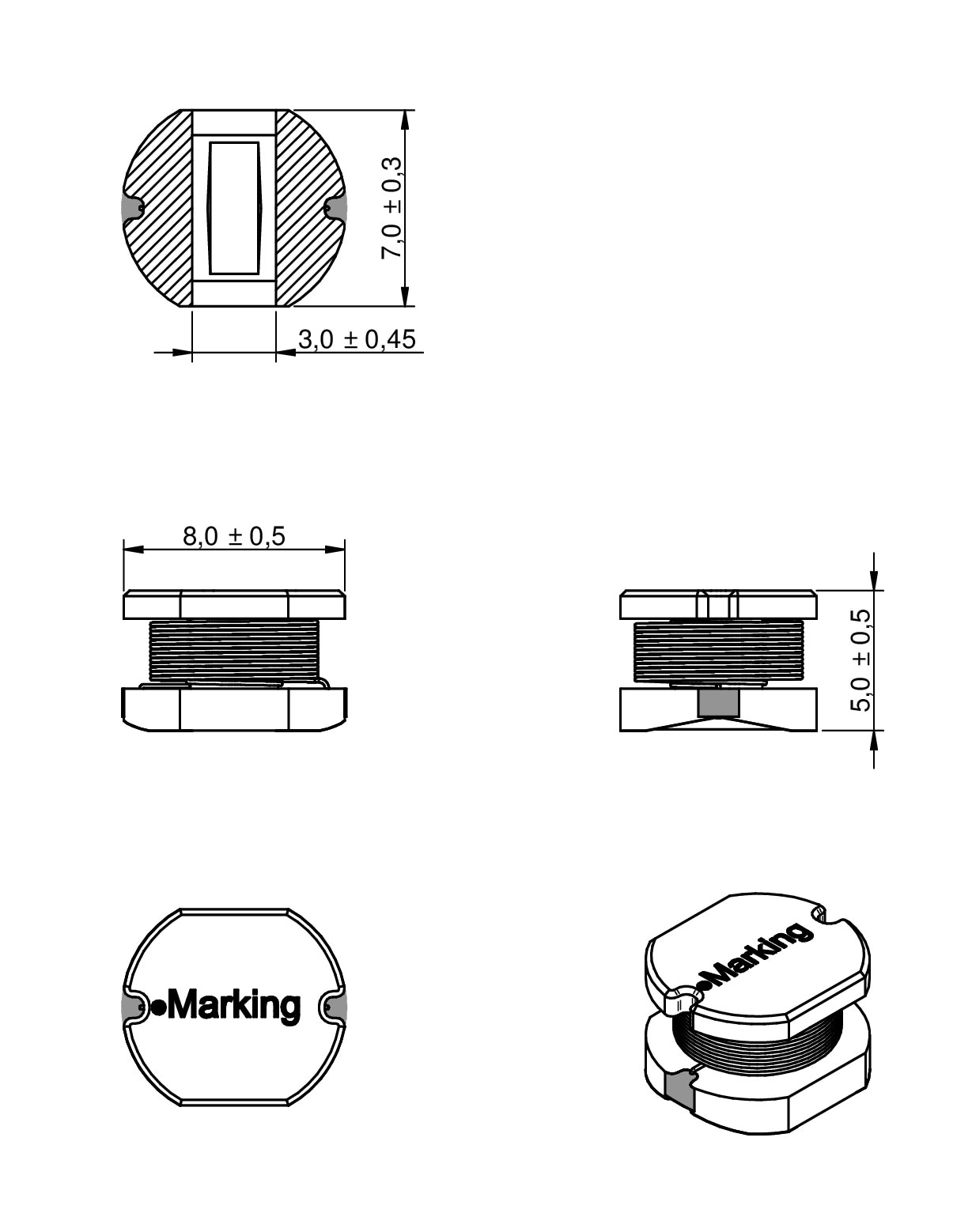

Sensor		8	7	5	SMT

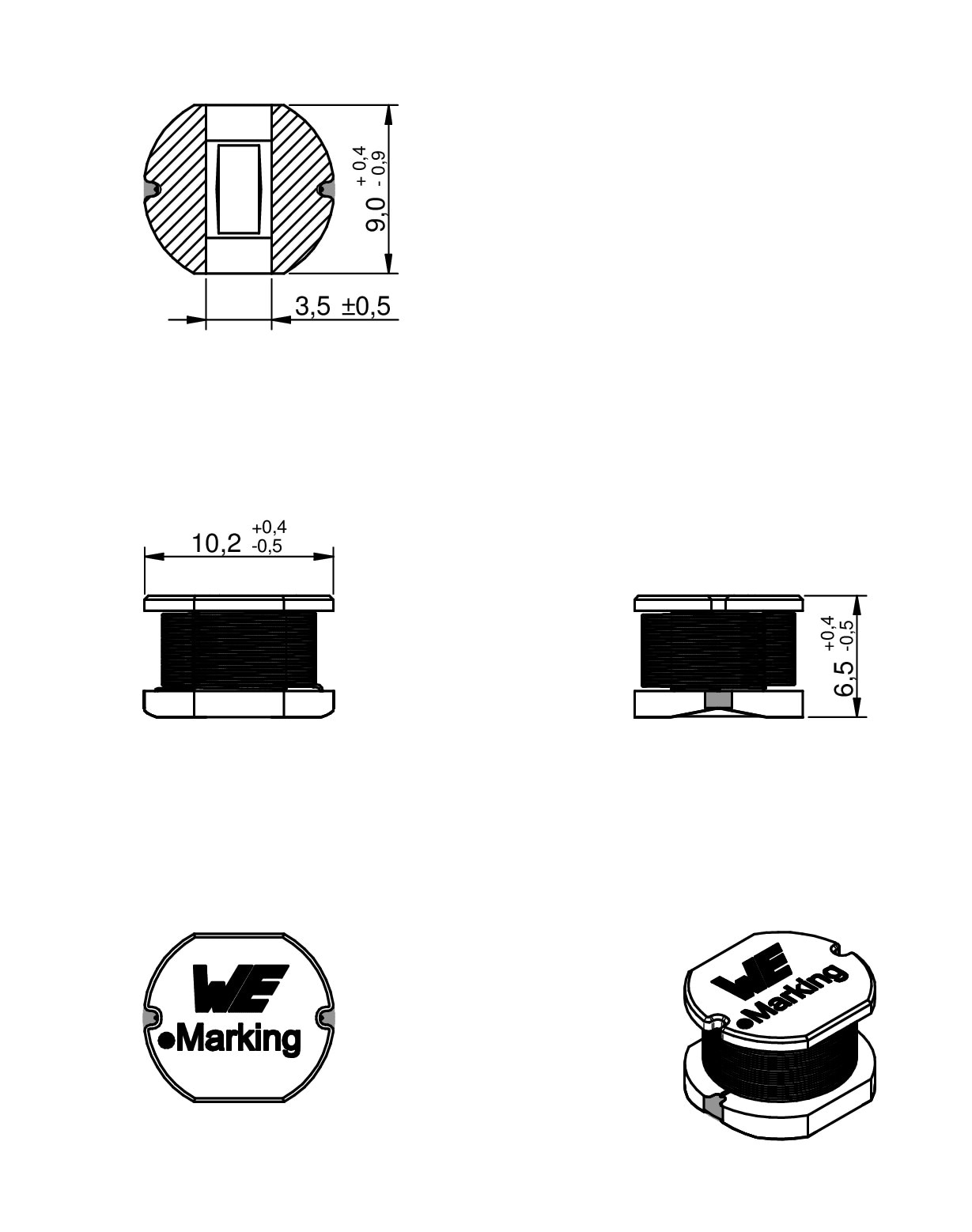

Actuator - Type M		10.2	9	6.5	SMT

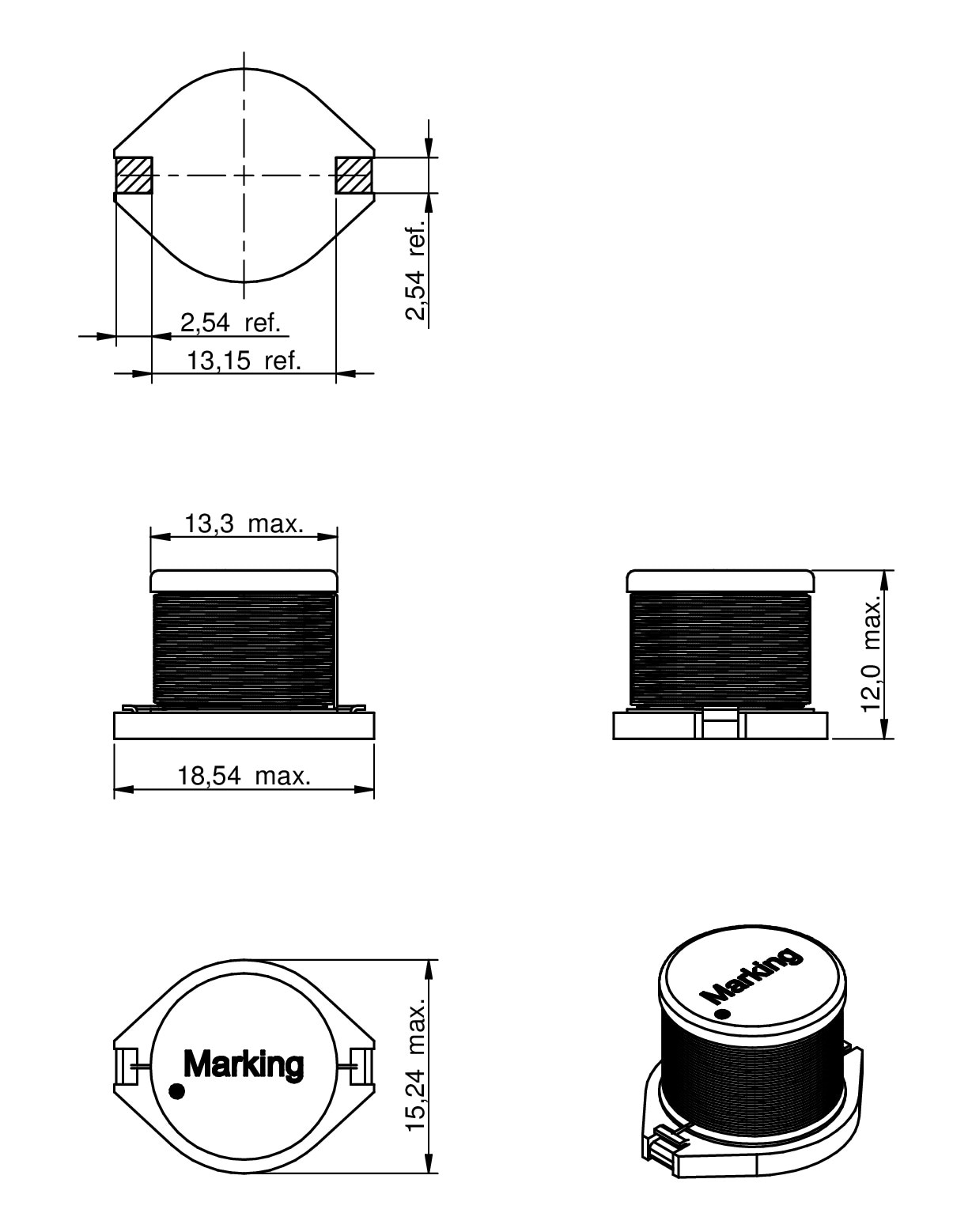

Actuator - Type L		18.54	15.24	12	SMT

LTSpice files

LT
LTSpice_WE-ASI (rev24a).zip
|
2 KB

Characteristics

Specially designed for sensors and actuators
Highest possible current in the smallest case size
High self resonant frequency
Operating temperature: –40 ºC to +125 ºC
Recommended solder profile: Reflow

Applications

ASI-applications
Filter applications in kHz frequency range

Products

All

Sensor

Actuator - Type M

Actuator - Type L

Order Code	Datasheet	Downloads	L (mH)	I_R (A)	I_SAT (A)	R_{DC max.} (Ω)	C	f_res (kHz)	Samples
744775330	SPEC PCN pending Due to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. SPEC Datasheet PCN PCN document	7 files EDA models: Components ZIP ALT Altium_WE-ASI (rev22c).IntLib \| 414 KB ZUK Cadstar_WE-ASI (rev19a).zip \| 5.9 KB CDS Cadence_WE-ASI (rev18a).zip \| 2.7 MB EAG Eagle_WE-ASI (rev20a).lbr \| 25.1 KB CAD files ZIP IGS WE-ASI_Sensor (rev1).igs \| 2.4 MB STP WE-ASI_Sensor (rev1).stp \| 901.2 KB Electric models ZIP PSP PSpice_WE-ASI (rev24a).zip \| 4.7 KB Download all 7 files as zip archive ZIP	3	0.24	0.12	10	10 pF	900
744776333	SPEC PCN pending Due to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. SPEC Datasheet PCN PCN document	7 files EDA models: Components ZIP ALT Altium_WE-ASI (rev22c).IntLib \| 414 KB ZUK Cadstar_WE-ASI (rev19a).zip \| 5.9 KB CDS Cadence_WE-ASI (rev18a).zip \| 2.7 MB EAG Eagle_WE-ASI (rev20a).lbr \| 25.1 KB CAD files ZIP IGS WE-ASI_TypM_ASI (rev1).igs \| 2.5 MB STP WE-ASI_TypM_ASI (rev1).stp \| 1 MB Electric models ZIP PSP PSpice_WE-ASI (rev24a).zip \| 4.7 KB Download all 7 files as zip archive ZIP	3	0.35	0.4	7	10 pF	900
74458303	SPEC	7 files EDA models: Components ZIP ALT Altium_WE-ASI (rev22c).IntLib \| 414 KB ZUK Cadstar_WE-ASI (rev19a).zip \| 5.9 KB CDS Cadence_WE-ASI (rev18a).zip \| 2.7 MB EAG Eagle_WE-ASI (rev20a).lbr \| 25.1 KB CAD files ZIP IGS WE-ASI_TypL_ASI (rev1).igs \| 2.7 MB STP WE-ASI_TypL_ASI (rev1).stp \| 1.5 MB Electric models ZIP PSP PSpice_WE-ASI (rev24a).zip \| 4.7 KB Download all 7 files as zip archive ZIP	3	0.5	1	3.5	21 pF	630
744775347	SPEC PCN pending Due to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. SPEC Datasheet PCN PCN document	7 files EDA models: Components ZIP ALT Altium_WE-ASI (rev22c).IntLib \| 414 KB ZUK Cadstar_WE-ASI (rev19a).zip \| 5.9 KB CDS Cadence_WE-ASI (rev18a).zip \| 2.7 MB EAG Eagle_WE-ASI (rev20a).lbr \| 25.1 KB CAD files ZIP IGS WE-ASI_Sensor (rev1).igs \| 2.4 MB STP WE-ASI_Sensor (rev1).stp \| 901.2 KB Electric models ZIP PSP PSpice_WE-ASI (rev24a).zip \| 4.7 KB Download all 7 files as zip archive ZIP	4.7	0.2	0.1	13.8	11 pF	700
744776347	SPEC PCN pending Due to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. SPEC Datasheet PCN PCN document	7 files EDA models: Components ZIP ALT Altium_WE-ASI (rev22c).IntLib \| 414 KB ZUK Cadstar_WE-ASI (rev19a).zip \| 5.9 KB CDS Cadence_WE-ASI (rev18a).zip \| 2.7 MB EAG Eagle_WE-ASI (rev20a).lbr \| 25.1 KB CAD files ZIP IGS WE-ASI_TypM_ASI (rev1).igs \| 2.5 MB STP WE-ASI_TypM_ASI (rev1).stp \| 1 MB Electric models ZIP PSP PSpice_WE-ASI (rev24a).zip \| 4.7 KB Download all 7 files as zip archive ZIP	4.7	0.25	0.3	12	13 pF	650
74458304	SPEC	7 files EDA models: Components ZIP ALT Altium_WE-ASI (rev22c).IntLib \| 414 KB ZUK Cadstar_WE-ASI (rev19a).zip \| 5.9 KB CDS Cadence_WE-ASI (rev18a).zip \| 2.7 MB EAG Eagle_WE-ASI (rev20a).lbr \| 25.1 KB CAD files ZIP IGS WE-ASI_TypL_ASI (rev1).igs \| 2.7 MB STP WE-ASI_TypL_ASI (rev1).stp \| 1.5 MB Electric models ZIP PSP PSpice_WE-ASI (rev24a).zip \| 4.7 KB Download all 7 files as zip archive ZIP	4.7	0.4	0.9	4.8	22 pF	500
744775360	SPEC PCN pending Due to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. SPEC Datasheet PCN PCN document	7 files EDA models: Components ZIP ALT Altium_WE-ASI (rev22c).IntLib \| 414 KB ZUK Cadstar_WE-ASI (rev19a).zip \| 5.9 KB CDS Cadence_WE-ASI (rev18a).zip \| 2.7 MB EAG Eagle_WE-ASI (rev20a).lbr \| 25.1 KB CAD files ZIP IGS WE-ASI_Sensor (rev1).igs \| 2.4 MB STP WE-ASI_Sensor (rev1).stp \| 901.2 KB Electric models ZIP PSP PSpice_WE-ASI (rev24a).zip \| 4.7 KB Download all 7 files as zip archive ZIP	6	0.18	0.09	18	12 pF	600
744776360	SPEC PCN pending Due to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. SPEC Datasheet PCN PCN document	7 files EDA models: Components ZIP ALT Altium_WE-ASI (rev22c).IntLib \| 414 KB ZUK Cadstar_WE-ASI (rev19a).zip \| 5.9 KB CDS Cadence_WE-ASI (rev18a).zip \| 2.7 MB EAG Eagle_WE-ASI (rev20a).lbr \| 25.1 KB CAD files ZIP IGS WE-ASI_TypM_ASI (rev1).igs \| 2.5 MB STP WE-ASI_TypM_ASI (rev1).stp \| 1 MB Electric models ZIP PSP PSpice_WE-ASI (rev24a).zip \| 4.7 KB Download all 7 files as zip archive ZIP	6	0.23	0.27	16.7	13 pF	570
74458306	SPEC	7 files EDA models: Components ZIP ALT Altium_WE-ASI (rev22c).IntLib \| 414 KB ZUK Cadstar_WE-ASI (rev19a).zip \| 5.9 KB CDS Cadence_WE-ASI (rev18a).zip \| 2.7 MB EAG Eagle_WE-ASI (rev20a).lbr \| 25.1 KB CAD files ZIP IGS WE-ASI_TypL_ASI (rev1).igs \| 2.7 MB STP WE-ASI_TypL_ASI (rev1).stp \| 1.5 MB Electric models ZIP PSP PSpice_WE-ASI (rev24a).zip \| 4.7 KB Download all 7 files as zip archive ZIP	6	0.4	0.7	6	20 pF	470
744775380	SPEC PCN pending Due to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. SPEC Datasheet PCN PCN document	7 files EDA models: Components ZIP ALT Altium_WE-ASI (rev22c).IntLib \| 414 KB ZUK Cadstar_WE-ASI (rev19a).zip \| 5.9 KB CDS Cadence_WE-ASI (rev18a).zip \| 2.7 MB EAG Eagle_WE-ASI (rev20a).lbr \| 25.1 KB CAD files ZIP IGS WE-ASI_Sensor (rev1).igs \| 2.4 MB STP WE-ASI_Sensor (rev1).stp \| 901.2 KB Electric models ZIP PSP PSpice_WE-ASI (rev24a).zip \| 4.7 KB Download all 7 files as zip archive ZIP	8	0.14	0.09	25	11 pF	700
744776381	SPEC PCN pending Due to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. SPEC Datasheet PCN PCN document	7 files EDA models: Components ZIP ALT Altium_WE-ASI (rev22c).IntLib \| 414 KB ZUK Cadstar_WE-ASI (rev19a).zip \| 5.9 KB CDS Cadence_WE-ASI (rev18a).zip \| 2.7 MB EAG Eagle_WE-ASI (rev20a).lbr \| 25.1 KB CAD files ZIP IGS WE-ASI_TypM_ASI (rev1).igs \| 2.5 MB STP WE-ASI_TypM_ASI (rev1).stp \| 1 MB Electric models ZIP PSP PSpice_WE-ASI (rev24a).zip \| 4.7 KB Download all 7 files as zip archive ZIP	8	0.2	0.2	16	13 pF	500
74458308	SPEC	7 files EDA models: Components ZIP ALT Altium_WE-ASI (rev22c).IntLib \| 414 KB ZUK Cadstar_WE-ASI (rev19a).zip \| 5.9 KB CDS Cadence_WE-ASI (rev18a).zip \| 2.7 MB EAG Eagle_WE-ASI (rev20a).lbr \| 25.1 KB CAD files ZIP IGS WE-ASI_TypL_ASI (rev1).igs \| 2.7 MB STP WE-ASI_TypL_ASI (rev1).stp \| 1.5 MB Electric models ZIP PSP PSpice_WE-ASI (rev24a).zip \| 4.7 KB Download all 7 files as zip archive ZIP	8	0.35	0.6	8	19 pF	410
744775318	SPEC PCN pending Due to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. SPEC Datasheet PCN PCN document	7 files EDA models: Components ZIP ALT Altium_WE-ASI (rev22c).IntLib \| 414 KB ZUK Cadstar_WE-ASI (rev19a).zip \| 5.9 KB CDS Cadence_WE-ASI (rev18a).zip \| 2.7 MB EAG Eagle_WE-ASI (rev20a).lbr \| 25.1 KB CAD files ZIP IGS WE-ASI_Sensor (rev1).igs \| 2.4 MB STP WE-ASI_Sensor (rev1).stp \| 901.2 KB Electric models ZIP PSP PSpice_WE-ASI (rev24a).zip \| 4.7 KB Download all 7 files as zip archive ZIP	18	0.08	0.05	72	9 pF	400

Order Code	Datasheet
744775330	SPEC PCN pending Due to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. SPEC Datasheet PCN PCN document
744776333	SPEC PCN pending Due to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. SPEC Datasheet PCN PCN document
74458303	SPEC
744775347	SPEC PCN pending Due to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. SPEC Datasheet PCN PCN document
744776347	SPEC PCN pending Due to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. SPEC Datasheet PCN PCN document
74458304	SPEC
744775360	SPEC PCN pending Due to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. SPEC Datasheet PCN PCN document
744776360	SPEC PCN pending Due to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. SPEC Datasheet PCN PCN document
74458306	SPEC
744775380	SPEC PCN pending Due to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. SPEC Datasheet PCN PCN document
744776381	SPEC PCN pending Due to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. SPEC Datasheet PCN PCN document
74458308	SPEC
744775318	SPEC PCN pending Due to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. SPEC Datasheet PCN PCN document
