WL-SICW SMT Chip LED Infrared Waterclear

Bauform	Maße	L (mm)	W (mm)	H (mm)	Montageart

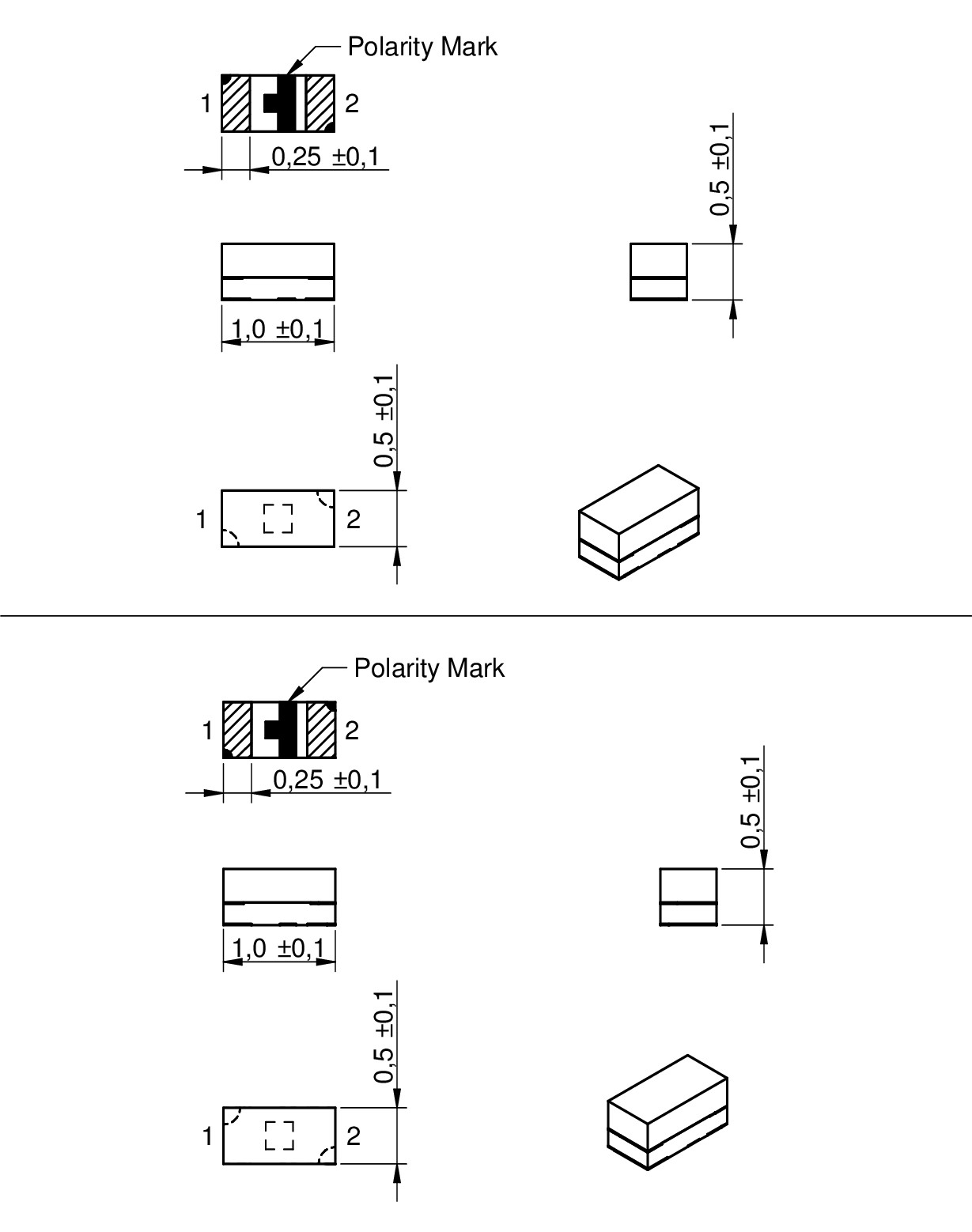

0402		1	0.5	0.5	SMT

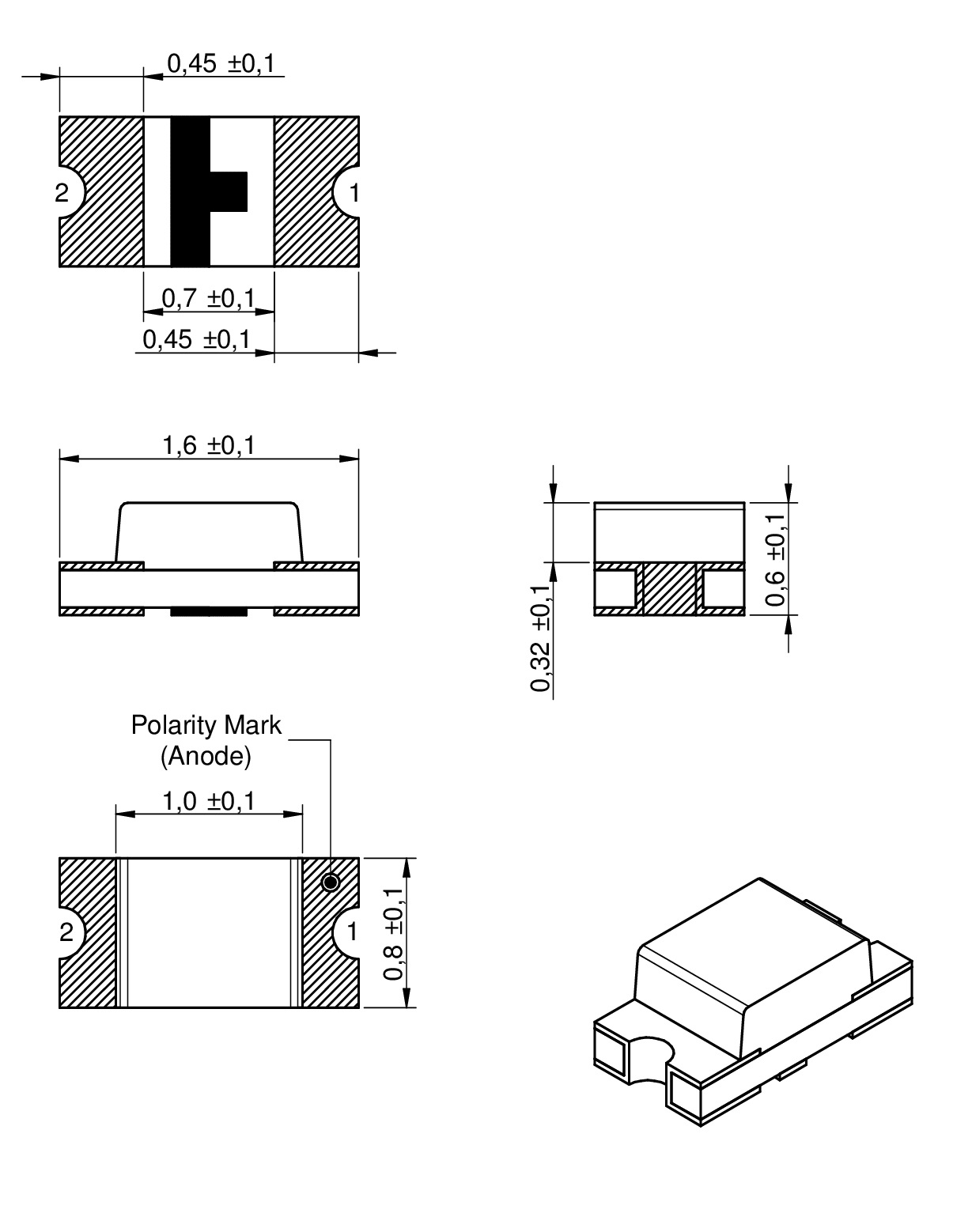

0603		1.6	0.8	-	SMT

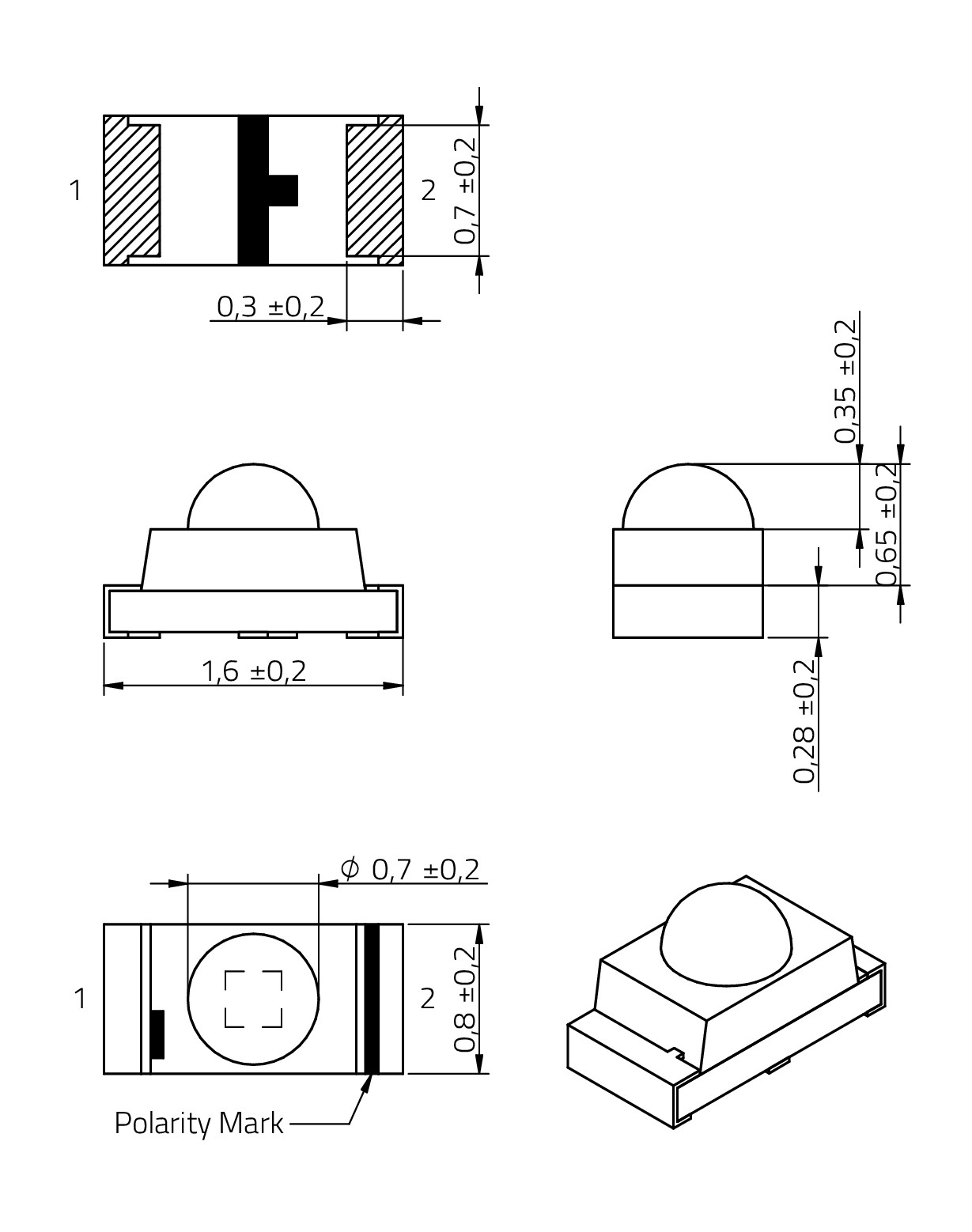

0603 Lens		1.6	0.8	1	SMT

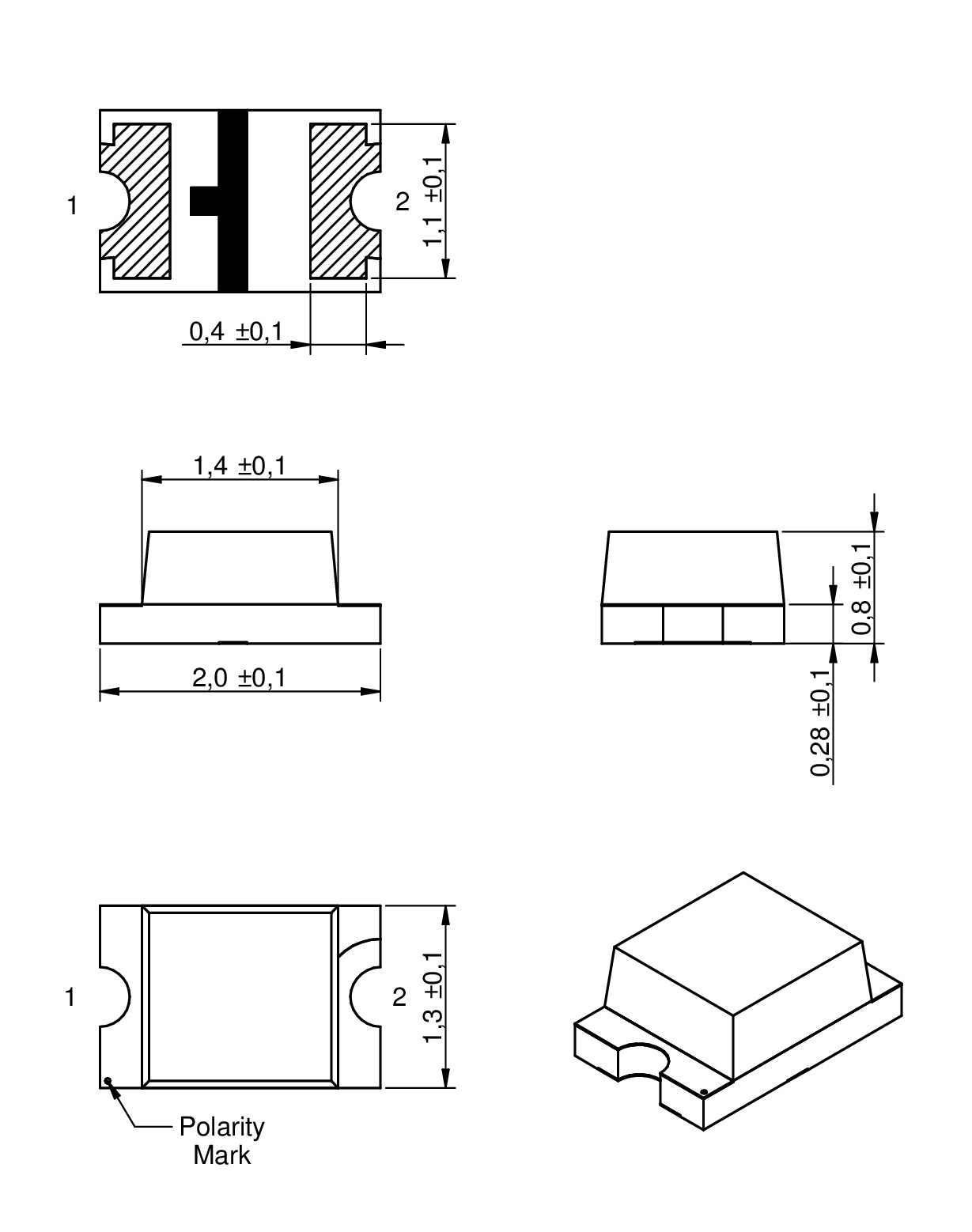

0805		2	1.3	0.8	SMT

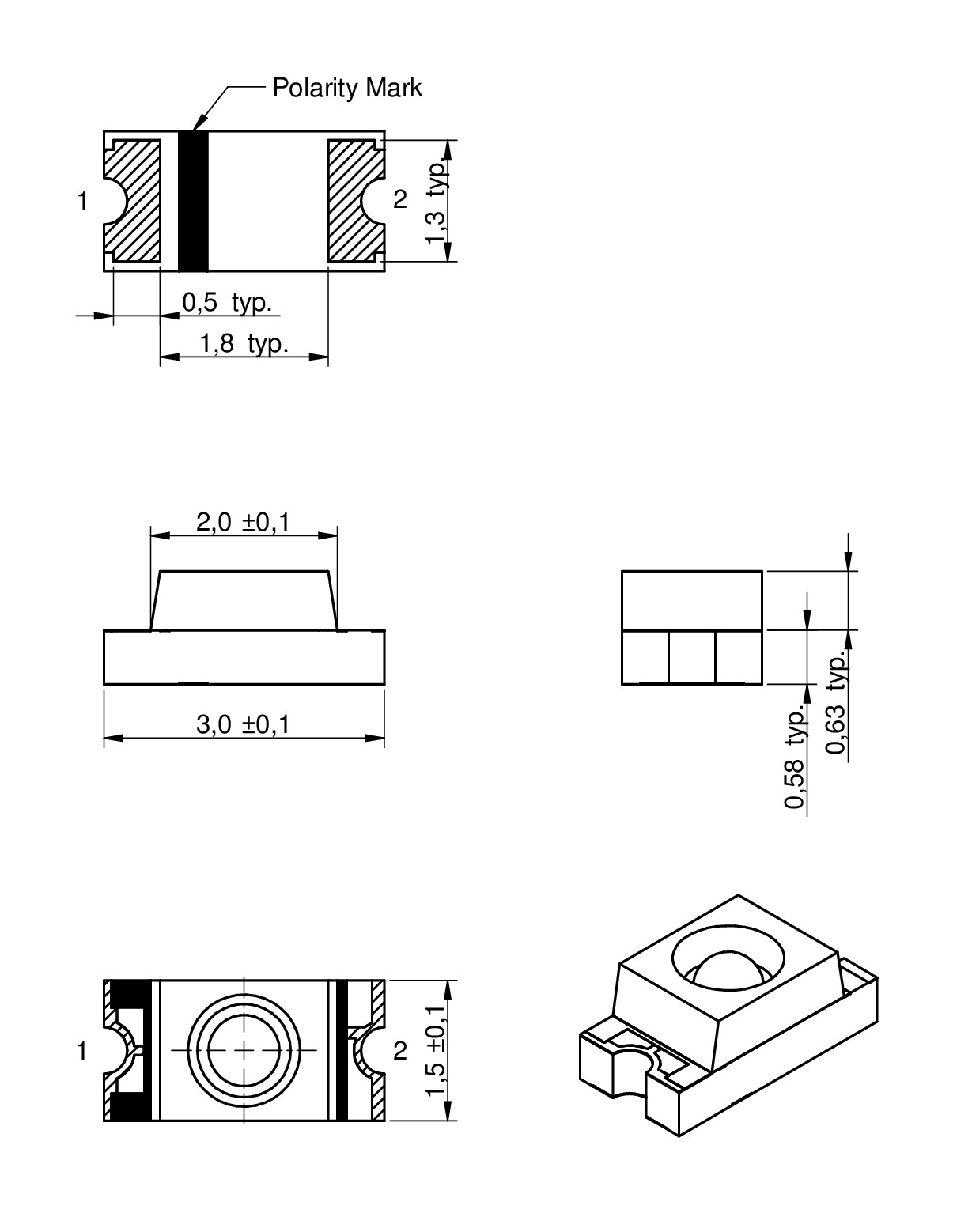

1206		3	1.5	1.21	SMT

LTSpice-Dateien

LT
LTSpice_WL-SICW (rev22a).zip
|
2.1 KB

Merkmale

Geringer Energieverbrauch
Hohe Zuverlässigkeit
Geringer Strombedarf
Schnelle Schaltzeiten
Infrarot Emitter
Standardgröße 0603
Kompakte Bauform

Anwendung

Infrarotsensor
Distanzmessung
Fernbedienung
Feuermelder

Artikeldaten

Alle

0402

0603

0603 Lens

0805

1206

	Artikel Nr.	Datenblatt	Simulation	Downloads	Status	λ_{Peak typ.} (nm)	λ_{Centroid max.}	I_{e typ.} (mW/sr)	V_{F typ.} (V)	2θ_{50% typ.} (°)	Chiptechnologie	Design Kit	Muster
	15406085BA300	SPEC		26 Dateien EDA-Modelle: Bauteile ZIP ALT Altium_WL-SICW (rev22c).IntLib \| 215.5 KB CDS Cadence_WL-SICW (rev20a).zip \| 914.2 KB EAG Eagle_WL-SICW (rev20b).lbr \| 40.7 KB CAD-Dateien ZIP IGS Download_IGS_WL-SICW-15406085BA300 (rev1).igs \| 352.7 KB STP Download_STP_WL-SICW-15406085BA300 (rev1).stp \| 78.6 KB Elektrische Modelle ZIP PSP PSpice_WL-SICW (rev22a).zip \| 4.7 KB Strahldaten ASA ASAP-and-APEX_dis_15406085BA300_5M (rev1p0).zip \| 120.5 MB COD CodeV_ray_15406085BA300_5M (rev1p0).zip \| 120.5 MB FRE Fred_dat_15406085BA300_5M (rev1p0).zip \| 120.5 MB FRE Fred_txt_15406085BA300_5M (rev1p0).zip \| 188.5 MB LIG LightTools_ray_15406085BA300_5M (rev1p0).zip \| 120.5 MB LIG LightTools_txt_15406085BA300_5M (rev1p0).zip \| 188.5 MB LUC LucidShape_ray_15406085BA300_5M (rev1p0).zip \| 120.5 MB LUC LucidShape_txt_15406085BA300_5M (rev1p0).zip \| 188.5 MB OPT OpTaliX_dis_15406085BA300_5M (rev1p0).zip \| 120.5 MB OPT OpTaliX_txt_15406085BA300_5M (rev1p0).zip \| 188.5 MB OPT OptiCAD_dat_15406085BA300_5M (rev1p0).zip \| 120.5 MB OPT OptiCAD_txt_15406085BA300_5M (rev1p0).zip \| 188.5 MB RIR Photopia_rir_15406085BA300_5M (rev1p0).zip \| 120.5 MB SIM Simulux_ray_15406085BA300_5M (rev1p0).zip \| 120.5 MB SPE Speos_ray_15406085BA300_5M (rev1p0).zip \| 125.3 MB SRC Lucaray-maker_src_15406085BA300_5M (rev1p0).zip \| 120.5 MB TRA TracePro_txt_15406085BA300_5M (rev1p0).zip \| 188.5 MB ZEM ZemaxBin_dat_15406085BA300_5M (rev1p0).zip \| 120.5 MB ZEM Zemax_dat_15406085BA300_5M (rev1p0).zip \| 188.5 MB Zertifikate ZIP CER IR_LED_certificate_WL-SICW-0603 (rev1).pdf \| 1.2 MB	Aktiv i\| Produktion ist aktiv. Erwartete Lebenszeit: >10 Jahre.	850	845.0	2	1.4	130	AlGaAs	154150
	15412085A9000	SPEC		26 Dateien EDA-Modelle: Bauteile ZIP ALT Altium_WL-SICW (rev22c).IntLib \| 215.5 KB CDS Cadence_WL-SICW (rev20a).zip \| 914.2 KB EAG Eagle_WL-SICW (rev20b).lbr \| 40.7 KB CAD-Dateien ZIP IGS Download_IGS_WL-SICW_1206 (rev1).igs \| 1.1 MB STP Download_STP_WL-SICW_1206 (rev1).stp \| 352.3 KB Elektrische Modelle ZIP PSP PSpice_WL-SICW (rev22a).zip \| 4.7 KB Strahldaten ASA ASAP-and-APEX_dis_15412085A9000_5M (rev1p0).zip \| 119.2 MB COD CodeV_ray_15412085A9000_5M (rev1p0).zip \| 119.2 MB FRE Fred_dat_15412085A9000_5M (rev1p0).zip \| 119.2 MB FRE Fred_txt_15412085A9000_5M (rev1p0).zip \| 187.3 MB LIG LightTools_ray_15412085A9000_5M (rev1p0).zip \| 119.2 MB LIG LightTools_txt_15412085A9000_5M (rev1p0).zip \| 187.4 MB LUC LucidShape_ray_15412085A9000_5M (rev1p0).zip \| 119.2 MB LUC LucidShape_txt_15412085A9000_5M (rev1p0).zip \| 187.3 MB OPT OpTaliX_dis_15412085A9000_5M (rev1p0).zip \| 119.2 MB OPT OpTaliX_txt_15412085A9000_5M (rev1p0).zip \| 187.3 MB OPT OptiCAD_dat_15412085A9000_5M (rev1p0).zip \| 119.2 MB OPT OptiCAD_txt_15412085A9000_5M (rev1p0).zip \| 187.3 MB RIR Photopia_rir_15412085A9000_5M (rev1p0).zip \| 119.2 MB SIM Simulux_ray_15412085A9000_5M (rev1p0).zip \| 119.2 MB SPE Speos_ray_15412085A9000_5M (rev1p0).zip \| 122.4 MB SRC Lucaray-maker_src_15412085A9000_5M (rev1p0).zip \| 119.2 MB TRA TracePro_txt_15412085A9000_5M (rev1p0).zip \| 187.4 MB ZEM ZemaxBin_dat_15412085A9000_5M (rev1p0).zip \| 119.2 MB ZEM Zemax_dat_15412085A9000_5M (rev1p0).zip \| 187.3 MB Zertifikate ZIP CER IR_LED_certificates_WL-SICW-1206 (rev1).pdf \| 1.2 MB	Aktiv i\| Produktion ist aktiv. Erwartete Lebenszeit: >10 Jahre.	850	845.0	5	1.4	90	AlGaAs	–
	15404085BA420	SPEC		26 Dateien EDA-Modelle: Bauteile ZIP ALT Altium_WL-SICW (rev22c).IntLib \| 215.5 KB CDS Cadence_WL-SICW (rev20a).zip \| 914.2 KB EAG Eagle_WL-SICW (rev20b).lbr \| 40.7 KB CAD-Dateien ZIP IGS Download_IGS_WL-SICW_0402 (rev1).igs \| 721.5 KB STP Download_STP_WL-SICW_0402 (rev1).stp \| 170.2 KB Elektrische Modelle ZIP PSP PSpice_WL-SICW (rev22a).zip \| 4.7 KB Strahldaten ASA ASAP-and-APEX_dis_15404085BA420_5M (rev1p0).zip \| 120.6 MB COD CodeV_ray_15404085BA420_5M (rev1p0).zip \| 120.6 MB FRE Fred_dat_15404085BA420_5M (rev1p0).zip \| 120.6 MB FRE Fred_txt_15404085BA420_5M (rev1p0).zip \| 189.2 MB LIG LightTools_ray_15404085BA420_5M (rev1p0).zip \| 120.6 MB LIG LightTools_txt_15404085BA420_5M (rev1p0).zip \| 189.1 MB LUC LucidShape_ray_15404085BA420_5M (rev1p0).zip \| 120.6 MB LUC LucidShape_txt_15404085BA420_5M (rev1p0).zip \| 189.2 MB OPT OpTaliX_dis_15404085BA420_5M (rev1p0).zip \| 120.6 MB OPT OpTaliX_txt_15404085BA420_5M (rev1p0).zip \| 189.2 MB OPT OptiCAD_dat_15404085BA420_5M (rev1p0).zip \| 120.6 MB OPT OptiCAD_txt_15404085BA420_5M (rev1p0).zip \| 189.2 MB RIR Photopia_rir_15404085BA420_5M (rev1p0).zip \| 120.6 MB SIM Simulux_ray_15404085BA420_5M (rev1p0).zip \| 120.6 MB SPE Speos_ray_15404085BA420_5M (rev1p0).zip \| 125.5 MB SRC Lucaray-maker_src_15404085BA420_5M (rev1p0).zip \| 120.6 MB TRA TracePro_txt_15404085BA420_5M (rev1p0).zip \| 189.1 MB ZEM ZemaxBin_dat_15404085BA420_5M (rev1p0).zip \| 120.6 MB ZEM Zemax_dat_15404085BA420_5M (rev1p0).zip \| 189.2 MB Zertifikate ZIP CER IR_LED_certificate_WL-SICW-0402 (rev1).pdf \| 1.2 MB	Aktiv i\| Produktion ist aktiv. Erwartete Lebenszeit: >10 Jahre.	850	845.0	6	1.6	140	AlGaAs	–
	15406085BA400A	SPEC		26 Dateien EDA-Modelle: Bauteile ZIP ALT Altium_WL-SICW (rev22c).IntLib \| 215.5 KB CDS Cadence_WL-SICW (rev20a).zip \| 914.2 KB EAG Eagle_WL-SICW (rev20b).lbr \| 40.7 KB CAD-Dateien ZIP IGS Download_IGS_154060xxBA400A (rev1).igs \| 566.2 KB STP Downloads_STEP_154060xxBA400A (rev1).stp \| 154 KB Elektrische Modelle ZIP PSP PSpice_WL-SICW (rev22a).zip \| 4.7 KB Strahldaten ASA ASAP-and-APEX_dis_15406085BA400A_5M (rev1p0).zip \| 120.5 MB COD CodeV_ray_15406085BA400A_5M (rev1p0).zip \| 120.5 MB FRE Fred_dat_15406085BA400A_5M (rev1p0).zip \| 120.5 MB FRE Fred_txt_15406085BA400A_5M (rev1p0).zip \| 188.3 MB LIG LightTools_ray_15406085BA400A_5M (rev1p0).zip \| 120.5 MB LIG LightTools_txt_15406085BA400A_5M (rev1p0).zip \| 188.2 MB LUC LucidShape_ray_15406085BA400A_5M (rev1p0).zip \| 120.5 MB LUC LucidShape_txt_15406085BA400A_5M (rev1p0).zip \| 188.2 MB OPT OpTaliX_txt_15406085BA400A_5M (rev1p0).zip \| 188.2 MB OPT OptiCAD_dat_15406085BA400A_5M (rev1p0).zip \| 120.5 MB OPT OptiCAD_txt_15406085BA400A_5M (rev1p0).zip \| 188.2 MB OPT optalix_DIS_15406085BA400A_5M (rev1p0).zip \| 120.5 MB RIR Photopia_rir_15406085BA400A_5M (rev1p0).zip \| 120.5 MB SIM Simulux_ray_15406085BA400A_5M (rev1p0).zip \| 120.5 MB SPE Speos_ray_15406085BA400A_5M (rev1p0).zip \| 125.2 MB SRC Lucaray-maker_src_15406085BA400A_5M (rev1p0).zip \| 120.5 MB TRA TracePro_txt_15406085BA400A_5M (rev1p0).zip \| 188.2 MB ZEM ZemaxBin_dat_15406085BA400A_5M (rev1p0).zip \| 120.5 MB ZEM Zemax_dat_15406085BA400A_5M (rev1p0).zip \| 188.2 MB Zertifikate ZIP CER IR_LED_certificate_WL-SICW-0603 (rev1).pdf \| 1.2 MB	Aktiv i\| Produktion ist aktiv. Erwartete Lebenszeit: >10 Jahre.	850	845.0	1.2	1.4	140	AlGaAs	–
	15408085BA400	SPEC		26 Dateien EDA-Modelle: Bauteile ZIP ALT Altium_WL-SICW (rev22c).IntLib \| 215.5 KB CDS Cadence_WL-SICW (rev20a).zip \| 914.2 KB EAG Eagle_WL-SICW (rev20b).lbr \| 40.7 KB CAD-Dateien ZIP IGS Download_IGS_15408085BA400 (rev1).igs \| 848.4 KB STP Download_STEP_15408085BA400 (rev1).stp \| 201.1 KB Elektrische Modelle ZIP PSP PSpice_WL-SICW (rev22a).zip \| 4.7 KB Strahldaten ASA ASAP-and-APEX_dis_15408085BA400_5M (rev1p0).zip \| 120.6 MB COD CodeV_ray_15408085BA400_5M (rev1p0).zip \| 120.6 MB FRE Fred_dat_15408085BA400_5M (rev1p0).zip \| 120.6 MB FRE Fred_txt_15408085BA400_5M (rev1p0).zip \| 188.5 MB LIG LightTools_ray_15408085BA400_5M (rev1p0).zip \| 120.6 MB LIG LightTools_txt_15408085BA400_5M (rev1p0).zip \| 188.5 MB LUC LucidShape_ray_15408085BA400_5M (rev1p0).zip \| 120.6 MB LUC LucidShape_txt_15408085BA400_5M (rev1p0).zip \| 188.5 MB OPT OpTaliX_txt_15408085BA400_5M (rev1p0).zip \| 188.5 MB OPT OptiCAD_dat_15408085BA400_5M (rev1p0).zip \| 120.6 MB OPT OptiCAD_txt_15408085BA400_5M (rev1p0).zip \| 188.5 MB OPT optalix_DIS_15408085BA400_5M (rev1p0).zip \| 120.6 MB RIR Photopia_rir_15408085BA400_5M (rev1p0).zip \| 120.6 MB SIM Simulux_ray_15408085BA400_5M (rev1p0).zip \| 120.6 MB SPE Speos_ray_15408085BA400_5M (rev1p0).zip \| 125.4 MB SRC Lucaray-maker_src_15408085BA400_5M (rev1p0).zip \| 120.6 MB TRA TracePro_txt_15408085BA400_5M (rev1p0).zip \| 188.5 MB ZEM ZemaxBin_dat_15408085BA400_5M (rev1p0).zip \| 120.6 MB ZEM Zemax_dat_15408085BA400_5M (rev1p0).zip \| 188.5 MB Zertifikate ZIP CER IR_LED_certificates_WL-SICW-0805 (rev1).pdf \| 1.2 MB	Aktiv i\| Produktion ist aktiv. Erwartete Lebenszeit: >10 Jahre.	850	845.0	1.5	1.4	140	AlGaAs	–
	15412085BA400	SPEC		7 Dateien EDA-Modelle: Bauteile ZIP ALT Altium_WL-SICW (rev22c).IntLib \| 215.5 KB CDS Cadence_WL-SICW (rev20a).zip \| 914.2 KB EAG Eagle_WL-SICW (rev20b).lbr \| 40.7 KB CAD-Dateien ZIP IGS Download_IGS_15412085BA400 (rev1).igs \| 761.3 KB STP Download_STEP_1541085BA400 (rev1).stp \| 176 KB Elektrische Modelle ZIP PSP PSpice_WL-SICW (rev22a).zip \| 4.7 KB Zertifikate ZIP CER IR_LED_certificates_WL-SICW-1206 (rev1).pdf \| 1.2 MB Alle 7 Dateien als ZIP herunterladen ZIP	Aktiv i\| Produktion ist aktiv. Erwartete Lebenszeit: >10 Jahre.	850	850.0	2.5	1.4	140	AlGaAs	–
	15406085B6000	SPEC		4 Dateien CAD-Dateien ZIP 3D 3D_WL-SICW_15406085B6000 (rev1).pdf \| 120.3 KB IGS IGS_WL-SICW_15406085B6000 (rev1).igs \| 602 KB STP STP_WL-SICW_15406085B6000 (rev1).stp \| 170.2 KB Zertifikate ZIP CER IR_LED_certificate_WL-SICW-0603 (rev1).pdf \| 1.2 MB Alle 4 Dateien als ZIP herunterladen ZIP	Aktiv i\| Produktion ist aktiv. Erwartete Lebenszeit: >10 Jahre.	850	845.0	5	1.4	60	AlGaAs	–
	15406094BA500	SPEC		26 Dateien EDA-Modelle: Bauteile ZIP ALT Altium_WL-SICW (rev22c).IntLib \| 215.5 KB CDS Cadence_WL-SICW (rev20a).zip \| 914.2 KB EAG Eagle_WL-SICW (rev20b).lbr \| 40.7 KB CAD-Dateien ZIP IGS Download_IGS_WL-SICW-15406094BA500 (rev1).igs \| 352.7 KB STP Download_STP_WL-SICW-15406094BA500 (rev1).stp \| 78.6 KB Elektrische Modelle ZIP PSP PSpice_WL-SICW (rev22a).zip \| 4.7 KB Strahldaten ASA ASAP-and-APEX_dis_15406094BA500_5M (rev1p0).zip \| 120.6 MB COD CodeV_ray_15406094BA500_5M (rev1p0).zip \| 120.6 MB FRE Fred_dat_15406094BA500_5M (rev1p0).zip \| 120.6 MB FRE Fred_txt_15406094BA500_5M (rev1p0).zip \| 189.2 MB LIG LightTools_ray_15406094BA500_5M (rev1p0).zip \| 120.6 MB LIG LightTools_txt_15406094BA500_5M (rev1p0).zip \| 189.2 MB LUC LucidShape_ray_15406094BA500_5M (rev1p0).zip \| 120.6 MB LUC LucidShape_txt_15406094BA500_5M (rev1p0).zip \| 189.2 MB OPT OpTaliX_txt_15406094BA500_5M (rev1p0).zip \| 189.2 MB OPT OptiCAD_dat_15406094BA500_5M (rev1p0).zip \| 120.6 MB OPT OptiCAD_txt_15406094BA500_5M (rev1p0).zip \| 189.2 MB OPT optalix_DIS_15406094BA500_5M (rev1p0).zip \| 120.6 MB RIR Photopia_rir_15406094BA500_5M (rev1p0).zip \| 120.6 MB SIM Simulux_ray_15406094BA500_5M (rev1p0).zip \| 120.6 MB SPE Speos_ray_15406094BA500_5M (rev1p0).zip \| 125.4 MB SRC Lucaray-maker_src_15406094BA500_5M (rev1p0).zip \| 120.6 MB TRA TracePro_txt_15406094BA500_5M (rev1p0).zip \| 189.2 MB ZEM ZemaxBin_dat_15406094BA500_5M (rev1p0).zip \| 120.6 MB ZEM Zemax_dat_15406094BA500_5M (rev1p0).zip \| 189.2 MB Zertifikate ZIP CER IR_LED_certificate_WL-SICW-0603 (rev1).pdf \| 1.2 MB	Aktiv i\| Produktion ist aktiv. Erwartete Lebenszeit: >10 Jahre.	940	940.0	0.8	1.2	150	AlGaAs	154150
	15412094A9000	SPEC		26 Dateien EDA-Modelle: Bauteile ZIP ALT Altium_WL-SICW (rev22c).IntLib \| 215.5 KB CDS Cadence_WL-SICW (rev20a).zip \| 914.2 KB EAG Eagle_WL-SICW (rev20b).lbr \| 40.7 KB CAD-Dateien ZIP IGS Download_IGS_WL-SICW_1206 (rev1).igs \| 1.1 MB STP Download_STP_WL-SICW_1206 (rev1).stp \| 352.3 KB Elektrische Modelle ZIP PSP PSpice_WL-SICW (rev22a).zip \| 4.7 KB Strahldaten ASA ASAP-and-APEX_dis_15412094A9000_5M (rev1p0).zip \| 120.5 MB COD CodeV_ray_15412094A9000_5M (rev1p0).zip \| 120.4 MB FRE Fred_dat_15412094A9000_5M (rev1p0).zip \| 120.4 MB FRE Fred_txt_15412094A9000_5M (rev1p0).zip \| 188.1 MB LIG LightTools_ray_15412094A9000_5M (rev1p0).zip \| 120.4 MB LIG LightTools_txt_15412094A9000_5M (rev1p0).zip \| 188.1 MB LUC LucidShape_ray_15412094A9000_5M (rev1p0).zip \| 120.4 MB LUC LucidShape_txt_15412094A9000_5M (rev1p0).zip \| 188.1 MB OPT OpTaliX_txt_15412094A9000_5M (rev1p0).zip \| 188.1 MB OPT OptiCAD_dat_15412094A9000_5M (rev1p0).zip \| 120.4 MB OPT OptiCAD_txt_15412094A9000_5M (rev1p0).zip \| 188.1 MB OPT optalix_DIS_15412094A9000_5M (rev1p0).zip \| 120.4 MB RIR Photopia_rir_15412094A9000_5M (rev1p0).zip \| 120.5 MB SIM Simulux_ray_15412094A9000_5M (rev1p0).zip \| 120.4 MB SPE Speos_ray_15412094A9000_5M (rev1p0).zip \| 124.4 MB SRC Lucaray-maker_src_15412094A9000_5M (rev1p0).zip \| 120.4 MB TRA TracePro_txt_15412094A9000_5M (rev1p0).zip \| 188.1 MB ZEM ZemaxBin_dat_15412094A9000_5M (rev1p0).zip \| 120.4 MB ZEM Zemax_dat_15412094A9000_5M (rev1p0).zip \| 188.1 MB Zertifikate ZIP CER IR_LED_certificates_WL-SICW-1206 (rev1).pdf \| 1.2 MB	Aktiv i\| Produktion ist aktiv. Erwartete Lebenszeit: >10 Jahre.	940	940.0	5.5	1.2	90	AlGaAs	–
	15404094BA420	SPEC		7 Dateien EDA-Modelle: Bauteile ZIP ALT Altium_WL-SICW (rev22c).IntLib \| 215.5 KB CDS Cadence_WL-SICW (rev20a).zip \| 914.2 KB EAG Eagle_WL-SICW (rev20b).lbr \| 40.7 KB CAD-Dateien ZIP IGS Download_IGS_WL-SICW_0402 (rev1).igs \| 721.5 KB STP Download_STP_WL-SICW_0402 (rev1).stp \| 170.2 KB Elektrische Modelle ZIP PSP PSpice_WL-SICW (rev22a).zip \| 4.7 KB Zertifikate ZIP CER IR_LED_certfificate_WL-SICW-0402 (rev1).pdf \| 1.2 MB Alle 7 Dateien als ZIP herunterladen ZIP	Aktiv i\| Produktion ist aktiv. Erwartete Lebenszeit: >10 Jahre.	940	940.0	5	1.4	140	AlGaAs	–
	15406094BA400A	SPEC		7 Dateien EDA-Modelle: Bauteile ZIP ALT Altium_WL-SICW (rev22c).IntLib \| 215.5 KB CDS Cadence_WL-SICW (rev20a).zip \| 914.2 KB EAG Eagle_WL-SICW (rev20b).lbr \| 40.7 KB CAD-Dateien ZIP IGS Download_IGS_154060xxBA400A (rev1).igs \| 566.2 KB STP Downloads_STEP_154060xxBA400A (rev1).stp \| 154 KB Elektrische Modelle ZIP PSP PSpice_WL-SICW (rev22a).zip \| 4.7 KB Zertifikate ZIP CER IR_LED_certificate_WL-SICW-0603 (rev1).pdf \| 1.2 MB Alle 7 Dateien als ZIP herunterladen ZIP	Aktiv i\| Produktion ist aktiv. Erwartete Lebenszeit: >10 Jahre.	940	940.0	1	1.2	140	AlGaAs	–
	15408094BA400	SPEC		7 Dateien EDA-Modelle: Bauteile ZIP ALT Altium_WL-SICW (rev22c).IntLib \| 215.5 KB CDS Cadence_WL-SICW (rev20a).zip \| 914.2 KB EAG Eagle_WL-SICW (rev20b).lbr \| 40.7 KB CAD-Dateien ZIP IGS Download_IGS_15408094BA400 (rev1).igs \| 848.4 KB STP Downloads_STEP_15408094BA400 (rev1).stp \| 201.1 KB Elektrische Modelle ZIP PSP PSpice_WL-SICW (rev22a).zip \| 4.7 KB Zertifikate ZIP CER IR_LED_certificate_WL-SICW-0805 (rev1).pdf \| 1.2 MB Alle 7 Dateien als ZIP herunterladen ZIP	Aktiv i\| Produktion ist aktiv. Erwartete Lebenszeit: >10 Jahre.	940	940.0	1	1.2	140	AlGaAs	–
	15412094BA400	SPEC		26 Dateien EDA-Modelle: Bauteile ZIP ALT Altium_WL-SICW (rev22c).IntLib \| 215.5 KB CDS Cadence_WL-SICW (rev20a).zip \| 914.2 KB EAG Eagle_WL-SICW (rev20b).lbr \| 40.7 KB CAD-Dateien ZIP IGS Download_IGS_15412094BA400 (rev1).igs \| 761.3 KB STP Download_STEP_15412094BA400 (rev1).stp \| 176 KB Elektrische Modelle ZIP PSP PSpice_WL-SICW (rev22a).zip \| 4.7 KB Strahldaten ASA ASAP-and-APEX_dis_15412094BA400_5M (rev1p0).zip \| 120.4 MB COD CodeV_ray_15412094BA400_5M (rev1p0).zip \| 120.4 MB FRE Fred_dat_15412094BA400_5M (rev1p0).zip \| 120.4 MB FRE Fred_txt_15412094BA400_5M (rev1p0).zip \| 189.3 MB LIG LightTools_ray_15412094BA400_5M (rev1p0).zip \| 120.4 MB LIG LightTools_txt_15412094BA400_5M (rev1p0).zip \| 189.3 MB LUC LucidShape_ray_15412094BA400_5M (rev1p0).zip \| 120.4 MB LUC LucidShape_txt_15412094BA400_5M (rev1p0).zip \| 189.3 MB OPT OpTaliX_txt_15412094BA400_5M (rev1p0).zip \| 189.3 MB OPT OptiCAD_dat_15412094BA400_5M (rev1p0).zip \| 120.4 MB OPT OptiCAD_txt_15412094BA400_5M (rev1p0).zip \| 189.3 MB OPT optalix_DIS_15412094BA400_5M (rev1p0).zip \| 120.4 MB RIR Photopia_rir_15412094BA400_5M (rev1p0).zip \| 120.4 MB SIM Simulux_ray_15412094BA400_5M (rev1p0).zip \| 120.4 MB SPE Speos_ray_15412094BA400_5M (rev1p0).zip \| 125 MB SRC Lucaray-maker_src_15412094BA400_5M (rev1p0).zip \| 120.4 MB TRA TracePro_txt_15412094BA400_5M (rev1p0).zip \| 189.2 MB ZEM ZemaxBin_dat_15412094BA400_5M (rev1p0).zip \| 120.4 MB ZEM Zemax_dat_15412094BA400_5M (rev1p0).zip \| 189.3 MB Zertifikate ZIP CER IR_LED_certificates_WL-SICW-1206 (rev1).pdf \| 1.2 MB	Aktiv i\| Produktion ist aktiv. Erwartete Lebenszeit: >10 Jahre.	940	940.0	1	1.2	140	AlGaAs	–
	15406094B6000	SPEC		4 Dateien CAD-Dateien ZIP 3D 3D_WL-SICW_15406094B6000 (rev1).pdf \| 120.3 KB IGS IGS_WL-SICW_15406094B6000 (rev1).igs \| 602 KB STP STP_WL-SICW_15406094B6000 (rev1).stp \| 170.2 KB Zertifikate ZIP CER IR_LED_Certificates_WL-SICW-0603 (rev1).pdf \| 1.2 MB Alle 4 Dateien als ZIP herunterladen ZIP	Aktiv i\| Produktion ist aktiv. Erwartete Lebenszeit: >10 Jahre.	940	940.0	2	1.2	60	AlGaAs	–
