Characteristics
- High attenuation of more than 40 dB @ 100 MHz
- Operating temperature: -40 °C to +85 °C

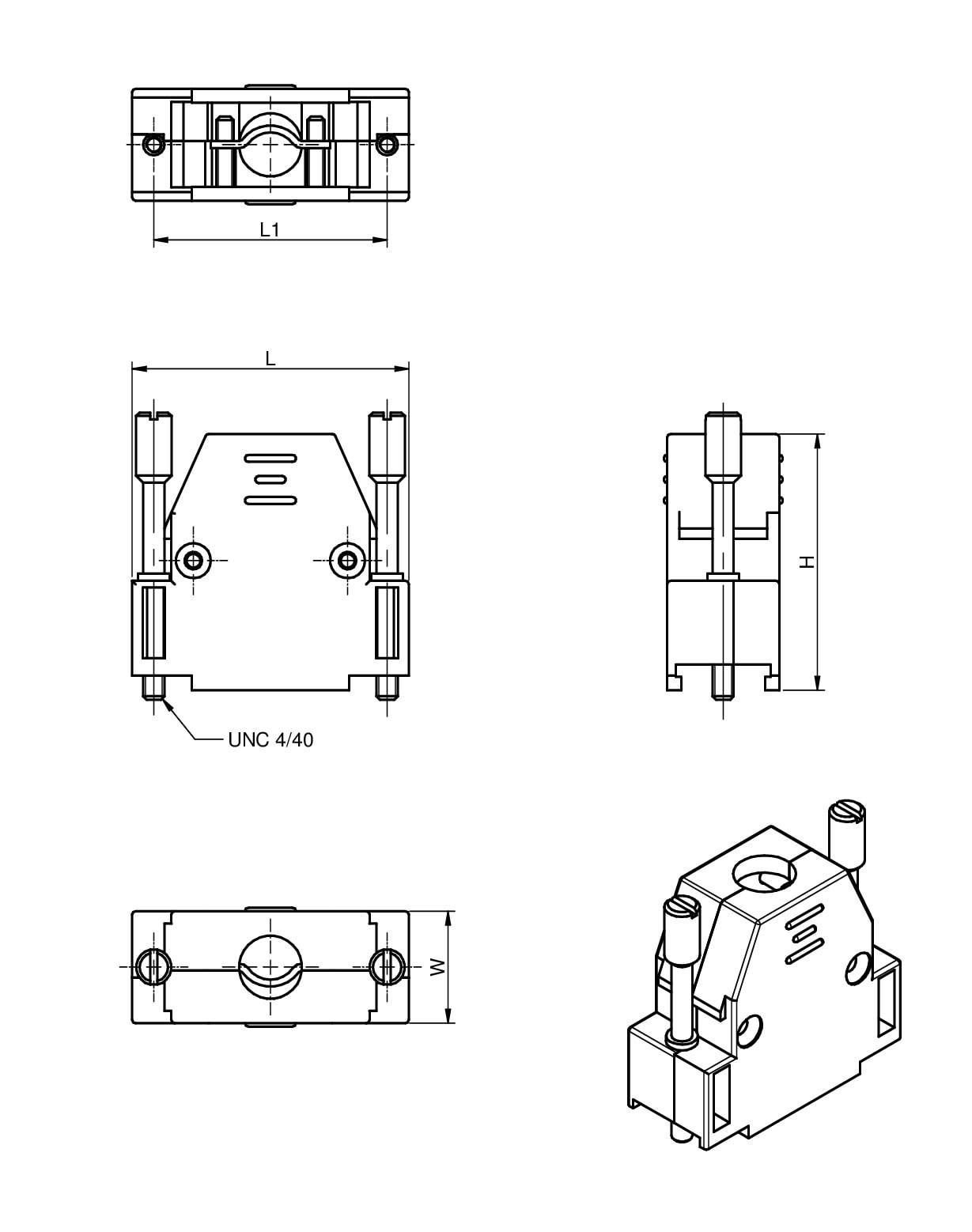

- Metallized ABS, with screws UNC 4/40
- Packed in separate parts
- Straight cable outlet with preassembled metal cable clamp
- Two mobile assembled knurled screws as fastening for the counterpart
- Half mounted
Products
| Order Code | Datasheet | Downloads | Status | Poles | Samples |
|---|---|---|---|---|---|
| 260709 | SPEC | 2 files | Active i| Production is active. Expected lifetime: >10 years. | 9 | |
| 260715 | SPEC | 2 files | Active i| Production is active. Expected lifetime: >10 years. | 15 | |
| 260725 | SPEC | 2 files | Active i| Production is active. Expected lifetime: >10 years. | 25 | |
| 260737 | SPEC | 2 files | Active i| Production is active. Expected lifetime: >10 years. | 37 | |
| 260750 | SPEC | 2 files | Active i| Production is active. Expected lifetime: >10 years. | 50 |
| Samples |
|---|
| Order Code | Datasheet | Downloads | Status | Poles | Samples |
|---|
