WE-D-SUB Filter Solder Cup

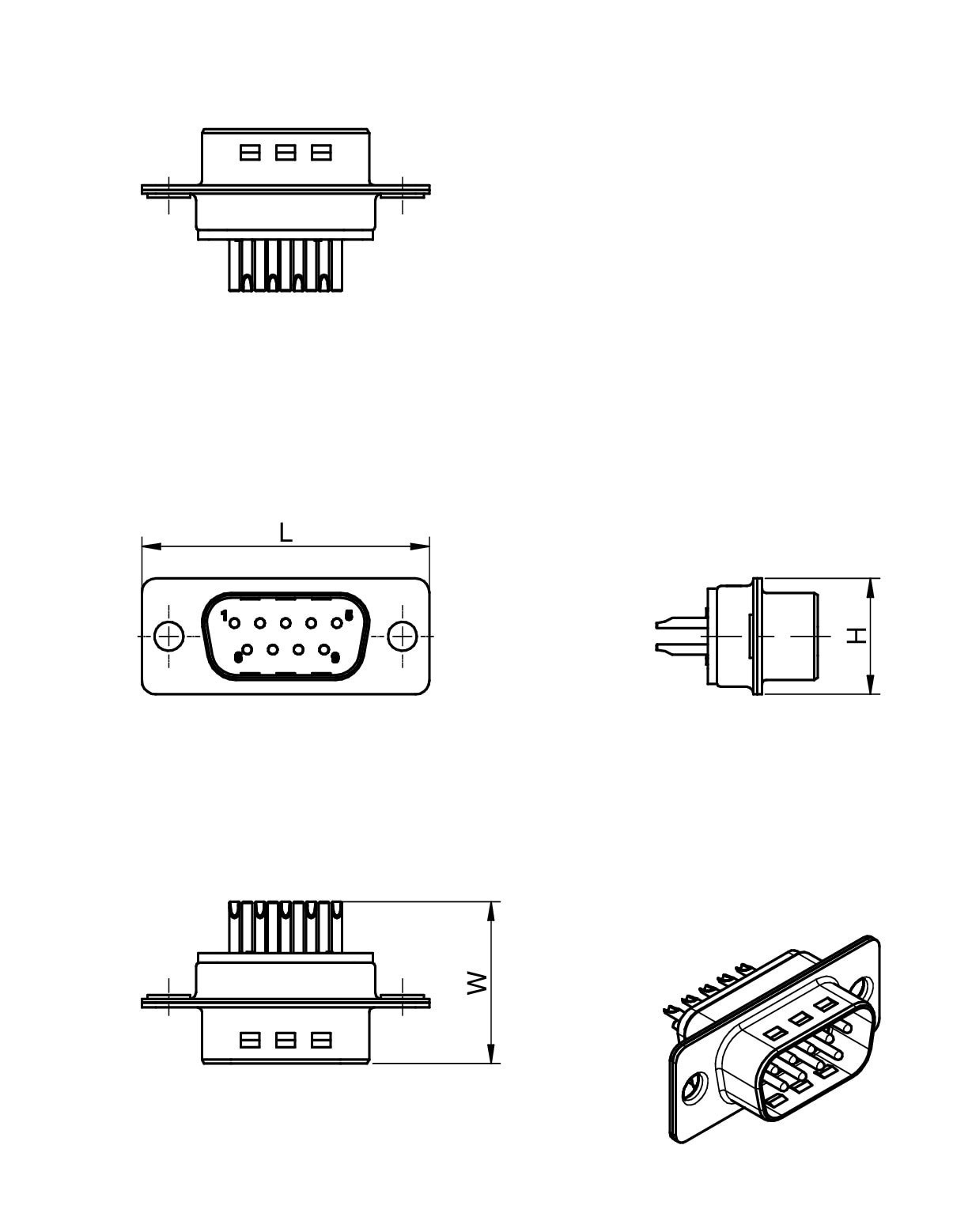

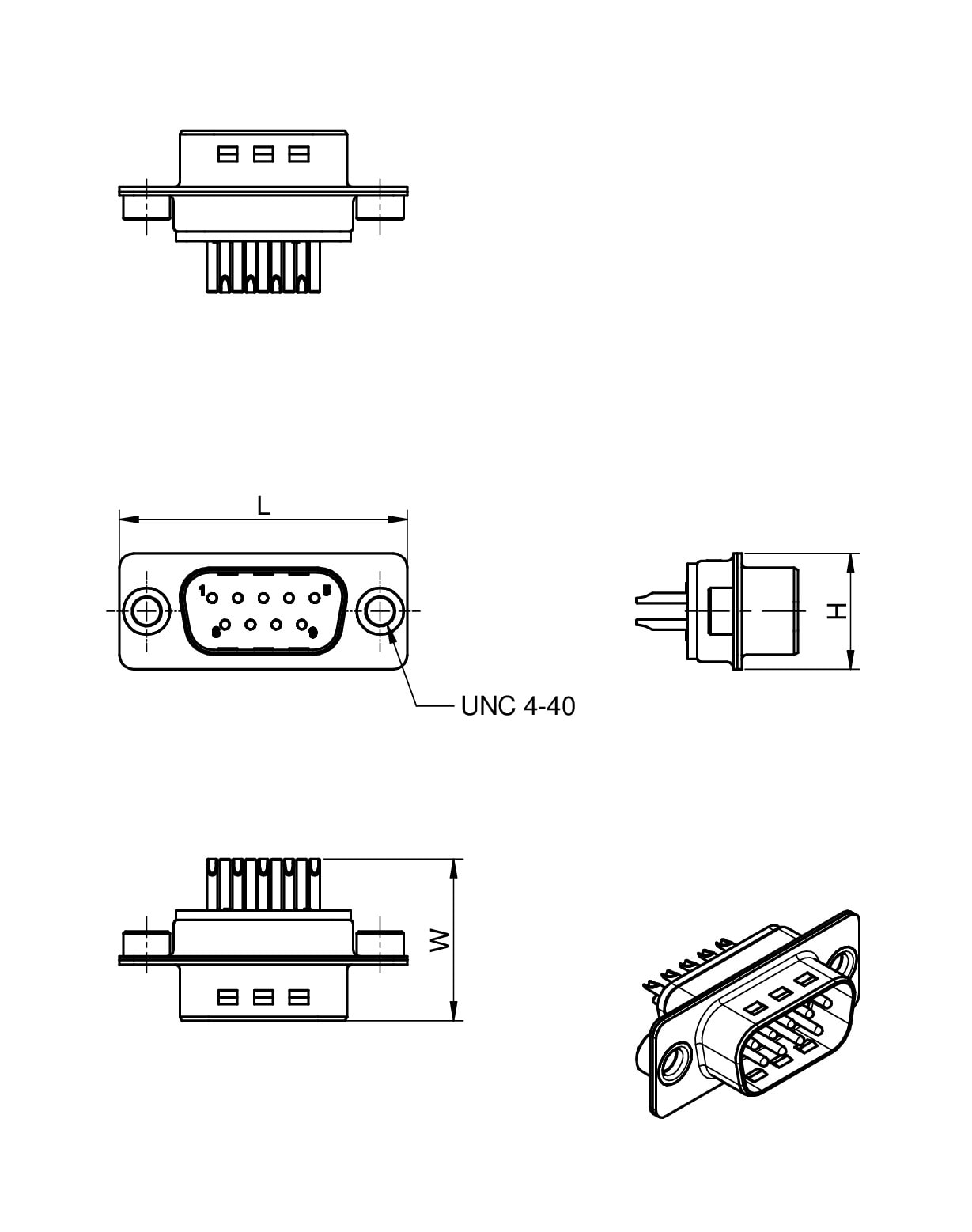

Size	Dimensions	W (mm)	H (mm)	Material	Mount
Through Hole		17.3	12.4	-	-
UNC 4/40		17.3	12.4	Steel with Tin	Solder

Characteristics

Standardized filter with 1000 pF (other values possible on request)
High attenuation of more than 40 dB @ 180 MHz
Rated current @ 20 ºC: 7.5 A
Insulation resistance: min. 1 GΩ
Operating temperature: –55 ºC to +125 ºC
Easy soldering, even for small strand cross sections
Choice of UNC 4/40 or through hole
Working voltage: 100 VDC
Testing voltage: 250 VRMS

Applications

Filtering of interfaces
External connection to
– printer
– sensor
– display

Products

All

Through Hole

UNC 4/40

	Order Code	Datasheet	Downloads	Status	Number of Poles	Gender	L (mm)	W (mm)	H (mm)	Samples
	210113003	SPEC	2 files CAD files ZIP IGS 210113003 (rev1).igs \| 13.8 MB STP 210113003 (rev1).stp \| 1.2 MB Download all 2 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	9	Male	30.8	17.3	12.4
	210613003	SPEC	2 files CAD files ZIP IGS 210613003 (rev1).igs \| 15.9 MB STP 210613003 (rev1).stp \| 1.3 MB Download all 2 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	9	Female	30.8	17.3	12.4
	210113023	SPEC	2 files CAD files ZIP IGS 210113023 (rev1).igs \| 13.9 MB STP 210113023 (rev1).stp \| 1.2 MB Download all 2 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	9	Male	30.8	17.3	12.4
	210613023	SPEC	2 files CAD files ZIP IGS 210613023 (rev1).igs \| 16 MB STP 210613023 (rev1).stp \| 1.3 MB Download all 2 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	9	Female	30.8	17.3	12.4
	212113003	SPEC	2 files CAD files ZIP IGS 212113003 (rev1).igs \| 21.7 MB STP 212113003 (rev1).stp \| 1.4 MB Download all 2 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	15	Male	39.2	17.3	12.4
	212613003	SPEC	2 files CAD files ZIP IGS 212613003 (rev1).igs \| 25.1 MB STP 212613003 (rev1).stp \| 1.4 MB Download all 2 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	15	Female	39.2	17.3	12.4
	212113023	SPEC	2 files CAD files ZIP IGS 212113023 (rev1).igs \| 21.7 MB STP 212113023 (rev1).stp \| 1.4 MB Download all 2 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	15	Male	39.2	17.3	12.4
	212613023	SPEC	2 files CAD files ZIP IGS 212613023 (rev1).igs \| 25.2 MB STP 212613023 (rev1).stp \| 1.4 MB Download all 2 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	15	Female	39.2	17.3	12.4
	214113003	SPEC	2 files CAD files ZIP IGS Download_IGS_214113003 (rev1).igs \| 7.5 MB STP Download_STP_214113003 (rev1).stp \| 1.7 MB Download all 2 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	25	Male	53.1	17.3	12.4
	214613003	SPEC	2 files CAD files ZIP IGS Download_IGS_214613003 (rev1).igs \| 7.8 MB STP Download_STP_214613003 (rev1).stp \| 1.7 MB Download all 2 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	25	Female	53.1	17.3	12.4
	214113023	SPEC	2 files CAD files ZIP IGS Download_IGS_214113023 (rev1).igs \| 7.5 MB STP Download_STP_214113023 (rev1).stp \| 1.7 MB Download all 2 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	25	Male	53.1	17.3	12.4
	214613023	SPEC	2 files CAD files ZIP IGS Download_IGS_214613023 (rev1).igs \| 7.8 MB STP Download_STP_214613023 (rev1).stp \| 1.7 MB Download all 2 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	25	Female	53.1	17.3	12.4
	216113003	SPEC	2 files CAD files ZIP IGS Download_IGS_216113003 (rev1).igs \| 8.7 MB STP Download_STP_216113003 (rev1).stp \| 2 MB Download all 2 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	37	Male	69.5	17.3	12.4
	216613003	SPEC	2 files CAD files ZIP IGS Download_IGS_216613003 (rev1).igs \| 9 MB STP Download_STP_216613003 (rev1).stp \| 1.9 MB Download all 2 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	37	Female	69.5	17.3	12.4
	216113023	SPEC	2 files CAD files ZIP IGS Download_IGS_216113023 (rev1).igs \| 8.7 MB STP Download_STP_216113023 (rev1).stp \| 2 MB Download all 2 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	37	Male	69.5	17.3	12.4
	216613023	SPEC	2 files CAD files ZIP IGS Download_IGS_216613023 (rev1).igs \| 9 MB STP Download_STP_216613023 (rev1).stp \| 2 MB Download all 2 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	37	Female	69.5	17.3	12.4
