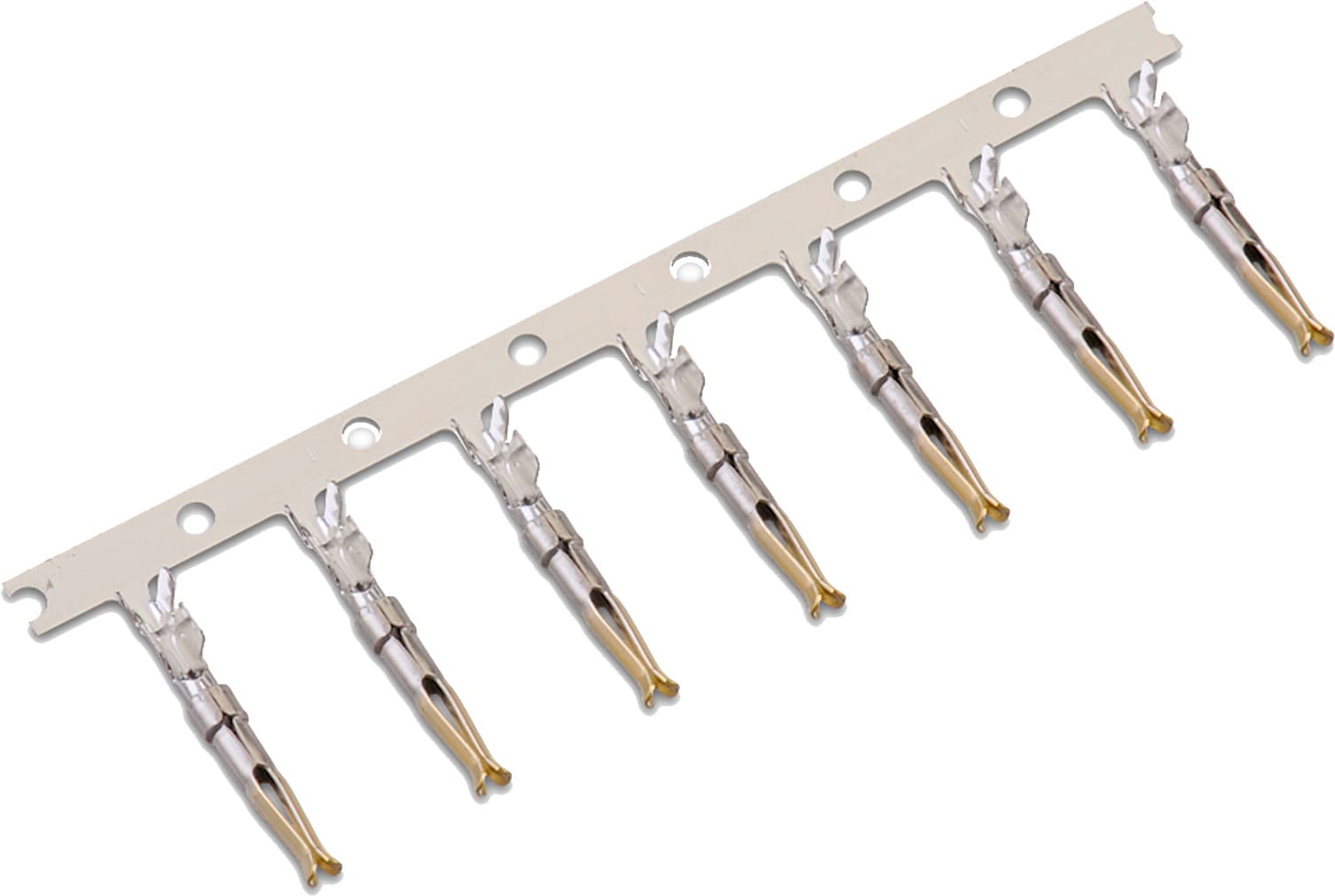

WR-DSUB Female Crimp Contact

General Information
Operating Temperature	-55 °C up to +105 °C
Compliance	RoHS
Quality Class	25 Mating cycles
Gender	Female
Type	Terminal/Contact
Flammability Rating	UL94 V-0
Contact Material	Copper Alloy
Contact Plating	Selective Gold
Contact Type	Stamped

Electrical Properties
I_R	3 A
Working Voltage	250 V (AC)
Contact Resistance	50 mΩ

Application Notes

ANP083 Adapter PCB for filtering electromagnetic interference on an RS-485 interface
PDF

Products

Order Code	Datasheet	Downloads	Status	Gender	Stranded Wire Section (AWG)	Stranded Wire Section (Metric)	Packaging	Qty. (pcs)	Design Kit	Samples
61800213722	SPEC	4 files EDA models: Components ZIP ALT 61800213722 (rev1).IntLib \| 22.4 MB CAD files ZIP 3D 618x0213722_1 (rev1).pdf \| 279.8 KB IGS 618x0213722 (rev1).iges \| 2.5 MB STP 618x0213722 (rev1).stp \| 982.5 KB Download all 4 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	Female	22 to 20 (AWG)	0.326 to 0.518 (mm²)	Big Reel	5000	–
61800313722	SPEC	3 files CAD files ZIP 3D 618x0313722_1 (rev1).pdf \| 279.8 KB IGS 618x0313722 (rev1).iges \| 2.5 MB STP 618x0313722 (rev1).stp \| 982.5 KB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	Female	24 to 26 (AWG)	0.129 to 0.205 (mm²)	Big Reel	5000	–
61800213722DEC	SPEC	3 files CAD files ZIP 3D Download_3D (rev1).pdf \| 160.2 KB IGS Download_IGES (rev1).iges \| 1.2 MB STP Download_STP (rev1).stp \| 426.5 KB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	Female	22 to 20 (AWG)	0.326 to 0.518 (mm²)	Bag	100	612690
61800313722DEC	SPEC	3 files CAD files ZIP 3D Download_3D (rev1).pdf \| 161.5 KB IGS Download_IGES (rev1).iges \| 1.2 MB STP Download_STP (rev1).stp \| 426.5 KB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	Female	26 to 24 (AWG)	0.129 to 0.205 (mm²)	Bag	100	–
61810213722	SPEC	3 files CAD files ZIP 3D Download_3D (rev1).pdf \| 279.8 KB IGS Download_IGES (rev1).iges \| 2.5 MB STP Download_STP (rev1).stp \| 982.5 KB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	Female	22 to 20 (AWG)	0.326 to 0.518 (mm²)	Small Reel	500	–
61810313722	SPEC	3 files CAD files ZIP 3D Download_3D (rev1).pdf \| 279.8 KB IGS Download_IGES (rev1).iges \| 2.5 MB STP Download_STP (rev1).stp \| 982.5 KB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	Female	26 to 24 (AWG)	0.129 to 0.205 (mm²)	Small Reel	500	–

Order Code	Datasheet
61800213722	SPEC
61800313722	SPEC
61800213722DEC	SPEC
61800313722DEC	SPEC
61810213722	SPEC
61810313722	SPEC

Samples

Order Code	Datasheet	Downloads	Status	Gender	Stranded Wire Section (AWG)	Stranded Wire Section (Metric)	Packaging	Qty. (pcs)	Design Kit	Samples

Tools

Manual Crimping Tool for WR-DSUB

Use with

WA-HEX Hexagonal Lock Screws for D-Sub

Suitable for

WR-DSUB Female Terminal Housing

Assortments

Articles from this product series can be found in the following assortments:

Design Kit Connector Solutions
