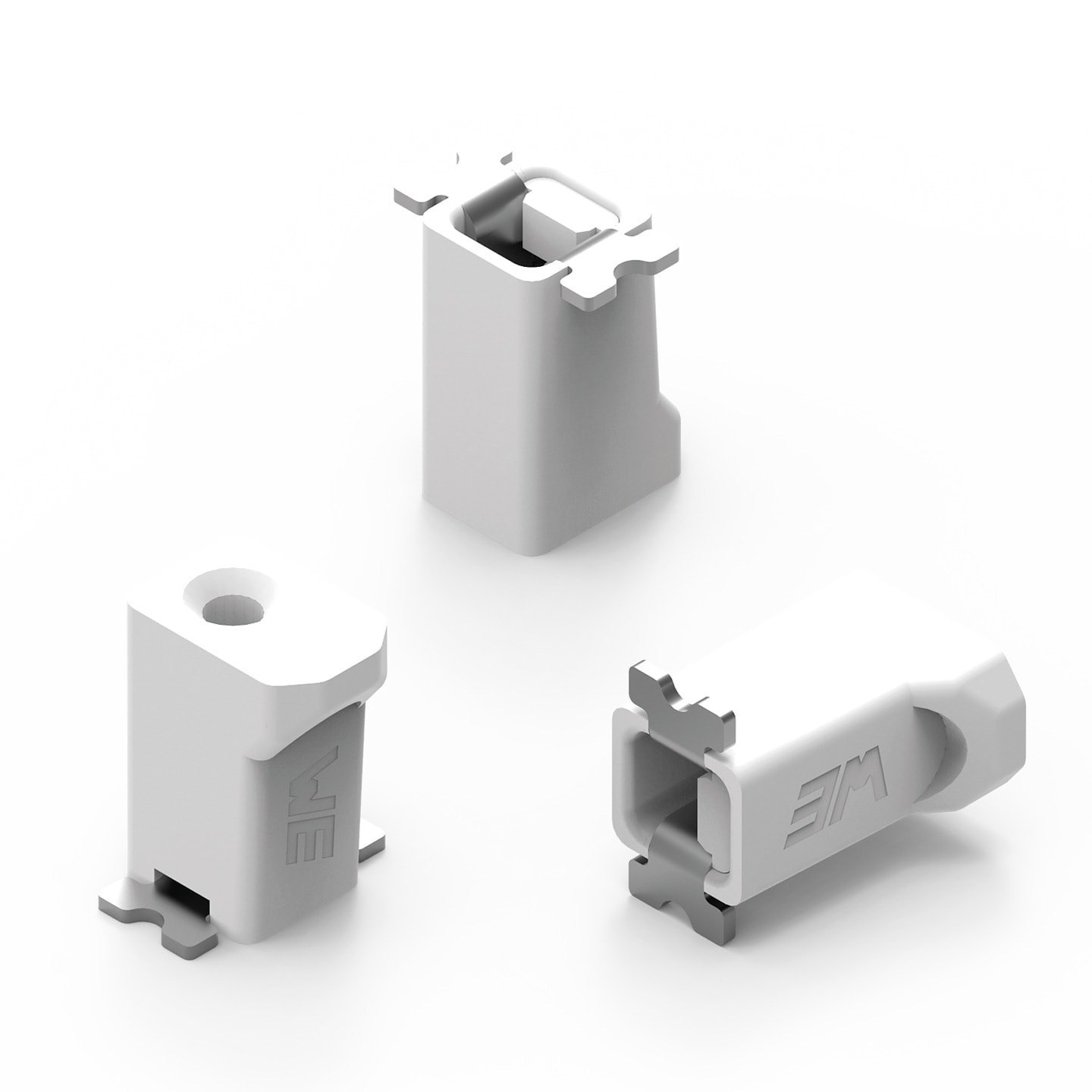

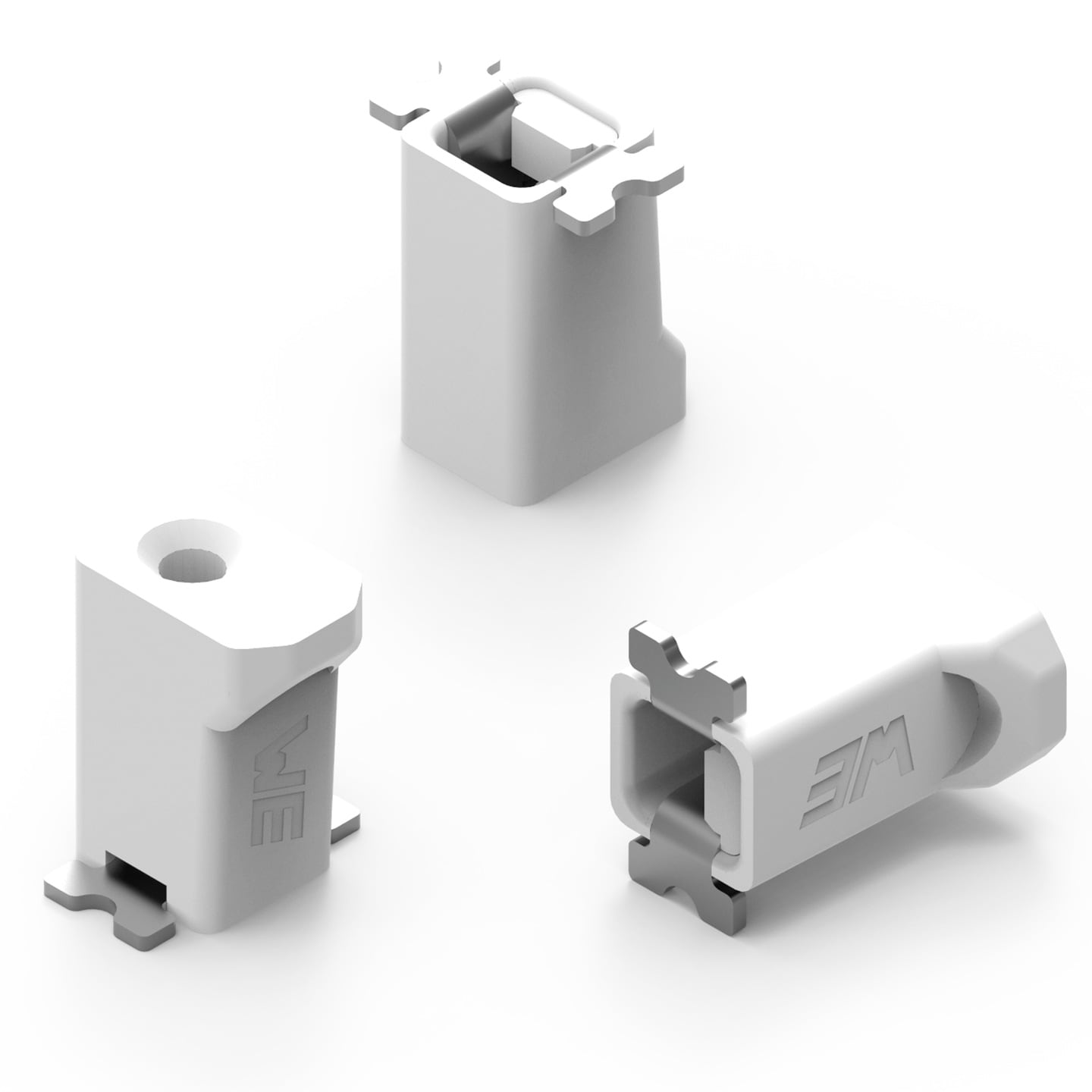

WR-LECO Single Contact - Poke In Connector - Vertical Cable Entry - SMT

General Information
Operating Temperature	-40 °C up to +130 °C

Electrical Properties
Working Voltage	600 V (AC)
Withstanding Voltage	2200 V (AC)
I_R	7 A
Contact Resistance	10 mΩ

Material Properties
Insulator Material	PA 9T
Insulator Flammability Rating	UL94 V-0
Insulator Color	Grey
Contact Material	Phosphor Bronze
Contact Plating	Tin over Nickel

Wire Properties
Solid Wire Section (AWG)	18 to 20 (AWG)
Solid Wire Section (Metric)	0.2 to 0.5 (mm²)
Wire Strip Length	6 up to 7 (mm)

Certification
cULus Approval	E323964

Application Notes

ANE018 Plastic Material Properties
PDF

Products

Order Code	Datasheet	Downloads	Status	Pins (Value) (pcs)	Design Kit	Samples
695401000222	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-LECO (rev23b).IntLib \| 1.6 MB CDS Cadence_WR-LECO_rev23a (rev23a).zip \| 6.4 MB EAG Eagle_WR-LECO (rev23a).lbr \| 121.3 KB CAD files ZIP 3D Download_3D_695401000222 (rev1).pdf \| 92.5 KB IGS Download_IGS_695401000222 (rev1).igs \| 785.3 KB STP Download_Step_695401000222 (rev1).step \| 168.4 KB Download all 6 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	1	612690
