Characteristics

Compact and cost-optimized module with enhanced performance
Operating modes: Idle-Mode,Receiving-Mode,Transmitting-Mode and Standby/Shutdown mode
Wireless M-BUS EN13757-4: 2013 standard
OMS (Open Metering System) supported
Range up to 1500 m line of sight
Small size: 12 x 8 x 2 mm (L x W x H)
RF output power 14 dBm
Easy switching between operating modes S, T, C
Adjustable RF data rates
Communication via UART/SPI Interface
Available on Tape & Reel for SMT mounting
ACC Software - PC Tool to configure and update the module
Wireless Connectivity SDK
WE UART Terminal

Applications

Smart Metering
Smart Buildings
Advanced Metering Infrastructure
Environmental Monitoring

Application Notes

See what the firmware developed by Würth Elektronik can do - the WE-ProWare

Products

All

Radio Module

EV-Kits

Order Code	Datasheet	Manual	Downloads	Status	Description	Frequency Range (MHz)	d_LoS (m)	P_{Tx, 50 Ω} (dBm)	Rx_{sens, 50 Ω} (dBm)	V_{DD min.} (V)	V_{DD max._(V)}	R_{b max.} (kbps)	L (mm)	W (mm)	H (mm)	Radio Module	Antenna	Evaluation Kit	Samples
2609059283001	–	PDF	5 files EDA models: Components ZIP ALT LIB_WE_WIRL_Altium (revV16.0).zip \| 3.2 MB EAG LIB_WE_WIRL_Eagle (revV16.0).zip \| 34 KB CAD files ZIP 3D 3D_260905118xxx (rev1).pdf \| 576.1 KB IGS IGS_260905118xxx (rev1).igs \| 2.2 MB STP STP_260905118xxx (rev1).stp \| 570.4 KB Download all 5 files as zip archive ZIP	New i\| Product is new in our portfolio and production is active. Expected lifetime: >10 years.	EV-Kit Metis-e	–	–	–	–	–	–	–	–	–	–	2609051183000	2600130086	–
2609051183000	SPEC	PDF	–	New i\| Product is new in our portfolio and production is active. Expected lifetime: >10 years.	Metis-e	868.3 - 869.525	1500	14	-107	2.2	3.8	100	12	8	2	–	2600130081 2600130082 2600130086	2609059283001

Order Code	Datasheet
2609059283001	–
2609051183000	SPEC

Samples

Order Code	Datasheet	Manual	Downloads	Status	Description	Frequency Range (MHz)	d_LoS (m)	P_{Tx, 50 Ω} (dBm)	Rx_{sens, 50 Ω} (dBm)	V_{DD min.} (V)	V_{DD max._(V)}	R_{b max.} (kbps)	L (mm)	W (mm)	H (mm)	Radio Module	Antenna	Evaluation Kit	Samples

Software Downloads

Wireless Connectivity SDK

The aim of the Wireless Connectivity Software Development Kit (SDK) is to minimize the effort required on customer side to enable his host MCU to communicate with Würth Elektronik eiSos radio modules. It contains the implementation of all available commands in pure C-code. In order to integrate any Würth Elektronik eiSos wireless module, the user has to simply port the corresponding C-code to his host processor. This significantly reduces the time needed for developing the software interface to the radio module.

Download now on GitHub

ACC Tool

The "ACC V3" is a tool to update and configure certain Würth Elektronik eiSos modules. The supported features will include the search and upload of new firmwares as well as the modification of the available configuration parameters. It allows full user control over all supported products, as in the range of the producer’s intentions, always referring to the respective manual of the connected module.

Due to current export legal restrictions, we are required to control the provision of software. To download the software, please contact our technical support or your local sales representative directly. Thank you for your understanding.

WE UART Terminal

Kickstart your Prototyping instantly.The WE UART Terminal is an easy-to-use PC software that enables complete control of the Würth Elektronik eiSos wireless modules through an intuitive GUI. This tool along with the evaluation boards allow quick prototyping and testing of various features of the radio modules.

Simple setup
Intuitive interface
Color coded Packet interpretation
100% log traceability

Download now

Wireless M-Bus

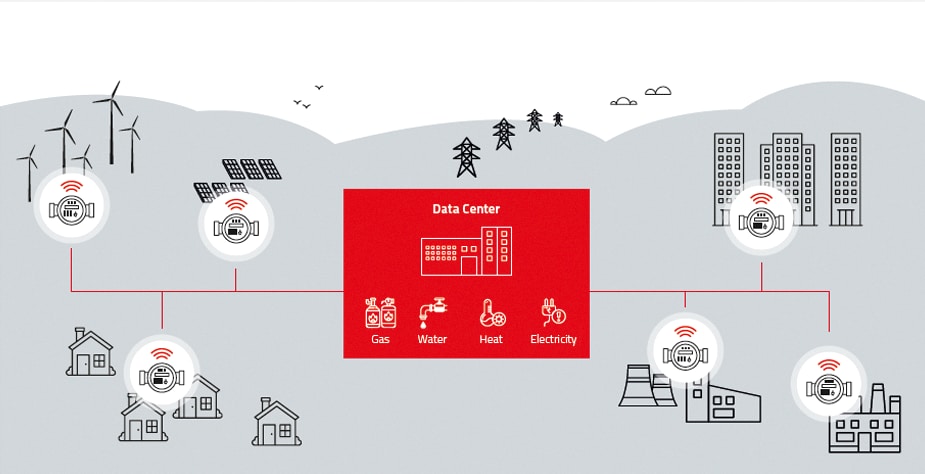

Wireless Meter Bus (wM-BUS) is the extension of the meter Bus (M-BUS) with a wireless protocol and role scheme for handling communication over a standardized wireless communication interface between meters and data loggers – so called smart meter gateways (SMGW). This scheme is specified by the European standard EN 13757 and its sub-standards. The motivation of this standard is to allow an automated measuring and processing of data, track the usage of resources and to optimize provisioning in order to create an “Advanced Metering Infrastructure” (AMI).

Such Smart grid / meter devices are typically battery operated and in need for a long range and robust wireless communication. This is the reason for using the Sub GHz frequencies in the free ISM Bands. EN13757-4 is specifying radio options in the 169 MHz, 434 MHz or 868 MHz band, regarding to the region.

User Application

Advantages for the Customers

„Almost live“ data access on his currently use of resources including a “live” cost estimation instead of yearly billing
Comparison on a day-by-day basis when data is available
No costs for the manual readout, no huddle with a yearly appointment for manual meter readout person
Secure due to encryption, only the owner of the data knows the key required for decrypting the messages of the meters
Several metering providers can share a single Smart meter Gateway (water, gas, electricity, heat cost, …)

Disadvantages for the Customers

High initial costs: Smart meter gateway and meters with wireless interface
Battery lifetime requires exchanging devices each 7 - 10 years in case of battery operated devices – due to security reasons “just” changing the battery is often prevented
