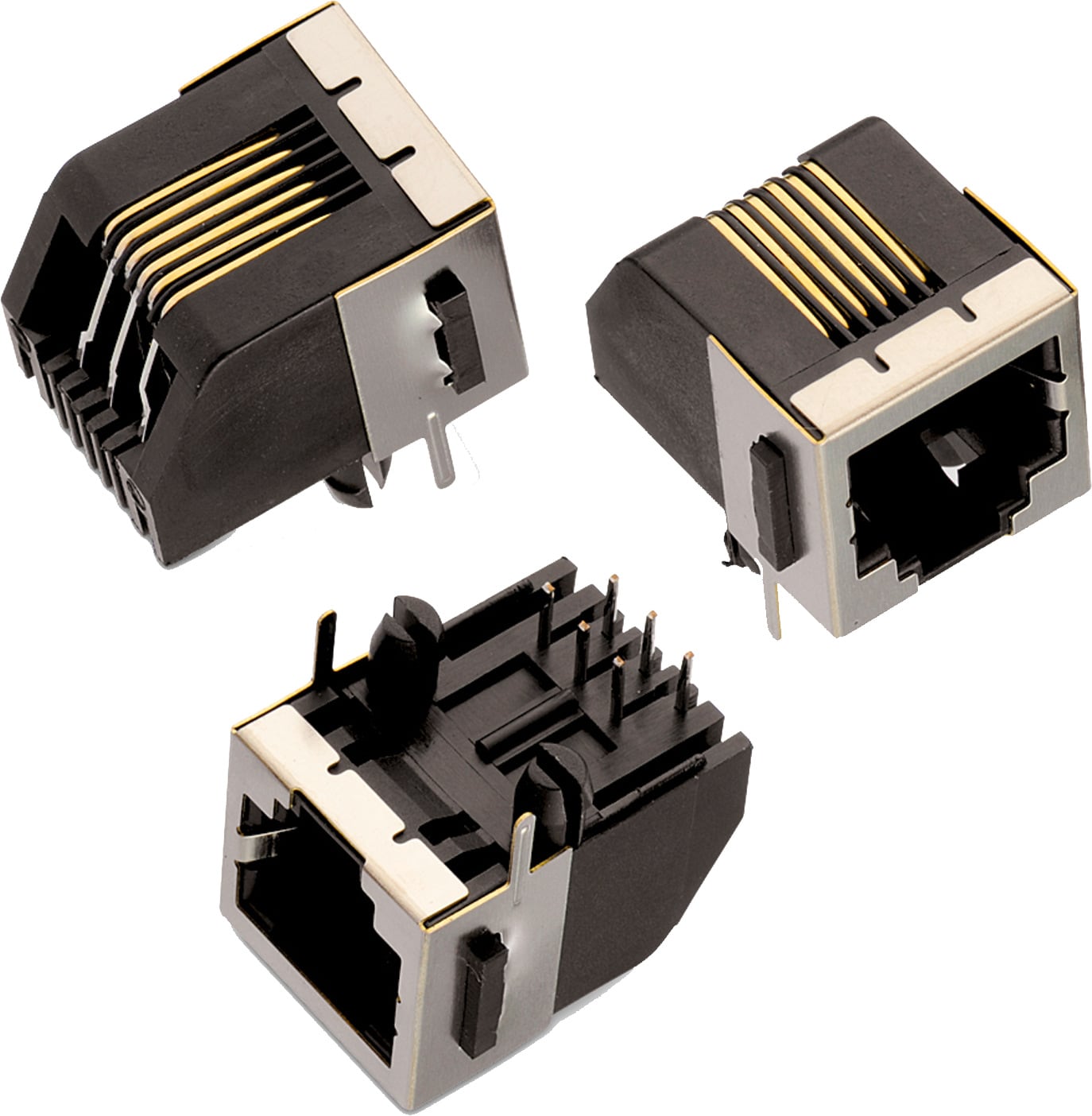

WR-MJ Modular Jack Horizontal Half Shielded 6P6C Tab Down

Material Properties
Insulator Material	PBT
Insulator Flammability Rating	UL94 V-0
Insulator Color	Black
Contact Material	Copper Alloy
Contact Plating	Selective Gold
Contact Type	Stamped
Shielding Material	Bronze
Shielding Plating	Nickel (Ni)

Packaging Properties
Packaging	Tray

Order Code	Datasheet	Downloads	Status	xPxC	Type	Mount	Design Kit	Samples
615006143421	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-MJ (rev23a).IntLib \| 18.3 MB CDS Cadence_WR-MJ (rev24a).zip \| 83.4 MB EAG Eagle_WR-MJ (rev23b).lbr \| 509 KB CAD files ZIP 3D 615006143421_1 (rev1).pdf \| 242.2 KB IGS 615006143421 (rev1).igs \| 3.6 MB STP 615006143421 (rev1).stp \| 1.3 MB	Active i\| Production is active. Expected lifetime: >10 years.	6P6C	Horizontal	THT	615001
