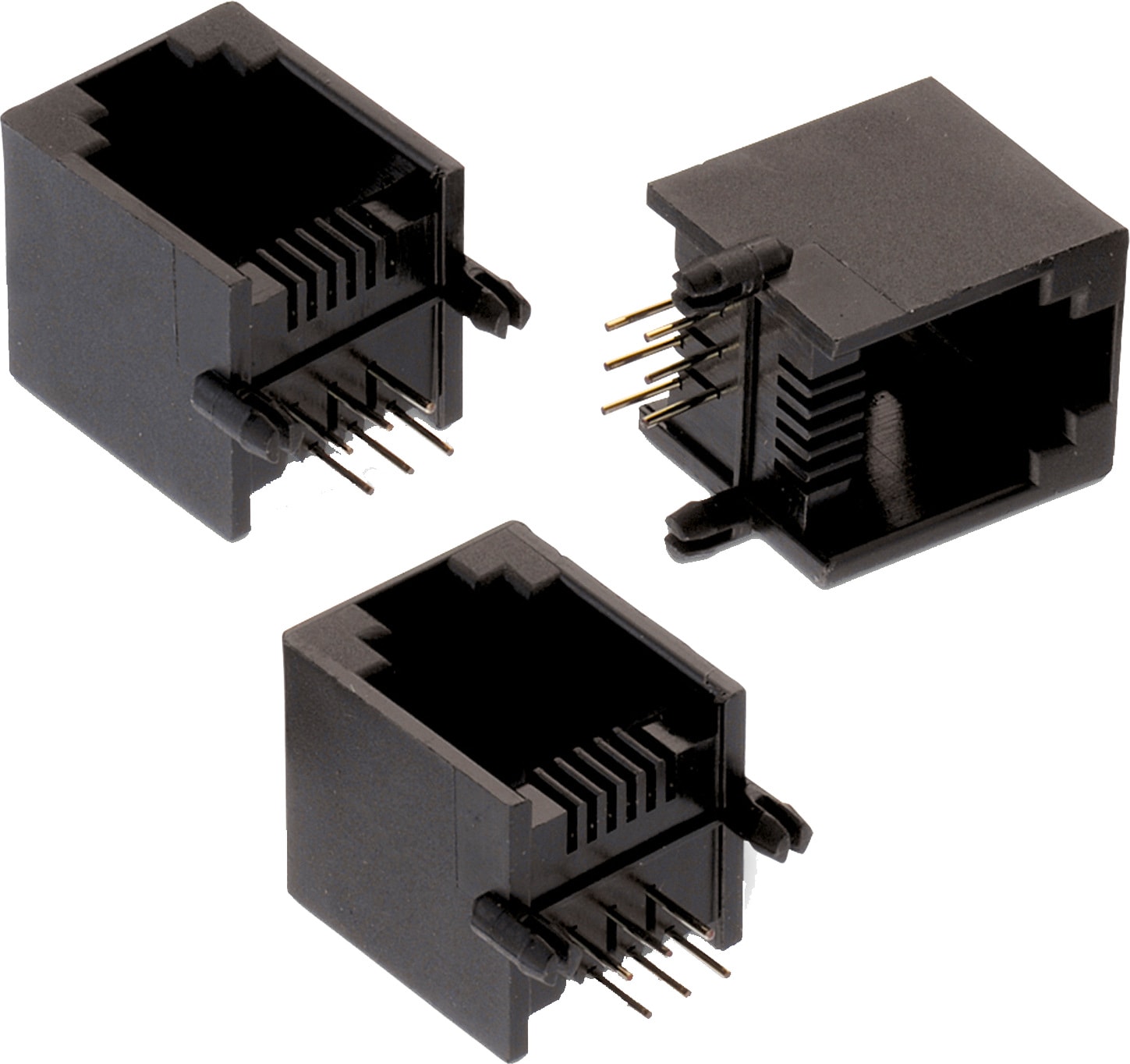

WR-MJ Modular Jack Horizontal Plastic 6PxC Tab Up

General Information
Operating Temperature	-40 °C up to +85 °C

Material Properties
Insulator Material	PBT
Insulator Flammability Rating	UL94 V-0
Insulator Color	Black
Color	Black
Contact Material	Copper Alloy
Contact Plating	Gold
Contact Type	Stamped

Packaging Properties
Packaging	Tray

Order Code	Datasheet	Downloads	Status	xPxC	Type	Mount	Design Kit
615002138421	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-MJ (rev23a).IntLib \| 18.3 MB CDS Cadence_WR-MJ (rev24a).zip \| 83.4 MB EAG Eagle_WR-MJ (rev23b).lbr \| 509 KB CAD files ZIP 3D 615002138421_1 (rev1).pdf \| 236.4 KB IGS 615002138421 (rev1).iges \| 1.4 MB STP 615002138421 (rev1).stp \| 755.5 KB	Active i\| Production is active. Expected lifetime: >10 years.	6P2C	Horizontal	THT	615001
615004138421	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-MJ (rev23a).IntLib \| 18.3 MB CDS Cadence_WR-MJ (rev24a).zip \| 83.4 MB EAG Eagle_WR-MJ (rev23b).lbr \| 509 KB CAD files ZIP 3D 615004138421_1 (rev1).pdf \| 224.4 KB IGS 615004138421 (rev1).igs \| 1.4 MB STP 615004138421 (rev1).stp \| 757 KB	Active i\| Production is active. Expected lifetime: >10 years.	6P4C	Horizontal	THT	615001
615006138421	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-MJ (rev23a).IntLib \| 18.3 MB CDS Cadence_WR-MJ (rev24a).zip \| 83.4 MB EAG Eagle_WR-MJ (rev23b).lbr \| 509 KB CAD files ZIP 3D 615006138421_1 (rev1).pdf \| 225.6 KB IGS 615006138421 (rev1).igs \| 1.4 MB STP 615006138421 (rev1).stp \| 758.6 KB	Active i\| Production is active. Expected lifetime: >10 years.	6P6C	Horizontal	THT	615001
