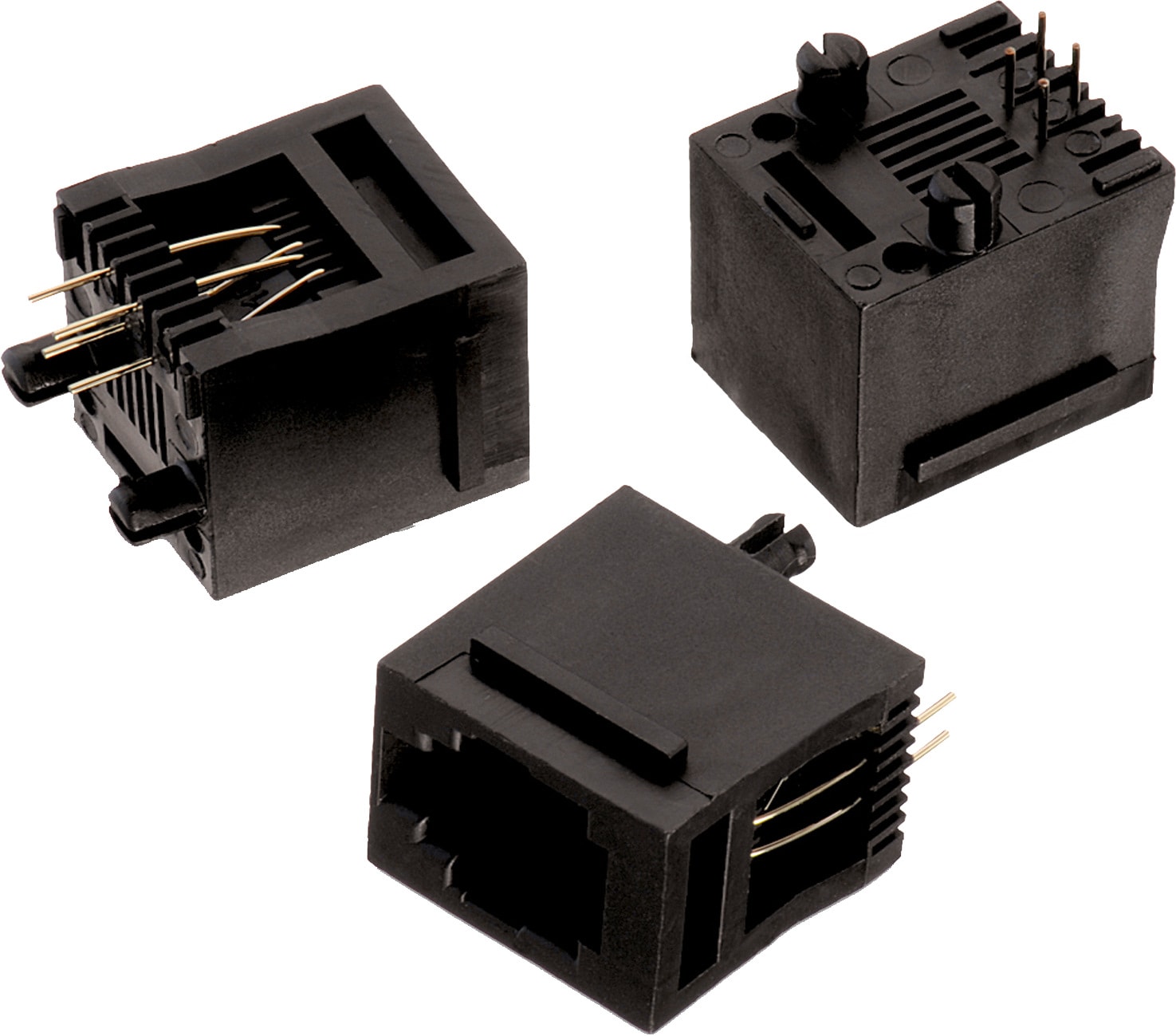

WR-MJ Modular Jack Vertical Plastic 6PxC w. Ears

General Information
Operating Temperature	-40 °C up to +85 °C

Material Properties
Insulator Material	PBT
Insulator Flammability Rating	UL94 V-0
Insulator Color	Black
Contact Material	Copper Alloy
Contact Plating	Gold
Contact Type	Stamped
Shielding Material	Bronze
Shielding Plating	Nickel (Ni)

Packaging Properties
Packaging	Tray

Order Code	Datasheet	Downloads	Status	xPxC	Type	Mount	Design Kit	Samples
615004144121	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-MJ (rev23a).IntLib \| 18.3 MB CDS Cadence_WR-MJ (rev24a).zip \| 83.4 MB EAG Eagle_WR-MJ (rev23b).lbr \| 509 KB CAD files ZIP 3D 615004144121 (rev1).pdf \| 291.6 KB IGS 615004144121 (rev1).iges \| 1.8 MB STP 615004144121 (rev1).stp \| 823.9 KB	Active i\| Production is active. Expected lifetime: >10 years.	6P4C	Vertical	THT	615001
615006144121	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-MJ (rev23a).IntLib \| 18.3 MB CDS Cadence_WR-MJ (rev24a).zip \| 83.4 MB EAG Eagle_WR-MJ (rev23b).lbr \| 509 KB CAD files ZIP 3D 615006144121 (rev1).pdf \| 370.9 KB IGS 615006144121 (rev1).igs \| 1.9 MB STP 615006144121 (rev1).stp \| 983 KB	Active i\| Production is active. Expected lifetime: >10 years.	6P6C	Vertical	THT	615001
