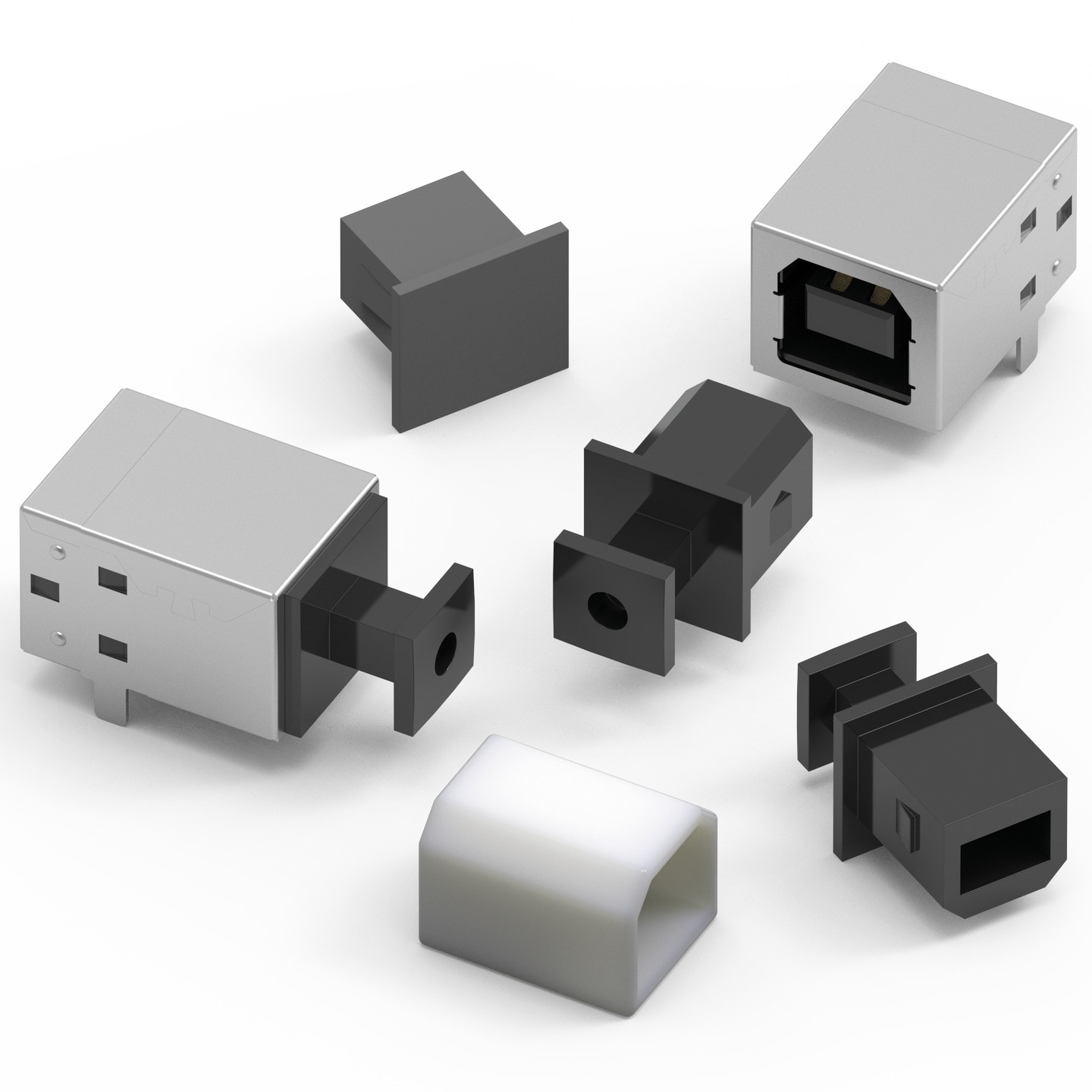

WA-PCCA Plastic Caps for USB Connectors

General Information
Type	Micro USB; Mini USB AB, B; USB A; USB B; USB C
Material	ABS; PE; PP; TPE
Color	Black; Natural

Packaging Properties
Packaging	Bag

Products

Order Code	Datasheet	Downloads	Status	Type	Color	Material	Packaging	Operating Temperature	Flammability Rating
726291100	SPEC	3 files CAD files ZIP 3D 3D_726291100 (rev1).pdf \| 57.1 KB IGS Download_IGS_726291100 (rev1).igs \| 492.7 KB STP Download_STP_726291100 (rev1).stp \| 161.1 KB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	Micro USB	Black	TPE	Bag	-40 °C up to +80 °C	–
726141005	SPEC	3 files CAD files ZIP 3D 3D_726141005 (rev1).pdf \| 18.1 KB IGS Download_IGS_726141005 (rev1).igs \| 141.3 KB STP Download_STEP_726141005 (rev1).stp \| 58.8 KB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	Mini USB AB, B	Black	TPE	Bag	-40 °C up to +80 °C	–
726141001	SPEC	3 files CAD files ZIP 3D 3D_726141001 (rev1).pdf \| 36.2 KB IGS Download_IGS_726141001 (rev1).igs \| 207.6 KB STP Download_STEP_726141001 (rev1).stp \| 78.2 KB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	USB B	Black	ABS	Bag	-20 °C up to +60 °C	UL94 HB
726141002	SPEC	3 files CAD files ZIP 3D 3D_726141002 (rev1).pdf \| 38.3 KB IGS Download_IGS_726141002 (rev1).igs \| 232.6 KB STP Download_STEP_726141002 (rev1).stp \| 88.1 KB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	USB A	Black	ABS	Bag	-20 °C up to +60 °C	UL94 HB
726141003	SPEC	3 files CAD files ZIP 3D 3D_726141003 (rev1).pdf \| 15.8 KB IGS Download_IGS_726141003 (rev1).igs \| 123.6 KB STP Download_STEP_726141003 (rev1).stp \| 53.8 KB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	USB B	Black	PP	Bag	-20 °C up to +125 °C	UL94 HB
726142002	SPEC	3 files CAD files ZIP 3D 3D_726142002 (rev1).pdf \| 22.2 KB IGS Download_IGS_7726142002 (rev1).igs \| 122.6 KB STP Download_STEP_726142002 (rev1).stp \| 46.7 KB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	USB A	Natural	PE	Bag	-30 °C up to +80 °C	–
726142003	SPEC	3 files CAD files ZIP 3D 3D_726142003 (rev1).pdf \| 50.6 KB IGS Download_IGS_726142003 (rev1).igs \| 294.7 KB STP Download_STEP_726142003 (rev1).stp \| 99.5 KB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	USB B	Natural	PE	Bag	-30 °C up to +80 °C	–
726143001	SPEC	3 files CAD files ZIP 3D 3D_726143001 (rev1).pdf \| 16.6 KB IGS Download_IGS_726143001 (rev1).igs \| 97.4 KB STP Download_STEP_726143001 (rev1).stp \| 41.5 KB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	USB A	Black	PP	Bag	20 °C up to +125 °C	UL94 HB
726144003	SPEC	3 files CAD files ZIP 3D 726144003_3D (rev1).pdf \| 65.3 KB IGS 726144003 (rev1).igs \| 414 KB STP 726144003 (rev1).stp \| 79 KB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	USB C	Black	PE	Bag	-30 °C up to +80 °C	–
726144002	SPEC	3 files CAD files ZIP 3D 726144002_3D (rev1).pdf \| 85 KB IGS 726144002 (rev1).igs \| 360.2 KB STP 726144002 (rev1).stp \| 64.2 KB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	USB C	Black	PE	Bag	-30 °C up to +80 °C	–
726144001	SPEC	3 files CAD files ZIP 3D 726144001_3D (rev1).pdf \| 113.8 KB IGS 726144001 (rev1).igs \| 490.6 KB STP 726144001 (rev1).stp \| 90.7 KB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	USB C	Black	PE	Bag	-30 °C up to +80 °C	–
