Characteristics
- Super low ESR product series
- High ripple current capability
- Low profile
- Mounting style: H-Chip SMT
- Capacitance range: 330 µF ‒ 560 µF
- Capacitance tolerance: ±20 %
- Voltage range (UR): 2 ‒ 2.5 V(DC)
- Operating temperature: -55 °C up to +105 °C
- Endurance: 2000h @ +105 °C

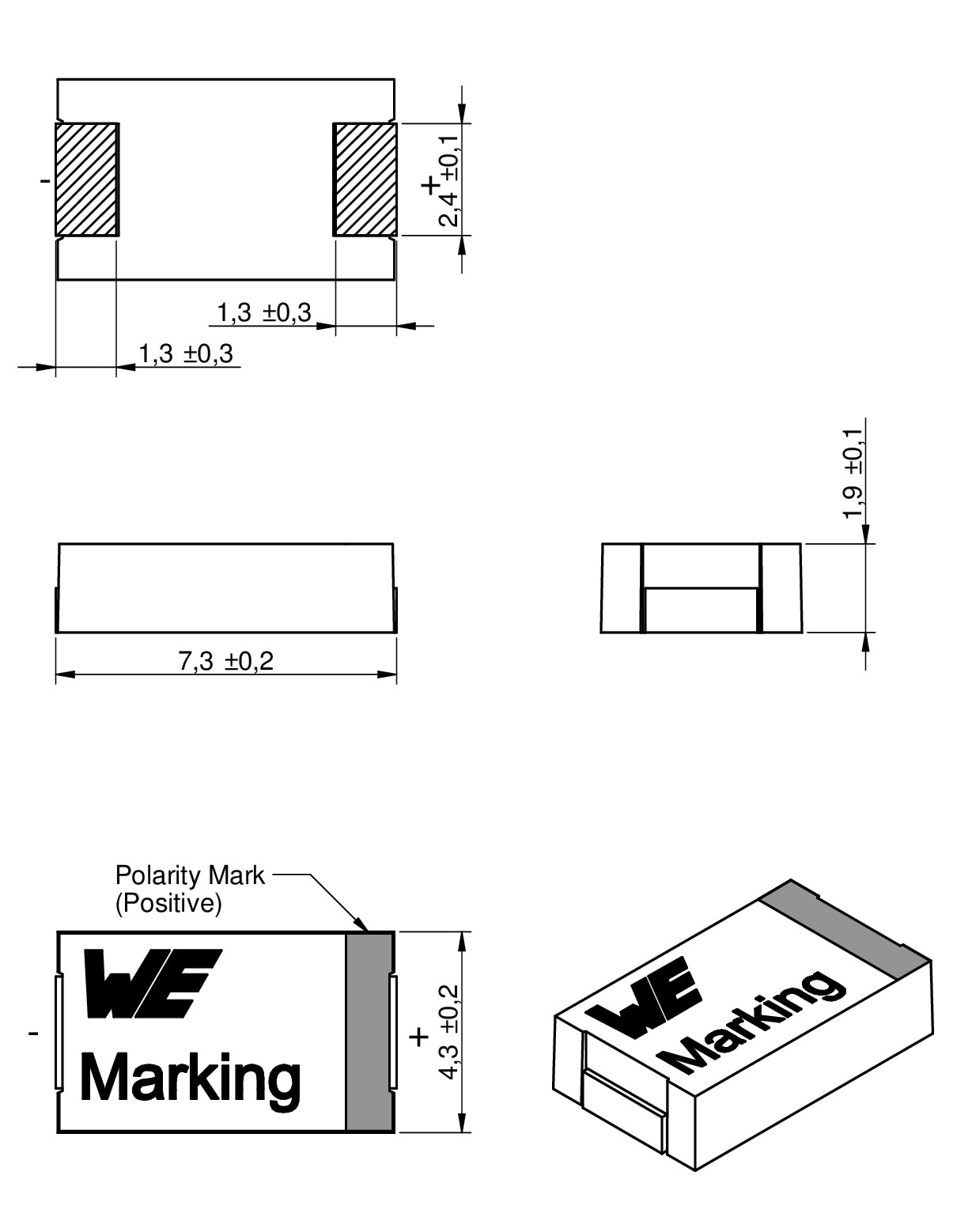

- Dimensions (LxWxH) in mm: 7.3 x 4.3 x 1.9
- Recommended soldering: Reflow soldering
Applications
- Noise suppression
- Input and output capacitor for DC/DC converter
- USB Charger, Smart Meter, Power Bank
Products
| Order Code | Datasheet | Simulation | Downloads | Status | C | VR (V (DC)) | Endurance (h) | Operating Temperature | IRIPPLE (mA) | RESR (mΩ) | ILeak (µA) | DF (%) | L (mm) | W (mm) | H (mm) | Packaging | Samples | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 | 875046219001 | SPEC | 8 files | Active i| Production is active. Expected lifetime: >10 years. | 330 µF | 2 | 2000 | -55 °C up to +105 °C | 10200 | 3 | 66 | 6 | 7.3 | 4.3 | 1.9 | 13" Tape & Reel | ||
| 875046219002 | SPEC | 8 files | Active i| Production is active. Expected lifetime: >10 years. | 470 µF | 2 | 2000 | -55 °C up to +105 °C | 10200 | 3 | 94 | 6 | 7.3 | 4.3 | 1.9 | 13" Tape & Reel | ||
| 875046319001 | SPEC | 8 files | Active i| Production is active. Expected lifetime: >10 years. | 470 µF | 2.5 | 2000 | -55 °C up to +105 °C | 10200 | 3 | 117.5 | 6 | 7.3 | 4.3 | 1.9 | 13" Tape & Reel | ||
| 875046219003 | SPEC | 8 files | Active i| Production is active. Expected lifetime: >10 years. | 560 µF | 2 | 2000 | -55 °C up to +105 °C | 10200 | 3 | 112 | 6 | 7.3 | 4.3 | 1.9 | 13" Tape & Reel |
| Samples |
|---|
| Order Code | Datasheet | Simulation | Downloads | Status | C | VR (V (DC)) | Endurance (h) | Operating Temperature | IRIPPLE (mA) | RESR (mΩ) | ILeak (µA) | DF (%) | L (mm) | W (mm) | H (mm) | Packaging | Samples |
|---|
