WE-LF Common Mode Power Line Choke | Passive Components

Size	L (mm)	W (mm)	H (mm)	Version
Type SV	18.5	13.5	20.5	THT

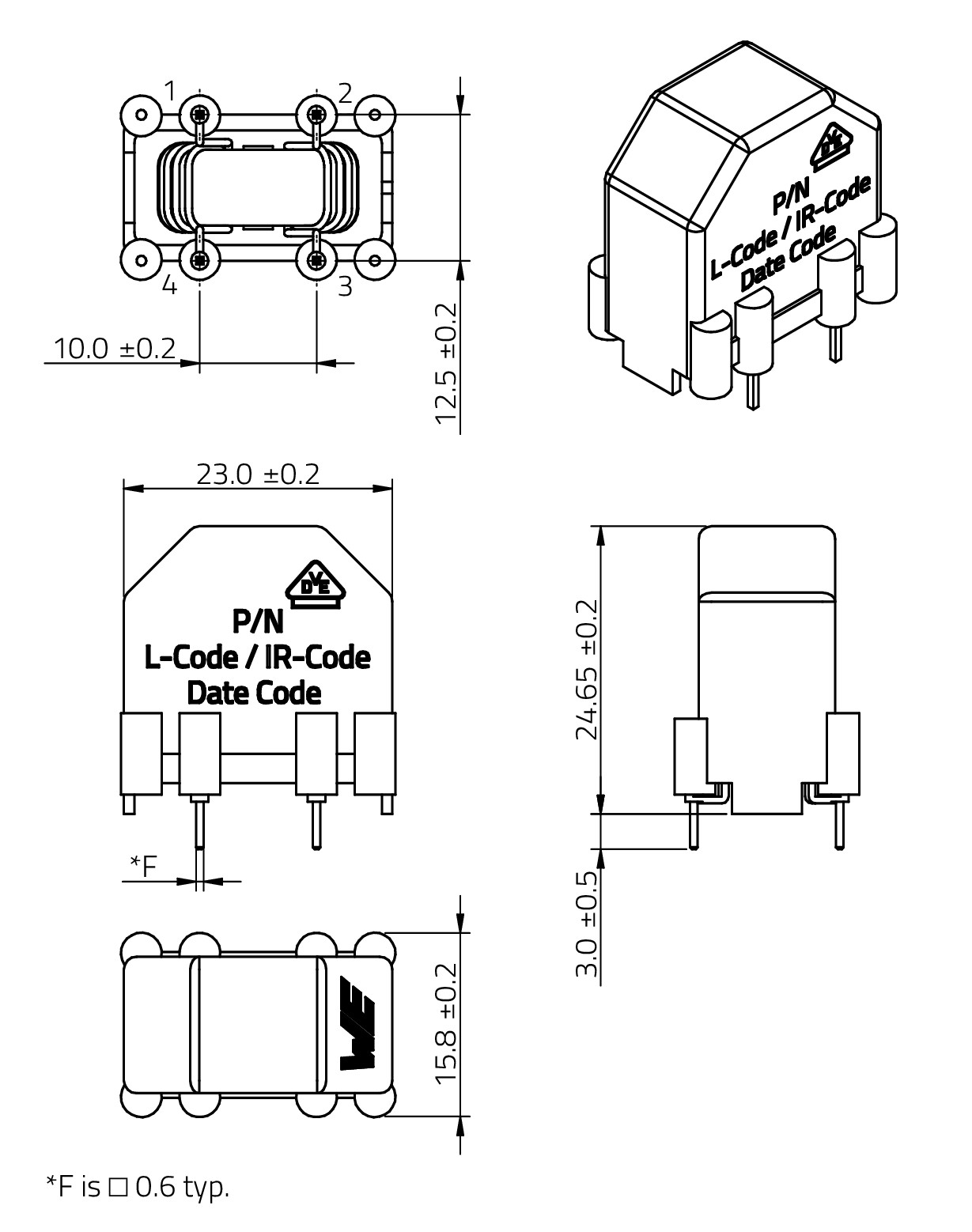

Type MV	23.5	16	25.5	THT
Type LV	26.5	18.5	30.5	THT
Type XV	32.5	21.5	35.5	THT
Type SH	18	18	13	THT
Type MH	23	23	14.5	THT

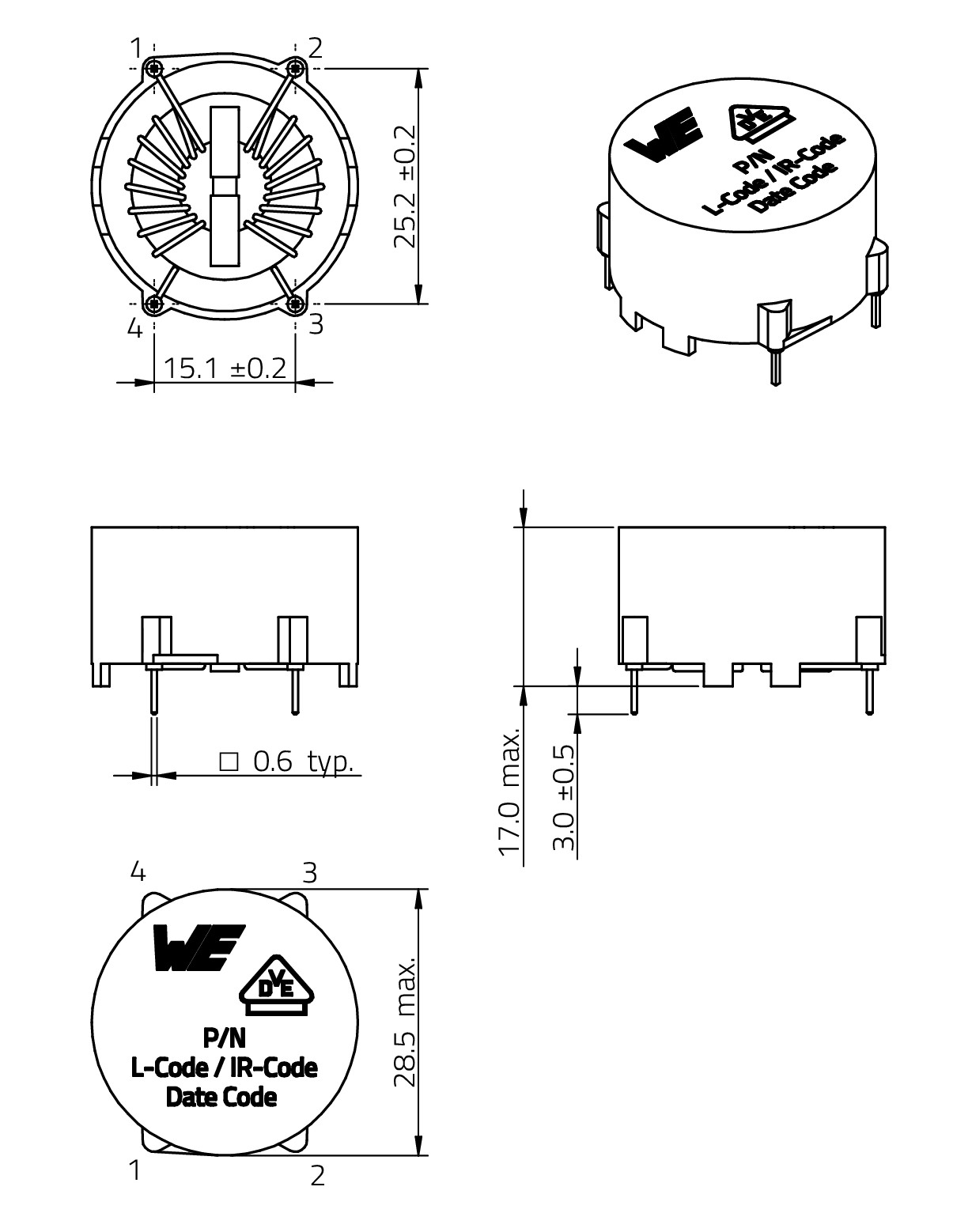

Type LH	28.5	28.5	17	THT
Type XH	33.5	33.5	20	THT

LTSpice files

LT
LTSpice_WE-LF (rev22a).zip
|
6.1 KB

Characteristics

Easy assembling due to 4 pin housing
Compact and small size
4 soldering pins for perfect mechanical decoupling
Toroidal core choke with sector winding
High interference suppression for common mode interferences in low and middle frequency ranges
Low stray field
Operating temperature: -40 °C bis 125 °C
Flammability corresponding to UL 94 V-0
Climatic category: 40/125/21
Certified according IEC 60938-2

Applications

Power line filter
Power electronics
SMPS
Suppression of common mode noise

Products

All

Type SV

Type MV

Type LV

Type XV

Type SH

Type MH

Type LH

Type XH

Order Code	Datasheet	Downloads	Status	I_R (A)	L₁ (mH)	R_{DC max.} (Ω)	V_R (V (AC))	V_T (V (AC))	Material	L (mm)	W (mm)	H (mm)	Mount	Design Kit
7446120027	SPEC	8 files EDA models: Components ZIP ALT WE-LF (rev23a).IntLib \| 2.8 MB ZUK Cadstar_WE-LF (rev19a).zip \| 10.2 KB CDS Cadence_WE-LF (rev23a).zip \| 10.7 MB EAG Eagle_WE-LF (rev23a).lbr \| 72.2 KB CAD files ZIP IGS WE-LF_612SV (rev1).igs \| 8 MB STP WE-LF_612SV (rev1).stp \| 1.8 MB Electric models ZIP S S-PARAMETER_WE-LF (rev20a).zip \| 6.5 MB PSP PSpice_WE-LF (rev22a).zip \| 16.8 KB Download all 8 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	0.4	27	1.2	250	1500	MnZn	18.5	13.5	20.5	THT	744630
7446120039	SPEC	8 files EDA models: Components ZIP ALT WE-LF (rev23a).IntLib \| 2.8 MB ZUK Cadstar_WE-LF (rev19a).zip \| 10.2 KB CDS Cadence_WE-LF (rev23a).zip \| 10.7 MB EAG Eagle_WE-LF (rev23a).lbr \| 72.2 KB CAD files ZIP IGS WE-LF_612SV (rev1).igs \| 8 MB STP WE-LF_612SV (rev1).stp \| 1.8 MB Electric models ZIP S S-PARAMETER_WE-LF (rev20a).zip \| 6.5 MB PSP PSpice_WE-LF (rev22a).zip \| 16.8 KB Download all 8 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	0.4	39	1.7	250	1500	MnZn	18.5	13.5	20.5	THT	744630
7446120047	SPEC	8 files EDA models: Components ZIP ALT WE-LF (rev23a).IntLib \| 2.8 MB ZUK Cadstar_WE-LF (rev19a).zip \| 10.2 KB CDS Cadence_WE-LF (rev23a).zip \| 10.7 MB EAG Eagle_WE-LF (rev23a).lbr \| 72.2 KB CAD files ZIP IGS WE-LF_612SV (rev1).igs \| 8 MB STP WE-LF_612SV (rev1).stp \| 1.8 MB Electric models ZIP S S-PARAMETER_WE-LF (rev20a).zip \| 6.5 MB PSP PSpice_WE-LF (rev22a).zip \| 16.8 KB Download all 8 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	0.3	47	2.6	250	1500	MnZn	18.5	13.5	20.5	THT	744630
7446121007	SPEC	8 files EDA models: Components ZIP ALT WE-LF (rev23a).IntLib \| 2.8 MB ZUK Cadstar_WE-LF (rev19a).zip \| 10.2 KB CDS Cadence_WE-LF (rev23a).zip \| 10.7 MB EAG Eagle_WE-LF (rev23a).lbr \| 72.2 KB CAD files ZIP IGS WE-LF_612SV (rev1).igs \| 8 MB STP WE-LF_612SV (rev1).stp \| 1.8 MB Electric models ZIP S S-PARAMETER_WE-LF (rev20a).zip \| 6.5 MB PSP PSpice_WE-LF (rev22a).zip \| 16.8 KB Download all 8 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	1	6.8	0.3	250	1500	MnZn	18.5	13.5	20.5	THT	744630
7446121010	SPEC	8 files EDA models: Components ZIP ALT WE-LF (rev23a).IntLib \| 2.8 MB ZUK Cadstar_WE-LF (rev19a).zip \| 10.2 KB CDS Cadence_WE-LF (rev23a).zip \| 10.7 MB EAG Eagle_WE-LF (rev23a).lbr \| 72.2 KB CAD files ZIP IGS WE-LF_612SV (rev1).igs \| 8 MB STP WE-LF_612SV (rev1).stp \| 1.8 MB Electric models ZIP S S-PARAMETER_WE-LF (rev20a).zip \| 6.5 MB PSP PSpice_WE-LF (rev22a).zip \| 16.8 KB Download all 8 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	0.7	10	0.55	250	1500	MnZn	18.5	13.5	20.5	THT	744630
7446121018	SPEC	8 files EDA models: Components ZIP ALT WE-LF (rev23a).IntLib \| 2.8 MB ZUK Cadstar_WE-LF (rev19a).zip \| 10.2 KB CDS Cadence_WE-LF (rev23a).zip \| 10.7 MB EAG Eagle_WE-LF (rev23a).lbr \| 72.2 KB CAD files ZIP IGS WE-LF_612SV (rev1).igs \| 8 MB STP WE-LF_612SV (rev1).stp \| 1.8 MB Electric models ZIP S S-PARAMETER_WE-LF (rev20a).zip \| 6.5 MB PSP PSpice_WE-LF (rev22a).zip \| 16.8 KB Download all 8 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	0.5	18	0.75	250	1500	MnZn	18.5	13.5	20.5	THT	–
7446122001	SPEC	8 files EDA models: Components ZIP ALT WE-LF (rev23a).IntLib \| 2.8 MB ZUK Cadstar_WE-LF (rev19a).zip \| 10.2 KB CDS Cadence_WE-LF (rev23a).zip \| 10.7 MB EAG Eagle_WE-LF (rev23a).lbr \| 72.2 KB CAD files ZIP IGS WE-LF_612SV (rev1).igs \| 8 MB STP WE-LF_612SV (rev1).stp \| 1.8 MB Electric models ZIP S S-PARAMETER_WE-LF (rev20a).zip \| 6.5 MB PSP PSpice_WE-LF (rev22a).zip \| 16.8 KB Download all 8 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	2	1	0.06	250	1500	MnZn	18.5	13.5	20.5	THT	744630
7446122003	SPEC	8 files EDA models: Components ZIP ALT WE-LF (rev23a).IntLib \| 2.8 MB ZUK Cadstar_WE-LF (rev19a).zip \| 10.2 KB CDS Cadence_WE-LF (rev23a).zip \| 10.7 MB EAG Eagle_WE-LF (rev23a).lbr \| 72.2 KB CAD files ZIP IGS WE-LF_612SV (rev1).igs \| 8 MB STP WE-LF_612SV (rev1).stp \| 1.8 MB Electric models ZIP S S-PARAMETER_WE-LF (rev20a).zip \| 6.5 MB PSP PSpice_WE-LF (rev22a).zip \| 16.8 KB Download all 8 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	1.5	3.3	0.15	250	1500	MnZn	18.5	13.5	20.5	THT	744630
74461240004	SPEC	8 files EDA models: Components ZIP ALT WE-LF (rev23a).IntLib \| 2.8 MB ZUK Cadstar_WE-LF (rev19a).zip \| 10.2 KB CDS Cadence_WE-LF (rev23a).zip \| 10.7 MB EAG Eagle_WE-LF (rev23a).lbr \| 72.2 KB CAD files ZIP IGS WE-LF_612SV (rev1).igs \| 8 MB STP WE-LF_612SV (rev1).stp \| 1.8 MB Electric models ZIP S S-PARAMETER_WE-LF (rev20a).zip \| 6.5 MB PSP PSpice_WE-LF (rev22a).zip \| 16.8 KB Download all 8 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	3.6	0.4	0.02	250	1500	MnZn	18.5	13.5	20.5	THT	744630
7446220047	SPEC	8 files EDA models: Components ZIP ALT WE-LF (rev23a).IntLib \| 2.8 MB ZUK Cadstar_WE-LF (rev19a).zip \| 10.2 KB CDS Cadence_WE-LF (rev23a).zip \| 10.7 MB EAG Eagle_WE-LF (rev23a).lbr \| 72.2 KB CAD files ZIP IGS WE-LF_622MV (rev1).igs \| 7.8 MB STP WE-LF_622MV (rev1).stp \| 2.4 MB Electric models ZIP S S-PARAMETER_WE-LF (rev20a).zip \| 6.5 MB PSP PSpice_WE-LF (rev22a).zip \| 16.8 KB Download all 8 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	0.4	47	1.6	250	1500	MnZn	23.5	16	25.5	THT	744630
7446221010	SPEC	8 files EDA models: Components ZIP ALT WE-LF (rev23a).IntLib \| 2.8 MB ZUK Cadstar_WE-LF (rev19a).zip \| 10.2 KB CDS Cadence_WE-LF (rev23a).zip \| 10.7 MB EAG Eagle_WE-LF (rev23a).lbr \| 72.2 KB CAD files ZIP IGS WE-LF_622MV (rev1).igs \| 7.8 MB STP WE-LF_622MV (rev1).stp \| 2.4 MB Electric models ZIP S S-PARAMETER_WE-LF (rev20a).zip \| 6.5 MB PSP PSpice_WE-LF (rev22a).zip \| 16.8 KB Download all 8 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	1.3	10	0.25	250	1500	MnZn	23.5	16	25.5	THT	744630
7446221012	SPEC	8 files EDA models: Components ZIP ALT WE-LF (rev23a).IntLib \| 2.8 MB ZUK Cadstar_WE-LF (rev19a).zip \| 10.2 KB CDS Cadence_WE-LF (rev23a).zip \| 10.7 MB EAG Eagle_WE-LF (rev23a).lbr \| 72.2 KB CAD files ZIP IGS WE-LF_622MV (rev1).igs \| 7.8 MB STP WE-LF_622MV (rev1).stp \| 2.4 MB Electric models ZIP S S-PARAMETER_WE-LF (rev20a).zip \| 6.5 MB PSP PSpice_WE-LF (rev22a).zip \| 16.8 KB Download all 8 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	1.2	12	0.28	250	1500	MnZn	23.5	16	25.5	THT	744630
7446221027	SPEC	8 files EDA models: Components ZIP ALT WE-LF (rev23a).IntLib \| 2.8 MB ZUK Cadstar_WE-LF (rev19a).zip \| 10.2 KB CDS Cadence_WE-LF (rev23a).zip \| 10.7 MB EAG Eagle_WE-LF (rev23a).lbr \| 72.2 KB CAD files ZIP IGS WE-LF_622MV (rev1).igs \| 7.8 MB STP WE-LF_622MV (rev1).stp \| 2.4 MB Electric models ZIP S S-PARAMETER_WE-LF (rev20a).zip \| 6.5 MB PSP PSpice_WE-LF (rev22a).zip \| 16.8 KB Download all 8 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	0.6	27	0.7	250	1500	MnZn	23.5	16	25.5	THT	744630
7446222002	SPEC	8 files EDA models: Components ZIP ALT WE-LF (rev23a).IntLib \| 2.8 MB ZUK Cadstar_WE-LF (rev19a).zip \| 10.2 KB CDS Cadence_WE-LF (rev23a).zip \| 10.7 MB EAG Eagle_WE-LF (rev23a).lbr \| 72.2 KB CAD files ZIP IGS WE-LF_622MV (rev1).igs \| 7.8 MB STP WE-LF_622MV (rev1).stp \| 2.4 MB Electric models ZIP S S-PARAMETER_WE-LF (rev20a).zip \| 6.5 MB PSP PSpice_WE-LF (rev22a).zip \| 16.8 KB Download all 8 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	2	2.2	0.06	250	1500	MnZn	23.5	16	25.5	THT	744630
7446222003	SPEC	8 files EDA models: Components ZIP ALT WE-LF (rev23a).IntLib \| 2.8 MB ZUK Cadstar_WE-LF (rev19a).zip \| 10.2 KB CDS Cadence_WE-LF (rev23a).zip \| 10.7 MB EAG Eagle_WE-LF (rev23a).lbr \| 72.2 KB CAD files ZIP IGS WE-LF_622MV (rev1).igs \| 7.8 MB STP WE-LF_622MV (rev1).stp \| 2.4 MB Electric models ZIP S S-PARAMETER_WE-LF (rev20a).zip \| 6.5 MB PSP PSpice_WE-LF (rev22a).zip \| 16.8 KB Download all 8 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	2	3.3	0.075	250	1500	MnZn	23.5	16	25.5	THT	744630
7446222004	SPEC	8 files EDA models: Components ZIP ALT WE-LF (rev23a).IntLib \| 2.8 MB ZUK Cadstar_WE-LF (rev19a).zip \| 10.2 KB CDS Cadence_WE-LF (rev23a).zip \| 10.7 MB EAG Eagle_WE-LF (rev23a).lbr \| 72.2 KB CAD files ZIP IGS WE-LF_622MV (rev1).igs \| 7.8 MB STP WE-LF_622MV (rev1).stp \| 2.4 MB Electric models ZIP S S-PARAMETER_WE-LF (rev20a).zip \| 6.5 MB PSP PSpice_WE-LF (rev22a).zip \| 16.8 KB Download all 8 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	2	4.2	0.12	250	1500	MnZn	23.5	16	25.5	THT	744630
7446222007	SPEC	8 files EDA models: Components ZIP ALT WE-LF (rev23a).IntLib \| 2.8 MB ZUK Cadstar_WE-LF (rev19a).zip \| 10.2 KB CDS Cadence_WE-LF (rev23a).zip \| 10.7 MB EAG Eagle_WE-LF (rev23a).lbr \| 72.2 KB CAD files ZIP IGS WE-LF_622MV (rev1).igs \| 7.8 MB STP WE-LF_622MV (rev1).stp \| 2.4 MB Electric models ZIP S S-PARAMETER_WE-LF (rev20a).zip \| 6.5 MB PSP PSpice_WE-LF (rev22a).zip \| 16.8 KB Download all 8 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	1.5	6.8	0.2	250	1500	MnZn	23.5	16	25.5	THT	–
7446223001	SPEC	8 files EDA models: Components ZIP ALT WE-LF (rev23a).IntLib \| 2.8 MB ZUK Cadstar_WE-LF (rev19a).zip \| 10.2 KB CDS Cadence_WE-LF (rev23a).zip \| 10.7 MB EAG Eagle_WE-LF (rev23a).lbr \| 72.2 KB CAD files ZIP IGS WE-LF_622MV (rev1).igs \| 7.8 MB STP WE-LF_622MV (rev1).stp \| 2.4 MB Electric models ZIP S S-PARAMETER_WE-LF (rev20a).zip \| 6.5 MB PSP PSpice_WE-LF (rev22a).zip \| 16.8 KB Download all 8 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	3	1	0.04	250	1500	MnZn	23.5	16	25.5	THT	744630
74462250007	SPEC	8 files EDA models: Components ZIP ALT WE-LF (rev23a).IntLib \| 2.8 MB ZUK Cadstar_WE-LF (rev19a).zip \| 10.2 KB CDS Cadence_WE-LF (rev23a).zip \| 10.7 MB EAG Eagle_WE-LF (rev23a).lbr \| 72.2 KB CAD files ZIP IGS WE-LF_622MV (rev1).igs \| 7.8 MB STP WE-LF_622MV (rev1).stp \| 2.4 MB Electric models ZIP S S-PARAMETER_WE-LF (rev20a).zip \| 6.5 MB PSP PSpice_WE-LF (rev22a).zip \| 16.8 KB Download all 8 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	4.7	0.7	0.02	250	1500	MnZn	23.5	16	25.5	THT	744630
7446321027	SPEC	8 files EDA models: Components ZIP ALT WE-LF (rev23a).IntLib \| 2.8 MB ZUK Cadstar_WE-LF (rev19a).zip \| 10.2 KB CDS Cadence_WE-LF (rev23a).zip \| 10.7 MB EAG Eagle_WE-LF (rev23a).lbr \| 72.2 KB CAD files ZIP IGS WE-LF_632LV (rev1).igs \| 7.8 MB STP WE-LF_632LV (rev1).stp \| 2.1 MB Electric models ZIP S S-PARAMETER_WE-LF (rev20a).zip \| 6.5 MB PSP PSpice_WE-LF (rev22a).zip \| 16.8 KB Download all 8 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	1	27	0.64	250	1500	MnZn	26.5	18.5	30.5	THT	–
7446321033	SPEC	8 files EDA models: Components ZIP ALT WE-LF (rev23a).IntLib \| 2.8 MB ZUK Cadstar_WE-LF (rev19a).zip \| 10.2 KB CDS Cadence_WE-LF (rev23a).zip \| 10.7 MB EAG Eagle_WE-LF (rev23a).lbr \| 72.2 KB CAD files ZIP IGS WE-LF_632LV (rev1).igs \| 7.8 MB STP WE-LF_632LV (rev1).stp \| 2.1 MB Electric models ZIP S S-PARAMETER_WE-LF (rev20a).zip \| 6.5 MB PSP PSpice_WE-LF (rev22a).zip \| 16.8 KB Download all 8 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	0.8	33	0.85	250	1500	MnZn	26.5	18.5	30.5	THT	744630
7446321050	SPEC	8 files EDA models: Components ZIP ALT WE-LF (rev23a).IntLib \| 2.8 MB ZUK Cadstar_WE-LF (rev19a).zip \| 10.2 KB CDS Cadence_WE-LF (rev23a).zip \| 10.7 MB EAG Eagle_WE-LF (rev23a).lbr \| 72.2 KB CAD files ZIP IGS WE-LF_632LV (rev1).igs \| 7.8 MB STP WE-LF_632LV (rev1).stp \| 2.1 MB Electric models ZIP S S-PARAMETER_WE-LF (rev20a).zip \| 6.5 MB PSP PSpice_WE-LF (rev22a).zip \| 16.8 KB Download all 8 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	0.6	50	1.2	250	1500	MnZn	26.5	18.5	30.5	THT	744630
7446322007	SPEC	8 files EDA models: Components ZIP ALT WE-LF (rev23a).IntLib \| 2.8 MB ZUK Cadstar_WE-LF (rev19a).zip \| 10.2 KB CDS Cadence_WE-LF (rev23a).zip \| 10.7 MB EAG Eagle_WE-LF (rev23a).lbr \| 72.2 KB CAD files ZIP IGS WE-LF_632LV (rev1).igs \| 7.8 MB STP WE-LF_632LV (rev1).stp \| 2.1 MB Electric models ZIP S S-PARAMETER_WE-LF (rev20a).zip \| 6.5 MB PSP PSpice_WE-LF (rev22a).zip \| 16.8 KB Download all 8 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	1.9	6.8	0.16	250	1500	MnZn	26.5	18.5	30.5	THT	–
7446322010	SPEC	8 files EDA models: Components ZIP ALT WE-LF (rev23a).IntLib \| 2.8 MB ZUK Cadstar_WE-LF (rev19a).zip \| 10.2 KB CDS Cadence_WE-LF (rev23a).zip \| 10.7 MB EAG Eagle_WE-LF (rev23a).lbr \| 72.2 KB CAD files ZIP IGS WE-LF_632LV (rev1).igs \| 7.8 MB STP WE-LF_632LV (rev1).stp \| 2.1 MB Electric models ZIP S S-PARAMETER_WE-LF (rev20a).zip \| 6.5 MB PSP PSpice_WE-LF (rev22a).zip \| 16.8 KB Download all 8 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	1.9	10	0.18	250	1500	MnZn	26.5	18.5	30.5	THT	744630
7446323003	SPEC	8 files EDA models: Components ZIP ALT WE-LF (rev23a).IntLib \| 2.8 MB ZUK Cadstar_WE-LF (rev19a).zip \| 10.2 KB CDS Cadence_WE-LF (rev23a).zip \| 10.7 MB EAG Eagle_WE-LF (rev23a).lbr \| 72.2 KB CAD files ZIP IGS WE-LF_632LV (rev1).igs \| 7.8 MB STP WE-LF_632LV (rev1).stp \| 2.1 MB Electric models ZIP S S-PARAMETER_WE-LF (rev20a).zip \| 6.5 MB PSP PSpice_WE-LF (rev22a).zip \| 16.8 KB Download all 8 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	3	2.7	0.06	250	1500	MnZn	26.5	18.5	30.5	THT	744630
7446323004	SPEC	8 files EDA models: Components ZIP ALT WE-LF (rev23a).IntLib \| 2.8 MB ZUK Cadstar_WE-LF (rev19a).zip \| 10.2 KB CDS Cadence_WE-LF (rev23a).zip \| 10.7 MB EAG Eagle_WE-LF (rev23a).lbr \| 72.2 KB CAD files ZIP IGS WE-LF_632LV (rev1).igs \| 7.8 MB STP WE-LF_632LV (rev1).stp \| 2.1 MB Electric models ZIP S S-PARAMETER_WE-LF (rev20a).zip \| 6.5 MB PSP PSpice_WE-LF (rev22a).zip \| 16.8 KB Download all 8 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	3	4	0.07	250	1500	MnZn	26.5	18.5	30.5	THT	744630
7446326002	SPEC	8 files EDA models: Components ZIP ALT WE-LF (rev23a).IntLib \| 2.8 MB ZUK Cadstar_WE-LF (rev19a).zip \| 10.2 KB CDS Cadence_WE-LF (rev23a).zip \| 10.7 MB EAG Eagle_WE-LF (rev23a).lbr \| 72.2 KB CAD files ZIP IGS WE-LF_632LV (rev1).igs \| 7.8 MB STP WE-LF_632LV (rev1).stp \| 2.1 MB Electric models ZIP S S-PARAMETER_WE-LF (rev20a).zip \| 6.5 MB PSP PSpice_WE-LF (rev22a).zip \| 16.8 KB Download all 8 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	6	1.8	0.023	250	1500	MnZn	26.5	18.5	30.5	THT	744630
7446422007	SPEC	8 files EDA models: Components ZIP ALT WE-LF (rev23a).IntLib \| 2.8 MB ZUK Cadstar_WE-LF (rev19a).zip \| 10.2 KB CDS Cadence_WE-LF (rev23a).zip \| 10.7 MB EAG Eagle_WE-LF (rev23a).lbr \| 72.2 KB CAD files ZIP IGS WE-LF_642XV (rev1).igs \| 7.4 MB STP WE-LF_642XV (rev1).stp \| 1.7 MB Electric models ZIP S S-PARAMETER_WE-LF (rev20a).zip \| 6.5 MB PSP PSpice_WE-LF (rev22a).zip \| 16.8 KB Download all 8 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	2.5	6.8	0.12	250	1500	MnZn	32.5	21.5	35.5	THT	744630
7446424002	SPEC	8 files EDA models: Components ZIP ALT WE-LF (rev23a).IntLib \| 2.8 MB ZUK Cadstar_WE-LF (rev19a).zip \| 10.2 KB CDS Cadence_WE-LF (rev23a).zip \| 10.7 MB EAG Eagle_WE-LF (rev23a).lbr \| 72.2 KB CAD files ZIP IGS WE-LF_642XV (rev1).igs \| 7.4 MB STP WE-LF_642XV (rev1).stp \| 1.7 MB Electric models ZIP S S-PARAMETER_WE-LF (rev20a).zip \| 6.5 MB PSP PSpice_WE-LF (rev22a).zip \| 16.8 KB Download all 8 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	4.3	2.2	0.038	250	1500	MnZn	32.5	21.5	35.5	THT	744630
7446424003	SPEC	8 files EDA models: Components ZIP ALT WE-LF (rev23a).IntLib \| 2.8 MB ZUK Cadstar_WE-LF (rev19a).zip \| 10.2 KB CDS Cadence_WE-LF (rev23a).zip \| 10.7 MB EAG Eagle_WE-LF (rev23a).lbr \| 72.2 KB CAD files ZIP IGS WE-LF_642XV (rev1).igs \| 7.4 MB STP WE-LF_642XV (rev1).stp \| 1.7 MB Electric models ZIP S S-PARAMETER_WE-LF (rev20a).zip \| 6.5 MB PSP PSpice_WE-LF (rev22a).zip \| 16.8 KB Download all 8 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	4	3.3	0.065	250	1500	MnZn	32.5	21.5	35.5	THT	–
7446620015	SPEC	8 files EDA models: Components ZIP ALT WE-LF (rev23a).IntLib \| 2.8 MB ZUK Cadstar_WE-LF (rev19a).zip \| 10.2 KB CDS Cadence_WE-LF (rev23a).zip \| 10.7 MB EAG Eagle_WE-LF (rev23a).lbr \| 72.2 KB CAD files ZIP IGS WE-LF_662SH (rev1).igs \| 6.1 MB STP Download_STP_744662 (rev1).stp \| 1.6 MB Electric models ZIP S S-PARAMETER_WE-LF (rev20a).zip \| 6.5 MB PSP PSpice_WE-LF (rev22a).zip \| 16.8 KB Download all 8 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	0.5	15	0.83	250	1500	MnZn	18	18	13	THT	–
7446620027	SPEC	8 files EDA models: Components ZIP ALT WE-LF (rev23a).IntLib \| 2.8 MB ZUK Cadstar_WE-LF (rev19a).zip \| 10.2 KB CDS Cadence_WE-LF (rev23a).zip \| 10.7 MB EAG Eagle_WE-LF (rev23a).lbr \| 72.2 KB CAD files ZIP IGS WE-LF_662SH (rev1).igs \| 6.1 MB STP Download_STP_744662 (rev1).stp \| 1.6 MB Electric models ZIP S S-PARAMETER_WE-LF (rev20a).zip \| 6.5 MB PSP PSpice_WE-LF (rev22a).zip \| 16.8 KB Download all 8 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	0.4	27	1.2	250	1500	MnZn	18	18	13	THT	744630 744998
7446620039	SPEC	8 files EDA models: Components ZIP ALT WE-LF (rev23a).IntLib \| 2.8 MB ZUK Cadstar_WE-LF (rev19a).zip \| 10.2 KB CDS Cadence_WE-LF (rev23a).zip \| 10.7 MB EAG Eagle_WE-LF (rev23a).lbr \| 72.2 KB CAD files ZIP IGS WE-LF_662SH (rev1).igs \| 6.1 MB STP Download_STP_744662 (rev1).stp \| 1.6 MB Electric models ZIP S S-PARAMETER_WE-LF (rev20a).zip \| 6.5 MB PSP PSpice_WE-LF (rev22a).zip \| 16.8 KB Download all 8 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	0.4	39	1.7	250	1500	MnZn	18	18	13	THT	–
7446621007	SPEC	8 files EDA models: Components ZIP ALT WE-LF (rev23a).IntLib \| 2.8 MB ZUK Cadstar_WE-LF (rev19a).zip \| 10.2 KB CDS Cadence_WE-LF (rev23a).zip \| 10.7 MB EAG Eagle_WE-LF (rev23a).lbr \| 72.2 KB CAD files ZIP IGS WE-LF_662SH (rev1).igs \| 6.1 MB STP Download_STP_744662 (rev1).stp \| 1.6 MB Electric models ZIP S S-PARAMETER_WE-LF (rev20a).zip \| 6.5 MB PSP PSpice_WE-LF (rev22a).zip \| 16.8 KB Download all 8 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	1	6.8	0.3	250	1500	MnZn	18	18	13	THT	744630 744998
7446621010	SPEC	8 files EDA models: Components ZIP ALT WE-LF (rev23a).IntLib \| 2.8 MB ZUK Cadstar_WE-LF (rev19a).zip \| 10.2 KB CDS Cadence_WE-LF (rev23a).zip \| 10.7 MB EAG Eagle_WE-LF (rev23a).lbr \| 72.2 KB CAD files ZIP IGS WE-LF_662SH (rev1).igs \| 6.1 MB STP Download_STP_744662 (rev1).stp \| 1.6 MB Electric models ZIP S S-PARAMETER_WE-LF (rev20a).zip \| 6.5 MB PSP PSpice_WE-LF (rev22a).zip \| 16.8 KB Download all 8 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	0.7	10	0.55	250	1500	MnZn	18	18	13	THT	–
7446622001	SPEC	8 files EDA models: Components ZIP ALT WE-LF (rev23a).IntLib \| 2.8 MB ZUK Cadstar_WE-LF (rev19a).zip \| 10.2 KB CDS Cadence_WE-LF (rev23a).zip \| 10.7 MB EAG Eagle_WE-LF (rev23a).lbr \| 72.2 KB CAD files ZIP IGS WE-LF_662SH (rev1).igs \| 6.1 MB STP Download_STP_744662 (rev1).stp \| 1.6 MB Electric models ZIP S S-PARAMETER_WE-LF (rev20a).zip \| 6.5 MB PSP PSpice_WE-LF (rev22a).zip \| 16.8 KB Download all 8 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	2	1	0.06	250	1500	MnZn	18	18	13	THT	–
7446622002	SPEC	8 files EDA models: Components ZIP ALT WE-LF (rev23a).IntLib \| 2.8 MB ZUK Cadstar_WE-LF (rev19a).zip \| 10.2 KB CDS Cadence_WE-LF (rev23a).zip \| 10.7 MB EAG Eagle_WE-LF (rev23a).lbr \| 72.2 KB CAD files ZIP IGS WE-LF_662SH (rev1).igs \| 6.1 MB STP Download_STP_744662 (rev1).stp \| 1.6 MB Electric models ZIP S S-PARAMETER_WE-LF (rev20a).zip \| 6.5 MB PSP PSpice_WE-LF (rev22a).zip \| 16.8 KB Download all 8 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	2	2.2	0.1	250	1500	MnZn	18	18	13	THT	744630 744998
7446622003	SPEC	8 files EDA models: Components ZIP ALT WE-LF (rev23a).IntLib \| 2.8 MB ZUK Cadstar_WE-LF (rev19a).zip \| 10.2 KB CDS Cadence_WE-LF (rev23a).zip \| 10.7 MB EAG Eagle_WE-LF (rev23a).lbr \| 72.2 KB CAD files ZIP IGS WE-LF_662SH (rev1).igs \| 6.1 MB STP Download_STP_744662 (rev1).stp \| 1.6 MB Electric models ZIP S S-PARAMETER_WE-LF (rev20a).zip \| 6.5 MB PSP PSpice_WE-LF (rev22a).zip \| 16.8 KB Download all 8 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	1.5	3.3	0.15	250	1500	MnZn	18	18	13	THT	–
74466240007	SPEC	8 files EDA models: Components ZIP ALT WE-LF (rev23a).IntLib \| 2.8 MB ZUK Cadstar_WE-LF (rev19a).zip \| 10.2 KB CDS Cadence_WE-LF (rev23a).zip \| 10.7 MB EAG Eagle_WE-LF (rev23a).lbr \| 72.2 KB CAD files ZIP IGS WE-LF_662SH (rev1).igs \| 6.1 MB STP Download_STP_744662 (rev1).stp \| 1.6 MB Electric models ZIP S S-PARAMETER_WE-LF (rev20a).zip \| 6.5 MB PSP PSpice_WE-LF (rev22a).zip \| 16.8 KB Download all 8 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	4	0.7	0.027	250	1500	MnZn	18	18	13	THT	744630 744998
7446720047	SPEC	8 files EDA models: Components ZIP ALT WE-LF (rev23a).IntLib \| 2.8 MB ZUK Cadstar_WE-LF (rev19a).zip \| 10.2 KB CDS Cadence_WE-LF (rev23a).zip \| 10.7 MB EAG Eagle_WE-LF (rev23a).lbr \| 72.2 KB CAD files ZIP IGS WE-LF_672MH (rev1).igs \| 6.2 MB STP WE-LF_672MH (rev1).stp \| 1.5 MB Electric models ZIP S S-PARAMETER_WE-LF (rev20a).zip \| 6.5 MB PSP PSpice_WE-LF (rev22a).zip \| 16.8 KB Download all 8 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	0.4	47	2	250	1500	MnZn	23	23	14.5	THT	744630
7446721010	SPEC	8 files EDA models: Components ZIP ALT WE-LF (rev23a).IntLib \| 2.8 MB ZUK Cadstar_WE-LF (rev19a).zip \| 10.2 KB CDS Cadence_WE-LF (rev23a).zip \| 10.7 MB EAG Eagle_WE-LF (rev23a).lbr \| 72.2 KB CAD files ZIP IGS WE-LF_672MH (rev1).igs \| 6.2 MB STP WE-LF_672MH (rev1).stp \| 1.5 MB Electric models ZIP S S-PARAMETER_WE-LF (rev20a).zip \| 6.5 MB PSP PSpice_WE-LF (rev22a).zip \| 16.8 KB Download all 8 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	1.3	10	0.25	250	1500	MnZn	23	23	14.5	THT	–
7446721027	SPEC	8 files EDA models: Components ZIP ALT WE-LF (rev23a).IntLib \| 2.8 MB ZUK Cadstar_WE-LF (rev19a).zip \| 10.2 KB CDS Cadence_WE-LF (rev23a).zip \| 10.7 MB EAG Eagle_WE-LF (rev23a).lbr \| 72.2 KB CAD files ZIP IGS WE-LF_672MH (rev1).igs \| 6.2 MB STP WE-LF_672MH (rev1).stp \| 1.5 MB Electric models ZIP S S-PARAMETER_WE-LF (rev20a).zip \| 6.5 MB PSP PSpice_WE-LF (rev22a).zip \| 16.8 KB Download all 8 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	0.6	27	0.7	250	1500	MnZn	23	23	14.5	THT	–
7446722002	SPEC	8 files EDA models: Components ZIP ALT WE-LF (rev23a).IntLib \| 2.8 MB ZUK Cadstar_WE-LF (rev19a).zip \| 10.2 KB CDS Cadence_WE-LF (rev23a).zip \| 10.7 MB EAG Eagle_WE-LF (rev23a).lbr \| 72.2 KB CAD files ZIP IGS WE-LF_672MH (rev1).igs \| 6.2 MB STP WE-LF_672MH (rev1).stp \| 1.5 MB Electric models ZIP S S-PARAMETER_WE-LF (rev20a).zip \| 6.5 MB PSP PSpice_WE-LF (rev22a).zip \| 16.8 KB Download all 8 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	2	2.2	0.06	250	1500	MnZn	23	23	14.5	THT	744630
7446722004	SPEC	8 files EDA models: Components ZIP ALT WE-LF (rev23a).IntLib \| 2.8 MB ZUK Cadstar_WE-LF (rev19a).zip \| 10.2 KB CDS Cadence_WE-LF (rev23a).zip \| 10.7 MB EAG Eagle_WE-LF (rev23a).lbr \| 72.2 KB CAD files ZIP IGS WE-LF_672MH (rev1).igs \| 6.2 MB STP WE-LF_672MH (rev1).stp \| 1.5 MB Electric models ZIP S S-PARAMETER_WE-LF (rev20a).zip \| 6.5 MB PSP PSpice_WE-LF (rev22a).zip \| 16.8 KB Download all 8 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	1.9	4.2	0.12	250	1500	MnZn	23	23	14.5	THT	–
7446722007	SPEC	8 files EDA models: Components ZIP ALT WE-LF (rev23a).IntLib \| 2.8 MB ZUK Cadstar_WE-LF (rev19a).zip \| 10.2 KB CDS Cadence_WE-LF (rev23a).zip \| 10.7 MB EAG Eagle_WE-LF (rev23a).lbr \| 72.2 KB CAD files ZIP IGS WE-LF_672MH (rev1).igs \| 6.2 MB STP WE-LF_672MH (rev1).stp \| 1.5 MB Electric models ZIP S S-PARAMETER_WE-LF (rev20a).zip \| 6.5 MB PSP PSpice_WE-LF (rev22a).zip \| 16.8 KB Download all 8 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	1.5	6.8	0.2	250	1500	MnZn	23	23	14.5	THT	744630
7446723001	SPEC	8 files EDA models: Components ZIP ALT WE-LF (rev23a).IntLib \| 2.8 MB ZUK Cadstar_WE-LF (rev19a).zip \| 10.2 KB CDS Cadence_WE-LF (rev23a).zip \| 10.7 MB EAG Eagle_WE-LF (rev23a).lbr \| 72.2 KB CAD files ZIP IGS WE-LF_672MH (rev1).igs \| 6.2 MB STP WE-LF_672MH (rev1).stp \| 1.5 MB Electric models ZIP S S-PARAMETER_WE-LF (rev20a).zip \| 6.5 MB PSP PSpice_WE-LF (rev22a).zip \| 16.8 KB Download all 8 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	3	1.2	0.04	250	1500	MnZn	23	23	14.5	THT	–
7446821027	SPEC	8 files EDA models: Components ZIP ALT WE-LF (rev23a).IntLib \| 2.8 MB ZUK Cadstar_WE-LF (rev19a).zip \| 10.2 KB CDS Cadence_WE-LF (rev23a).zip \| 10.7 MB EAG Eagle_WE-LF (rev23a).lbr \| 72.2 KB CAD files ZIP IGS WE-LF_682LH (rev1).igs \| 5.8 MB STP WE-LF_682LH (rev1).stp \| 1.5 MB Electric models ZIP S S-PARAMETER_WE-LF (rev20a).zip \| 6.5 MB PSP PSpice_WE-LF (rev22a).zip \| 16.8 KB Download all 8 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	1	27	0.64	250	1500	MnZn	28.5	28.5	17	THT	744630
7446822006	SPEC	8 files EDA models: Components ZIP ALT WE-LF (rev23a).IntLib \| 2.8 MB ZUK Cadstar_WE-LF (rev19a).zip \| 10.2 KB CDS Cadence_WE-LF (rev23a).zip \| 10.7 MB EAG Eagle_WE-LF (rev23a).lbr \| 72.2 KB CAD files ZIP IGS WE-LF_682LH (rev1).igs \| 5.8 MB STP WE-LF_682LH (rev1).stp \| 1.5 MB Electric models ZIP S S-PARAMETER_WE-LF (rev20a).zip \| 6.5 MB PSP PSpice_WE-LF (rev22a).zip \| 16.8 KB Download all 8 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	2	5.6	0.16	250	1500	MnZn	28.5	28.5	17	THT	744630
7446823003	SPEC	8 files EDA models: Components ZIP ALT WE-LF (rev23a).IntLib \| 2.8 MB ZUK Cadstar_WE-LF (rev19a).zip \| 10.2 KB CDS Cadence_WE-LF (rev23a).zip \| 10.7 MB EAG Eagle_WE-LF (rev23a).lbr \| 72.2 KB CAD files ZIP IGS WE-LF_682LH (rev1).igs \| 5.8 MB STP WE-LF_682LH (rev1).stp \| 1.5 MB Electric models ZIP S S-PARAMETER_WE-LF (rev20a).zip \| 6.5 MB PSP PSpice_WE-LF (rev22a).zip \| 16.8 KB Download all 8 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	3	2.7	0.06	250	1500	MnZn	28.5	28.5	17	THT	–
7446823006	SPEC	8 files EDA models: Components ZIP ALT WE-LF (rev23a).IntLib \| 2.8 MB ZUK Cadstar_WE-LF (rev19a).zip \| 10.2 KB CDS Cadence_WE-LF (rev23a).zip \| 10.7 MB EAG Eagle_WE-LF (rev23a).lbr \| 72.2 KB CAD files ZIP IGS WE-LF_682LH (rev1).igs \| 5.8 MB STP WE-LF_682LH (rev1).stp \| 1.5 MB Electric models ZIP S S-PARAMETER_WE-LF (rev20a).zip \| 6.5 MB PSP PSpice_WE-LF (rev22a).zip \| 16.8 KB Download all 8 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	2.4	5.6	0.1	250	1500	MnZn	28.5	28.5	17	THT	–
7446921027	SPEC	8 files EDA models: Components ZIP ALT WE-LF (rev23a).IntLib \| 2.8 MB ZUK Cadstar_WE-LF (rev19a).zip \| 10.2 KB CDS Cadence_WE-LF (rev23a).zip \| 10.7 MB EAG Eagle_WE-LF (rev23a).lbr \| 72.2 KB CAD files ZIP IGS WE-LF_692XH (rev1).igs \| 5.9 MB STP WE-LF_692XH (rev1).stp \| 1.7 MB Electric models ZIP S S-PARAMETER_WE-LF (rev20a).zip \| 6.5 MB PSP PSpice_WE-LF (rev22a).zip \| 16.8 KB Download all 8 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	1.2	27	0.4	250	1500	MnZn	33.5	33.5	20	THT	744630
7446923010	SPEC	8 files EDA models: Components ZIP ALT WE-LF (rev23a).IntLib \| 2.8 MB ZUK Cadstar_WE-LF (rev19a).zip \| 10.2 KB CDS Cadence_WE-LF (rev23a).zip \| 10.7 MB EAG Eagle_WE-LF (rev23a).lbr \| 72.2 KB CAD files ZIP IGS WE-LF_692XH (rev1).igs \| 5.9 MB STP WE-LF_692XH (rev1).stp \| 1.7 MB Electric models ZIP S S-PARAMETER_WE-LF (rev20a).zip \| 6.5 MB PSP PSpice_WE-LF (rev22a).zip \| 16.8 KB Download all 8 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	3	10	0.155	250	1500	MnZn	33.5	33.5	20	THT	–
7446924003	SPEC	8 files EDA models: Components ZIP ALT WE-LF (rev23a).IntLib \| 2.8 MB ZUK Cadstar_WE-LF (rev19a).zip \| 10.2 KB CDS Cadence_WE-LF (rev23a).zip \| 10.7 MB EAG Eagle_WE-LF (rev23a).lbr \| 72.2 KB CAD files ZIP IGS WE-LF_692XH (rev1).igs \| 5.9 MB STP WE-LF_692XH (rev1).stp \| 1.7 MB Electric models ZIP S S-PARAMETER_WE-LF (rev20a).zip \| 6.5 MB PSP PSpice_WE-LF (rev22a).zip \| 16.8 KB Download all 8 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	4	3.3	0.065	250	1500	MnZn	33.5	33.5	20	THT	–
7446926002	SPEC	8 files EDA models: Components ZIP ALT WE-LF (rev23a).IntLib \| 2.8 MB ZUK Cadstar_WE-LF (rev19a).zip \| 10.2 KB CDS Cadence_WE-LF (rev23a).zip \| 10.7 MB EAG Eagle_WE-LF (rev23a).lbr \| 72.2 KB CAD files ZIP IGS WE-LF_692XH (rev1).igs \| 5.9 MB STP WE-LF_692XH (rev1).stp \| 1.7 MB Electric models ZIP S S-PARAMETER_WE-LF (rev20a).zip \| 6.5 MB PSP PSpice_WE-LF (rev22a).zip \| 16.8 KB Download all 8 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	6	1.8	0.03	250	1500	MnZn	33.5	33.5	20	THT	744630

Order Code	Datasheet	Simulation
7446120027	SPEC
7446120039	SPEC
7446120047	SPEC
7446121007	SPEC
7446121010	SPEC
7446121018	SPEC
7446122001	SPEC
7446122003	SPEC
74461240004	SPEC
7446220047	SPEC
7446221010	SPEC
7446221012	SPEC
7446221027	SPEC
7446222002	SPEC
7446222003	SPEC
7446222004	SPEC
7446222007	SPEC
7446223001	SPEC
74462250007	SPEC
7446321027	SPEC
7446321033	SPEC
7446321050	SPEC
7446322007	SPEC
7446322010	SPEC
7446323003	SPEC
7446323004	SPEC
7446326002	SPEC
7446422007	SPEC
7446424002	SPEC
7446424003	SPEC
7446620015	SPEC
7446620027	SPEC
7446620039	SPEC
7446621007	SPEC
7446621010	SPEC
7446622001	SPEC
7446622002	SPEC
7446622003	SPEC
74466240007	SPEC
7446720047	SPEC
7446721010	SPEC
7446721027	SPEC
7446722002	SPEC
7446722004	SPEC
7446722007	SPEC
7446723001	SPEC
7446821027	SPEC
7446822006	SPEC
7446823003	SPEC
7446823006	SPEC
7446921027	SPEC
7446923010	SPEC
7446924003	SPEC
7446926002	SPEC
