Design Kit Design Your EMC-Filter

Characteristics

This Design Kit contains 10 test boards and a selection of suitable components for the simple construction of various line filters.
It offers a fast and cost-effective solution to set up line filters for common and differential mode suppression.
This are PCBs for test and evaluation purposes. The boards should not be installed in the final application.

Evaluate the best filter for your application!

Products

Order Code	Datasheet	Simulation	Downloads	Status	Product series	I_R (A)	L (mH)	R_{DC max.} (Ω)	V_R (V (AC))	V_T (V (AC))
7446620027	SPEC		8 files EDA models: Components ZIP ALT WE-LF (rev23a).IntLib \| 2.8 MB ZUK Cadstar_WE-LF (rev19a).zip \| 10.2 KB CDS Cadence_WE-LF (rev23a).zip \| 10.7 MB EAG Eagle_WE-LF (rev23a).lbr \| 72.2 KB CAD files ZIP IGS WE-LF_662SH (rev1).igs \| 6.1 MB STP Download_STP_744662 (rev1).stp \| 1.6 MB Electric models ZIP S S-PARAMETER_WE-LF (rev20a).zip \| 6.5 MB PSP PSpice_WE-LF (rev22a).zip \| 16.8 KB Download all 8 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	WE-LF Common Mode Power Line Choke	0.4	27	1.2	250	1500
744822120	SPEC		10 files EDA models: Components ZIP ALT WE-CMB (rev22b).IntLib \| 8.2 MB ZUK Cadstar_WE-CMB (rev21b).zip \| 20.8 KB CDS CADENCE_WE-CMB (rev21b).zip \| 127.8 MB EAG Eagle_WE-CMB (rev21d).lbr \| 70.6 KB CAD files ZIP 3D 3D_IndCMB_S_744822120 (rev1).pdf \| 100.4 MB IGS IGS_744822120 (rev1).igs \| 16.5 MB STP STP_744822120 (rev1).stp \| 5.5 MB Electric models ZIP S S-Parameter_744822120 (rev20a).s4p \| 312.4 KB PSP PSpice_WE-CMB (rev24a).zip \| 14.2 KB	Active i\| Production is active. Expected lifetime: >10 years.	WE-CMB Common Mode Power Line Choke	0.5	20	0.54	250	1500
744822110	SPEC		10 files EDA models: Components ZIP ALT WE-CMB (rev22b).IntLib \| 8.2 MB ZUK Cadstar_WE-CMB (rev21b).zip \| 20.8 KB CDS CADENCE_WE-CMB (rev21b).zip \| 127.8 MB EAG Eagle_WE-CMB (rev21d).lbr \| 70.6 KB CAD files ZIP 3D 3D_IndCMB_S_744822110 (rev1).pdf \| 70.3 MB IGS IGS_744822110 (rev1).igs \| 12.3 MB STP STP_744822110 (rev1).stp \| 4 MB Electric models ZIP S S-Parameter_744822110 (rev20a).s4p \| 311.1 KB PSP PSpice_WE-CMB (rev24a).zip \| 14.2 KB	Active i\| Production is active. Expected lifetime: >10 years.	WE-CMB Common Mode Power Line Choke	1	10	0.36	250	1500
7446621007	SPEC		8 files EDA models: Components ZIP ALT WE-LF (rev23a).IntLib \| 2.8 MB ZUK Cadstar_WE-LF (rev19a).zip \| 10.2 KB CDS Cadence_WE-LF (rev23a).zip \| 10.7 MB EAG Eagle_WE-LF (rev23a).lbr \| 72.2 KB CAD files ZIP IGS WE-LF_662SH (rev1).igs \| 6.1 MB STP Download_STP_744662 (rev1).stp \| 1.6 MB Electric models ZIP S S-PARAMETER_WE-LF (rev20a).zip \| 6.5 MB PSP PSpice_WE-LF (rev22a).zip \| 16.8 KB Download all 8 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	WE-LF Common Mode Power Line Choke	1	6.8	0.3	250	1500
744822233	SPEC		10 files EDA models: Components ZIP ALT WE-CMB (rev22b).IntLib \| 8.2 MB ZUK Cadstar_WE-CMB (rev21b).zip \| 20.8 KB CDS CADENCE_WE-CMB (rev21b).zip \| 127.8 MB EAG Eagle_WE-CMB (rev21d).lbr \| 70.6 KB CAD files ZIP 3D 3D_IndCMB_S_744822233 (rev1).pdf \| 44.3 MB IGS IGS_744822233 (rev1).igs \| 8 MB STP STP_744822233 (rev1).stp \| 2.7 MB Electric models ZIP S S-Parameter_744822233 (rev20a).s4p \| 309.4 KB PSP PSpice_WE-CMB (rev24a).zip \| 14.2 KB	Active i\| Production is active. Expected lifetime: >10 years.	WE-CMB Common Mode Power Line Choke	1.5	3.3	0.12	250	1500
744823220	SPEC		10 files EDA models: Components ZIP ALT WE-CMB (rev22b).IntLib \| 8.2 MB ZUK Cadstar_WE-CMB (rev21b).zip \| 20.8 KB CDS CADENCE_WE-CMB (rev21b).zip \| 127.8 MB EAG Eagle_WE-CMB (rev21d).lbr \| 70.6 KB CAD files ZIP 3D 3D_IndCMB_M_744823220 (rev1).pdf \| 88.5 MB IGS IGS_744823220 (rev1).igs \| 16.7 MB STP STP_744823220 (rev1).stp \| 6 MB Electric models ZIP S S-Parameter_744823220 (rev20a).s4p \| 312.3 KB PSP PSpice_WE-CMB (rev24a).zip \| 14.2 KB	Active i\| Production is active. Expected lifetime: >10 years.	WE-CMB Common Mode Power Line Choke	1.5	20	0.27	250	1500
744822222	SPEC		10 files EDA models: Components ZIP ALT WE-CMB (rev22b).IntLib \| 8.2 MB ZUK Cadstar_WE-CMB (rev21b).zip \| 20.8 KB CDS CADENCE_WE-CMB (rev21b).zip \| 127.8 MB EAG Eagle_WE-CMB (rev21d).lbr \| 70.6 KB CAD files ZIP 3D 3D_IndCMB_S_744822222 (rev1).pdf \| 38.7 MB IGS IGS_744822222 (rev1).igs \| 7 MB STP STP_744822222 (rev1).stp \| 2.3 MB Electric models ZIP S S-Parameter_744822222 (rev20a).s4p \| 308.9 KB PSP PSpice_WE-CMB (rev24a).zip \| 14.2 KB	Active i\| Production is active. Expected lifetime: >10 years.	WE-CMB Common Mode Power Line Choke	2	2.2	0.07	250	1500
744823210	SPEC		10 files EDA models: Components ZIP ALT WE-CMB (rev22b).IntLib \| 8.2 MB ZUK Cadstar_WE-CMB (rev21b).zip \| 20.8 KB CDS CADENCE_WE-CMB (rev21b).zip \| 127.8 MB EAG Eagle_WE-CMB (rev21d).lbr \| 70.6 KB CAD files ZIP 3D 3D_IndCMB_M_744823210 (rev1).pdf \| 68.7 MB IGS IGS_744823210 (rev1).igs \| 13.2 MB STP STP_744823210 (rev1).stp \| 4.6 MB Electric models ZIP S S-Parameter_744823210 (rev20a).s4p \| 309.4 KB PSP PSpice_WE-CMB (rev24a).zip \| 14.2 KB	Active i\| Production is active. Expected lifetime: >10 years.	WE-CMB Common Mode Power Line Choke	2	10	0.125	250	1500
744824220	SPEC		10 files EDA models: Components ZIP ALT WE-CMB (rev22b).IntLib \| 8.2 MB ZUK Cadstar_WE-CMB (rev21b).zip \| 20.8 KB CDS CADENCE_WE-CMB (rev21b).zip \| 127.8 MB EAG Eagle_WE-CMB (rev21d).lbr \| 70.6 KB CAD files ZIP 3D 3d_IndCMB_L_744824220 (rev1).pdf \| 89.2 MB IGS IGS_744824220 (rev1).igs \| 16.6 MB STP STP_744824220 (rev1).stp \| 5.7 MB Electric models ZIP S S-Parameter_744824220 (rev20a).s4p \| 312.7 KB PSP PSpice_WE-CMB (rev24a).zip \| 14.2 KB	Active i\| Production is active. Expected lifetime: >10 years.	WE-CMB Common Mode Power Line Choke	2	20	0.22	250	1500
7446622002	SPEC		8 files EDA models: Components ZIP ALT WE-LF (rev23a).IntLib \| 2.8 MB ZUK Cadstar_WE-LF (rev19a).zip \| 10.2 KB CDS Cadence_WE-LF (rev23a).zip \| 10.7 MB EAG Eagle_WE-LF (rev23a).lbr \| 72.2 KB CAD files ZIP IGS WE-LF_662SH (rev1).igs \| 6.1 MB STP Download_STP_744662 (rev1).stp \| 1.6 MB Electric models ZIP S S-PARAMETER_WE-LF (rev20a).zip \| 6.5 MB PSP PSpice_WE-LF (rev22a).zip \| 16.8 KB Download all 8 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	WE-LF Common Mode Power Line Choke	2	2.2	0.1	250	1500
744823305	SPEC		10 files EDA models: Components ZIP ALT WE-CMB (rev22b).IntLib \| 8.2 MB ZUK Cadstar_WE-CMB (rev21b).zip \| 20.8 KB CDS CADENCE_WE-CMB (rev21b).zip \| 127.8 MB EAG Eagle_WE-CMB (rev21d).lbr \| 70.6 KB CAD files ZIP 3D dae_gltf_744823305_M (rev1).dae \| 11.7 MB IGS IGS_744823305 (rev1).igs \| 10.4 MB STP STP_744823305 (rev1).stp \| 3.8 MB Electric models ZIP S S-Parameter_744823305 (rev20a).s4p \| 308.8 KB PSP PSpice_WE-CMB (rev24a).zip \| 14.2 KB	Active i\| Production is active. Expected lifetime: >10 years.	WE-CMB Common Mode Power Line Choke	2.5	5	0.095	250	1500
744822301	SPEC		10 files EDA models: Components ZIP ALT WE-CMB (rev22b).IntLib \| 8.2 MB ZUK Cadstar_WE-CMB (rev21b).zip \| 20.8 KB CDS CADENCE_WE-CMB (rev21b).zip \| 127.8 MB EAG Eagle_WE-CMB (rev21d).lbr \| 70.6 KB CAD files ZIP 3D 3D_IndCMB_S_744822301 (rev1).pdf \| 26.9 MB IGS IGS_744822301 (rev1).igs \| 5.4 MB STP STP_744822301 (rev1).stp \| 1.7 MB Electric models ZIP S S-Parameter_744822301 (rev20a).s4p \| 309.2 KB PSP PSpice_WE-CMB (rev24a).zip \| 14.2 KB	Active i\| Production is active. Expected lifetime: >10 years.	WE-CMB Common Mode Power Line Choke	3	1	0.035	250	1500
744824310	SPEC		9 files EDA models: Components ZIP ALT WE-CMB (rev22b).IntLib \| 8.2 MB ZUK Cadstar_WE-CMB (rev21b).zip \| 20.8 KB CDS CADENCE_WE-CMB (rev21b).zip \| 127.8 MB EAG Eagle_WE-CMB (rev21d).lbr \| 70.6 KB CAD files ZIP 3D dae_gltf_744824310 (rev1).dae \| 22.1 MB IGS IGS_744824310 (rev1).igs \| 14.1 MB STP STP_744824310 (rev1).stp \| 4.9 MB Electric models ZIP S S-Parameter_744824310 (rev20a).s4p \| 311.7 KB PSP PSpice_WE-CMB (rev24a).zip \| 14.2 KB	Active i\| Production is active. Expected lifetime: >10 years.	WE-CMB Common Mode Power Line Choke	3	10	0.105	250	1500
744823422	SPEC		10 files EDA models: Components ZIP ALT WE-CMB (rev22b).IntLib \| 8.2 MB ZUK Cadstar_WE-CMB (rev21b).zip \| 20.8 KB CDS CADENCE_WE-CMB (rev21b).zip \| 127.8 MB EAG Eagle_WE-CMB (rev21d).lbr \| 70.6 KB CAD files ZIP 3D 3D_IndCMB_M_744823422 (rev1).pdf \| 98.9 MB IGS IGS_744823422 (rev1).igs \| 7.5 MB STP STP_744823422 (rev1).stp \| 2.7 MB Electric models ZIP S S-Parameter_744823422 (rev20a).s4p \| 308.5 KB PSP PSpice_WE-CMB (rev24a).zip \| 14.2 KB	Active i\| Production is active. Expected lifetime: >10 years.	WE-CMB Common Mode Power Line Choke	4	2.2	0.03	250	1500
744824433	SPEC		10 files EDA models: Components ZIP ALT WE-CMB (rev22b).IntLib \| 8.2 MB ZUK Cadstar_WE-CMB (rev21b).zip \| 20.8 KB CDS CADENCE_WE-CMB (rev21b).zip \| 127.8 MB EAG Eagle_WE-CMB (rev21d).lbr \| 70.6 KB CAD files ZIP 3D 3D_IndCMB_L_744824433 (rev1).pdf \| 41.9 MB IGS IGS_744824433 (rev1).igs \| 9 MB STP STP_744824433 (rev1).stp \| 3.3 MB Electric models ZIP S S-Parameter_744824433 (rev20a).s4p \| 310 KB PSP PSpice_WE-CMB (rev24a).zip \| 14.2 KB	Active i\| Production is active. Expected lifetime: >10 years.	WE-CMB Common Mode Power Line Choke	4	3.3	0.035	250	1500
74466240007	SPEC		8 files EDA models: Components ZIP ALT WE-LF (rev23a).IntLib \| 2.8 MB ZUK Cadstar_WE-LF (rev19a).zip \| 10.2 KB CDS Cadence_WE-LF (rev23a).zip \| 10.7 MB EAG Eagle_WE-LF (rev23a).lbr \| 72.2 KB CAD files ZIP IGS WE-LF_662SH (rev1).igs \| 6.1 MB STP Download_STP_744662 (rev1).stp \| 1.6 MB Electric models ZIP S S-PARAMETER_WE-LF (rev20a).zip \| 6.5 MB PSP PSpice_WE-LF (rev22a).zip \| 16.8 KB Download all 8 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	WE-LF Common Mode Power Line Choke	4	0.7	0.027	250	1500
7448030509	SPEC		9 files EDA models: Components ZIP ALT WE-CMBNC (rev24a).IntLib \| 33.5 MB ZUK Cadstar_WE-CMBNC (rev20a).zip \| 23.3 KB CDS Cadence_WE-CMBNC (rev24a).zip \| 143 MB EAG Eagle_WE-CMBNC (rev24a).lbr \| 150.3 KB CAD files ZIP 3D 3D_WE-CMBNC-M_7448030509 (rev1).pdf \| 3.4 MB IGS 7448030509 (rev1).igs \| 7.6 MB STP 7448030509 (rev1).stp \| 2.5 MB Electric models ZIP S S-Parameter_7448030509 (rev20a).s4p \| 310.6 KB PSP PSpice_WE-CMBNC (rev22a).zip \| 21.2 KB	Active i\| Production is active. Expected lifetime: >10 years.	WE-CMBNC Common Mode Power Line Choke Nanocrystalline	5	9	0.032	300	2100
744823601	SPEC		10 files EDA models: Components ZIP ALT WE-CMB (rev22b).IntLib \| 8.2 MB ZUK Cadstar_WE-CMB (rev21b).zip \| 20.8 KB CDS CADENCE_WE-CMB (rev21b).zip \| 127.8 MB EAG Eagle_WE-CMB (rev21d).lbr \| 70.6 KB CAD files ZIP 3D 3D_IndCMB_M_744823601 (rev1).pdf \| 74 MB IGS IGS_744823601 (rev1).igs \| 6.3 MB STP STP_744823601 (rev1).stp \| 2.3 MB Electric models ZIP S S-Parameter_744823601 (rev20a).s4p \| 308.8 KB PSP PSpice_WE-CMB (rev24a).zip \| 14.2 KB	Active i\| Production is active. Expected lifetime: >10 years.	WE-CMB Common Mode Power Line Choke	6	1	0.013	250	1500
744824622	SPEC		10 files EDA models: Components ZIP ALT WE-CMB (rev22b).IntLib \| 8.2 MB ZUK Cadstar_WE-CMB (rev21b).zip \| 20.8 KB CDS CADENCE_WE-CMB (rev21b).zip \| 127.8 MB EAG Eagle_WE-CMB (rev21d).lbr \| 70.6 KB CAD files ZIP 3D 3D_IndCMB_L_744824622 (rev1).pdf \| 33.4 MB IGS IGS_744824622 (rev1).igs \| 7.4 MB STP STP_744824622 (rev1).stp \| 2.7 MB Electric models ZIP S S-Parameter_744824622 (rev20a).s4p \| 308.3 KB PSP PSpice_WE-CMB (rev24a).zip \| 14.2 KB	Active i\| Production is active. Expected lifetime: >10 years.	WE-CMB Common Mode Power Line Choke	6	2.2	0.02	250	1500
7448040707	SPEC		9 files EDA models: Components ZIP ALT WE-CMBNC (rev24a).IntLib \| 33.5 MB ZUK Cadstar_WE-CMBNC (rev20a).zip \| 23.3 KB CDS Cadence_WE-CMBNC (rev24a).zip \| 143 MB EAG Eagle_WE-CMBNC (rev24a).lbr \| 150.3 KB CAD files ZIP 3D 3D_WE-CMBNC-L_7448040707 (rev1).pdf \| 2.2 MB IGS 7448040707 (rev1).igs \| 8.4 MB STP 7448040707 (rev1).stp \| 2.4 MB Electric models ZIP S S-Parameter_7448040707 (rev20a).s4p \| 311.2 KB PSP PSpice_WE-CMBNC (rev22a).zip \| 21.2 KB	Active i\| Production is active. Expected lifetime: >10 years.	WE-CMBNC Common Mode Power Line Choke Nanocrystalline	7	7	0.022	300	2100
744824801	SPEC		8 files EDA models: Components ZIP ALT WE-CMB (rev22b).IntLib \| 8.2 MB CDS CADENCE_WE-CMB (rev21b).zip \| 127.8 MB EAG Eagle_WE-CMB (rev21d).lbr \| 70.6 KB CAD files ZIP 3D 3D_IndCMB_L_744824801 (rev1).pdf \| 28.6 MB IGS IGS_744824801 (rev1).igs \| 6.1 MB STP STP_744824801 (rev1).stp \| 2.2 MB Electric models ZIP PSP PSpice_WE-CMB (rev24a).zip \| 14.2 KB	Active i\| Production is active. Expected lifetime: >10 years.	WE-CMB Common Mode Power Line Choke	7.5	1	0.01	250	1500
7466113	SPEC	–	5 files EDA models: Components ZIP ALT Altium_WP-SMSH (rev22a).IntLib \| 118.5 KB CDS Cadence_WP-SMSH (rev19a).zip \| 1.4 MB EAG Eagle_WP-SMSH (rev20a).lbr \| 49.1 KB CAD files ZIP IGS 9774180960R (rev1).igs \| 312.1 KB STP 7466113 (rev1).stp \| 200.1 KB Download all 5 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	WP-SMSH REDCUBE SMT with external thread with Pin	50	–	–	–	–
7466114	SPEC	–	6 files EDA models: Components ZIP ALT Altium_WP-SMSH (rev22a).IntLib \| 118.5 KB CDS Cadence_WP-SMSH (rev19a).zip \| 1.4 MB EAG Eagle_WP-SMSH (rev20a).lbr \| 49.1 KB CAD files ZIP 3D Download_3D_7466114 (rev1).pdf \| 352.7 KB IGS 9774180960R (rev1).igs \| 312.1 KB STP 7466114 (rev1).stp \| 161.4 KB Download all 6 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	WP-SMSH REDCUBE SMT with external thread with Pin	50	–	–	–	–
890324022007	SPEC		8 files EDA models: Components ZIP ALT Altium_WCAP-FTX2 (rev23a).IntLib \| 18.4 MB ZUK CadStar_WCAP-FTX2 (rev19a).zip \| 16.4 KB CDS Cadence_WCAP-FTX2 (rev23a).zip \| 14.9 MB EAG Eagle_WCAP-FTX2 (rev23a).lbr \| 221.5 KB CAD files ZIP 3D 3D_WCAP-FTX2-7_5_890324022007 (rev1).pdf \| 82 KB IGS 890324022007 (rev1).igs \| 810.6 KB STP STP_WCAP-FTX2_890324022007xx (rev1).stp \| 238.3 KB Electric models ZIP PSP PSpice_WCAP-FTX2 (rev23a).zip \| 18.5 KB Download all 8 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	WCAP-FTX2 Film Capacitors	–	–	–	275	–
890324023006	SPEC		8 files EDA models: Components ZIP ALT Altium_WCAP-FTX2 (rev23a).IntLib \| 18.4 MB ZUK CadStar_WCAP-FTX2 (rev19a).zip \| 16.4 KB CDS Cadence_WCAP-FTX2 (rev23a).zip \| 14.9 MB EAG Eagle_WCAP-FTX2 (rev23a).lbr \| 221.5 KB CAD files ZIP 3D 3D_WCAP-FTX2-10_890324023006 (rev1).pdf \| 81.4 KB IGS 890324023006 (rev1).igs \| 3.5 MB STP Download_STP_89032402xxxxxx (rev1).stp \| 739 KB Electric models ZIP PSP PSpice_WCAP-FTX2 (rev23a).zip \| 18.5 KB Download all 8 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	WCAP-FTX2 Film Capacitors	–	–	–	275	–
890324023025	SPEC		8 files EDA models: Components ZIP ALT Altium_WCAP-FTX2 (rev23a).IntLib \| 18.4 MB ZUK CadStar_WCAP-FTX2 (rev19a).zip \| 16.4 KB CDS Cadence_WCAP-FTX2 (rev23a).zip \| 14.9 MB EAG Eagle_WCAP-FTX2 (rev23a).lbr \| 221.5 KB CAD files ZIP 3D 3D_WCAP-FTX2-10_890324023025 (rev1).pdf \| 81.8 KB IGS 890324023025 (rev1).igs \| 3.5 MB STP Download_STP_890324023025xx (rev1).stp \| 739 KB Electric models ZIP PSP PSpice_WCAP-FTX2 (rev23a).zip \| 18.5 KB Download all 8 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	WCAP-FTX2 Film Capacitors	–	–	–	275	–
702936000	SPEC	–	3 files CAD files ZIP 3D 3D_702936000 (rev1).pdf \| 46 KB IGS Download_IGS_702936000 (rev1).igs \| 216.7 KB STP Download_STP_702936000 (rev1).stp \| 38.4 KB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	WA-SNSR Self-Retaining Spacer	–	–	–	–	–
8853522110021	SPEC PCN pending Due to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. SPEC Datasheet PCN PCN document		6 files EDA models: Components ZIP ALT Altium_WCAP-CSSA (rev24a).IntLib \| 234 KB ZUK Cadstar_WCAP-CSSA (rev20a).zip \| 6.9 KB CDS Cadence_WCAP-CSSA (rev24a).zip \| 200.7 KB EAG Eagle_WCAP-CSSA (rev24b).lbr \| 62 KB CAD files ZIP STP Download_STP_885352211002x (rev1).stp \| 29.2 KB Electric models ZIP PSP PSpice_WCAP-CSSA (rev24a).zip \| 12.3 KB Download all 6 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	WCAP-CSSA Interference Suppression	–	–	–	250	–
8853522110031	SPEC PCN pending Due to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. SPEC Datasheet PCN PCN document		6 files EDA models: Components ZIP ALT Altium_WCAP-CSSA (rev24a).IntLib \| 234 KB ZUK Cadstar_WCAP-CSSA (rev20a).zip \| 6.9 KB CDS Cadence_WCAP-CSSA (rev24a).zip \| 200.7 KB EAG Eagle_WCAP-CSSA (rev24b).lbr \| 62 KB CAD files ZIP STP Download_STP_8853522110xxx (rev1).stp \| 29.2 KB Electric models ZIP PSP PSpice_WCAP-CSSA (rev24a).zip \| 12.3 KB Download all 6 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	WCAP-CSSA Interference Suppression	–	–	–	250	–
8853522130111	SPEC PCN pending Due to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. SPEC Datasheet PCN PCN document		6 files EDA models: Components ZIP ALT Altium_WCAP-CSSA (rev24a).IntLib \| 234 KB ZUK Cadstar_WCAP-CSSA (rev20a).zip \| 6.9 KB CDS Cadence_WCAP-CSSA (rev24a).zip \| 200.7 KB EAG Eagle_WCAP-CSSA (rev24b).lbr \| 62 KB CAD files ZIP STP Download_STP_88535221301xx (rev1).stp \| 29.2 KB Electric models ZIP PSP PSpice_WCAP-CSSA (rev24a).zip \| 12.3 KB Download all 6 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	WCAP-CSSA Interference Suppression	–	–	–	250	–
8853522130151	SPEC PCN pending Due to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. SPEC Datasheet PCN PCN document		6 files EDA models: Components ZIP ALT Altium_WCAP-CSSA (rev24a).IntLib \| 234 KB ZUK Cadstar_WCAP-CSSA (rev20a).zip \| 6.9 KB CDS Cadence_WCAP-CSSA (rev24a).zip \| 200.7 KB EAG Eagle_WCAP-CSSA (rev24b).lbr \| 62 KB CAD files ZIP STP Download_STP_88535221301xx (rev1).stp \| 29.2 KB Electric models ZIP PSP PSpice_WCAP-CSSA (rev24a).zip \| 12.3 KB Download all 6 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	WCAP-CSSA Interference Suppression	–	–	–	250	–

Order Code	Datasheet	Simulation
7446620027	SPEC
744822120	SPEC
744822110	SPEC
7446621007	SPEC
744822233	SPEC
744823220	SPEC
744822222	SPEC
744823210	SPEC
744824220	SPEC
7446622002	SPEC
744823305	SPEC
744822301	SPEC
744824310	SPEC
744823422	SPEC
744824433	SPEC
74466240007	SPEC
7448030509	SPEC
744823601	SPEC
744824622	SPEC
7448040707	SPEC
744824801	SPEC
7466113	SPEC	–
7466114	SPEC	–
890324022007	SPEC
890324023006	SPEC
890324023025	SPEC
702936000	SPEC	–
8853522110021	SPEC PCN pending Due to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. SPEC Datasheet PCN PCN document
8853522110031	SPEC PCN pending Due to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. SPEC Datasheet PCN PCN document
8853522130111	SPEC PCN pending Due to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. SPEC Datasheet PCN PCN document
8853522130151	SPEC PCN pending Due to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. SPEC Datasheet PCN PCN document

Samples

Order Code	Datasheet	Simulation	Downloads	Status	Product series	I_R (A)	L (mH)	R_{DC max.} (Ω)	V_R (V (AC))	V_T (V (AC))	Samples

Find filter solutions quickly and cost-effectively with the

Design Your EMC-Filter Design Kit

This Design Kit offers a fast and cost-effective means of building up the filter design with various components. It allows for the examination of the filter circuit's performance in relation to the desired filtering effect, facilitating the seamless integration of the chosen filter circuit into the application. This can reduce development time and the associated costs.

For even more filter design possibilities, also check out our evaluation boards for specific applications.

Go to the Evaluation Boards

Structure and mode of operation

The Discharge Resistor (R) allows to discharge the X-Capacitor when there is no load connected.

The X-Capacitor (C_x) represents a low impedance for high frequency differential signals.

The Common Code Choke (CMC) provides properties for differential and common noise filtering. At higher frequencies this choke acts as a stronger impedance than the capacitor.

The Y-Capacitors (C_Y1, C_Y2) short high frequency, common mode signals to ground.

Low-pass filters for common and differential mode suppression

Common Mode Filter

At common mode noise the inductance of the Common Mode Choke (CMC) is very high. This inductance and the Y-Capacitors (C_Y1, C_Y2) build a low-pass for high frequency common mode noise. The Y-Capacitors create a conductor for high frequency noise to internal ground, so common mode noise can be diverted. Because of the high common mode impedance of the Common Mode Choke at high frequencies, the interference current will be attenuated.

Differential Mode Filter

At differential signal noise current flows in through line L and returns through line N. Basically, in this situation the X-Capacitor (C_x) and the Leakage Inductance (L_Leak) of the Common Mode Choke build a low pass filter. The loop of this low pass filter is closed via the X-Capacitor. The high frequency interference is filtered. Meanwhile the supply current, which has typically a much lower frequency (50-60 Hz), will pass the filter.

Insertion Loss Examples

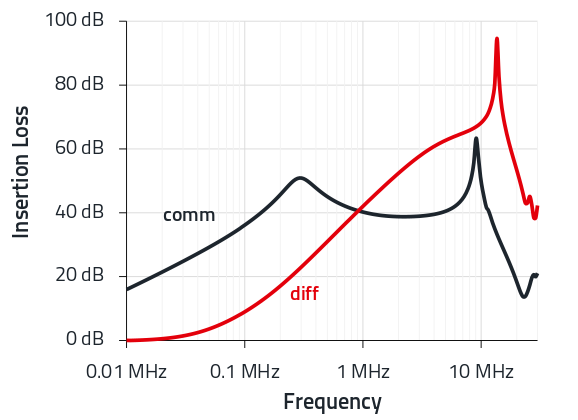

Example 1 measured with:
CMC: WE-CMB S / 744 822 110 /
L = 10 mH / I_R = 1 A
C_x: 890 324 023 025 /
C = 0.15 µF / U_R = 275 V_AC
C_y: 885 352 213 015 1/
C = 2200 pF / U_R = 250 V_AC

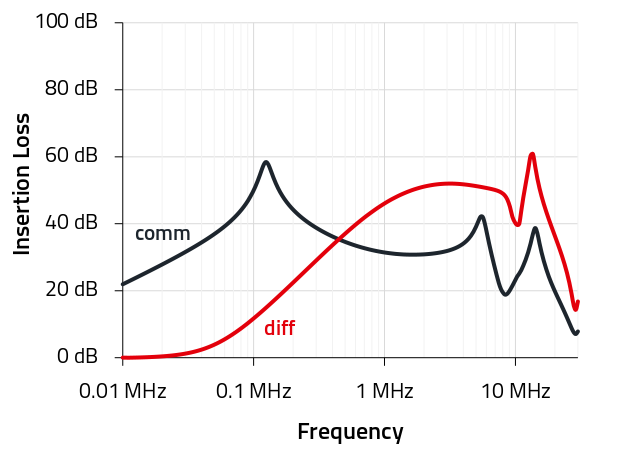

Example 2 measured with:
CMC: WE-CMB L / 744 824 220 /
L = 20 mH / I_R = 2 A
C_x: 890 324 023 025 /
C = 0.15 µF / U_R = 275 V_AC
C_y: 885 352 213 015 1/
C = 2200 pF / U_R = 250 V_AC

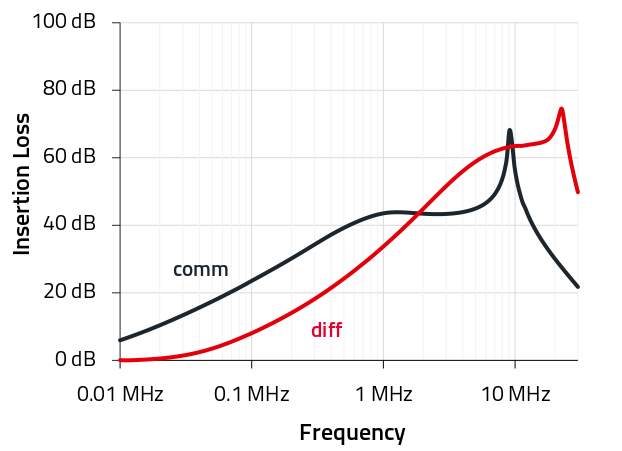

Example 3 measured with:
CMC: WE-LF / 744 662 200 2 /
L = 2.2 mH / I_R = 2 A
C_x: 890 324 023 025 /
C = 0.15 µF / U_R = 275 V_AC
C_y: 885 352 213 015 1/
C = 2200 pF / U_R = 250 V_AC

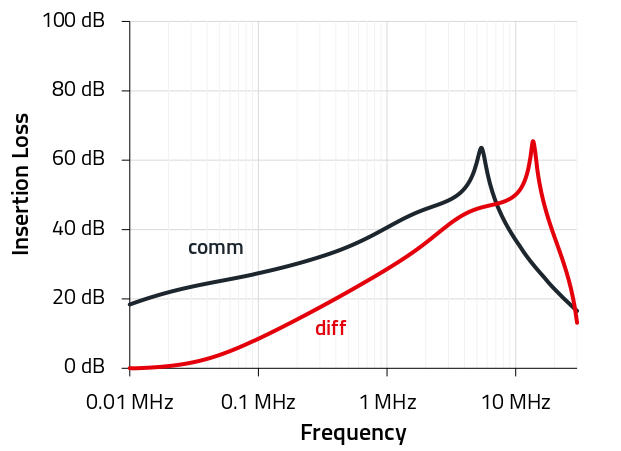

Example 4 measured with:
CMC: WE-CMBNC M / 744 803 050 9 /
L = 9 mH / I_R = 5 A
C_x: 890 324 023 025 /
C = 0.15 µF / U_R = 275 V_AC
C_y: 885 352 213 015 1/
C = 2200 pF / U_R = 250 V_AC
