WE-LHMD SMT High Current Inductor

Size	Dimensions	L (mm)	W (mm)	H (mm)

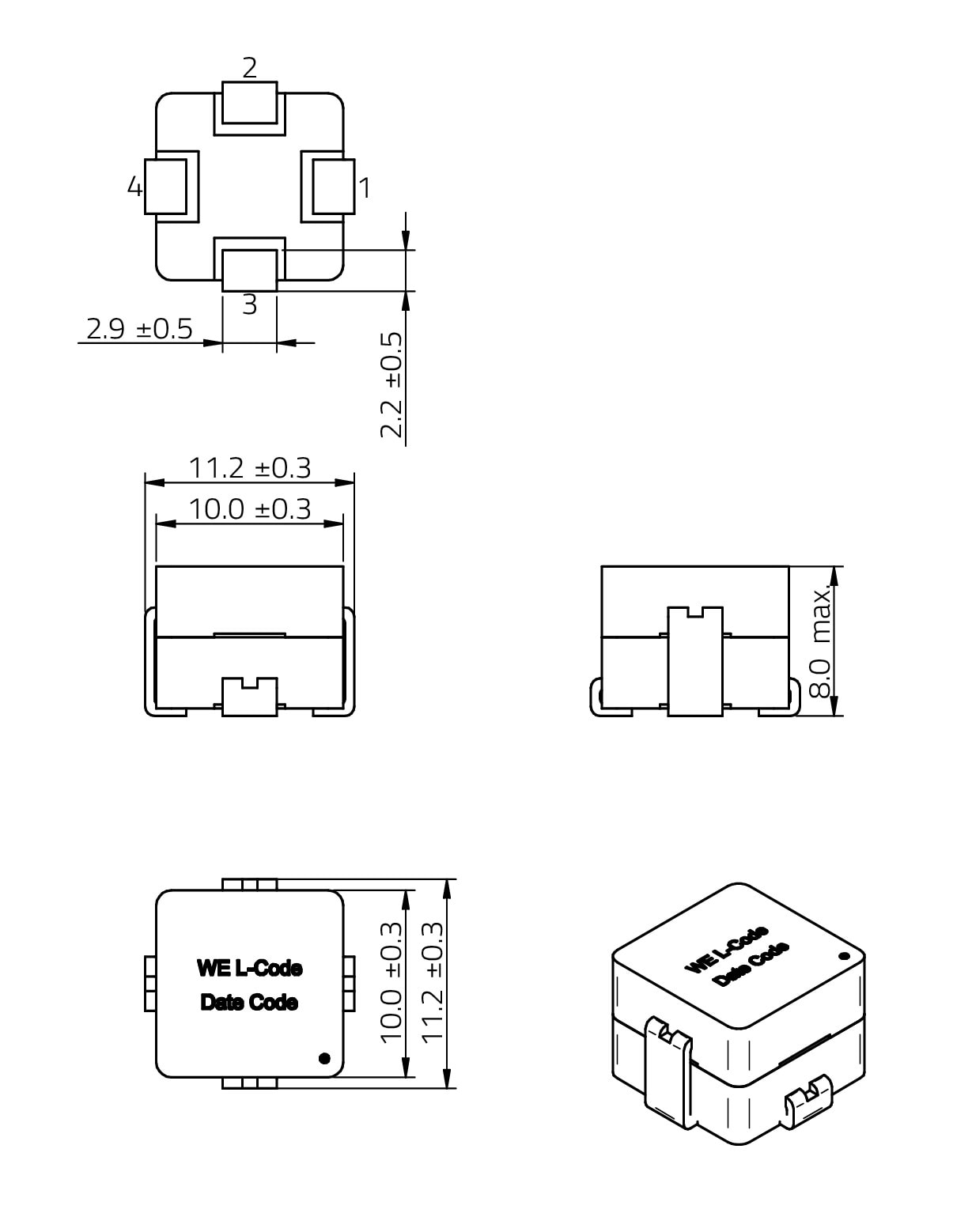

1008		10	11.2	8

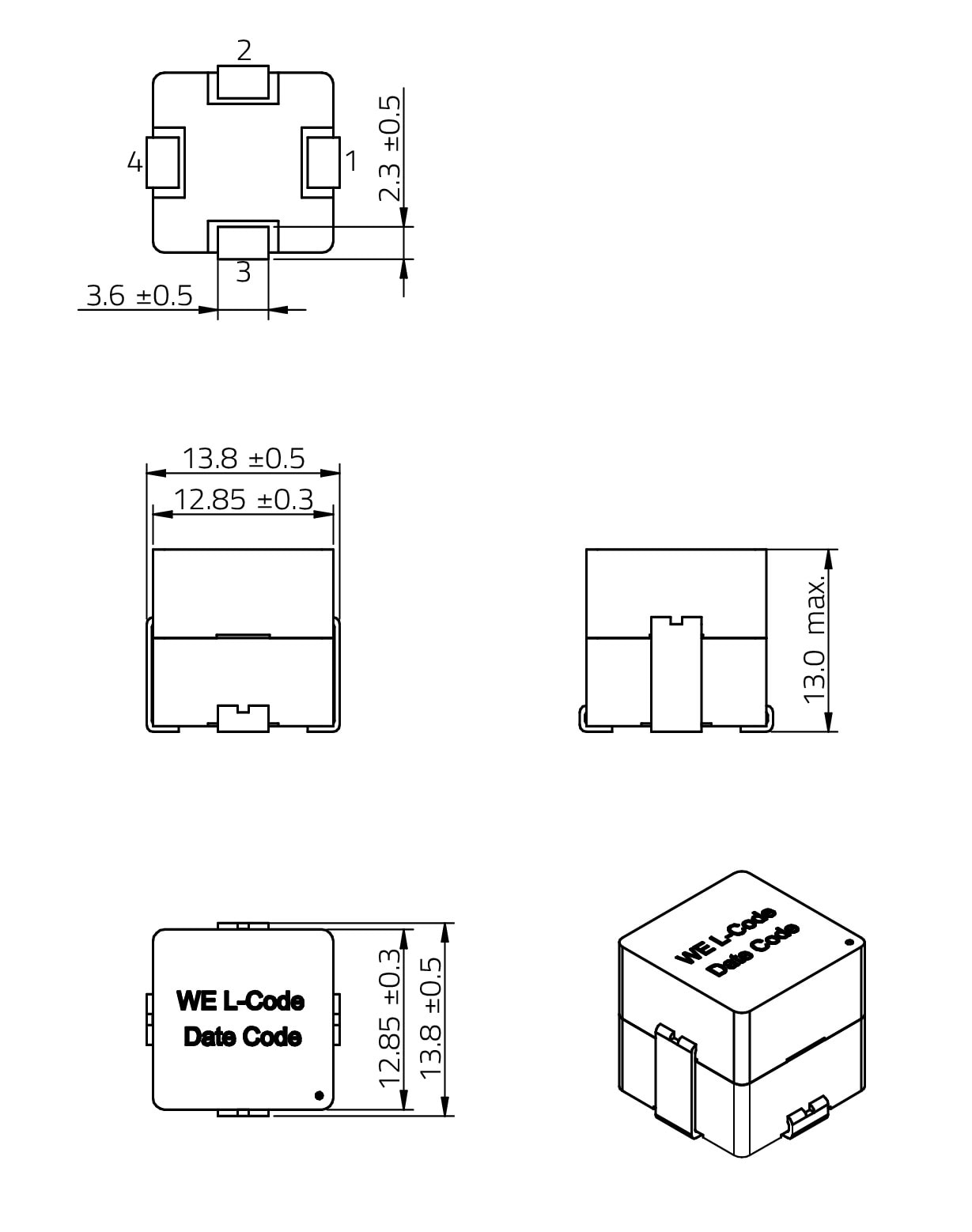

1213		12.85	13.8	13

LTSpice files

LT
LTSpice_WE-LHMD (rev22b).zip
|
2.1 KB

Characteristics

2-in-1 design with low magnetic coupling
Low footprint area design
Low R_DC
High saturation currents
Operating temperature: -40 °C to +125 °C

Applications

Class D audio amplifiers
Digital amplifiers

Application Notes

ANP138 Custom Rated Current Calculator
PDF

Products

All

1008

1213

	Order Code	Datasheet	Simulation	Downloads	Status	L (µH)	Tol. L	I_R (A)	I_SAT (A)	R_DC (mΩ)	Samples
	74434301008082	SPEC		9 files EDA models: Components ZIP ALT Altium_WE-LHMD (rev22c).IntLib \| 152.5 KB ZUK CadStar_WE-LHMD (rev19a).zip \| 5.1 KB CDS Cadence_WE-LHMD (rev24a).zip \| 724.9 KB EAG Eagle_WE-LHMD (rev24a).lbr \| 20.6 KB CAD files ZIP 3D 3D_WE-LHMD-1008_74434xxxxxx_3D (rev1).pdf \| 163.3 KB IGS Download_IGS_1008 (rev1).igs \| 1.8 MB STP Download_STP_1008 (rev1).stp \| 555.9 KB Electric models ZIP PSP PSpice_WE-LHMD (rev22b).zip \| 4.5 KB SCS Spectre_WE-LHMD (rev22a).mod \| 3.1 KB Download all 9 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	8.2	±15%	3.5	20	32
	74434301213082	SPEC		9 files EDA models: Components ZIP ALT Altium_WE-LHMD (rev22c).IntLib \| 152.5 KB ZUK CadStar_WE-LHMD (rev19a).zip \| 5.1 KB CDS Cadence_WE-LHMD (rev24a).zip \| 724.9 KB EAG Eagle_WE-LHMD (rev24a).lbr \| 20.6 KB CAD files ZIP 3D 3D_WE-LHMD-1213_74434xxxxx_3D (rev1).pdf \| 160.1 KB IGS Download_IGS_1213 (rev1).igs \| 1.9 MB STP Download_STP_1213 (rev1).stp \| 560.4 KB Electric models ZIP PSP PSpice_WE-LHMD (rev22b).zip \| 4.5 KB SCS Spectre_WE-LHMD (rev22a).mod \| 3.1 KB Download all 9 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	8.2	±15%	7	25	16
	74434301008100	SPEC		9 files EDA models: Components ZIP ALT Altium_WE-LHMD (rev22c).IntLib \| 152.5 KB ZUK CadStar_WE-LHMD (rev19a).zip \| 5.1 KB CDS Cadence_WE-LHMD (rev24a).zip \| 724.9 KB EAG Eagle_WE-LHMD (rev24a).lbr \| 20.6 KB CAD files ZIP 3D 3D_WE-LHMD-1008_74434xxxxxx_3D (rev1).pdf \| 163.3 KB IGS Download_IGS_1008 (rev1).igs \| 1.8 MB STP Download_STP_1008 (rev1).stp \| 555.9 KB Electric models ZIP PSP PSpice_WE-LHMD (rev22b).zip \| 4.5 KB SCS Spectre_WE-LHMD (rev22a).mod \| 3.1 KB Download all 9 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	10	±15%	3.2	18	45
	74434301213100	SPEC		9 files EDA models: Components ZIP ALT Altium_WE-LHMD (rev22c).IntLib \| 152.5 KB ZUK CadStar_WE-LHMD (rev19a).zip \| 5.1 KB CDS Cadence_WE-LHMD (rev24a).zip \| 724.9 KB EAG Eagle_WE-LHMD (rev24a).lbr \| 20.6 KB CAD files ZIP 3D 3D_WE-LHMD-1213_74434xxxxx_3D (rev1).pdf \| 160.1 KB IGS Download_IGS_1213 (rev1).igs \| 1.9 MB STP Download_STP_1213 (rev1).stp \| 560.4 KB Electric models ZIP PSP PSpice_WE-LHMD (rev22b).zip \| 4.5 KB SCS Spectre_WE-LHMD (rev22a).mod \| 3.1 KB Download all 9 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	10	±15%	6	21	20
	74434301008150	SPEC		9 files EDA models: Components ZIP ALT Altium_WE-LHMD (rev22c).IntLib \| 152.5 KB ZUK CadStar_WE-LHMD (rev19a).zip \| 5.1 KB CDS Cadence_WE-LHMD (rev24a).zip \| 724.9 KB EAG Eagle_WE-LHMD (rev24a).lbr \| 20.6 KB CAD files ZIP 3D 3D_WE-LHMD-1008_74434xxxxxx_3D (rev1).pdf \| 163.3 KB IGS Download_IGS_1008 (rev1).igs \| 1.8 MB STP Download_STP_1008 (rev1).stp \| 555.9 KB Electric models ZIP PSP PSpice_WE-LHMD (rev22b).zip \| 4.5 KB SCS Spectre_WE-LHMD (rev22a).mod \| 3.1 KB Download all 9 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	15	±15%	2.5	15	65
	74434301213150	SPEC		9 files EDA models: Components ZIP ALT Altium_WE-LHMD (rev22c).IntLib \| 152.5 KB ZUK CadStar_WE-LHMD (rev19a).zip \| 5.1 KB CDS Cadence_WE-LHMD (rev24a).zip \| 724.9 KB EAG Eagle_WE-LHMD (rev24a).lbr \| 20.6 KB CAD files ZIP 3D 3D_WE-LHMD-1213_74434xxxxx_3D (rev1).pdf \| 160.1 KB IGS Download_IGS_1213 (rev1).igs \| 1.9 MB STP Download_STP_1213 (rev1).stp \| 560.4 KB Electric models ZIP PSP PSpice_WE-LHMD (rev22b).zip \| 4.5 KB SCS Spectre_WE-LHMD (rev22a).mod \| 3.1 KB Download all 9 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	15	±15%	4.5	16	34
	74434301008220	SPEC		9 files EDA models: Components ZIP ALT Altium_WE-LHMD (rev22c).IntLib \| 152.5 KB ZUK CadStar_WE-LHMD (rev19a).zip \| 5.1 KB CDS Cadence_WE-LHMD (rev24a).zip \| 724.9 KB EAG Eagle_WE-LHMD (rev24a).lbr \| 20.6 KB CAD files ZIP 3D 3D_WE-LHMD-1008_74434xxxxxx_3D (rev1).pdf \| 163.3 KB IGS Download_IGS_1008 (rev1).igs \| 1.8 MB STP Download_STP_1008 (rev1).stp \| 555.9 KB Electric models ZIP PSP PSpice_WE-LHMD (rev22b).zip \| 4.5 KB SCS Spectre_WE-LHMD (rev22a).mod \| 3.1 KB Download all 9 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	22	±15%	2	13	104
	74434301213220	SPEC		9 files EDA models: Components ZIP ALT Altium_WE-LHMD (rev22c).IntLib \| 152.5 KB ZUK CadStar_WE-LHMD (rev19a).zip \| 5.1 KB CDS Cadence_WE-LHMD (rev24a).zip \| 724.9 KB EAG Eagle_WE-LHMD (rev24a).lbr \| 20.6 KB CAD files ZIP 3D 3D_WE-LHMD-1213_74434xxxxx_3D (rev1).pdf \| 160.1 KB IGS Download_IGS_1213 (rev1).igs \| 1.9 MB STP Download_STP_1213 (rev1).stp \| 560.4 KB Electric models ZIP PSP PSpice_WE-LHMD (rev22b).zip \| 4.5 KB SCS Spectre_WE-LHMD (rev22a).mod \| 3.1 KB Download all 9 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	22	±15%	4	15	50
